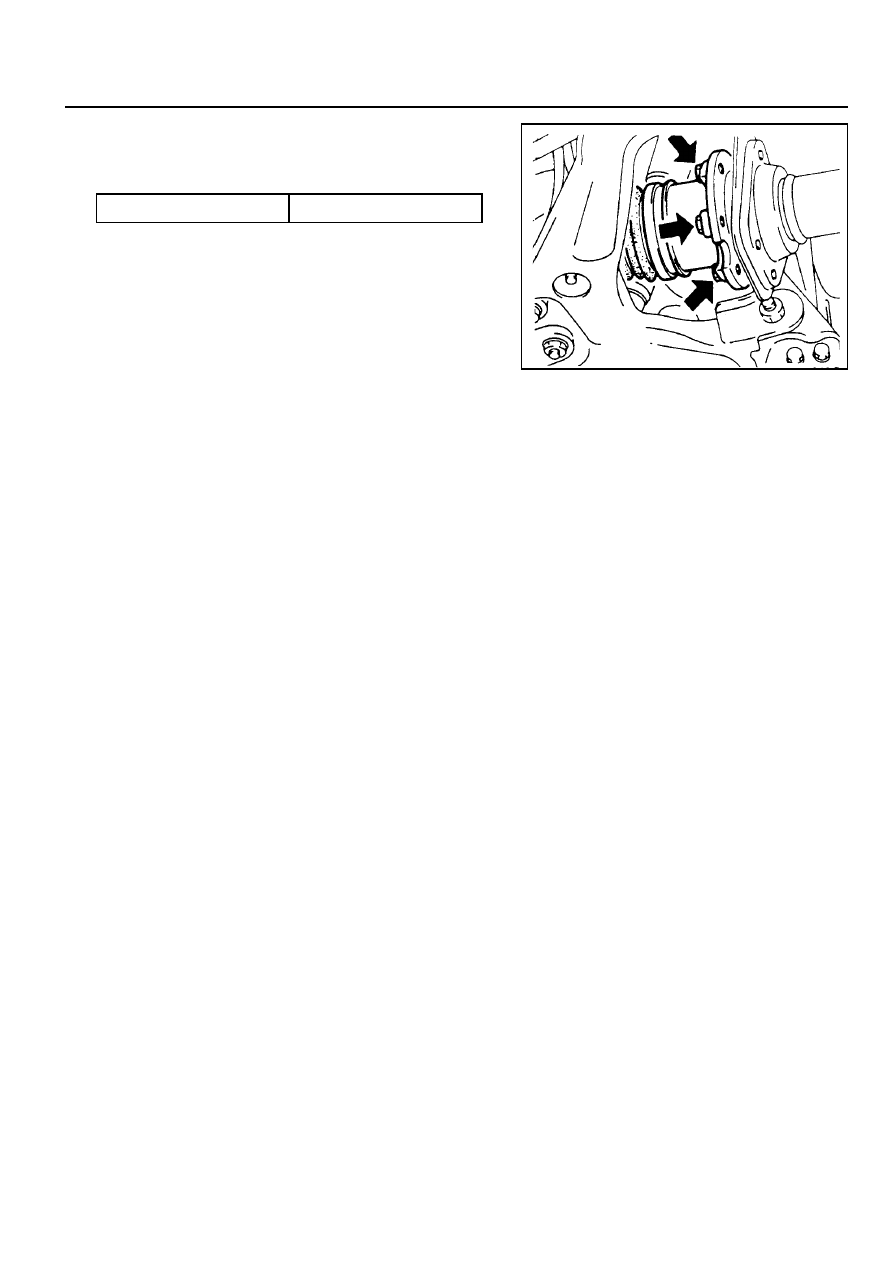

FRONT DRIVE AXLE  3A-13

14. Remove the drive shaft mounting bolts and remove the

drive shaft.

Installation Notice

Tightening  Torque

45 - 60 Nm

15. Installation should follow the removal precedure in the

reverse order.

Observe the tighening torque and sequence.

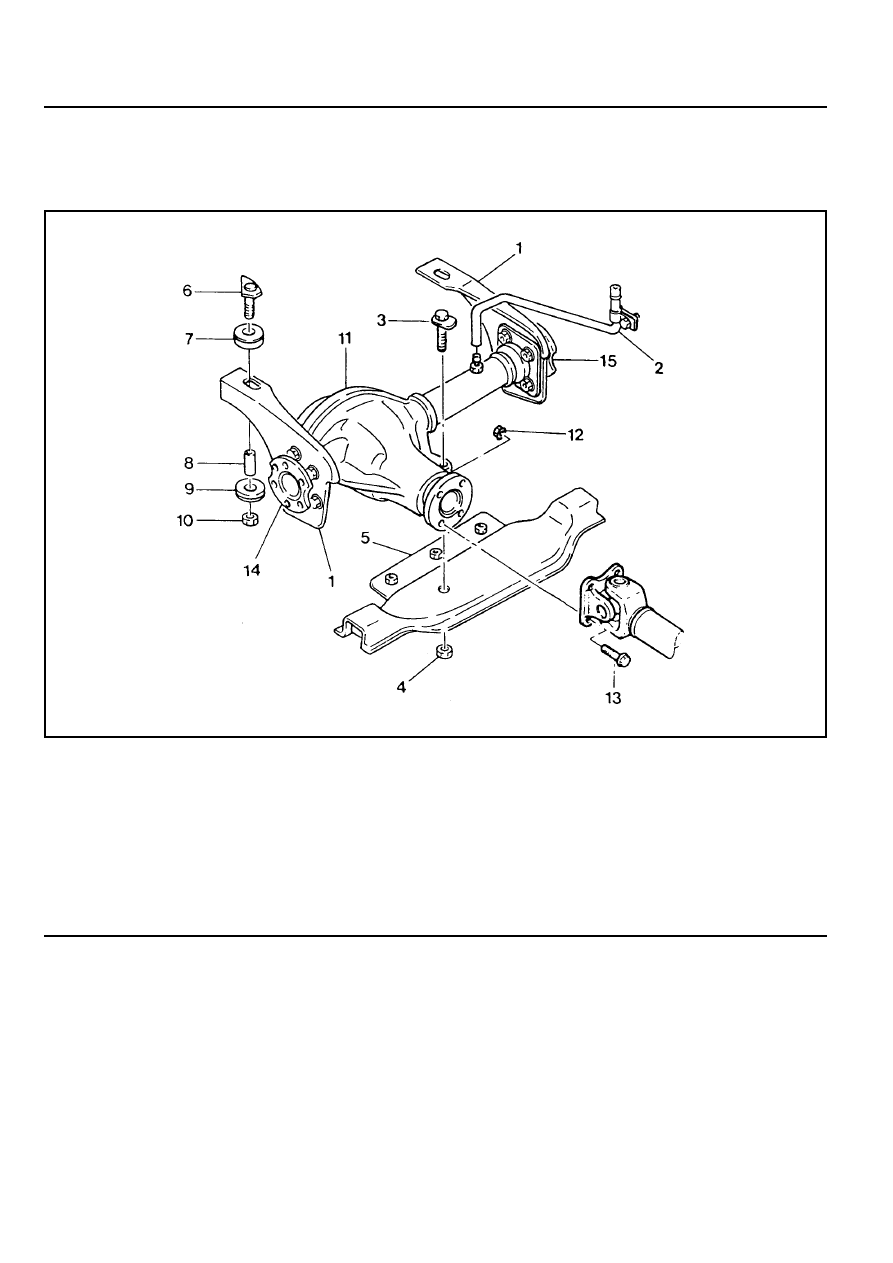

3A-14  FRONT DRIVE AXLE

1 Axle Mounting Bracket
2 Breather Hose
3 Bolt (Rear)
4 Nut ..................................................... 95-142 Nm
5 Cross Member
6 Bolt (Front)
7 Bushing
8 Spacer

FRONT AXLE

9 Bushing

10 Nut ..................................................... 95-142 Nm

11 Front Axle Assembly

12 Nut ....................................................... 70-80 Nm
13 Bolt
14 Inner Axle Shaft (LH)
15 Inner Axle Shaft (RH)

Preceding Work : Removal of the front axle drive shaft

 Removla of the steering gear box

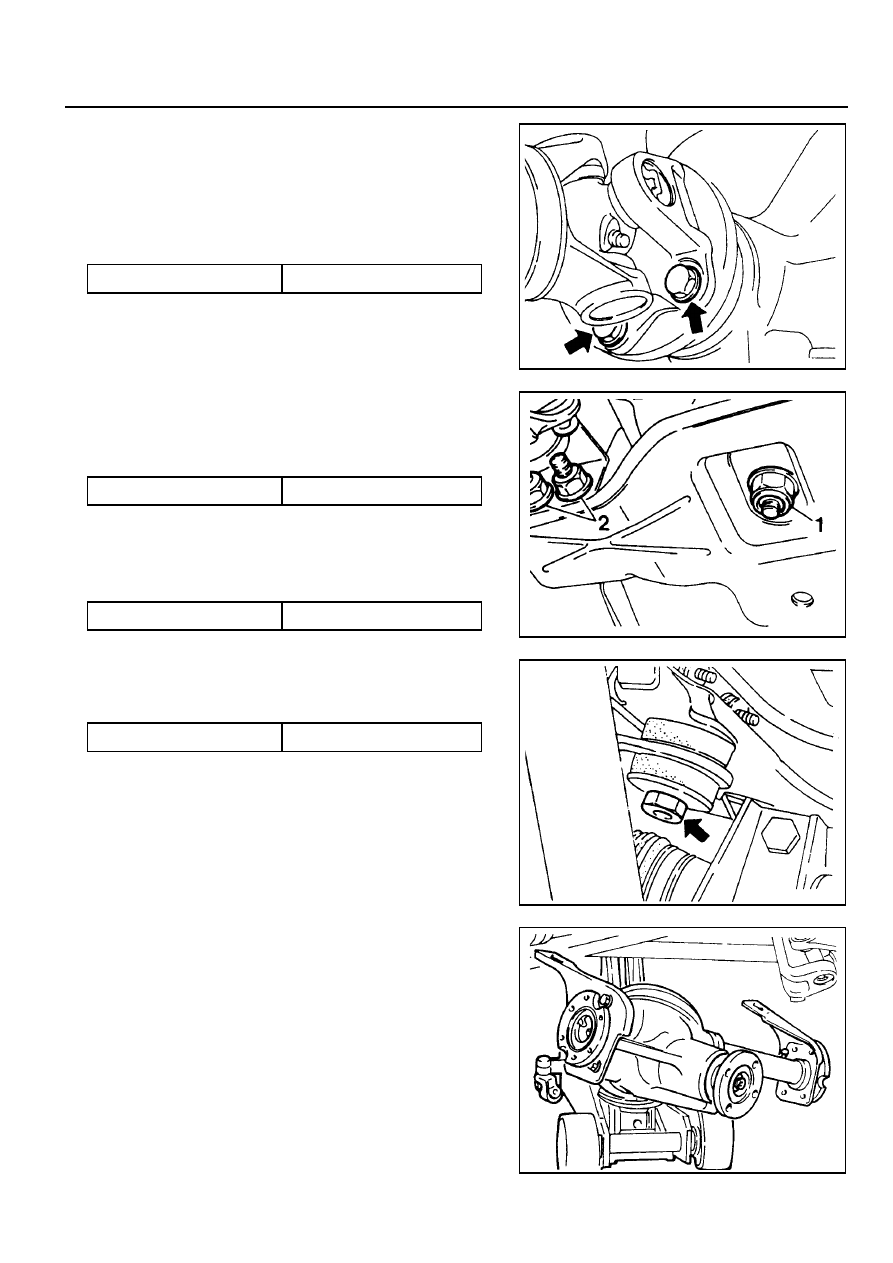

FRONT DRIVE AXLE  3A-15

Removal & Installation Procedure

1. Remove the propeller shaft from the front axle input shaft.

Notice

Before removal, place the alignment marks.

Installation Notice

2. Remove the breather hose.

3. Remove the axle housing mounting nuts (1) from the cross

member.

Installation Notice

Tightening Torque

70 - 80 Nm

4. Remove the cross member mounting nuts (2) from the frame

and remove the cross member.

Installation Notice

Tightening Torque

95 - 142 Nm

5. Support the axle housing on a suitable jack, Remove the

axle housing mounting bracket nuts.

Installation Notice

Tightening Torque

62 - 93 Nm

Tightening Torque

95 - 142 Nm

6. Lowering the jack carefully, remove the axle housing

assembly.

7. Installation should follow the removal precedure in the

reverse order.

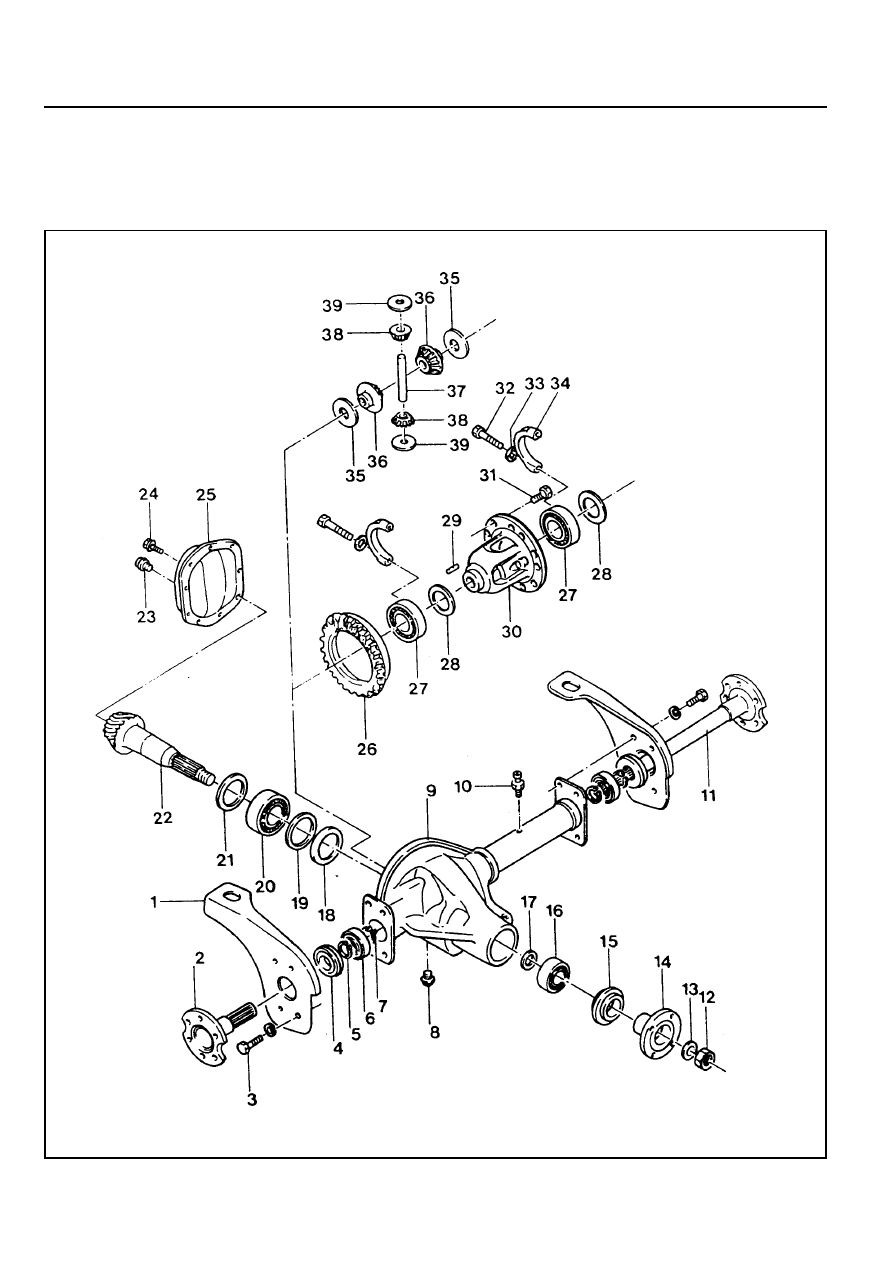

3A-16  FRONT DRIVE AXLE

UNIT REPAIR

AXLE HOUSING

Preceding Work : Removal of the axle housing
