FRONT DRIVE AXLE  3A-5

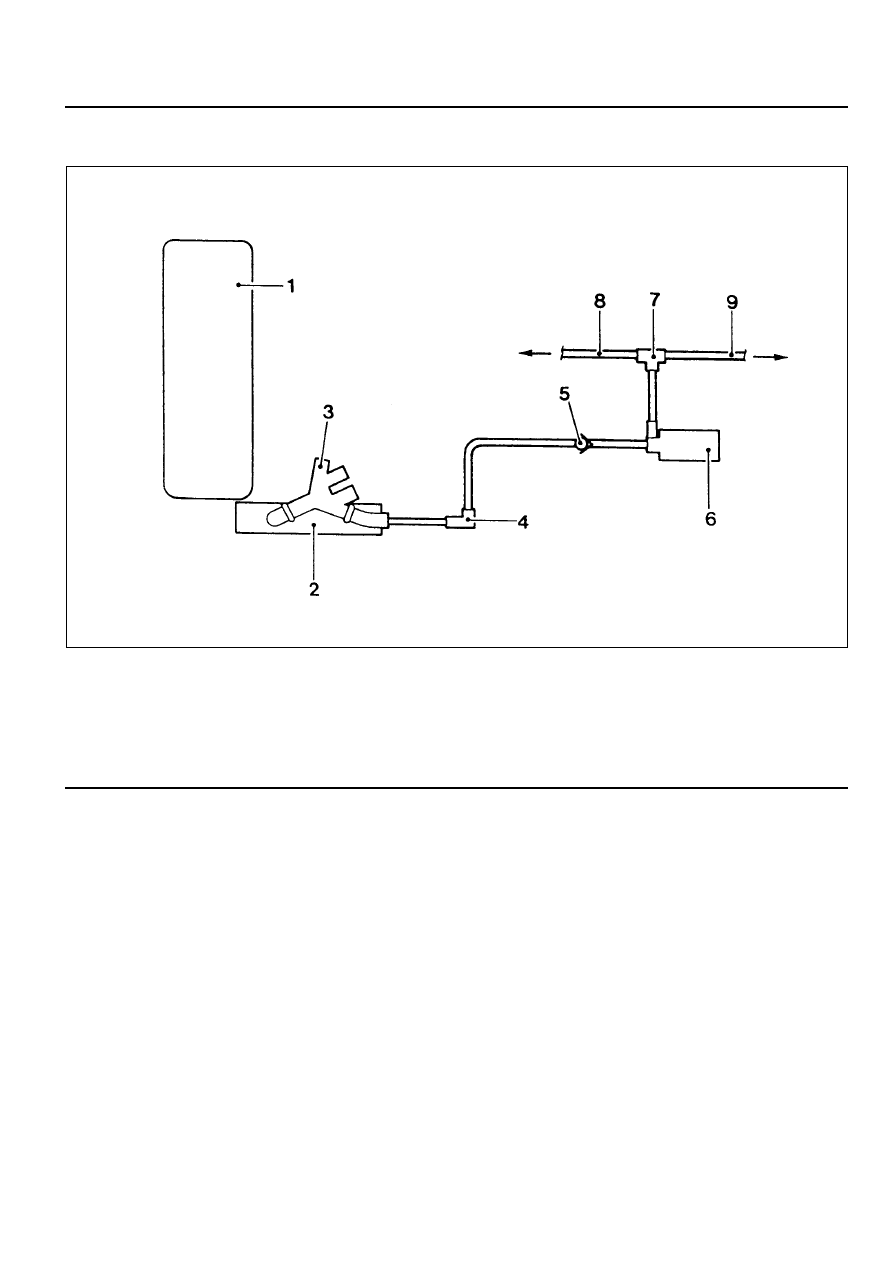

VACUUM CIRCUIT

1 Engine
2 Vacuum Pump
3 3-way Connector
4 T-connector
5 Check Valve

6 Auto locking Hub Solenoid Valve
7 T-connector Hose
8 Hub Hose (left)
9 Hub Hose (right)

3A-6  FRONT DRIVE AXLE

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

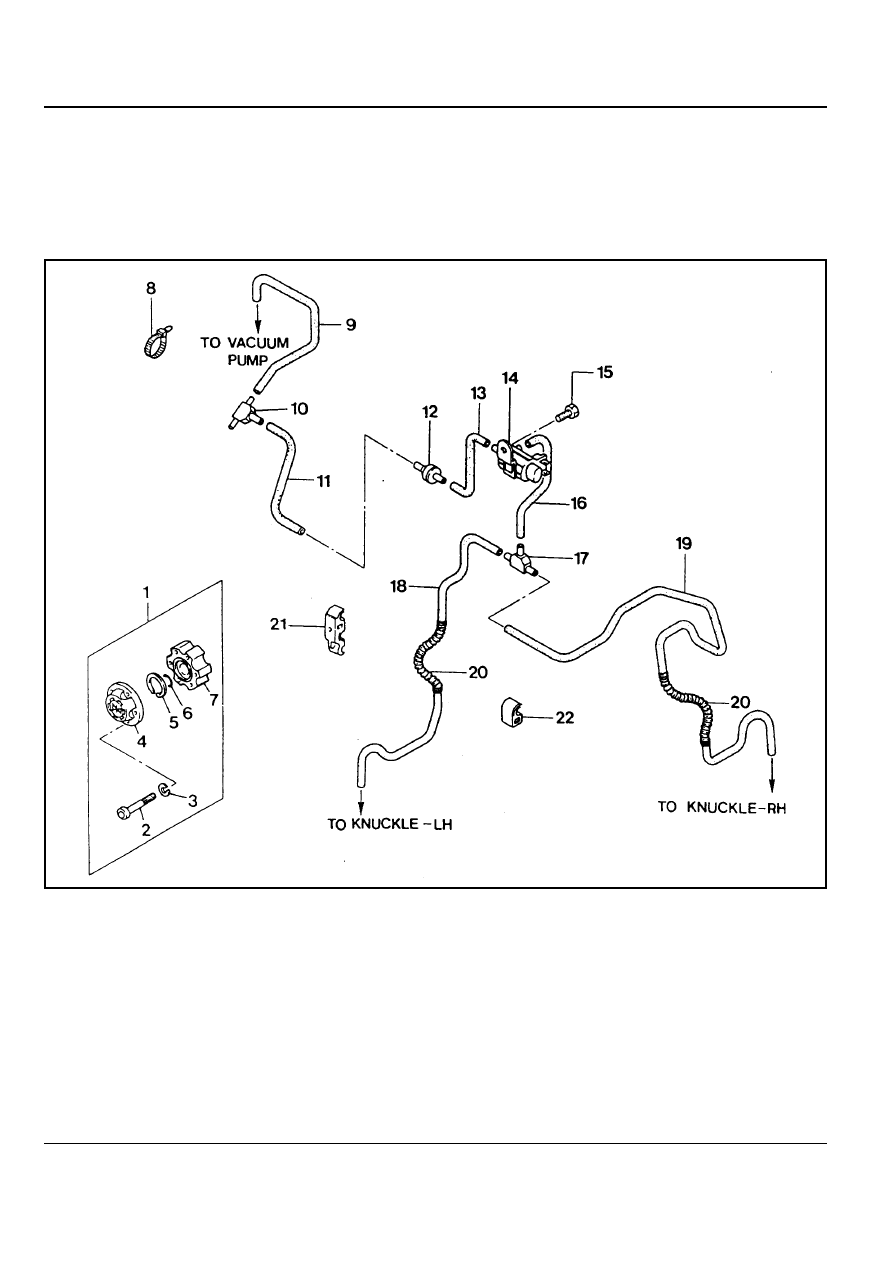

VACUUM LINE

1 Vacuum Auto-locking Hub Assembly
2 Bolt ...................................................... 50-60 Nm
3 Cam Washer
4 Auto-locking Hub Cap
5 Retainer Ring
6 Shim
7 Locking Hub
8 Band
9 Hose (L : 400)

10 T-connector

11 Hose (L : 250, white)

12 Check Valve
13 Hose (L :100, green)
14 Auto Locking Hub Solenoid Valve
15 Bolt
16 Hose (L :100, green)
17 T-connector
18 Hose (L : 720, yellow)
19 Hose (L :2, 360 , red)
20 Corrugated Tube
21 Clip
22 Clip

FRONT DRIVE AXLE  3A-7

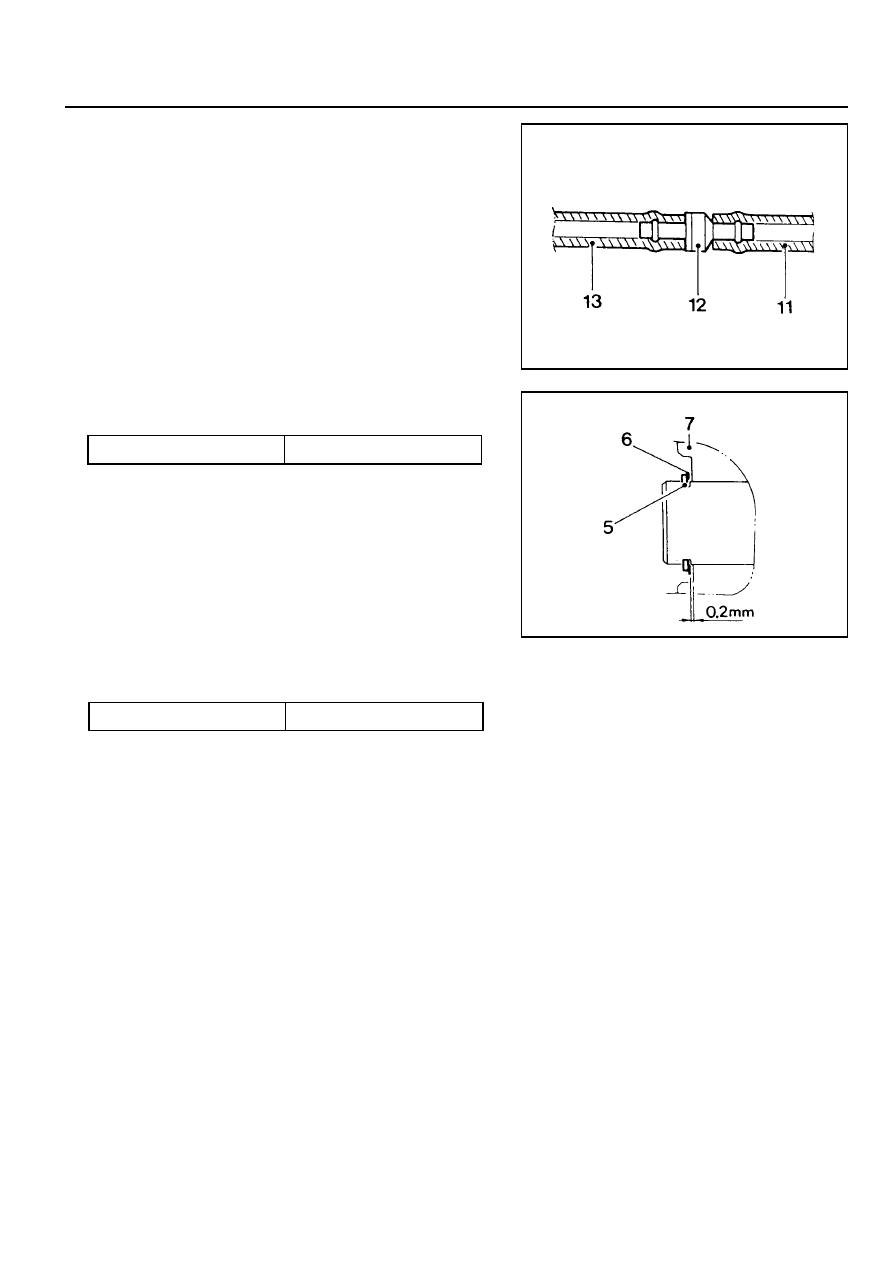

Removal & Installation Procedure

1. Be careful not to change the valve when connecting the

check valve and each hose.

2. Adjust the clearance between the retainer ring (5) and

locking hub (7) using the shim(6).

Notice

Shim thickness : 0.1, 0.2, 0.3, 0.5, 1.0 mm

Normal

Max. 0.2 mm

3. Tighten the auto locking hub cap bolt to the specified torque

and order.

Tightening  Torque

50 - 60 Nm

3A-8  FRONT DRIVE AXLE

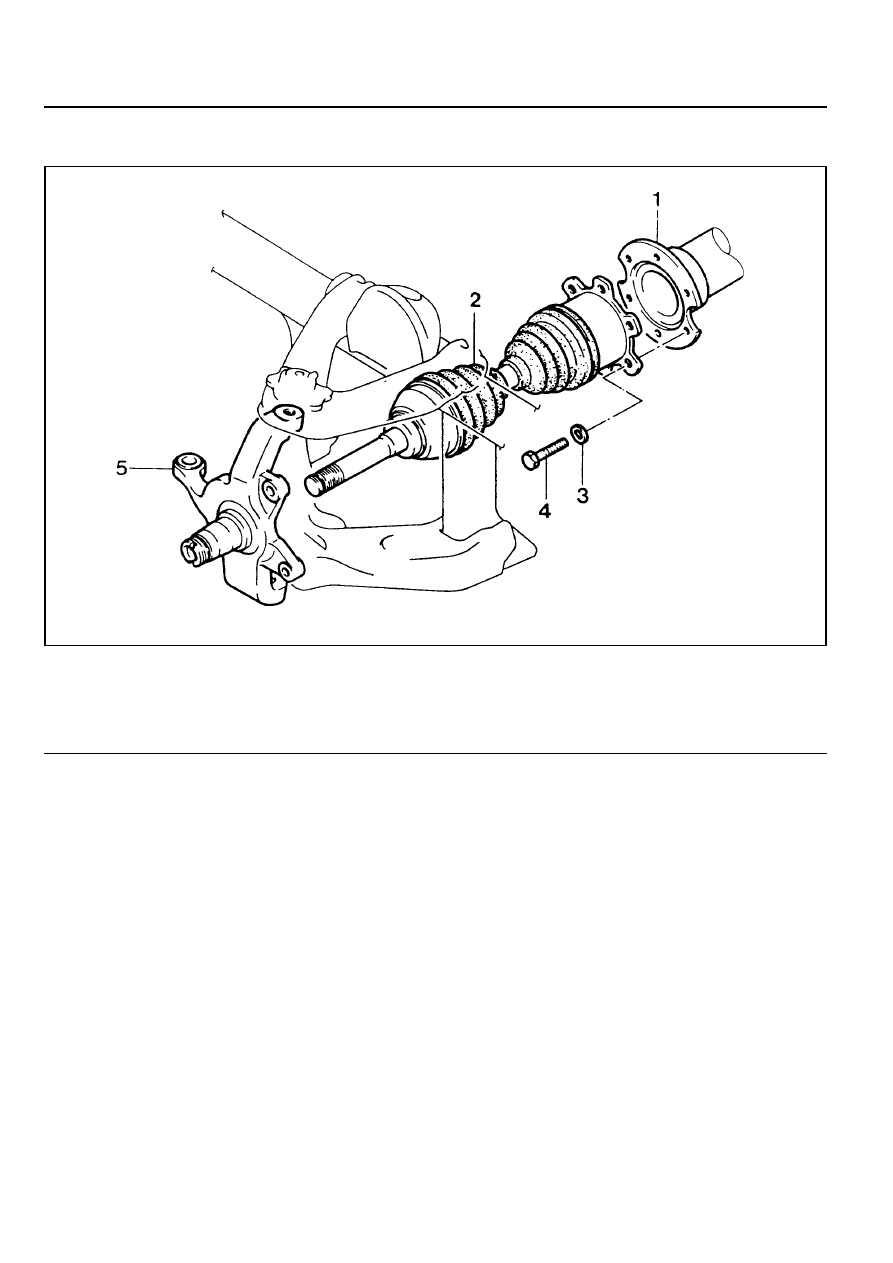

STEERING KNUCKLE AND DRIVE SHAFT

1 Front Axle Inner Shaft
2 Front Axle Drive Shaft
3 Spring Washer

4 Bolt ...................................................... 45-60 Nm
5 Steering Knuckle
