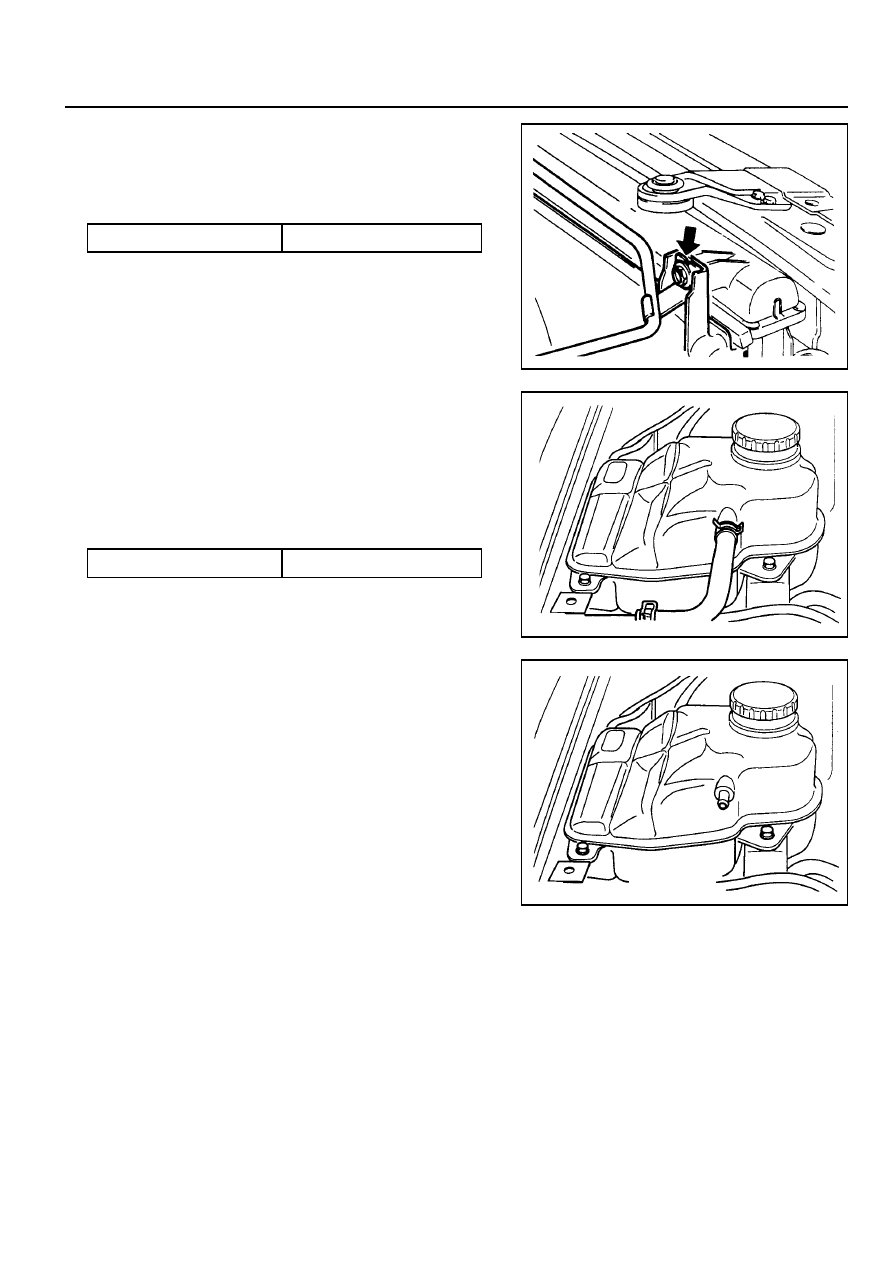

OM600 ENGINE COOLING  1D3-15

Removal & Installation Procedure

Cooling Fan Shroud

1. Remove the radiator deaeration hose and tube.

Installation Notice

Tightening  Torque

3 - 7 Nm

Tightening torque 3-7Nm

2. Check the shroud.

3. Installation should follow the removal procedure in the

reverse order.

Coolant Sub-Tank

1. Drain the coolant from radiator.

2. Remove the each hose.

3. Loosen the mounting bolt of sub-tank and remove the

coolant sub-tank.

Installation Notice

4. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

3 - 7 Nm

1D3-16  OM600 ENGINE COOLING

THERMOSTAT

1 Thermostat
2 Seal ....................................................... Replace
3 Thermostat Housing Cover

4 Coolant Hose
5 Bolt ............................................................ 10Nm

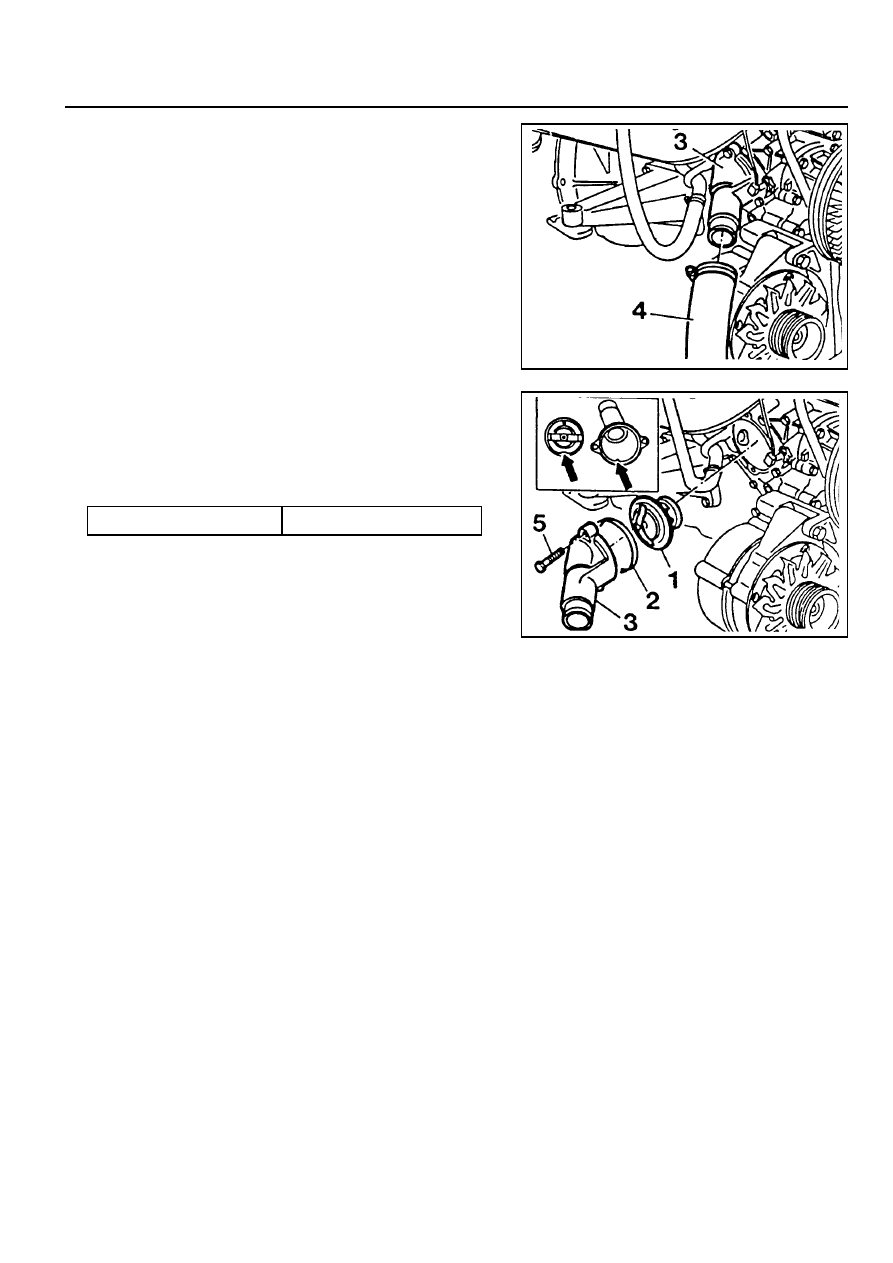

OM600 ENGINE COOLING  1D3-17

Removal & Installation Procedure

1. Drain the coolant completely.

2. Disconnect the coolant hose(4) from the thermostat housing

cover(3).

3. Remove the bolts(5) and then remove the thermostat(1)

and housing cover(3)

Installation Notice

Align the groove on thermostat and the housing cover
rib(arrow).

Tightening Torque

10 Nm

Notice

Replace the seal(2).

4. Installation should follow the removal procedure in the

reverse order.

SECTION 1E3

OM600  ENGINE  ELECTRICAL

Specifications . . . . . . . . . . . . . . . . . . . . . . .  1E3-1

General Specifications . . . . . . . . . . . . . . . . .  1E3-1

Maintenance and Repair . . . . . . . . . . . . . .  1E3-2

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  1E3-2

TABLE OF CONTENTS

Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.

Application

Alternator

Starter

Glow Plug

Description

12V - 75A

12V - 2.2kW

11.5V

SPECIFICATIONS

GENERAL SPECIFICATIONS

Glow Plug . . . . . . . . . . . . . . . . . . . . . . . . . . .  1E3-2

Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . .  1E3-6

Starter Motor. . . . . . . . . . . . . . . . . . . . . . . . .  1E3-8
