OM600 ENGINE COOLING  1D3-11

Removal & Installation Procedure

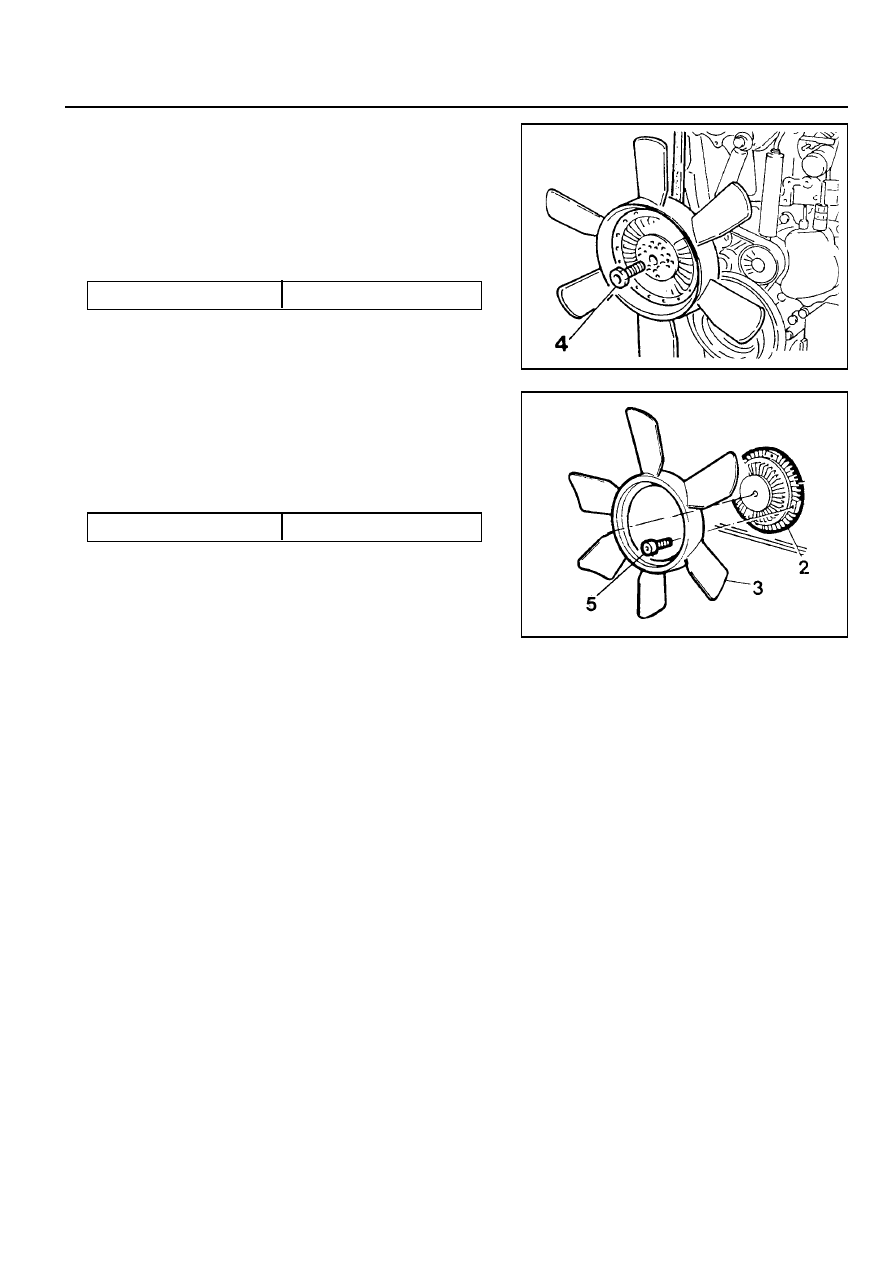

1. Hold the bolt pulley with counter holder and remove the

bolt(4).

Counter Holder 603 589 00 40 00

Installation Notice

Tightening Torque

45 Nm

2. Remove the socket bolt(5) and then remove the cooling

fan(3) and fan clutch(2).

Notice

Keep the fan clutch vertically.

Installation Notice

Tightening Torque

10 Nm

3. Installation should follow the removal procedure in the

reverse order.

1D3-12  OM600 ENGINE COOLING

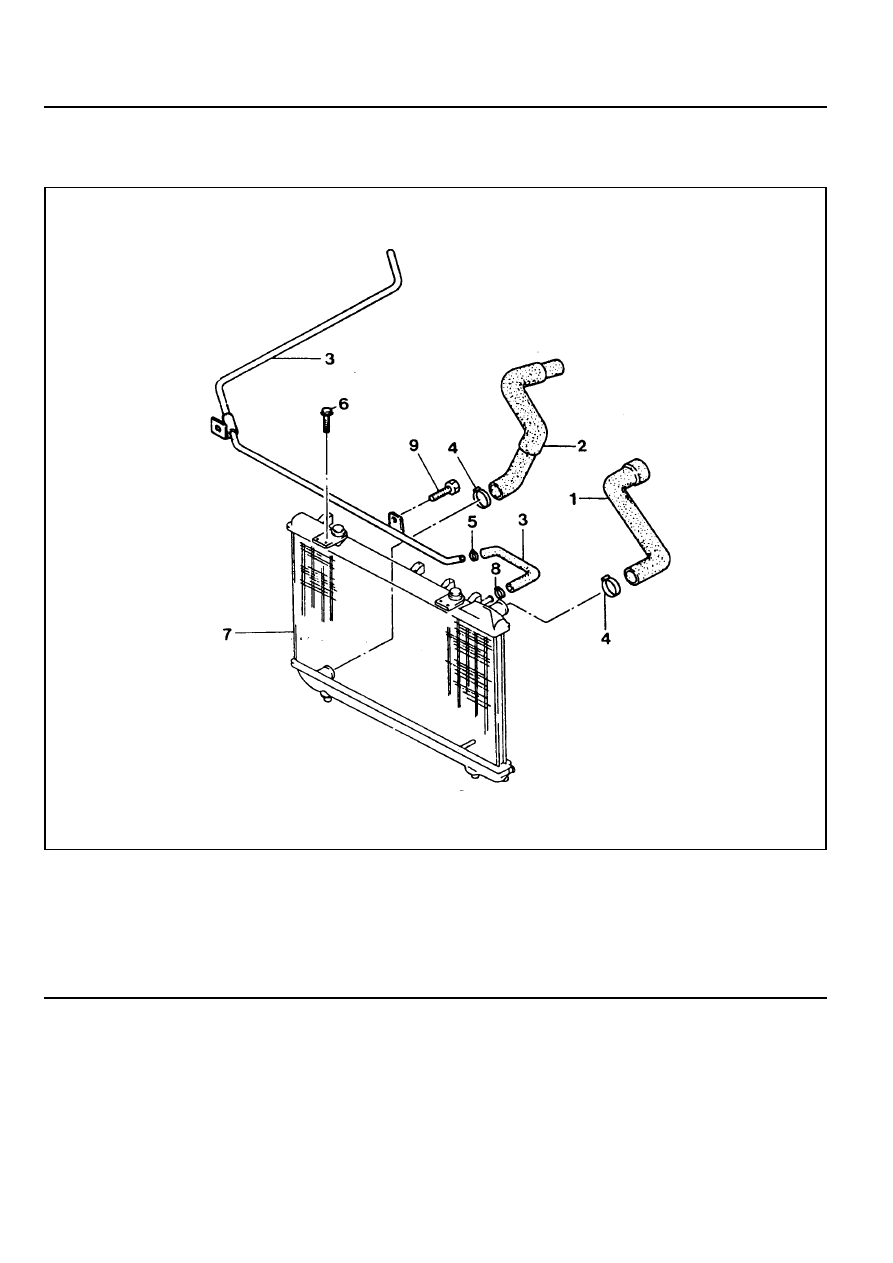

RADIATOR

Preceding : Removal of cooling fan shroud

1 Radiator Inlet Hose ............... OM662LA : 220mm

............................................. OM661LA : 321mm

2 Radiator outlet Hose
3 Radiator Deaeration Tube & Hose
4 Clamp

5 Spring Clamp
6 Bolt .......................................................... 3-7 Nm
7 Radiator
8 Spring Clamp
9 Bolt ........................................................... 3-7Nm

OM600 ENGINE COOLING  1D3-13

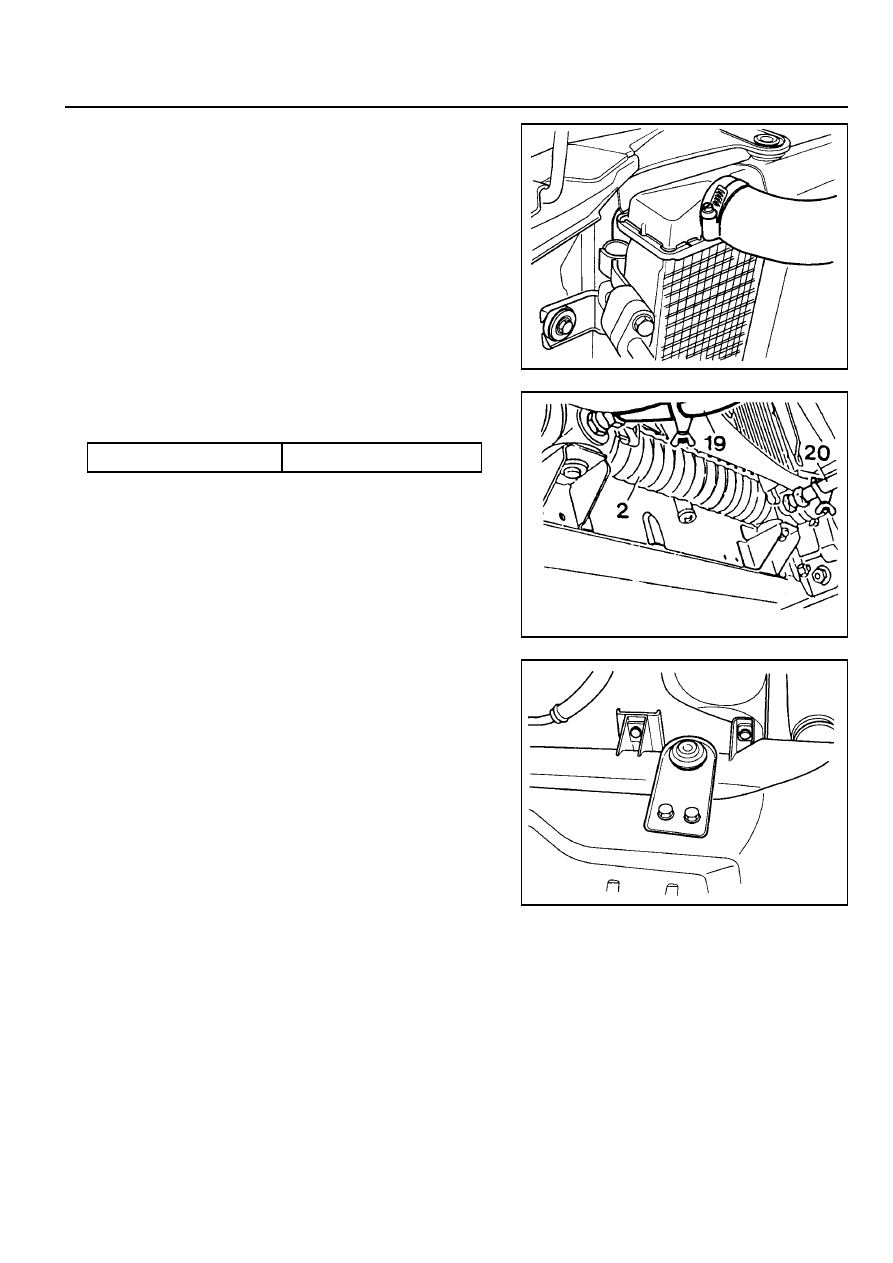

Removal & Installation Procedure

1. Drain coolant from the radiator.

2. Remove the coolant thermoswich connector from radiator.

3. Remove the each coolant hose.

4. Remove the auto T/M oil cooling hose and cooling line.

Installation Notice

5. Loosen the radiator upper mounting bolt and remove the

mounting stopper and insulator.

6. Remove the radiator.

7. Check the radiator pin for crack, leakage and bending and

replace it if necessany.

8. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

Hose : 29 - 40Nm

1D3-14  OM600 ENGINE COOLING

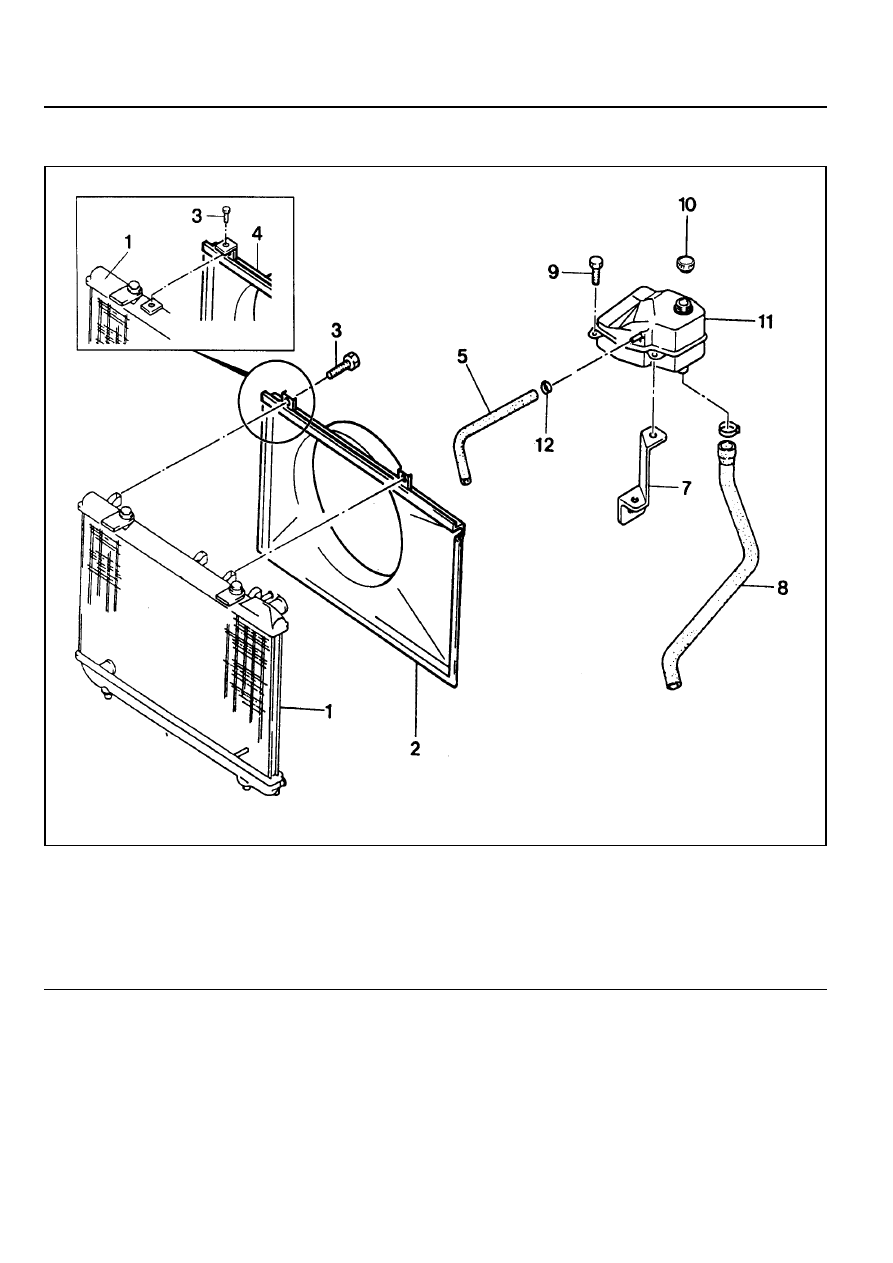

COOLING SUB-SYSTEM

1 Radiator
2 Cooling Fan Shroud
3 Bolt ..........................................................  3-7Nm
4 Cooling Fan Shroud
5 Radiator Deaieration Hose

7 Mounting Bracket
8 Make-up Cooling Hose
9 Bolt ........................................................... 3-7Nm

10 Cooling Reservoir-tank Cap

11 Cooling Reservoir-tank
