OM600 ENGINE COOLING  1D3-7

Removal & Installation Procedure

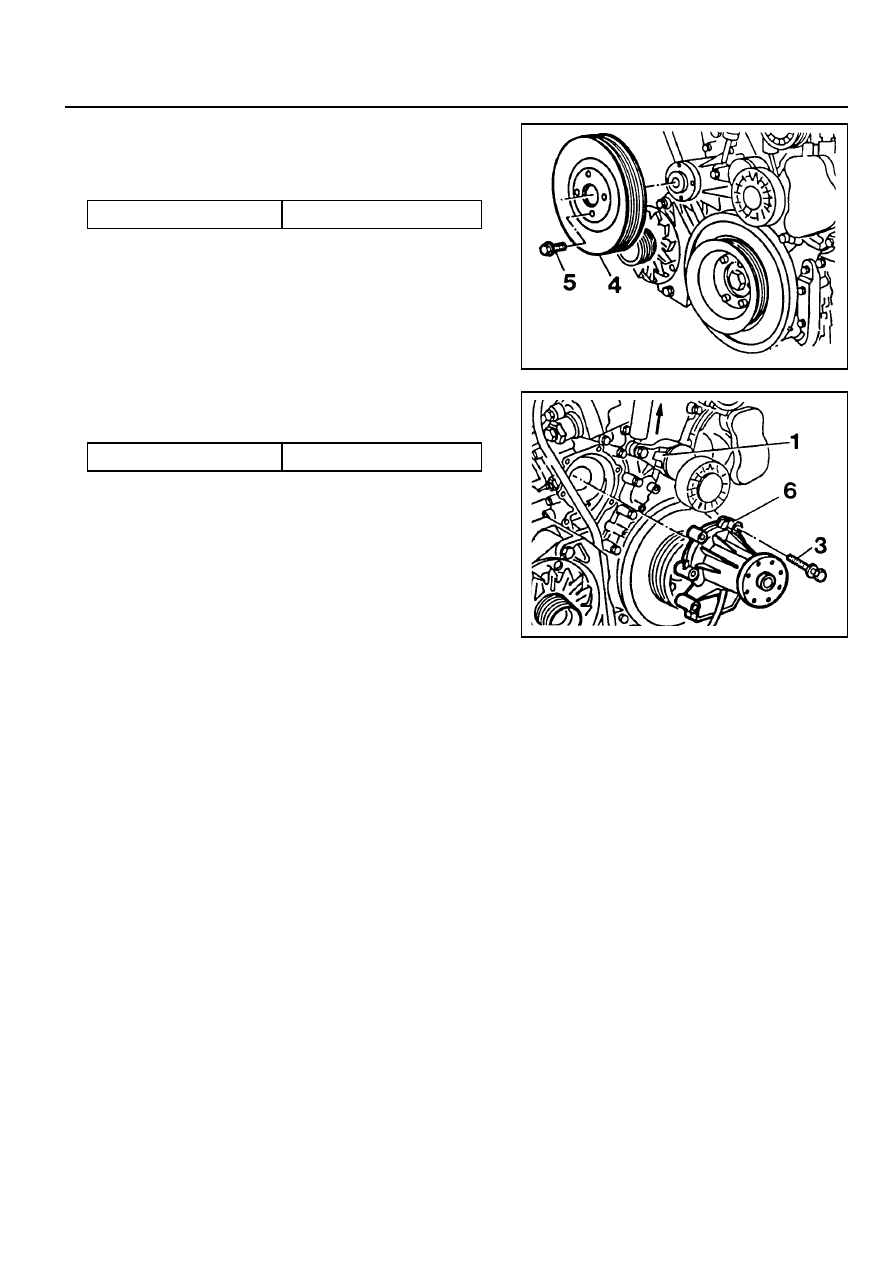

1. Loose the bolts(5) and remove the pulley (4).

Installation Notice

Tightening Torque

10 Nm

2. Loose the bolts (3).

Installation Notice

Tightening Torque

10 Nm

3. Pull the tensioning lever(1) to the arrow direction.

4. Remove the coolant pump(6).

Notice

Clean gasket residues on the sealing surface of coolant
pump and replace the gasket.

5. Installation should follow the removal procedure in the

reverse order.

1D3-8  OM600 ENGINE COOLING

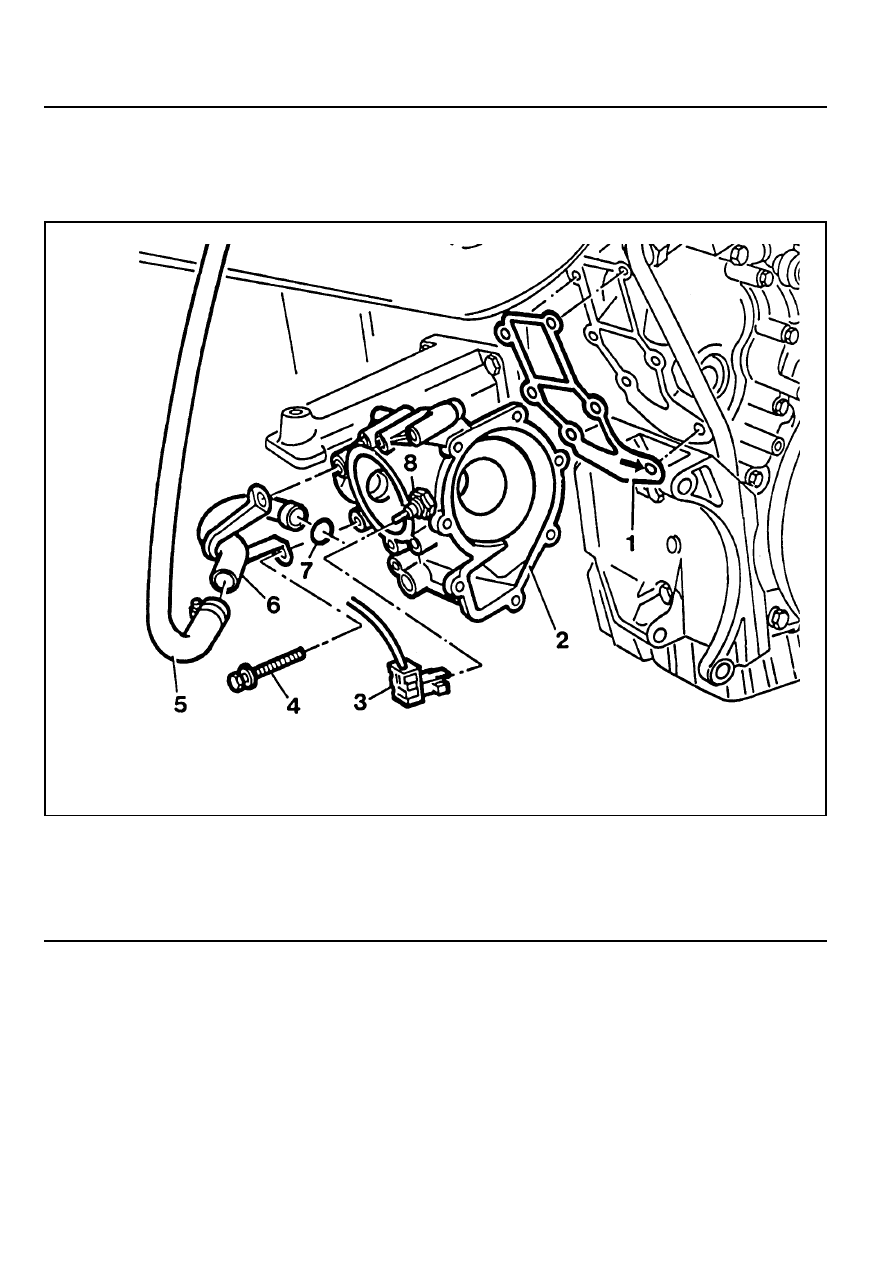

COOLANT PUMP HOUSING

Preceding Work : Removal of coolant pump

   Removal of thermostat
   Removal of alternator

1 Gasket ................................................... Replace
2 Coolant Pump Housing
3 Connector
4 Bolt ........................................................... 10 Nm

5 Coolant Hose
6 Return Pipe
7 O-Ring
8 Temperature Sensor

Notice

The bolt on the arrow should be installed last.

OM600 ENGINE COOLING  1D3-9

Removal & Installation Procedure

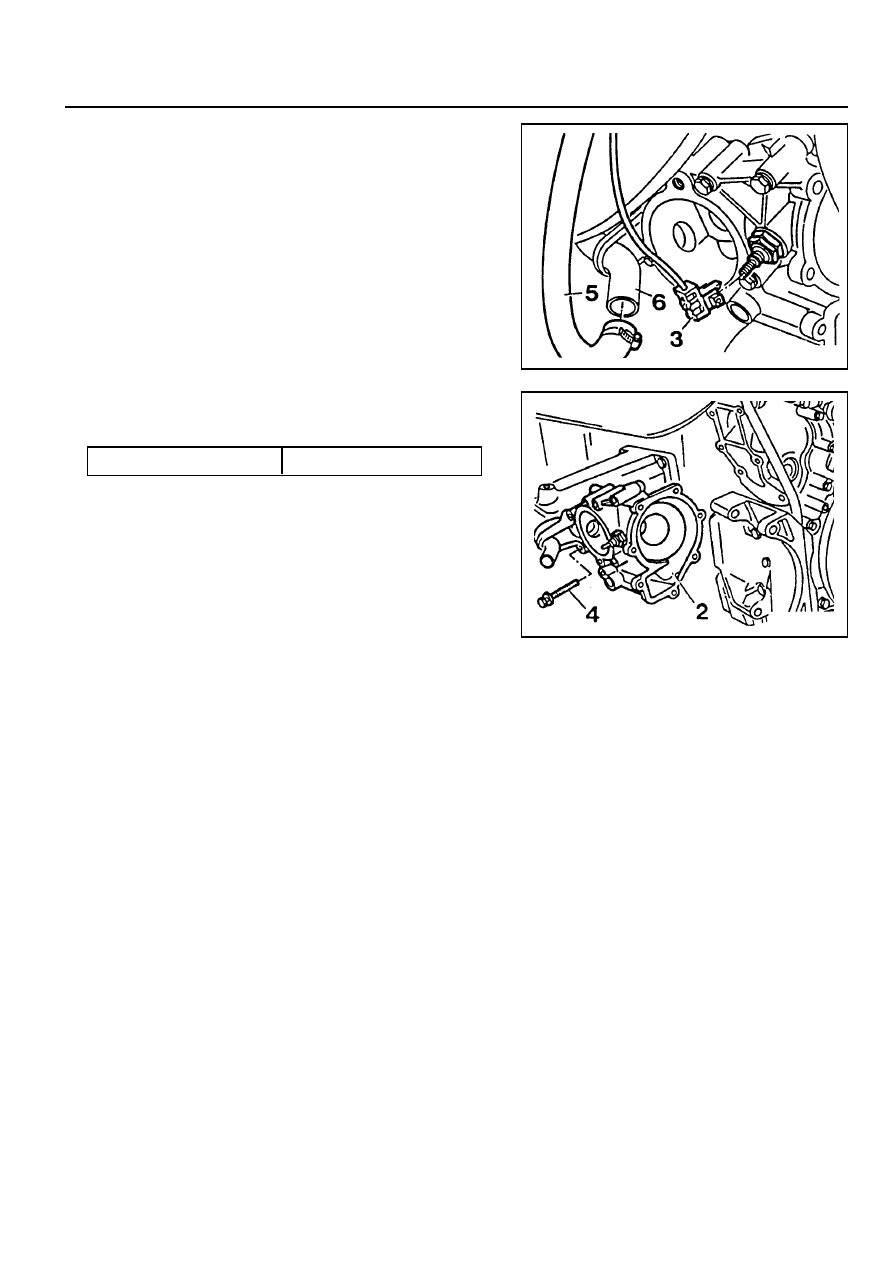

1. Disconnect the connector(3).

2. Separate the coolant hose (5) and return pipe(6).

3. Remove the bolts(4) evenly.

Installation Notice

Tightening Torque

10 Nm

Notice

Clean gasket residues on the sealing surface of coolant
pump and replace the gasket.

4. Remove the coolant pump housing(2).

5. Installation should follow the removal procedure in the

reverse order.

1D3-10  OM600 ENGINE COOLING

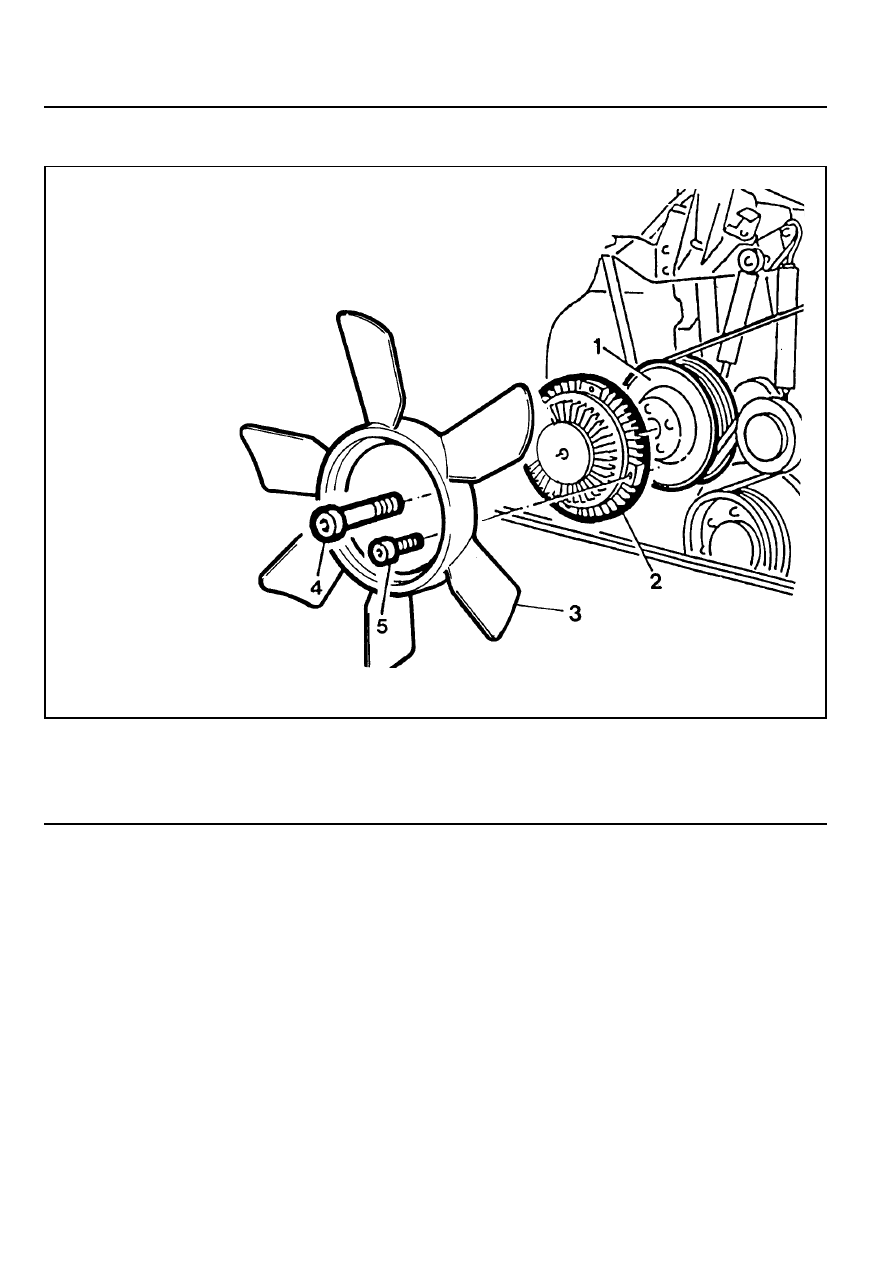

COOLING FAN CLUTCH

1 Belt Pulley
2 Cooling Fan Clutch
3 Cooling Fan

4 Socket Bolt................................................ 45 Nm
5 Socket Bolt................................................ 10 Nm

Tools Required

603 589 00 40 00 Counter Holder
