1B3-150  OM600 ENGINE MECHANICAL

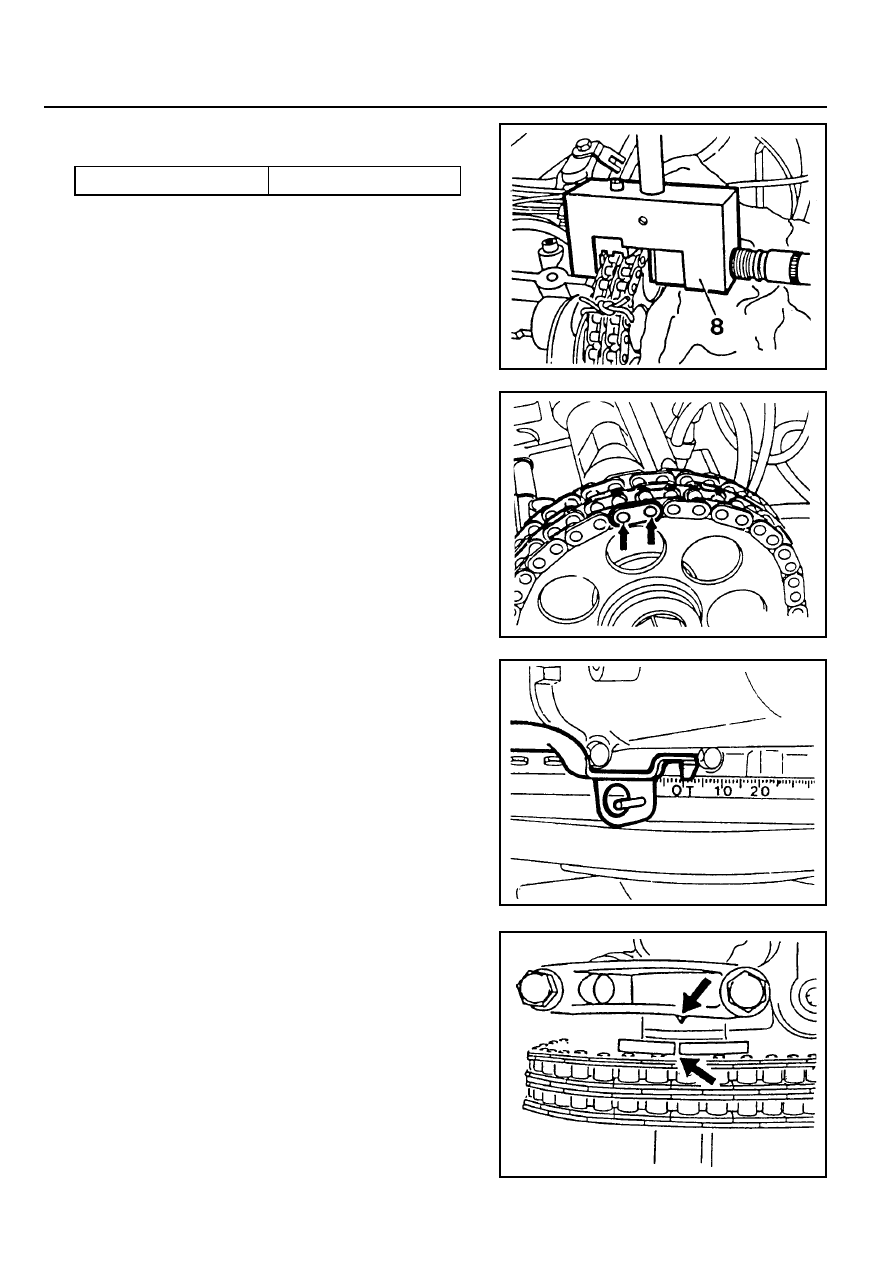

In this position, the marking on camshaft / camshaft bearing
cap (arrow) must also be aligned. If the markings are not
aligned, the timing chain must be re-set and the injection
pump timing has to be set.

14. Position the no.1 cylinder at TDC.

11. Place the fitting tool (8) onto the chain link and rivet the

chain pins one by one.

12. Check the riveting of chain pins and re-rivet if necessary.

13. Remove the wire.

Tightening  Torque

35 - 40 Nm

OM600 ENGINE MECHANICAL  1B3-151

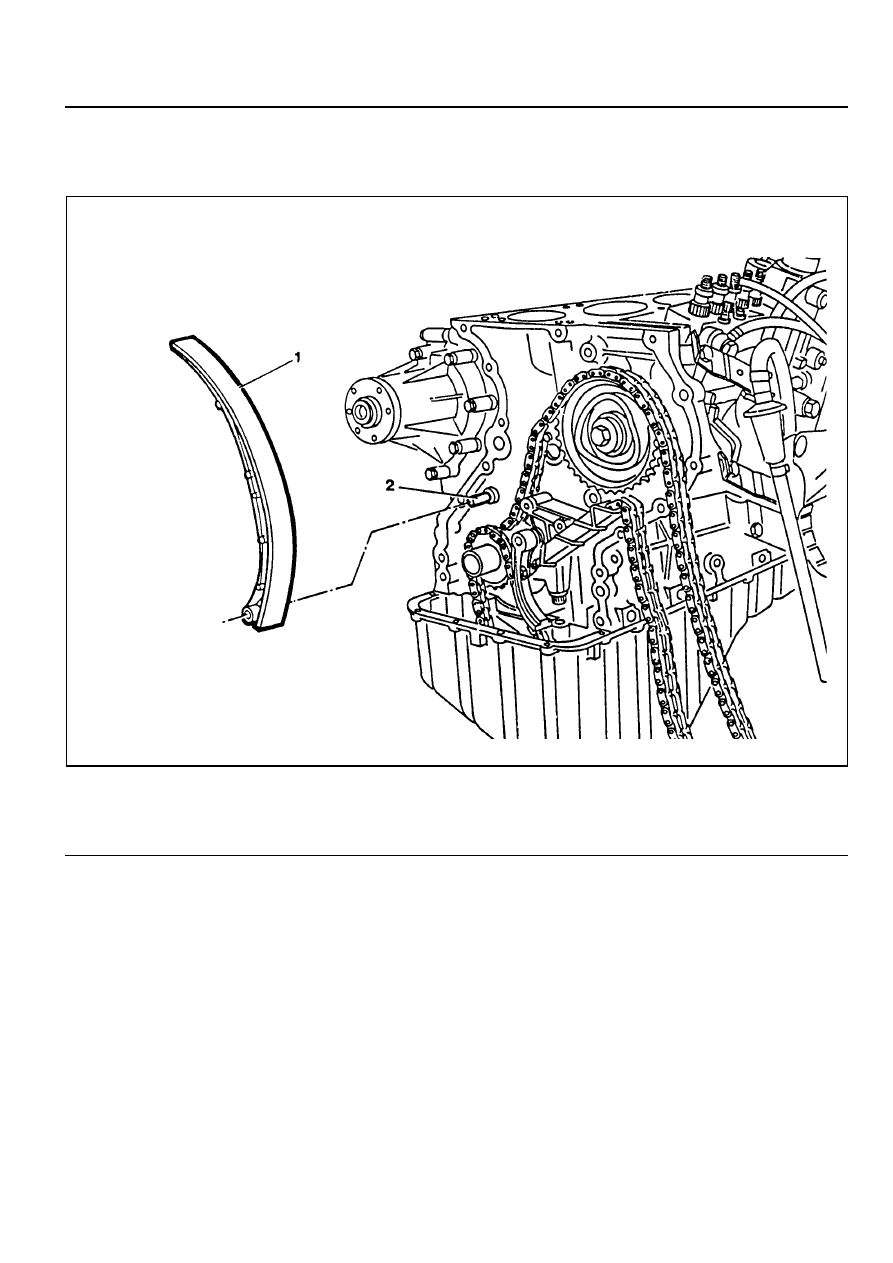

TENSIONING RAIL

Preceding Work   : Removal of cylinder head

Removal of timing case cover

1 Tensioning Rail

2 Bearing Pin

Notice

The plastic coating of the tensioning rail can not be replaced.

1B3-152  OM600 ENGINE MECHANICAL

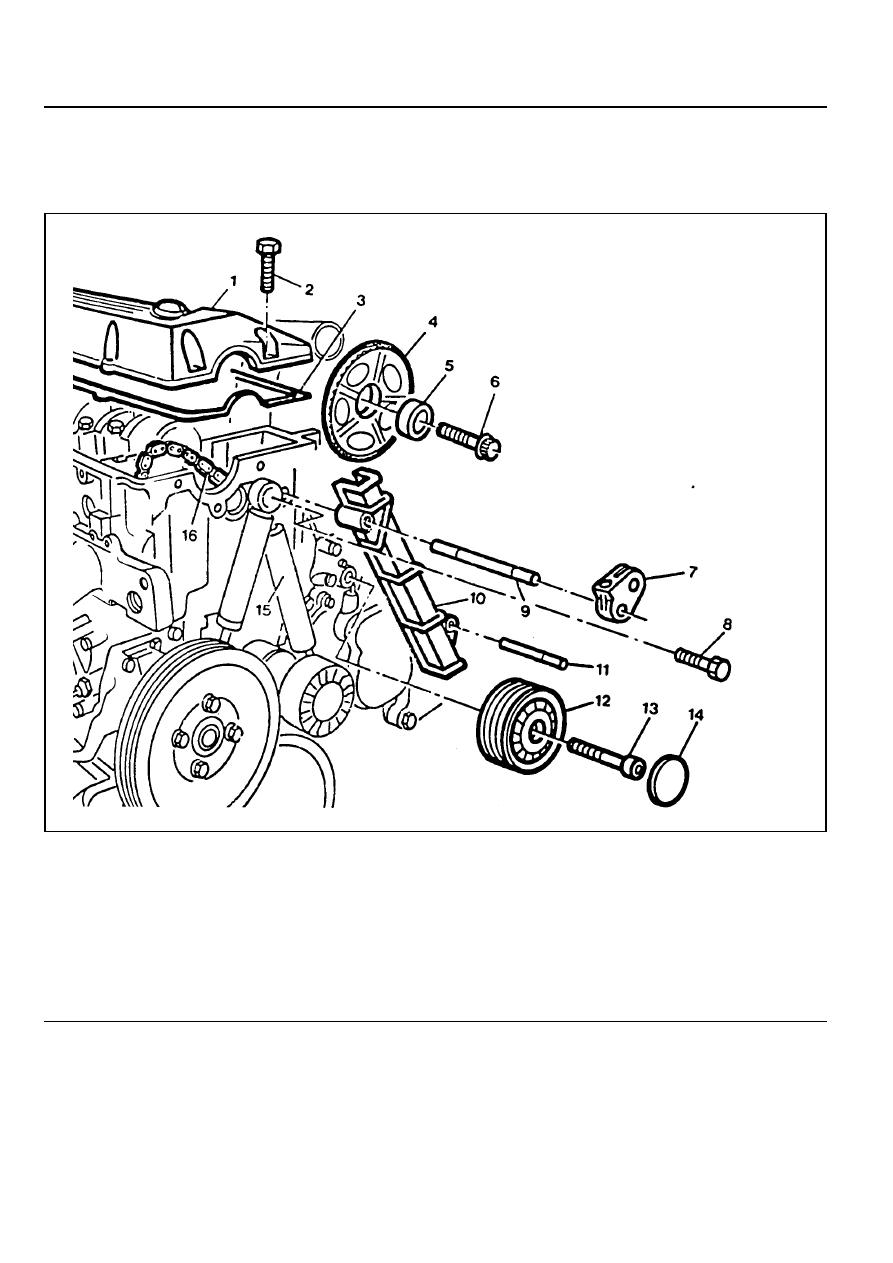

CYLINDER HEAD GUIDE RAIL

Preceding Work   : Removal of the cooling fan

Removal of poly V-belt
Removal of chain tensioner

1 Cylinder Head Cover
2 Bolt ............................................................ 10Nm
3 Gasket ................................................... Replace
4 Camshaft Sprocket
5 Washer
6 12-Sided Bolt (M11) ............ Inspect, 25Nm + 90°
7 Tensioning Lever
8 Bolt ............................................................ 23Nm

9 Bearing Pin ........................... Sealing Compound

10 Guide Rail

11 Bearing Pin

12 Guide Pulley
13 Socket Bolt ................................................ 23Nm
14 Closing Cover
15 Spring
16 Timing Chain

OM600 ENGINE MECHANICAL  1B3-153

Tools Required

115 589 02 34 00 Sliding Hammer

116 589 20 33 00 Threaded Pin

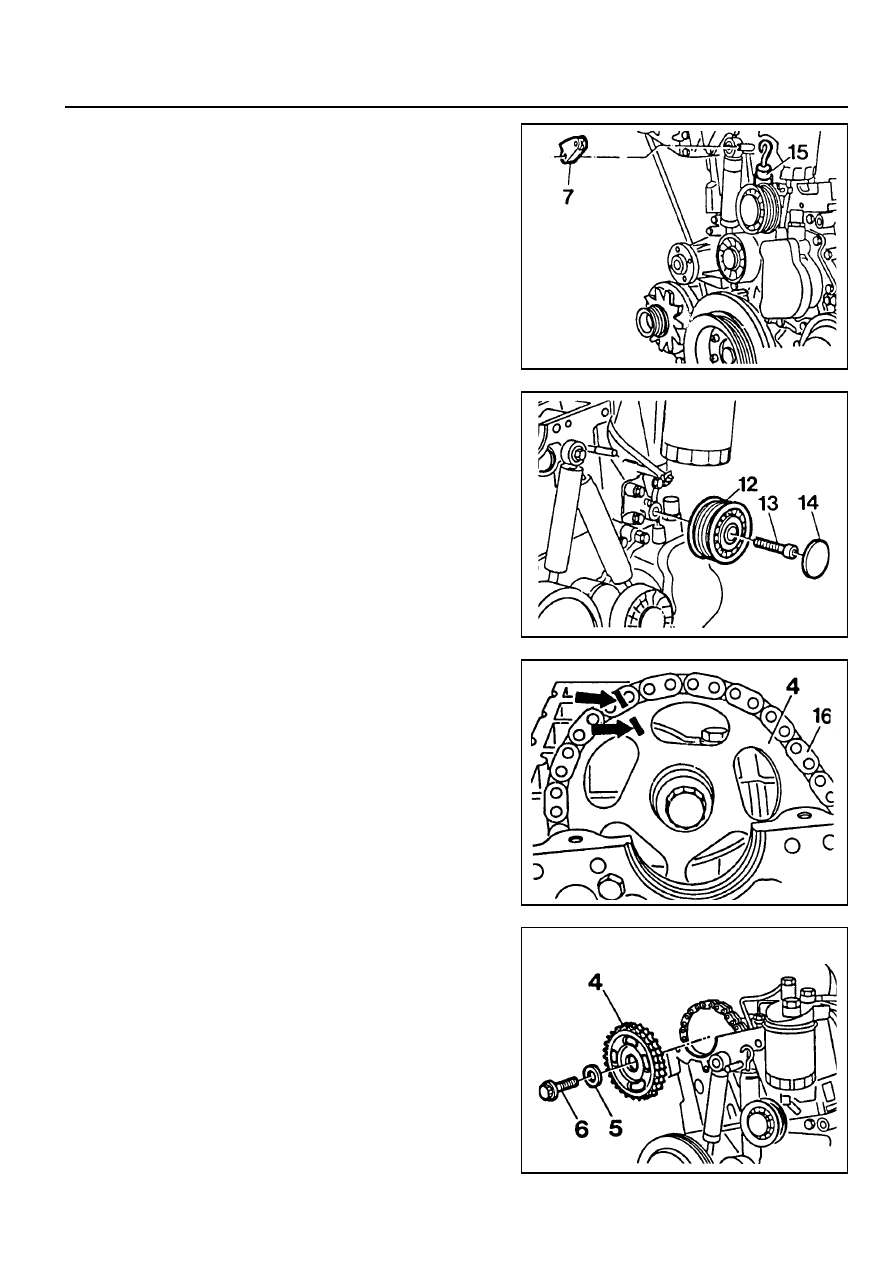

Removal Procedure

1. Removal the cylinder head cover.

2. Pull off the tensioning lever (7) and remove from the spring

(15).

3. Pry off the closing cover (14) and remove the bolt (13) and

then remove the guide pulley (12).

4. Place alignment marks (arrow) on the timing chain (16) and

camshaft sprocket (4).

5. Remove the camshaft sprocket.
