1B3-142  OM600 ENGINE MECHANICAL

4. Install the camshaft bearing caps according to markings(1,

2, 3 etc.).

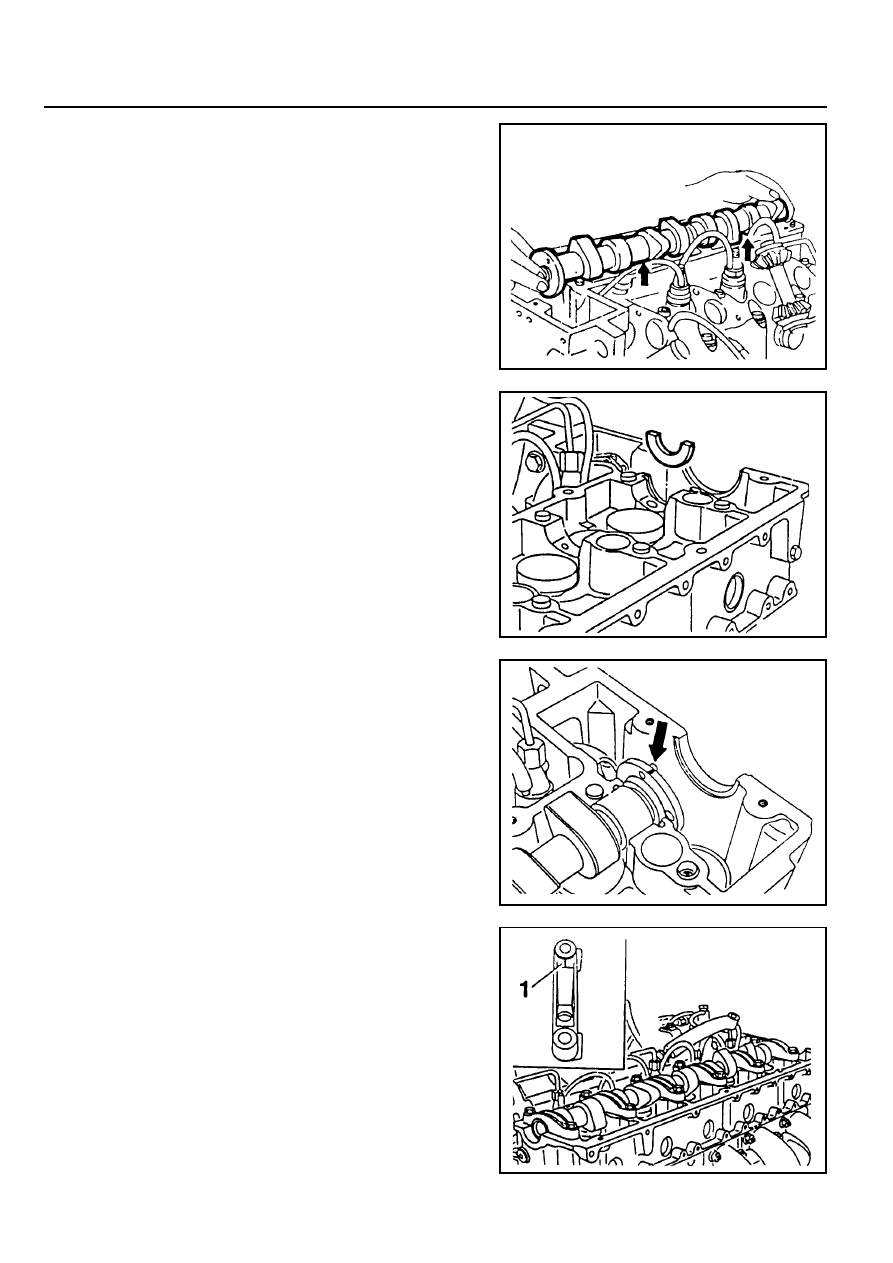

7. Remove the camshaft bearing cap.

8. Pull off the camshaft.

Notice

Be careful not to miss front locking washer.

9. Pull out the locking washer.

Notice

Check the condition of locking washer and replace if
necessary.

Installation Procedure

1. Insert the locking washer.

2. Check the valve tappet and ensure that tappet moves

smoothly.

3. Coat the camshaft with oil and install the camshaft onto the

cylinder head so that the TDC marking (arrow) is positioned
upward vertically.

OM600 ENGINE MECHANICAL  1B3-143

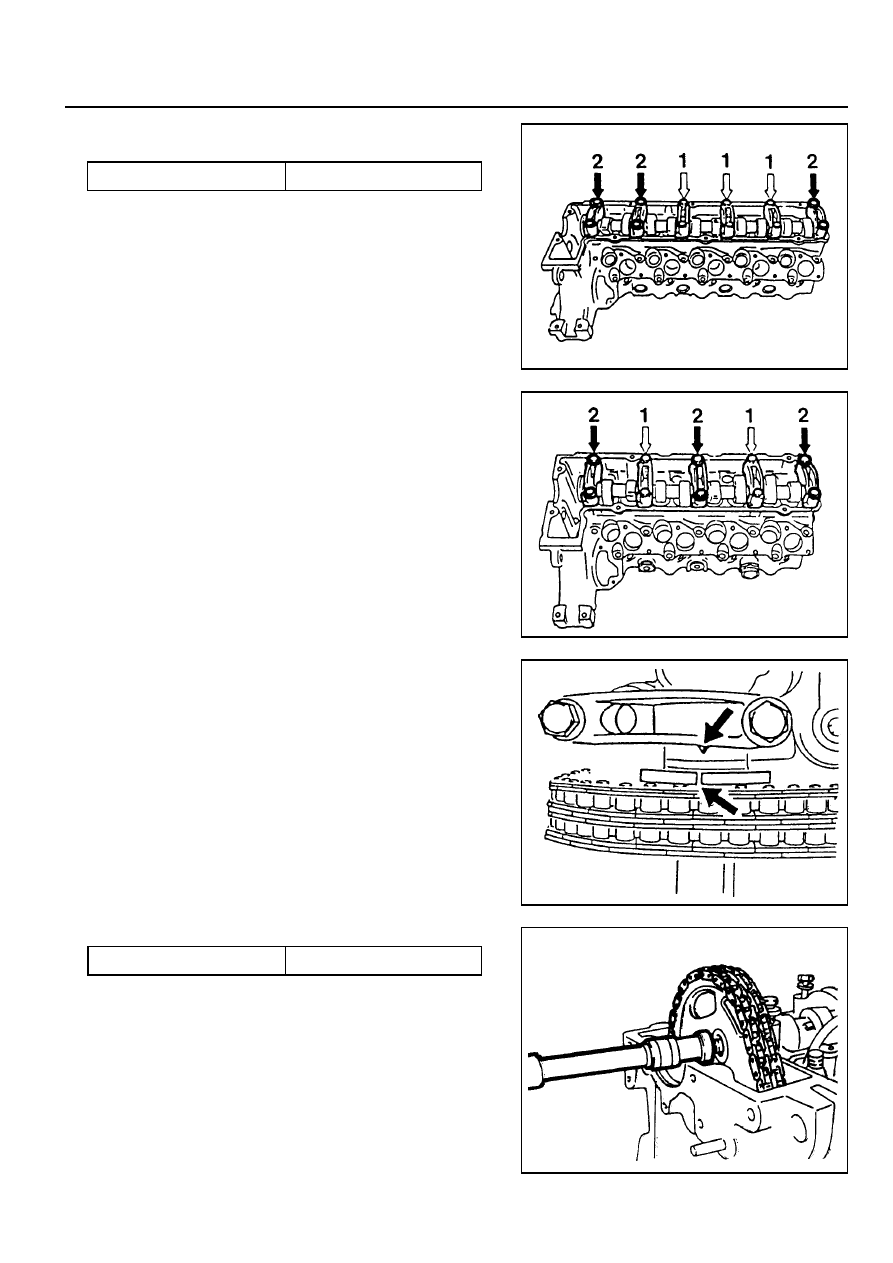

5. Tighten the camshaft bearing cap bolts acccording to

installation order.

6. Install the camshaft sprocket to be aligned the markings of

the camshaft / camshaft bearing cap (arrow).

Notice

Align the alignment marks on the timing chain and sprocket.

Tightening Torque

25 Nm

Notice

Tighten the No. 1 bolts (light arrow) by one revolution in
stages first and then tighten the No.2 bolts (dark arrow).

OM 661LA

OM 662LA

7. Tighten the camshaft sprocket bolt.

Tightening  Torque

25Nm + 90°

1B3-144  OM600 ENGINE MECHANICAL

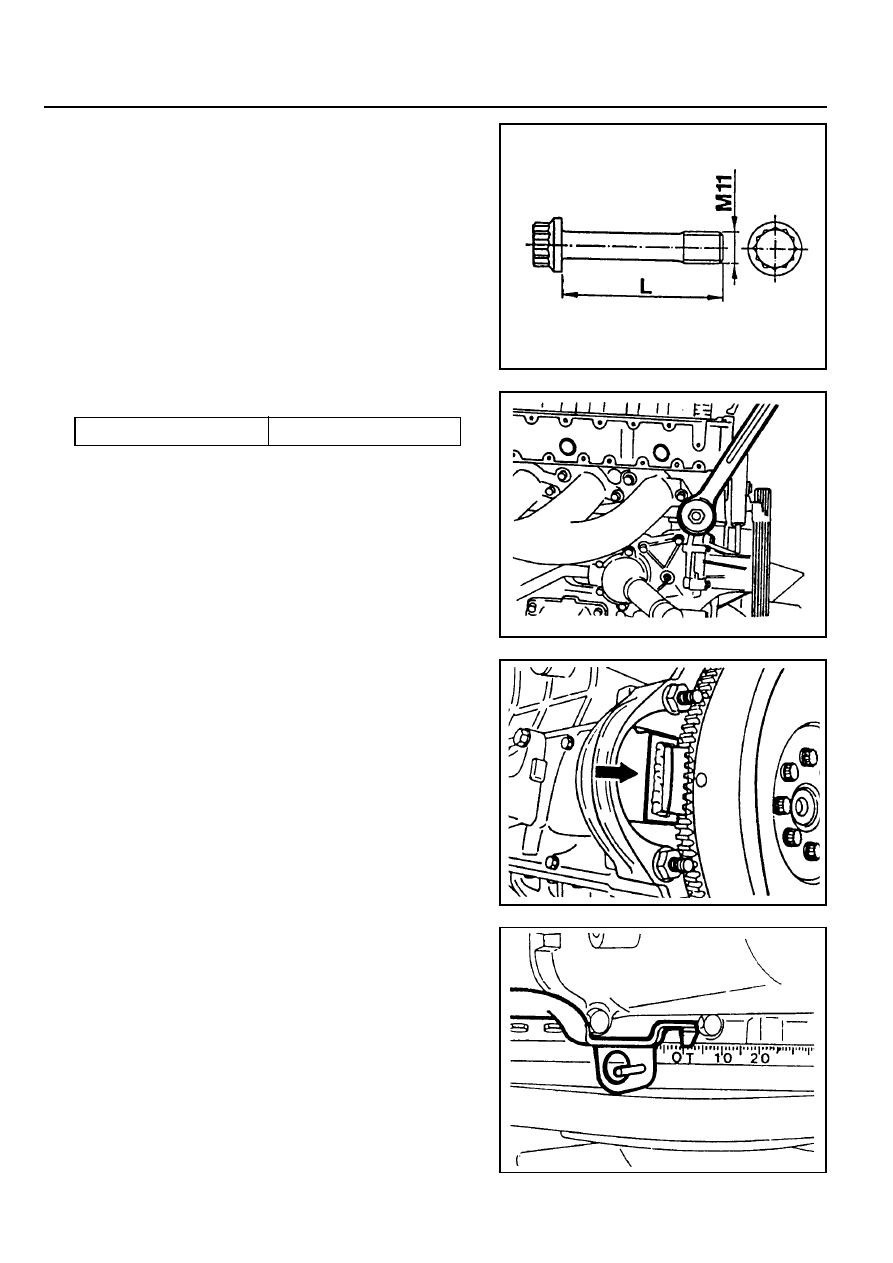

10. Check the TDC marking of OT on the crankshaft.

8. Install the chain tensioner.

Tightening Torque

80 Nm

Notice

Replace the seal.

Before installation, by pumping in the oil approx. 10 times,
fill the oil.

9. Remove the engine lock.

Notice

If max. length ‘L’ of the 12-sided bolt exceeds 53.6mm,
replace it.

OM600 ENGINE MECHANICAL  1B3-145

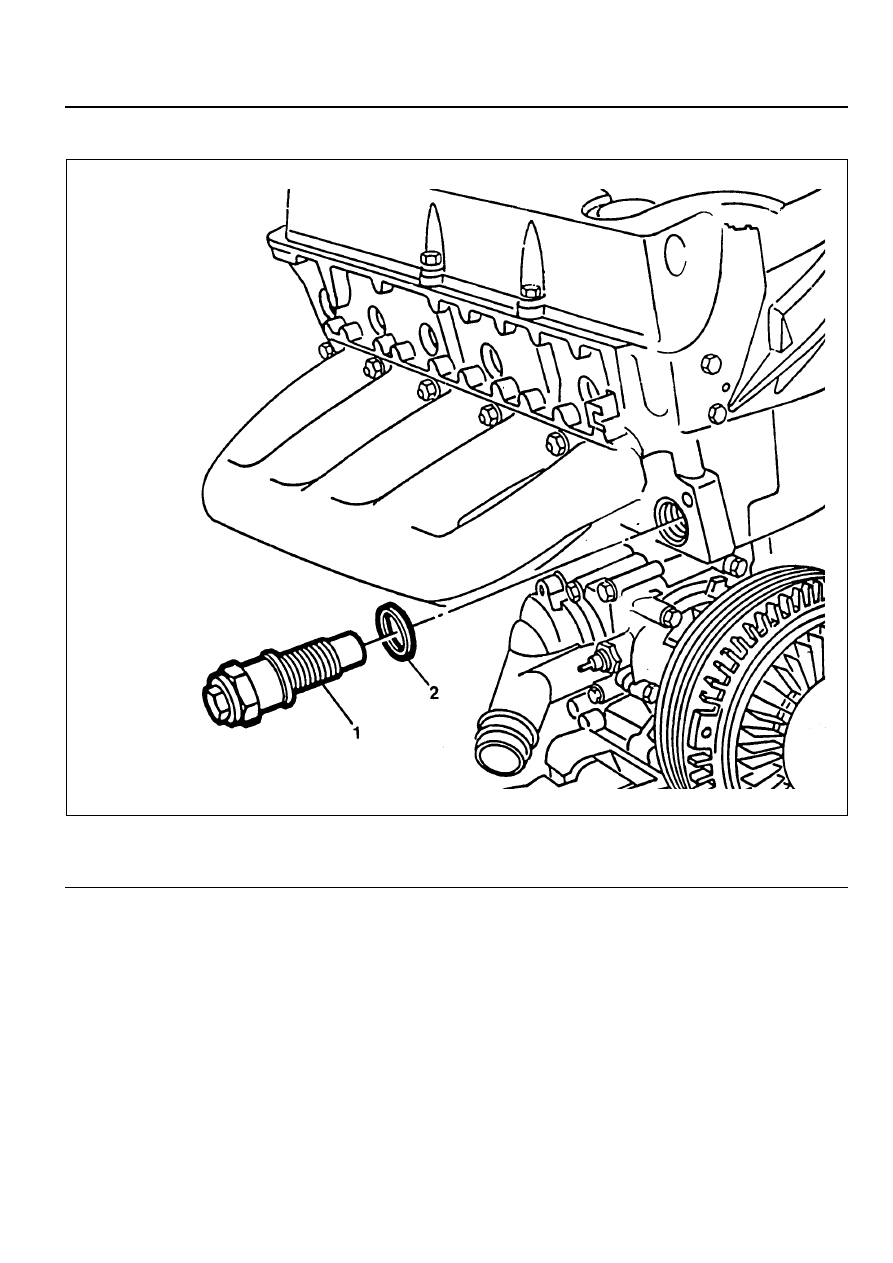

CHAIN TENSIONER

1 Chain Tensioner ........................................ 80Nm

2 Seal ....................................................... Replace
