1B3-138  OM600 ENGINE MECHANICAL

6. Check the timing.

New

After approx. 20,000km

ATDC 11.33°

ATDC 12°

Notice

If timing is out standard, the camshaft should be checked
for wear and the timing chain for stretch. If a difference of
more than 4° exists, the timing chain should be replaced.

7. Replace the gasket and install the cylinder head cover.

Tightening Torque

10 Nm

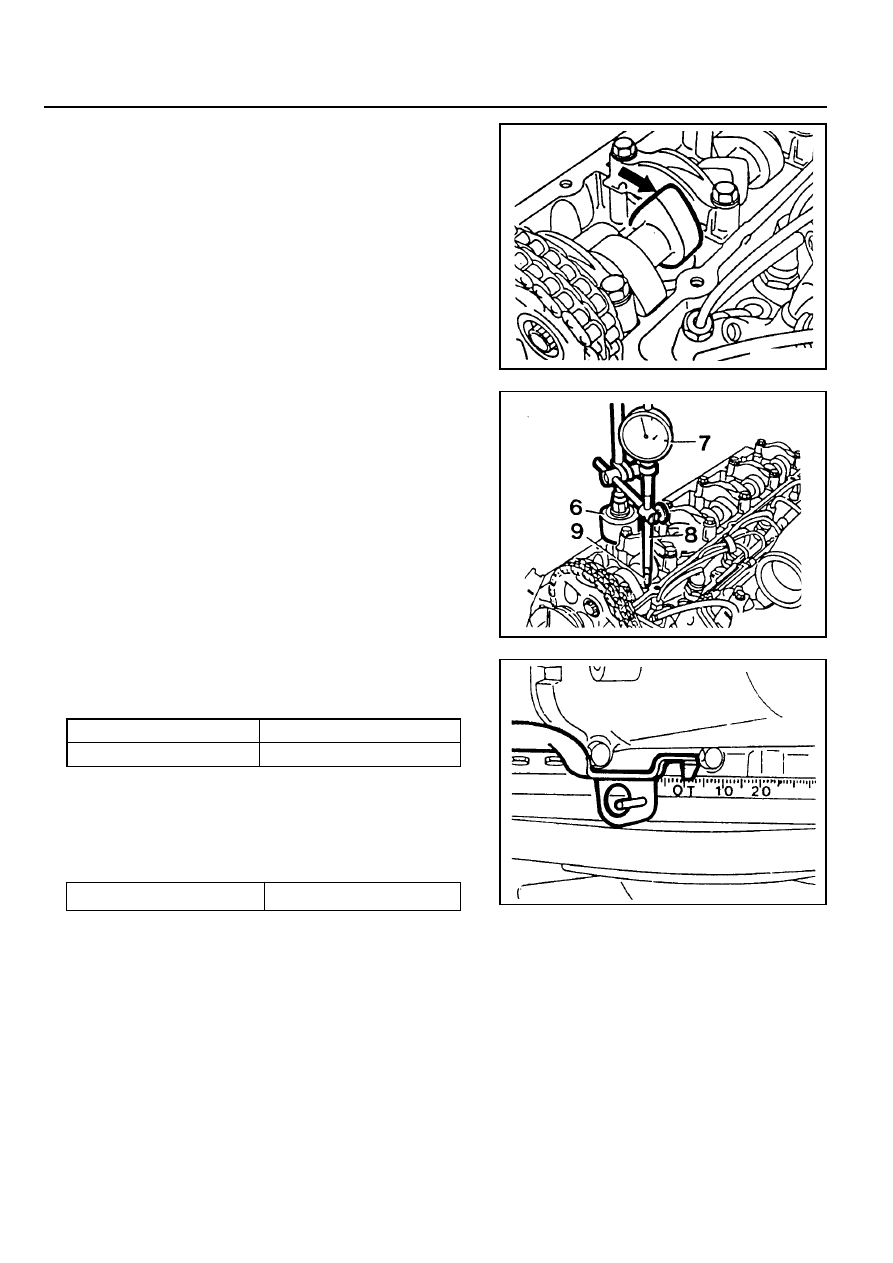

Measurement Procedure

1. Remove the cylinder head cover.

2. Rotate the engine in the direction of engine rotation until

the intake valve of NO. 1 cylinder is completely closed. The
cam lobe faces up (arrow).

Notice

Do not rotate the engine at the bolt of the crankshaft
sprocket. Do not rotate the engine in the opposite direction
of engine rotation. If do, this will cause serious measuring
errors.

3. Install the dial gauge holder and dial gauge (7) with the

extension (8) to the cylinder head and position the tracer
pin (9) onto the valve tappet (intake valve of cylinder NO.1)
with a preload of min. 3mm.

Notice

The tracer pin should be positioned exactly vertical.

Dial gauge Holder 363 589 02 21 00

Dial Gauge 001 589 53 21 00

Extension 366 589 00 21 05

4. Set the dial gauge to ‘0’.

5. Rotate the engine further in direction of rotation until the

dial gauge has moved back by 2mm (valve lift) to 1mm.

Tools Required

001 589 53 21 00  Dial Gauge

363 589 02 21 00  Dial Gauge Holder

366 589 00 21 05  Extension

OM600 ENGINE MECHANICAL  1B3-139

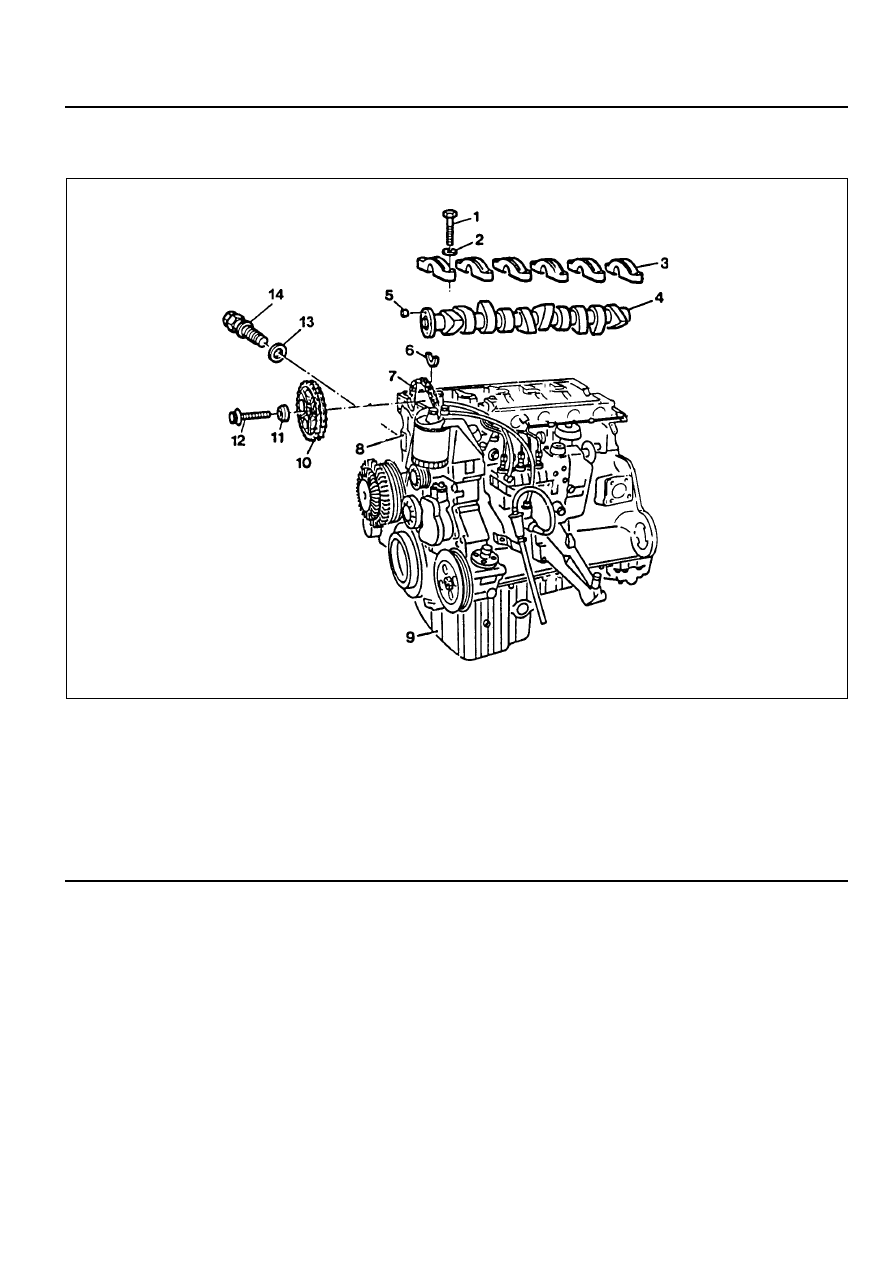

CAMSHAFT

Preceding Work : Removal of cylinder head cover

1 Bolt ............................................................ 25Nm
2 Washer
3 Camshaft Bearing Cap
4 Camshaft
5 Dowel Pin
6 Locking Washer
7 Timing Chain

8 Cylinder Head
9 Oil Pan

10 Camshaft Sprocket

11 Washer

12 12-Sided Bolt (M11) ............. Check, 25Nm + 90°
13 Gasket ................................................... Replace
14 Chain Tensioner ........................................ 80Nm

1B3-140  OM600 ENGINE MECHANICAL

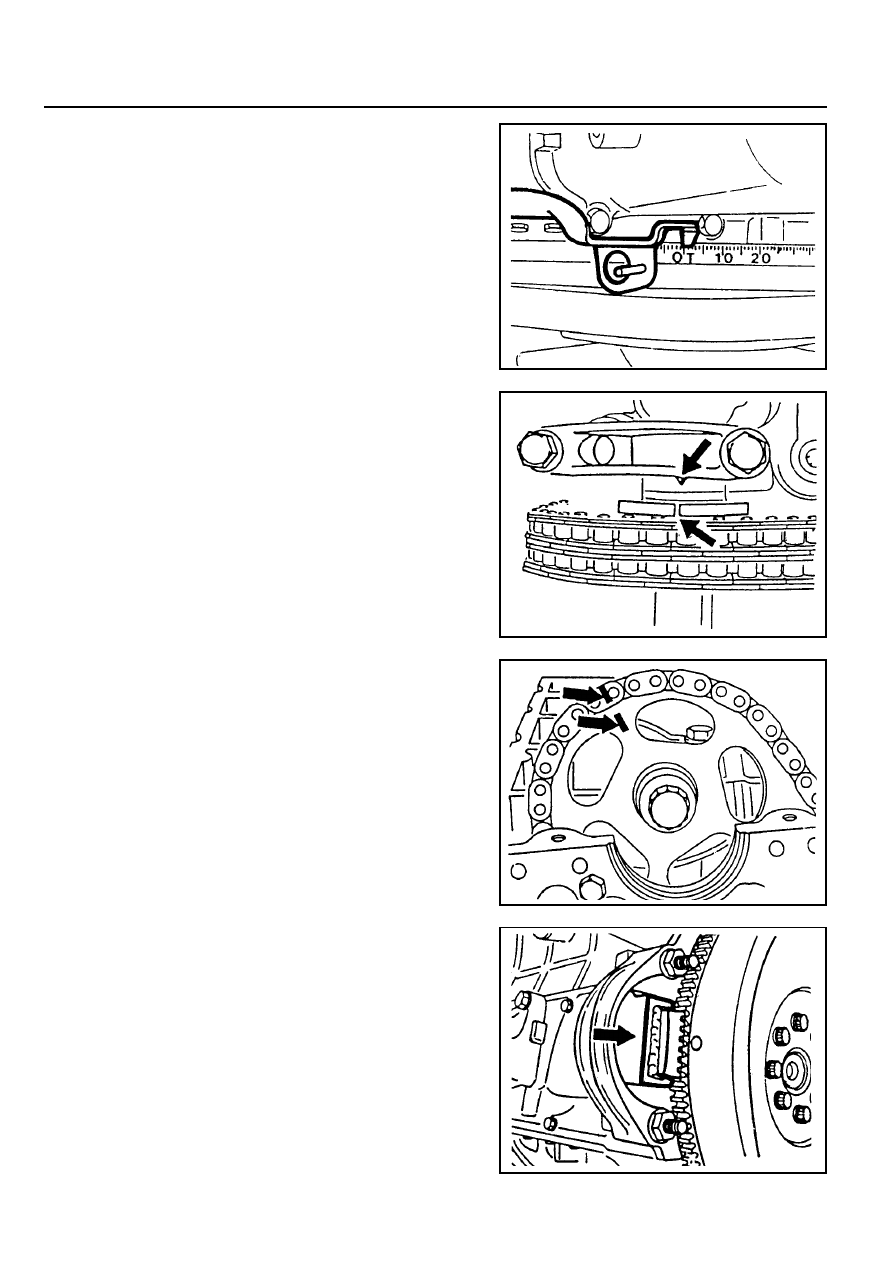

3. Remove the starter motor and install the engine lock.

Engine Lock 602 589 00 40 00

Tools Required

602 589 00 40 00  Engine Lock

Removal Procedure

1. Rotate the crankshaft and position the piston of no.1 cylinder

at TDC.

Notice

Do not rotate the crankshaft in the opposite direction of
engine rotation.

In this position, the markings of the camshaft/camshaft
bearing cap (arrow) must be aligned.

2. Place alignment marks on the camshaft sprocket and timing

chain.

OM600 ENGINE MECHANICAL  1B3-141

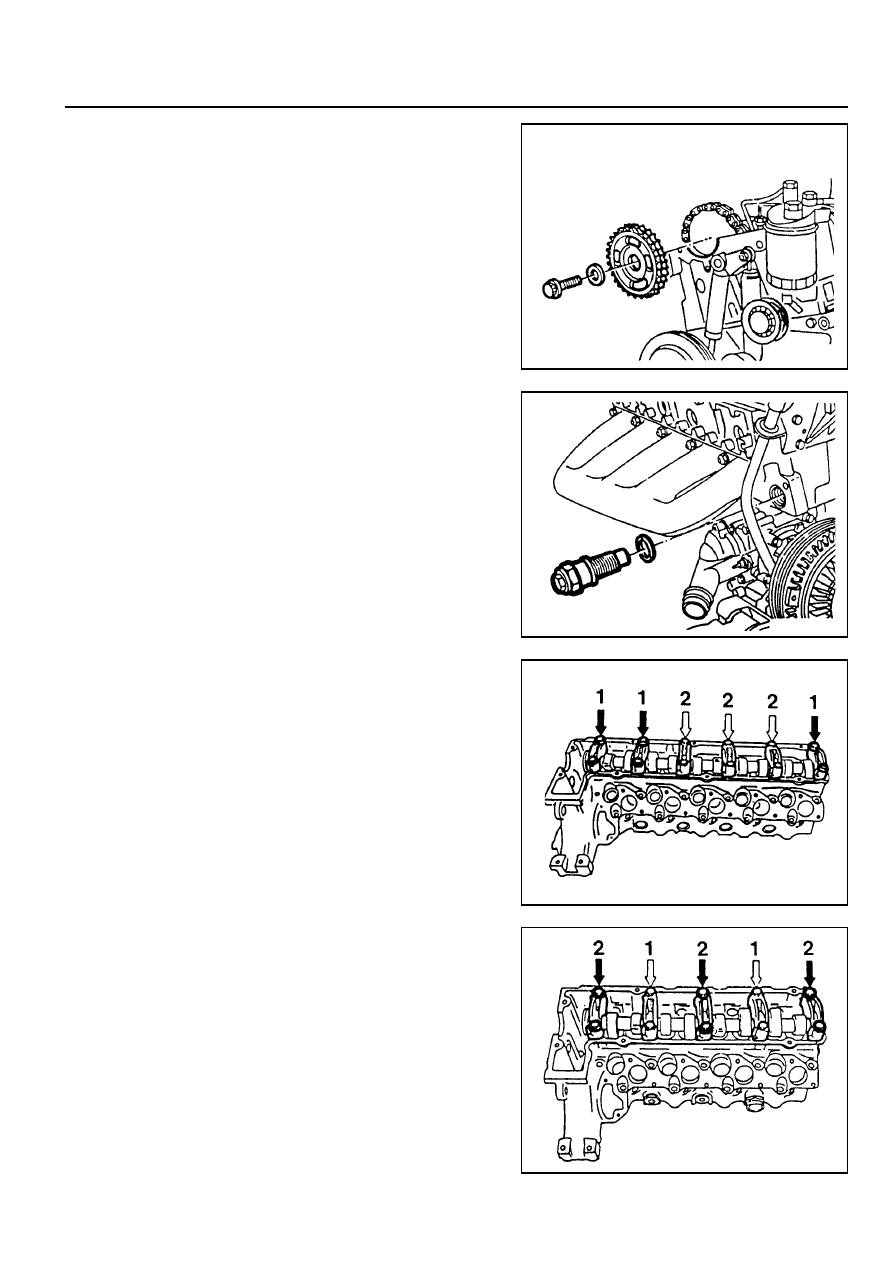

4. Remove the bolt and then remove the camshaft sprocket.

Notice

During removal, be careful not to drop the sprocket with
chain. Remove the chain carefully and then pull out the
sprocket.

5. Remove the chain tensioner.

6. Remove the camshaft bearing cap bolts according to the

removal order.

Notice

Remove the camshaft bearing cap bolts of 1(dark arrow)
first and then remove the bolts of 2 (light arrow) one
revolution in stages until the counter-pressure is released.
In order to avoid damaging the camshaft, it is essential to
adhere to the removal order for the camshaft bearing caps.

OM 662LA

OM 661LA
