1B3-130  OM600 ENGINE MECHANICAL

10. Measure distance ‘z’ (cylinder head cover parting surface

- valve stem).

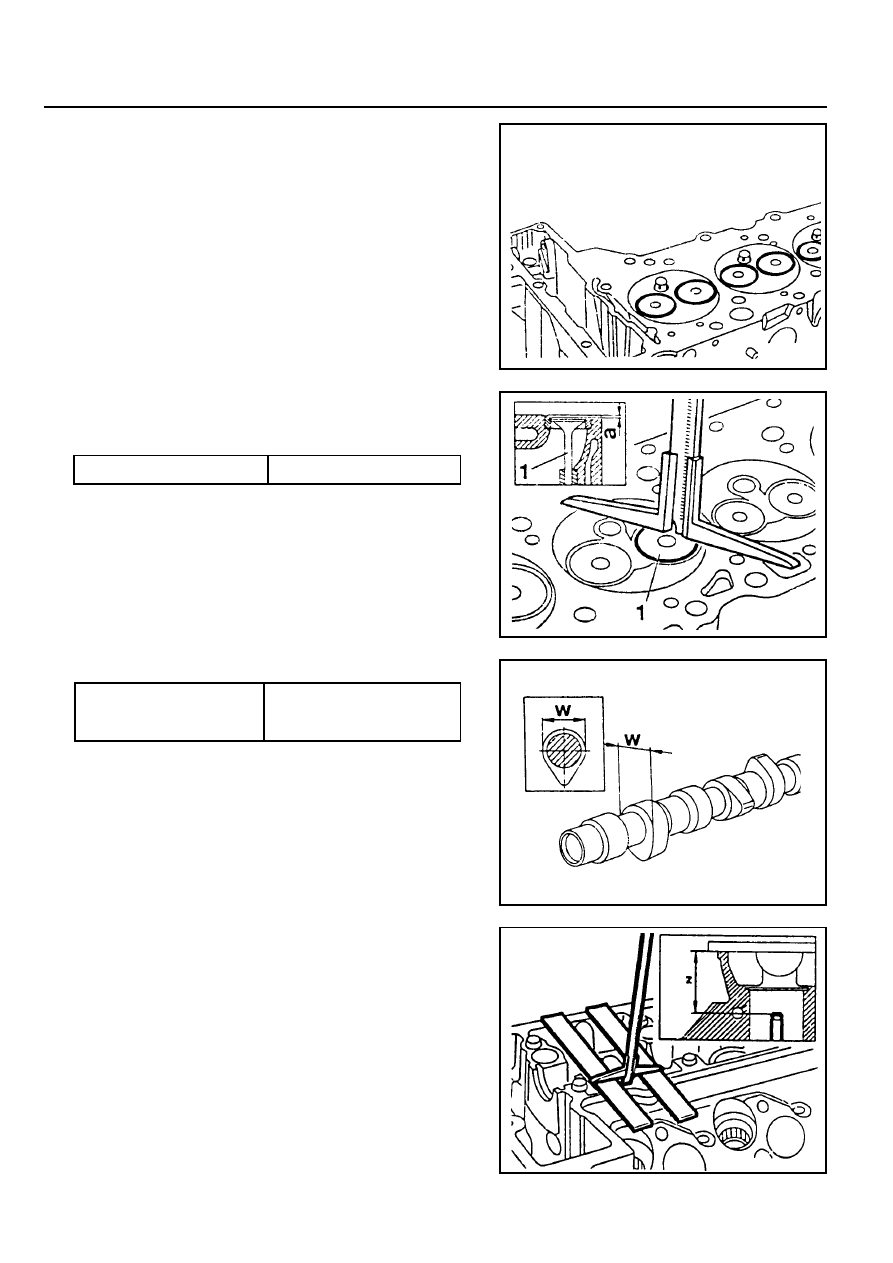

5. Clean the vales, valve seats and valve guides.

6. Coat the valve stem with oil and insert it into valve guide.

7. Insert the valves (1) into the valve guides according to

marking.

8. Measure amount by which the valve arrears ‘a’.

Arrears ‘a’

0.1 - 0.7 mm

Notice

If out of standard, replace the valve seat ring.

9. Measure camshaft cam basic diameter (w).

Diameter ‘w’

38 ± 0.2 mm

or  37.6 ± 0.2 mm

OM600 ENGINE MECHANICAL  1B3-131

11. The distance ‘x’ (camshaft basic bore - valve stem).

‘x’ = ‘z’ - ‘y’.

Determine the valve to use according to this measurement
(See ‘matching valves’)

Example)

Measured value ‘w’ = 38.2 mm

Measured value  ‘z’ = 36.5 mm

Value

   ‘y’             = 15.5 mm

‘x’ = 36.5 - 15.5 = 21.0mm

In this case according to ‘Matching valves’ table, the
installed valve may be used.

1B3-132  OM600 ENGINE MECHANICAL

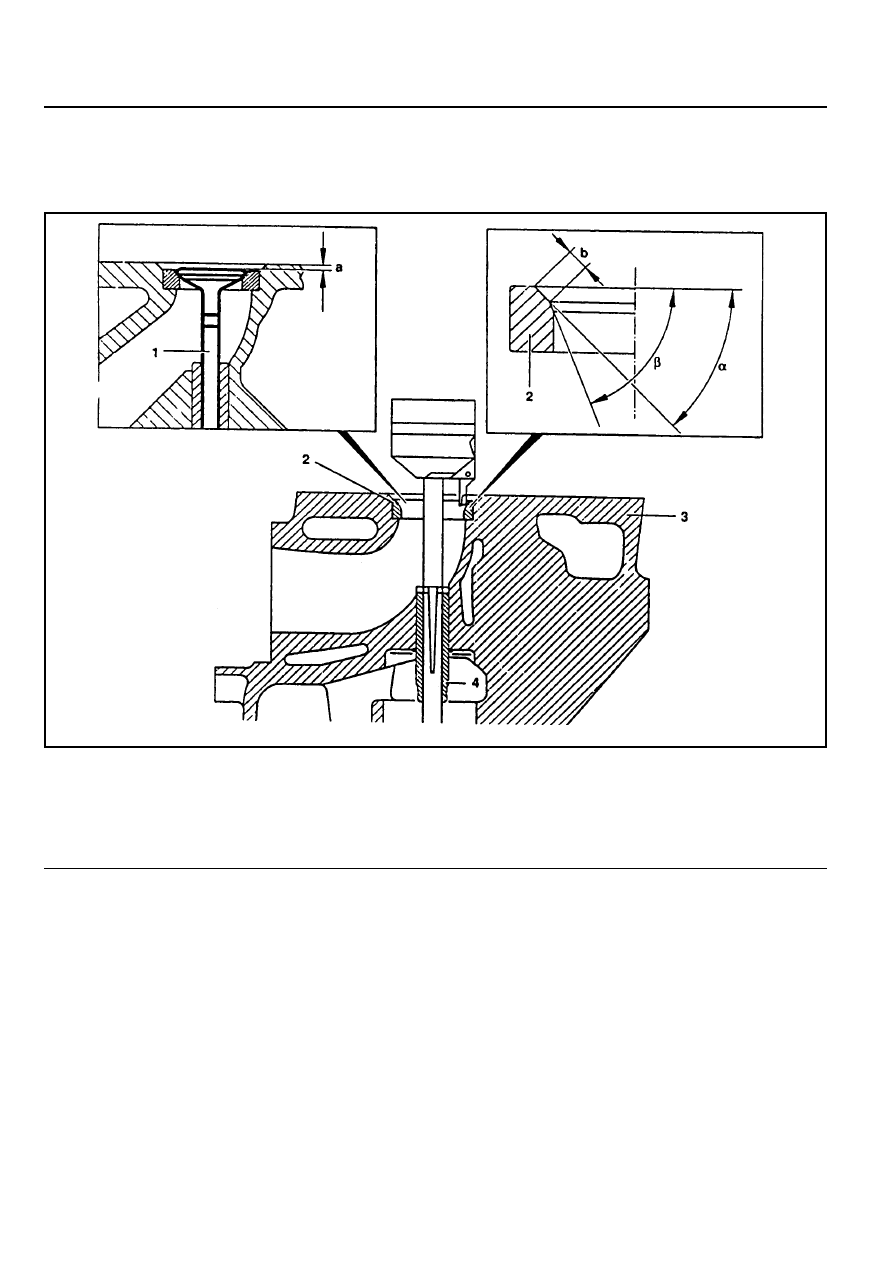

MACHINING OF VALVE SEAT

Preceding Work : Removal of prechamber

Removal and inspection of valve, replace if necessary
Inspection of valve guide, replace if necessary

1 Valve
2 Valve Seat Ring
3 Cylinder Head
4 Valve Guide

a Valve Seat Angle
b Valve Seat Free Angle

OM600 ENGINE MECHANICAL  1B3-133

Service Data

Item

Valve Arrears ‘a’

Valve Seat Width ‘b’

Valve Seat Angle ‘

α

’

Valve Seat Free Angle ‘

β

’

Permissible Radial Runout

Valve Length ‘I’

Intake

0.1 - 0.7 mm

1.2 - 1.7 mm

45°

65°

0.03 mm

106.20 - 106.60 mm

105.30 - 105.70 mm

Exhaust

0.1 - 0.7 mm

1.5 - 2.0 mm

45°

65°

0.03 mm

106.20 - 106.60 mm

105.30 - 105.70 mm

Standard

Repair

w = 38.0 ± 0.2 mm

Matching Valves

Camshaft cam basic dia.

Size (x)

Size (x)

Size (x)

19.5 - 20.3mm

20.4 - 21.4mm

21.4 - 21.97mm

w = 37.6 ± 0.2 mm

Camshaft cam basic dia.

19.5 - 20.1mm

20.2 - 21.2mm

21.2 - 21.97mm

Valve to be used

Use machined valve,

if needed

use pair valve

1 = 105.5 ± 0.2mm

Reuse valve

Use standard size

valve

I = 106.4 ± 0.2mm

Commercial Tools

Hunger

D-8000 München 70

Type Ventilknecht K2000

Order No. 221 00 100

Hunger

D-8000 München 70

Type VDS 1A

Order No. 236 03 308

Hunger

D-8000 München 70

Order No. 217 93 601

Cylinder Head Clamping Devie

Valve Seat Turning Tool

Test Sat for Valves
