1B3-110  OM600 ENGINE MECHANICAL

5. Using the press lever (9), press the spring retainer(3)

downward and remove the valve cotters (2) with magnetic
finger (10).

Notice

Be careful not to damage guide bore of the valve tappet.

Press Lever  667 589 00 31 00

Magnetic Finger  116 589 06 63 00

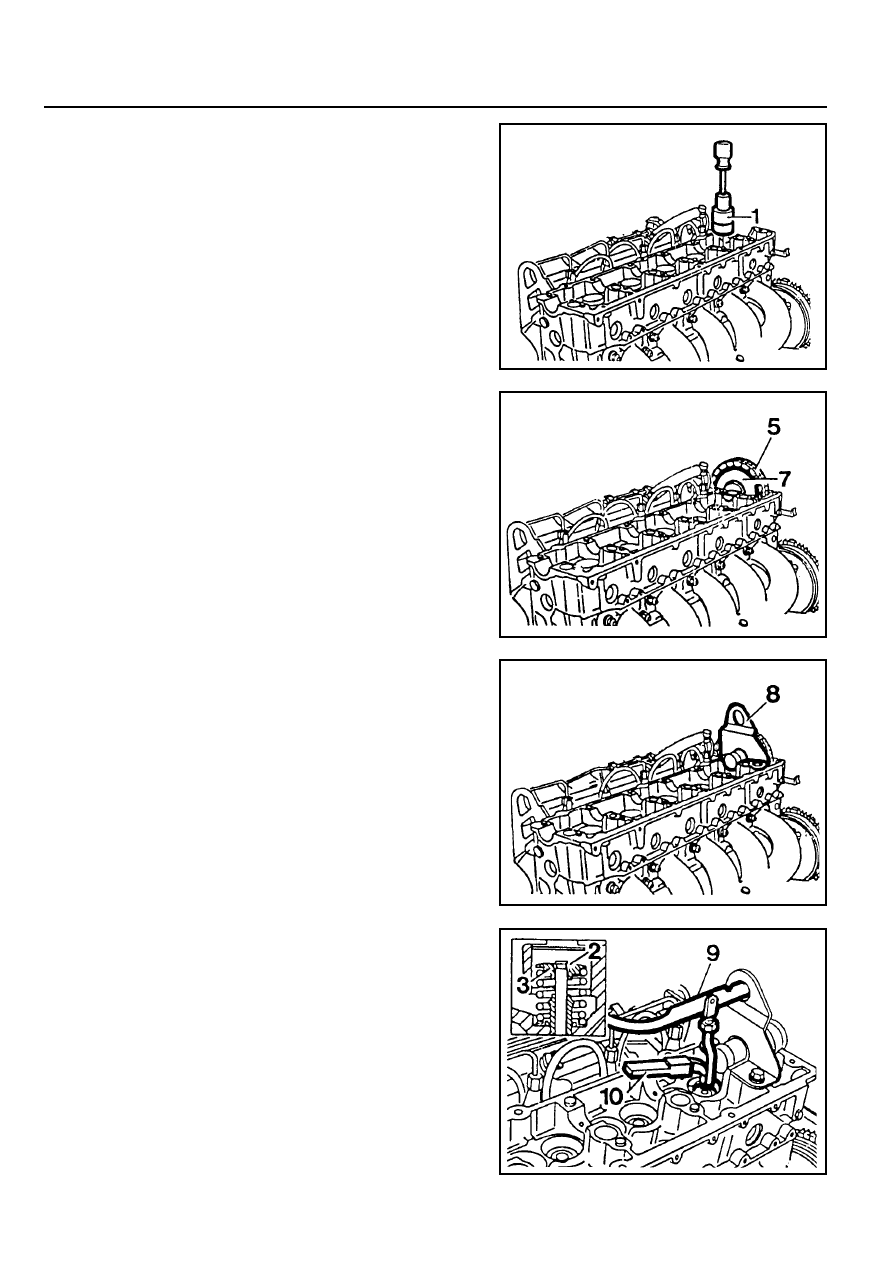

Removal & Installation Procedure

1. Remove the valve tappet (1) with magentic lifter.

Notice

Place the valve tappets upside down (open end upward)

Magentic Liter  102 589 03 40 00

2. Install the holding wheel (7) into the timing chain of camshaft

sprocket piston.

Holding  Wheel  603 589 01 40 00

3. Position the piston of  relevant cylinder at TDC.

4. Install the supporting bar (8).

Supporting Bar  667 589 02 63 00

OM600 ENGINE MECHANICAL  1B3-111

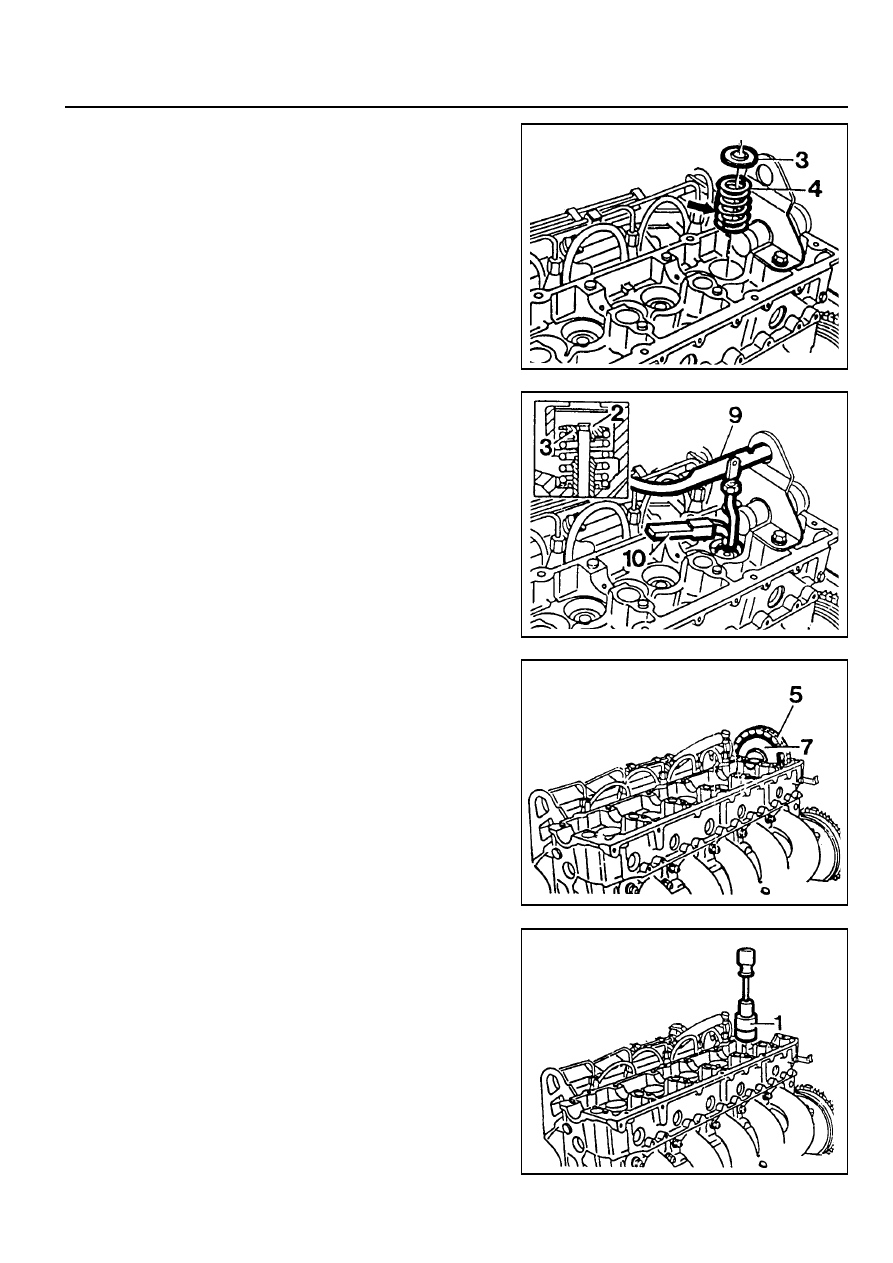

6. Remove the spring retainer(3) and spring (4).

7. Check the valve spring and replace if necessary.

8. Insert valve spring (4) with the color coding (arrow) facing

down and insert valve spring Retainer(3).

9. By press the spring retainer(3) with press lever (90), install

the valve cotters with magnetic finger (10).

Press Lever  667 589 00 31 00

Magnetic Finger  116 589 06 63 00

10. Remove the supporting bar.

11. Remove the holding wheel (7) from the timing chain (5).

Holding Wheel  603 589 01 40 00

13. Coat the valve tappet with oil and install it.

Magnetic Bar 102 589 03 40 00

1B3-112  OM600 ENGINE MECHANICAL

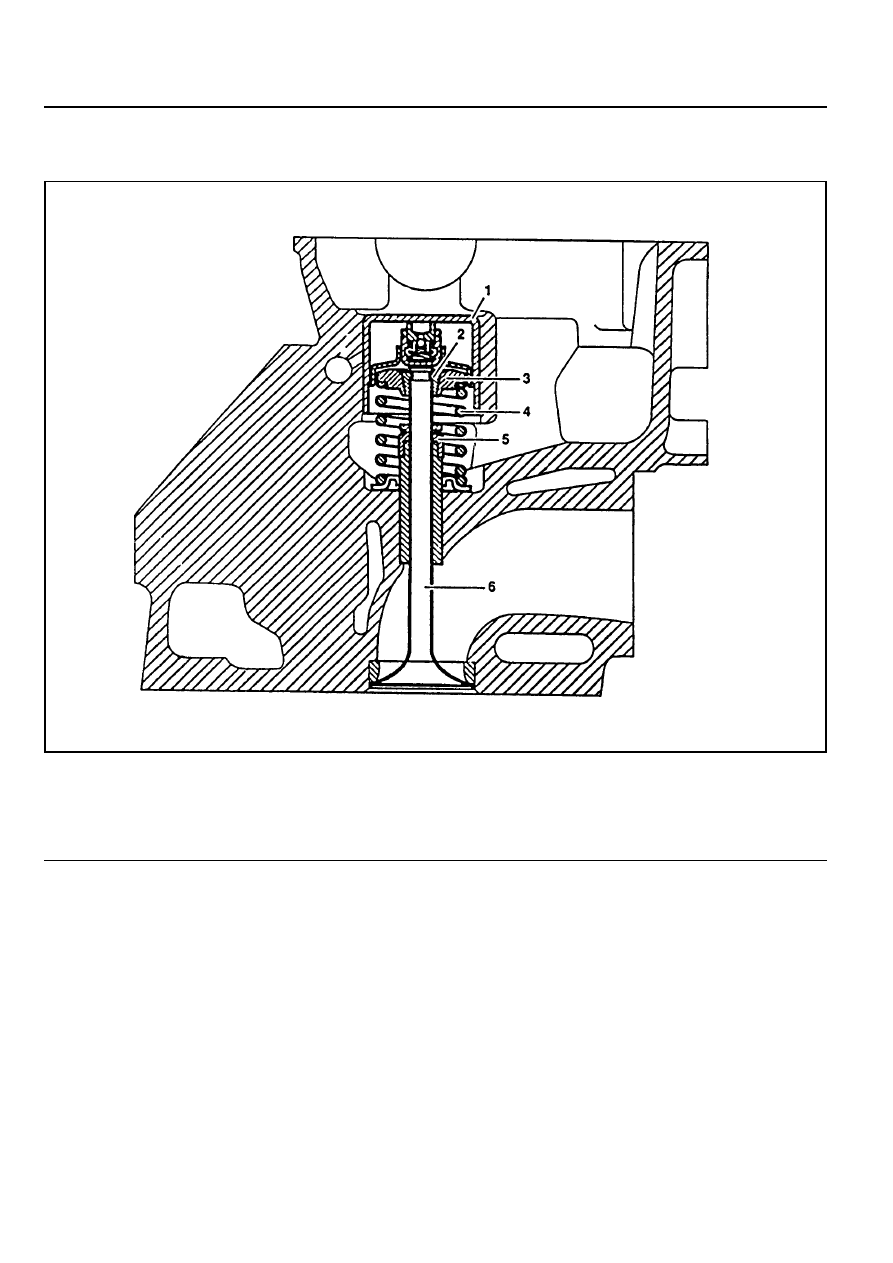

VALVE STEM SEALS

Preceding Work : Removal of camshaft.

1 Valve Tappet
2 Valve Cotters
3 Spring Retainer

4 Valve Spring ........... Check, replace if necessary
5 Valve Stem Seal
6 Valve

Notice

Remove the valve stem seals when the piston is positioned at TDC.

OM600 ENGINE MECHANICAL  1B3-113

Tools Required

667 589 00 31 00  Press Lever

104 589 00 37 00  Pliers

102 589 03 40 00  Magnetic Lifter

603 589 01 40 00  Holding Wheel

601 589 02 43 00  Drift

116 589 06 63 00  Magnetic Finger

667 589 02 63 00  Supporting Bar

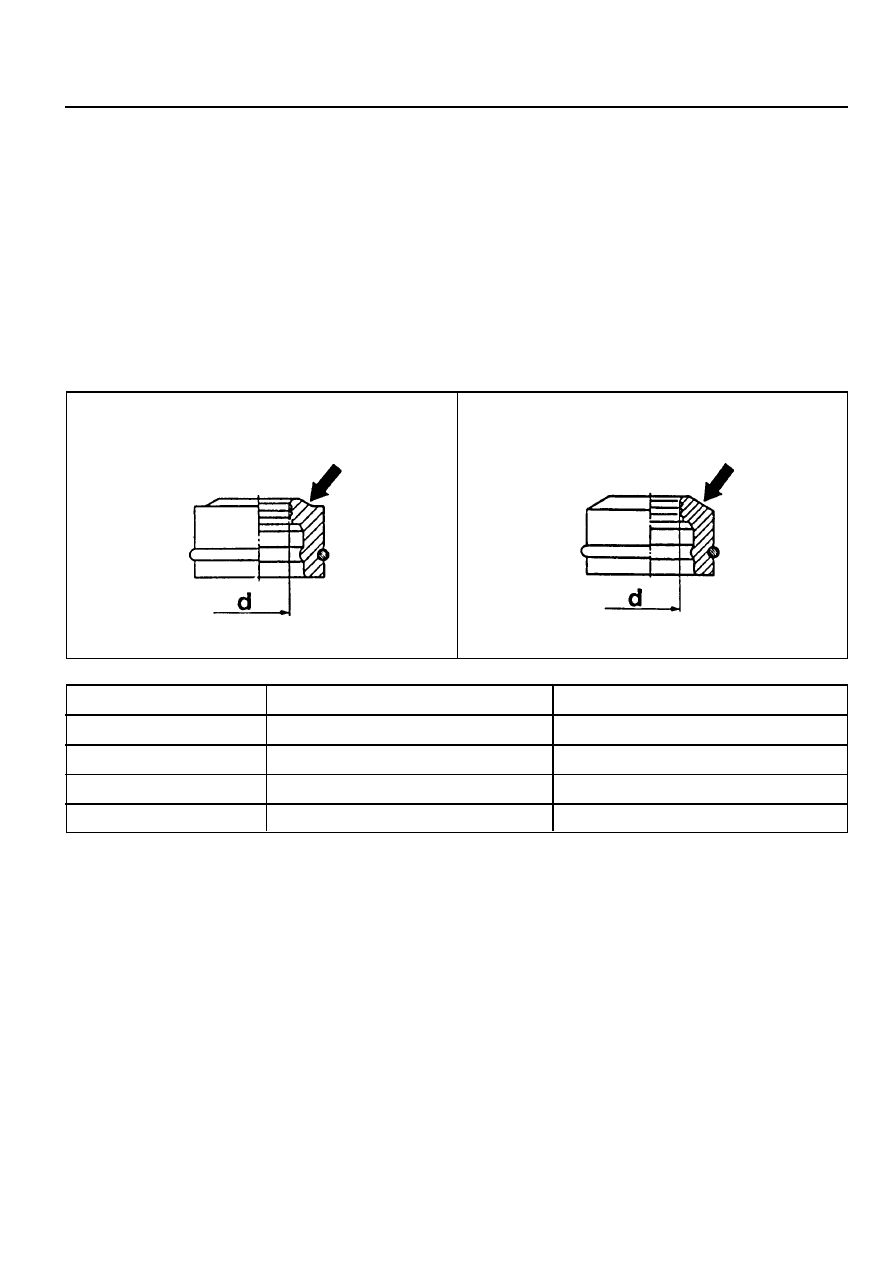

A : Intake valve stem seal

B : Exhaust valve stem seal

Chamfer

Inner diameter ‘d’

Color

Wire ring

Intake valve stem seal

Offset

7.3mm

Brown

Black

Exhaust valve stem seal

All round

8.2mm

Green

Yellow
