1B3-98  OM600 ENGINE MECHANICAL

FLYWHEEL RING GEAR

Preceding Work : Removal of flywheel

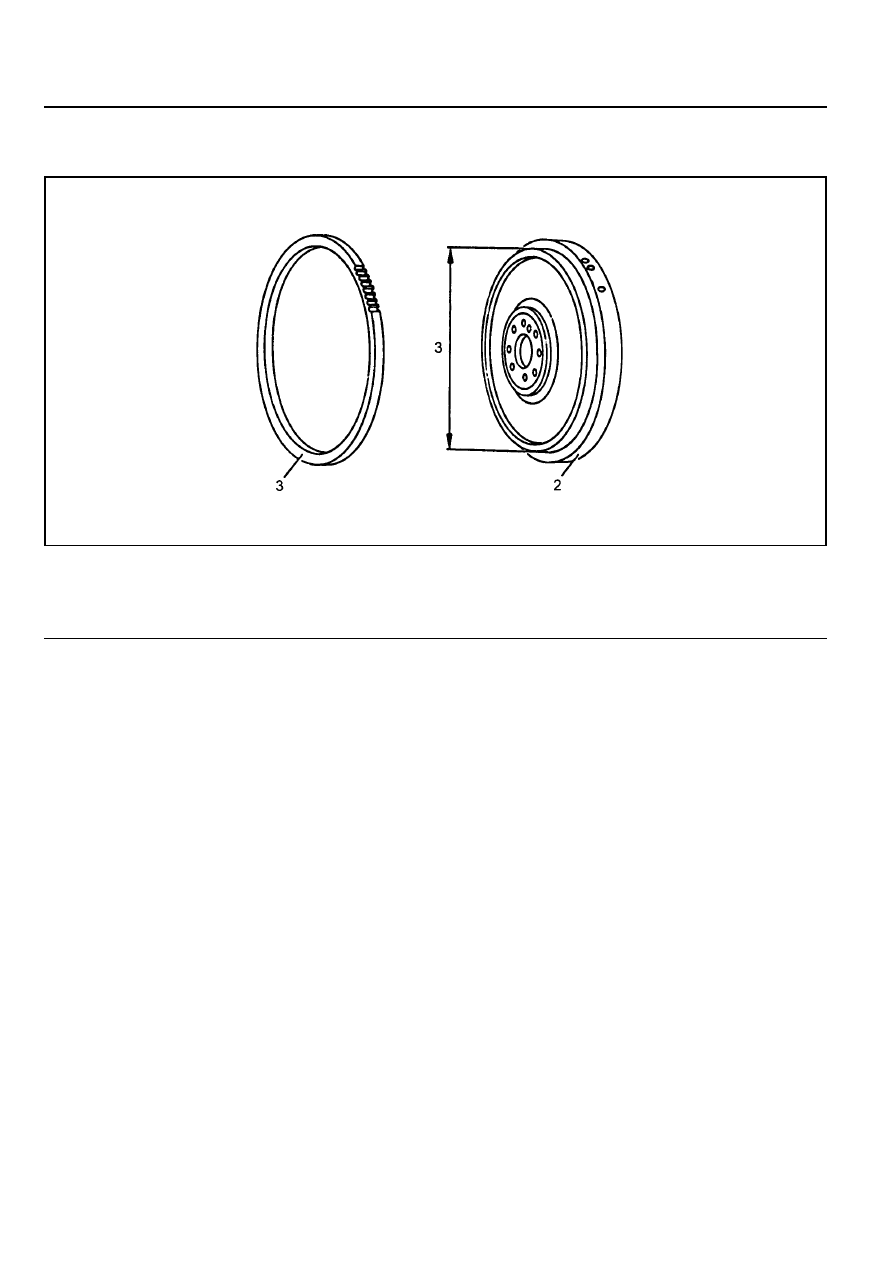

1 Ring Gear
2 Flywheel

3 Centering Collar Diameter

Tools Required

001 589 53 21 00  Dial Gauge

363 589 02 21 00  Dial Gauge Holder

OM600 ENGINE MECHANICAL  1B3-99

Diameter ‘a’

275 + 0.5mm

Replacement Procedure

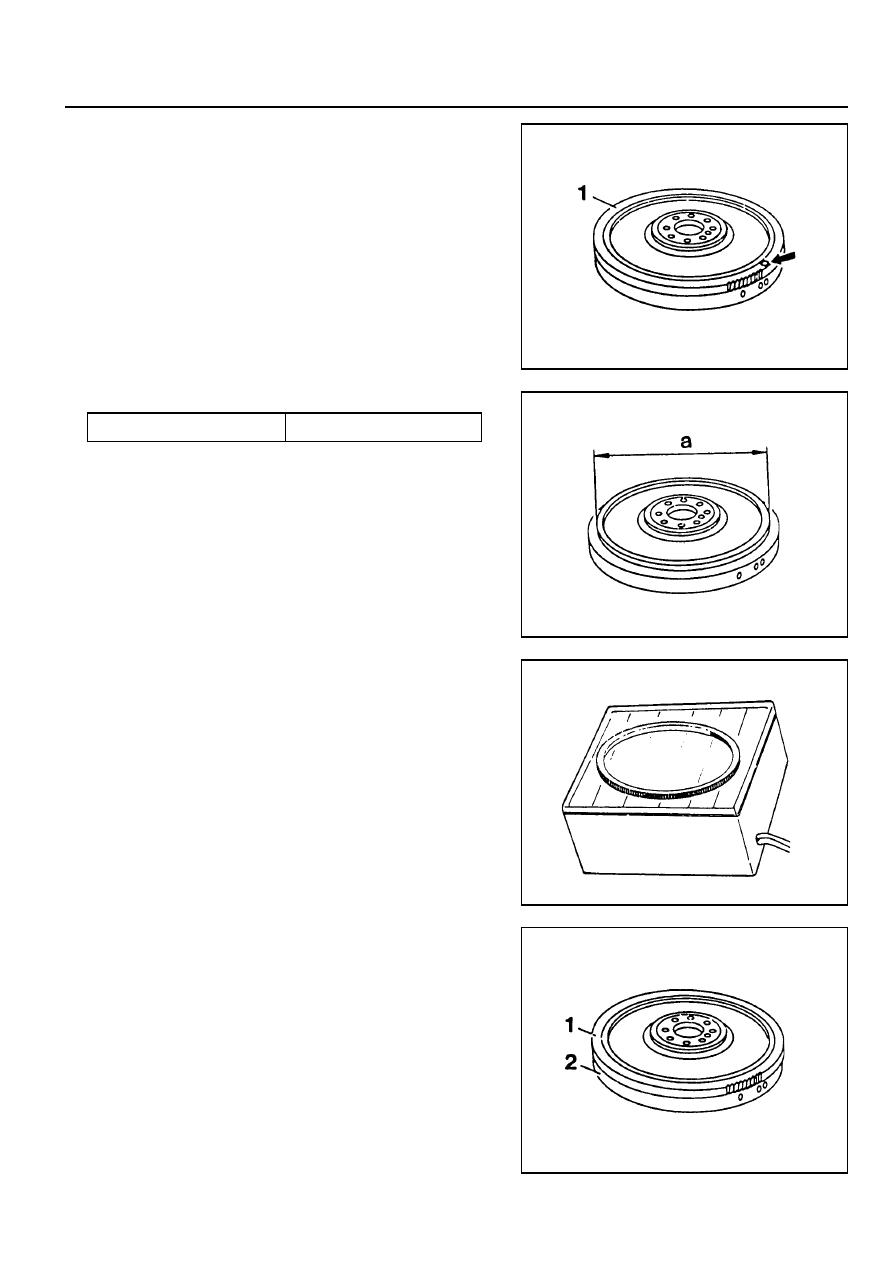

1. Drill a hole into the ring gear (1) (arrow) and snap

with a chisel.

2. Thoroughly clean the collar surfaces of ring gear.

3. Measure diameter (a) of centering collar.

Notice

If out of standard, replace the flywheel.

4. Heat up the new ring gear up to 220°C by using a

heating device.

Notice

Use temperature measuring chalk.

5. Install the new ring gear (1) onto the flywheel by using a

drift.

1B3-100  OM600 ENGINE MECHANICAL

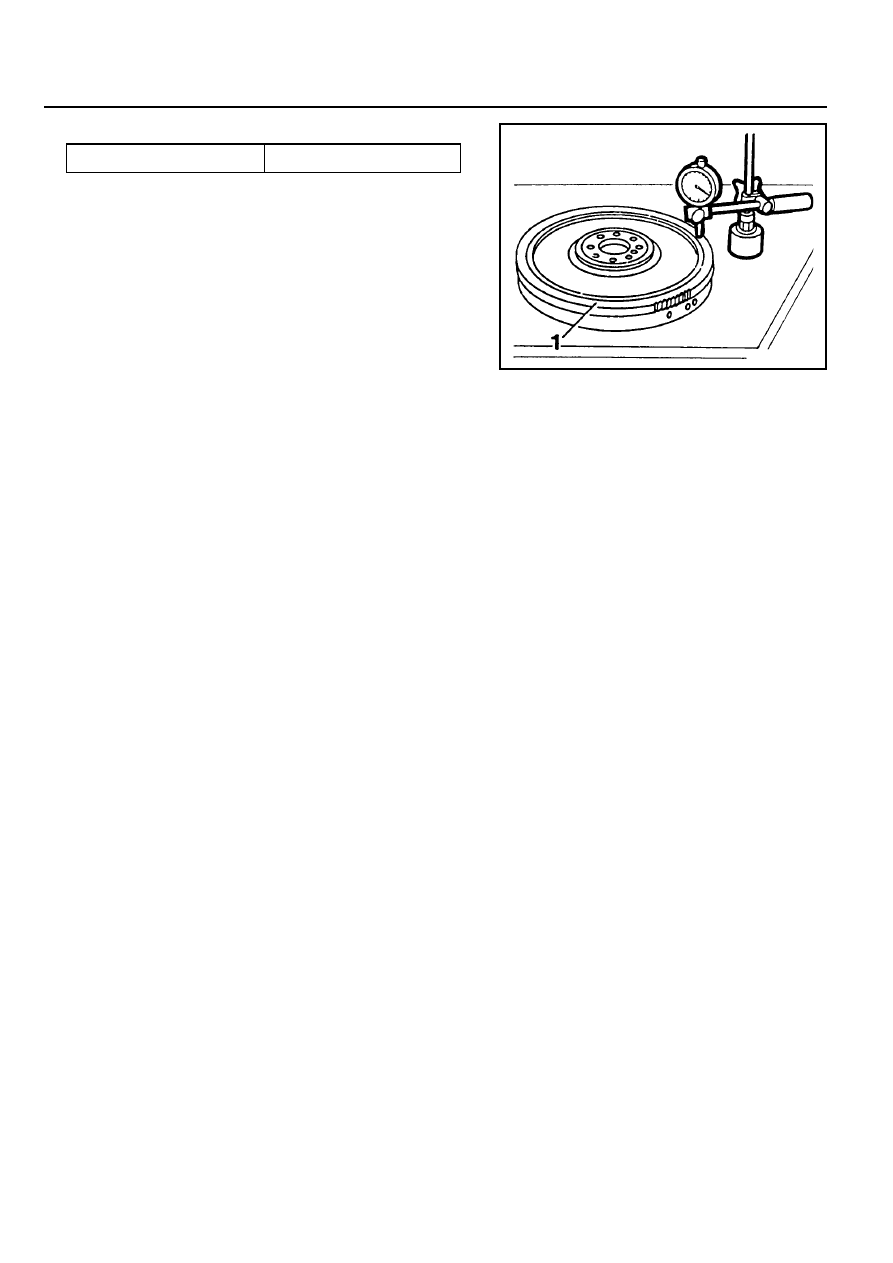

6. Measure axial runout of ring gear (1) on a surface plate.

Limit

Max.  0.4mm

Notice

For correct measurement, put the flywheel on the flat
measuring board.

Dial Gauge 001 589 53 21 00

Dial Gauge Holder 363 589 02 21 00

OM600 ENGINE MECHANICAL  1B3-101

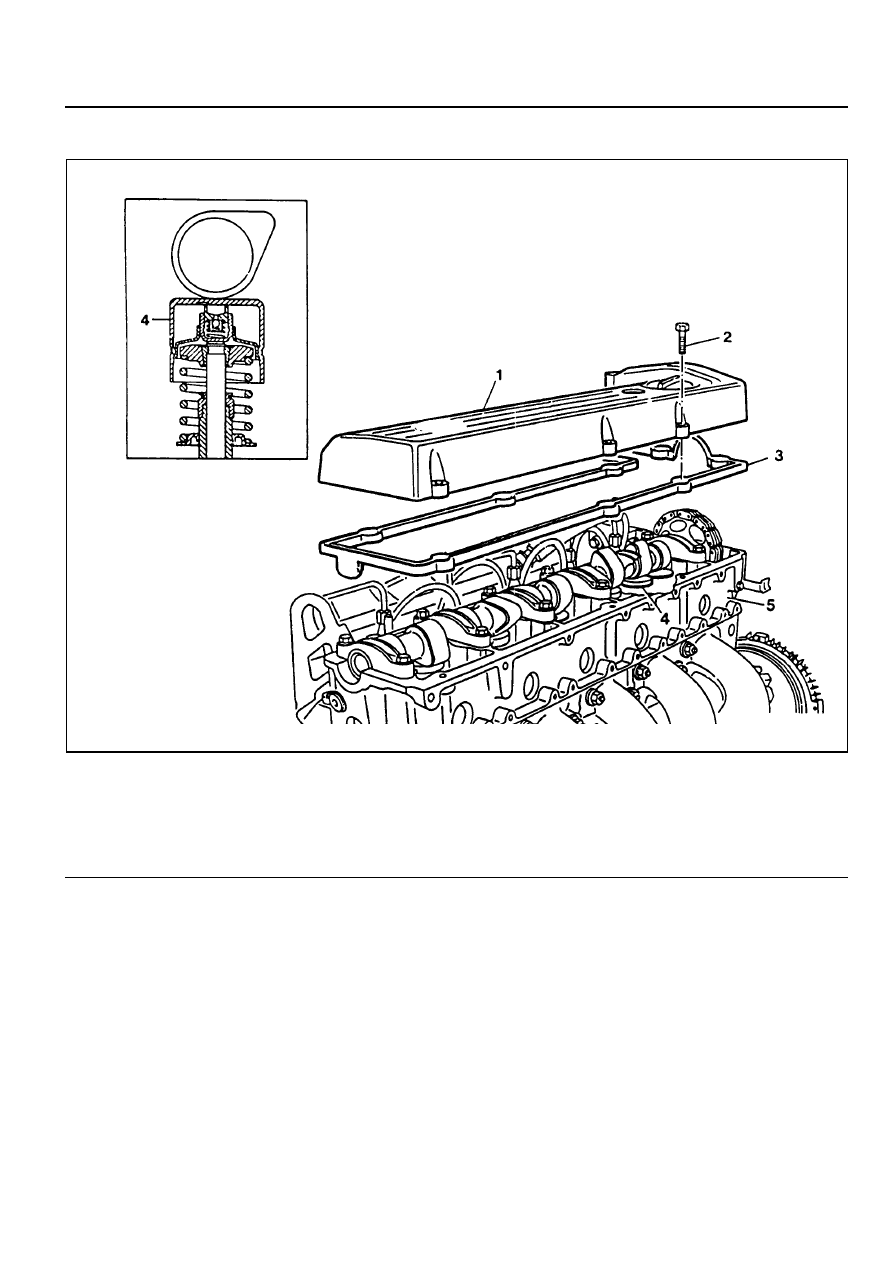

HYDRAULIC VALVE CLEARANCE COMPENSATION ELEMENT CHECK

1 Cylinder Head Cover
2 Bolt ............................................................ 10Nm
3 Gasket ................................................... Replace

4 Valve Tappet
5 Cylinder Head
