1B3-94  OM600 ENGINE MECHANICAL

!

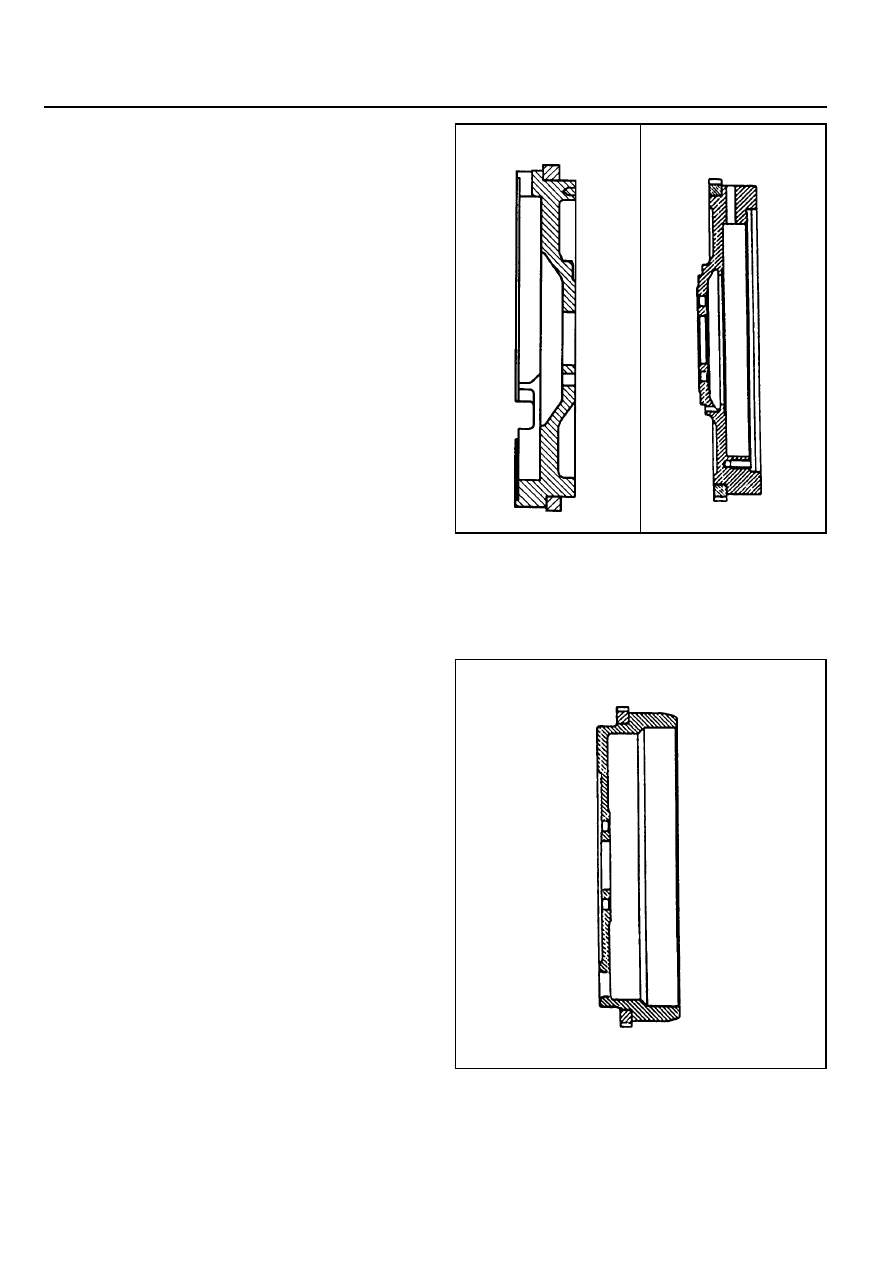

Manual transmission flywheel

!

Automatic transmission flywheel

OM661LA

OM662LA

OM600 ENGINE MECHANICAL  1B3-95

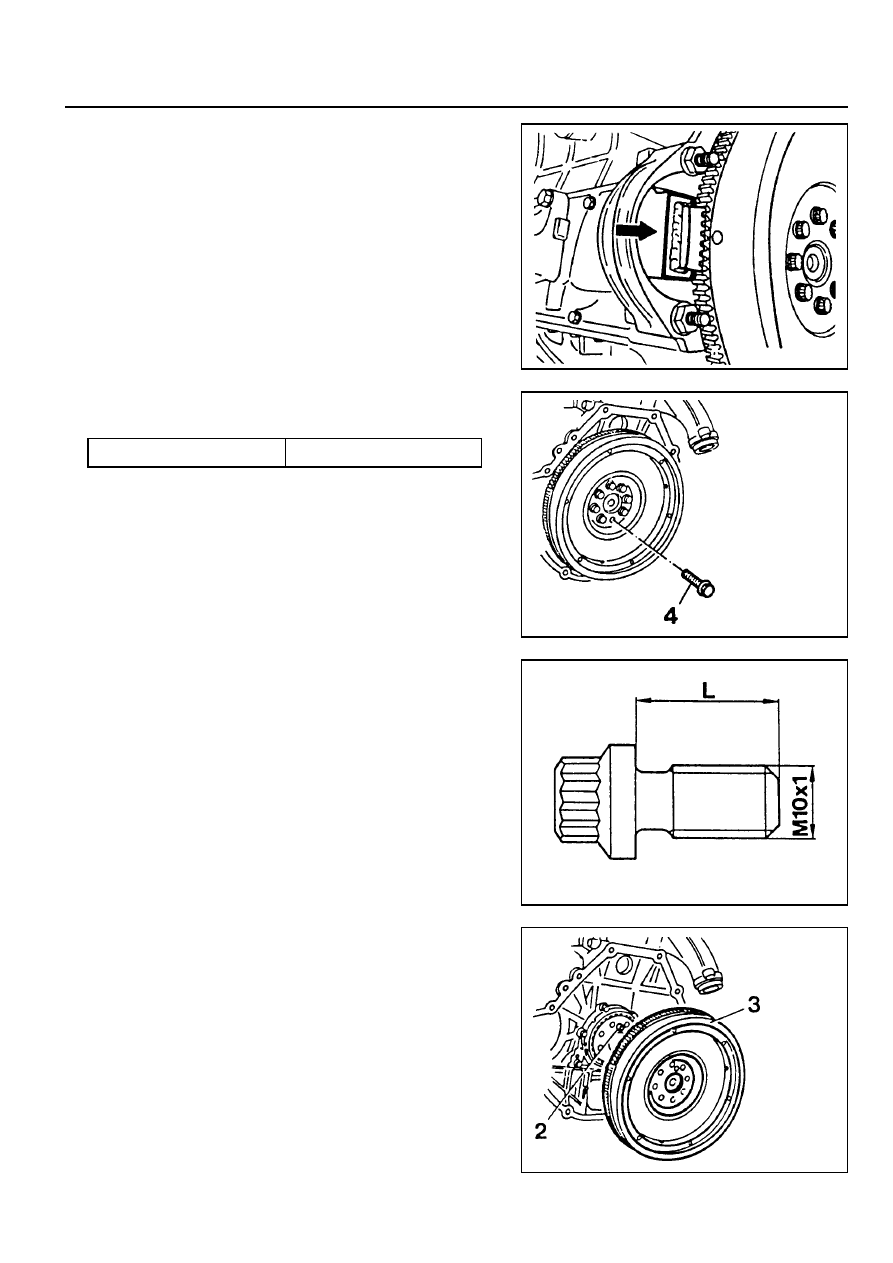

3. Remove the flywheel (3), if equipped with manual

transmission.

Installation Notice

Correctly align the position of dowel pin (2).

Tools Required

602 589 00 40 00  Engine Lock

Removal & Installation Procedure

1. Install the engine lock.

Engine Lock 602 589 02 40 00

2. Remove the 12-sided stretch bolts (4).

Installation Notice

Tightening  Torque

45 Nm + 90°

Notice

If the length ‘L’ of bolts exceeds 22.5mm, replace the bolts.

1B3-96  OM600 ENGINE MECHANICAL

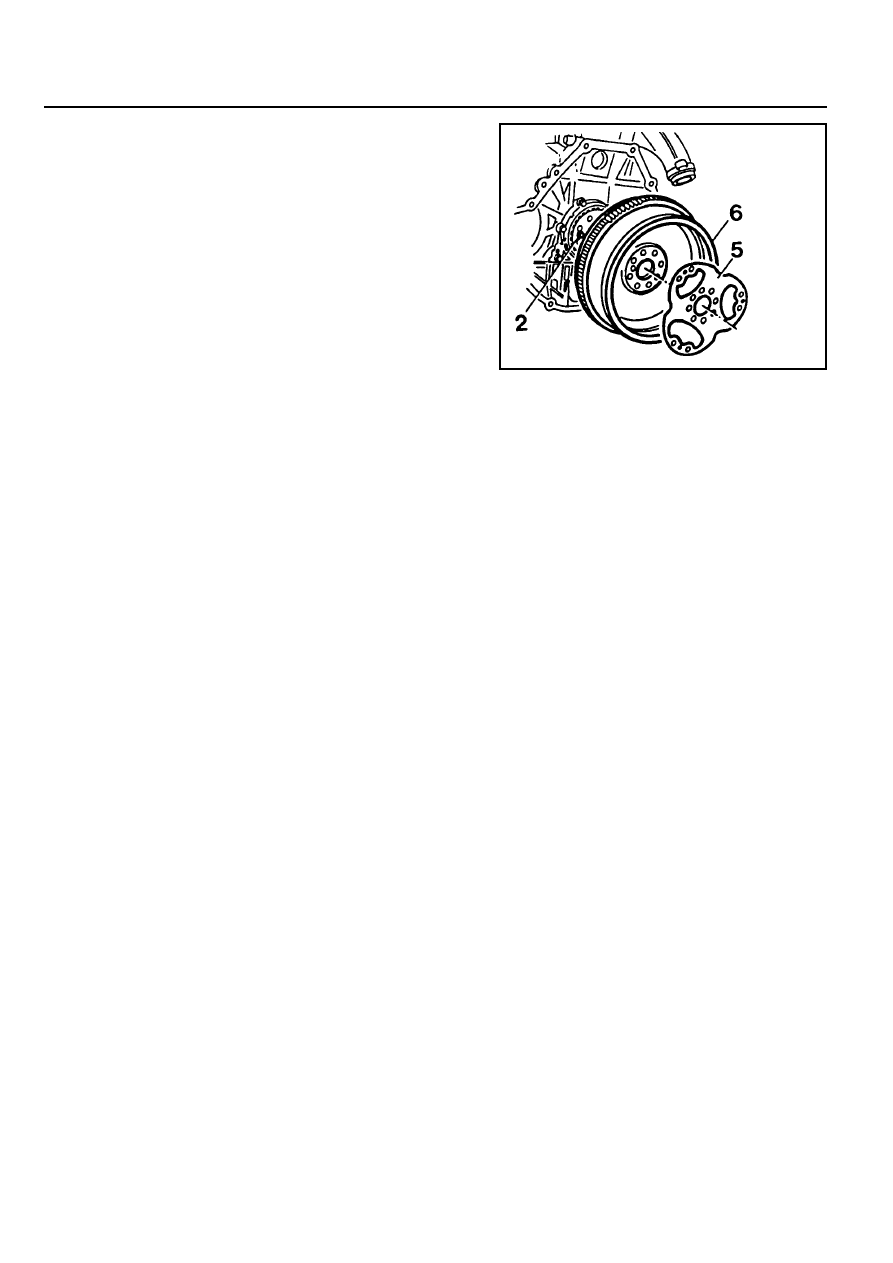

4. Remove the flywheel (6) and driven plate (5), if equipped

with automatic transmission.

Installation Notice

Correctly align the position of dowel pin (2).

5. Installation should follow the removal procedure in the

reverse order.

OM600 ENGINE MECHANICAL  1B3-97

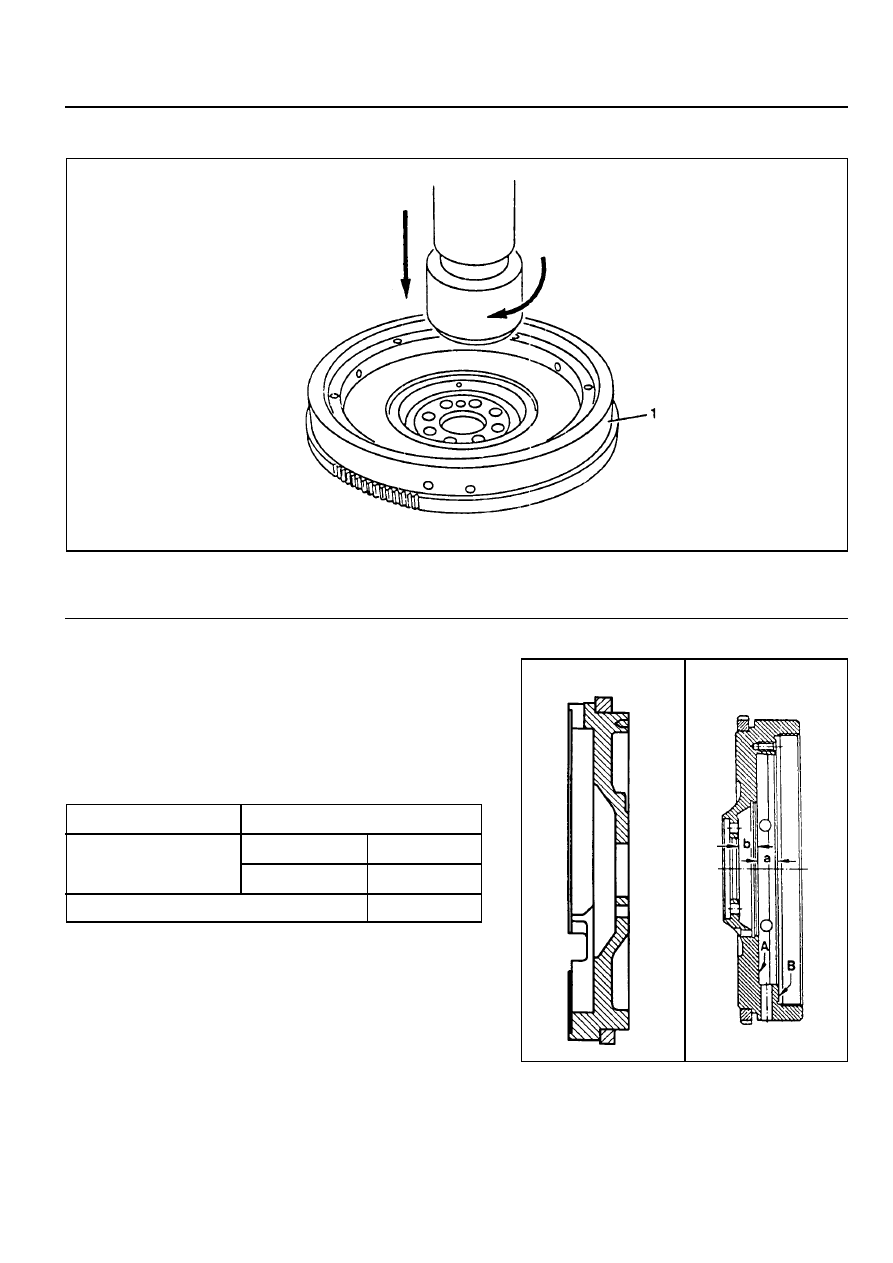

MACHINING OF FLYWHEEL

1 Flywheel

Machining of Flywheel

Notice

Flywheels which have scorch marks, scoring or cracks in
the clutch surface should be machined by grinding or
precision-turning. If the scores or cracks are severe than
permissible specifications, replace the flywheel.

!

When machining the clutch surface ‘A’, the mounting
surface (B) for the clutch pressure plate should also be
machined in accordance with ‘A’ to keep the distance ‘a’.

!

Do not machine under ‘b’ value.

!

When machining, fix the flywheel exactly not to exceed the
standard runout.

OM662LA

OM662LA

Max. axial runout

Distance ‘a’

New

Repair up to

19.3 - 19.5 mm

16.6 mm

15.6 mm

0.05 mm

Distance ‘b’
