1B3-82  OM600 ENGINE MECHANICAL

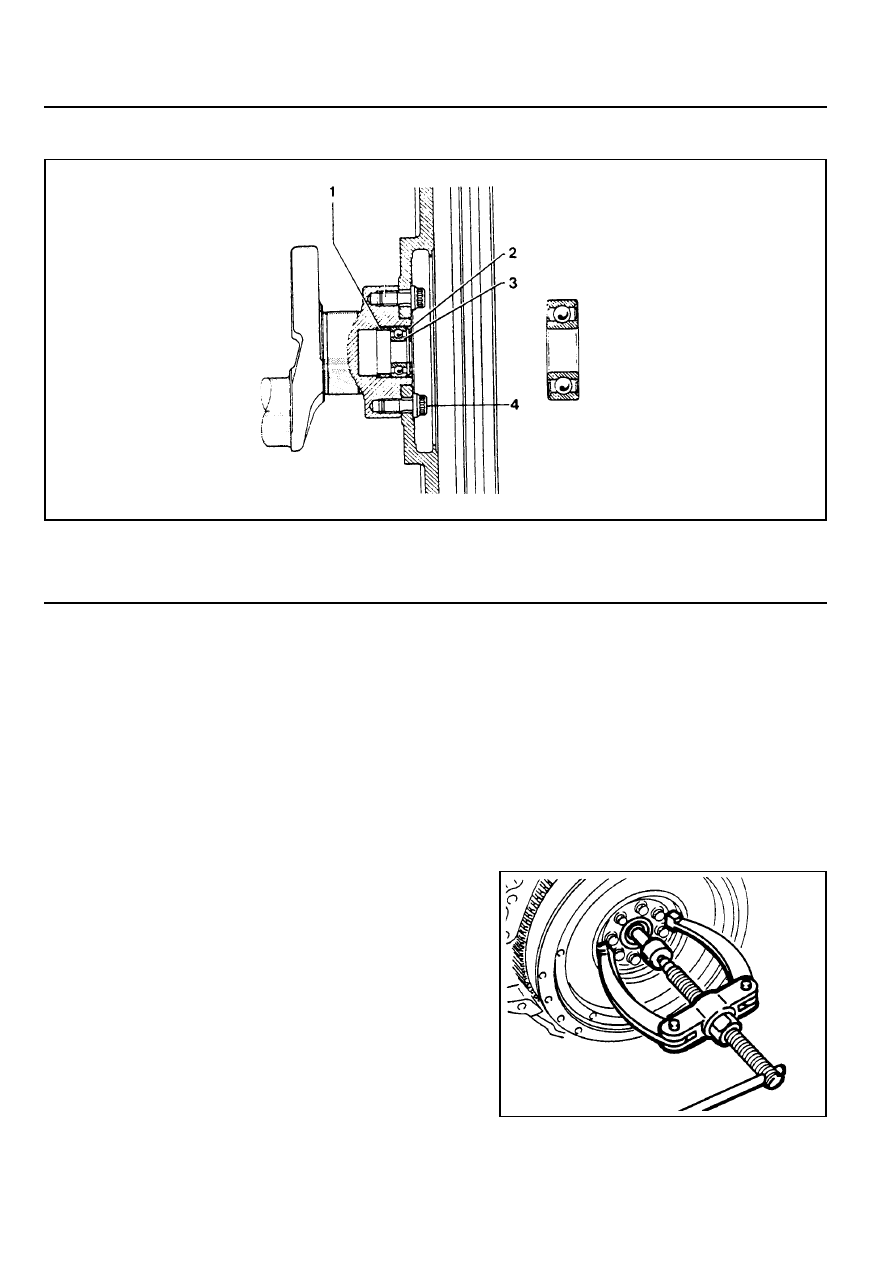

CRANKSHAFT BALL BEARING

1 Spacer
2 Cover ......................................... Replace

Notice

Manual transmission only.

Tools Required

000 589 33 33 00  Counter Support

000 589 25 33 00  Internal Extractor

Removal & Installation Procedure

1. Remove the manual transmission.

2. Using a puller, pull out the locking ring and ball bearing

together.

Counter Support 000 589 33 33 00

Internal Extractor 000 589 25 33 00

3. Apply Loctite 241 on the new ball bearing and then insert

the ball bearing to be stopped at the spacer ring by using a
proper mandrel.

3 Ball Bearing
4 Bolt ....................................... 45Nm + 90°

OM600 ENGINE MECHANICAL  1B3-83

CRANKSHAFT

Preceding Work   : Removal of the end cover

Removal of the piston
Removal of the crankshaft sprocket

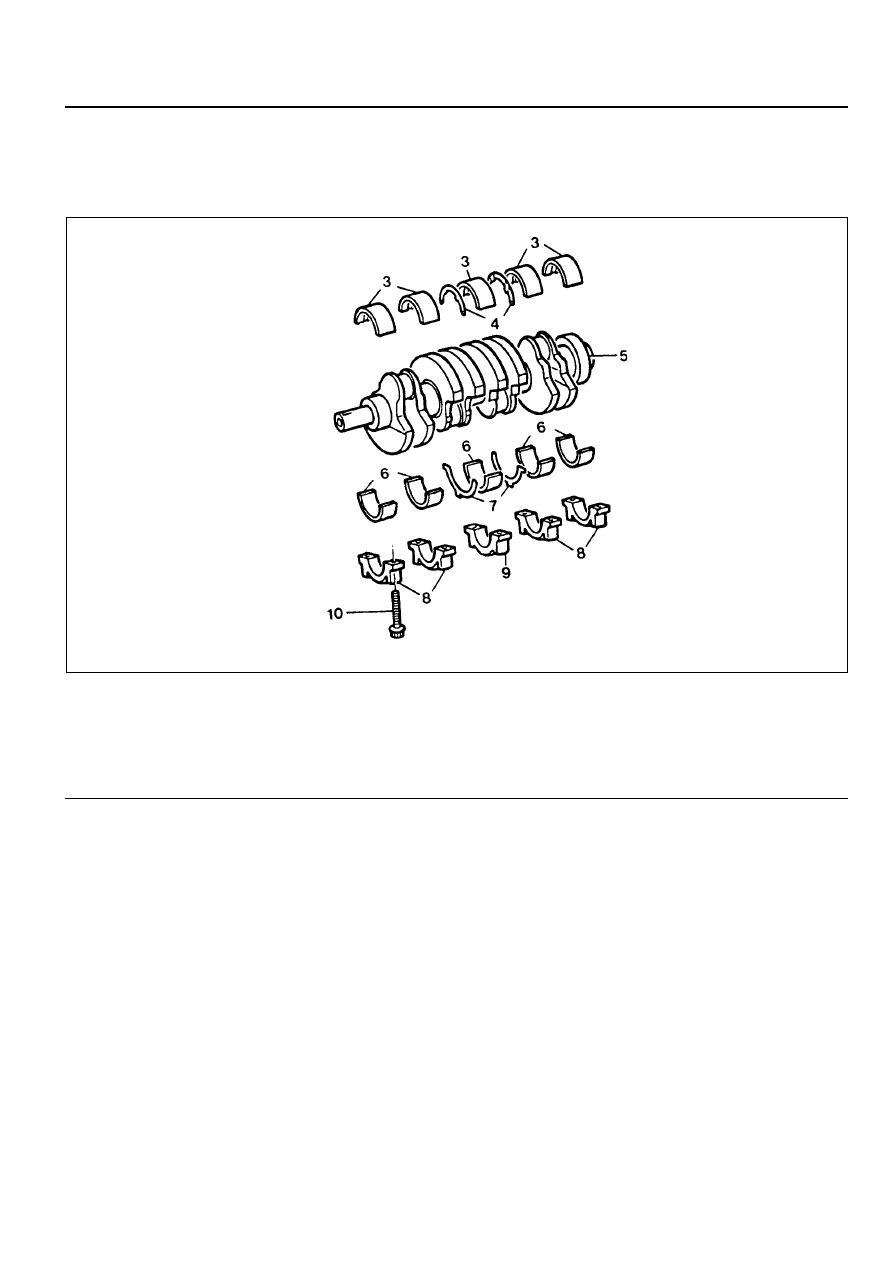

3 Crankshaft Main Bearing Shells (Upper)
4 Trust Bearings (Upper)
5 Crankshaft
6 Crankshaft Main Bearing Shells (Lower)

7 Thrust Bearings (Lower)
8 Crankshaft Bearing Cap
9 Crankshaft Bearing Cap (Fit Bearing)

10 12-sided Stretch Bolts ....................... 55Nm + 90°

Tools Required

001 589 53 21 00  Dial Gauge

363 589 02 21 00  Dial Gauge Holder

366 589 00 21 05  Extension

1B3-84  OM600 ENGINE MECHANICAL

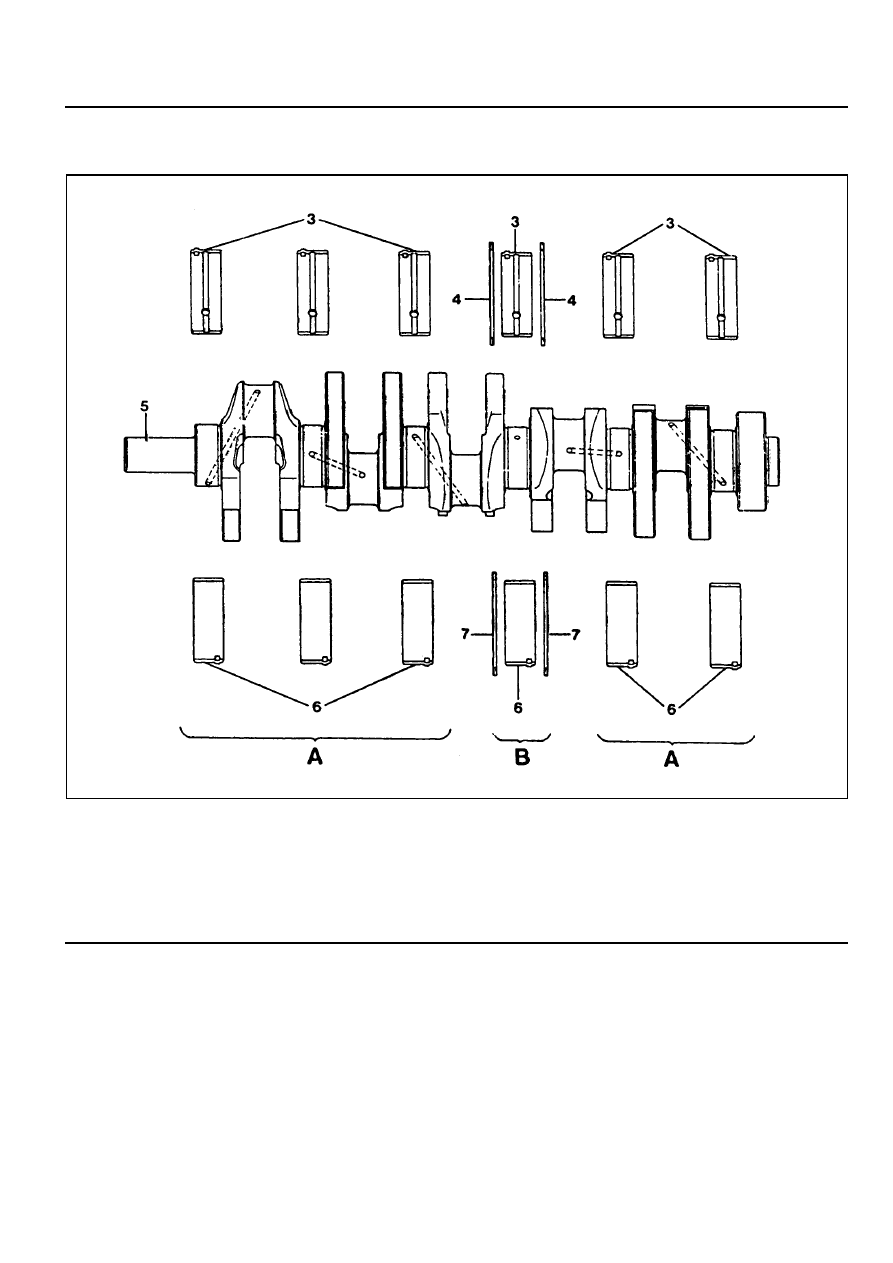

3 Crankshaft Main Bearing Shells (Upper)
4 Thrust Bearings (Upper)
5 Crankshaft
6 Crankshaft Main Bearing Shells (Lower)
7 Thrust Bearings (Lower)

A Radial Bearings
B Radial and Axial Bearings (Thrust Bearing)

Notice

The gaps between the bearing shell and bore and
between the bearing shell and journal are different
each other. Refer to service data.

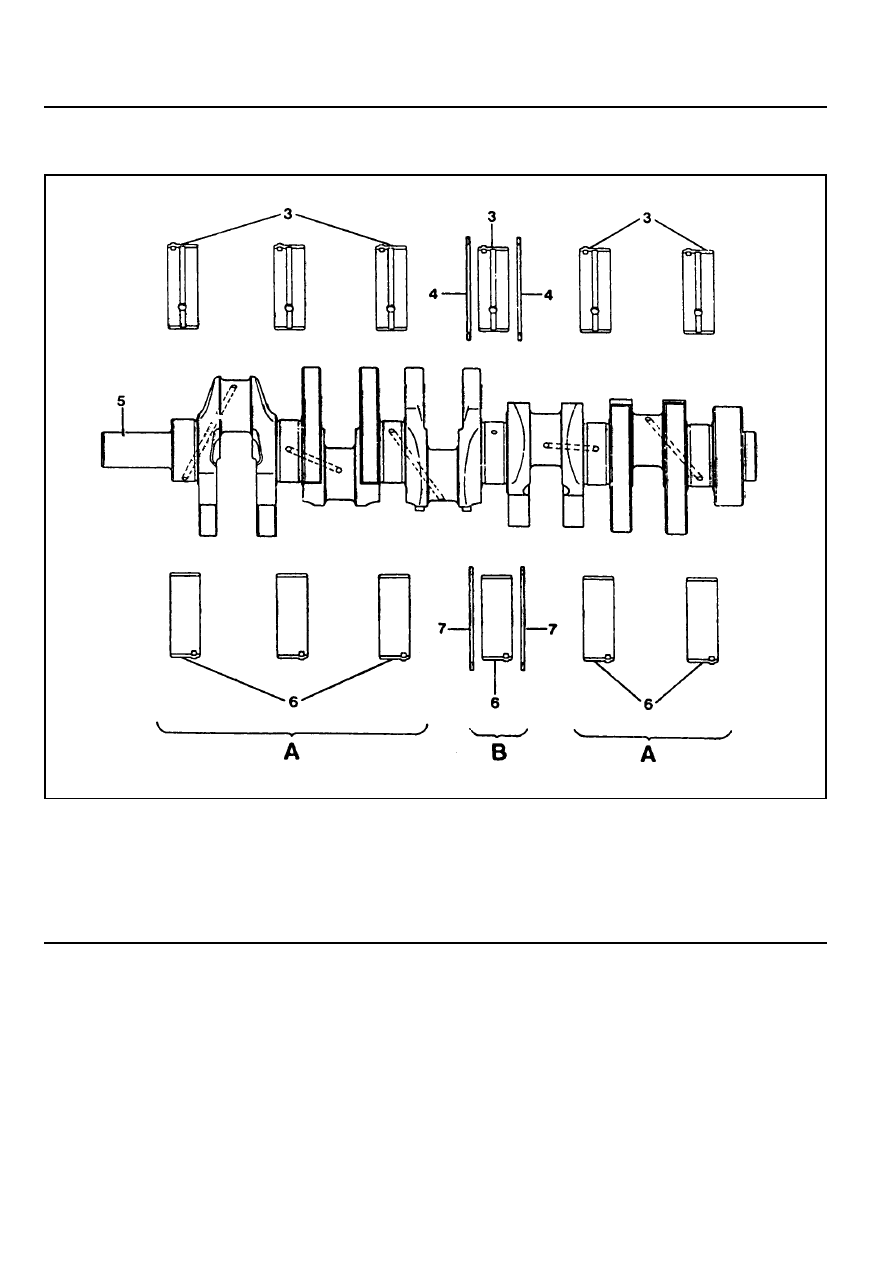

Thrust Washer and Bearing Arrangement

OM662LA Engine

OM600 ENGINE MECHANICAL  1B3-85

3 Crankshaft Main Bearing Shells (Upper)
4 Thrust Bearings (Upper)
5 Crankshaft
6 Crankshaft Main Bearing Shells (Lower)
7 Thrust Bearings (Lower)

A Radial Bearings
B Radial and Axial Bearings (Thrust Bearing)

Notice

The gaps between the bearing shell and bore and
between the bearing shell and journal are different
each other. Refer to service data.

OM661LA Engine
