1B3-74  OM600 ENGINE MECHANICAL

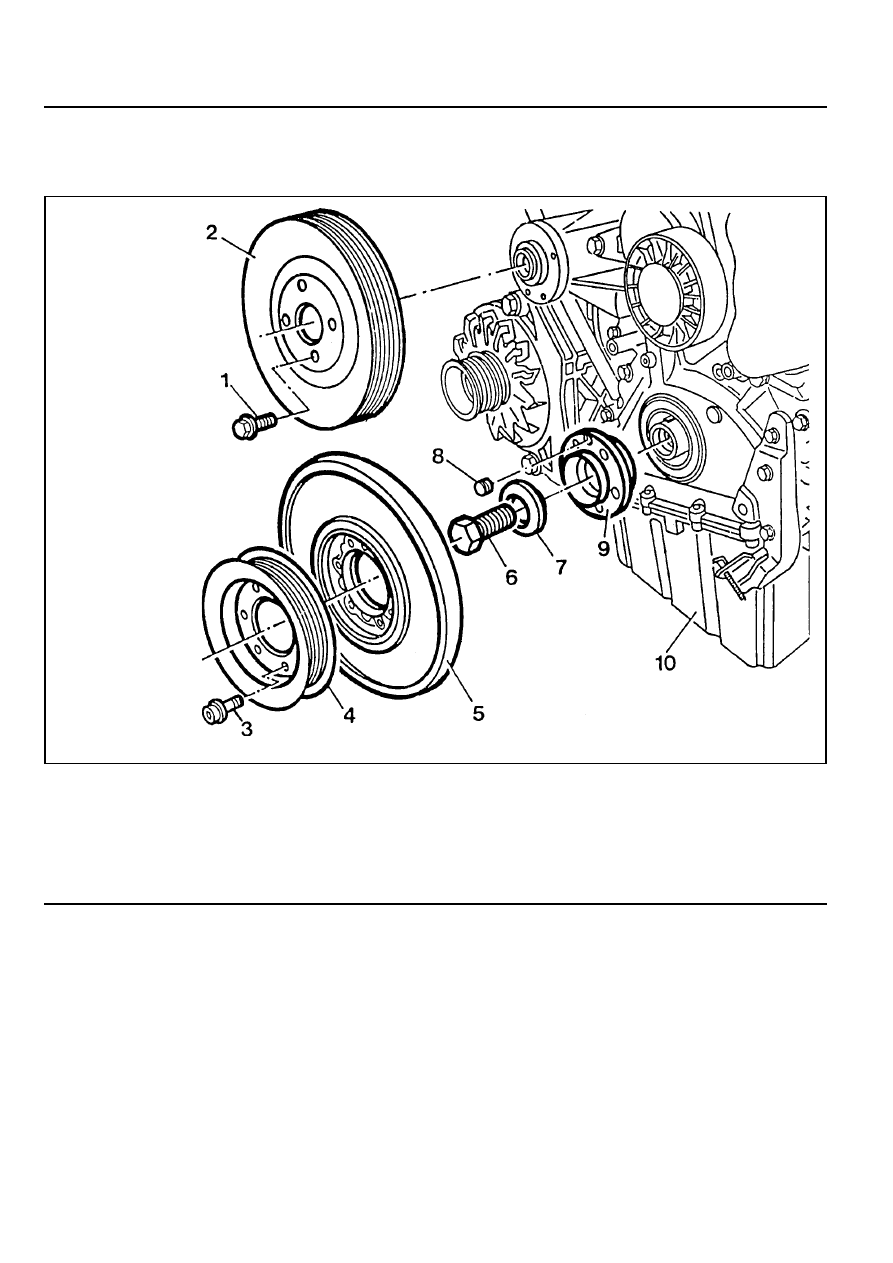

VIBRATION DAMPER AND HUB

Preceding Work : Removal of the cooling fan

Removal of poly V-belt

1 Bolt ............................................................ 10Nm
2 Cooling Fan Belt Pulley
3 Socket Bolt ................................................ 23Nm
4 Crankshaft Belt Pulley
5 Vibration Damper

6 Bolt ................................................ 200Nm + 90°
7 Washer
8 Straight Pin
9 Hub

10 Oil Pan

OM600 ENGINE MECHANICAL  1B3-75

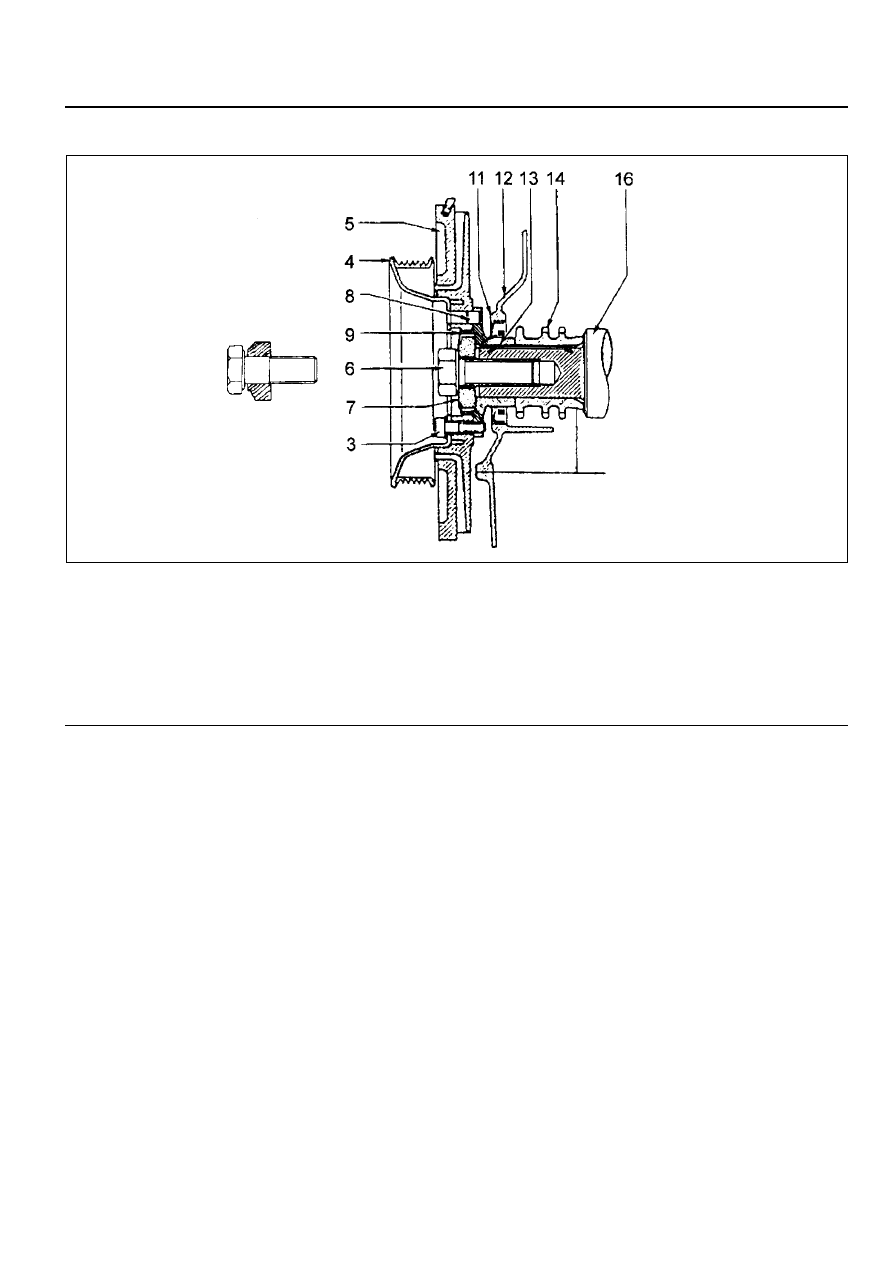

Sectional View

3 Socket Bolt
4 Crankshaft Belt Pulley
5 Vibration Damper
6 Bolt
7 Washer
8 Straight Pin

Notice

The mounting position of vibration damper is fixed by straight
pin (8).

Tools Required

602 589 00 40 00  Engine Lock

103 589 00 30 00  Puller

9 Hub

11 Radial Seal

12 Timing Gear Case Cover
13 Key
14 Crankshaft Sprocket
16 Crankshaft

1B3-76  OM600 ENGINE MECHANICAL

Removal Procedure

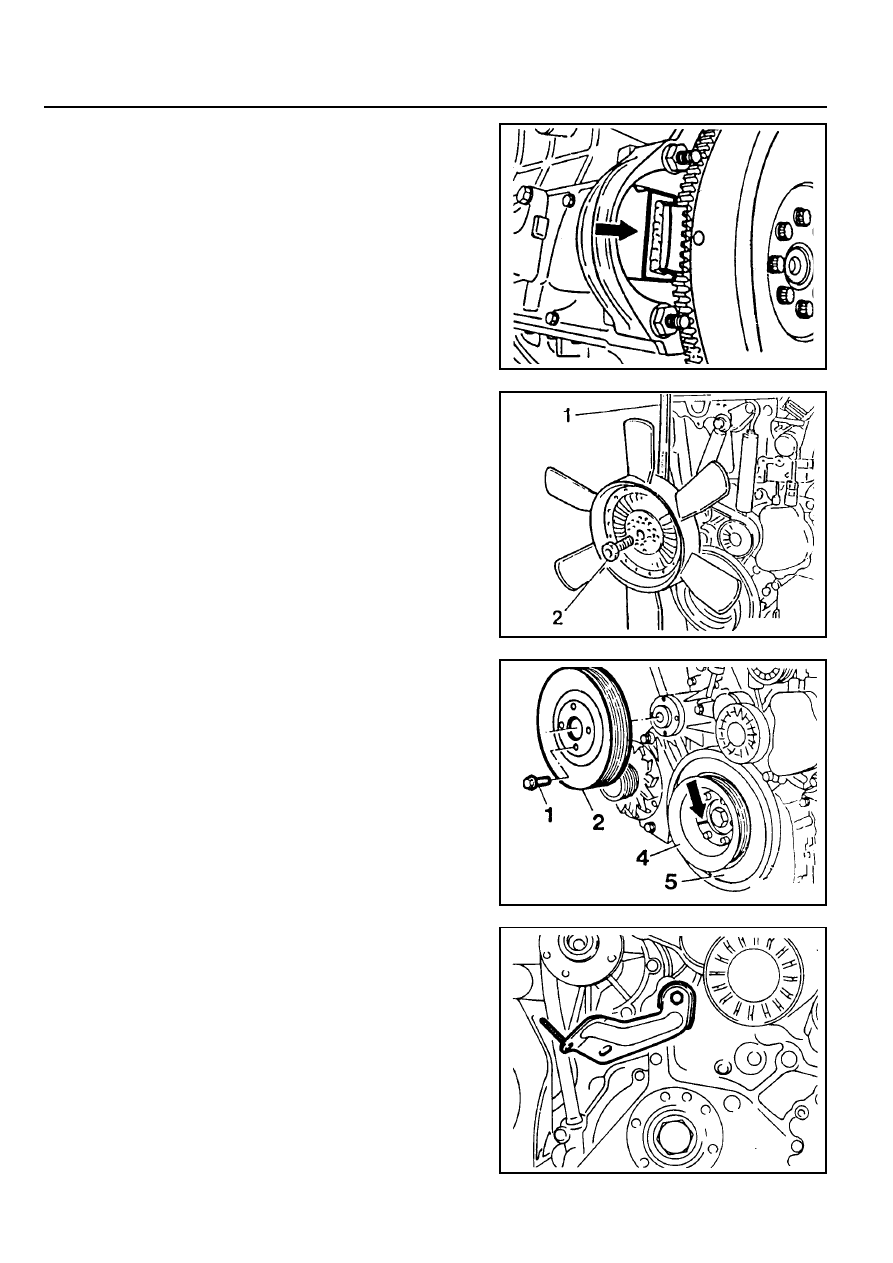

1. Remove the starter motor and install the engine lock into

the wheel ring gear.

Engine Lock 602 589 00 40 00

2. Remove the poly V-belt.

3. Remove the cooling fan.

Notice

Keep the fan in vertical position.

4. Remove the cooling fan belt pulley (2).

5. Place alignment marks (arrow) on the vibration damper (5)

and crankshaft belt pulley (4).

6. Remove the timing sensor bracket.

Notice

Remove if necessary.

OM600 ENGINE MECHANICAL  1B3-77

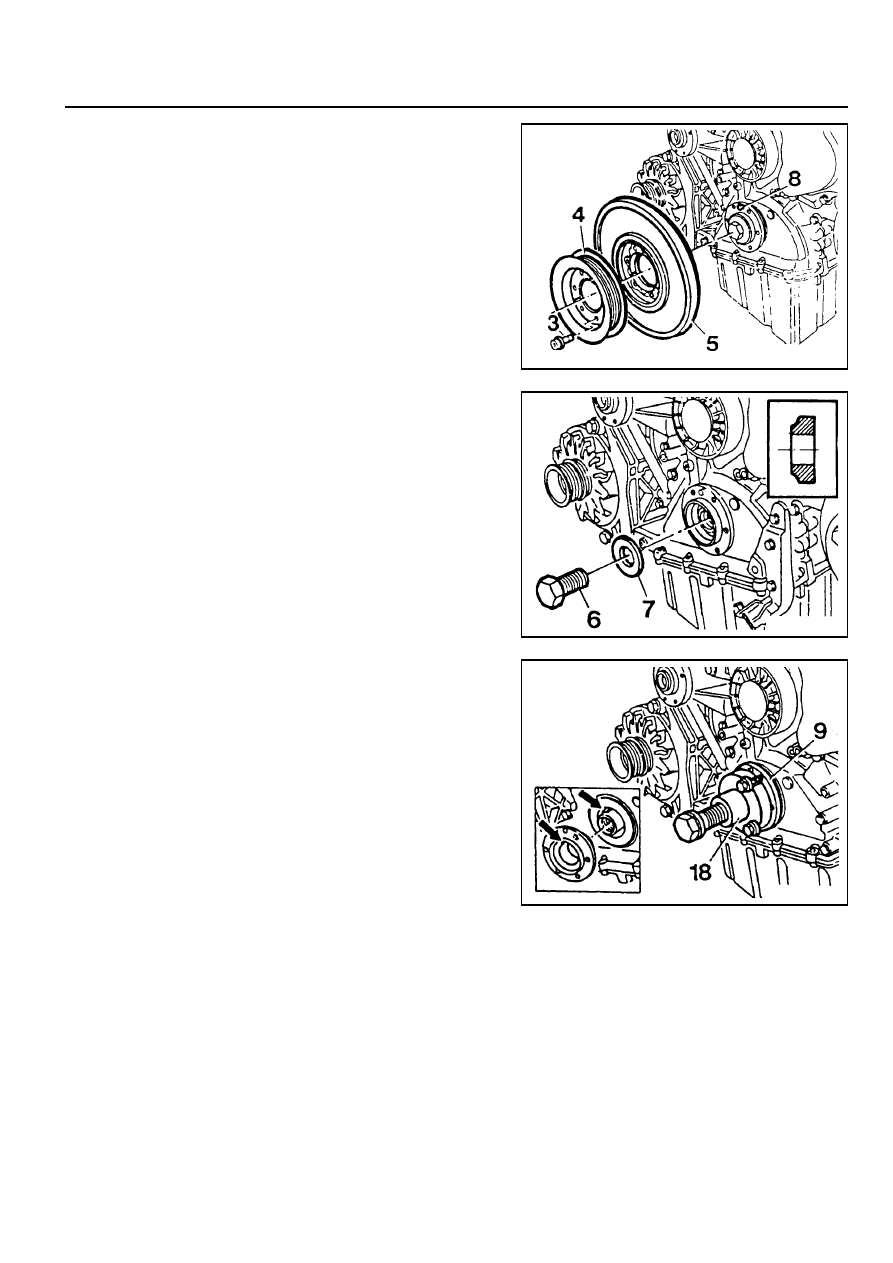

7. Remove the socket bolts (3) and then remove the belt

pulley (4) and vibration damper (5).

8. Remove the washer and bolt.

9. Remove the hub by using a puller.

Puller 103 589 00 33 00

10. Replace the radial seal.
