1B3-66  OM600 ENGINE MECHANICAL

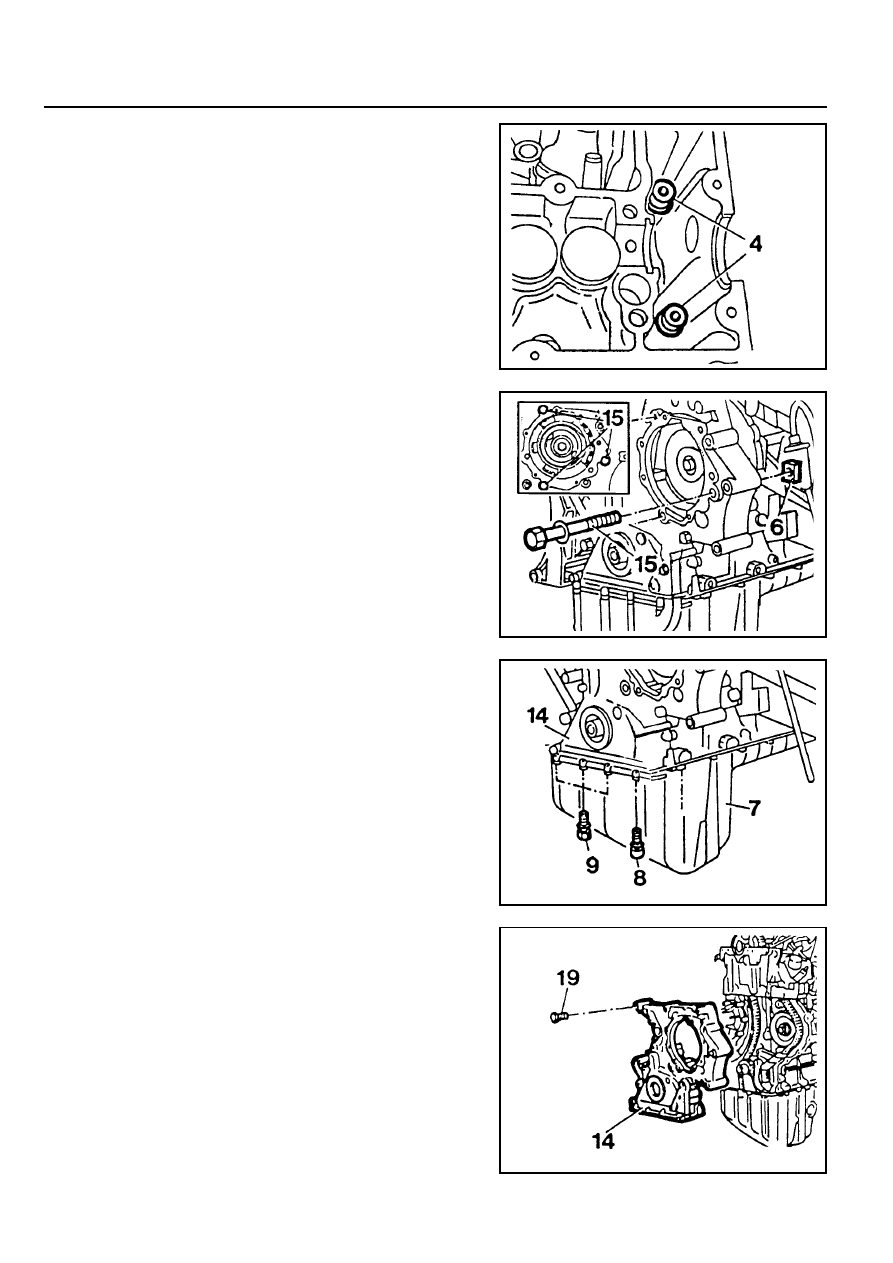

18. Remove the timing case cover (19) bolts and then remove

the timing case cover (14).

Notice

Be careful not to damage the cylinder head gasket or oil
pan gasket.

13. Remove the camshaft.

14. Remove the socket bolts(4) in the chain box.

Socket Wrench 115 589 03 07 00

15. Remove the injection pump.

Notice

See the ‘Removal of fuel injection pump’.

16. Remove the oil pan bolts (8, 9) in the area of the timing

case cover (14).

17. Slightly loosen the remaining oil pan bolts.

OM600 ENGINE MECHANICAL  1B3-67

Installation Procedure

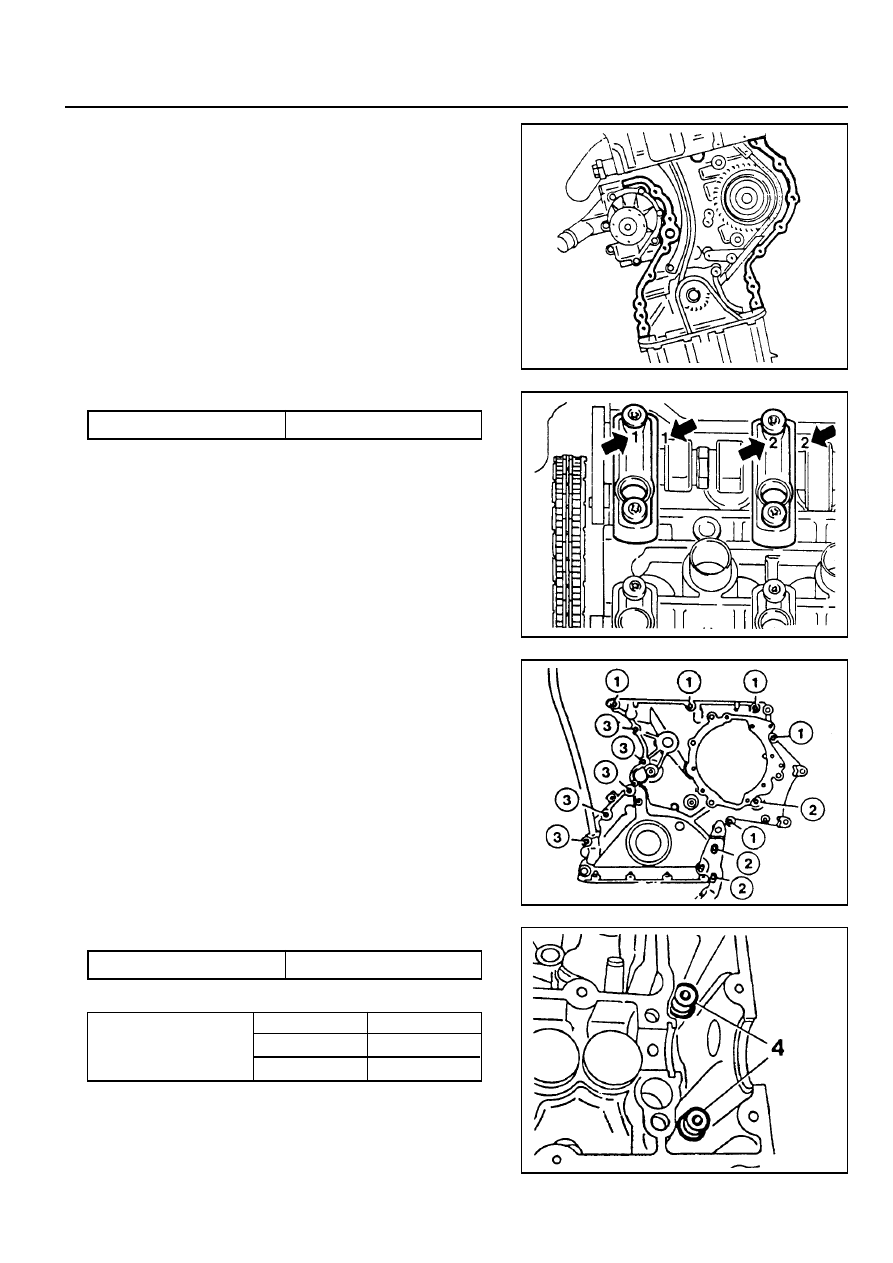

1. Thoroughly clean the sealing surface and apply sealant.

2. Install the timing case cover.

Notice

Bolts arrangement

1.M6  x 60

2.M6  x 70

3.M6  x 40

3. Tighten the socket bolts in the chain box.

Tightening Torque

10 Nm

Tightening Torque

23 Nm

4. Tighten the oil pan bolts.

Tightening Torque

10 Nm

10 Nm

23 Nm

Socket bolt

M6 bolt

M8 bolt

1B3-68  OM600 ENGINE MECHANICAL

Tightening Torque

25 Nm

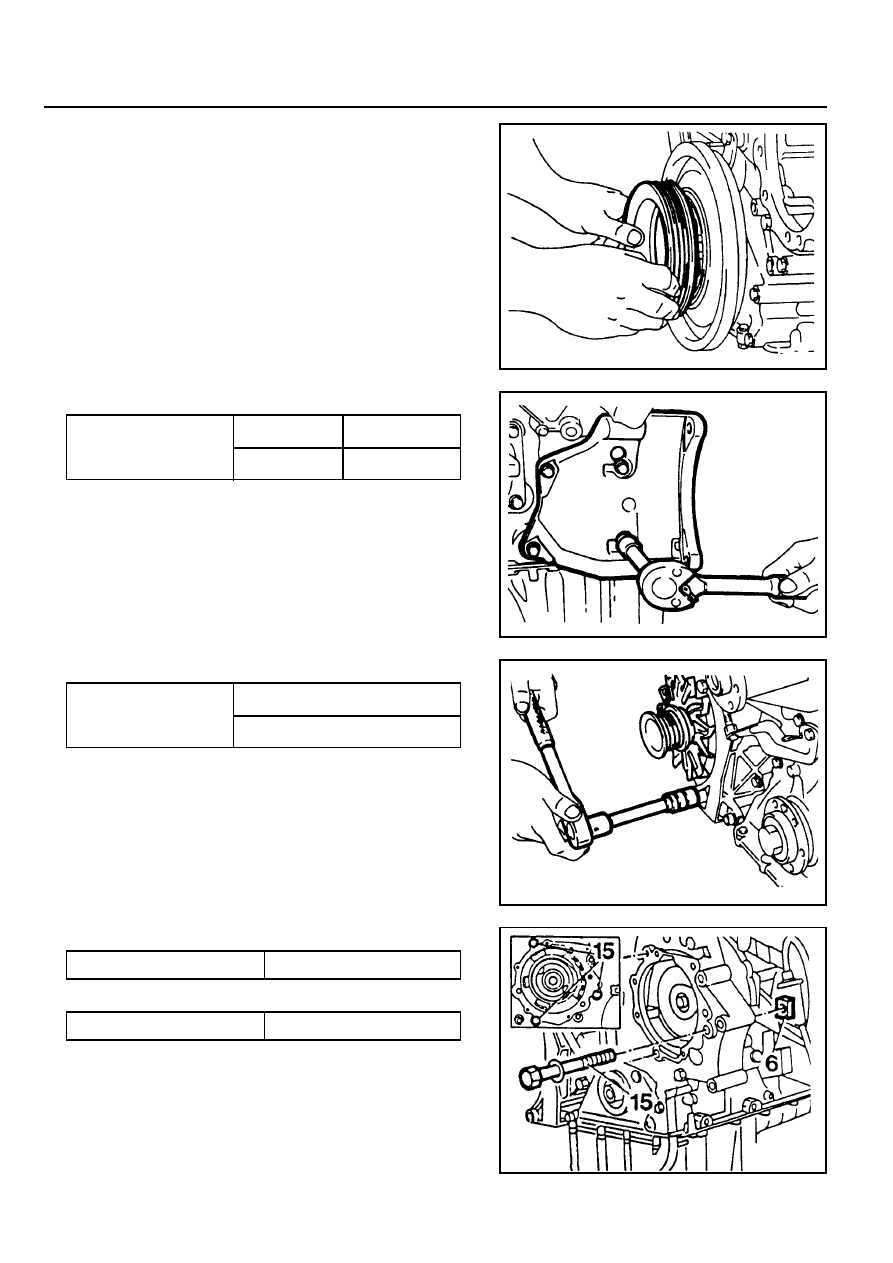

5. Install the flange, vibration damper and crankshaft belt

pulley.

Notice

Replace front radial seal if necessary.

6. Install the alternator bracket.

25 Nm

Front

Side

7. Install the alternator

Tightening Torque

Upper - 25 Nm

Low  - 25 Nm

8. Install the cylinder head cover.

Tightening Torque

10 Nm

9. Tighten the injection pump mounting bolts.

Tightening Torque

23 Nm

OM600 ENGINE MECHANICAL  1B3-69

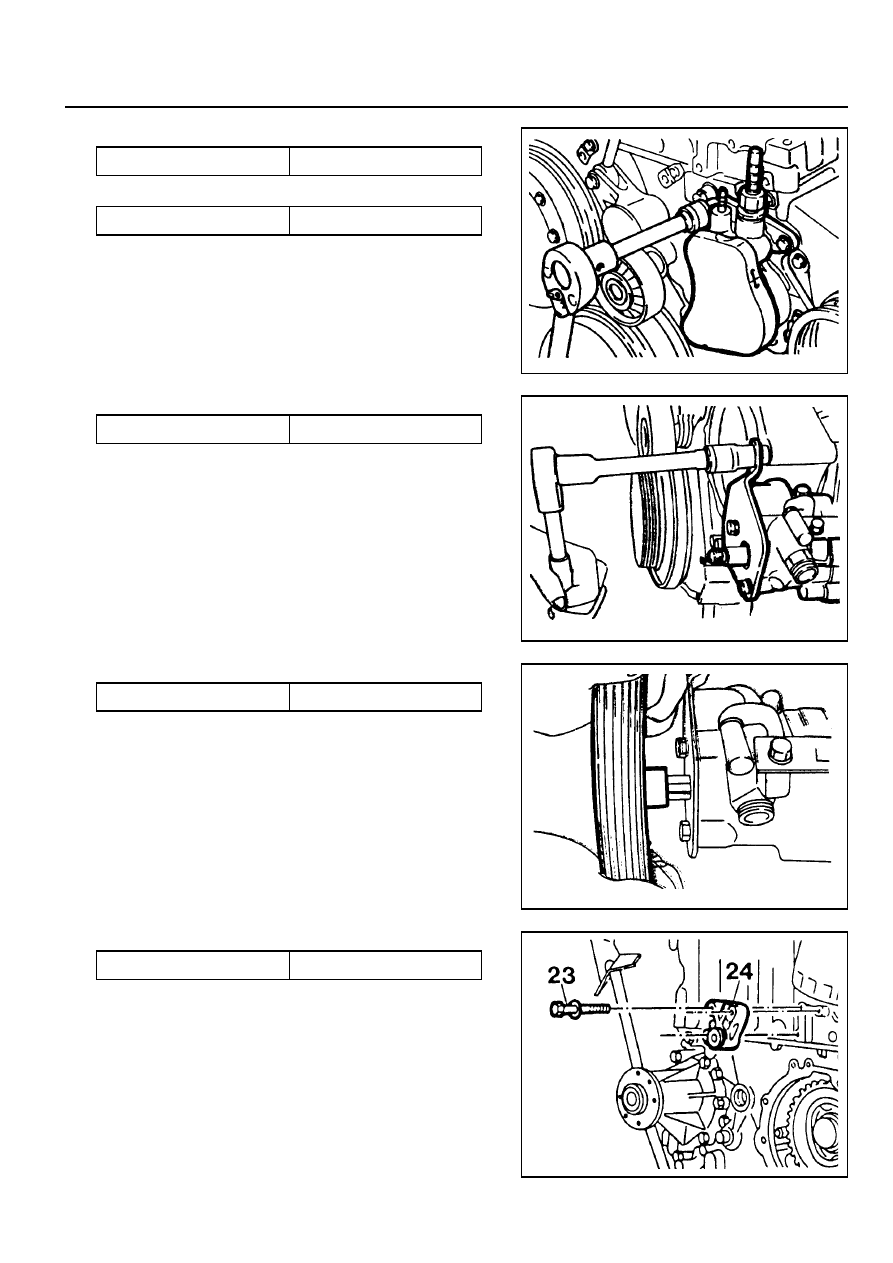

10. Install the fuel filter.

11. Install the vacuum pump.

12. Install the power steering pump.

13. Install the power steering pump pulley.

Tightening Torque

25 Nm

Tightening Torque

10 Nm

Tightening Torque

23 Nm

Tightening Torque

32 Nm

14. Install the guide pulley bracket.

Tightening Torque

9 Nm
