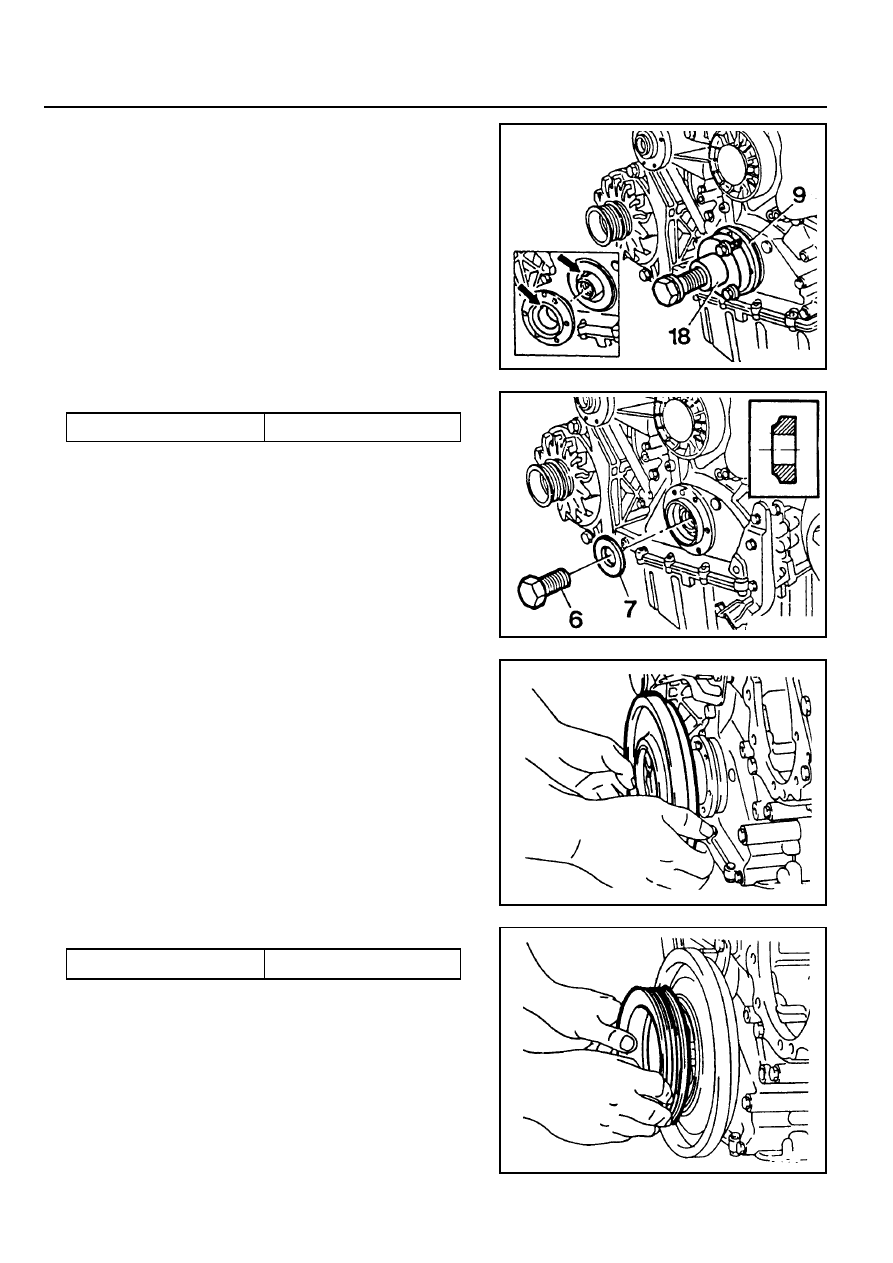

1B3-78  OM600 ENGINE MECHANICAL

Installation Procedure

1. Install the hub.

Notice

Exactly align the woodruff key and the groove of hub (arrow).

2. Install the washer (7) and tighten the bolt (6).

Washer (new) : 1 EA

200 Nm + 90°

3. Install the vibration damper.

Notice

Exactly align and insert onto the straight pin.

4. Install the belt pulley.

Tightening Torque

25 Nm

Notice

Align the alignment marks.

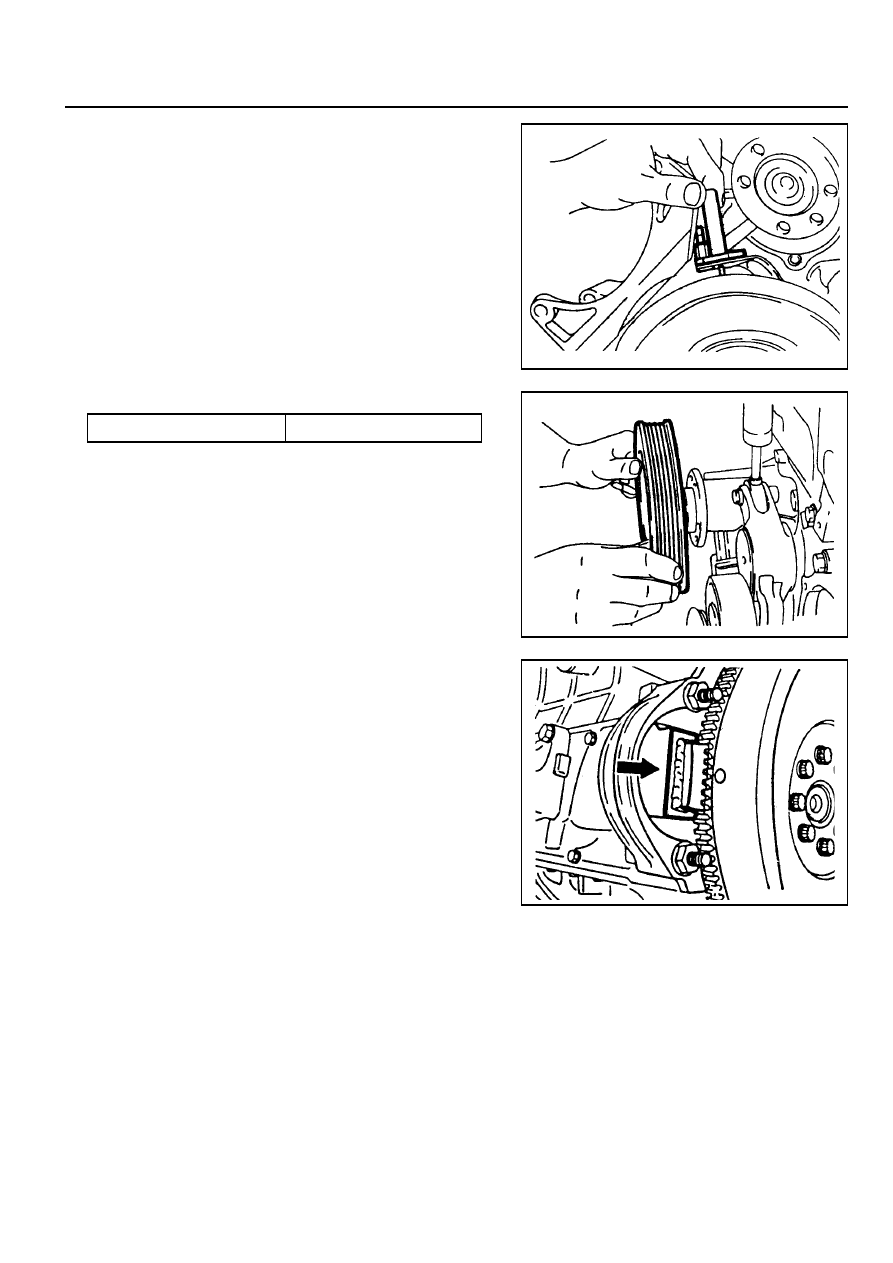

OM600 ENGINE MECHANICAL  1B3-79

5. Install the timing sensor bracket.

Notice

See the ‘TDC setting’.

6. Install the cooling fan pulley.

Tightening Torque

10 Nm

7. Install the cooling fan.

8. Install the fan belt.

9. Remove the engine lock.

1B3-80  OM600 ENGINE MECHANICAL

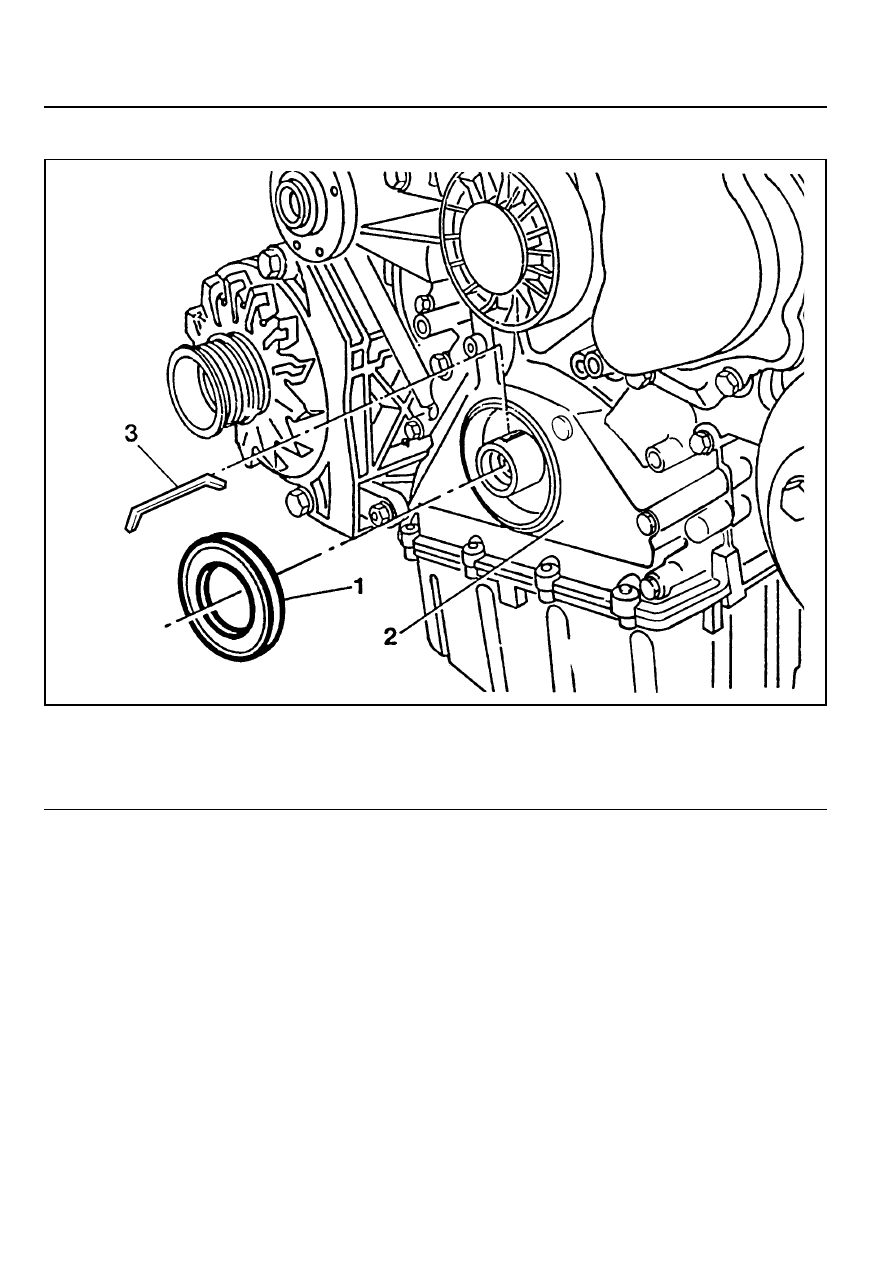

CRANKSHAFT FRONT RADIAL SEAL

1 Radial Seal
2 Timing Case Cover

Tools Required

601 589 03 14 00  Sleeve

3 Woodruff Key

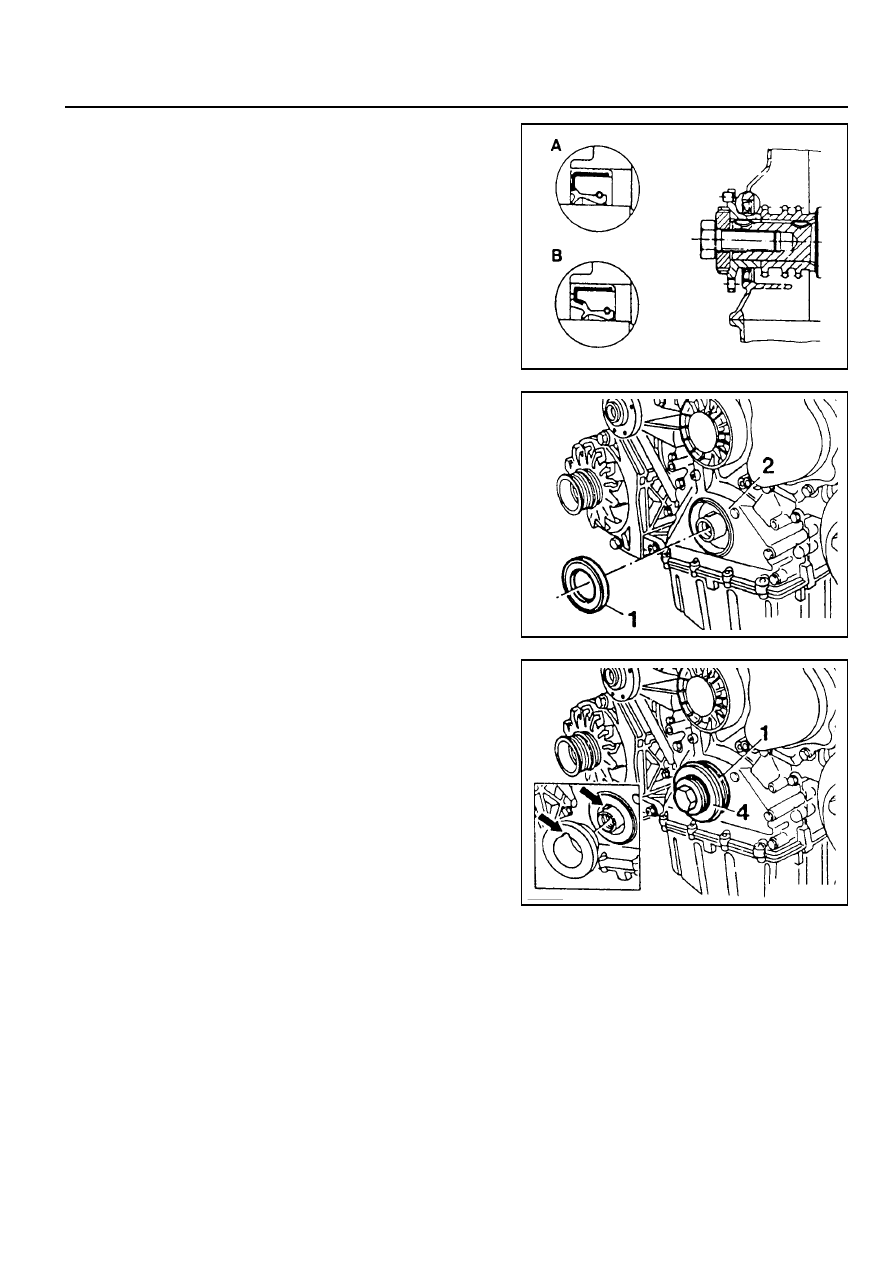

OM600 ENGINE MECHANICAL  1B3-81

Notice

The sealing lip of the repair radial seal is offset to the inside
by 2mm to ensure that is does not run in any groove which
the standard radial seal may have left on the crankshaft
flange.

A  Standard Radial Seal

B  Repair Radial Seal

Replacement Procedure

1. Pull out the radial seal (1) and be careful not to damage the

sealing surface of timing case cover.

2. Thoroughly clean the mounting bore of the radial seal.

3. Coat a little oil on the sealing lip of new radial (1) and contact

surface.

Notice

Don’t use grease.

4. Install the radial seal (1) by using a sleeve (4).

Notice

Align the groove of sleeve and woodruff key(arrow).

Sleeve 601 589 03 14
