1E2-2  M161 ENGINE ELECTRICAL

N

•

m

14 - 18

4 - 5

45 - 50

12 - 15

6 - 7

35 - 48

12 - 18

12 - 18

12 - 18

9 - 11

9 - 11

25 - 30

STARTING MOTOR SPECIFICATIONS

Application

Voltage

Output Power

Description

12  V

1.2 KW

BATTERY SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

Capacity

Specific Gravity

Max. Tolerance Between Cells

Description

90 Ah

≥

 1.24

≥

 0.04

Application

Alternator Terminal B+Nut

Alternator Terminal D+Nut

Alternator Combinction Bolt

Battery Cable Nut on Starting Motor

Electric Wire Nut on Starting Motor

Starting  Motor Mounting Nut

Battery Mounting Bracket Nut

Battery Negative Cable

Battery Positive Cable

Ignition Cable Cover Bolt

Ignition Cable Bolt

Spark plug

M161 ENGINE ELECTRICAL  1E2-3

SPECIAL TOOLS

SPECIAL TOOLS TABLE

120 589 02 09 00

Spark Plug Wrench

1E2-4  M161 ENGINE ELECTRICAL

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

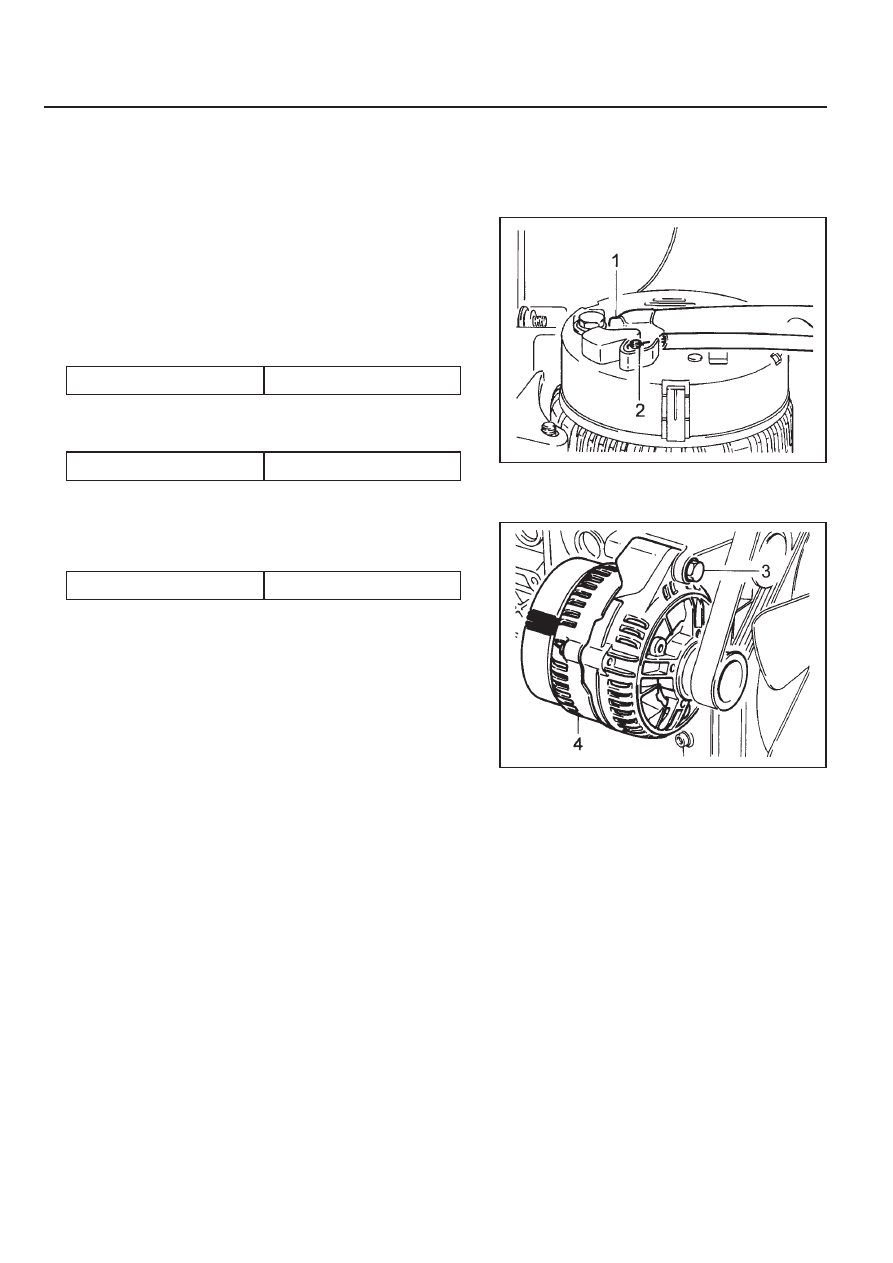

ALTERNATOR

Preceding Work : Removal of the drivebelt

Removal & Installation Procedure

1. Disconnect the negative battery terminal.

2. Unscrew the nut and disconnect the terminal (1).

Installation Notice

1

Terminal (B+)

2

Terminal (D+)

3

Combination Bolt

4

Alternator

3. Unscrew the nut and disconnect the terminal (2).

Installation Notice

Tightening  Torque

14 - 18 Nm

4. Unscrew the combination bolt (3).

Installation Notice

Tightening  Torque

4 - 5 Nm

5. Remove the alternator.

6. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

42 - 50 Nm

M161 ENGINE ELECTRICAL  1E2-5

3

Fixing Bolt

4

Starting Motor

4. Unscrew the mounting bolts (3) of starting motor.

Installation Notice

5. Remove the starting motor.

6. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

35 - 48 Nm

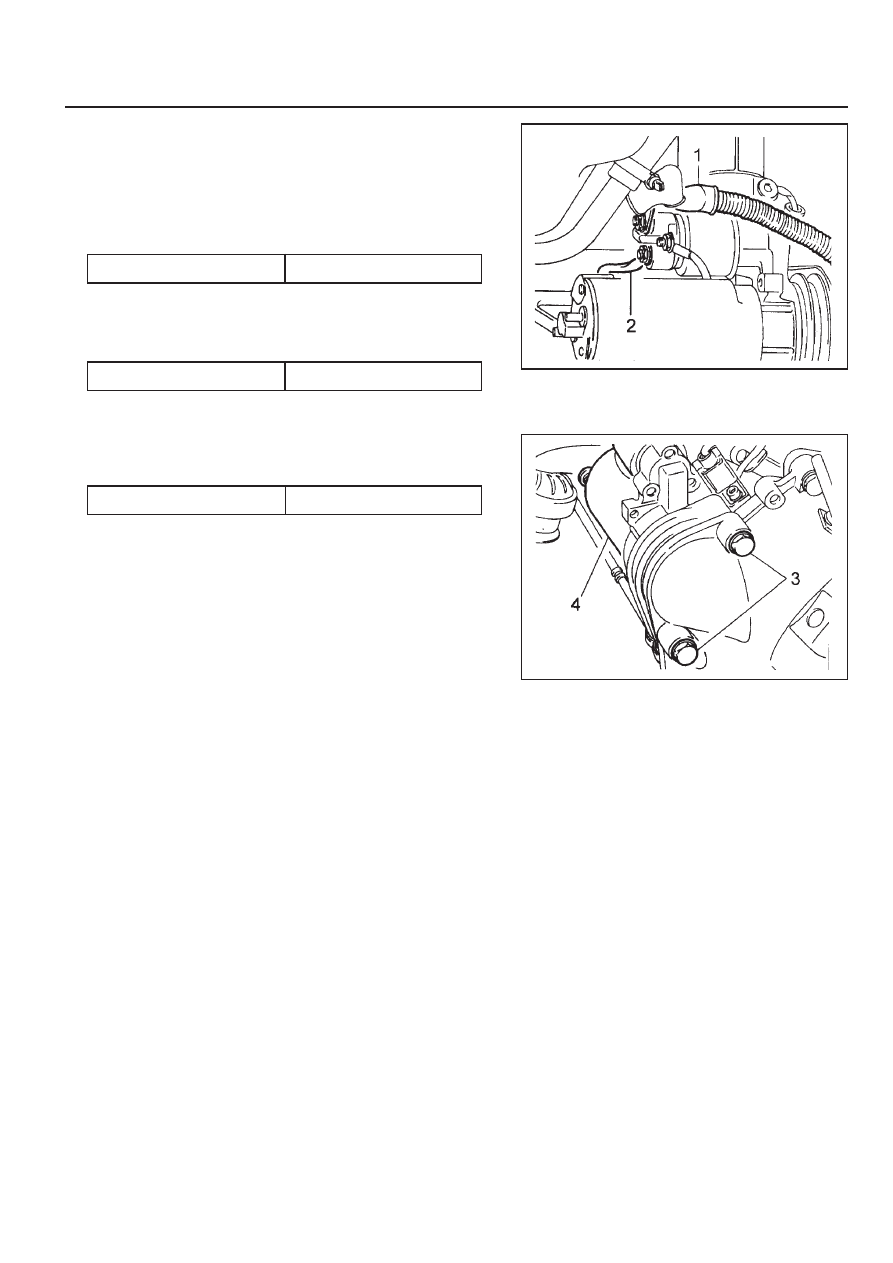

STARTING MOTOR

Removal & Installation Procedure

1. Disconnect the ground cable.

2. Unscrew the nut and disconnect the battery cable(1).

Installation Notice

1

Battery Cable

2

Engine Electric Wire

3. Unscrew the nut and disconnect the engine electric wire

(2).

Installation Notice

Tightening  Torque

12 - 15 Nm

Tightening  Torque

6 - 7 Nm
