1E1-6  M162 ENGINE ELECTRICAL

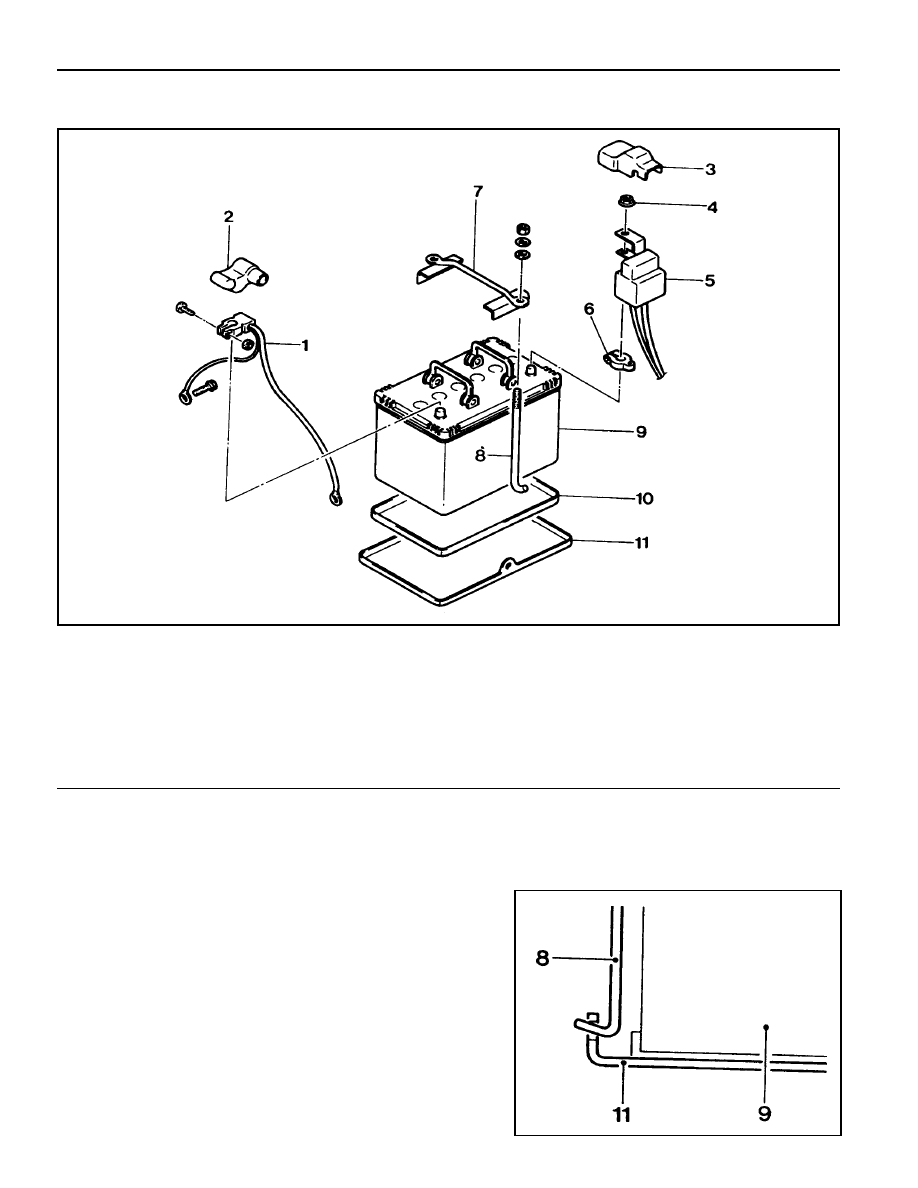

BATTERY

1 Cable Terminal (-)
2 Cable Terminal Cap (-)
3 Cable Terminal Cap (+)
4 Nut
5 Fuseblink Box
6 Terminal (+)

7 Battery holddown Bracket
8 Battery Clamp Bolt
9 Battery

10 Sub Tray

11 Battery Tray

Removal & Installation Procedure

Notice

!

Disconnect the battery negative cable first.

!

Insert the clamp bolt (8) into the battery tray hole (11)

from inside when installing.

 M162 ENGINE ELECTRICAL  1E1-7

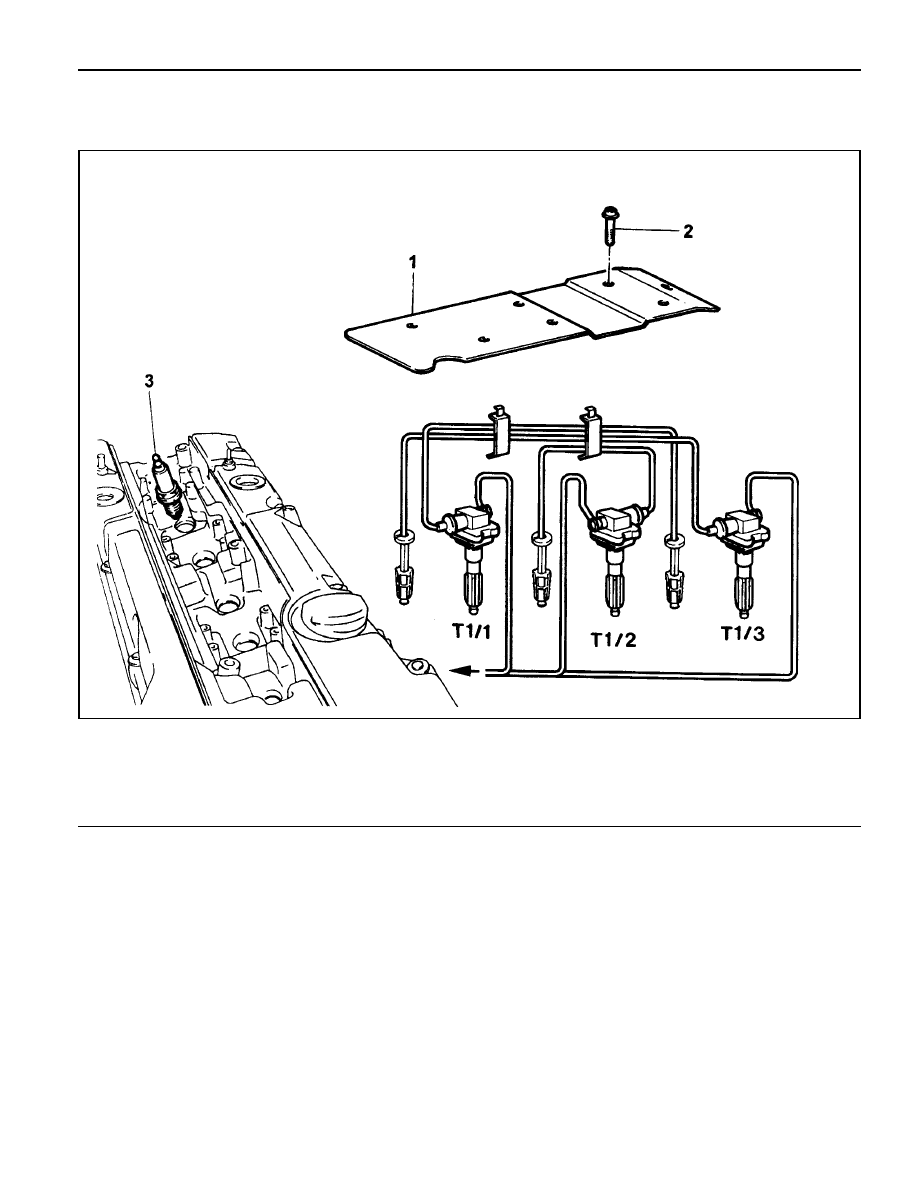

1 Ignition Coil Cable Cover
2 Bolt (M6 X 60, 7 pieces) ......................... 9-11 Nm
3 Spark Plug

SPARK PLUG

Preceding Work : Removal of intake air duct

T1/1 Ignition Coil : Cylinder 2 and 5
T1/2 Ignition Coil : Cylinder 3 and 4
T1/3 Ignition Coil : Cylinder 1 and 6

1E1-8  M162 ENGINE ELECTRICAL

Tools Required

120 589 09 00  Spark Plug Wrench

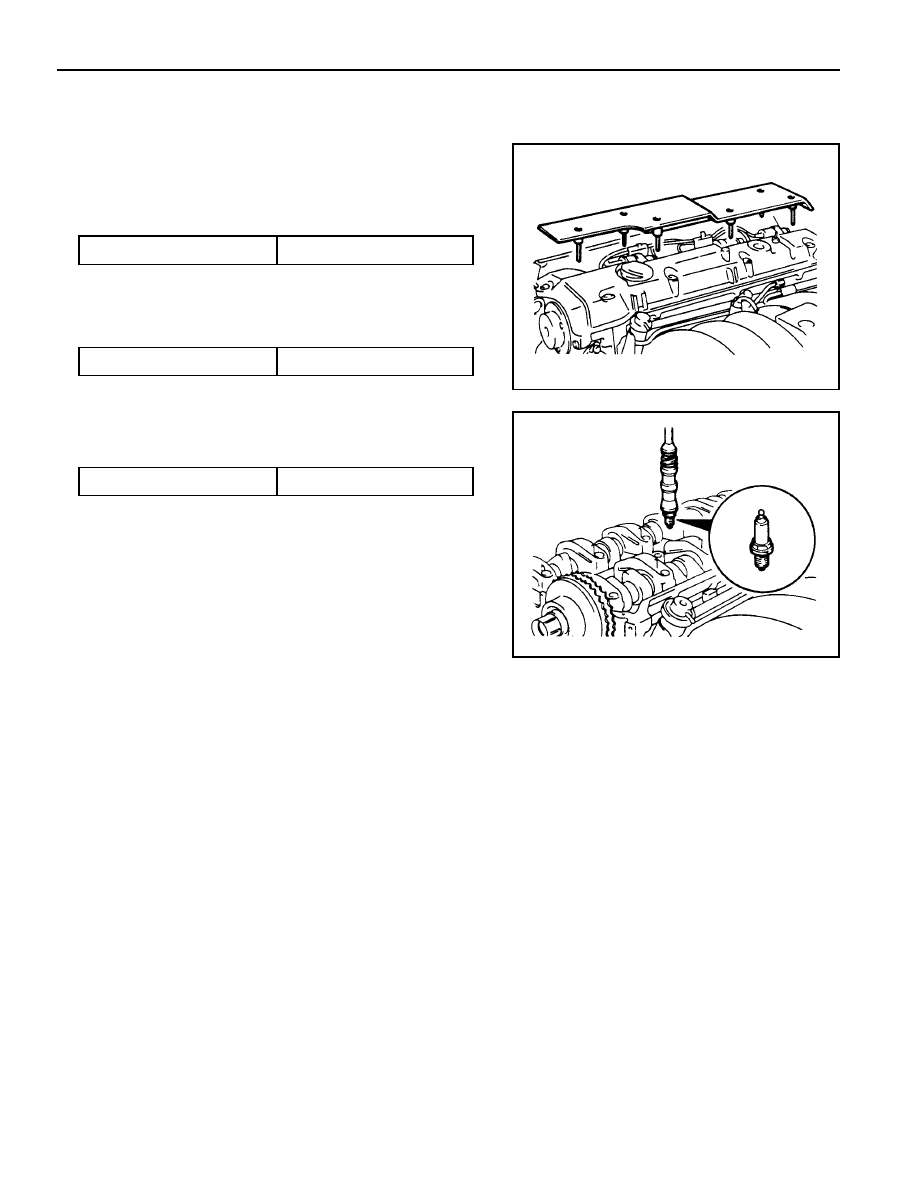

Replacement Procedure

1. Remove the seven bolts (2) and remove the ignition cable

cover.

Installation Notice

Tightening Torque

9 - 11 Nm

Tightening Torque

9 - 11 Nm

Tightening Torque

9 - 11 Nm

2. Remove the two bolts (M6 X 25) from each ignition cable

and remove the ignition cable.

Installation Notice

3. Remove the spark plug using the special tool.

Installation Notice

Spark Plug Wrench    120 589 02 09 00

 M162 ENGINE ELECTRICAL  1E1-9

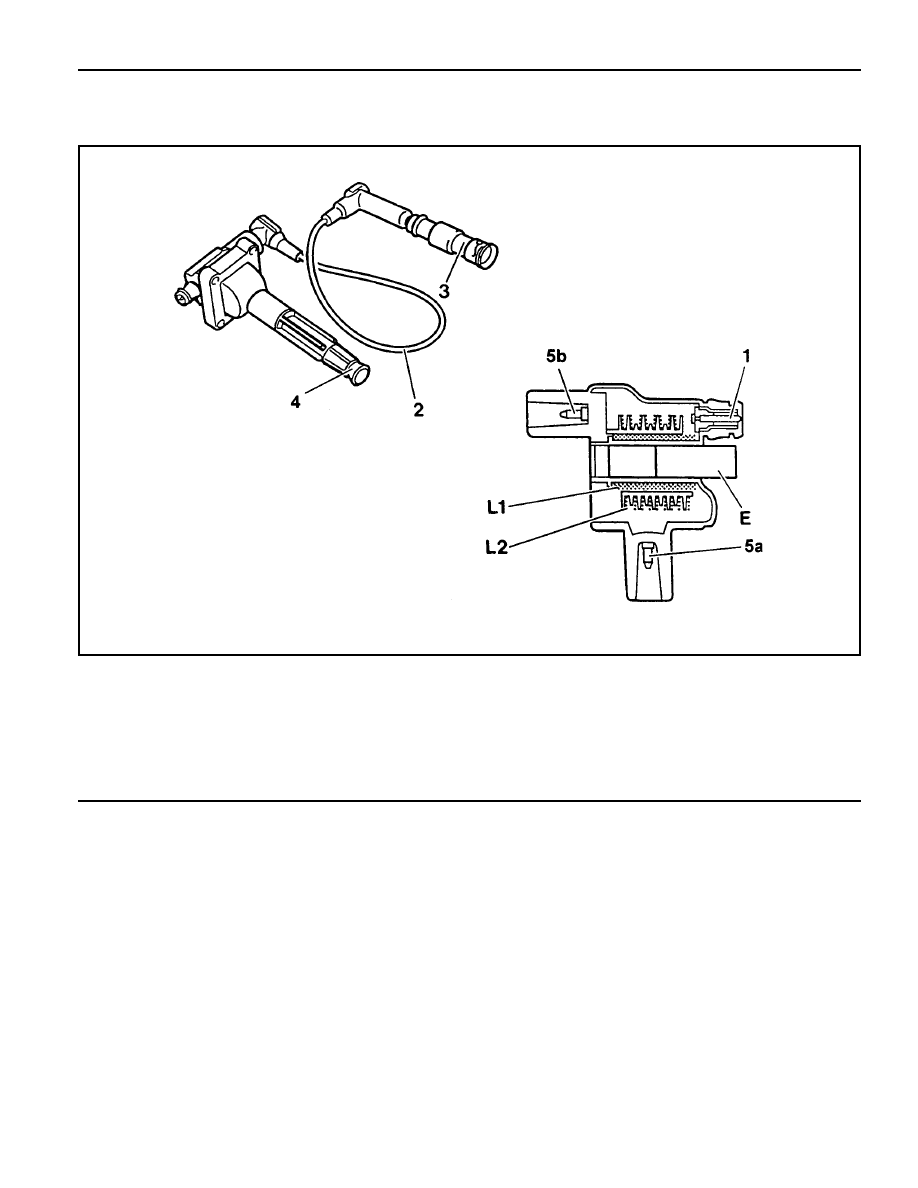

IGNITION CABLE

Preceding Work : Removal of intake air duct

1 Control Cable Connection
2 Ignition Cable
3 Spark Plug Connector
4 Coupling Plug

5a, 5b

Secondary Voltage Connection

E

Iron Core

L1

Secondary Ignition Coil

L2

Primary Ignition Coil
