1E2-6  M161 ENGINE ELECTRICAL

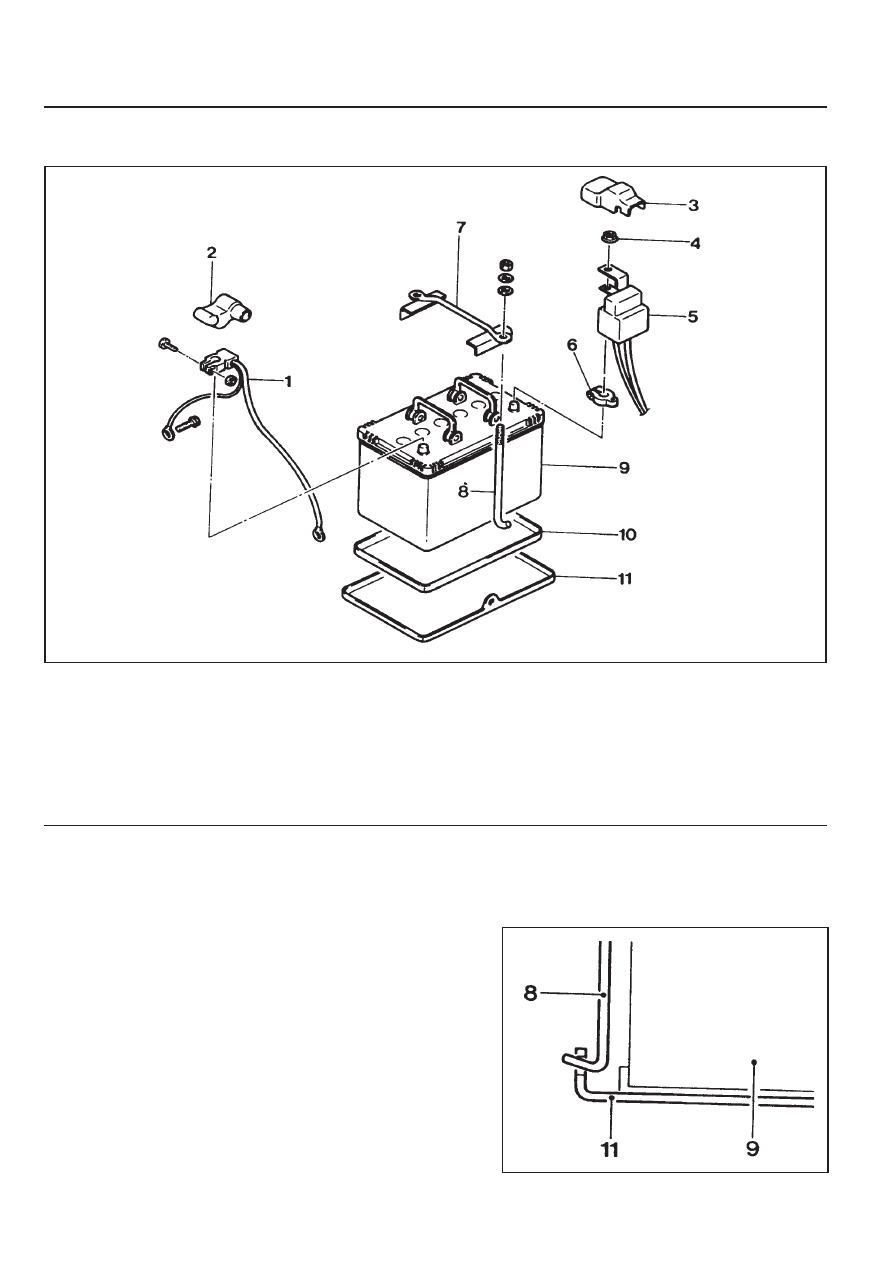

BATTERY

1 Cable Terminal (-)
2 Cable Terminal Cap (-)
3 Cable Terminal Cap (+)
4 Nut
5 Fuseblink Box
6 Terminal (+)

7 Battery holddown Bracket
8 Battery Clamp Bolt
9 Battery

10 Sub Tray

11 Battery Tray

Removal & Installation Procedure

Notice

z

Disconnect the battery negative cable first.

z

Insert the clamp bolt (8) into the battery tray hole (11)

from inside when installing.

M161 ENGINE ELECTRICAL  1E2-7

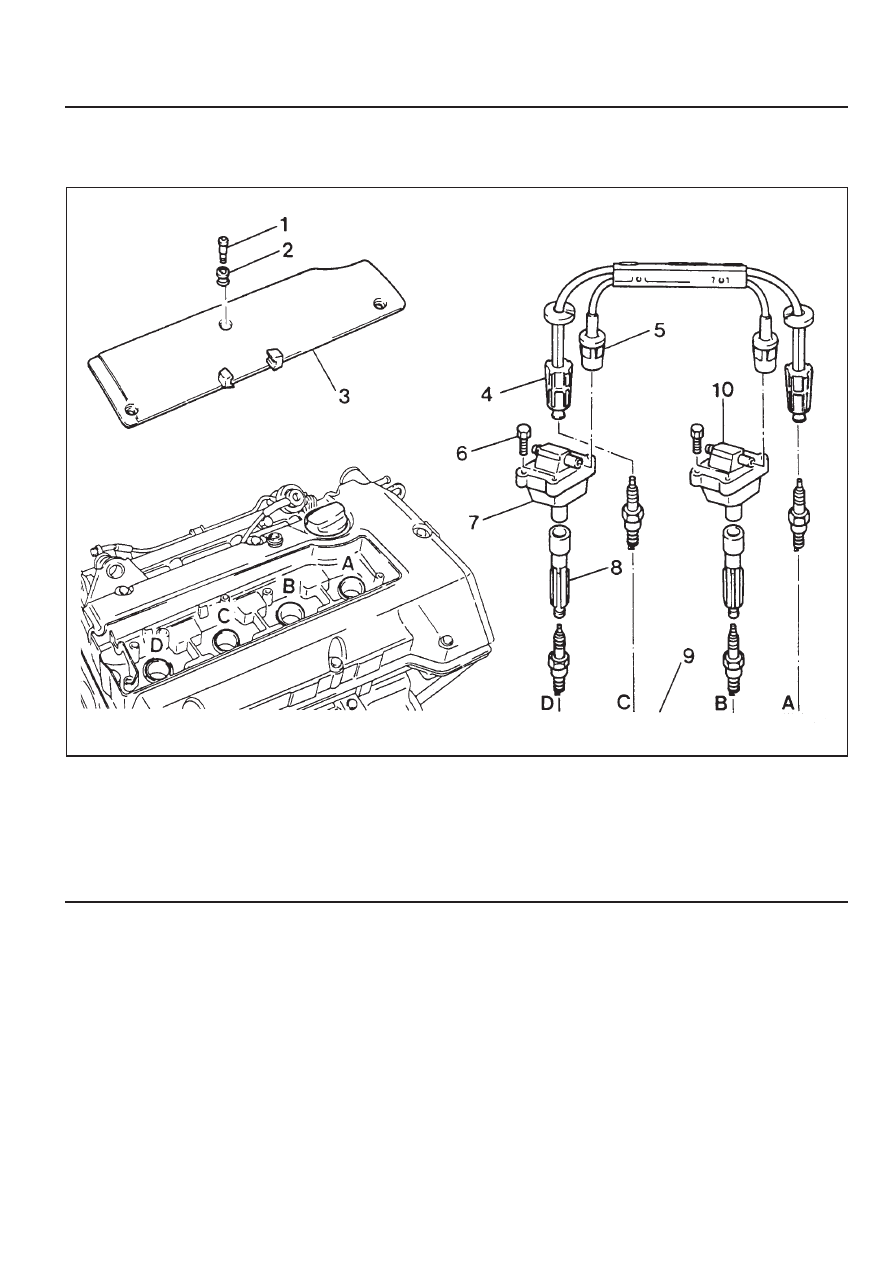

SPARK PLUG

Preceding Work : Removal of intake air duct

Tools Required

119 589 01 09 00  Spark Plug Wrence

1 Screw (3 pieces) .................................. 9 - 11 Nm
2 Adaptor (3 pieces)
3 Ignition Coil Cable Cover
4 Spark Plug Connector
5 Ignition Coil Connector

6 Bolts (M6 X 25, 4 pieces) ..................... 9 - 11 Nm
7 Ignition Coil (T1/1)
8 Coupling Plug
9 Spark Plug ......................................... 25 - 30 Nm

10 Ignition Coil (T1/2)

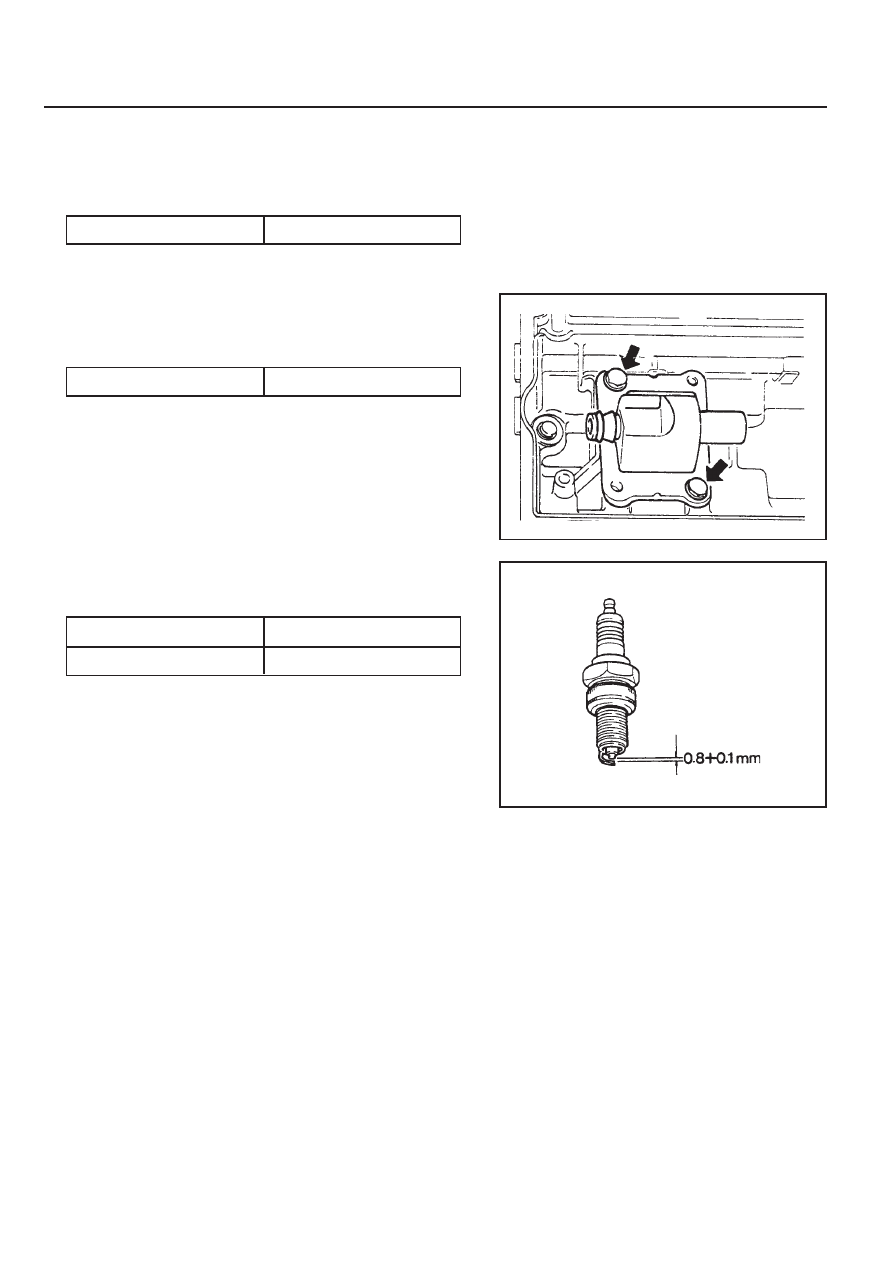

1E2-8  M161 ENGINE ELECTRICAL

Tightening  Torque

9 - 11Nm

Replacement Procedure

1. Unscrew the three screws(1) and remove the ignition coil

cable cover

Installation Notice

Tightening Torque

Clearance

25 - 30 Nm

0.8 + 0.1 mm

2. Disconnect the cable from ignition coil and spark plug.

4. Using the special tool, remove the spark plug .

Installation Notice

Spark Plug Wrench    119 589 01 09 00

Notice

z

Tighten the spark plug with specified torque.

z

Install the ignition coil to number 2 and 4 cylinder, and

connect the cable to number 1, 4 and 2, 3 cylinder

- T1/1 : cylinder 1 and 4

- T1/2 : cylinder 2 and 3

3. Unscrew two bolts(M6 X 25) from each ignition coil and

remove the ignition coil(arrow) .

Installation Notice

Tightening  Torque

9 - 11Nm

 M161 ENGINE ELECTRICAL  1E2-9

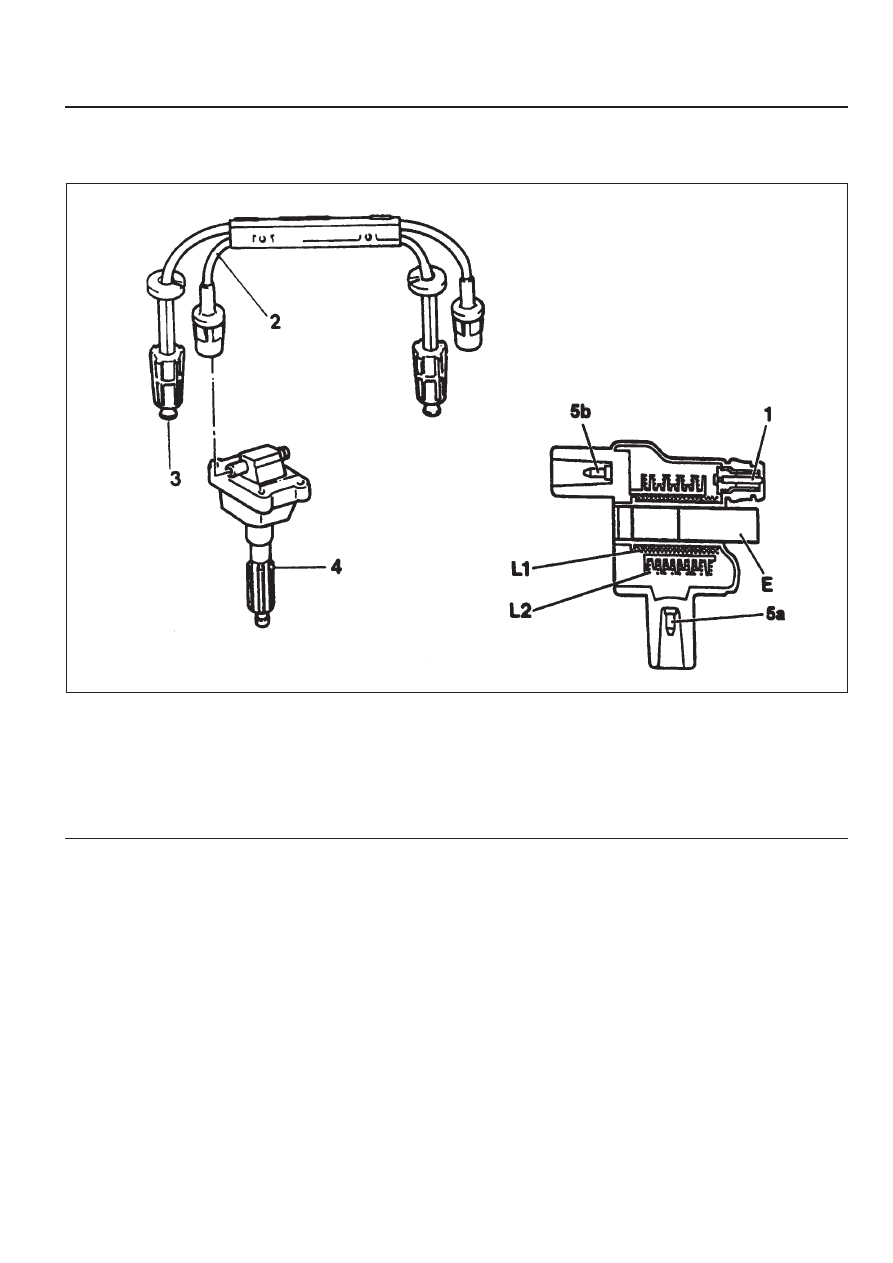

IGNITION CABLE

Preceding Work : Removal of intake air duct

1 Control Cable Connection
2 Ignition Cable
3 Spark Plug Connector
4 Coupling Plug

5a, 5b

Secondary Voltage Connection

E Iron Core

L1

Secondary Ignition Coil

L2

Primary Ignition Coil
