1D1-6  M162 ENGINE COOLING

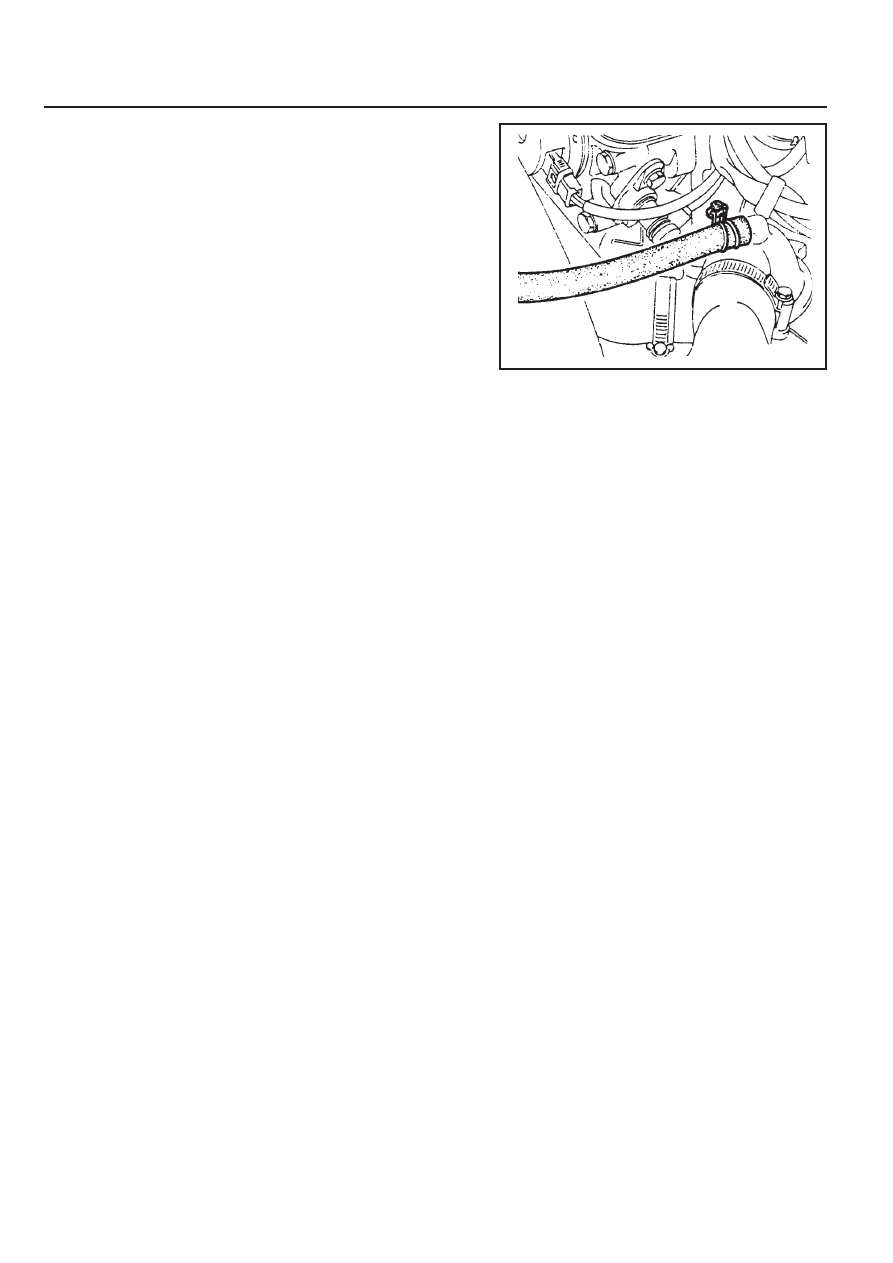

6. Remove the de-aeration hose clamp in the coolant pump

and remove the de-aeration hose.

7. Fill up the coolant through the coolant reservoir tank.

Notice

z

Match the anti-freeze and the water ratio to 50 : 50.

z

Supplement the coolant until the coolant overflows to
the deaeration hose.

8. Insert the de-aeration hose and completely tighten the

clamp.

9. Check the coolant level in the coolant reservoir tank.

10. Warm up(until thermostat is opened) the engine and

recheck the coolant level in the reservoir tank and fill up
the coolant if necessary.

M162 ENGINE COOLING  1D1-7

COOLANT CONNECTION FITTING

Preceding Work : Removal of cooling fan shroud

1 Bolt (M8 X 100, 2 pieces) ............... 22.5-27.5 Nm
2 Engine Hanger Bracket
3 Coolant Outlet Port

Removal & Installation Procedure

1. Drain coolant from the radiator.

2. Remove the hose mounting clamp (5) and disconnect the

coolant hose (6).

3. Remove the two bolts (1), the engine hanger bracket (2)

and coolant outlet port (3).

Installation Notice

4 O-ring
5 Hose Mounting Clamp
6 Hose

Replace the O-ring with new one.

4. Installation should follow the removal procedure in the

reverse order.

5. Fill up the coolant as specified.

6. Check the leaks in the cooling system.

Tightening Torque

22.5 - 27.5 Nm

1D1-8  M162 ENGINE COOLING

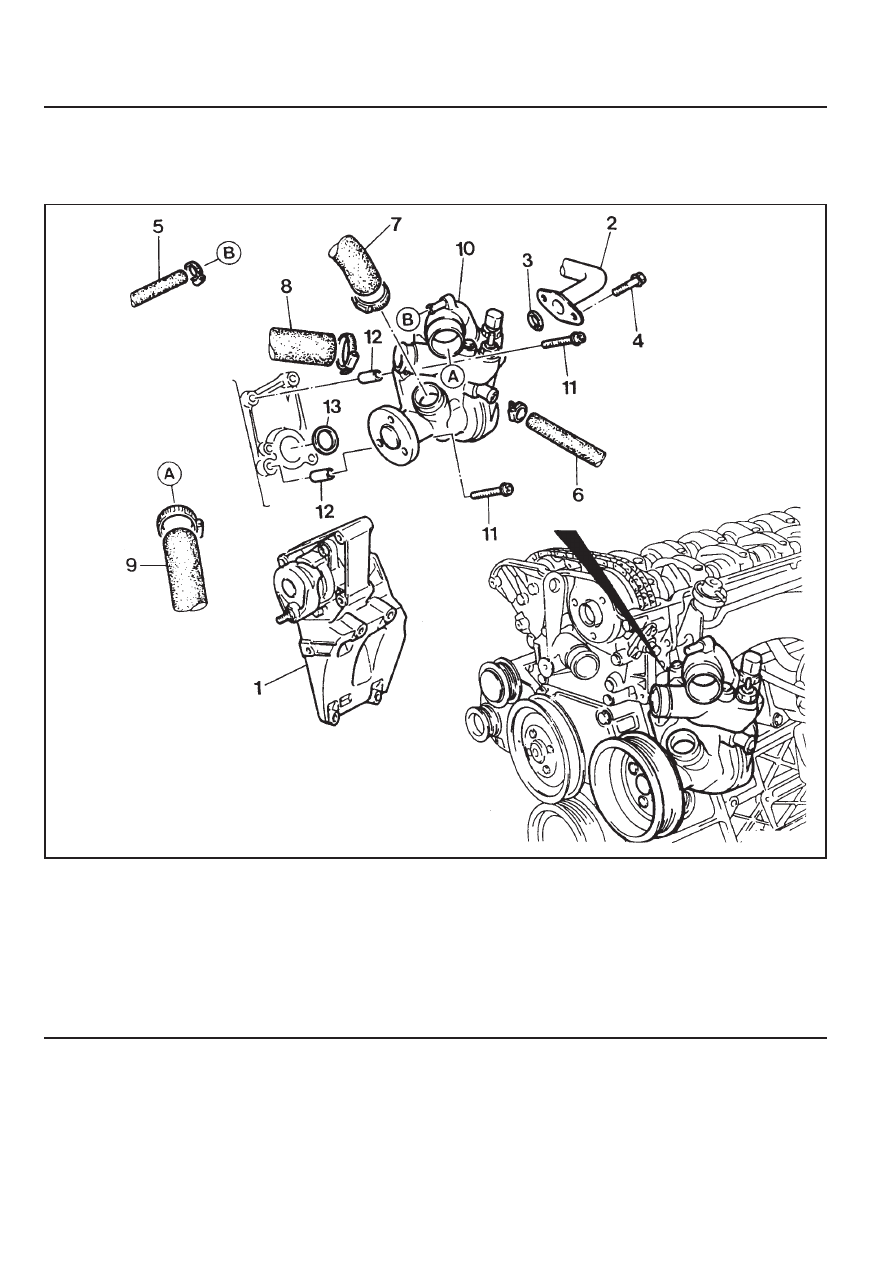

WATER PUMP

Preceding Work : Removal of V-belt

Removal of air admission housing

1 Air Admission Housing
2 Oil Cooler Pipe Line
3 Seal ....................................................... Replace
4 Bolt ........................................................ 9-11 Nm
5 Coolant Hose
6 Coolant Hose
7 Outlet Coolant Hose

8 Coolant Hose
9 Inlet Coolant Hose

10 Coolant Pump
11 Bolt ........................................................... 21 Nm
12 Dowel Sleeve
13 Seal ....................................................... Replace

M162 ENGINE COOLING  1D1-9

Removal & Installation Procedure

1. Drain the coolant.

2. Disconnect the coolant pump wire connector.

3. Loosen the hose clip and dsconnect all hoses from the

coolant pump

4. Remove the coolant line bolts (4) and then remove the

coolant line (2).

Installation Notice

Notice

Replace the seal (3).

5. Remove the mounting bolts (11) and carefully pull out

coolant pump (10).

Installation Notice

Tightening Torque

9 - 11 Nm

Notice

Replace the seal (13).

Tightening Torque

21 Nm

6. Installation should follow the removal procedure in the

reverse order.

7. Fill up coolant.

8. Do coolaing system leakage test
