1D1-2  M162 ENGINE COOLING

FASTENER TIGHTENING SPECIFICATIONS

N

•••••

m

30

22.5 - 27.5

9 - 11

9 - 11

9 - 11

40.5 - 49.5

3 - 7

3 - 7

Application

Coolant Drain Plug

Engine Hanger Bracket and Coolant Outlet

Port Bolt

Thermostat Cover Bracket Bolt

Oil Cooler Pipe Line Bolt

Cooling Fan Bolt

Viscous Clutch Bolt

Automatic Transmission Oil Cooling Hose Bolt

Cooling Fan Shroud Bolt

M162 ENGINE COOLING  1D1-3

SPECIAL TOOLS

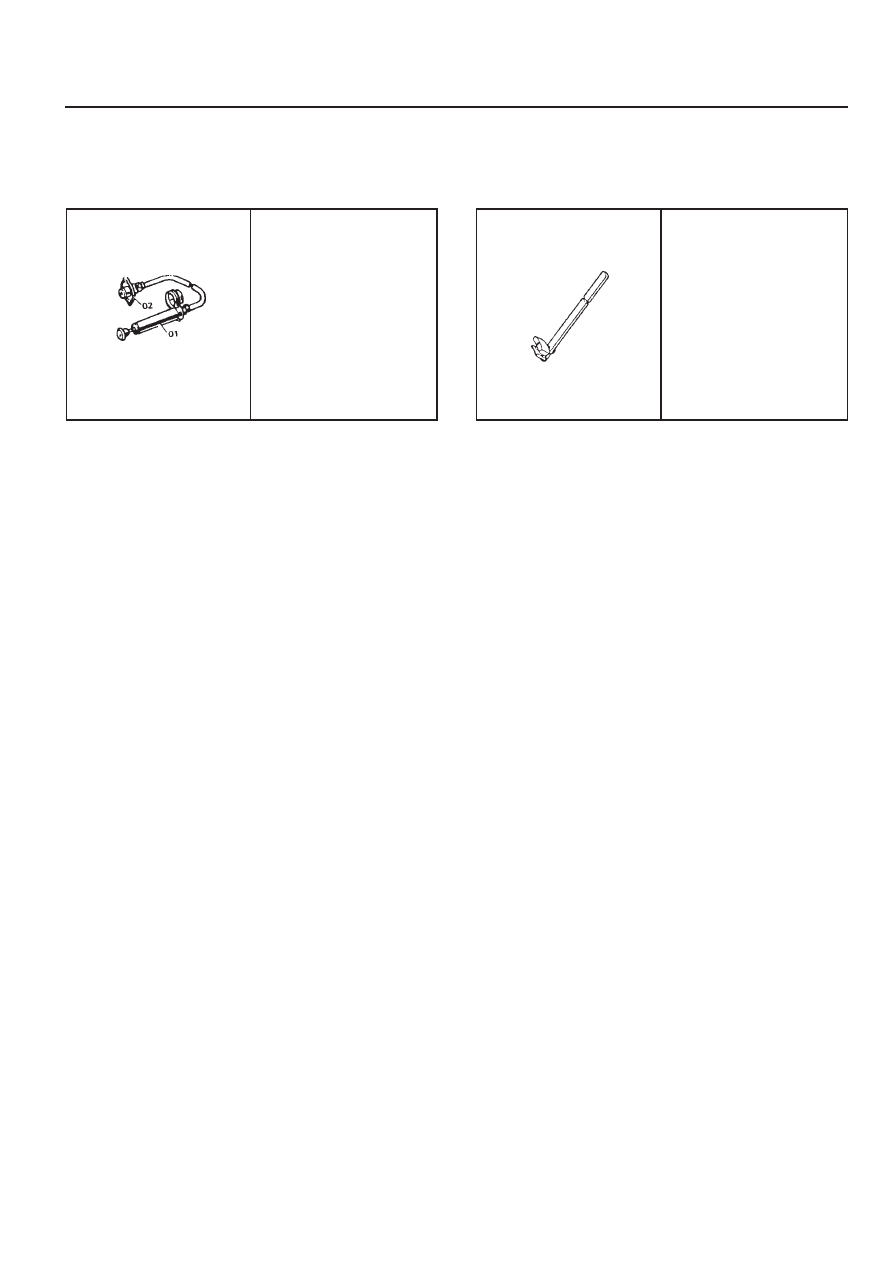

SPECIAL TOOLS TABLE

124 589 15 21 00

Tester

603 589 00 40

Counter Holder

1D1-4  M162 ENGINE COOLING

DIAGNOSIS

3. Connect the special tool to the reservoir filler cap and apply

1.4 bar of pressure.

SYSTEM LEAKAGE TEST

Tools Required

124 589 15 21 00  Tester

Test Procedure

1. Loosen the cap a little and release pressure and remove

the cap.

Notice

For the risk of scalding, cap must not be opened unless the
coolant temperature is below 90°C.

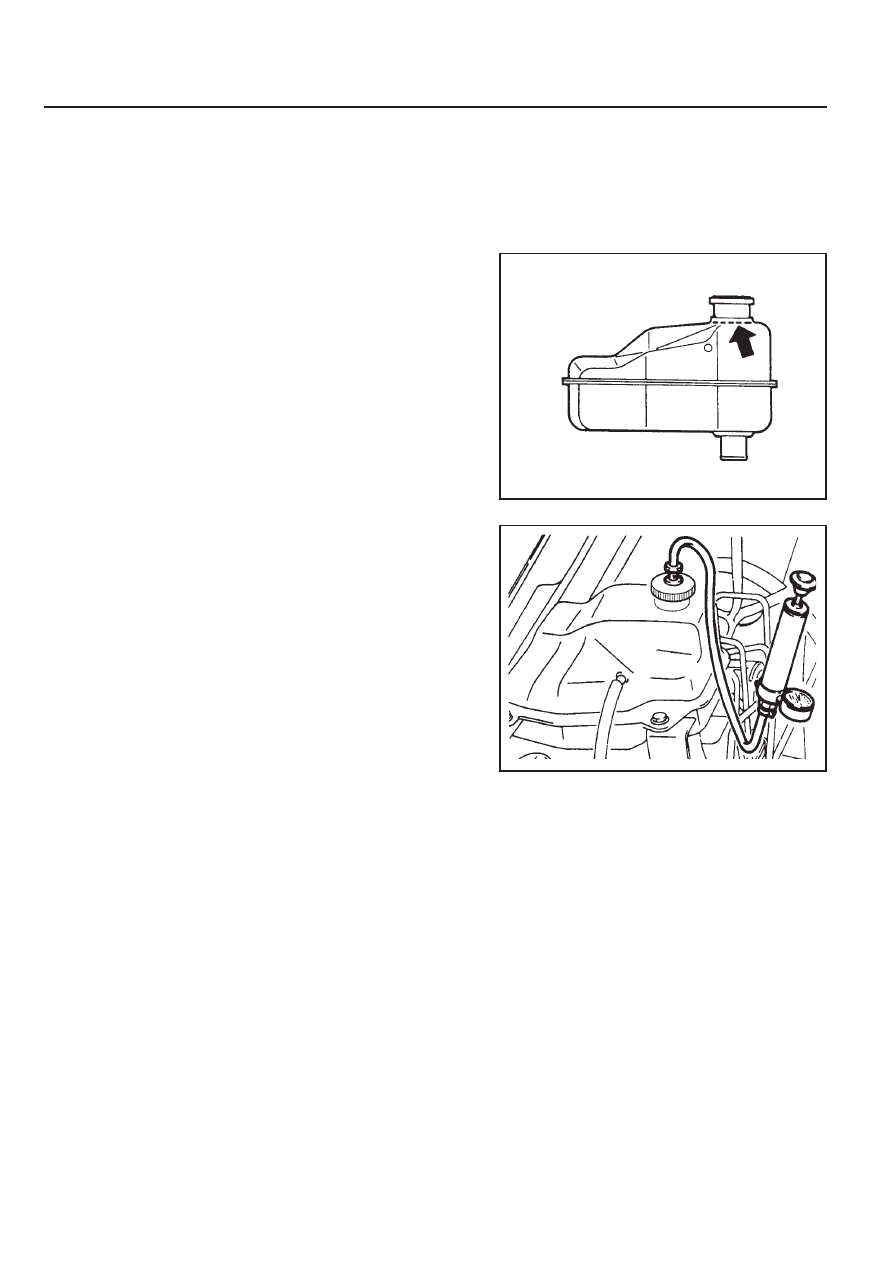

2. Fill coolant up to upper edge (arrow) of reservoir.

Tester 124 589 15 21 00

4. If the pressure on the tester drops, check leakage at the  all

coolant hoses and pipes and each connections. Replace
or retighten if necessary.

M162 ENGINE COOLING  1D1-5

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

COOLANT DRAIN AND FILL UP

Draning & Filling up Procedure

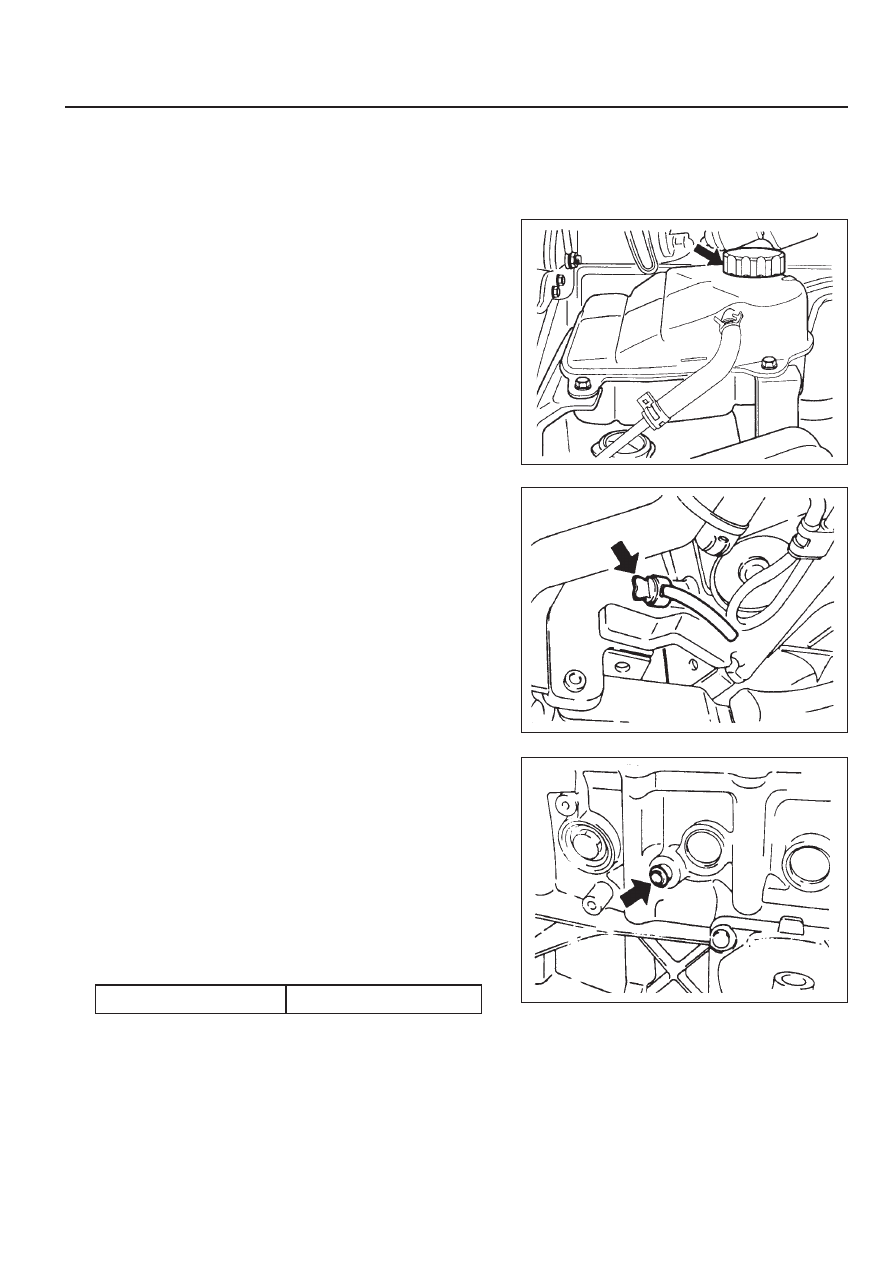

1. Loosen the cap a little and release pressure and remove

the cap.

Notice

For the risk of scalding, the cap must not be opened unless
the coolant temperature is below 90

o

C.

2. Loosen the radiator lower drain cock and drain the coolant.

Notice

Collect coolant by using a proper container.

3. Drain the coolant from the crankcase by inserting a hose

(dia. 14mm) onto the drain bolt on the side of crankcase
(exhaust manifold) and by loosening the plug.

Notice

z

Just loosen the drain plug to drain the coolant and do
not remove the plug completely.

z

Collect coolant by using proper container.

4. After complete draining of the coolant, remove the hose

connector to drain plug and reinstall the drain plug.

Installation Notice

5. Tighten the radiator lower drain cock.

Tightening Torque

30 Nm
