M162 ENGINE MECHANICAL  1B1-27

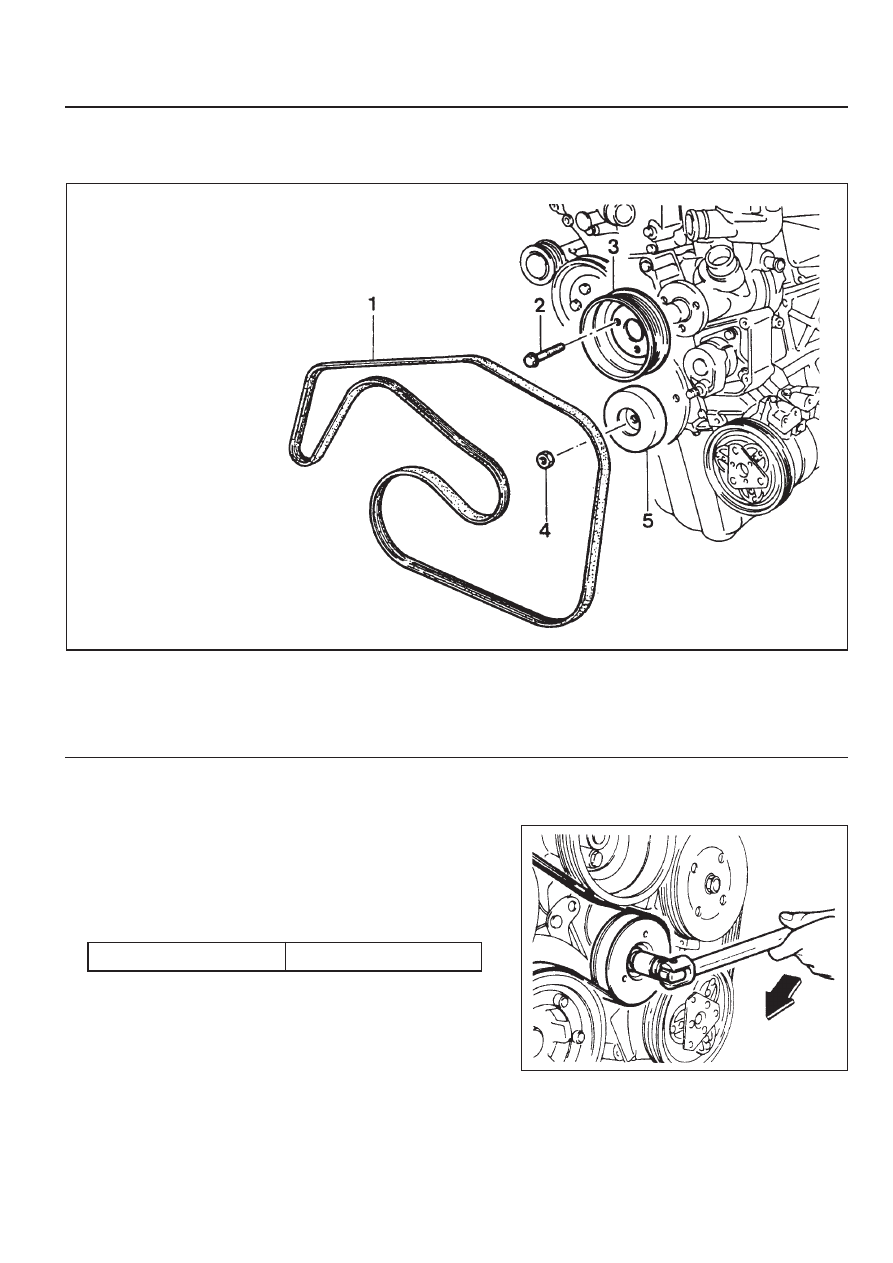

TENSIONING DEVICE

Preceding Work : Removal of poly v-belt

1 Belt (L = 2245)
2 Bolt Combi(M8 x 14, 3 pieces) + Washer

....................................................... 22.5-27.5Nm

Removal & Installation Procedure

1. Remove the poly v-belt.

2. Remove the tensioning pulley by turning its mounting nut

counter clockwise as shown in figure.

Installation Notice

3 Water Pump Pulley
4 Nut
5 Tensioning Pulley

Tightening  Torque

40.5 - 49.5 Nm

1B1-28  M162 ENGINE MECHANICAL

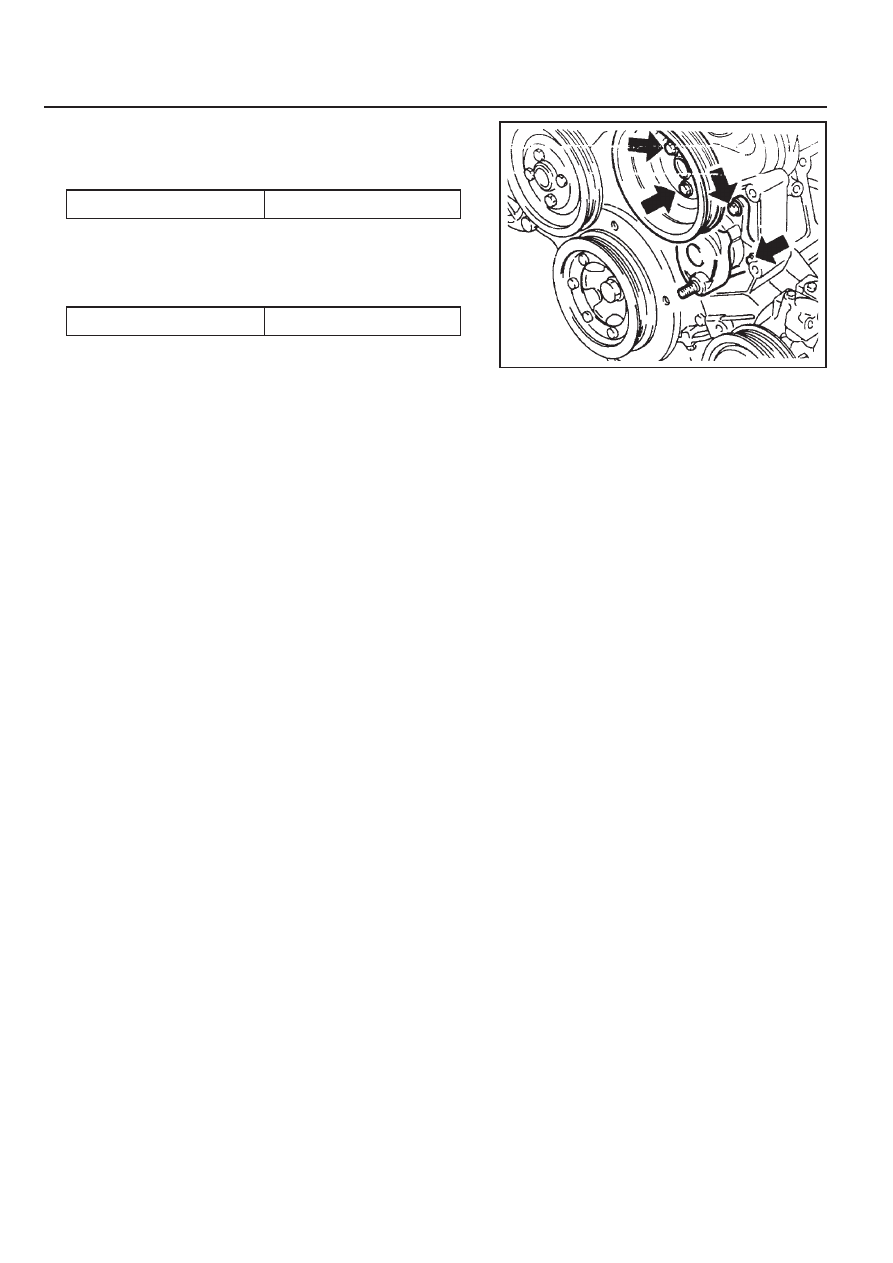

4. Remove the mounting bolts(M8 x 30, 3 pieces) at the

tensioning device, and remove the tensioning device (arrow).

Installation Notice

3. Remove the 3 bolts (2) and remove the water pump pulley

(arrow).

Installation Notice

5. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

22.5 - 27.5 Nm

Tightening  Torque

26 - 32 Nm

M162 ENGINE MECHANICAL  1B1-29

3. Pointed rib.

4. Belt cord visible in the base of rib.

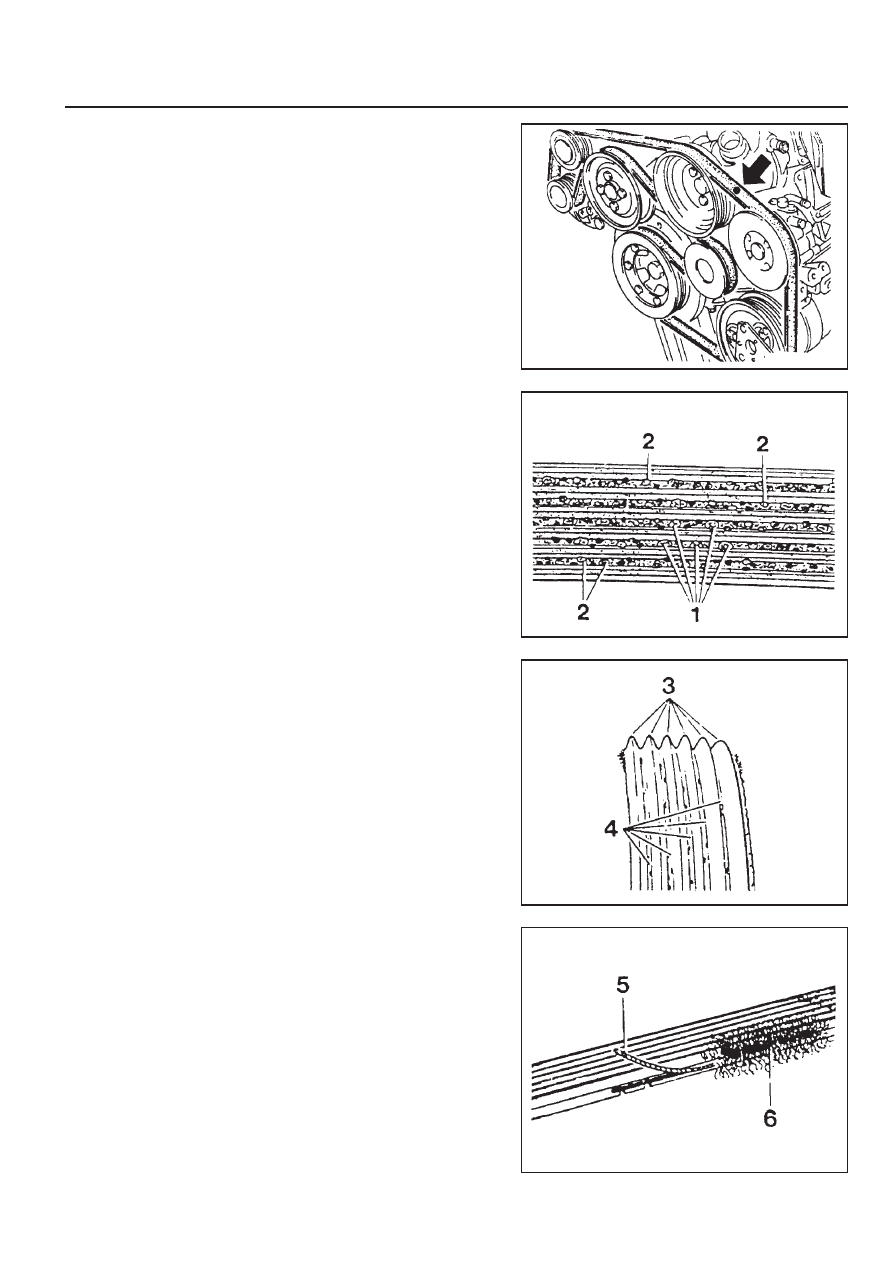

POLY V - BELT INSPECTION

z

Make marks on the belt with chalk.

z

Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found, replace
the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

1B1-30  M162 ENGINE MECHANICAL

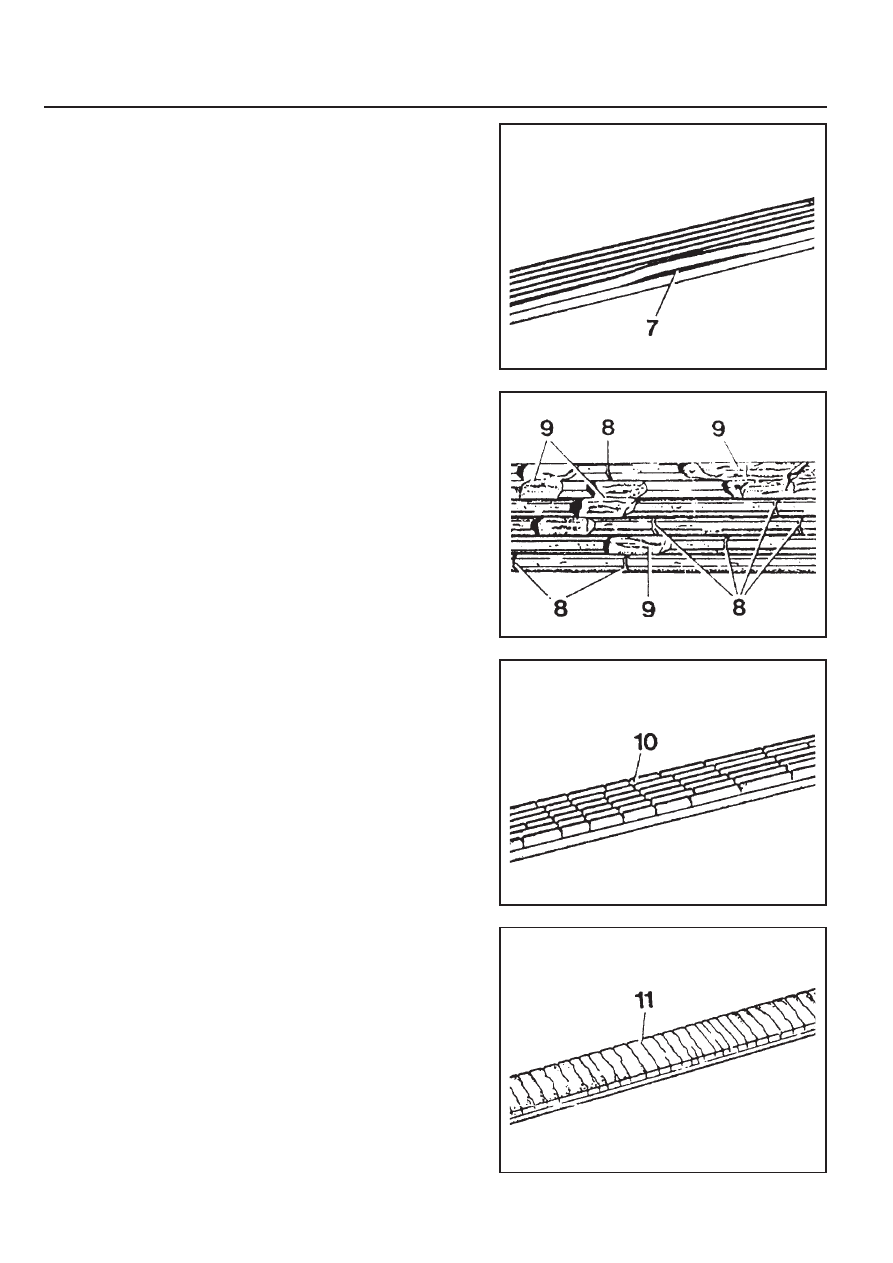

7. Rib detached from the base of belt.

8. Splits across the rib.

9. Sections of rib torn out.

10. Splits across several ribs.

11. Splits across the back of the belt.
