M162 ENGINE MECHANICAL  1B1-19

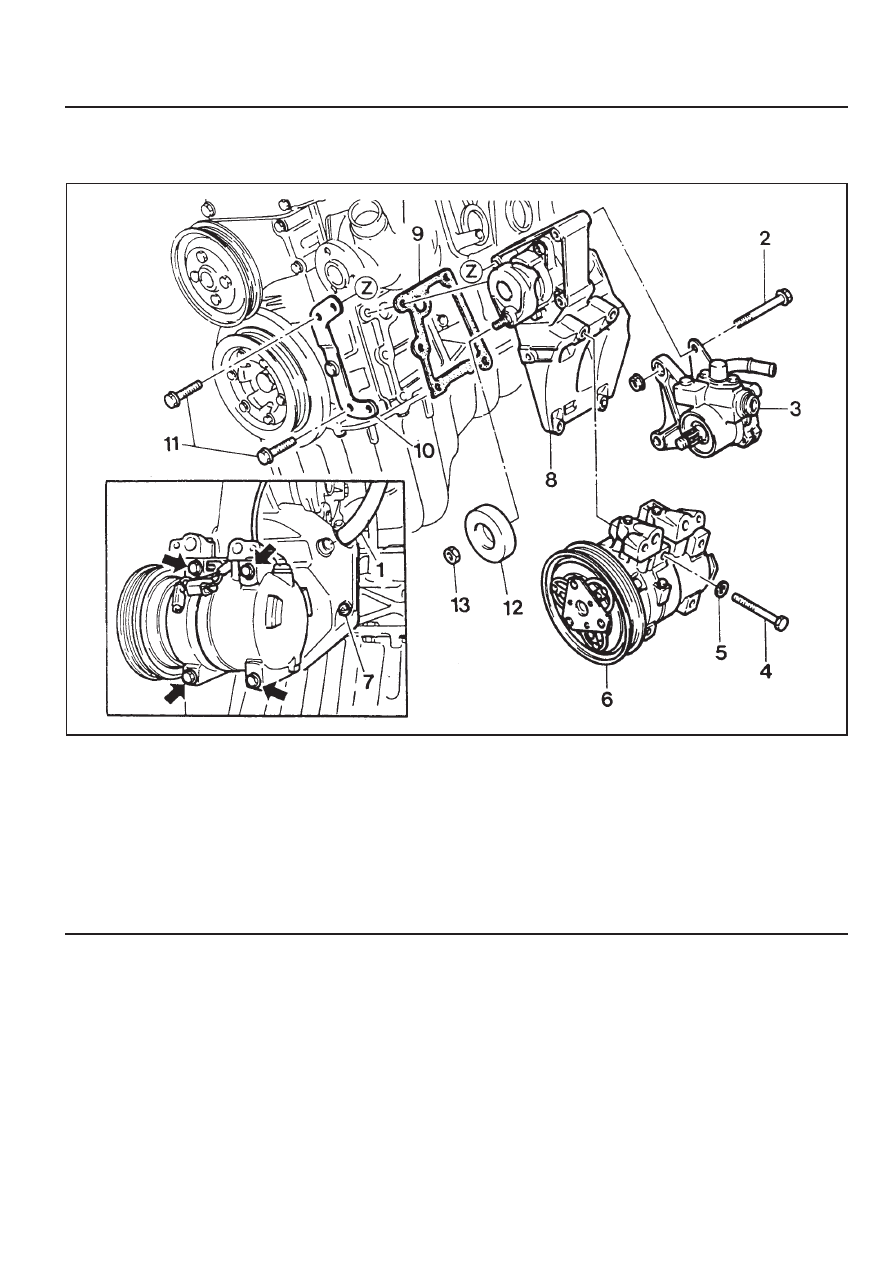

POWER STEERING PUMP AND A/C BRACKET

Preceding Work : Removal of cooling fan and shroud

1 Vent Hose
2 Bolt (M8 x 91, 2 pieces) ................. 22.5-27.5 Nm
3 Power Steering Pump
4 Bolt (M8 x 105, 4 pieces) ............... 22.5-27.5 Nm
5 Washer
6 A/C Compressor
7 Bolt (M8 x 40, 3 pieces,

M8 x 95, 2 pieces) .......................... 22.5-27.5 Nm

8 A/C Bracket
9 Gasket ................................................... Replace

10 Bracket

11 Bolt (M8 x 22, 2 pieces) ................. 22.5-27.5 Nm

12 Tensioning Pulley
13 Nut ................................................. 40.5-49.5 Nm

1B1-20  M162 ENGINE MECHANICAL

Removal & Installation Procedure

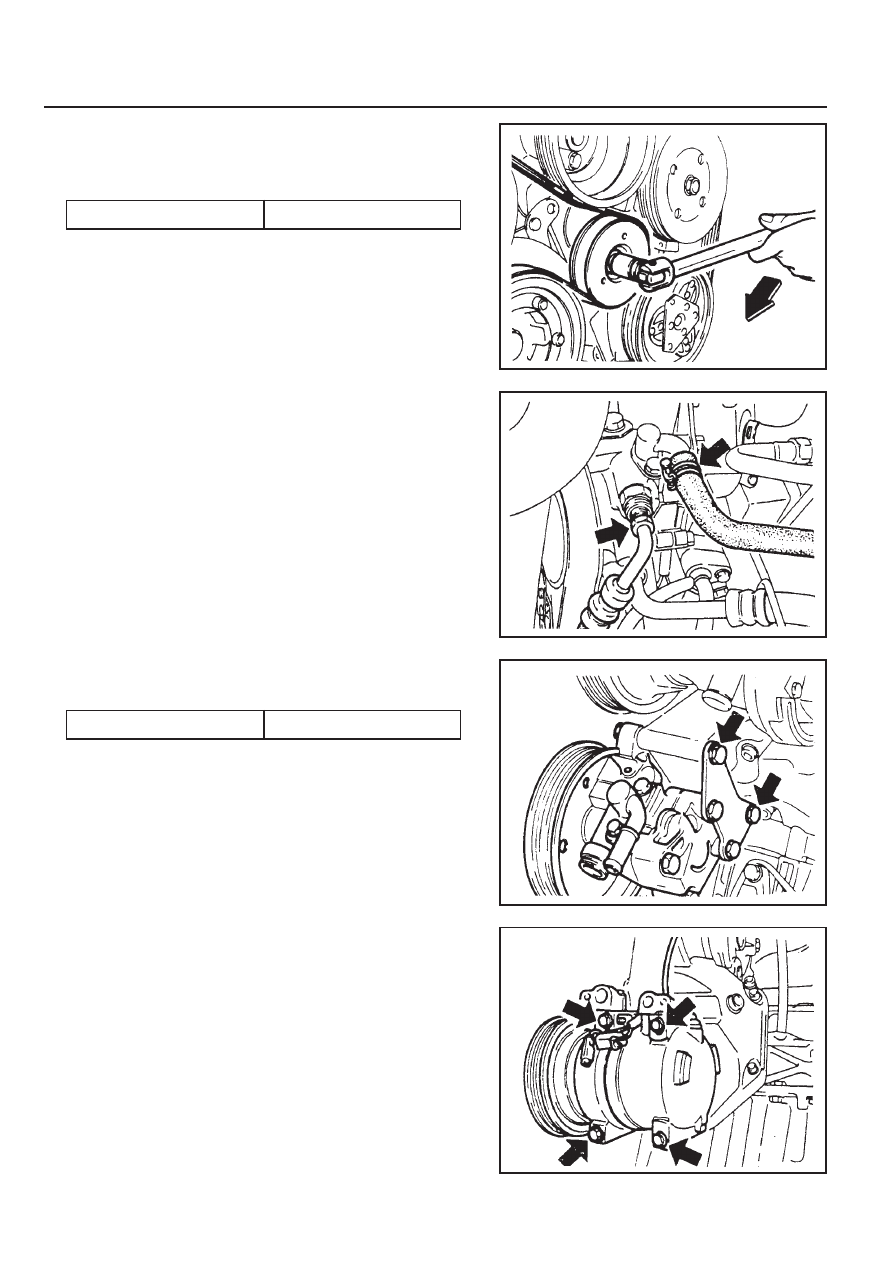

1. Remove the belt pulley.

Installation Notice

2. Disconnect the hydraulic pipe of the power steering pump

and drain the oil.

3. Unscrew the bolts (arrows) and remove the steering pump.

Installation Notice

Notice

Pull the tensioning pulley clockwise as shown in the figure.

4. Remove the compressor after disconnecting the wiring

connector and refrigerant pipe of A/C compressor.

Notice

Discharge all the refrigerant before removing the pipes.

Tightening  Torque

40.5 - 49.5 Nm

Tightening  Torque

22.5 - 27.5 Nm

M162 ENGINE MECHANICAL  1B1-21

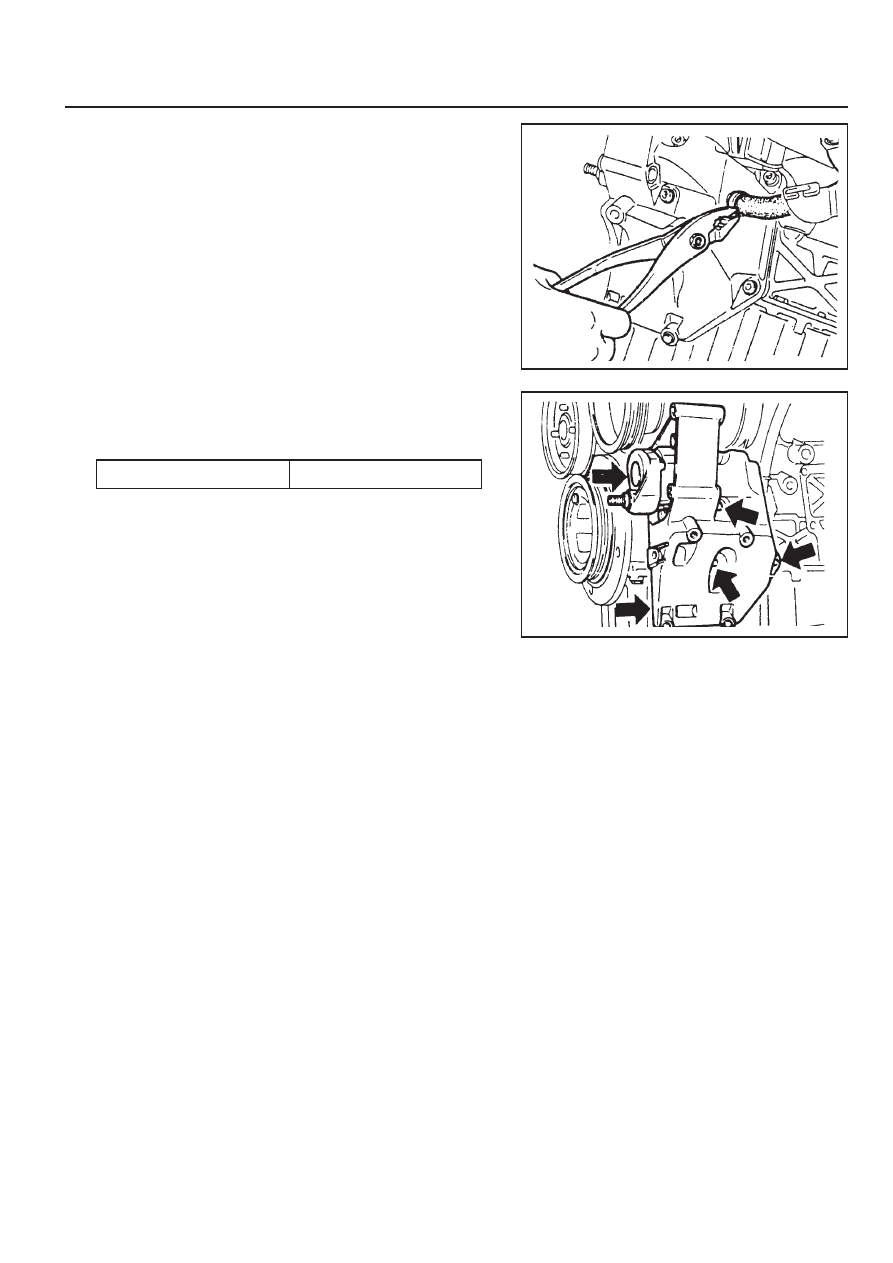

5. Disconnect the vent hose from the A/C bracket.

6. Unscrew all the mounting bolts (arrows) and remove the

A/C bracket and the gasket.

Installation Notice

7. Clean the sealing surface.

8. Replace the gasket with new one.

9. Installation should follow the removal procedure in the

reverse order.

10. Check the oil leakage by operating the engine after

installation.

Tightening Torque

22.5 - 27.5 Nm

1B1-22  M162 ENGINE MECHANICAL

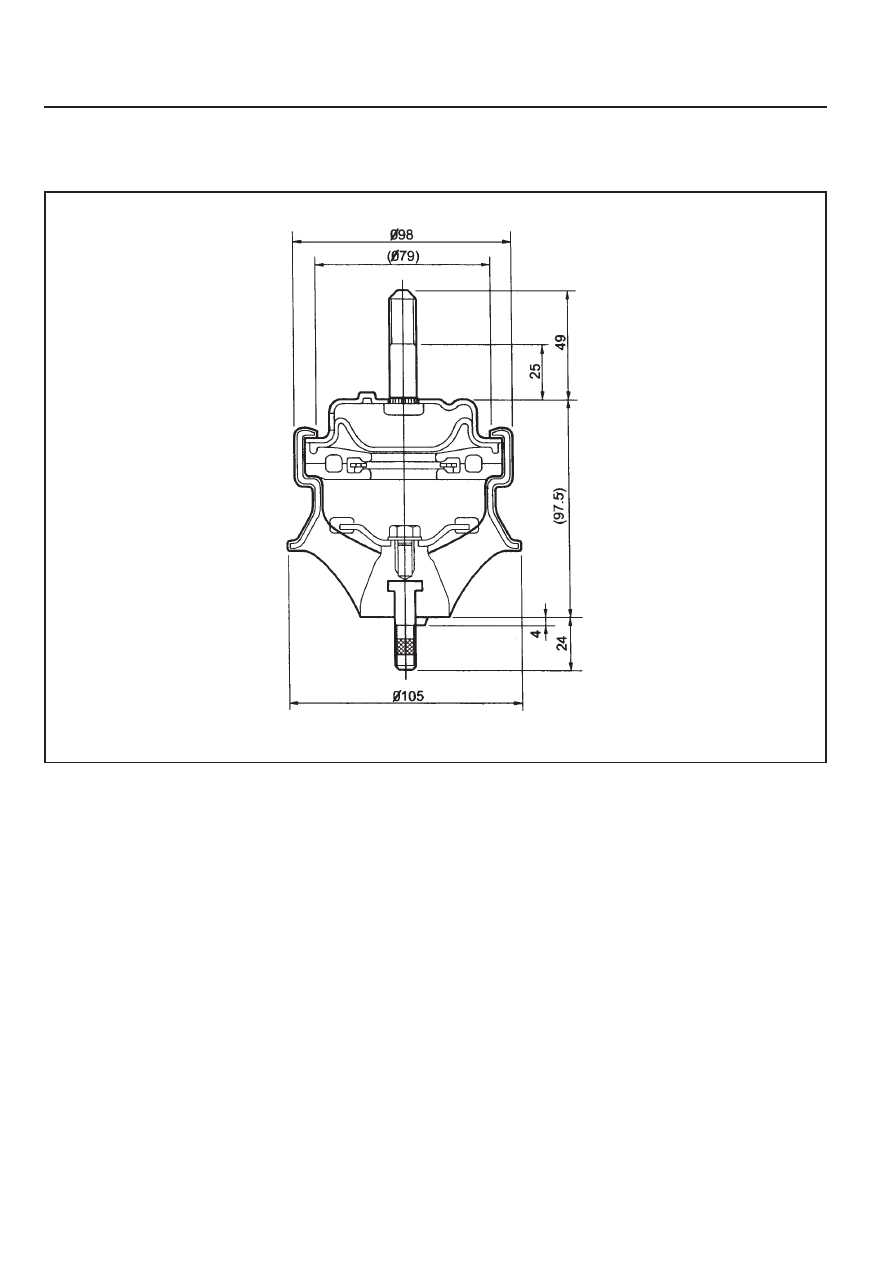

HYDRAULIC ENGINE MOUNTING INSULATOR

Service Data
