M162 ENGINE MECHANICAL  1B1-23

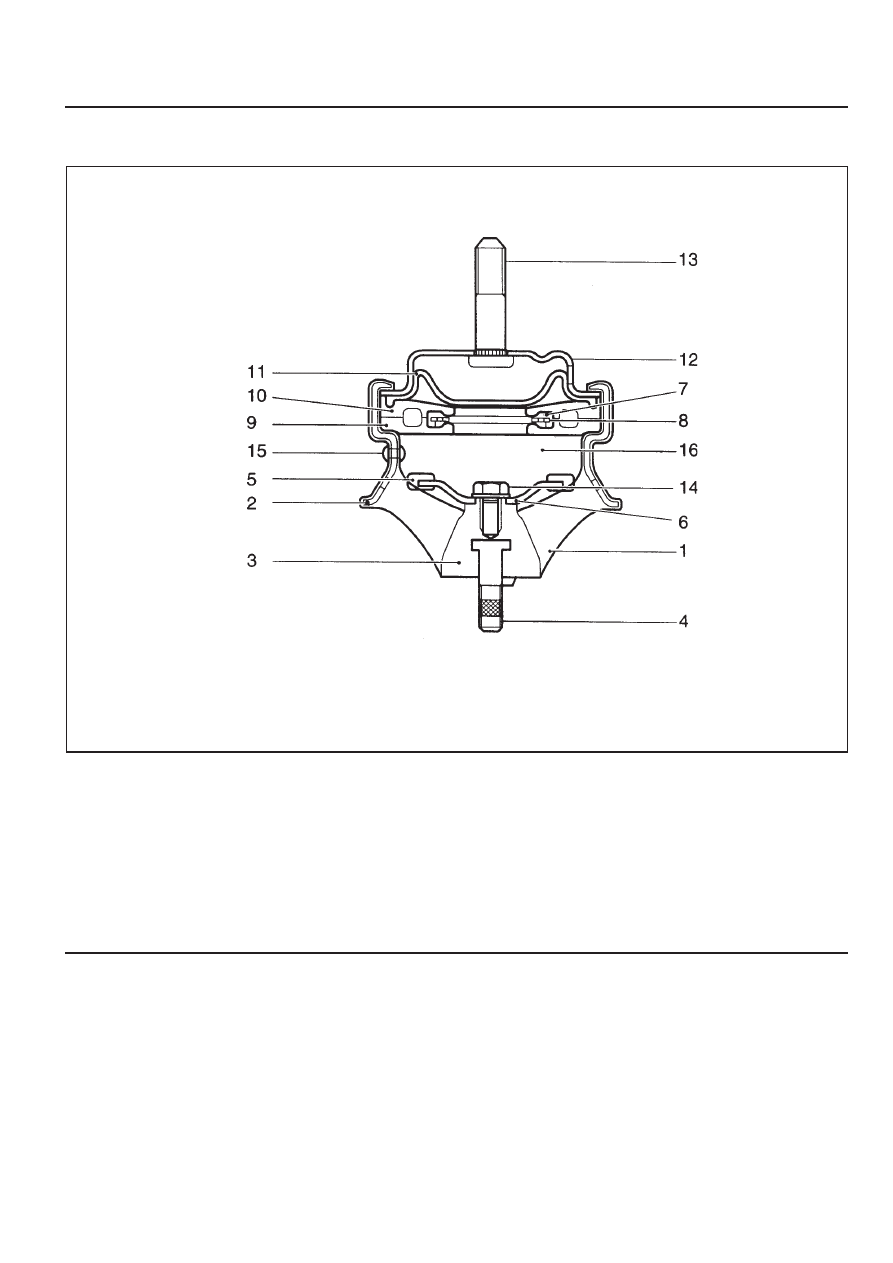

Sectional View

1 Rubber Body
2 Brackek
3 Core
4 Lower Bolt
5 Rubber Plunger
6 Plunger Plate
7 Rubber
8 Plate

9 Lower Orifice

10 Upper Orifice

11 Diaphram

12 Cover Plate
13 Upper Bolt
14 Flange Bolt
15 Rivet
16 Fluid

1B1-24  M162 ENGINE MECHANICAL

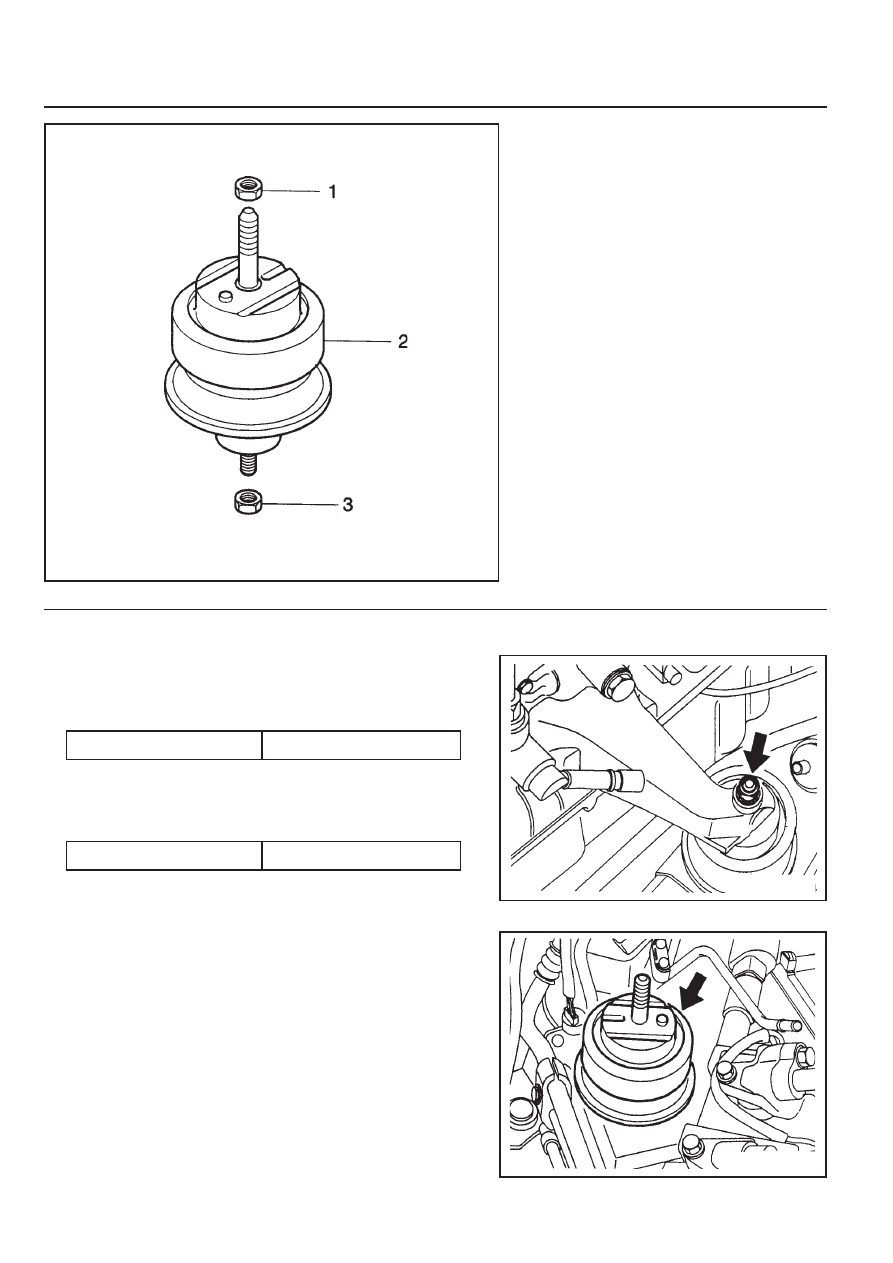

1 Upper Nut
2 Hydraulic Installor ................. 62-93 Nm
3 Lower Nut ............................. 28-47 Nm

Removal and Installation Procedure

1. Unscrew the upper nut(1) on engine mounting and remove

the engine.

Installation Notice

3. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

62 - 93 Nm

2. Unscrew the lower nut(3) and remove the hydraulic engine

mounting insulator.

Installation Notice

Tightening  Torque

28 - 47 Nm

Notice

If the insulator is spotted with oil, replace the hydraulic
insulator assembly.

M162 ENGINE MECHANICAL  1B1-25

POLY V - BELT

Preceding Work : Removal of cooling fan

1 Poly V-belt

Removal & Installation Procedure

1. Release the belt tension by turning the belt tensioning pulley

nut clockwise.

2. Remove the poly v-belt.

Notice

Check the belt for damage and tensioning pulley bearing
point for wear and replace them if necessary.

3. Install the belt by turning the nut of tensioning pulley

clockwise.

2 Belt Tensioning Pulley

1B1-26  M162 ENGINE MECHANICAL

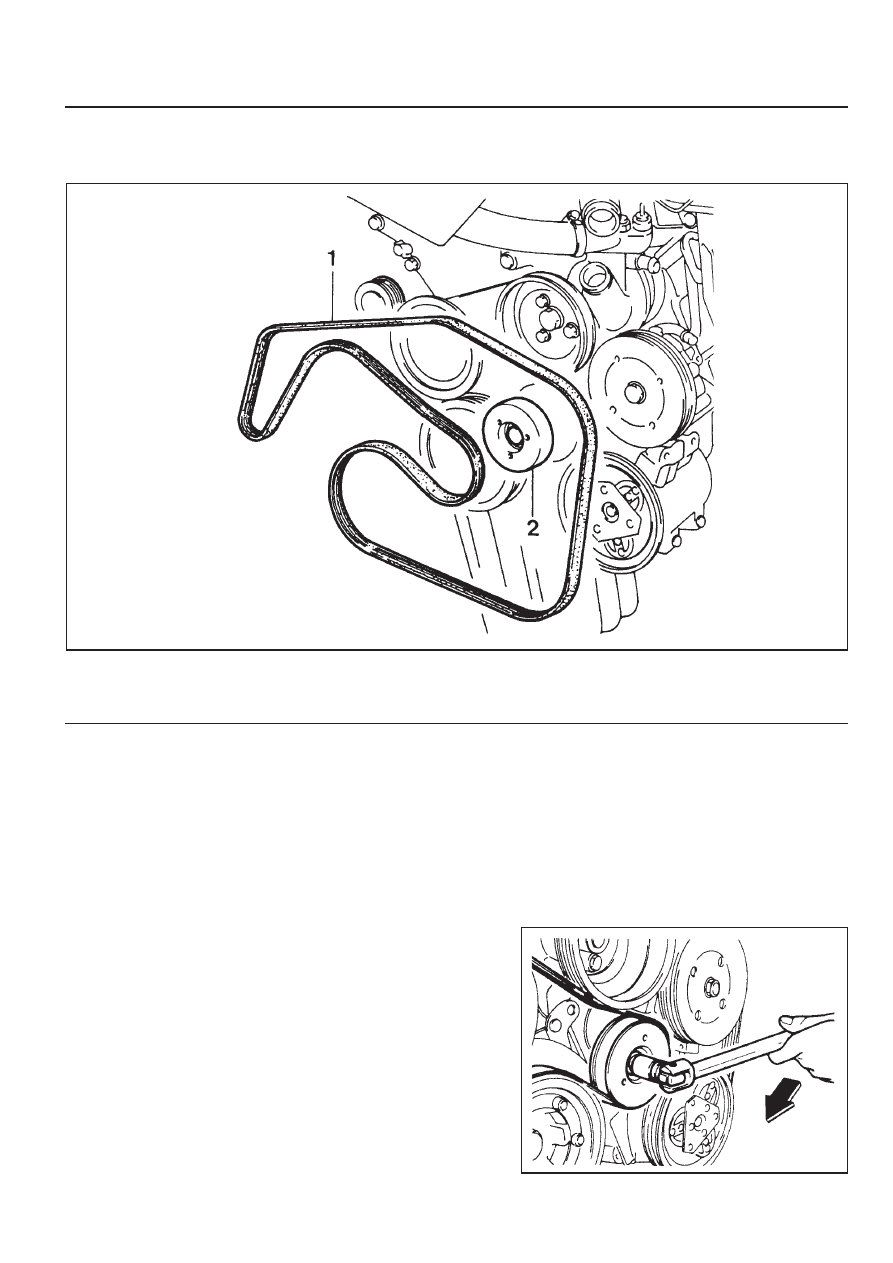

Poly V-Belt Arrangement

1 Belt Tensioning Pulley
2 Crankshaft Belt Pulley
3 A/C Compressor Pulley
4 Cooling Fan Pulley

5 Alternator Pulley
6 Idler
7 Power Steering Pump Pulley
8 Cooling Fan and Water Pump Pulley
