SECTION 4

USAGE AND CAPACITY OF FUSES IN FUSE BLOCK

1. ENGINE ROOM FUSE & RELAY BLOCK ....................................... 4-2

2. I/P FUSE BLOCK ............................................................................... 4-3

CONTENTS

4-2  USAGE AND CAPACITY OF FUSES IN FUSE BOX

30 BAT (+)

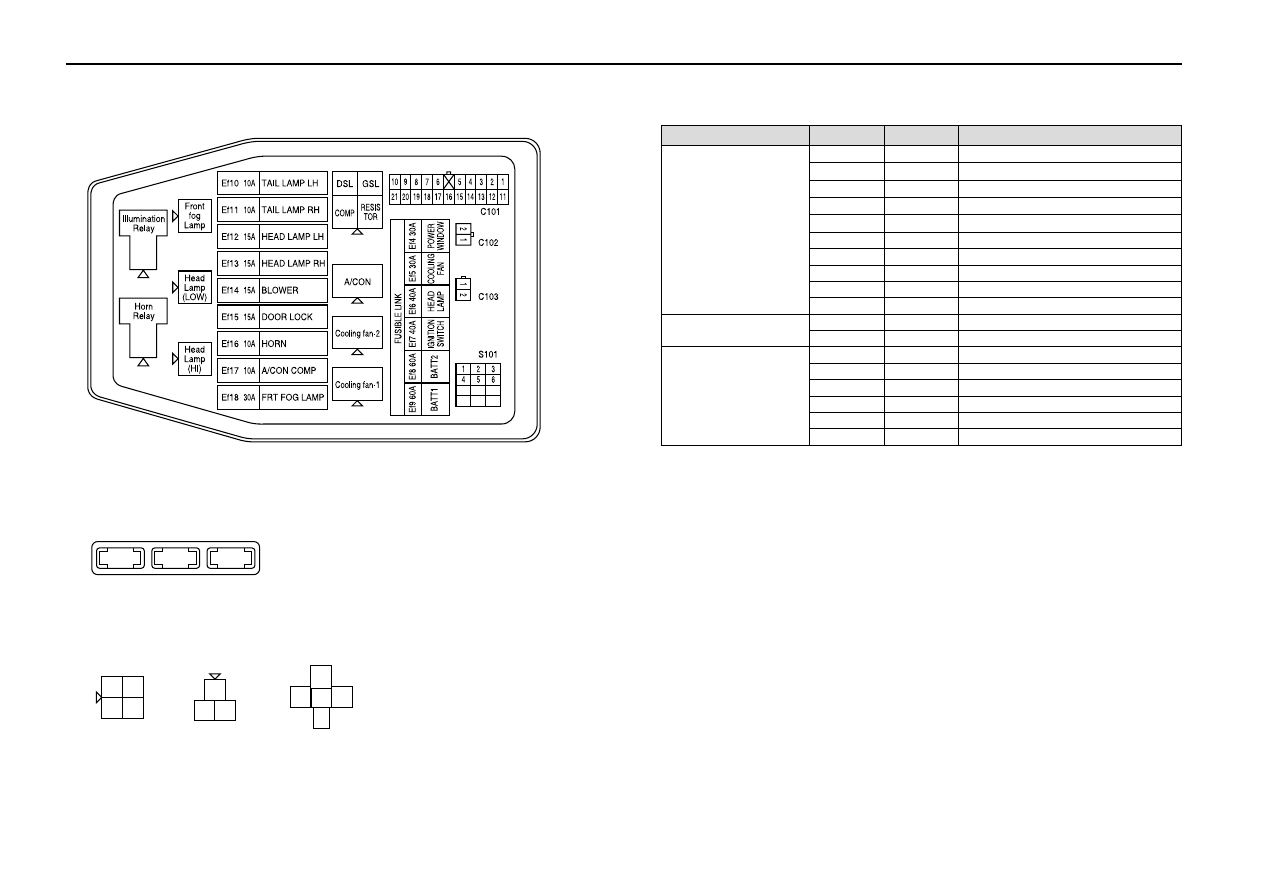

1. ENGINE ROOM FUSE & RELAY BOX

1) ENGINE ROOM FUSE BLOCK

2) RELAY BOX ABOVE I.P FUSE BLOCK

4) USAGE OF FUSE IN ENGINE ROOM FUSE BOX

ABS & ABD

Generator

Preheating

Power Window

Cooling Fan

Head Lamp

Ignition Switch

Battery 2

Battery 1

Tail Lamp LH

Tail Lamp RH

Head Lamp LH

Head Lamp RH

Blower

Door Lock

Hom

A/C Compressor

FRT Fog Lamp

Power Supply

Capacity

80A

80A

60A

E

f

3

E

f

2

E

f

1

3) RELAY BOX ABOVE I.P FUSE BLOCK

86

87

85

30

S

B

L

85

87a

30

87

86

4PIN RELAY

3PIN RELAY

5PIN RELAY

Fuse No

Usage

Ef1

Ef2

Ef3

Ef4

Ef5

Ef6

Ef7

Ef8

Ef9

Ef10
Ef11

Ef12

Ef13

Ef14

Ef15
Ef16

Ef17

Ef18

60A

80A

80A

30A

30A

40A

40A

60A

60A

10A
10A

15A

15A

15A

15A
10A

10A

30A

Illumination (58)

30 BAT (+)

* 30 : Battery(+) Power Supply

USAGE AND CAPACITY OF FUSES IN FUSE BOX  4-3

2. I/P FUSE BLOCK

1) POSITION OF RELAY AND FUSE

15A

10A

10A

15A

10A

20A

10A

10A

10A

ST

F1

10A

IG1

F2

10A

IG1

F3

ACC

10A

F4

B+

30A

F5

B+
(1)

F6

F13

IG1

F20

15A

F7

30A

F14

10A

F21

F8

F15

F22

20A

F9

15A

F16

10A

F23

F10

B+
(2)

F17

F24

20A

F11

15A

F18

20A

F12

10A

IG2

F19

1) POSITION OF RELAY AND FUSE

85

87a

30

87

86

85

-

30

87

86

B

E

L

85

-

30

87

86

87

30

86

85

FRONT WIPER

RELAY

DEFOGGER

RELAY

TURN SIGNAL

RELAY

CIGAR LIGHTER

P/SOCKET RELAY

A/T SHIFT LOCK

REALY

87

30

86

85

A/T : PNP RELAY
M/T : CLUTCH INTER

LOCK RELAY

87

30

86

85

POWER WINDER

RELAY

30 BAT (+)

2) USAGE OF FUSE IN ENGINE ROOM FUSE BOX

Starter Motor Relay

Air Bag

ABS/ABD

Outside Mirror, Audio

Cigar Lighter, Power Socket

Stop Lamp

Hazzard Switch

Interior

TCCU

Heated Glass

Sun Roof

Rear Fog Lamp

DLC

Front Wiper & Washer

Air Con

TCCU/TCM

Back Up Lamp, Turn Signal Lamp

Head Lamp, Cluster

Speed Sensor, Unit, Relay Coil

Power Supply

Capacity

Fuse No

Usage

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10
F11

F12

F14
F15
F16

F17

F18

F19

F20

F21

F22

F23

F24

10A

10A

10A

10A

30A

15A

15A

10A

20A
20A
20A

20A

30A

15A
15A
10A

15A

10A

10A

10A

10A

10A

10A

30 BAT (+)

IGN2 (15A)

* 30 : BAT(+) Power Supply Through F1.

IGN1 (15)

ACC (15C)

IGN1 (15)

87

30

86

85

Sun Roof
Relay
