2-6  POSITION OF CONNECTORS AND GROUNDS

4) W/H FLOOR

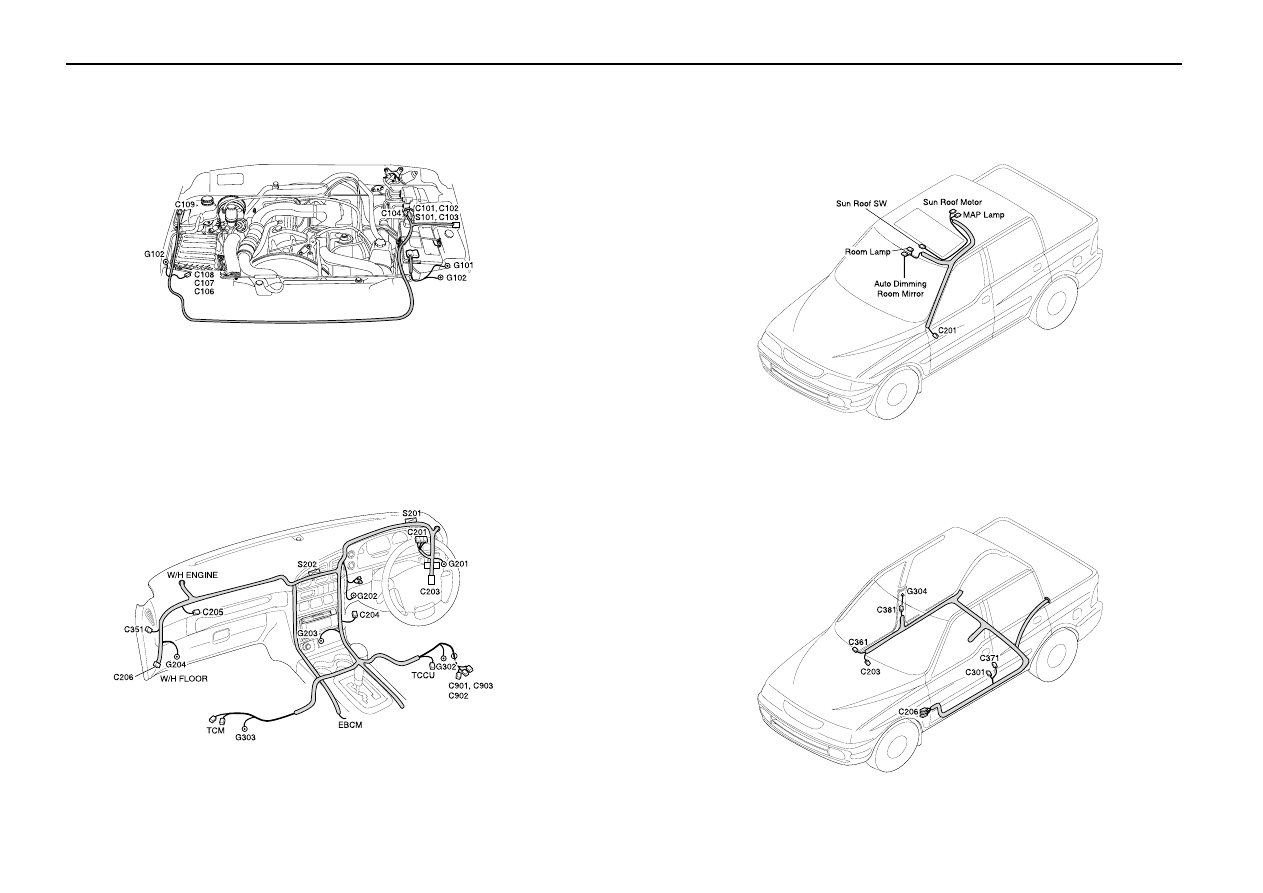

3. WIRING HARNESS, CONNECTOR & GROUND LOCATION

1) W/H ENGINE ROOM

•



DSL

2) W/H MAIN

•



W/H MAIN

3) W/H ROOF

POSITION OF CONNECTORS AND GROUNDS  2-7

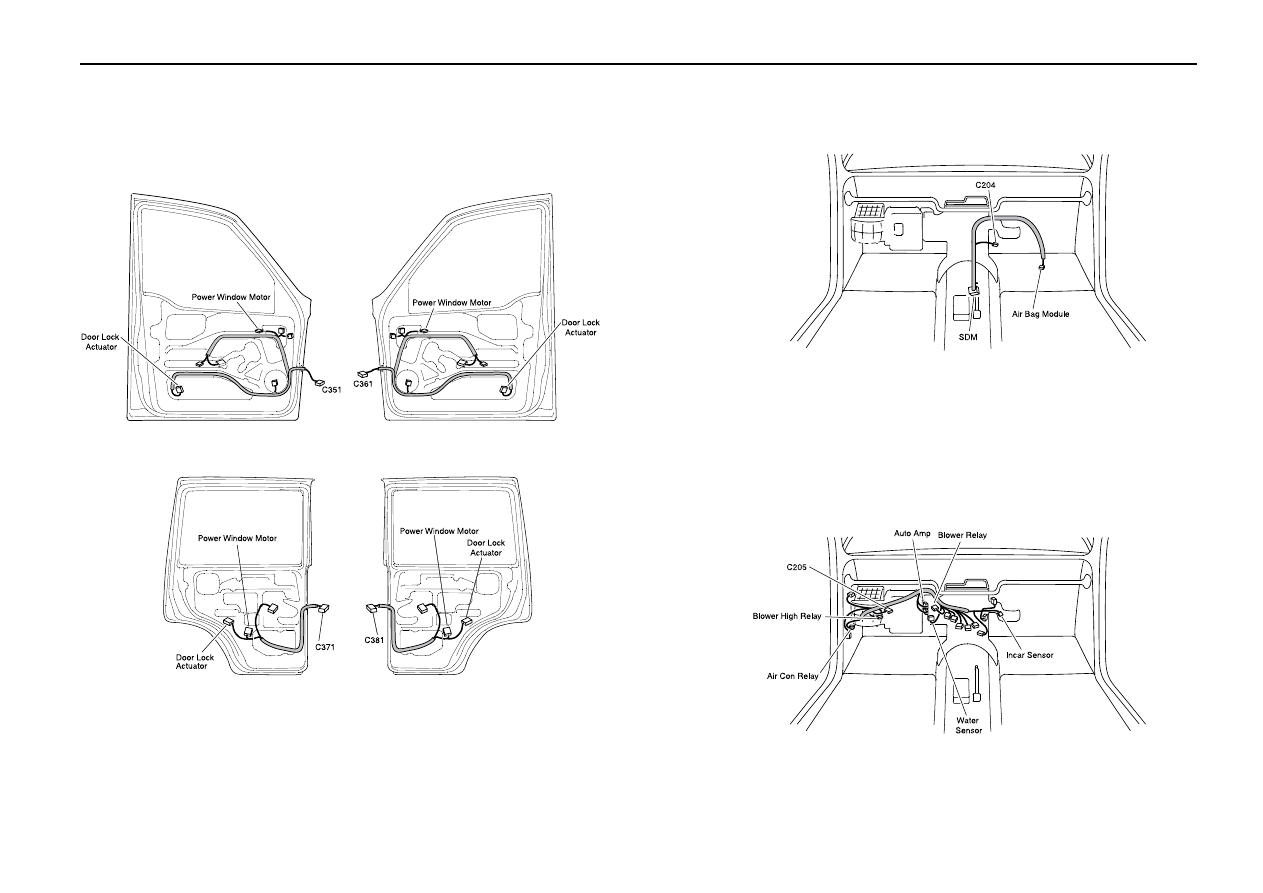

5) W/H DOOR

7) W/H AIR-CONDITIONER

6) W/H AIR-BAG

2-8  POSITION OF CONNECTORS AND GROUNDS

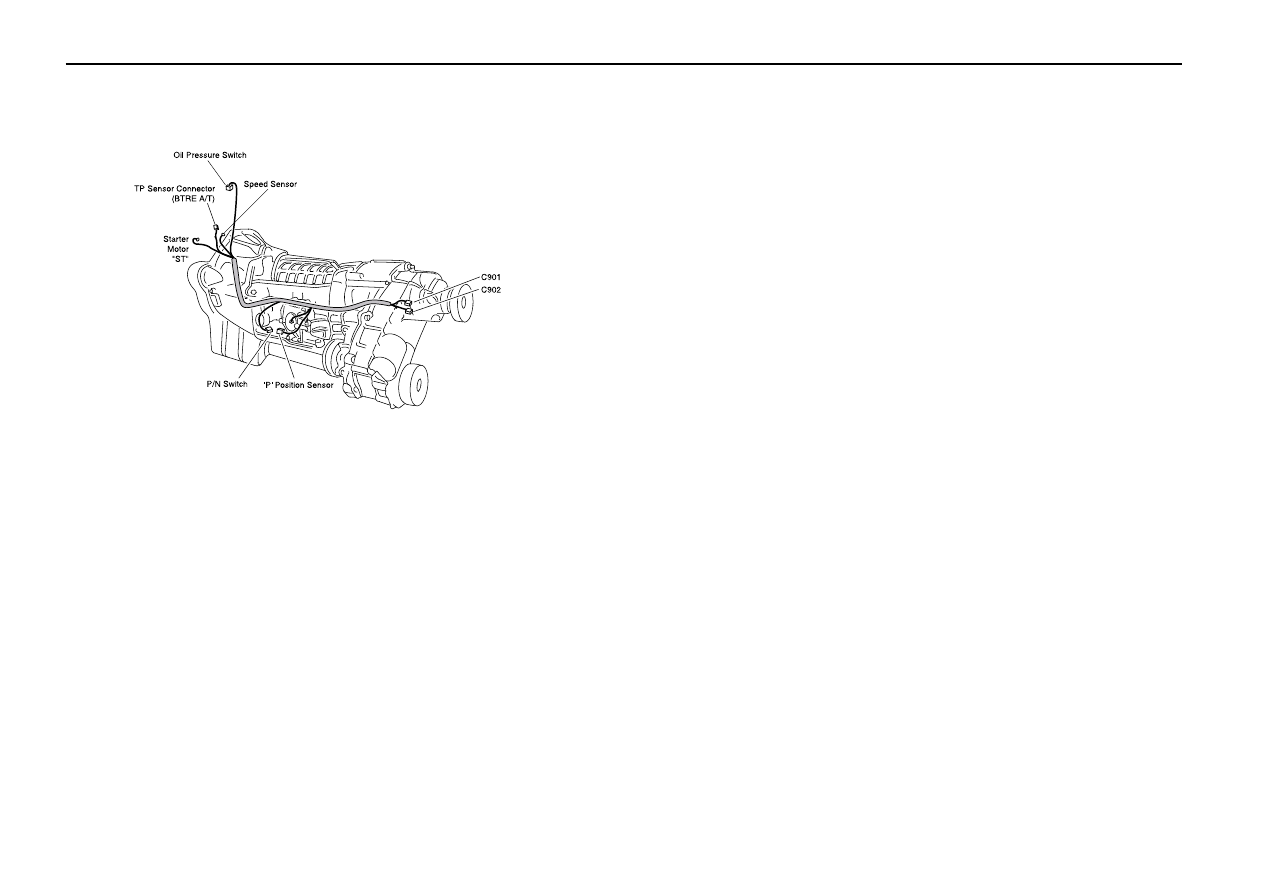

8) W/H TRANSMISSION

CONTENTS

1. FUSIBLE LINK FUSE BLOCK & ENGINE ROOM FUSE

BLOCK POWER DISTRIBUTION .....................................................  3-2

2. I/P FUSE BLOCK POWER DISTRIBUTION ..................................... 3-3

SECTION 3

WIRING DIAGRAM FOR POWER SUPPLIES
