SsangYong Musso. Manual - part 68

3-2  WIRING DIAGRAM FOR POWER SUPPLIES

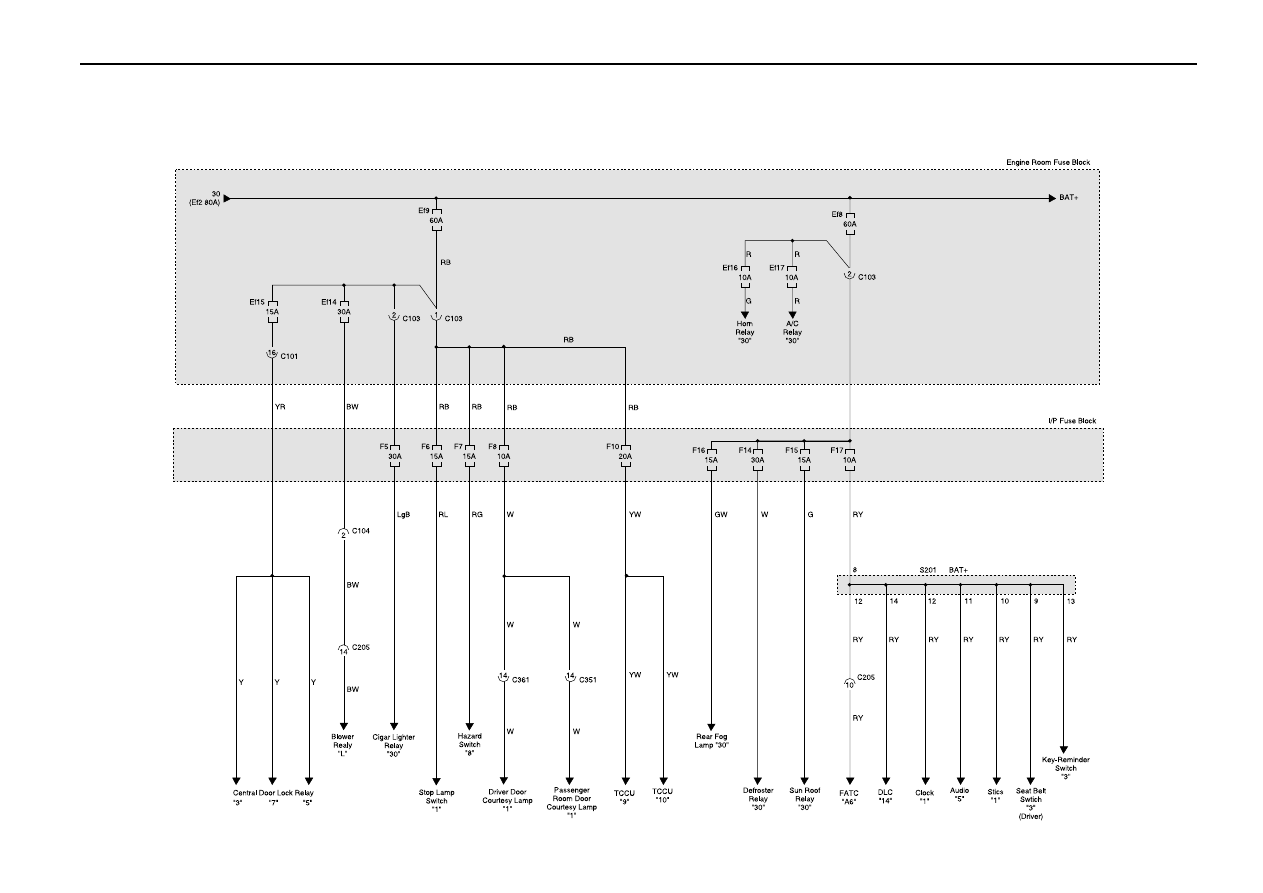

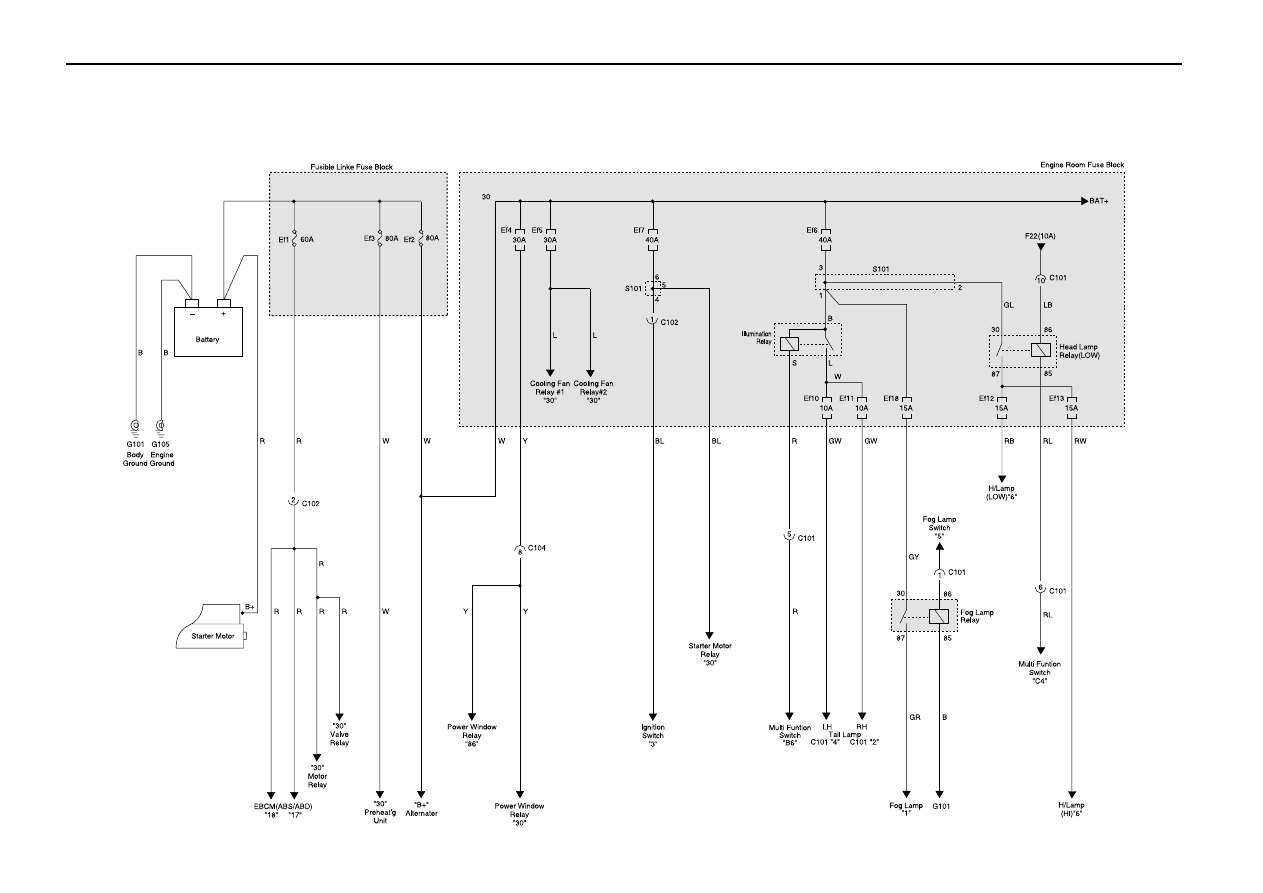

1. FUSIBLE LINK FUSE BLOCK & ENGINE ROOM FUSE BLOCK POWER DISTRIBUTION

WIRING DIAGRAM FOR POWER SUPPLIES  3-3

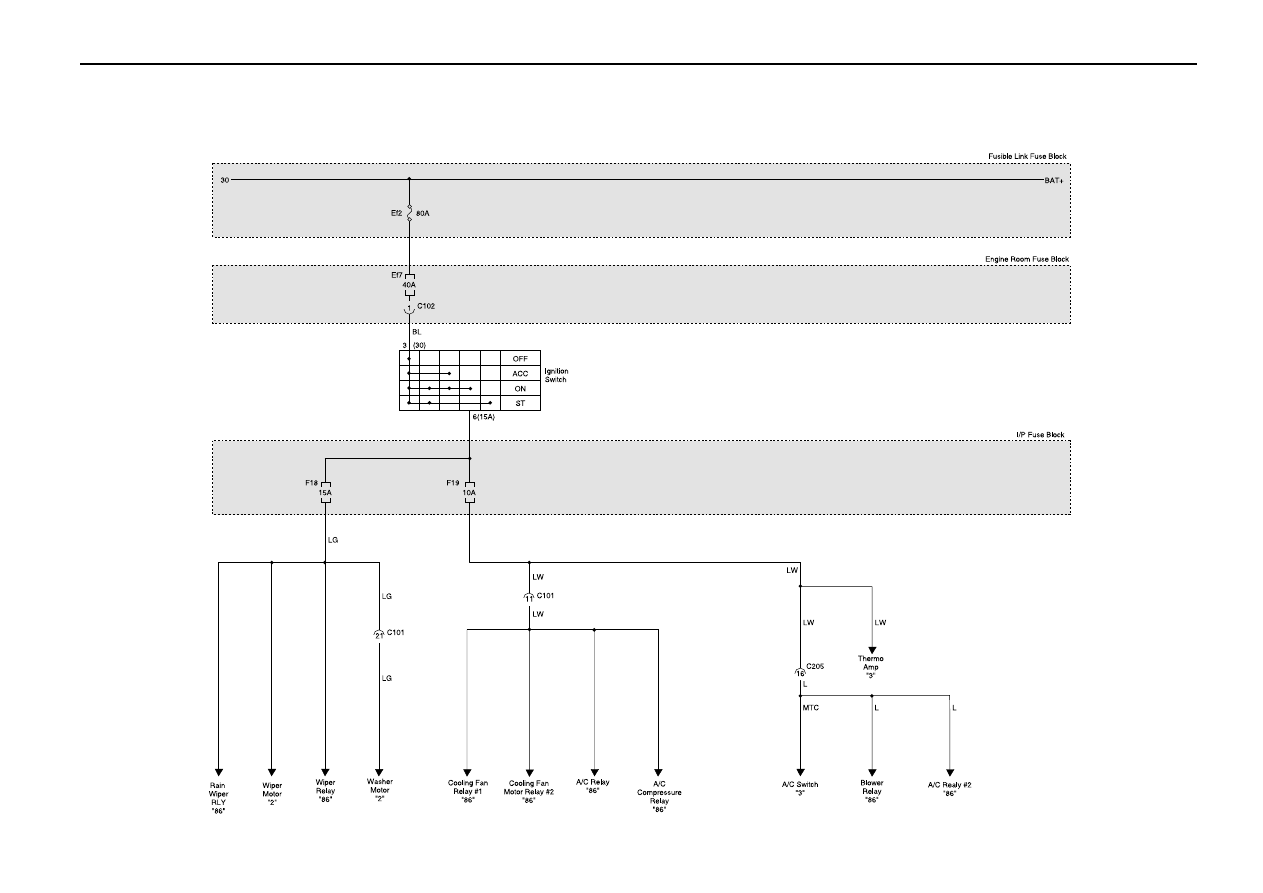

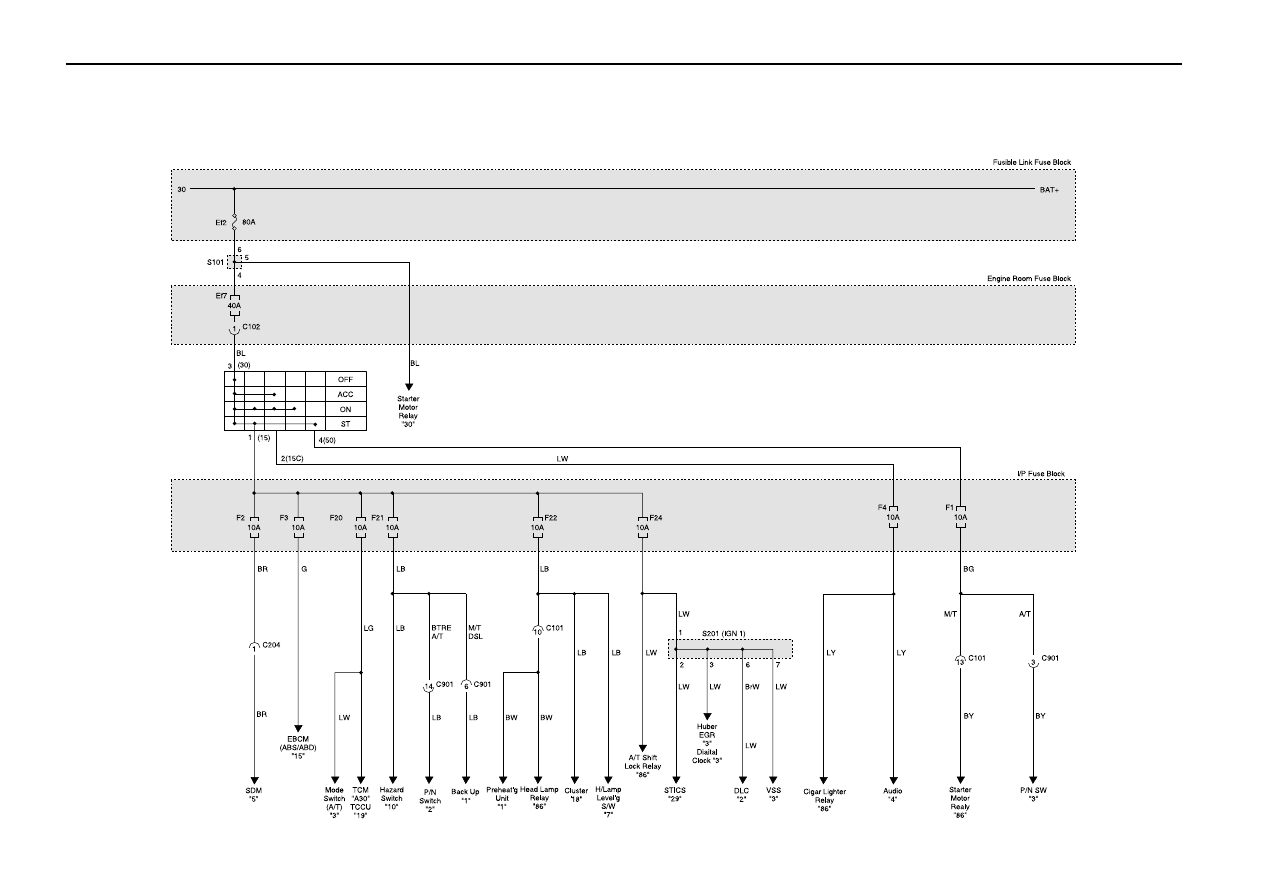

2. I/P FUSE BLOCK POWER DISTRIBUTION

3-4  WIRING DIAGRAM FOR POWER SUPPLIES

WIRING DIAGRAM FOR POWER SUPPLIES  3-5
