CONTROL UNITS AND SYSTEM  9U-7

!

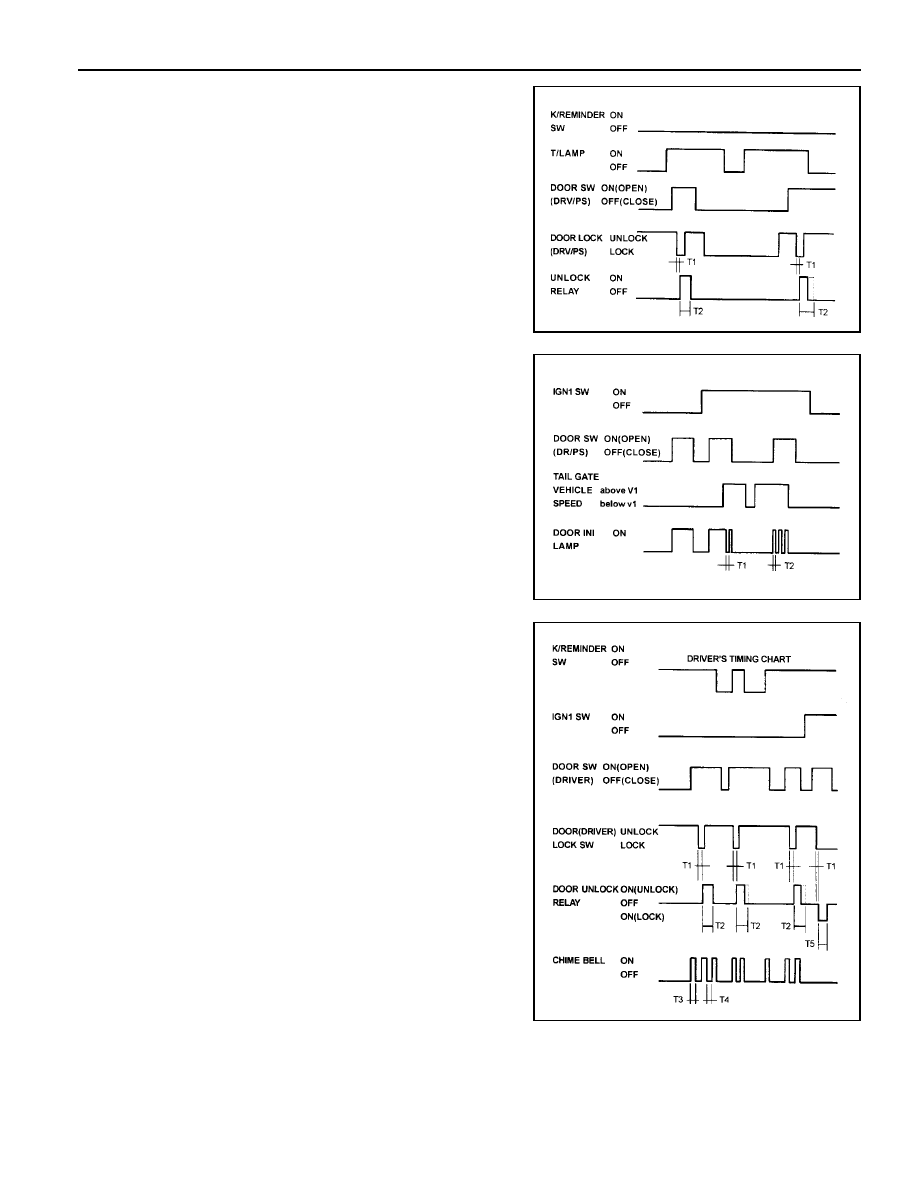

After 1), the driver’s or passenger’s door should be
unlocked when it locked.

T1 : within 0.2±5 sec.

T2 : 5±0.5 sec.

9. Door ajar warning

T1 : 0.3±0.1 sec.

T2 : 0.3±0.1 sec.

V1 : 3 - 5km/h

10. IGN key reminder warning

T1 : within 0.2 sec.

T2 : 5±0.5 sec.

T3 : 0.3±0.1 sec.

T4 : 0.3±0.1 sec.

T5 : 0.5±0.1 sec.

9U-8  CONTROL UNITS AND SYSTEM

11. Central door lock

T1 : within 0.2 sec.

T2 : 0.5±0.1

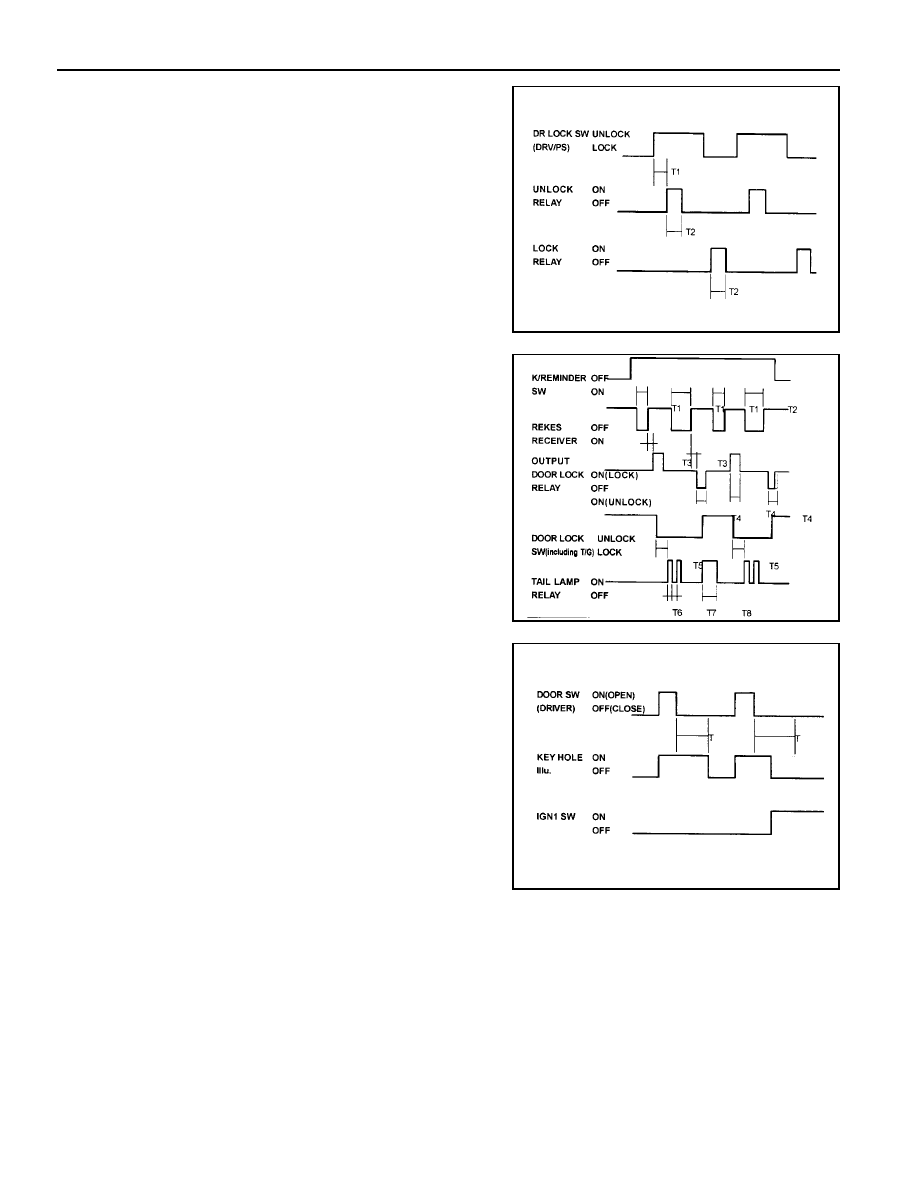

12. Coupled with REKES mode

T1 : 0.05±0.02 sec. (lock signal)

T2 : 0.1±0.02 sec. (unlock signal)

T3 : within 0.2±5 sec.

T4 : 0.5±0.1 sec.

T5 : within 0.3 sec.

T6, T7 : 0.5±0.1 sec.

T8 : 1±0.25 sec.

13. Ignition key hole illumination

CONTROL UNITS AND SYSTEM  9U-9

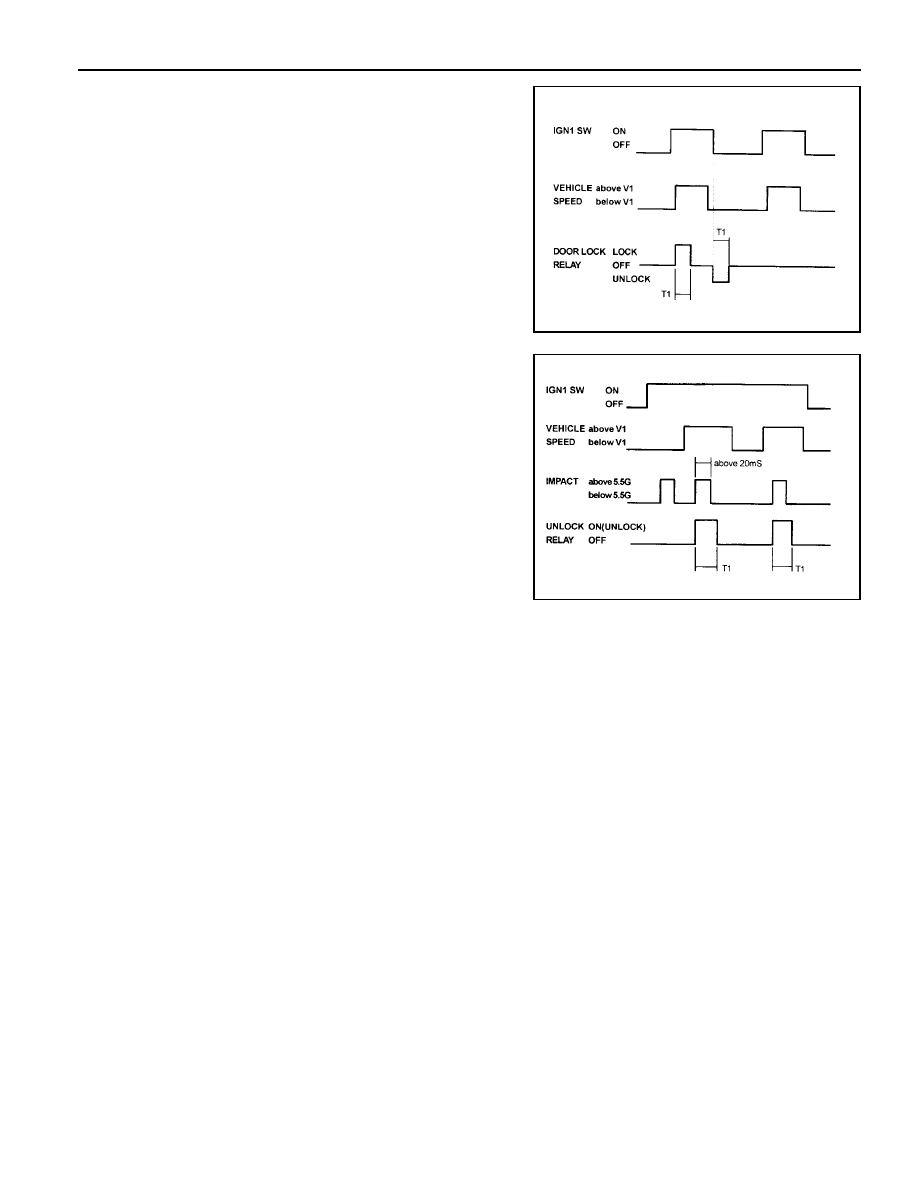

14. Auto door lock

V1 : 50±5km/h

T1 : 0.5±0.1 sec.

15. Auto door unlock

T1 : 0.5±0.1 sec.

V1 : 15km/h

9U-10  CONTROL UNITS AND SYSTEM

MAINTENANCE  AND REPAIR

ON-VEHICLE SERVICE

STICS

STICS, electonic control warning device, controls 16 functions and contains the self diagnostic function detecting any
malfunctions in the sensors and load.

Removal & Installation Procedure

1. Disconnector the battery negative cable.

2. Unscrew 4screw from center console box.

3. Remove the center console box and disconnect 3 STICS

connectors.

4. Unscrew 3 fastening bolts and remove the STICS unit.

5. Installation should follow the removal procedure in the

reverse order.

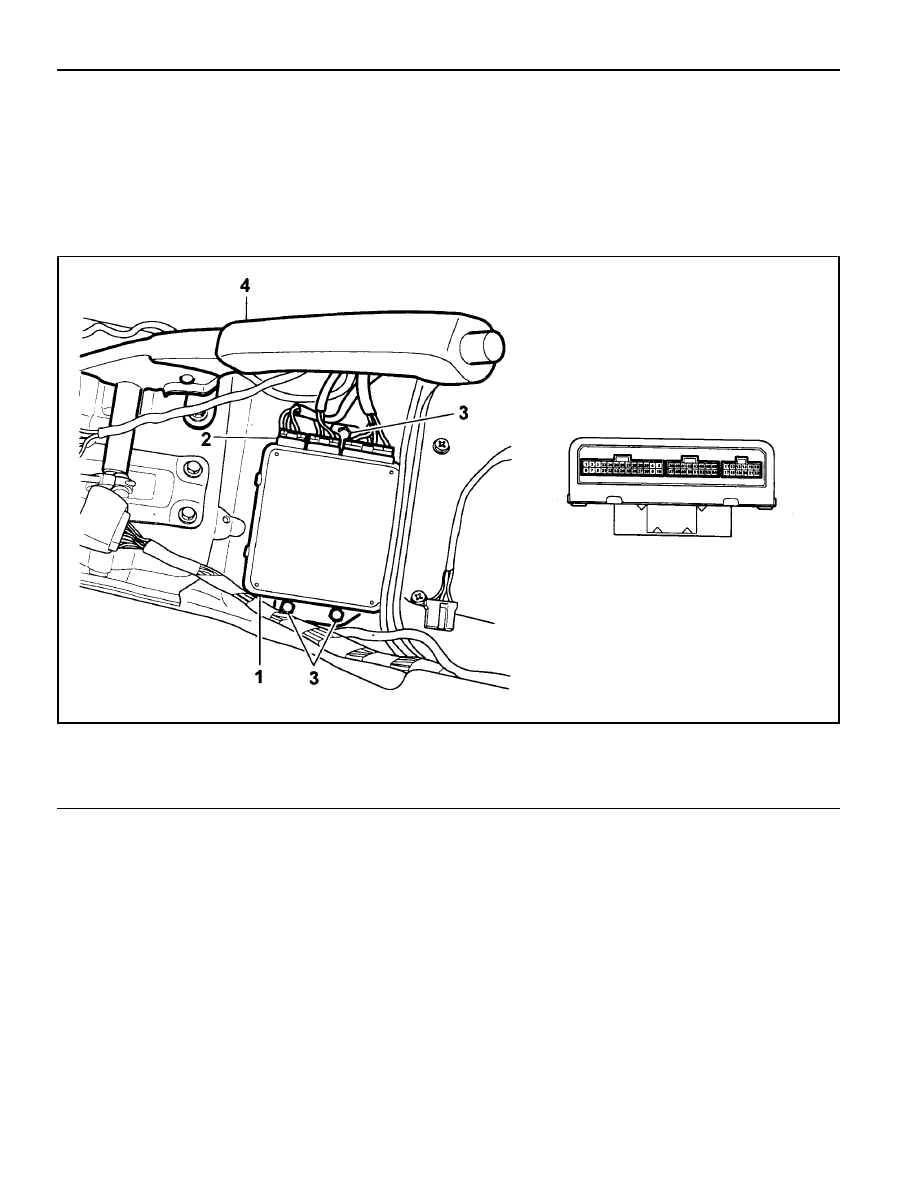

1 STICS Unit
2 STICS Connector

3 STICS Unit Fastening Bolt
4 Parking Brake Lever
