CONTROL UNITS AND SYSTEM  9U-3

FUNCTION DESCRIPTION

STICS

Operating Functions

NO.

Application

Deseription

1

Wiper INT sensing vehicle speed

!

By operating INT time control volume, variable time will be

changed within 1.5 - 20 seconds.

2

Washer relating wiper

!

Wiper begins to operate within 0.6 - 1 sec  when the washer

switch is ON and it operates 3 times after the washer switch is

OFF while the IGN2 switch in ON.

3

Dimming room lamp

!

When room lamp is coupled with door, it turns on if door is

opened. After closing the door it maintains 2 seconds of lighting

and dims off whithin 3 seconds.

4

Time delayed power window control

!

Power window can be operated within 30 seconds after turning

the IGN1 switch from ON to OFF. If driver’s/passenger’s door is

opened within the 30 seconds, time will be prolonged for more

30 seconds from that moment.

5

Rear defogger timer

!

The rear defogger will be operated for 12 min. by turning ON the

defogger switch while engine is running.

!

Defogger will be stopped by pushing the switch again.

!

The defogger will be operated 6 min, if push ON the switch within

10 min. after 12 min. of operation.

6

Seat belt warning

!

The warning lamp will be turned on for about 6 sec. with an

intermittent chime bell  when the IGN. switch is ON unless

fastening the seat belt.

7

Parking brake warning

!

The indicator lamp will flash if drive while the parking brake is

applied.

8

Tail lamp lighting warning

!

When the driver’s door is opened while the tail lamp is still ON,

the buzzer operates intermittently. In this condition, the door will

be automatically unlocked when it locked.

9

Door ajar warning

!

The indicator lamp will be blinking when the door is not closed

completely and driving.

10

IGN key reminder

!

The chime will be operated intermittently if the driver’s door is

opened while the IGN key is still remaining in the ignition switch.

In this condition, the door will be automatically unlocked when it

locked.

11

Central door lock

!

All doors will be locked/unlocked by locking/unlocking the

driver’s or passenger’s door.

9U-4  CONTROL UNITS AND SYSTEM

NO.

Application

Deseription

13

Ignition key hole illumination

!

Coupled with door switch, ignition key hole illumination lamp will

turn on when the driver’s door is opened and will dim off after 10

sec. after closing the door.

14

Auto door lock

!

All doors will be locked automatically if the vehicle speed

reaches 50km/h though the doors are in unlock.

15

Auto door unlock

!

All doors will be automatically unlocked if the vehicle crashes

while driving (over 15km/h).

16

Input checking function

!

Self diagnostic function for each sensor switches and loads for

the system.

12

Coupled with REKES

!

Being coupled with REKES (remote keyless entry system), all

doors will be locked/unlocked according to signals of transmitter

when the ignition key is not inserted.

CONTROL UNITS AND SYSTEM  9U-5

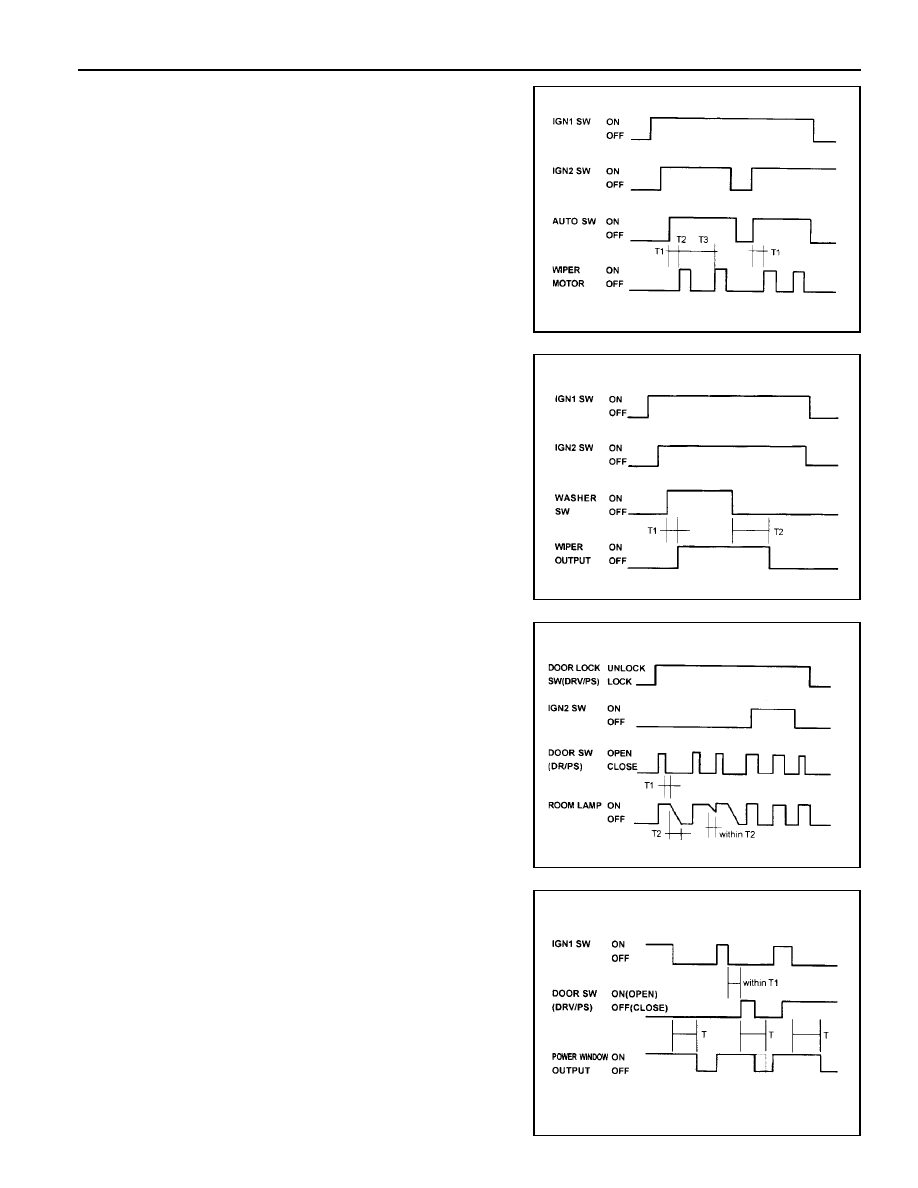

Operating Characteristics

1. Wiper INT sensing vehicle speed

T1 : within 0.5 sec.

T2 : Wiper motor 1 revolution time

T3 : 1.5±0.2 sec. - 20±2 sec.

2.  Washer relating wiper

T1 : 0.6 - 1.0 sec.

T2 : motor 3 revolution (including motor revolution time)

3. Dimming room lamp

T1 : 2±0.3 sec.

T2 : 3±0.5 sec

4. Time delayed power window control

T : 30±2 sec

9U-6  CONTROL UNITS AND SYSTEM

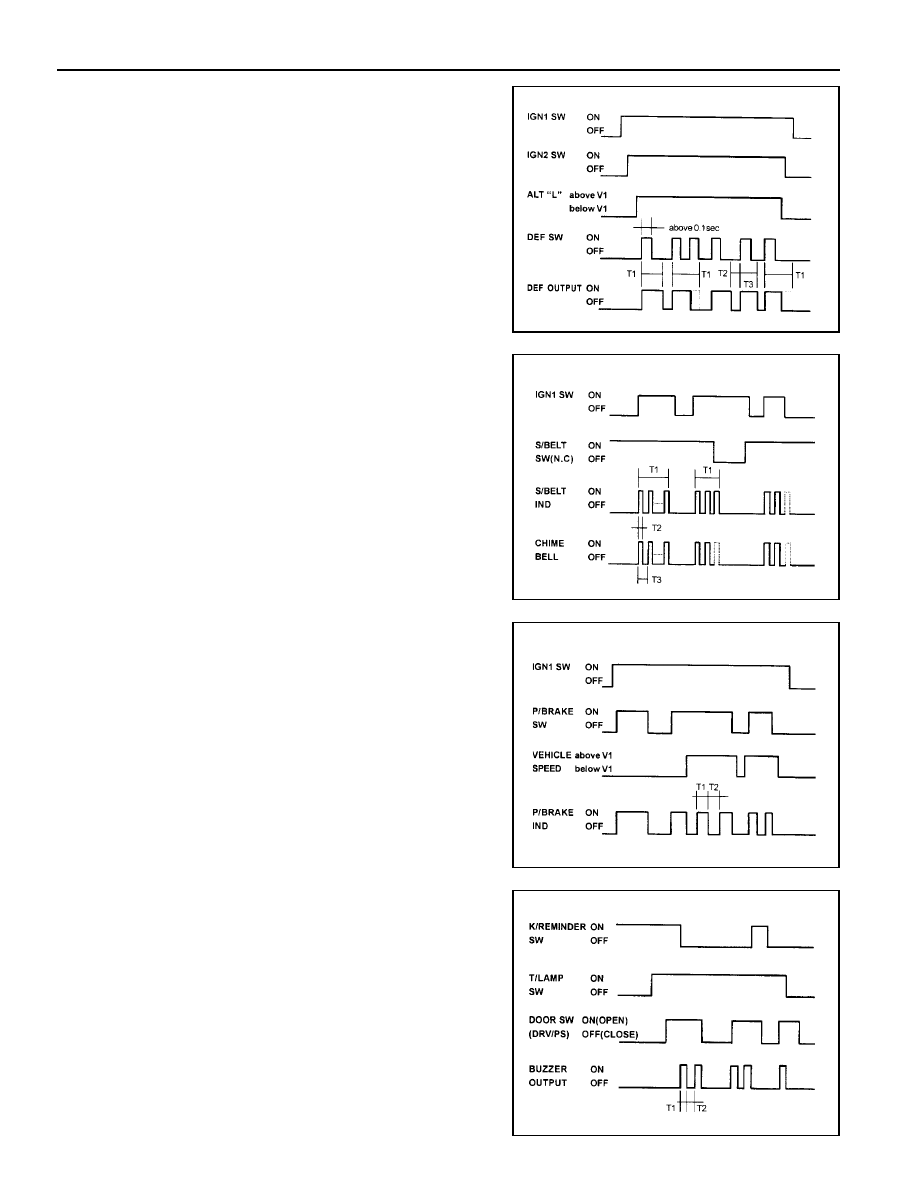

5. Rear defogger timer

T1 : 12±2 min.

T2 : within 10±1 min.

T3 : 6±1 min.

6. Seat belt warning timer

T1 : 6±1 sec.

T2 : 0.3±0.1 sec.

T3 : 0.6±0.1 sec.

7. Parking brake warning

T1 : 0.3±0.1 sec.

T2 : 0.3±0.1 sec.

V1 : 3km/h - 5km/h

8. Tail lamp lighting warning

!

When the driver’s door is opened after removing the IGN
key while the tail lamp switch is still ON, the buzzer should
be operated.

T1 : 0.3±0.1 sec.

T2 : 0.3±0.1 sec.
