9L-6  GLASS AND MIRRORS

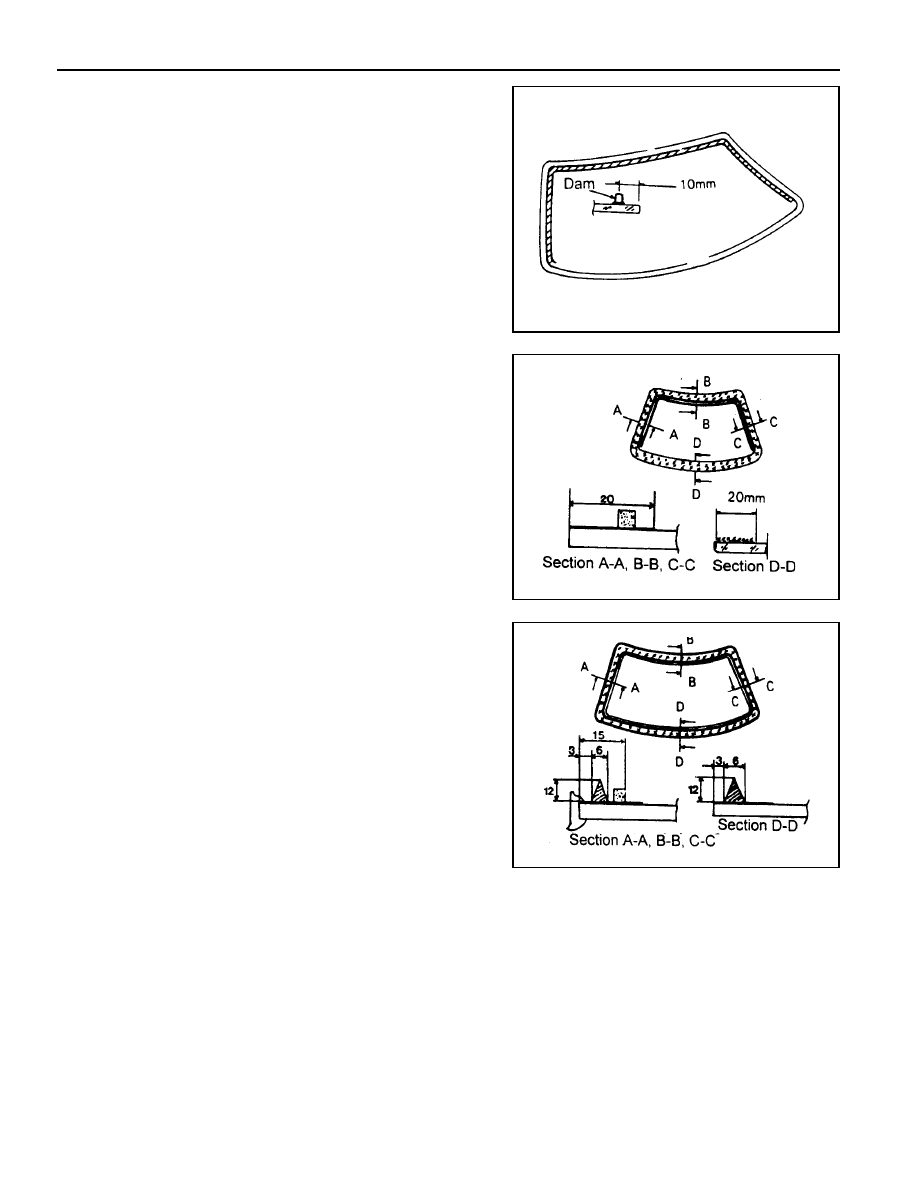

4. Installation of glass dam rubber.

!

Using a double - faced adhesive tape, install the dam
rubber keeping 10mm from the edge of glass. If intervals
are irregular, primers and sealants can be applied
unevenly.

!

If need to remove the improper dam rubber, do not
remain the double - faced adhesive tape on the glass.

Improperly installed tape causes the inferior appearance
and weakening of adhesive strength of sealant.

5. Apply glass primer to the outer area of the dam rubber.

Notice

!

Do not apply body primer to the glass.

!

Do not touch the primer applied surface. If you touch,
this may cause water leakage after installation of the
windshield.

!

Keep water or dust away from the primer applied surface.

6. Apply sealant to windshield glass.

!

Uneven application of sealant may cause water leakage
after installation of the glass.

!

Do not touch the glass moldings and dam rubber while
applying sealant.

!

Turn over the glass and apply sealant.

7. Using suction holders, install the windshield within 5minutes

after application of sealant.

GLASS AND MIRRORS  9L-7

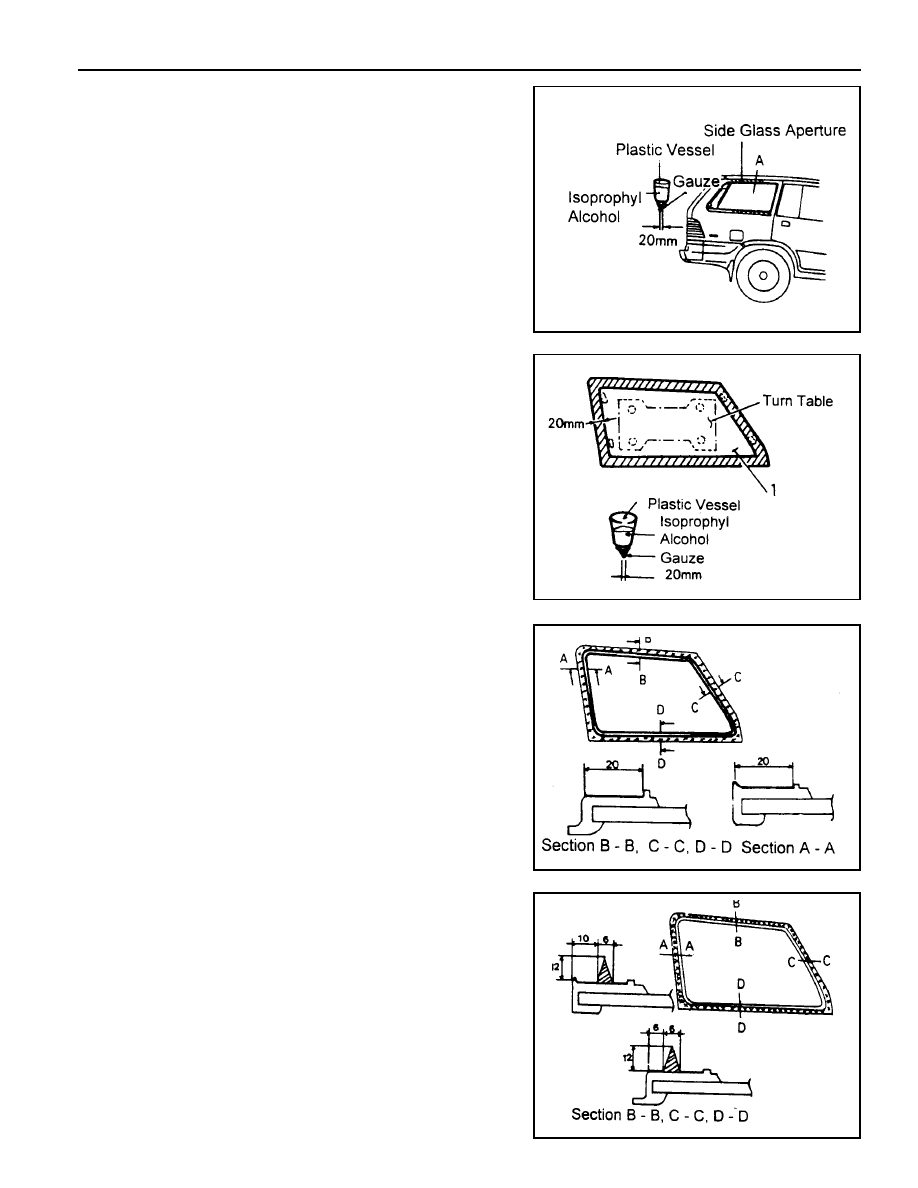

Installation of Side Glass

For installation, refer to 'Installation of Windshield'.

1. Clean as the same procedure of windshield mounting flange

(Apply primer).

!

Clean as the same procedure of windshield cleaning,

however keep 20mm from the edge of glass.

2. Apply primer to the side glass.

!

Use sufficiently mixed primer in a mixer over 10 minutes.

!

Be careful not to contaminate other parts due to over
application.

!

Duration : 1 minute - 24 hours (reapply after 24 hours).

!

Never use the primer containing deposits or floating
materials.

!

Do not apply primers which is over its duration.

!

Do not reuse a gauze over 20 times.

!

Apply evenly to glass.

3. Apply seaant to the side glass.

!

Turn over the glass and apply sealant.

!

Uneven application of sealant may cause water leakage
after installation of the glass.

9L-8  GLASS AND MIRRORS

Tightening Torque

7.7 Nm

4. Before installation, ensure that the stay bolt washer is

inserted.

5. Using suction holders, install the side glass within 5minutes

after application of sealant.

GLASS AND MIRRORS  9L-9

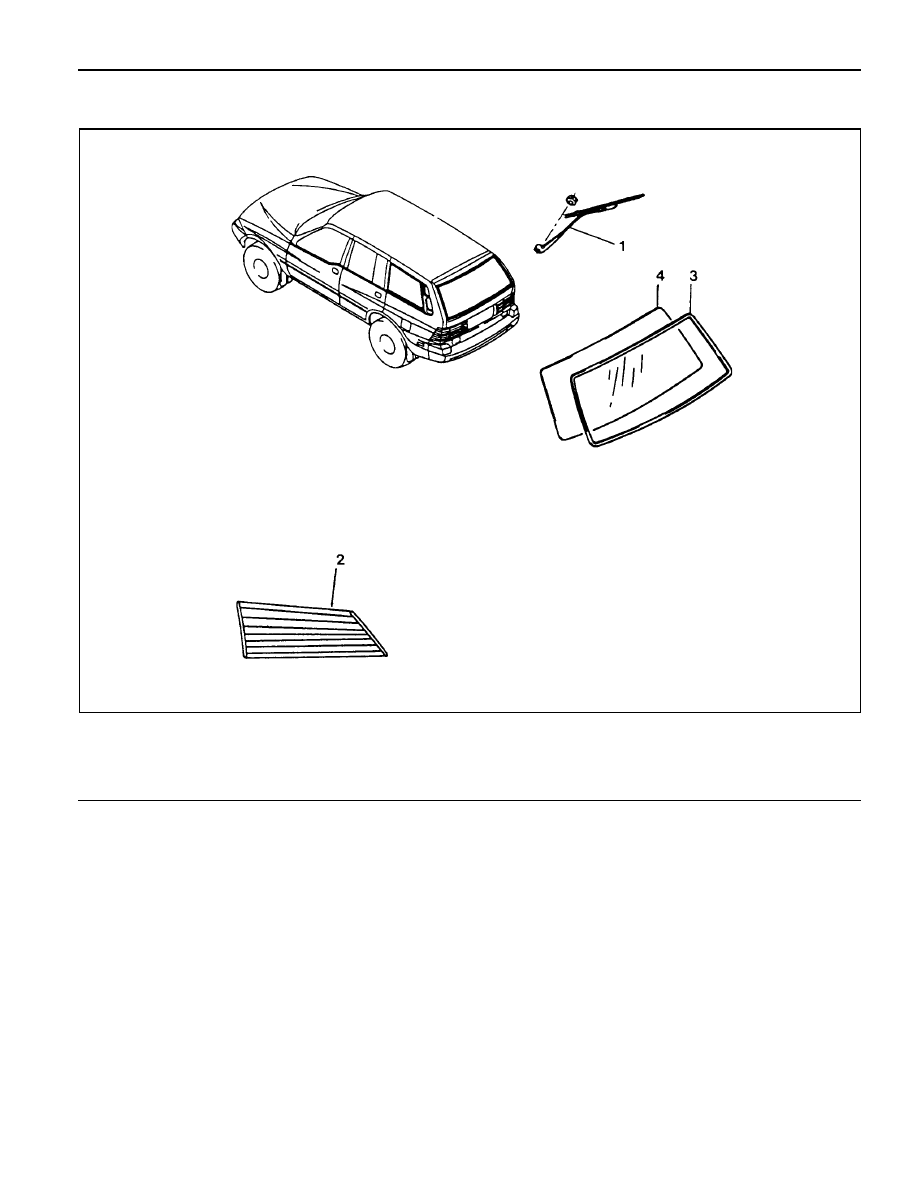

TAILGATE GLASS

1 Wiper Arm and Blade Assembly
2 Heating Lines

3 Tailgate Trim
4 Tailgate Glass

Notice

Removal and installation is as shown in upper drawings.
