9L-2  GLASS AND MIRRORS

OUTSIDE MIRROR

SCHEMATIC  AND ROUTING DIAGRAMS

GLASS AND MIRRORS  9L-3

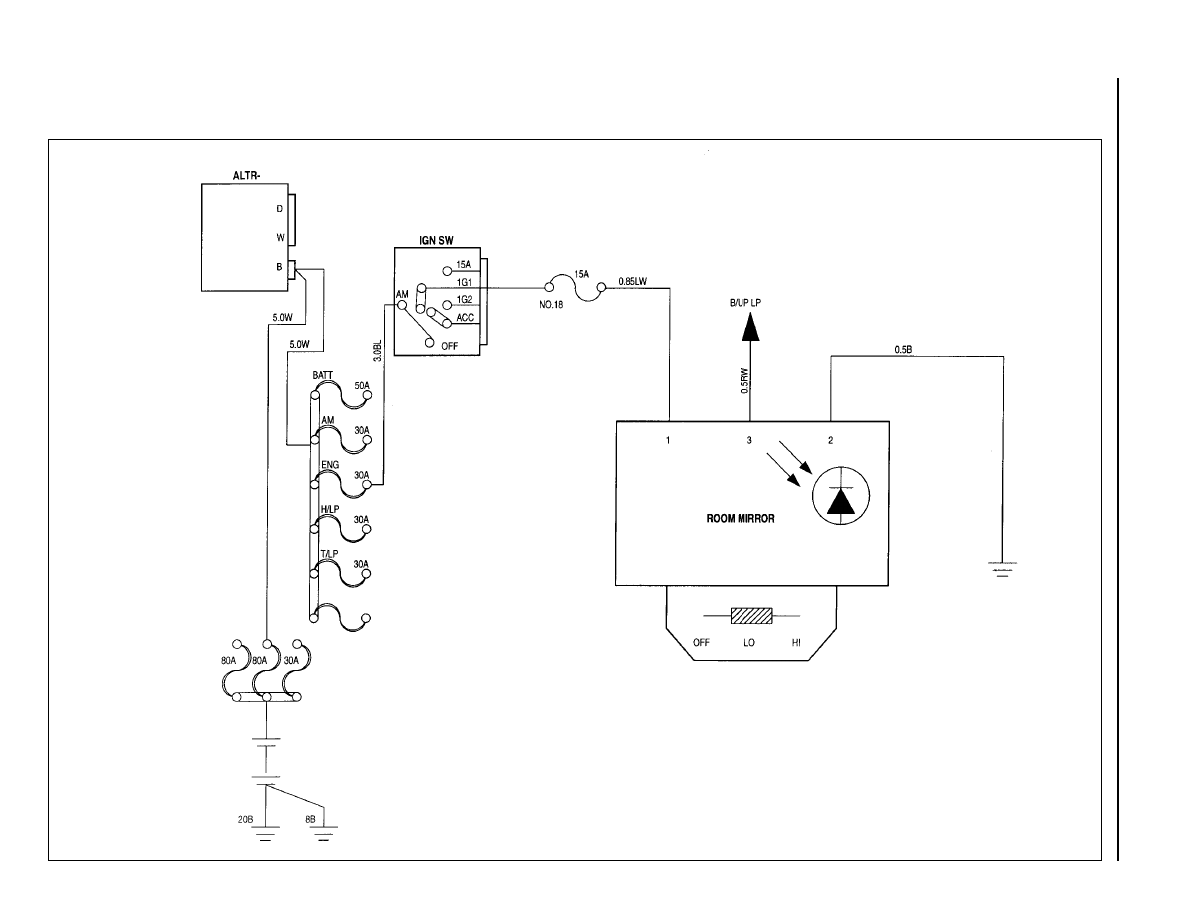

AUTO DIMMING ROOM MIRROR

9L-4  GLASS AND MIRRORS

MAINTENANCE  AND REPAIR

ON-VEHICLE SERVICE

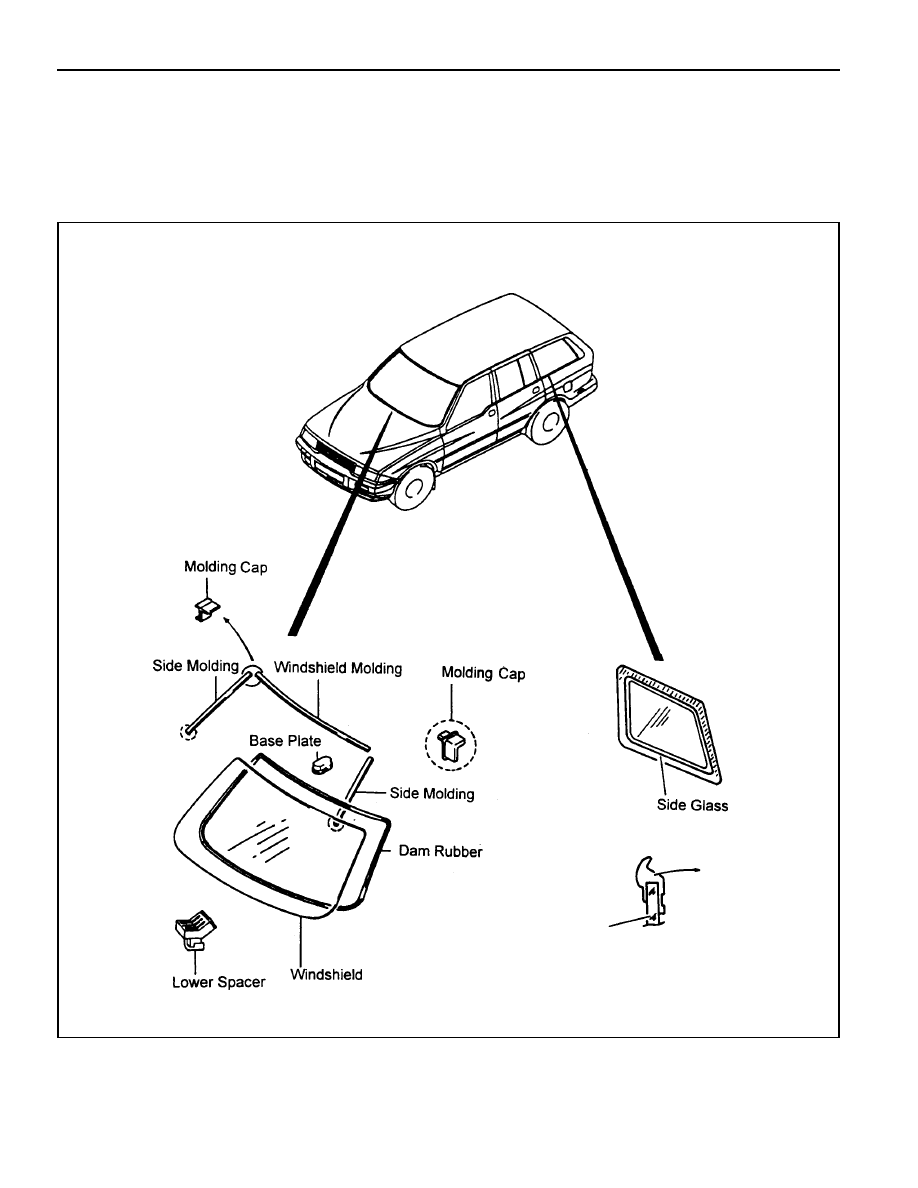

FRONT & SIDE GLASS

GLASS AND MIRRORS  9L-5

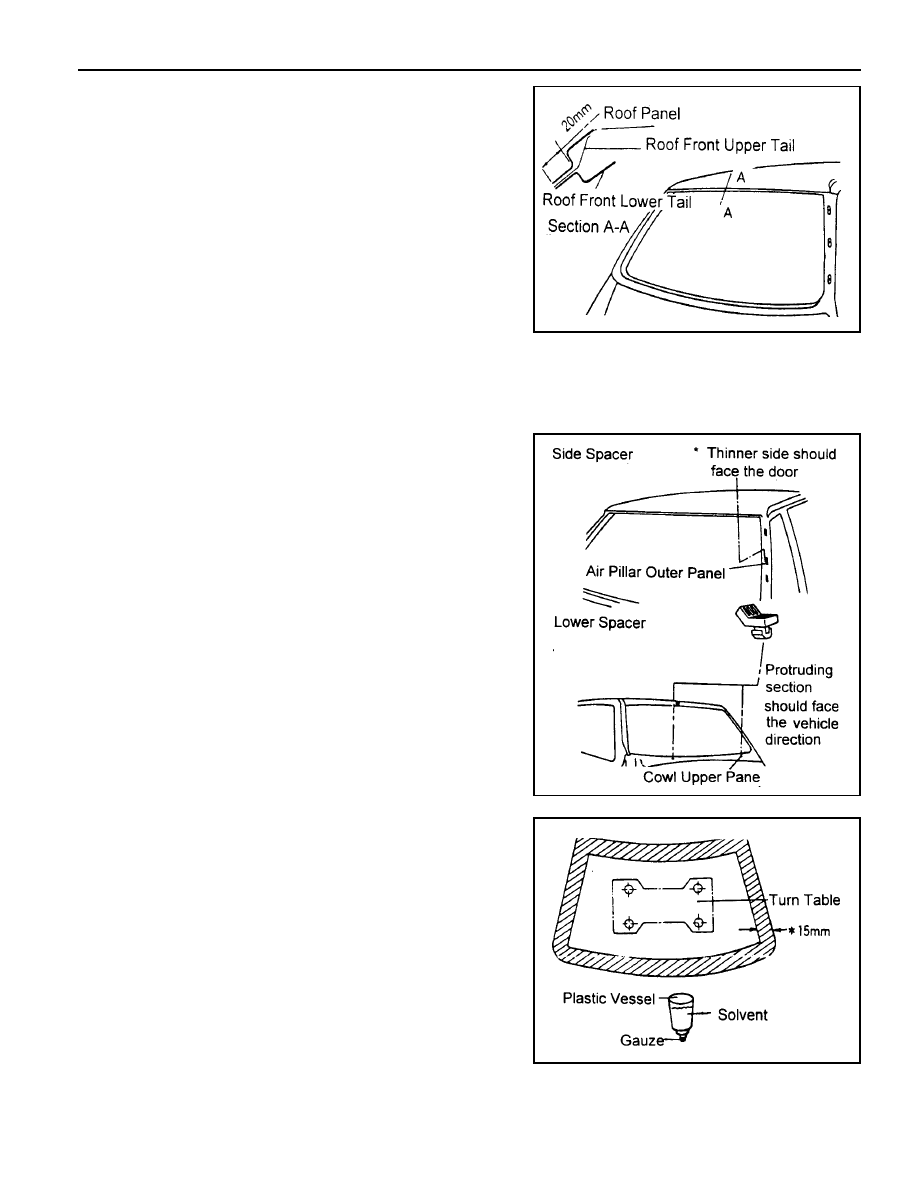

Installation of Windshield

1. Cleaning of windshield mounting flange.

!

Do not reuse a gauze over 20 times.

!

Saturate the gauze in solvent (lsoprophyl alcohol).

!

Keep the cleaned surface to be cleaned.

!

Apply body primer to the cleaned and dry body flange.

!

If body flange is oiled or contaminated, primer can not
be applied.

!

Duration : 3 minutes - 8 hours (reapply after 8 hours).

!

If primer is applied to the body, clean off immediately
with solvent (ethyl alcohol and ethyl acetate, 50 : 50 in
volume).

!

Do not apply primers which is over its duration.

!

Be careful not to contaminate other parts.

2. Installation of windshield spacer.

!

Insert the spacer completely.

!

After inserting, there should be no clearance on the body.

- To the direction of the side spacer.

- To the direction of the lower spacer.

3. Cleaning of windshield glass.

!

Clean the windshield glass keeping 15mm from the edge
of glass.

!

Do not reuse a gauze over 20 times.

!

Saturate the gauze in solvent (lsoprophyl alcohol).

!

Do not touch the cleaned glass surface.

!

Apply glass primer to the cleaned and dry glass.

!

If glass is oiled or contaminated, primer can not be
applied.
