Scania EMS Instrumentation 1 920 778 - part 2





Remote Control Box (RCB)
The Remote Control Box is connected to switch C57 on the Main
Supply Box (MSB). RCB can be used to lock the engine so that it
cannot be operated from any position except where the RCB is located.
Note: This can only be done when the boat is moored,
i.e. when there is no risk that the boat will drift out of
control. There is a sign on the RCB with this warning
text.
-
There are two positions for key switch S26: Local and Remote.
- Local: The engine cannot be operated from any location other
than from the RCB box.
- Remote: Normal position, the engine can be operated from the
other throttle control positions.
-
When the Local position is activated, the green lamp 2 is
illuminated. At the same time the Active Panel lamps on the Scania
Control Panel (Slave and Master) start to flash, which indicates that
neither of these panels can be activated.
-
When the engine is started from the RCB using S27 it only runs on
idle as long as the Local position is activated and no other throttle
control can be used.
-
If the key switch is reset from Local to Remote when the engine is
running, the green lamp 2 will go out and the engine will continue to
run on idle, but it will then be possible to operate the throttle control
from other control positions if the Slave or Master panel is active.
-
If key switch S26 is reset from Remote to Local while the engine is
running, nothing will happen, except that this will be regarded as an
unintentional action.
-
If CAN communication fails when the engine has been started from
the RCB, the engine will stop but the Limp Home function will not
be engaged.
1920778
17
- In order to start the engine again, "jumpering" is required as
follows:
- Connect pin 50 on the starter relay to the positive pin on the
starter motor. The engine starts but it is only possible to control
the throttle using the Limp Home potentiometer
- In order to stop the engine you must switch off the power to EMS
S6 by turning the starter key to 0 or via switch C122 in the MSB.
1
S27
S26
S28
1

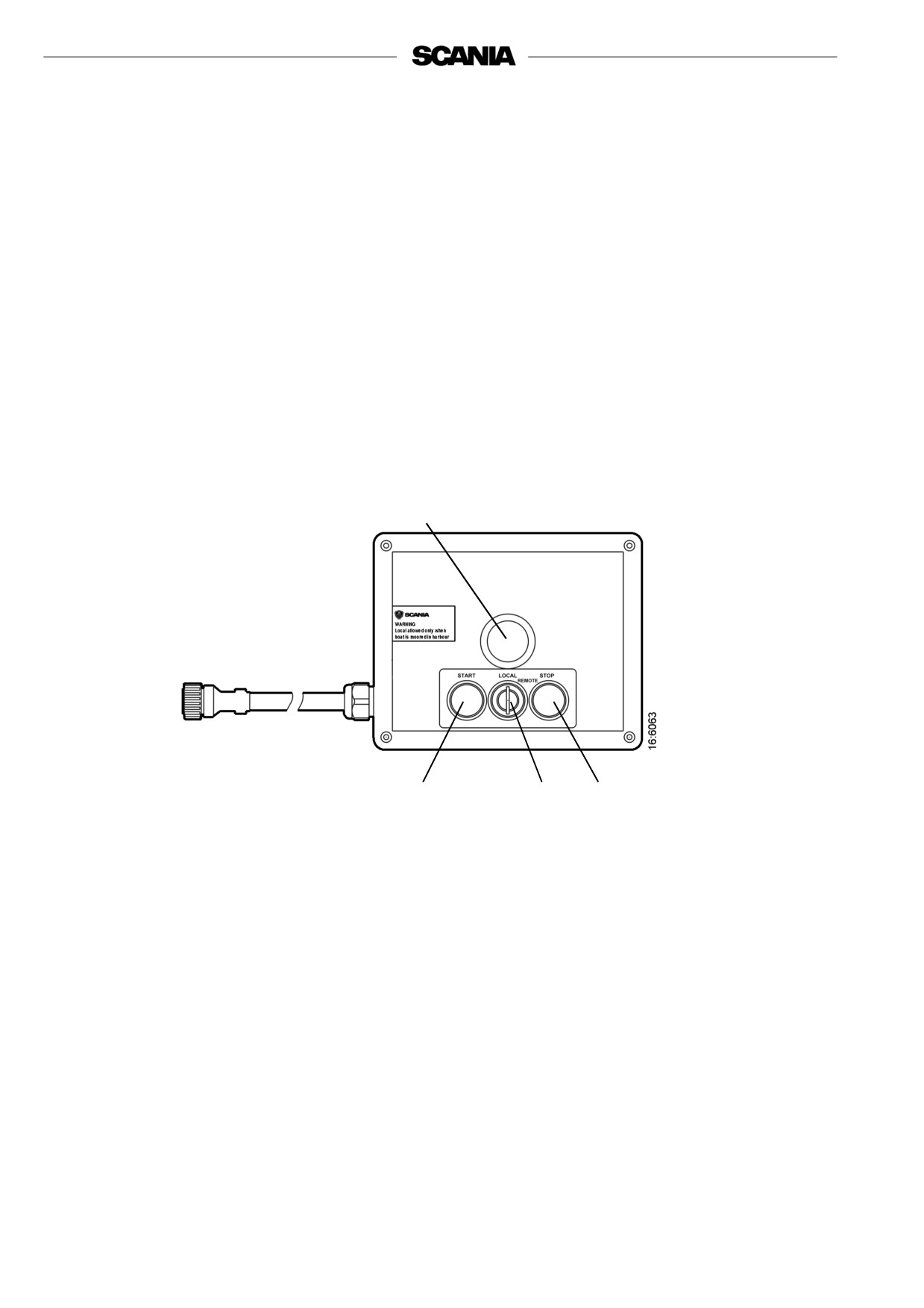

Green indicator lamp
S26 Rotary switch for activating the Local function
S27 Start button
S28 Stop button
Scania Remote Control Box (RCB)
18
Scania EMS Display (SED)
General
Scania EMS Display is a graphic display which represents engine data,
diagnostics, and allows certain parameters in the engine management
system EMS to be set. Scania EMS Display can only be used together
with EMS and the new electrical system adapted for marine use.
Communication to and from the display is carried out via CAN bus,
protocol J1939.
Function
The information content can be found in different screens according to
a tree structure. At the top level there are six different screens, three
Favourites, Information, Diagnostics and Settings.
The buttons are configured to function differently depending on which
screen is currently active. To scroll between different screens at the top
level, use buttons 1 and 5 depending on whether you want to move
forwards or backwards in the structure.
When one of the Favourite screens is active, the information about
each button’s function is hidden. The reason for this is to make as large
an area as possible available for presentation. As soon as a button is
depressed, the description for the button is displayed for approx 5 s.
Each window (except for Favourites) has a number in the upper left
corner. The numbers indicate the current screen and level.

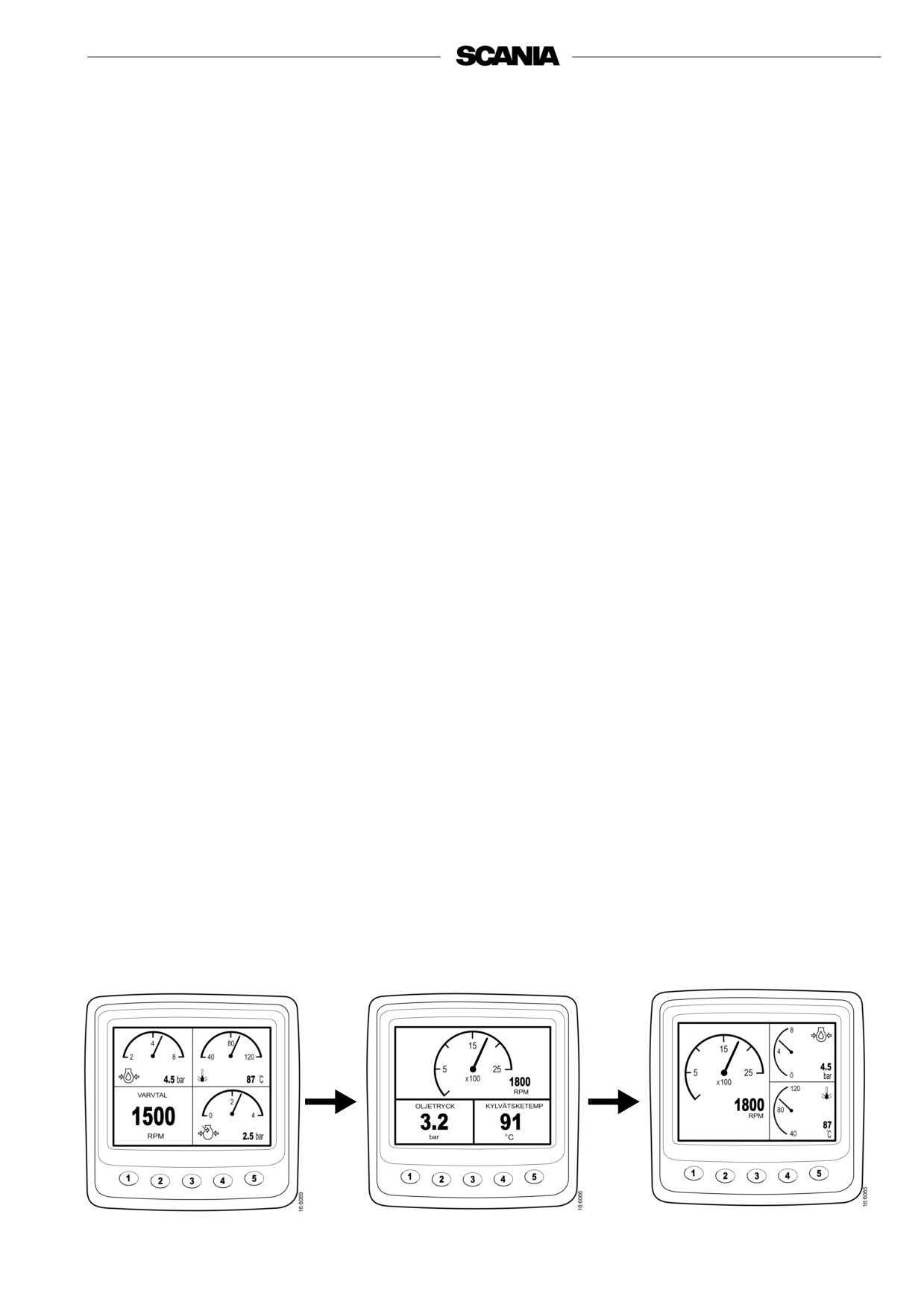

Favourites screen
The Favourites screen is used to display engine data during operation,
more or less equivalent to a Scania analogue instrument panel. The
Favourites screen can have three different appearances, all on the
highest level.
1920778
19

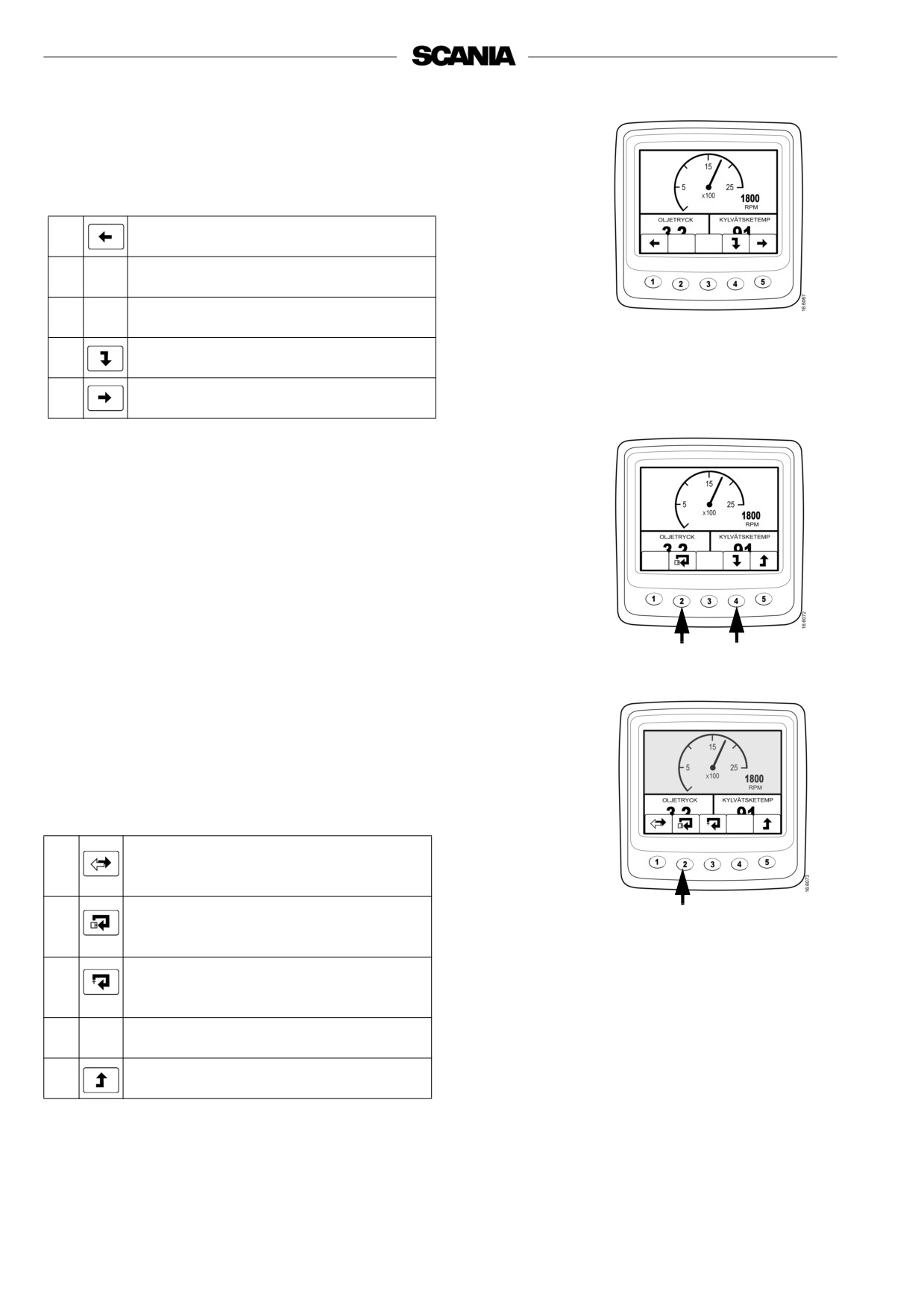

If you want to change from one Favourite to another Favourite, press
button 1 or 5 depending on which is currently displayed.
In this diagram, the buttons have the following functions:
1
Scroll to the left at the top level
2
3
4
Go down one level in the structure
5
Scroll to the right at the top level
Change the appearance of a Favourite by pressing button 4.
The button diagram shown on the right, will then be displayed.
By pressing button 2 the appearance of the screen changes according to
the sequence on page 19.
When an appearance has been selected, it is possible to change the
contents of the selected window.
Press button 4 to display the button bar as shown in the table below.
- In order to select the contents of a window area, it must be active.
- Activate the window area by pressing button 2. The window will
then be greyed out.
1
Changing between digital and
analogue signals
2
Changing between greyed active
partial screen
3
Changing of signal in greyed active
partial screen
4
5
Go up one level in the structure
20

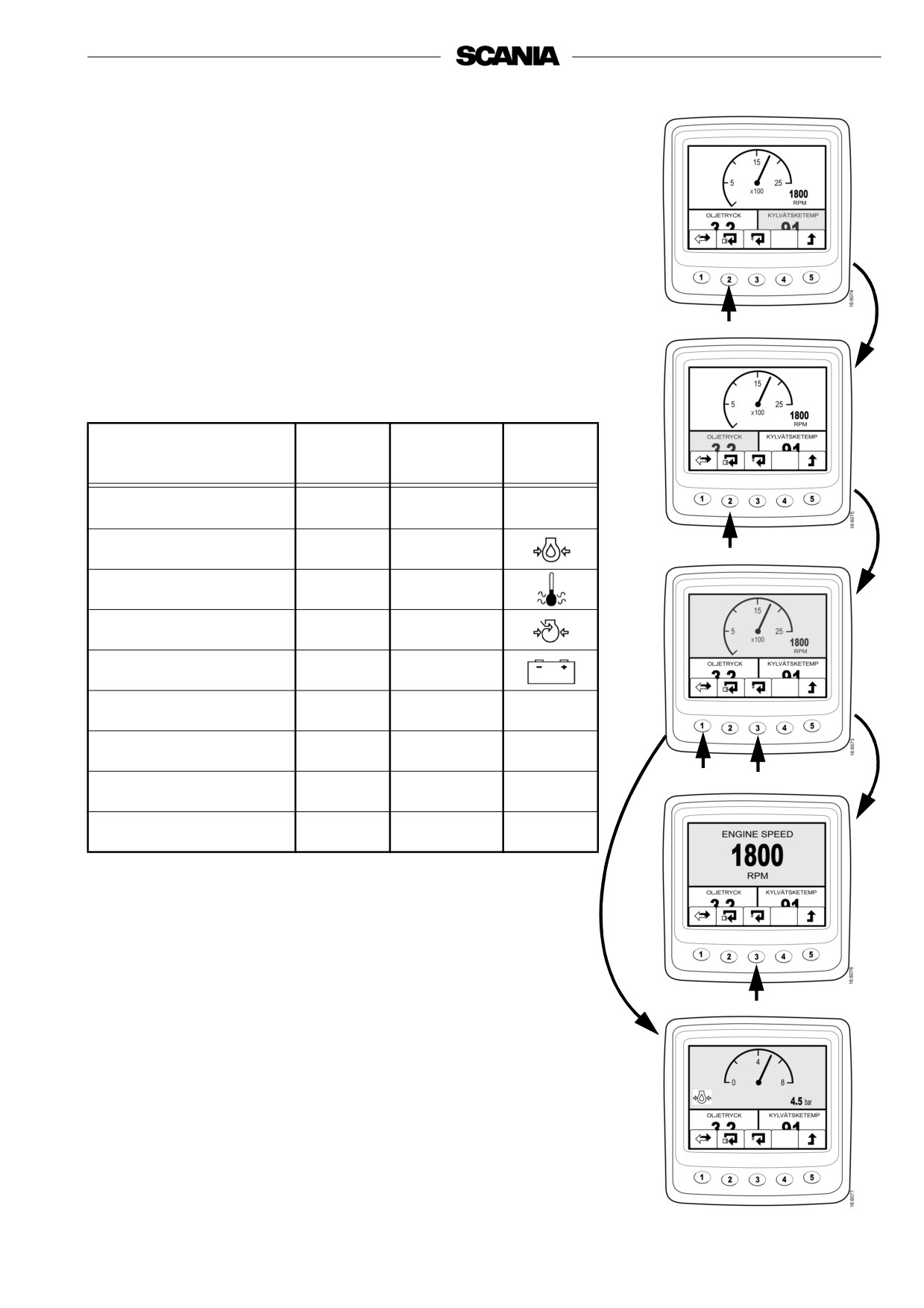

- Change the active window area by pressing button 2.
- The contents of the window area are changed with button 3 and 1
according to the following table:
The information in the different window areas can be displayed in
digital or analogue format. Some signals can only be displayed in one
format, see the table.
- Press button 1 to change between analogue and digital display (1).
- Press button 3 to change the contents of the active window area (2).
Digital
Analogue
Signal
Symbol
display
display
Engine speed
Yes
Yes
RPM
Oil pressure
Yes
Yes
Coolant temperature
Yes
Yes
Charge air pressure
Yes
Yes
System voltage
Yes
Yes
Fuel consumption
Yes
No
Load at current speed
Yes
No
1
1
2
Operating time
Yes
No
Throttle
Yes
No
2
1920778
21

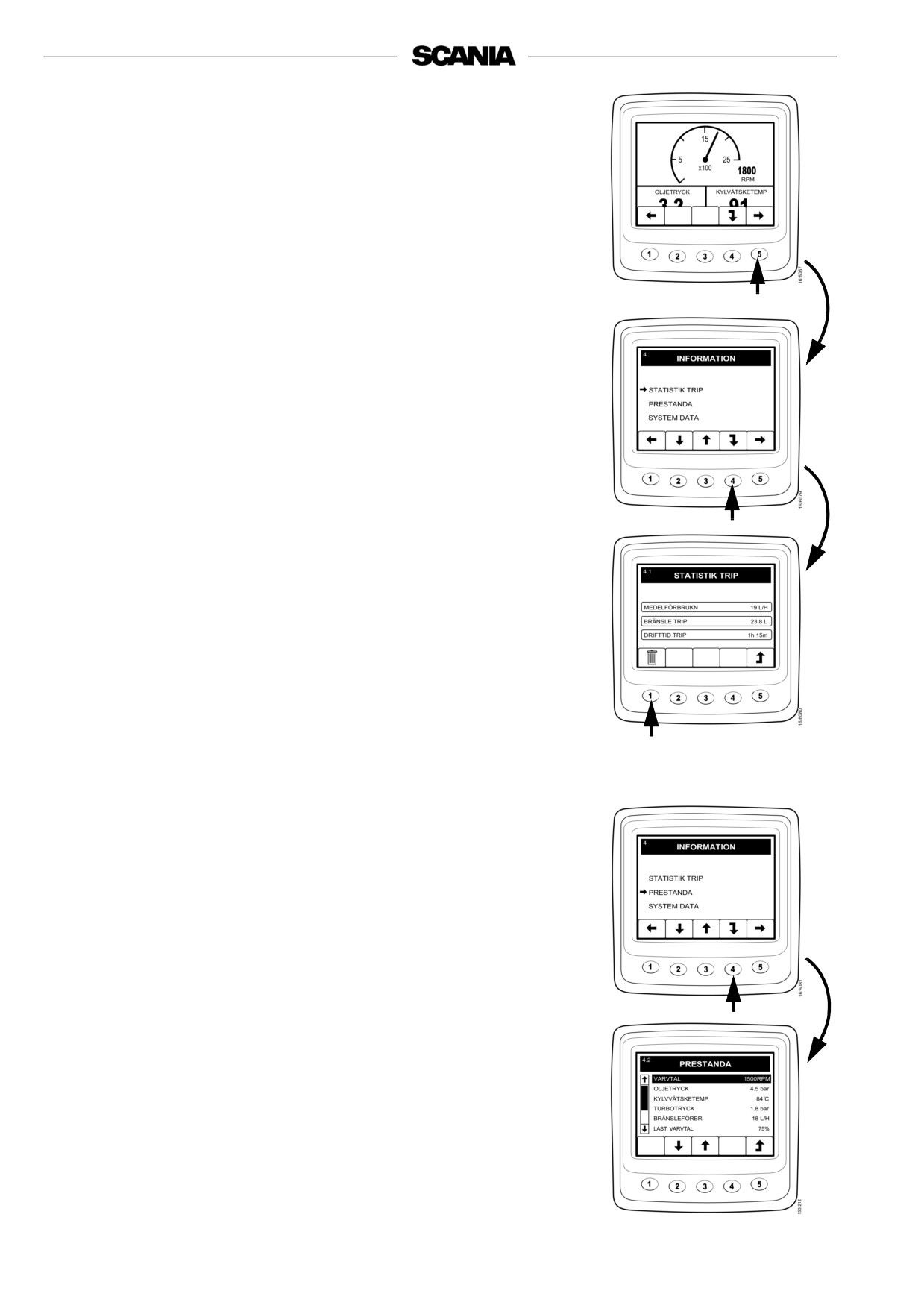

Information (4)
Carry out the following in order to go to this screen from the basic
screen (Favourite):
- Press any button to display the button bar.
- Press button 5 one to three times (depending on which Favourite is
active) to go to screen 4 INFORMATION.
- The button bar will now stay on the screen.
x1-3
- Buttons 2 and 3 are used to move up or down in this screen view.
- Press button 4 to go down one step in the structure to TRIP
STATISTICS (4.1).
- Here is some information according to the diagram.
- Press button 1 (Reset) in order to zero the reading.
- In order to go back to screen 4, press button 5.
- The maximum time a reading is registered is 999 h, then it will
automatically be Reset.
- Go down one step with button 2 to PERFORMANCE.
- Press button 4 to go down one step in the structure to
4.2 PERFORMANCE.
- The information displayed here is the current performance at that
time, i.e. the displayed values are real-time values. Corresponding
values can also be read in the Favourite window, but this is a
quicker way to get a summary of the performance-related
parameters.
22

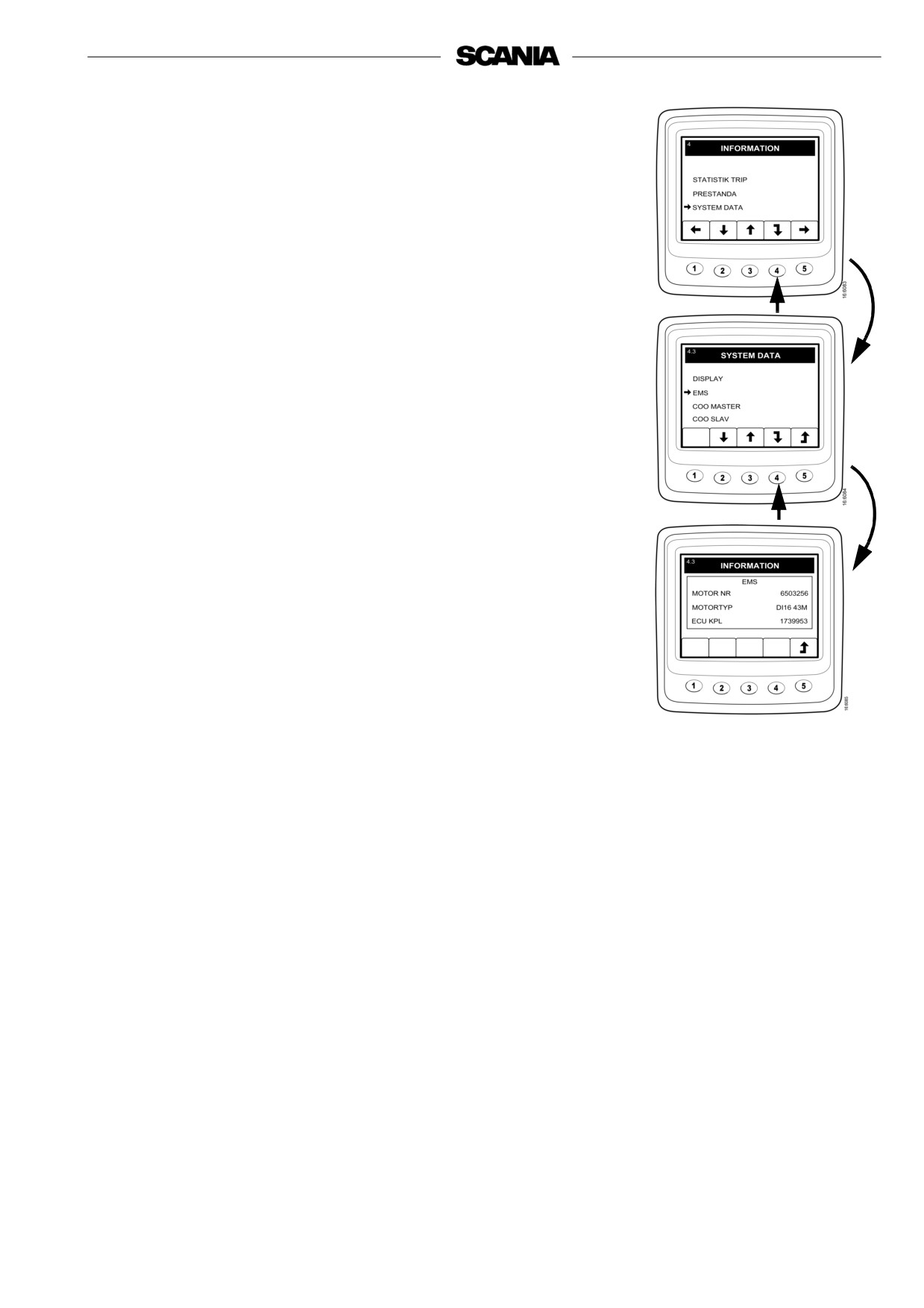

- In order to go back to screen 4, press button 5
- Go down one step with button 2 to SYSTEM DATA.
- Press button 4 to go down one step in the structure to
4.3 SYSTEM DATA.
- Here it is possible to select information about the four different
system control units.
- If you select EMS and press 4, information about the engine, engine
number and engine type and the EMS control unit part number will
be displayed.
- If you select DISPLAY, the following information about Scania
EMS Display is displayed:
- Part number (complete)
- Hardware number
- Software number
- Version number
- The corresponding information is retrieved for the coordinators if
the COO MASTER or COO SLAVE is selected.
1920778
23

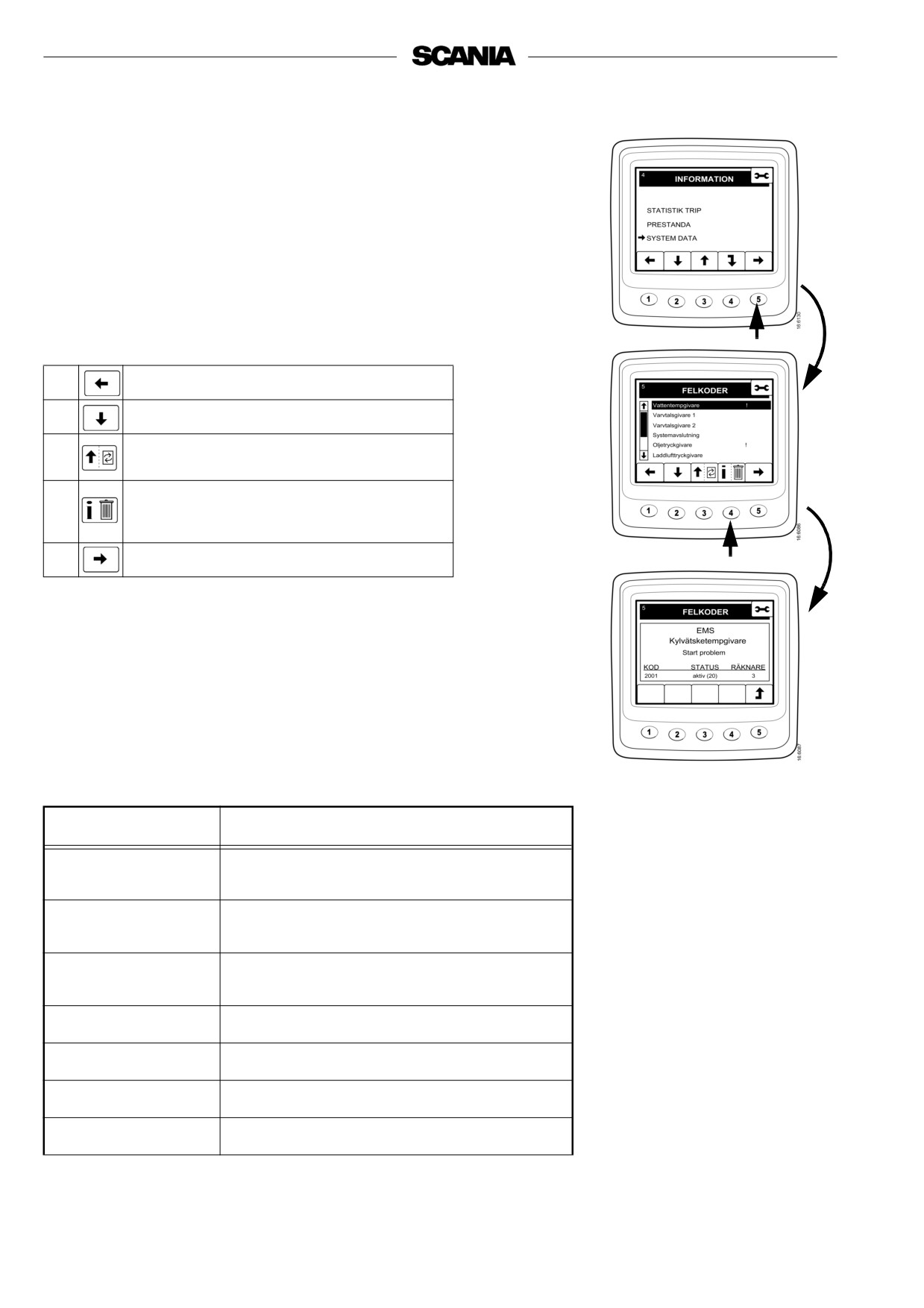

Fault codes (5)
- Return to screen 4 INFORMATION by pressing twice on 5. If you
press button 5 again, screen 5 FAULT CODES is displayed.
- The upper symbol to the right indicates that at least one
fault code is active.
- The button bar has a different appearance and it will be displayed
the whole time. Refer to the table below.
1
Scroll to the left at the top level
2
Go down to the next line in the list
3
Short press: Up to the next line in the list
Long press (3 s): Update the list
4
Short press: Information about the
highlighted fault code
Long press (3 s): Clear fault codes
5
Scroll to the right at the top level
- In the example, the Coolant temperature sensor and Oil pressure
sensor are marked by a !, which means that these are active fault
codes.
Information about the highlighted fault code
In the example, the Coolant temperature sensor is shown in black. By
giving a short press on button 4, the information screen about the fault
code is displayed.
Information type
Description
Control unit affected
The control unit where the fault originated,
e.g. EMS
Name of fault
Fault code name, e.g. Coolant temperature
sensor
System behaviour
How the system is behaving when the fault is
active, for example Problems starting
Code
The number of the selected fault code, e.g. 2001
Status
If the fault is active or passive
Hex code
Gives more information than just status, e.g. 20
Qty
How many times the fault has occurred, e.g. 3
24

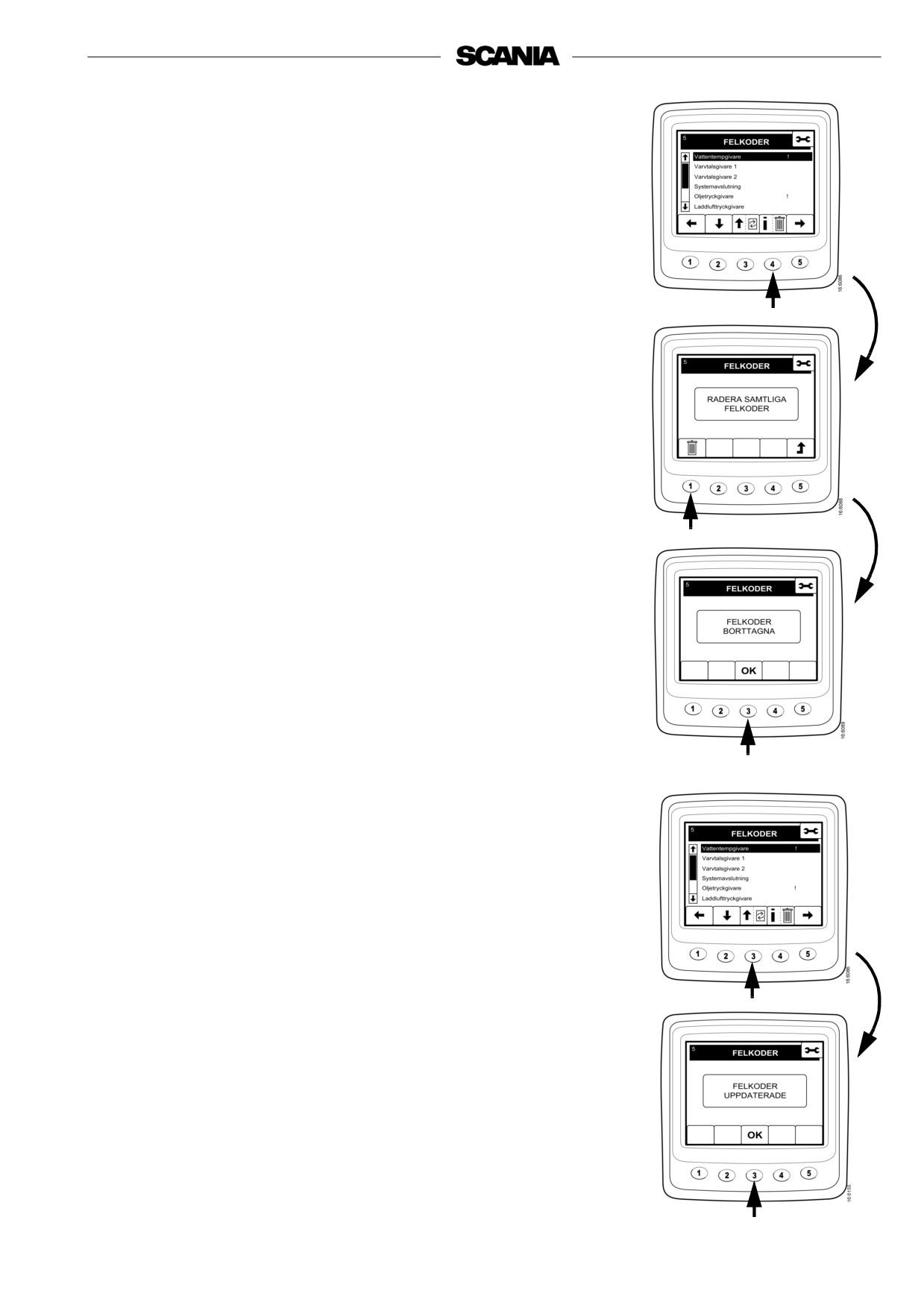

To erase fault codes
- Press button 4 for three seconds.
- A screen asking if you want to erase all fault codes is displayed.
- Press button 1 to erase all fault codes.
- Then press button 3, OK, to confirm.
3 s
Update the fault code list
- Update the fault code list by pressing button 3 for three seconds.
- Confirm by pressing button 3, OK.
3 s
1920778
25

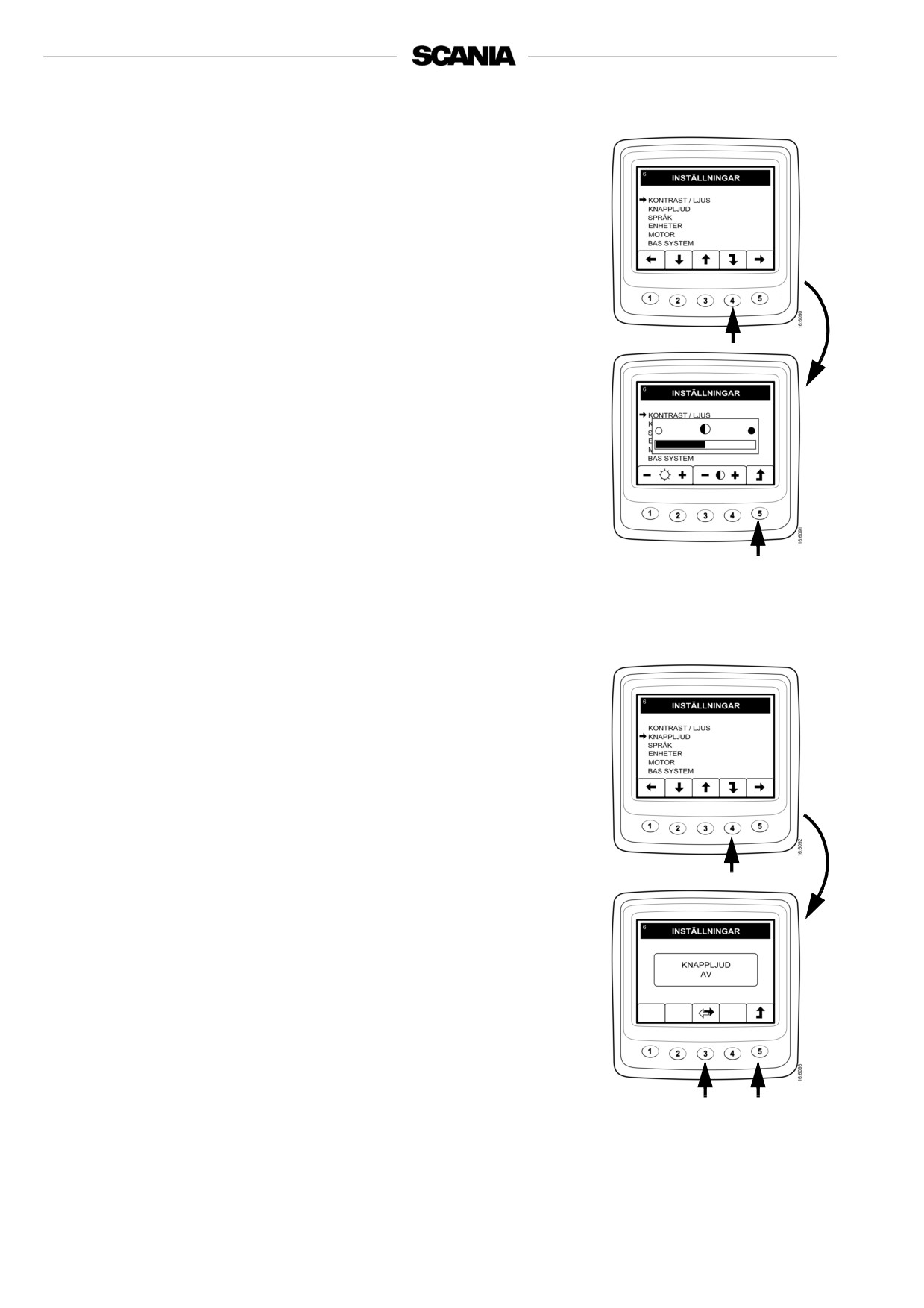

Settings (6)
- Press button 1 or 5 from the Favourites screen to go to screen
6 SETTINGS.
- In order to quickly go to the setting mode, regardless of where you
are: Press buttons 2 and 4 simultaneously.
CONTRAST/LIGHT (6.1)
- Using buttons 2 and 3 to go up or down in the list.
- Press button 4 to go to the adjustment screen for
CONTRAST/LIGHT.
- Here it is possible to adjust the light and the brightness to the
current operating conditions.
- In order to reset to the original setting, press buttons 2, 3 and 4 at the
same time for three seconds.
BUTTON BLEEP (6.2)
- Press button 2 to go to BUTTON BLEEP.
- Press button 4 to go to the adjustment screen.
- Press button 3 to change between BUTTON BLEEP OFF or
BUTTON BLEEP ON
- Press button 5 to return to the selection screen.
- The setting BUTTON BLEEP OFF does not affect the alarm signal.
26

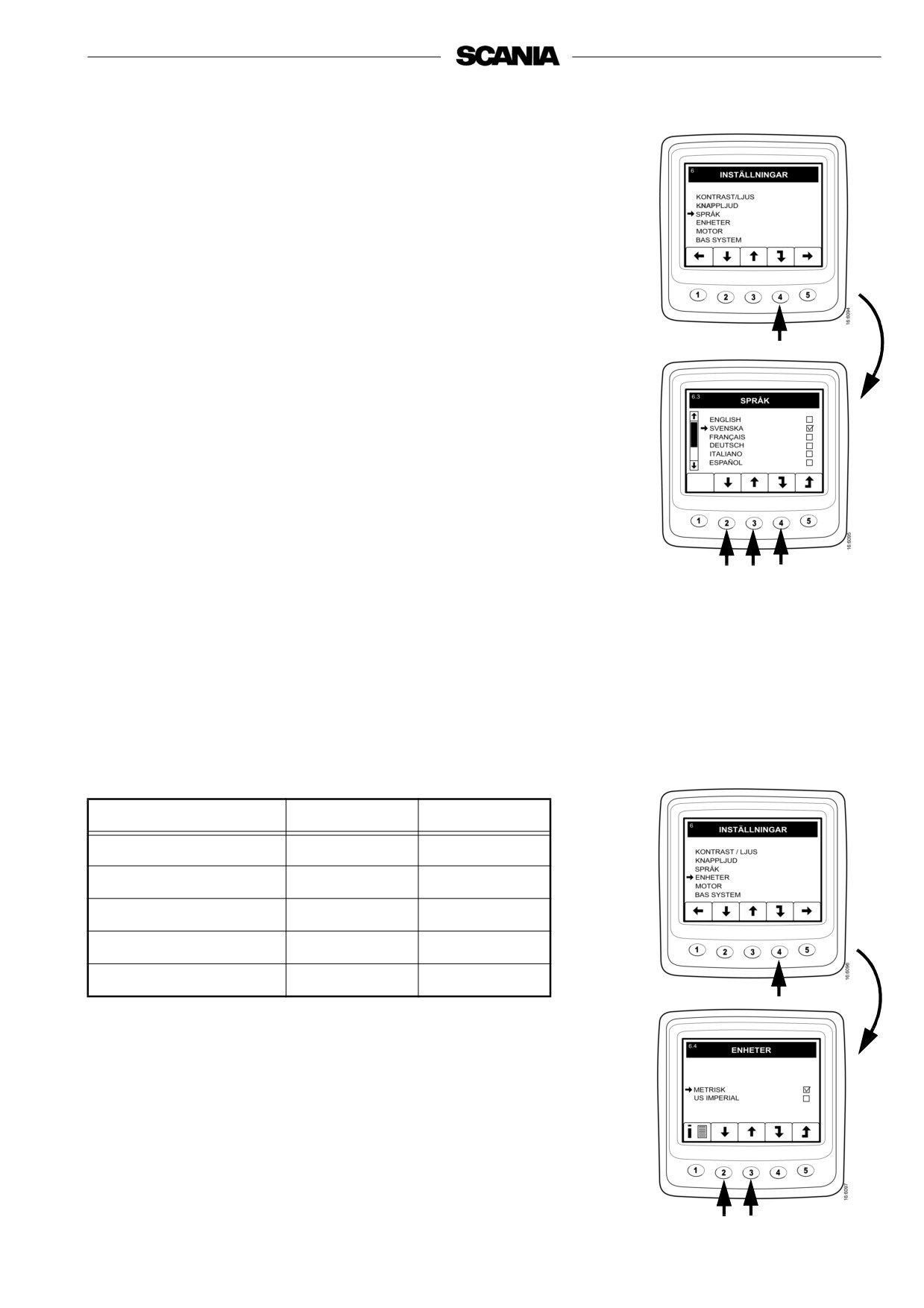

LANGUAGE (6.3)
Information on Scania EMS Display can be displayed in seven
different languages:
Swedish English German French Spanish
Italian Portuguese
The default language is English
- Press button 2 or 3 to go to LANGUAGE.
- Press button 4 to go to the selection screen.
- Press button 2 or 3 to select language.
- Press 4 to confirm the change. The box to the right about selecting
language will then be marked, which means that the change has
taken place.
- Press button 5 to return.

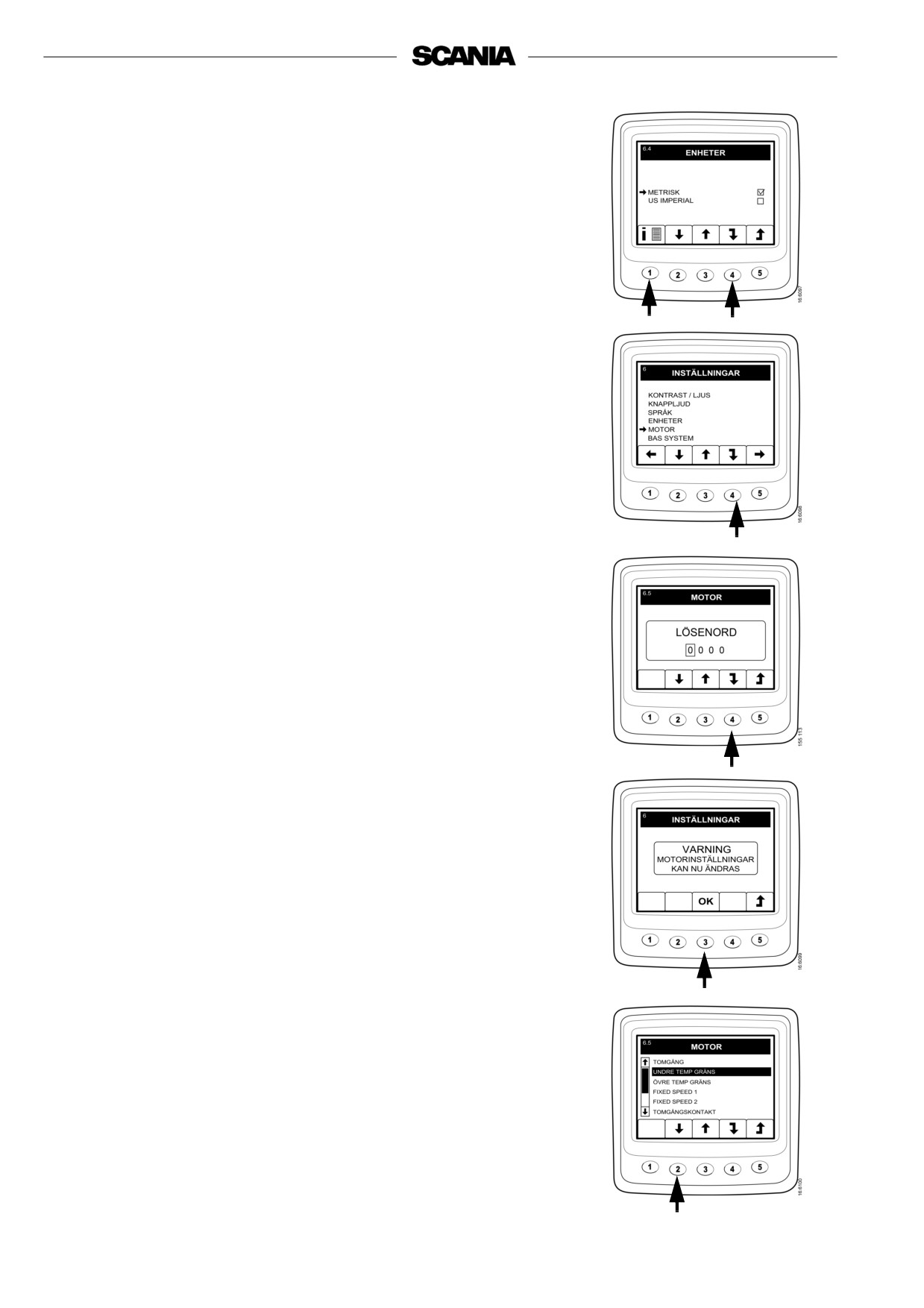

UNITS (6.4)
It is possible to select between two different sets of units for different
parameters according to the table:
METRIC
US IMPERIAL
Parameter
Metric
US Imperial
Pressure
Bar
Psi
Voltage
V
V
Engine speed
Rpm
Rpm
Temperature
°C
°F
Fuel consumption
L/h, L
Gal/h, Gal*
*) US Gallon = 3.79 l
- Press button 2 or 3 to go to UNITS.
- Press button 4 to go to the selection screen.
- Press button 2 or 3 to select the unit system.
1920778
27
- Press button 4 to confirm the change. The box to the right will then
be marked, which means that the change has taken place.
- If you press button 1, information is displayed in accordance with
the table above.
- Press button 5 to return.
ENGINE (6.5)
From this screen it is possible to change the basic settings with which
the engine was supplied.
Note: Changing basic settings may affect safety-critical
functions.
- Press button 2 or 3 to go to ENGINE.
- Press button 4 to continue.
- To prevent unintentional changes, this function is password-
protected. The password is factory-set to "2 2 2 2" but this can be
changed by the end-customer; see 6.5.9.
Enter the password and press button 4 to continue.
- A screen with a warning is displayed. Press button 3, OK, to
proceed to the parameters that can be set.
On the first screen, 6 parameters are displayed and by pressing
button 2, you can access the last two parameters.
There is a short description below about the engine settings that can be
adjusted from this screen:
IDLE SPEED (6.5.1)
The low idle speed for a warm engine can be set between
500-1,050 rpm. It is not possible to reset the idle speed value if the
coolant temperature is below 50°C. Nor can the idle speed be reset if
the engine is running at raised low idling for any reason.
28

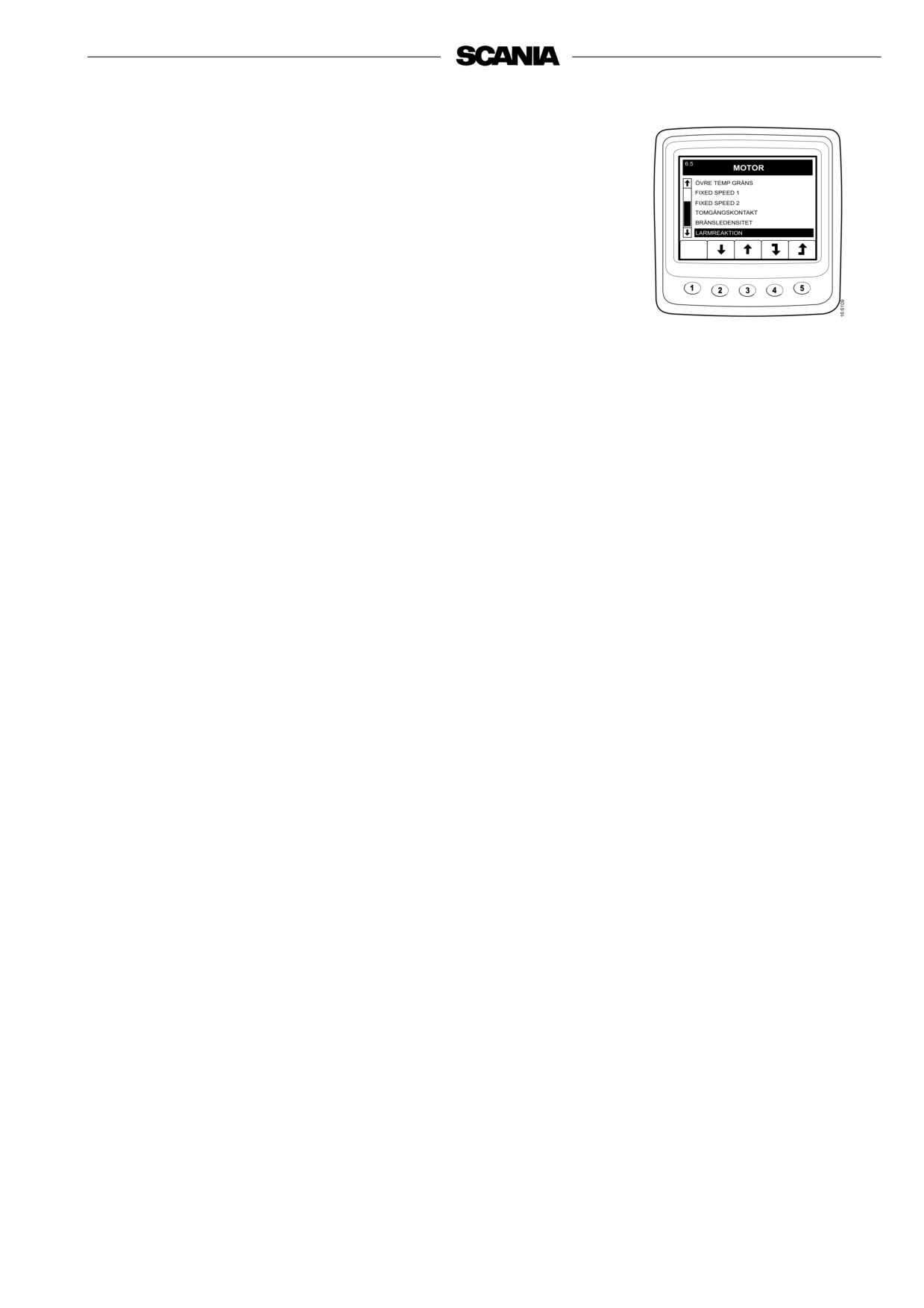

LOW TEMP LIMIT (6.5.2)
The lower temperature limit, which has a basic setting of 95°C
(203°F), is the level for the alarm and torque reduction if this has been
selected. See page 33 for an example.
It is possible to set this level to between 85°C (185°F) and 105°C
(221°F). The lower limit cannot be set above the upper temperature
limit.
HIGH TEMP LIMIT (6.5.3)
The upper temperature limit, which has a basic setting of 105°C
(221°F), also provides the option to stop the engine automatically in
addition to the alarm function.
It is possible to set this level to between 95°C (203°C) and 105°C
(221°F). The upper limit cannot be set below the lower temperature
limit.
FIXED SPEED 1 (6.5.4)
Setting of upper torque limit:
This is an isochronous idle speed which can be set and activated from
Scania Control Panel. See page 14.
On Scania EMS Display it is then possible to set an upper torque limit
for FIXED SPEED 1. This setting only applies when FIXED SPEED 1
is activated.
FIXED SPEED 2 (6.5.5)
Setting of upper torque limit:
This is an isochronous idle speed which can be set and activated from
Scania Control Panel. See page 14.
On Scania EMS Display it is then possible to set an upper torque limit
for FIXED SPEED 2. This setting only applies when FIXED SPEED 2
is activated.
IDLING SWITCH (6.5.6)
The idling switch (safety switch) is a safety function in Scania’s
electrical system which checks that the accelerator pedal is functioning
correctly.
The component is a closing switch that is activated when the throttle
position is above zero.
The function can be disengaged.
Note: A safety function is then disconnected.
FUEL DENSITY (6.5.7)
Fuel density affects the calculation of the engine power and it can be
noted here. The default is 840 kg/m3 and the setting range is
700-1,000 kg/m3.
1920778
29

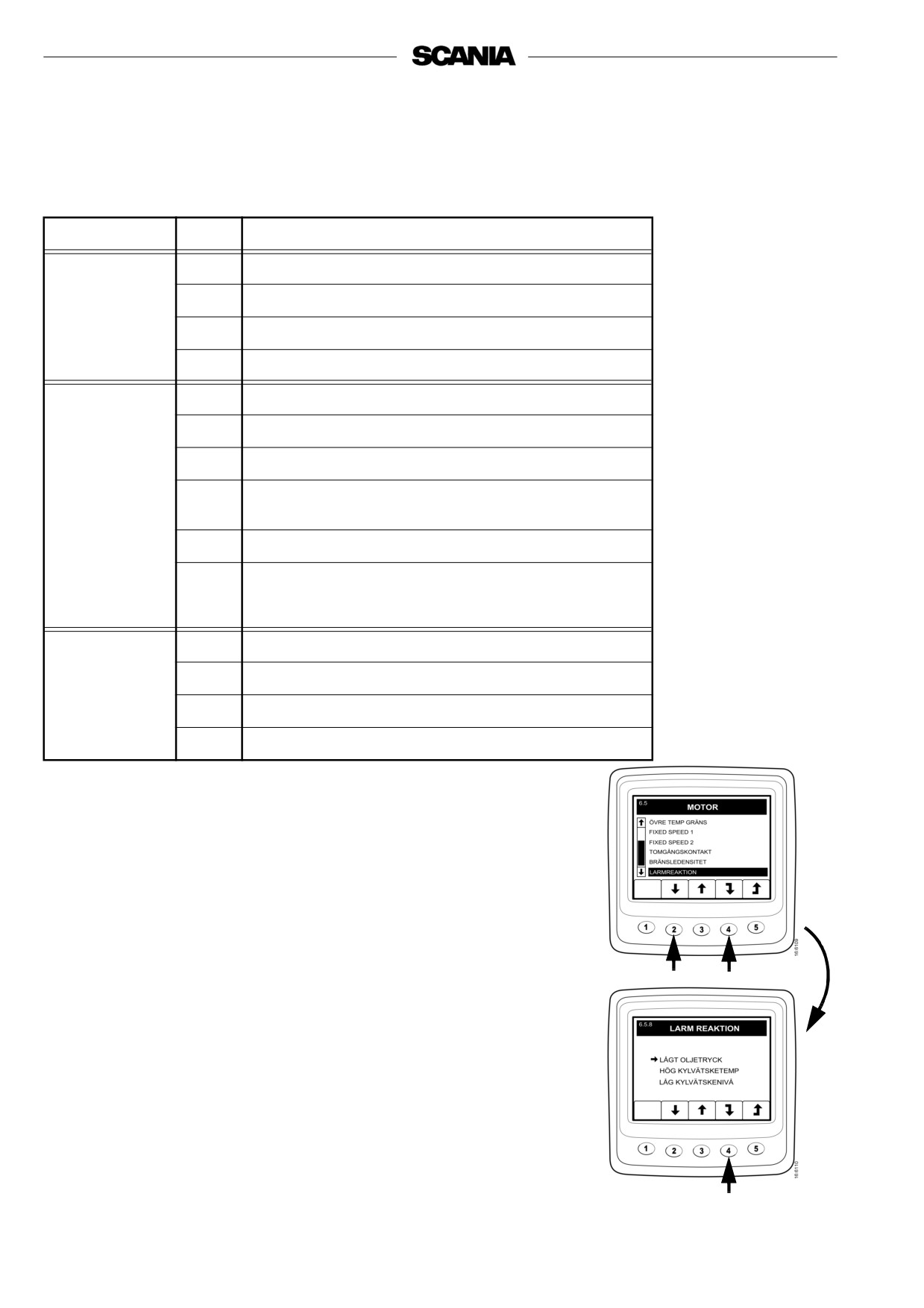

ALARM REACTION (CMOL) (6.5.8)
The engine behaviour may vary depending on how EMS is
programmed.
Signal
Line
EMS behaviour
1
Alarm only if there is a fault
2
Alarm and torque reduction
Low oil
pressure
3
Alarm and engine shutdown
4
Engine shutdown and override
1
Alarm only if there is a fault
2
Torque reduction
3
Engine shutdown
High coolant
4
Torque reduction at the lower temperature limit,
temperature
Engine shutdown at the upper temperature limit
5
Engine shutdown and override
6
Torque reduction at the lower temperature limit,
Engine shutdown at the upper temperature limit and
override
1
Alarm only if there is a fault
2
Alarm and torque reduction
Low coolant
level
3
Alarm and engine shutdown
4
Engine shutdown and override
- Press button 2 to go to ALARM REACTION.
- Press button 4 to go down one level.
- Select signal type using button 2 or 3 and go down to the EMS
function using button 4.
+
30

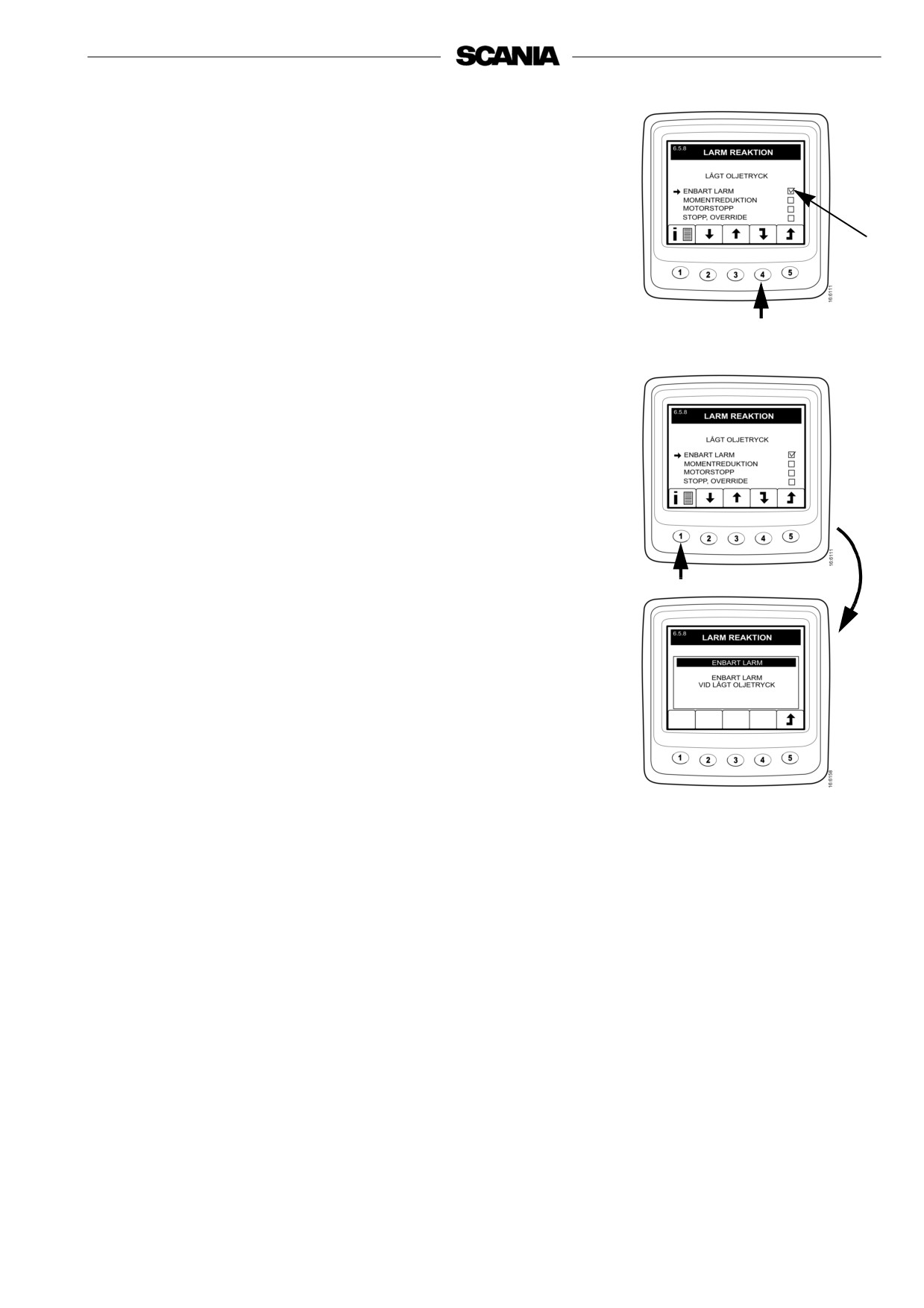

- Select the EMS function using button 2 or 3. On the screen
displayed: ALARM ONLY.
- Press 4 to confirm the selection. The box to the right will then be
marked, which means that the change has taken place.
- Press button 1 to get a more detailed description of the selected
EMS function.
- Press button 5 to return.
1920778
31

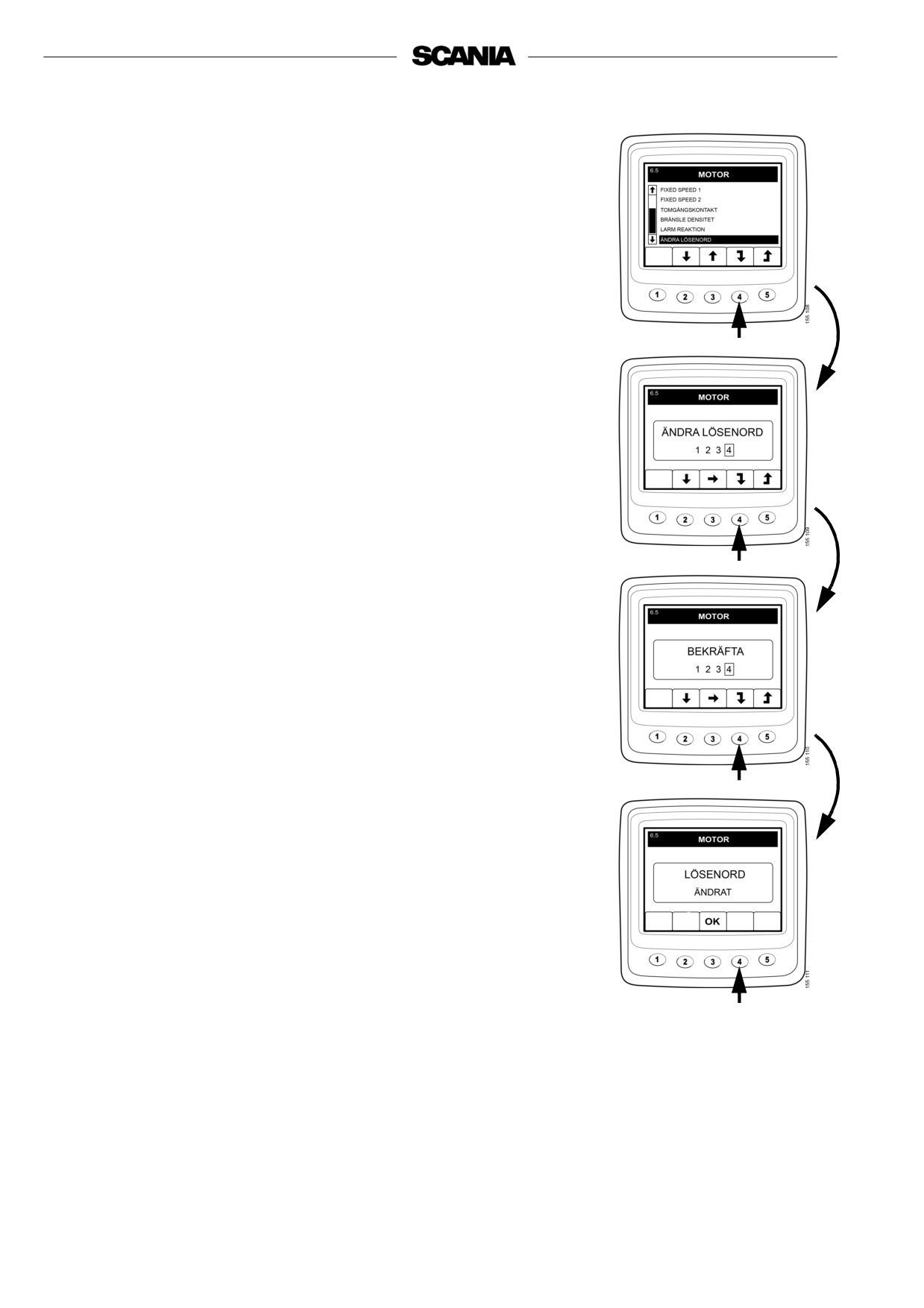

CHANGE PASSWORD (6.5.9)
A new password can be set, the valid values are 0001 - 9999.
- Press button 4 to change the password.
- Enter the desired password and press button 4.
- Press button 4 to confirm the password.
- Press button 4 to return.
Note: If you have forgotten the password, contact your
nearest Scania representative.
32















Content      ..      1      2      3      ..
