Lubrication system
Cleaning the centrifugal oil
cleaner
WARNING!
The oil may be hot. Carefully remove the cover
from the centrifugal oil cleaner.
Use eye protection and protective gloves when
working on the centrifugal oil cleaner.
When the centrifugal oil cleaner is cleaned, there
should be some dirt deposits on the paper in the
rotor cover. If the paper is clean, the equipment
is not working as it should. If this is the case, in-
vestigate the cause of this.
Renew the paper more frequently if the dirt de-
posits are thicker than 28 mm (1.1 inches) during
a scheduled oil change.
1. Clean the cover.
2. Unscrew the nut securing the outer cover.
3. Let the oil run out from the rotor.
x 1.5

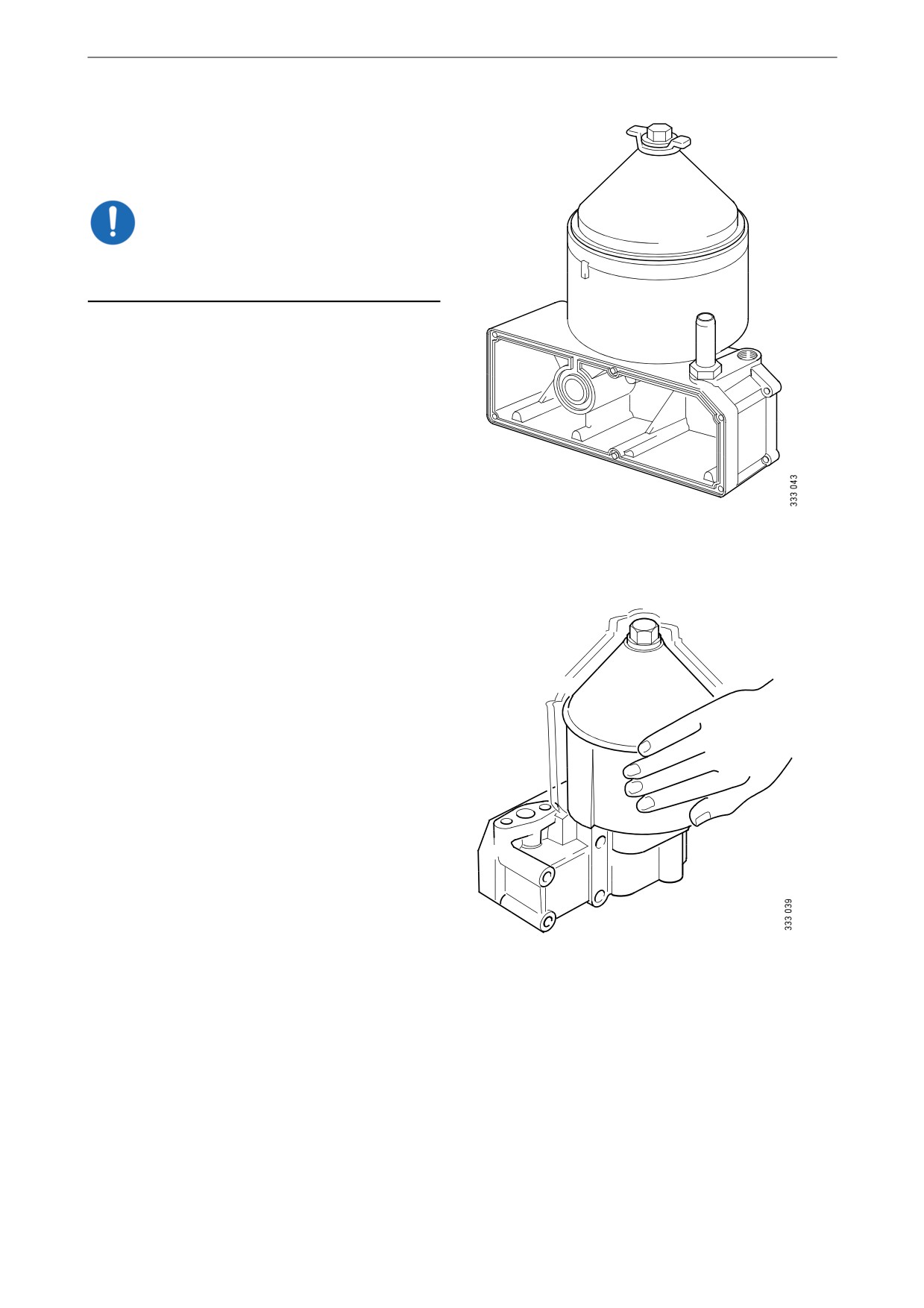

4. Lift out the rotor. Wipe off the outside.

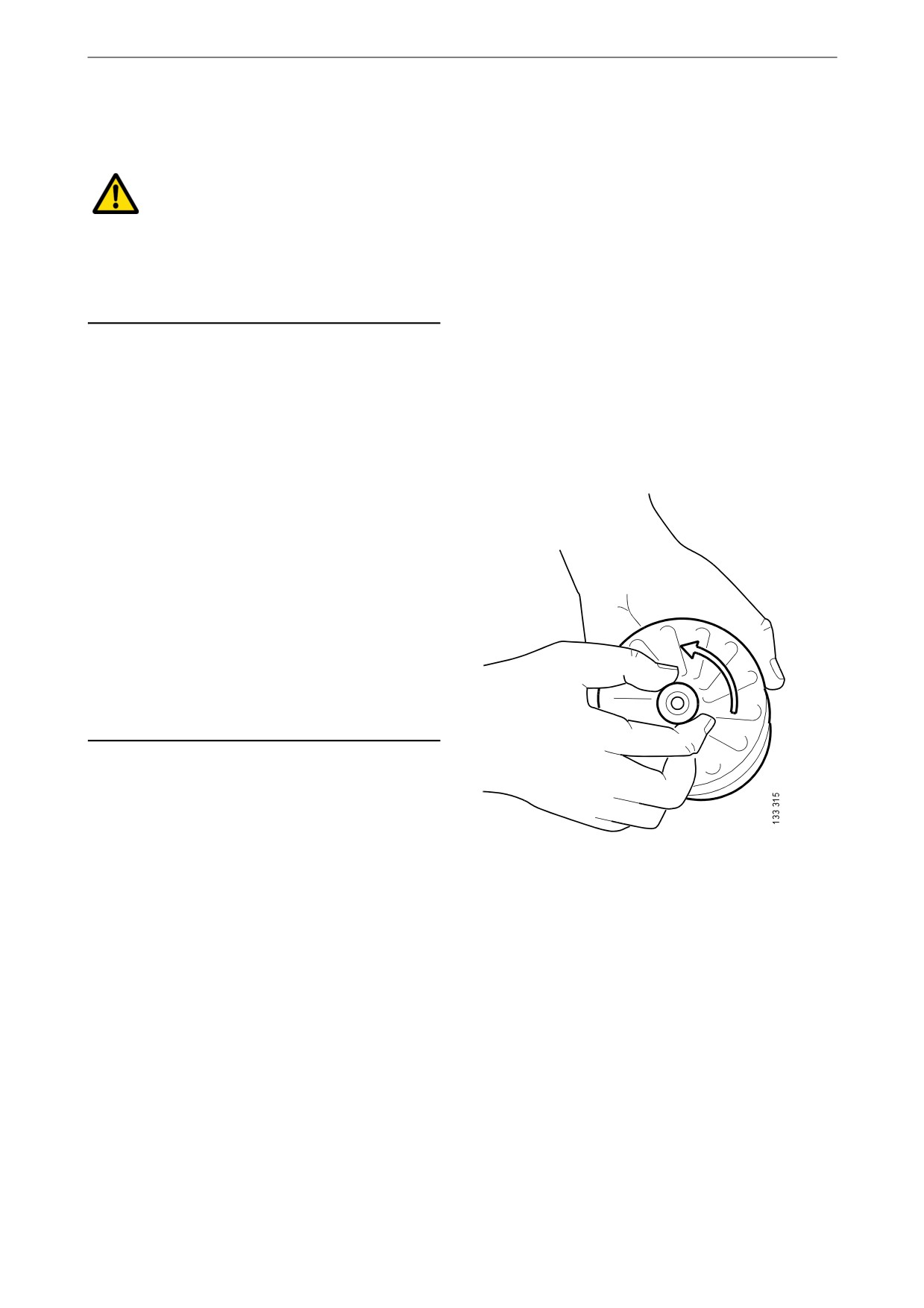

5. Loosen the rotor nut and unscrew it about
1.5 turns.
Note:
Take care not to damage the rotor shaft.
32
Lubrication system

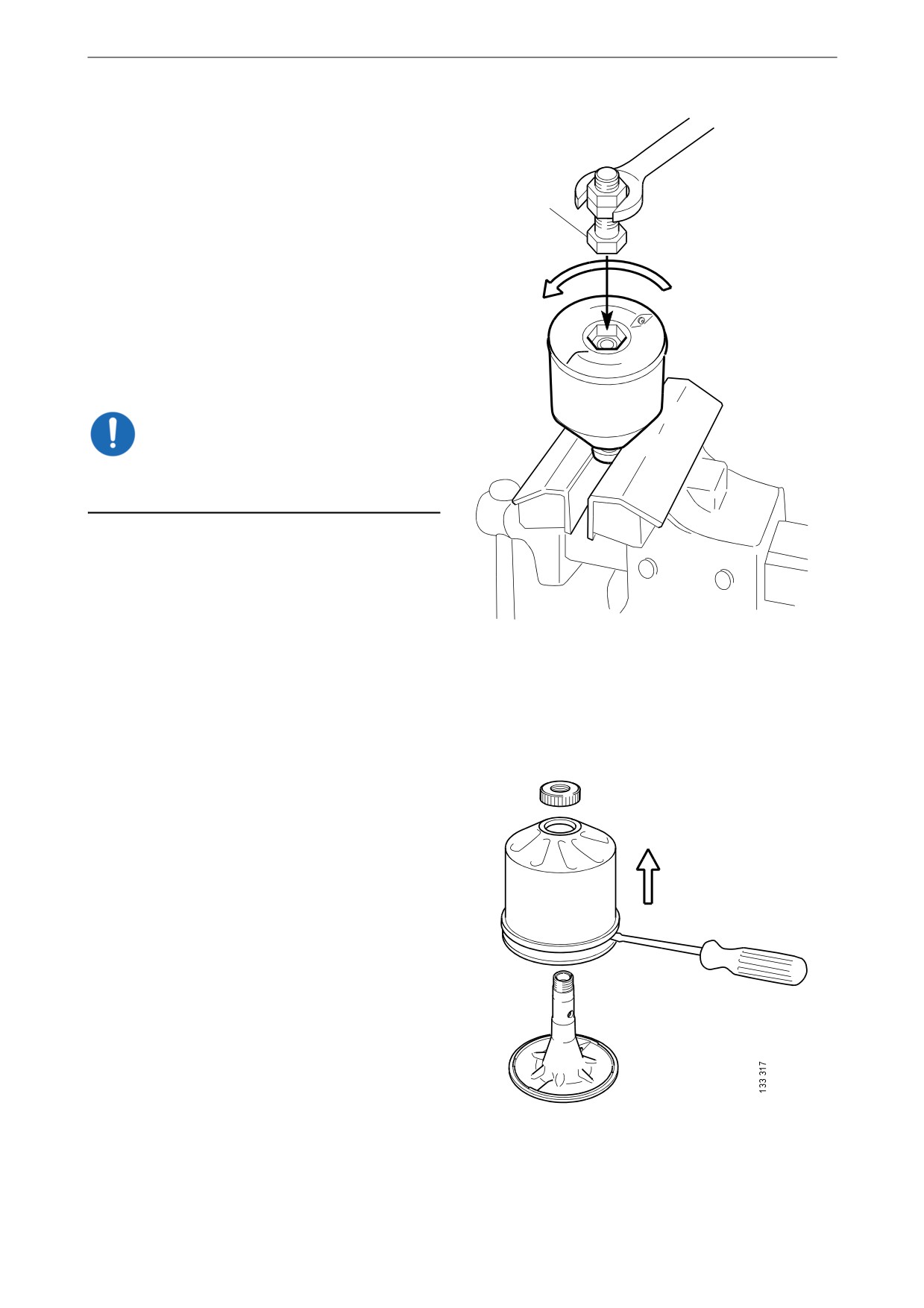

6. If the rotor nut is jammed: Turn the rotor up-
side down and fasten the rotor nut in a vice.
See illustration.
7. Use protective jaws so as not to damage the
M20
grooves of the rotor nut.
8. Turn the rotor 1.5 turns anti-clockwise by
hand.
9. If this does not work: Screw two nuts togeth-
er with an M20 screw.
10. Position the screw head at the bottom of the
x 1.5
rotor.
11. Position a ring spanner on the lower nut and
turn the rotor 1.5 turns anti-clockwise.
IMPORTANT!
Do not attach the rotor directly to the vice. Never
strike the rotor cover.
12. Remove the rotor cover by holding the rotor
in both hands and tapping the rotor nut
against the table. Never strike the rotor di-
rectly as this may damage its bearings.
13. Remove the strainer from the rotor cover. If
the strainer is stuck, insert a screwdriver be-
tween the rotor cover and strainer and care-
fully prise them apart.
33
Lubrication system

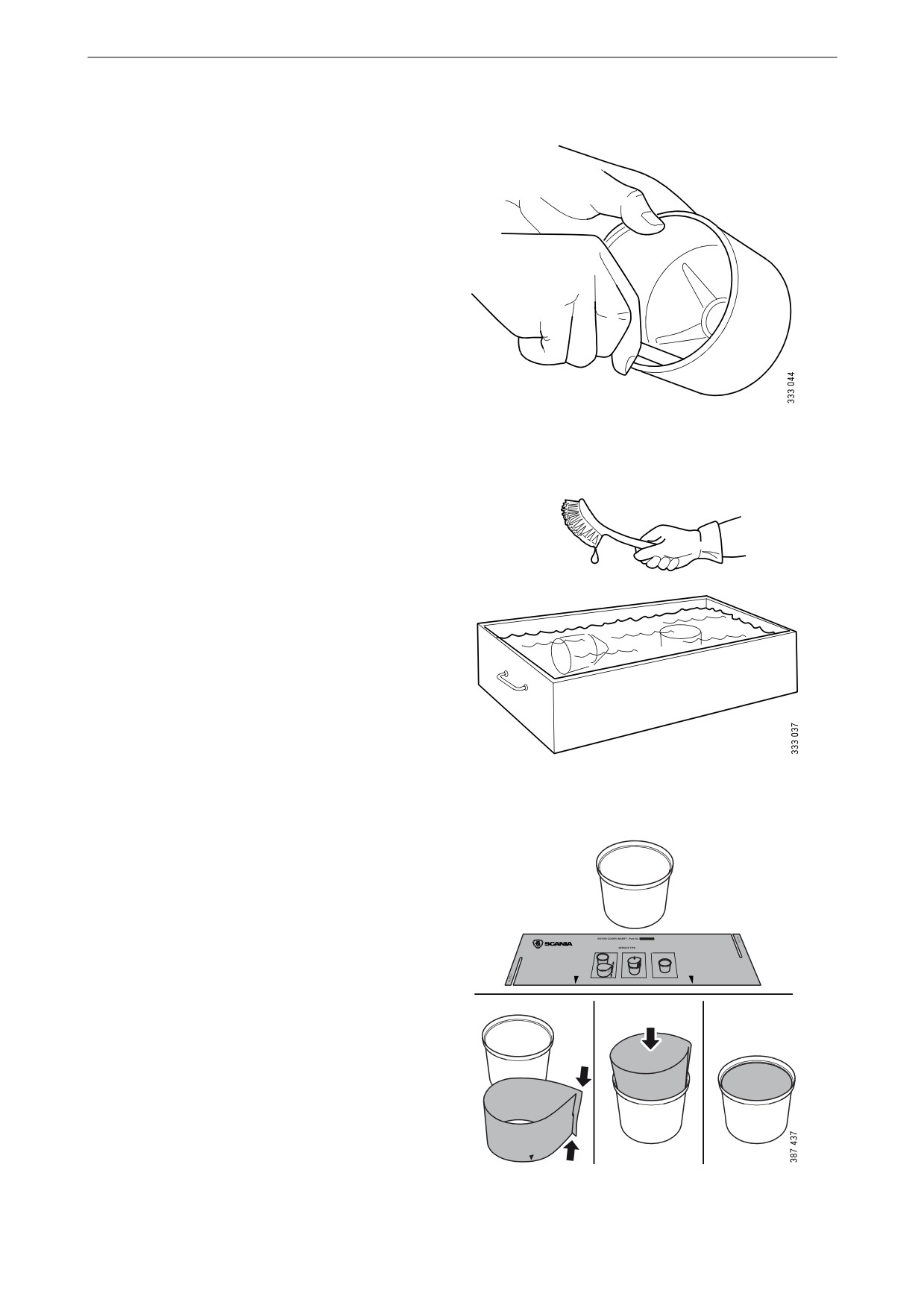

14. Remove the paper insert.
15. Scrape off any remaining dirt deposits from
the inside of the rotor cover. If the deposits
on the paper are thicker than 28 mm (1.1 in),
the centrifugal oil cleaner must be cleaned
more often.
16. Wash the parts according to the applicable
industrial method.
17. Inspect the 2 nozzles on the rotor. Ensure that
they are not blocked or damaged.
Renew any damaged nozzles.
18. Check that the bearings are undamaged.
Renew damaged bearings.
1
19. Fold and fit a new paper insert on the inside
of the rotor cover as illustrated.
2
3
4
34
Lubrication system

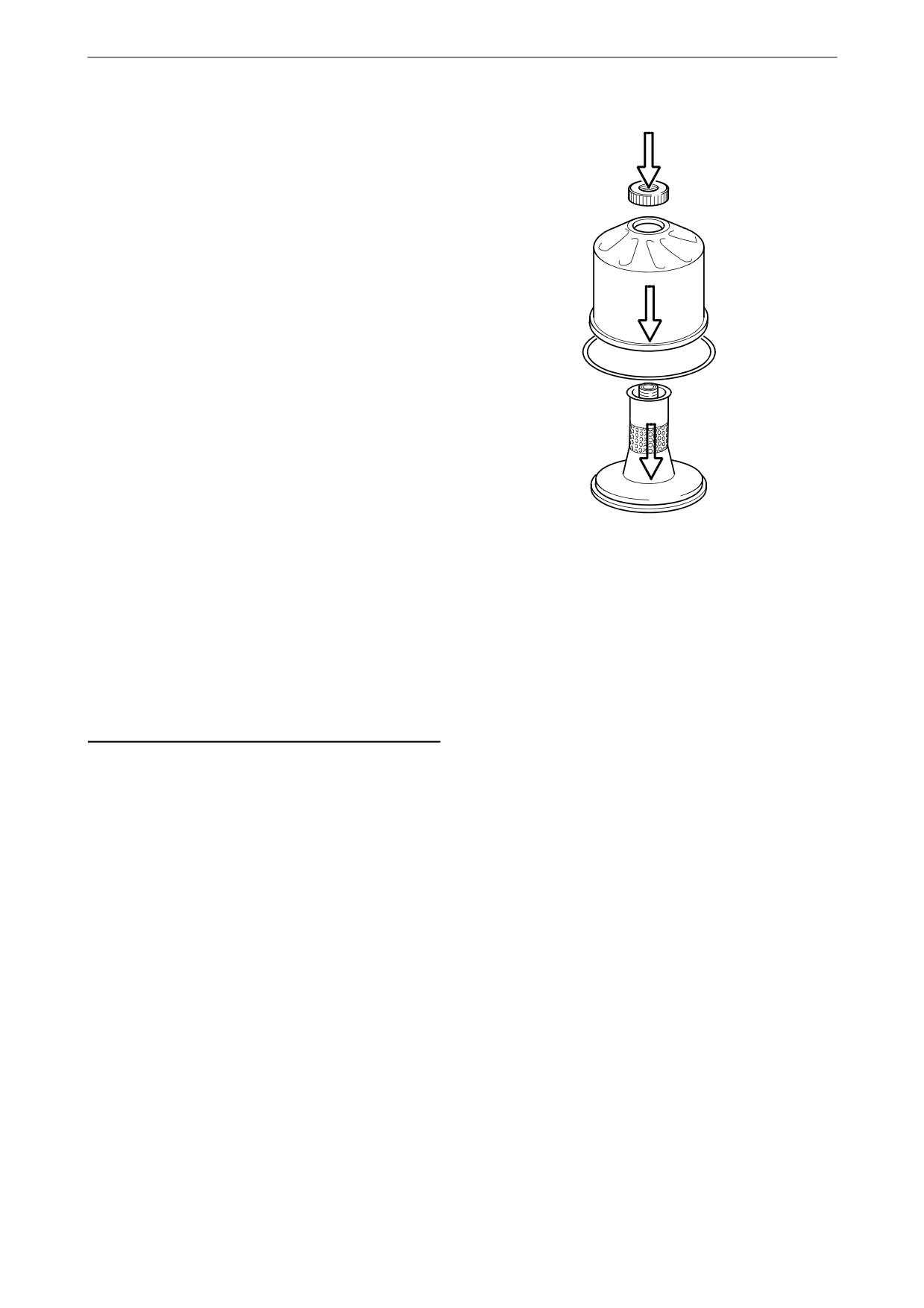

20. Fit the strainer onto the rotor.
21. Fit a new O-ring to the foot of the centrifugal
oil cleaner.
22. Refit the rotor cover. Ensure that the O-ring
is not outside the edges, but is in the groove.
23. Screw the rotor nut back on by hand.
24. Check that the shaft is not damaged or loose.
Contact a Scania workshop if the rotor shaft
needs renewing.
Note:
Take care not to damage the rotor shaft.
25. Refit the rotor and rotate it by hand to make
sure it rotates easily.
35
Lubrication system
26. Fit a new O-ring in the cover.
27. Refit the cover and tighten the lock nut.
Tightening torque 20 Nm (15 lb-ft).
IMPORTANT!
To reduce the risk of oil leakage it is important to
tighten the cover to the correct tightening torque.
Operational testing of the
centrifugal oil cleaner
Operational testing need only be carried out if it
is suspected that the centrifugal oil cleaner is
malfunctioning. For example, if there are unusu-
ally few deposits given the distance driven.
1. Run the engine until it reaches normal oper-
ating temperature.
2. Turn off the engine and listen for the sound
from the rotor. It should continue rotating for
a time, even when the engine has stopped.
3. Use your hand to feel if the filter housing is
vibrating.
4. If the filter housing is not vibrating, disman-
tle and check the centrifugal oil cleaner.
36
Lubrication system
Renewing the oil filter
IMPORTANT!
Clean the centrifugal oil cleaner at the same time
as you change the oil filter. Otherwise, the oil fil-
ter will be blocked and resistance in the filter will
increase. If this happens, an overflow valve in
the filter retainer opens and lets the oil pass with-
out being filtered.

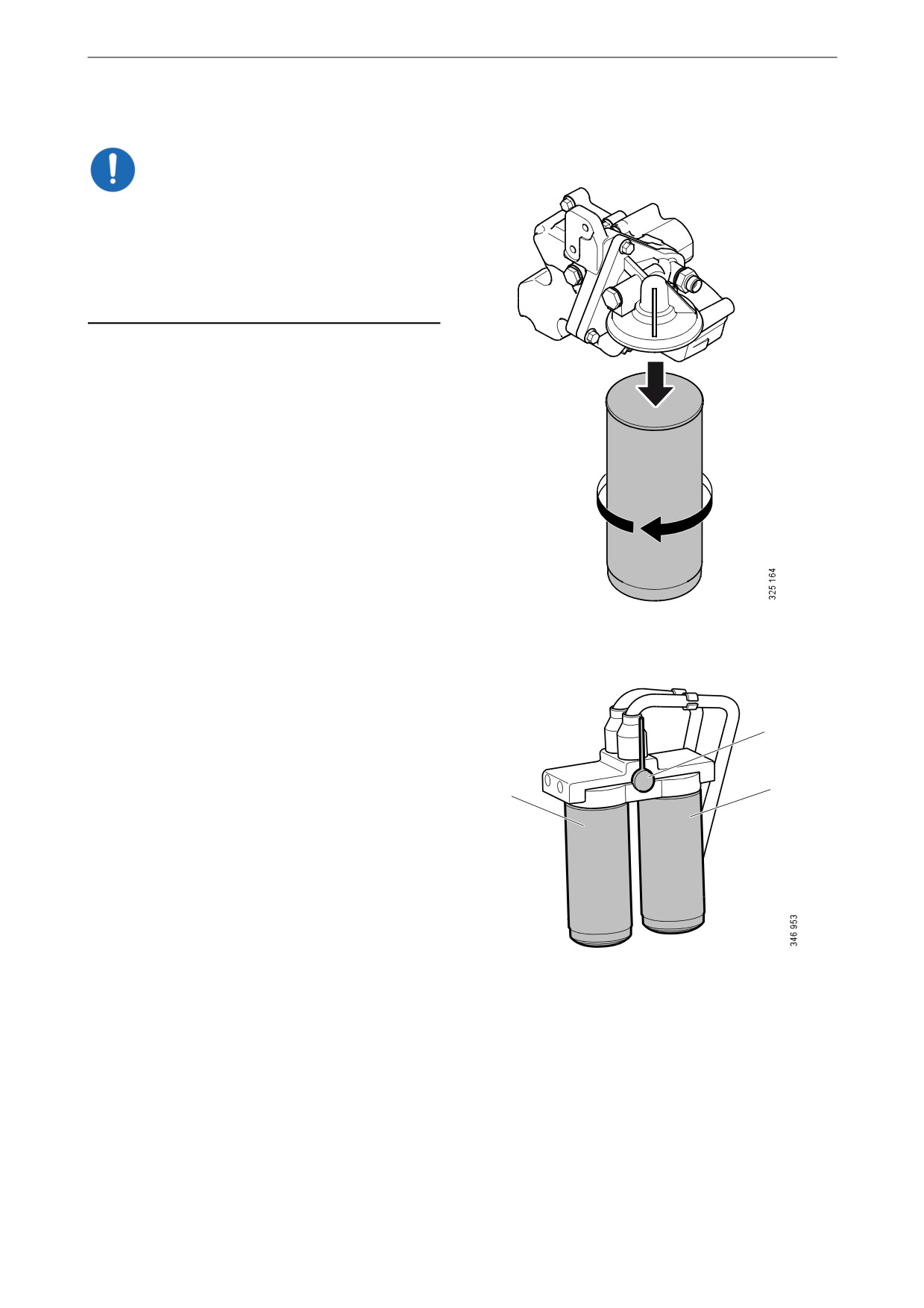

1. Remove the old filter.
2. Oil the rubber gasket on the new filter.
3. Tighten the filter by hand. Never use tools
because the filter could sustain damage, ob-
structing circulation.
4. Start the engine and check for leaks.
Renewing the commutative
oil filter
During operation, the rotary control (1) should
point 90° towards the filter being used.
1
1. Turn the rotary control 90° to the right so that
it points towards filter B. The oil then flows
through the filter.
B
A
2. Clean filter A with a cloth.
3. Unscrew filter A.
4. Apply oil to the gasket on the new filter.
5. Fill the filter with engine oil.
6. Screw filter A into place by hand until it
makes contact.
7. Turn screw a further half turn by hand.
8. Turn the rotary control 90° to the left so that
the rotary control points towards filter A.
Then renew filter B in the same way as filter
A.
37
Air cleaner
Air cleaner
WARNING!
3
Never start the engine without the air filter in po-
sition. Without the air filter, there is a risk of dirt
2
being sucked into the engine.
The engine turbocharger will continue to rotate
1
and take in air for a time, even after the engine
has stopped. Therefore, wait for a few minutes
before opening the air cleaner.
IMPORTANT!
4
Renew the filter element earlier than the mainte-
nance interval if the vacuum indicator shows red.
5
The filter element must not be cleaned in water
or be blown clean with compressed air. There is

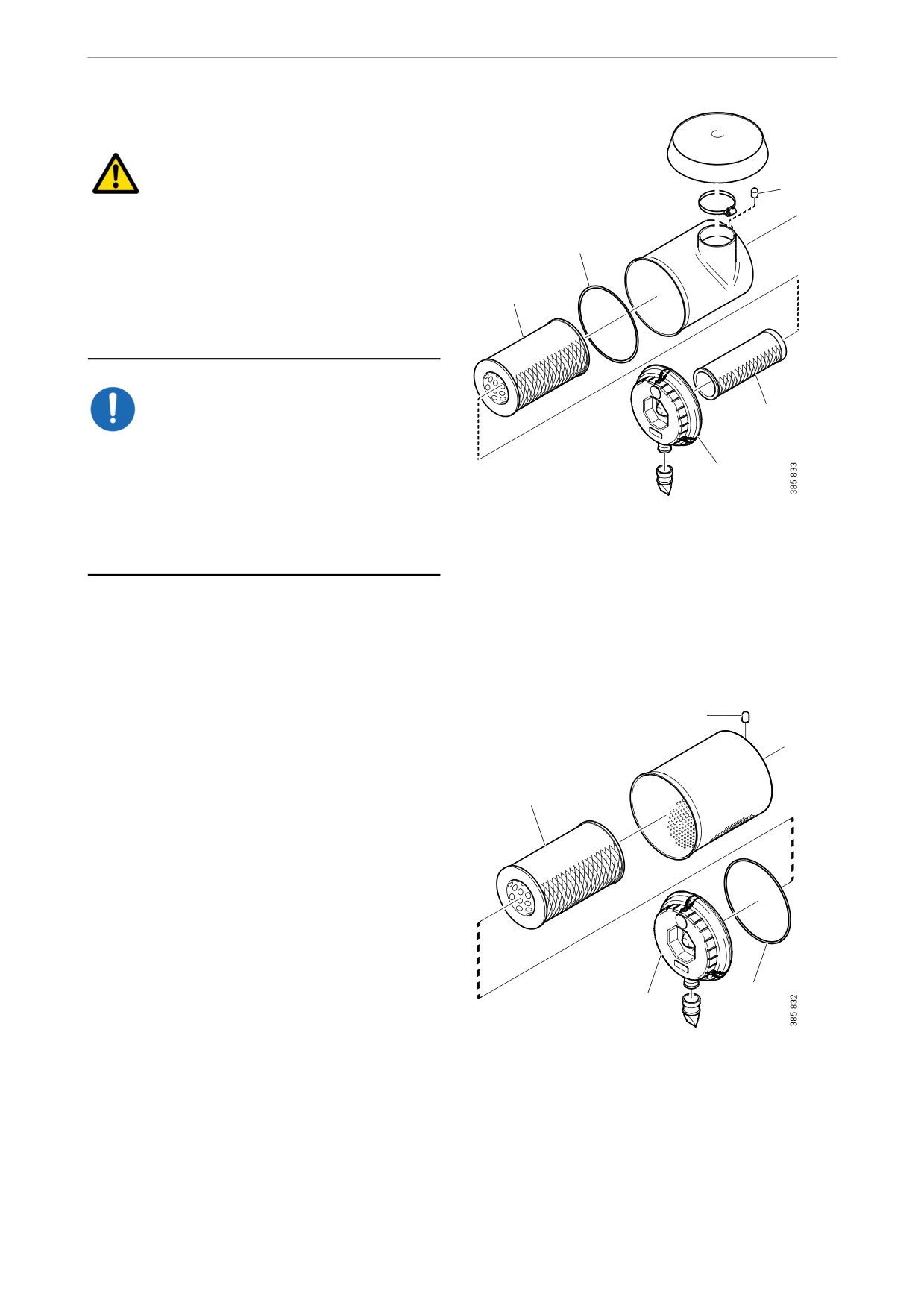

Air cleaner with safety cartridge.
always a risk that the filter element will be dam-
1. Filter element.
aged when it is cleaned.
2. O-ring.
3. Vacuum indicator.
4. Safety cartridge.
5. Cover.
2
1
Reading the vacuum indicator
If the vacuum indicator's red plunger is fully vis-
ible, renew the air cleaner filter element in ac-
3
4
cordance with the following section.
Air cleaner without safety cartridge.
1. Filter element.
2. Vacuum indicator.
3. O-ring.
4. Cover.
38
Air cleaner
Renewing the air cleaner filter
element and safety cartridge
1. Remove the cover from the air cleaner.
2. Renew the filter element.
3. If the air cleaner has a safety cartridge: Re-
move the safety cartridge and fit a new one.
4. Insert a torch into the filter element and
check that the filter paper is free of holes and
cracks.
5. Renew the O-ring if it is damaged or hard.
6. Assemble the air cleaner.
7. Ensure that the O-ring is not outside the edg-
es.

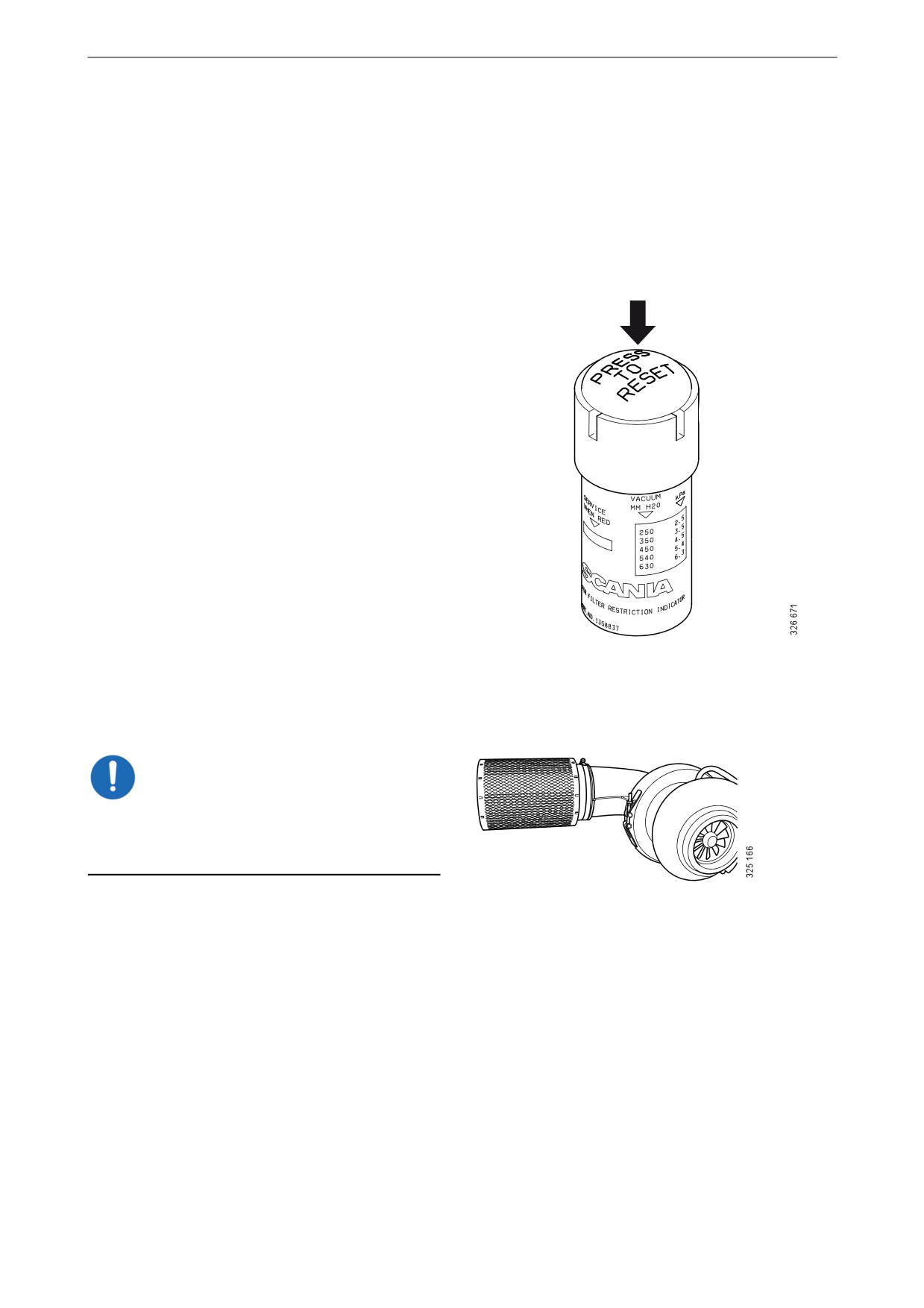

8. Reset the vacuum indicator by pressing in
the button marked in the illustration.
Renewing an air filter with a
non-renewable element
IMPORTANT!
If the engine has an air filter with a non-renewa-
ble Scania element, it should be renewed instead
of cleaned.
Air filter with a non-renewable element.
39
Cooling system
Antifreeze and corrosion protection
Cooling system
The antifreeze and corrosion protection used in
Scania engines should be antifreeze (ethylene
Coolant
glycol) and corrosion inhibitor.
Note:
Only Scania coolant or another product with
The coolant should be changed when the cooling
functioning antifreeze and corrosion protection
system is cleaned: every 6,000 hours or at least
may be used in Scania engines. Products not ful-
every 5 years. See Changing the coolant and
filling the demands in this section may lead to
cleaning the cooling system.
faults and damage occurring in the cooling sys-
tem. This can lead to the invalidation of Scania's
warranty for faults and damage caused by the use
The coolant recommended by Scania is a mix-
of inappropriate coolant.
ture of water with antifreeze (ethylene glycol)
and corrosion inhibitor. The coolant has several
Addition of antifreeze and corrosion
characteristics which are important for the oper-
inhibitor to water
ation of the cooling system:
The coolant should contain 35-55% by volume
• Corrosion inhibitor.
antifreeze (ethylene glycol) and corrosion inhib-
itor. The percentage varies depending on the
• Antifreeze.
need for antifreeze.
• Increases the boiling point.
A minimum of 35% by volume of Scania anti-
Water
freeze and corrosion inhibitor is needed to pro-
vide sufficient protection against corrosion.
Use only pure fresh water that is free from parti-
cles, sludge and other impurities. If there is un-
Note:
certainty about the quality of the water, Scania
Too high a dose of antifreeze and corrosion in-
recommends use of Scania ready-mixed cool-
hibitor will increase the amount of sludge and
ants. See the section Recommended Scania prod-
blockages accumulating in the radiator. Too low
ucts.
a concentration can lead to corrosion of the cool-
ing system and ice formation at low tempera-
tures.
Measure the ethylene glycol content (antifreeze
and corrosion protection) with a refractometer
following the instructions in the Checking cool-
ant antifreeze and corrosion protection section.
40
Cooling system
Risk of freezing
IMPORTANT!
The engine should not be subjected to heavy
loads when ice starts to build up in the cooling
system.
As the coolant starts to freeze, the water in the
coolant starts to crystallise and the percentage of
ethylene glycol in the coolant therefore rises. If
freezing produces a great increase in the amount
of ice, circulation problems could arise. There is
no risk of damage by freezing if the content of
Scania antifreeze and corrosion inhibitor, or an
equivalent mixture of a similar product, is at
least 35% by volume.
Minimal ice formation in the coolant sometimes
causes minor problems without any risk of dam-
age. For example, the auxiliary heater may not
work for up to 1 hour after the engine has been
started.
10
20
30
40
50
60%

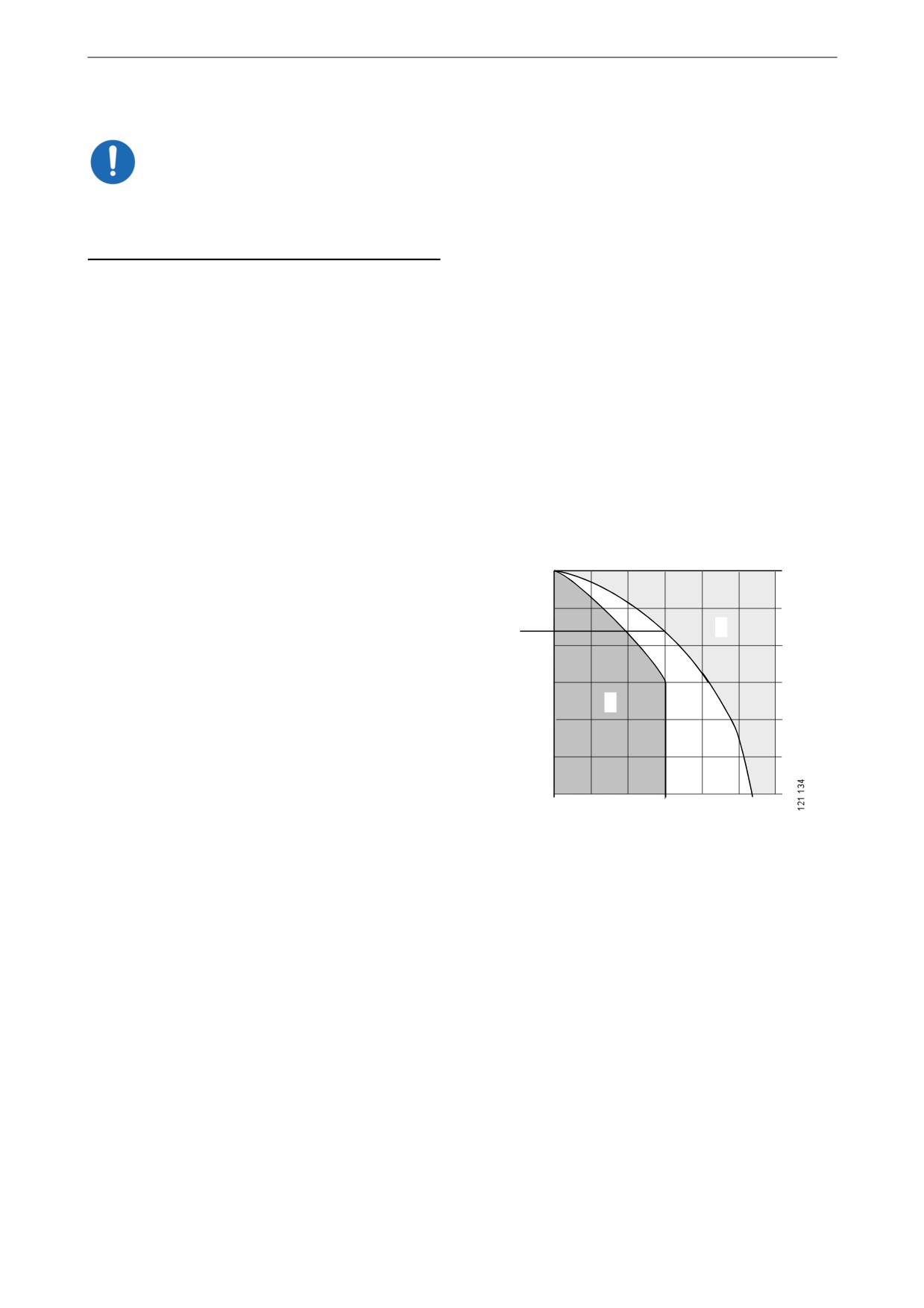

The chart depicts coolant properties at different
o
percents of antifreeze and corrosion inhibitor
-10
C
concentration by volume.
o
-16
C
1
o
-20
C
Curve A: Ice formation starts (ice slush)
o
-30
C
Curve B: Damage by freezing
3
2
o
Area 1: Safe range
-40
C
Area 2: Malfunctions may occur (ice
o
-50
C
slush)
o
Area 3: Risk of damage by freezing
-60
C
B
A
The following example shows coolant properties
with 30 percent by volume of antifreeze and cor-
rosion inhibitor:
• Ice slush starts to form at -16°C (3°F).
• At -30°C (-22°F), there is a risk of cooling
system malfunction.
• There is no risk of damage by freezing with a
minimum antifreeze and corrosion inhibitor
content of 35 percent by volume.
Example: If the temperature is -16°C (3°F), there
is a risk of damage by freezing if the percentage
of antifreeze and corrosion inhibitor is 20% by
volume. At 30% antifreeze and corrosion protec-
tion by volume the coolant will not contain any
ice.
41
Cooling system
Hot climates
Recommended Scania products
In order to retain the corrosion protection and the
Scania Ready Mix 50/50
higher boiling point, it is essential to use coolant
consisting of water mixed with antifreeze and
Scania Ready Mix 50/50 is a ready-mixed cool-
corrosion inhibitor (ethylene glycol). This also
ant containing 50 % antifreeze (ethylene glycol)
applies in countries where the temperature never
and corrosion protection and 50 % water. It
drops below 0°C (32°C).
should be used in cold countries where there is a
risk of freezing in the cooling system.
The coolant should always contain 35-55% by
volume of antifreeze and corrosion inhibitor so
that the coolant properties ensure that the coolant
Part no.
Volume
Volume
works correctly.
litres
US gallons
1 921 955
5
1.3
Topping up
1 921 956
20
5.3
Coolant must only be topped up with pre-mixed
coolant. The pre-mixed coolant can either be
1 921 957
210
55
concentrate mixed with clean freshwater or pre-
1 896 695
1,000
264
mixed coolant from the factory. Use only pure
fresh water that is free from particles, sludge and
Scania Ready Mix 35/65
other impurities.
Scania Ready Mix 35/65 is a ready-mixed cool-
ant containing 35% antifreeze (ethylene glycol)
IMPORTANT!
and corrosion protection and 65% water. It
should be used in warm countries where there is
no risk of freezing in the cooling system.
Containers, which are used for mixing coolant,
must be intended for the purpose and free from
any dirt or contaminants. When the containers
Part no.
Volume
Volume
not in use they must be kept closed to avoid col-
litres
US gallons
lecting dirt and dust.
2 186 291
5
1.3
2 186 292
20
5.3
Note:
2 186 293
210
55
Within the coolant change interval, coolant may
2 186 294
1,000
264
only be reused if it has been cleaned of dirt,
sludge and particles. If the coolant is contaminat-
Scania concentrate
ed with oil or fuel, it must not be reused.
Scania also produces coolant with antifreeze and
corrosion inhibitor in the form of a concentrate.
Part no.
Volume
Volume
litres
US gallons
1 894 323
5
1.3
1 894 324
20
5.3
1 894 325
210
55
1 894 326
1,000
264
42
Cooling system
Antifreeze and corrosion protection
concentration table, litres
35% by volume of Scania antifreeze provides
sufficient protection against corrosion.
Example:
• The total volume of the cooling system is 40
litres.
• The measured concentration of ethylene gly-
col is 35% by volume (freezing point -21°C).
According to the table there are 14 litres of
ethylene glycol in the cooling system.
• The required concentration of ethylene glycol
is 45% by volume (freezing point -30°C). Ac-
cording to the table, 18 litres of ethylene gly-
col are required in the cooling system.
• Since there are already 14 litres in the cooling
system, 4 litres of ethylene glycol must be
added to the cooling system (18 - 14 = 4 li-
tres).
Adequate protection against corrosion
Volume of ethylene glycol (%)
35
40
45
50
60
Cooling system volume
Ice slush forms (°C)
-21
-24
-30
-38
-50
(litres)
11
12
14
15
18
30
14
16
18
20
24
40
18
20
23
25
30
50
21
24
27
30
36
60
25
28
32
35
42
70
28
32
36
40
48
80
32
36
41
45
54
90
35
40
45
50
60
100
39
44
50
55
66
110
Volume of ethylene glycol (litres)
42
48
54
60
72
120
46
52
59
65
78
130
49
56
63
70
84
140
53
60
68
75
90
150
56
64
72
80
96
160
60
68
77
85
102
170
63
72
81
90
108
180
67
76
86
95
114
190
70
80
90
100
120
200
43
Cooling system
Antifreeze and corrosion protection
concentration table, US gallons
35% by volume of Scania antifreeze provides
sufficient protection against corrosion.
Example:
• The total volume of the cooling system is
10.6 US gallons.
• The measured concentration of ethylene gly-
col is 35% by volume (freezing point -6 °F).
According to the table there are
3.7 US gallons of ethylene glycol in the cool-
ing system.
• The required concentration of ethylene glycol
is 45% by volume (freezing point -22 °F). Ac-
cording to the table, 4.8 US gallons of ethyl-
ene glycol are required in the cooling system.
• Since the cooling system already contains
3.7 US gallons, fill another 1.1 US gallons of
ethylene glycol in the cooling system (4.8 -
3.7 = 1.1 US gallons).
Adequate protection against corrosion
Volume of ethylene glycol (%)
35
40
45
50
60
Cooling system volume
Ice slush forms (°F)
-6
-11
-22
-36
-58
(US gallons)
2.9
3.2
3.7
4
4.8
7.9
3.7
4.2
4.8
5.3
6.3
10.6
4.8
5.3
6.1
6.6
7.9
13.2
5.5
6.3
7.1
7.9
9.5
15.9
6.6
7.4
8.5
9.2
11.1
18.5
7.4
8.5
9.5
10.6
12.7
21.1
8.5
9.5
10.8
11.9
14.3
23.8
9.2
10.6
11.9
13.2
15.9
26.4
Volume of ethylene glycol (US gal-
10.3
11.6
13.2
14.5
17.4
29.1
lons)
11.1
12.7
14.3
15.9
19
31.7
12.2
13.7
15.6
17.2
20.6
34.3
12.9
14.8
16.6
18.5
22.2
37
14
15.9
18
19.8
23.8
39.6
14.8
16.9
19
21.1
25.4
42.3
15.9
18
20.3
22.5
26.9
44.9
16.6
19
21.4
23.8
28.5
47.6
17.7
20.1
22.7
25.1
30.1
50.2
18.5
21.1
23.8
26.4
31.7
52.8
44
Cooling system
Checking the coolant level
WARNING!
Do not open the coolant filler cap in the expan-
sion tank if the engine is hot. Hot coolant and
steam may spray out and cause burns. If the cap
has to be opened do it slowly to release the pres-
sure before removing the cap.
Use protective gloves as coolant can cause irrita-
tion if it comes in contact with the skin.
IMPORTANT!
It is not permissible to top up large amounts of
coolant via the expansion tank. Filling via the ex-
pansion tank leads to air locks in the cooling sys-
tem which can lead to e.g. cavitation damage to
the coolant pump shaft seal. If a large amount of
coolant needs to be added, follow the instruc-
tions in the section Filling coolant.
Only pour pre-mixed coolant into the cooling
system.
The following instructions apply to Scania ex-
pansion tanks. For other types of expansion
tanks, follow the manufacturer's instructions.
1. Check the coolant level through the sight
glass on the expansion tank.
2. Top up with coolant as necessary.
45
Cooling system
Checking coolant antifreeze
and corrosion protection

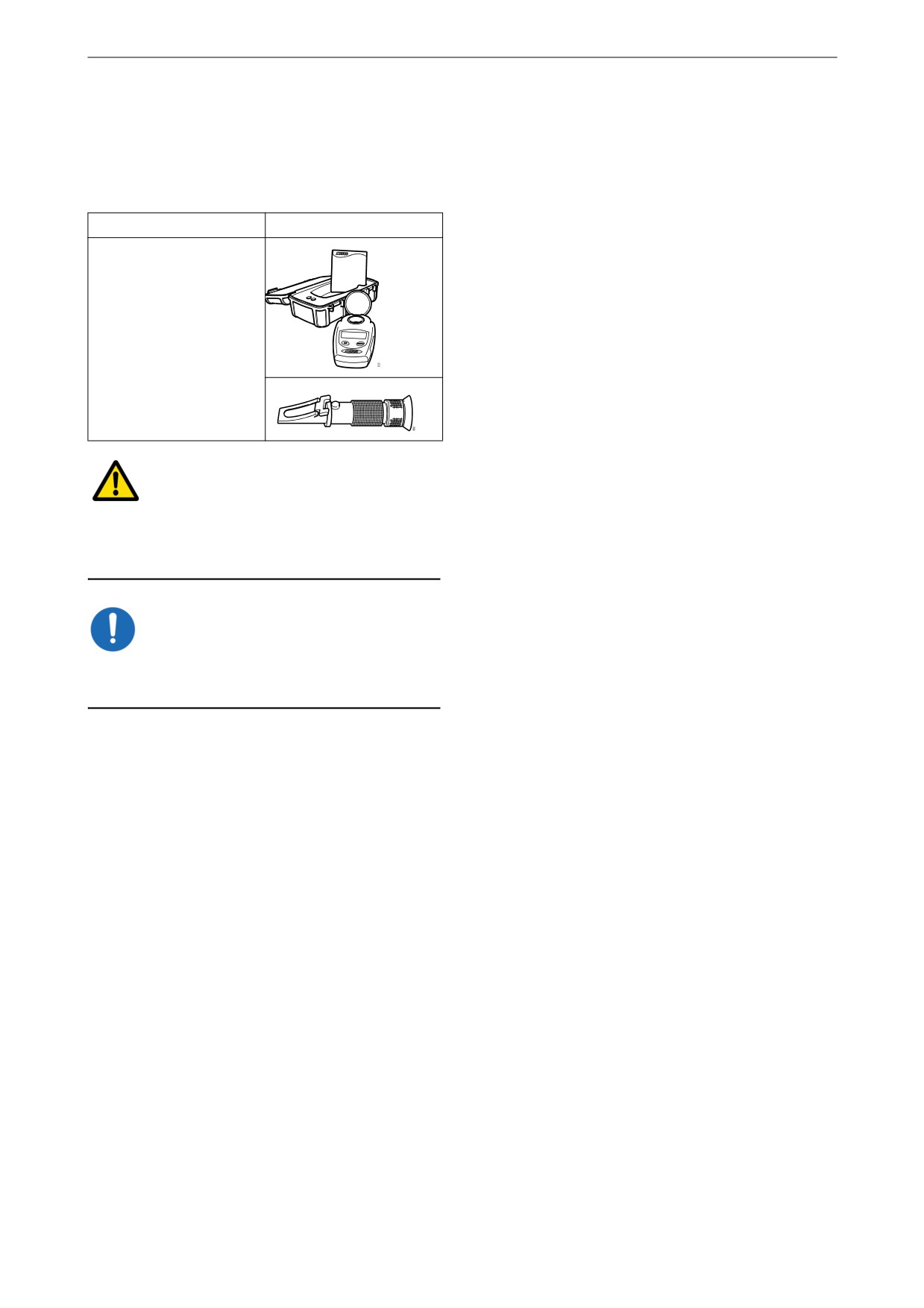

Tools
Designation
Illustration
Refractometer
WARNING!
Avoid skin contact with coolant as this may
cause irritation to the skin. Wear protective gog-
gles and gloves when handling coolant.
IMPORTANT!
Use only pure fresh water that is free from parti-
cles, sludge and other impurities.
1. Pour a small amount of coolant into a con-
tainer and check that the coolant is pure and
clear.
2. Change the coolant if it is contaminated or
cloudy.
3. Measure the antifreeze and corrosion inhibi-
tor content with the refractometer.
The following rules apply to ethylene glycol-
based coolant:
• The antifreeze and corrosion inhibitor content
must be minimum 35 percent by volume for
corrosion protection to be sufficient.
• An antifreeze and corrosion inhibitor content
greater than 55 percent by volume impairs the
ability to protect against frost.
• If ice forms in the coolant, there are disrup-
tions initially, but there is no immediate risk
of damage. The engine should not be subject-
ed to heavy loads when ice starts to form.
46
Cooling system
Checking sacrificial anodes
IMPORTANT!
Corrosion of sacrificial anodes depends on the
operating environment. Therefore, check the
sacrificial anodes every third month during the
first year of commissioning or when changing
the operating environment.

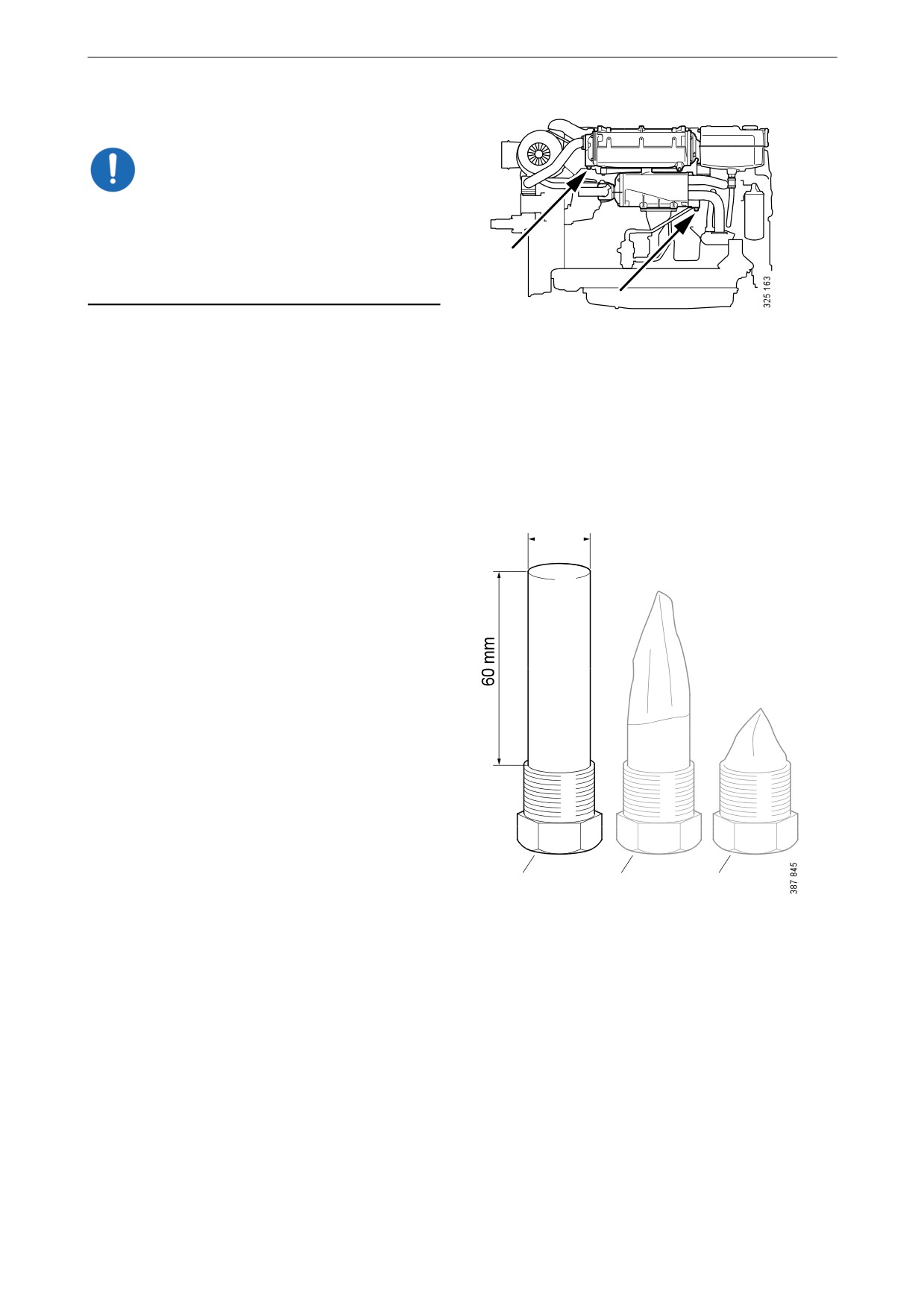

Position of sacrificial anodes.
1. Drain the sea water circuit as described in the
Draining the sea water circuit section.
2. Remove all sacrificial anodes.
3. Check all sacrificial anodes:
17 mm
- Scrape off all loose material and check the
corrosion.
- Renew all sacrificial anodes if there is less
than ¾ (2) remaining of any of the sacrifi-
cial anodes.
- If the sacrificial anodes are very corroded
(3), the length of the intervals for checking
the sacrificial anodes should be halved. If
the sacrificial anodes are very corroded,
they often come loose entirely.
4. Renew the gasket when fitting.
1
2
3
1. New sacrificial anode.
2. Approx. 3/4 remains.
3. Approx. 1/4 remains.
47















Content      ..     1      2      3      4      ..
