Scania Central gear RP832-RBP832. Manual - part 3

08:04-02

©

9

1

Gear housing

2

Bolt

3

Washer

4

Shim

5

Roller bearing

6

Spacing ring

7

Shim

8

Roller bearing

9

Adjusting ring

10 Washer

11 Split pin

12 Washer

13 Gasket

14 Seal seat

15 Sealing ring

17 Bolt

18 Washer

19 Nut

20 Ferrule

21 Insert sleeve

22 Pipe

23 Switch

24 Cylinder

25 Elbow union

26 Cylinder bottom

27 O-ring

28 Retaining ring

29 Nut

30 Piston

31 Pull rod

32 O-ring

33 O-ring

34 Retaining ring

35 Compression spring

36 Lock washer

37 Sealing ring

38 Retaining ring

39 Lever

40 Support bracket

41 Bolt

42 Shaft

43 Coupling half

44 Thrust ring

45 Washer

46 Retaining ring

47 Roller bearing

48 Conical gear set

49 Bolt

50 Retaining ring

51 Lock washer

52 Differential housing half

53 Washer

54 Washer

55 Differential pinion

56 Differential spider

57 Differential gear

58 Differential housing half

59 Bolt

60 Roller bearing

61 Plate (sign)

62 Nut

63 End yoke

64 Dust cover

General

10

©

08:04-02

Spot repairs

The most common repairs are collected together under the heading "Spot repairs". These repairs can
be carried out with the central gear fitted in the vehicle.

Differential lock operation for axle differential

Special tools

Number

Description

Illustration

Board

98 726

Assembly tool

R2

587 312

Retaining ring pliers

98 726

0

0

1846

587 312

111 445

Spot repairs

08:04-02

©

11

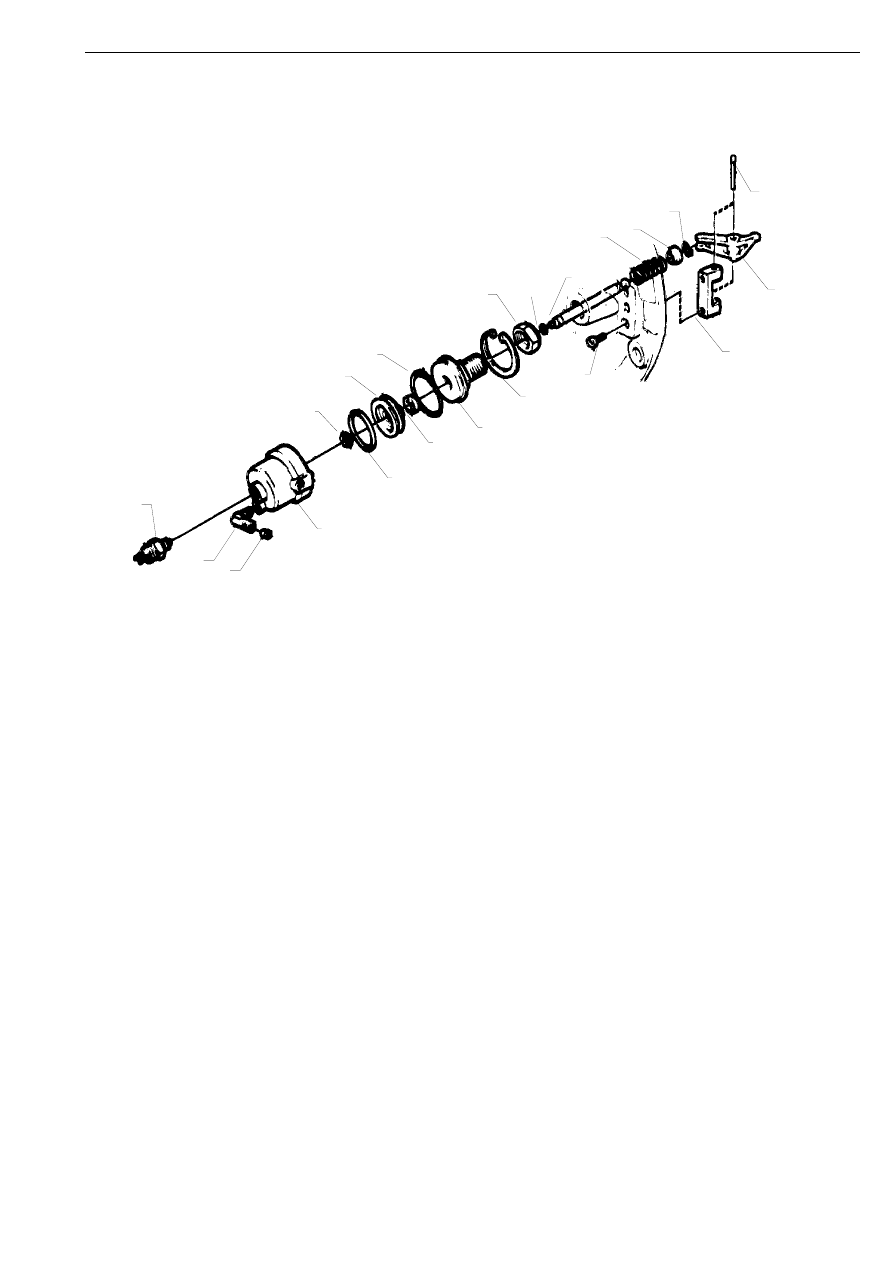

Differential lock operation

25 20

24

28

26

31

35 36

38

37

34

29

33

41

39

42

23

32

40

27

30

111 451

23 Switch

24 Cylinder

25 Elbow union

26 Cylinder bottom

27 O-ring

28 Retaining ring

29 Nut

30 Piston

31 Pull rod

32 O-ring

33 O-ring

34 Retaining ring

35 Compression spring

36 Lock washer

37 Sealing ring

38 Retaining ring

39 Lever

40 Support bracket

41 Bolt

42 Shaft

Spot repairs

12

©

08:04-02

1

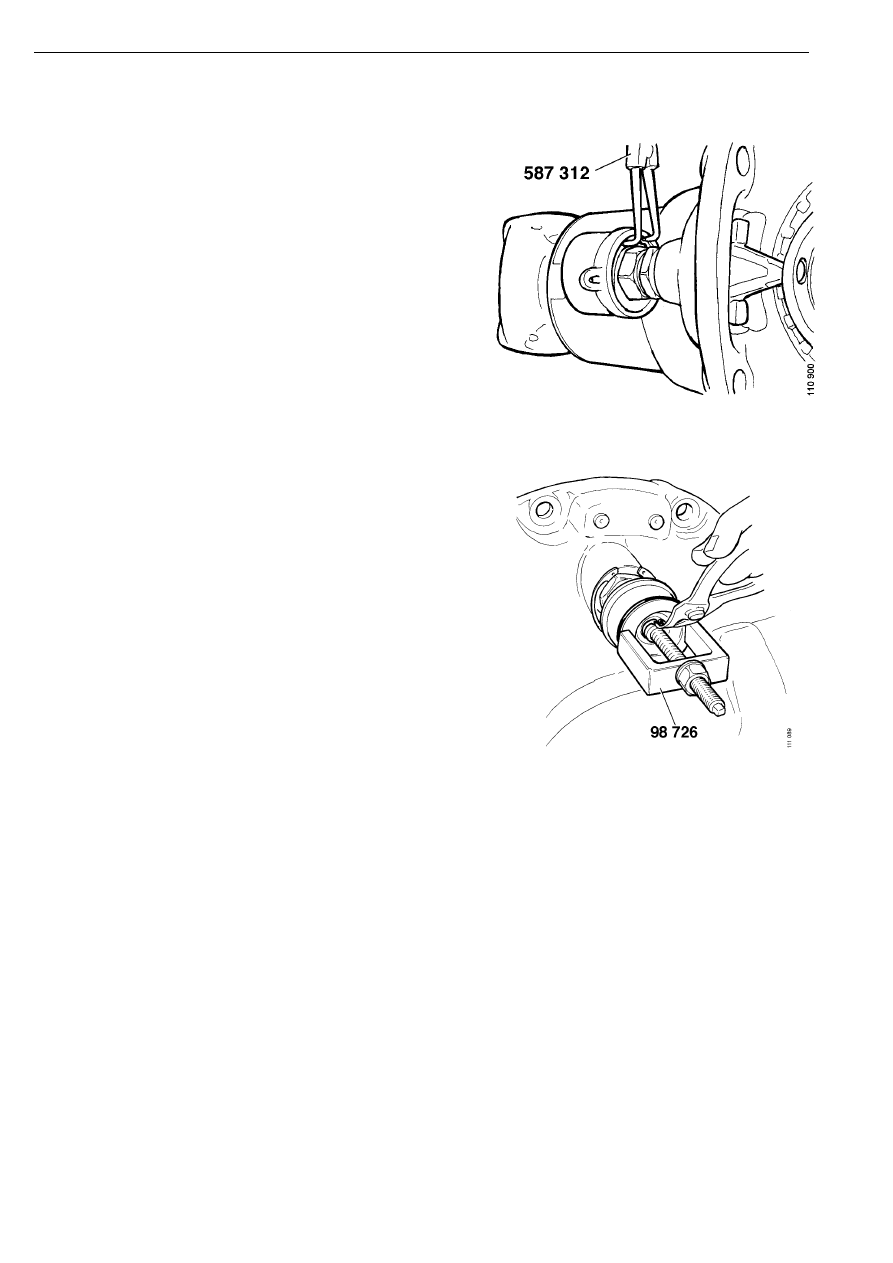

Remove the retaining ring 28 using
retaining ring pliers 587 312 and pull off
cylinder 24 forwards. Remove O-ring 27
from the cylinder

2

Mount assembly tool 98 726 and pull
forward pull rod 31 far enough for the
retaining ring 34 to be removed from the
end of the shaft.

3

Remove the assembly tool and pull off the
piston 30. Remove the O-ring 33.

4

Undo the nut 29 and screw out the cylinder
bottom 26. Remove the sealing ring 37 from
the bottom.

5

Remove the spring 35 and unhook the pull
rod 31 from the lever 39 and remove it.

6

Fit the O-ring 33 onto the pull rod 31. Hook
the pull rod to the lever 39. Lubricate the
pull rod and fit the spring 35.
