Scania Central gear RP832-RBP832. Manual - part 2

08:04-02

©

5

1

Gear housing

2

Bolt

3

Washer

4

Conical gear set

5

Oil collector

6

Bolt

7

Washer

8

Gasket

9

Cover

10 Bolt

11 Bolt

12 Spring washer

13 Plug

14 Shaft

15 Roller bearing

16 Spacing ring

17 Shim

18 Sealing ring

19 Washer

21 Retaining ring

22 Ring gear

23 Planet wheel carrier

24 Planet wheel

25 Shaft

26 Needle bearing

27 Ball

28 Oil collector

29 Bolt

30 Sun wheel

31 Wear washer

32 Roller bearing

33 Spacing ring

34 Shim

35 Gear

36 Spacing ring

37 Roller bearing

38 Nut

39 Coupling half

40 Lever

41 Spring

42 Lever

43 Shaft

44 Shaft

45 Bolt

46 Ball

47 Set screw

48 Switch

49 Piston

50 Diaphragm

51 Cover

52 Bolt

53 Spring washer

54 Gasket

55 Cover

56 Bolt

57 Spring washer

58 Plate (sign)

59 Shaft

60 Roller bearing

61 Sealing ring

62 Seal seat

63 Bolt

64 Spring washer

65 Shim

66 Nut

67 End yoke

68 Dust cover

69 End yoke

General

6

©

08:04-02

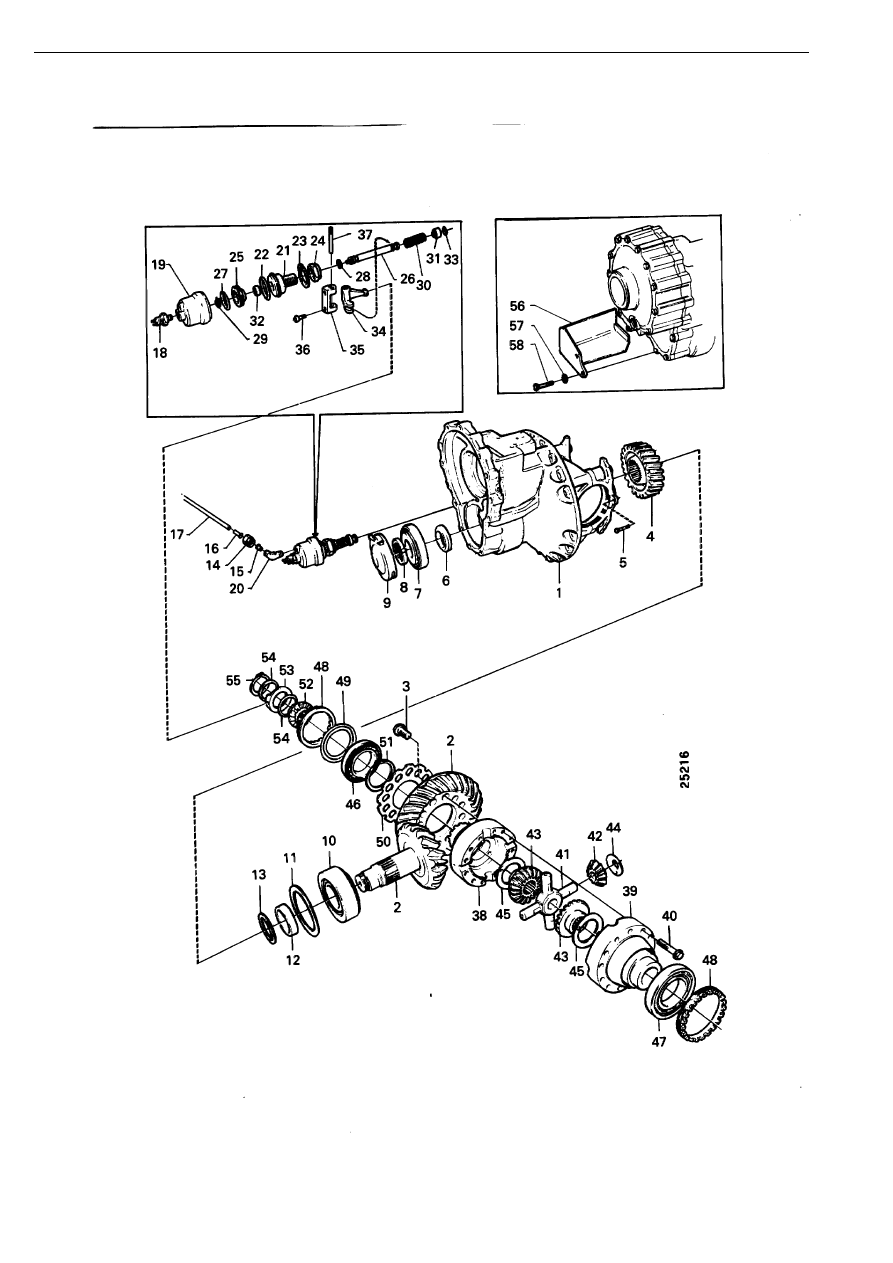

Axle gear RBP832, differential housing unit

General

08:04-02

©

7

1

Gear housing

2

Conical gear set

3

Bolt

4

Gear

5

Split pin

6

Spacing ring

7

Roller bearing

8

Nut

9

Cover

10 Roller bearing

11 Shim

12 Spacing ring

13 Shim

14 Nut

15 Ferrule

16 Insert sleeve

17 Pipe

18 Switch

19 Cylinder

20 Elbow union

21 Cylinder bottom

22 O-ring

23 Retaining ring

24 Nut

25 Piston

26 Pull rod

27 O-ring

28 O-ring

29 Retaining ring

30 Compression spring

31 Lock washer

32 Sealing ring

33 Retaining ring

34 Lever

35 Support bracket

36 Bolt

37 Shaft

38 Differential housing half

39 Differential housing half

40 Bolt

41 Differential spider

42 Differential pinion

43 Differential gear

44 Washer

45 Washer

46 Roller bearing

47 Roller bearing

48 Adjusting ring

49 Washer

50 Lock washer

51 Retaining ring

52 Coupling half

53 Thrust ring

54 Washer

55 Retaining ring

56 Protection cover

57 Washer

58 Bolt

General

8

©

08:04-02

Axle gear RP832

5

48

49

9

7

6

13

1

4

10

11

2

3

9

50

47

43

46

45

45

44

51

48

52

54

56

55

53

57

57

53

58

60

59

25 20

21

22

24

64

61

14

18

28

26

27

31

35 36

38

37

30

34

29

33

41

39

42

8

62

23

17

12

15

19

32

40

111133

63

General
