Scania 16 litre engine. Work Description - part 4

0100w15b.mkr

©

13

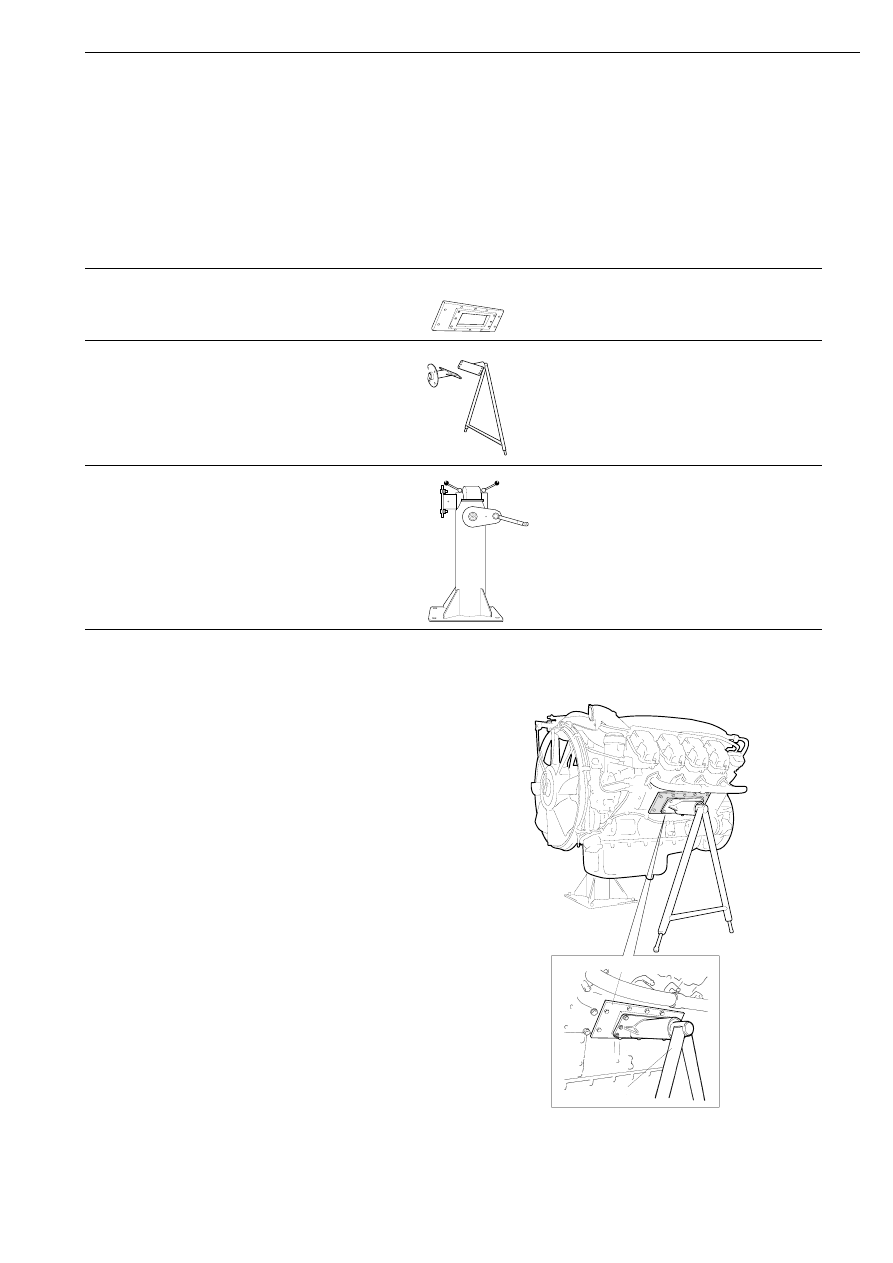

Mounting the engine in a
universal stand

Special tools

1

Remove the side cover and gasket on the
right and left-hand sides.

2

Undo the clamping for the wiring to the
starter motor on the left-hand side.

3

Bolt spacer 99 349 onto the right and left
hand side. Use the bolts for the side covers.

4

Place the engine in the universal stand. Use
fixture 98 163, bolt on the fixture using
bolts M8x25 and washer M8.

Number

Designation

Illustration

Tool board

99 349

Spacer

98 163

Fixture

A

587 692

Universal stand

99 349

111

690

98 163

1

09

 858

112 804

99 349

98 163

114 738

Universal stand

©

0101w14b.mkr

©

15

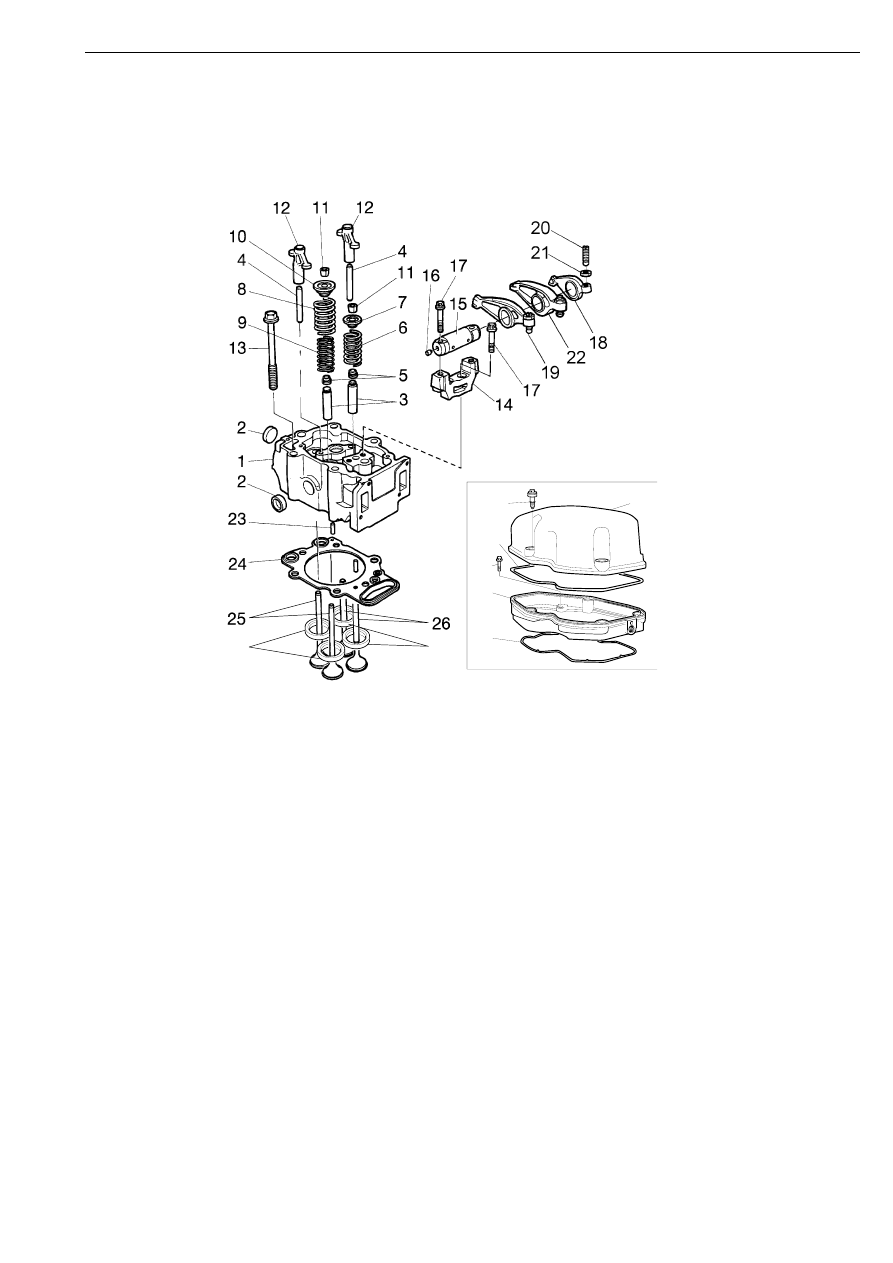

Cylinder head

27

28

29

30

31

32

112 169

33

34

1

Cylinder head

2

Core plug

3

Valve guide

4

Pin

5

Valve stem seal

6

Valve spring, intake

7

Valve spring collar

8

Valve spring, exhaust

9

Valve spring, exhaust

10 Valve spring collar

11 Valve collet

12 Valve yoke

13 Bolt

14 Bearing bracket

15 Rocker arm shaft

16 Rivet plug

17 Tight-fit screw

18 Rocker arm, intake

19 Rocker arm, exhaust

20 Adjusting screw

21 Lock nut

22 Rocker arm, unit injector

23 Guide pin

24 Cylinder head gasket

25 Exhaust valve

26 Intake valve

27 Rocker cover

28 Flange bolt

29 Rocker cover gasket

30 Flange bolt

31 Rocker cover

32 Rocker cover gasket

33 Valve seat insert, exhaust

34 Valve seat insert, intake

Cylinder head

16

©

0101w14b.mkr

General tightening torques

Specified tightening torques apply with a
tolerance of +/- 15% unless specified otherwise.

The following tightening torques apply in general
unless otherwise specified:

Flange bolt M6

8.6 Nm

Flange bolt M8

26 Nm

Flange bolt M10

50 Nm

Flange bolt M12

92 Nm

Stud in casting M8

13 Nm

Stud in casting M10

25 Nm

Cylinder head
