Driving

axles. Under normal circumstances it pre-
vents the rear part of the vehicle from skid-
ding due to excessive braking of the rear
wheels. The function of the electronic brake
pressure distribution is incorporated in the
ABS function.

Electromechanical brake servo (eBKV)

With the ignition switched on, the electrome-
chanical brake servo supports the force of
the foot by increasing the pressure that the
driver exerts on the brake pedal. After discon-
necting the ignition, the assistance of the
brake servo is progressively reduced. Once
stopped, immobilise the vehicle to prevent it
from moving

›››

page 154

If the electromechanical brake servo does
not work, the yellow control lamps



and



on the instrument panel display light up at
the same time. When braking with the faulty
electromechanical brake servo, vibration of
the brake pedal may occur.

If the electromechanical brake servo is not
working, the brake pedal must be pressed
harder, as the braking distance increases due
to the lack of assistance from the servo brake.

Brake blending

The brake energy recuperation can generate
a braking effect

›››

page 134

. This braking ef-

fect depends on the selected driving pro-
gramme and the level of charge of the high-

voltage battery. If the braking effect caused
by the recuperation is very intense, the vehi-
cle’s brake lights with turn on. The electric en-
gine, when operating as an alternator, can
generate braking torque on the front wheels
based on the RPM and the temperature and
charge level of the high-voltage battery.

These variable parameters cause fluctuating
electric decelerations which are hydraulical-
ly compensated according to the driver’s de-
sires. This function is called “brake blending”
and it combines mechanical braking with the
engine brake effect.

WARNING

Driving at high speed on icy, slippery wet
ground can result in loss of vehicle control
and serious injury to the driver and passen-
gers.

●

The ESC, ABS, ASR, EDS or HBA systems

are neither in conditions to exceed the lim-
its established by the laws of physics. Al-
ways bear this in mind, especially on wet or
slippery roads. If you notice the systems
cutting in, you should reduce your speed
immediately to suit the road and traffic
conditions. Do not be encouraged to take
risks by the presence of more safety sys-
tems. If you do, an accident may occur.

●

Please remember that the accident risk

always increases if you drive fast, espe-
cially in corners or on a slippery road, or if
you follow too close behind the vehicle in
front of you. The ESC, ABS, ASR, EDS or HBA

system cannot prevent accidents from oc-
curing: risk of accidents!

●

Accelerate with caution on slippery sur-

faces (for example, icy or snow-covered).
Despite the control systems, the driven
wheels could spin, affecting the stability of
the vehicle: risk of accident!

Note

●

The ABS and ASR will only operate cor-

rectly if the four wheels have identical
tyres. Any differences in the rolling radius
of the tyres can cause the system to re-
duce engine power when this is not desired.

●

The regulating processes of the systems

can make noises due to their operation.

●

If the warning lamp





lights up,

there could be a fault

›››

page 65

●

Any modifications made to the vehicle

(for example, to the engine, brake system,
running gear or to the combination of
wheels and tyres) may affect the operation
of the ABS, ASR and EDS.

Parking

Park the vehicle

When parking your vehicle, all legal require-
ments should be observed.

154

Help with parking and manoeuvring

Always note the following points when park-
ing the vehicle:

●

Park the vehicle on a suitable surface

›››

●

Apply the handbrake

›››

page 152

●

Set the selector lever to the

position.

●

Connect the drive system.

●

Turn the steering wheel slightly to engage

the steering lock.

●

When leaving the vehicle, take all keys with

you.

Additionally, on steep slopes and inclines

Before switching off the engine, rotate the
steering wheel so that if the vehicle should
move, it will be held by the kerb.

●

On slopes, turn the front wheels so that

they are against the edge of the kerb.

●

Uphill, turn the wheels towards the centre of

the road.

WARNING

●

Avoid parking the vehicle in areas where

the vehicle’s underside could come into
contact with dry grass, low bushes, spilled
fuel or flammable materials.

●

Do not leave passengers inside a closed

vehicle, they may not be able to open
doors or windows. Locked doors hinder the
possibility of a rescue.

●

Children should not be left alone in the

vehicle. They could tamper with the hand-
brake or the gears, which could cause the
vehicle to move without control.

●

Depending on weather conditions, it may

become extremely hot or cold inside the
vehicle. This can be fatal.

Help with parking and ma-
noeuvring

Parking distance warning
system

Introduction

The parking distance warning system assists
the driver when parking. If the rear of the ve-
hicle is approaching an obstacle, an intermit-
tent audible warning is emitted. The shorter
the distance, the shorter the intervals be-
tween tones. If the vehicle is too close to the
obstacle, the audible warning becomes con-
stant.

If you continue to approach an obstacle
when the sound is continuous, this means the
system can no longer measure the distance.

Sensors situated on the rear bumper transmit
and receive ultrasound. Using the ultrasound
signal (transmission, reflection from the ob-
stacles and reception), this system continu-
ously calculates the distance between the
bumper and the obstacle.

WARNING

The parking distance warning system can-
not replace the driver's assessment of the
situation.

155

Driving

●

The sensors have blind spots in which ob-

stacles and people are not registered.

●

Always observe the area around the vehi-

cle, as the sensors do not always detect
small children, animals or objects.

●

The surface of certain objects and some

clothing do not reflect the ultrasound sig-
nals from the parking distance system. The
system cannot detect or incorrectly de-
tects these objects and people wearing
these types of clothes.

●

External sound sources can affect the

parking distance aid signals. In this case,
under certain circumstances, people and
objects will not be detected.

CAUTION

●

The sensors may not always be able to

detect objects such as trailer draw bars,
thin rails, fences, posts, trees and open
boots, etc. This could result in damage to
your car.

●

Although the parking distance warning

system detects and warns of the presence
of an obstacle, the obstacle could disap-
pear from the angle of measurement of the
sensors if it is too high or low and the sys-
tem would no longer show it. Therefore, it
will not warn you of these objects. Ignoring
the warnings of the parking sensor system
could cause considerable damage to the
vehicle.

●

The bumper sensors may become dam-

aged or misaligned, for example, when
parking.

●

To ensure that the system works properly,

the bumper sensors must be kept clean,
free of ice and snow and uncovered.

●

When cleaning the sensors with high-

pressure or steam cleaning equipment,
spray the sensors briefly at a distance of
no less than 10 cm.

●

Different sources of noise can produce

errors in the parking distance warning sys-
tem, e.g. parking distance warning systems
from other vehicles, inductive loops or con-
struction works machines.

●

Retrofitting of components to the vehicle,

such as a bicycle carrier, may interfere with
the function of the parking distance warn-
ing system.

Parking distance warning system

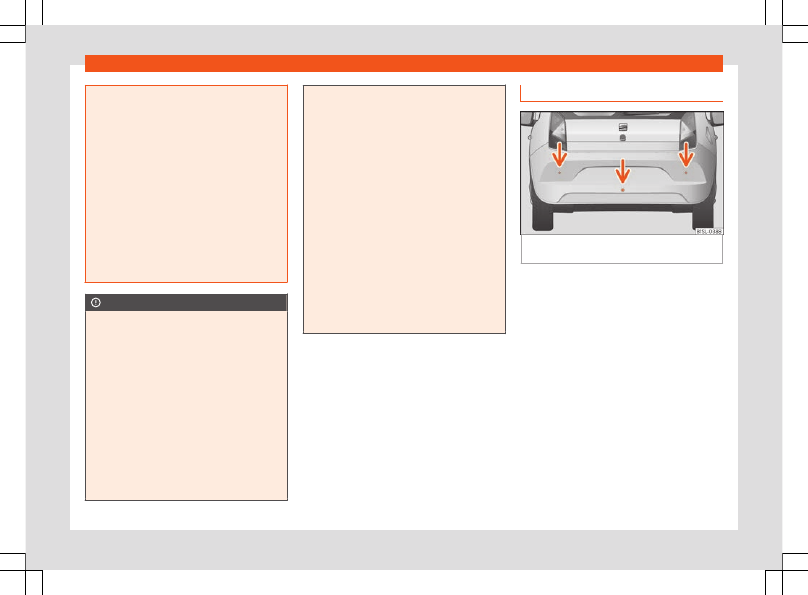

Fig. 143

Parking distance warning system sen-

sors on the rear bumper

The sensors of the parking distance warning
system are situated on the rear bumper

›››

Fig. 143

Switching the parking distance warning
system on and off

●

Switch on:

With the ignition switched on, se-

lect reverse gear. A short audible warning
confirms that the parking distance warning
system is switched on and functioning.

●

Switch off:

Release reverse gear.

Special features of the parking distance
warning system

●

The parking distance warning system

sometimes registers water on the sensors as
an obstacle.

156

Help with parking and manoeuvring

●

If the distance does not change, the warn-

ing signal will sound less loudly after a few
seconds. If the continuous signal sounds, the
volume will remain constant.

●

When the vehicle moves away from the ob-

stacle, the beeping sound automatically
switches off. When getting close again, it re-
connects.

●

Your SEAT dealership can adjust the volume

of the warning signals.

Note

A fault in the parking distance warning sys-
tem is indicated through a brief audible
warning that is constant for about 3 sec-
onds when switching it on the first time.
Have the parking distance warning system
checked as soon as possible at a special-
ised workshop.

Optical parking system (OPS)

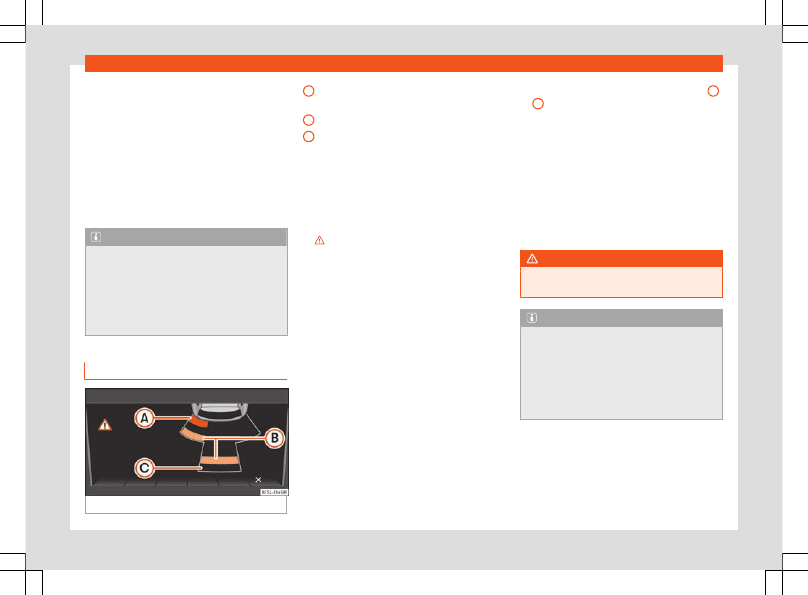

Fig. 144

On-screen OPS display

An obstacle was detected in the collision
area
An obstacle was detected in the segment
Zone behind the vehicle registered

The optical parking system is an extension of
the parking distance warning system

›››

page 156

The radio screen displays the area behind
the vehicle recorded by the sensors. Any ob-
stacles are displayed in relation to the vehicle

›››

Connect the indication

●

Activate the parking distance warning sys-

tem

›››

page 156

. The OPS switches on auto-

matically.

Manually disconnect the indication

●

Remove reverse gear.

Zones explored

The approximate measurement range of the
sensors is:

1.50 m

0.60 m

Screen display

The image displayed represents the super-
vised zones in several segments. As the vehi-
cle approaches an obstacle, it approaches

Rear area:
Rear side area:

the displayed vehicle segment

›››

Fig. 144

. Ultimately, when the second-to-last

segment is shown, the collision area has been
reached.

Stop the vehicle!

Segment colours (colour display)

The distance to the obstacle behind is

approximately

31-150 cm

. The audio

signal is intermittent.

The distance to the obstacle behind is

approximately

0-30 cm

. The audio sig-

nal is continuous.

WARNING

Do not be distracted from traffic to look at
the display.

Note

●

SEAT recommends practising using the

parking distance warning system in a traf-
fic-free zone or in a car park to familiarise
yourself with the system and its operation.

●

The display on the radio display of the

area explored by the sensors may take up
to 5 seconds.

Yellow

Red

157

Driving

Towing bracket device

Trailer mode

Information on driving with a trailer

The vehicle is

not

certified for trailer coupling.

The vehicle is not factory-equipped with a
towing bracket, nor is it possible to retrofit it.

WARNING

Installing a towing bracket on the vehicle
may cause accidents and serious injuries
while operating the vehicle.

●

Never install a towing bracket on the ve-

hicle.

●

The trailer may be released from the ve-

hicle when the vehicle is moving.

CAUTION

Any type of towing bracket installed on the
vehicle can cause serious and costly dam-
age that are not covered under the SEAT
guarantee.

158

High-voltage battery

Battery

High-voltage battery

Safety warnings relating to the high-voltage network and the high-voltage battery

Introduction

Fig. 145

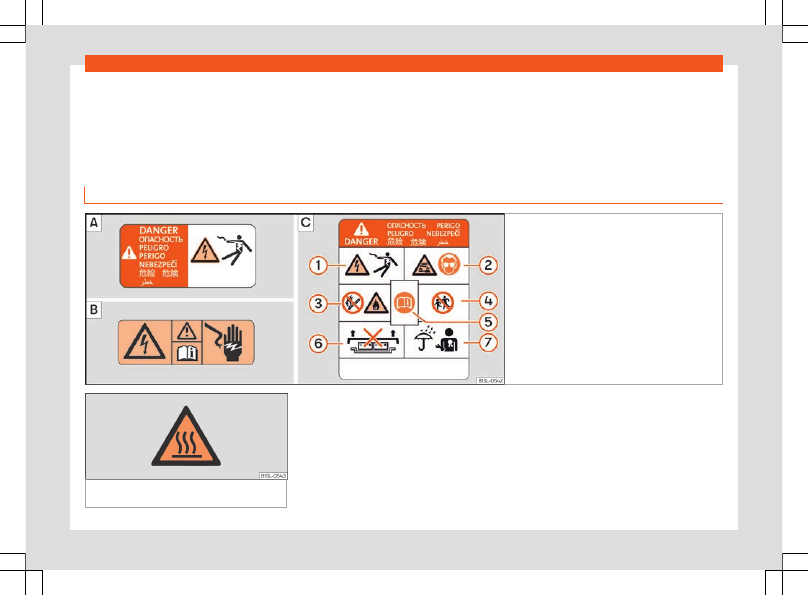

Warning signs (schematic representa-

tions):



High-voltage components.



General

high-voltage warning sign.



High-voltage battery

warning sign.

Fig. 146

When charging, in the engine com-

partment: hot surface warning.

Overview of the high-voltage system

The high-voltage system is made up by,
among others, the following components:

●

High-voltage battery

●

Electronic power module

●

Electric engine

●

High-voltage air conditioning compressor

●

High-voltage battery charger

●

High-voltage battery charging socket

●

Orange coloured high-voltage cables and

connectors

●

High-voltage heater

The works that are to be carried out on the
high-voltage system should be performed ex-
clusively by a specialised workshop with duly

159

Battery

qualified technical staff, trained according to
the SEAT guidelines

›››

page 176

Handling the warning signs and stickers

›››

page 207

General high-voltage warning signs

The high-voltage warning signs

›››

Fig. 145



and



warn of the existence of high electrical

voltage

›››

. The following vehicle parts may

come with these warning signs:

●

The covers and lids behind which there are

high-voltage components under high-volt-
age.

●

All the high-voltage components, including

the high-voltage battery.

●

The lock carrier, in the engine compart-

ment.

High-voltage battery warning sign

The high-voltage battery comes with a sign
that warns of its hazards.

Key to

›››

Fig. 145



High-voltage can cause serious injuries or
even death. Never touch the battery
poles with bare fingers, tools, jewellery or
other metal objects.
The high-voltage battery contains haz-
ardous liquid and solid substances. In the
event of gases emitting from the battery,
these could cause serious burns and

blindness. When performing works on
high-voltage battery, always use appro-
priate eye protection and and protective
clothing to avoid skin and eyes from com-
ing into contact with the battery fluid. If
the battery fluid were to come into con-
tact with skin or eyes, immediately rinse
the affected area with clean water for at
least 15 minutes and seek medical assis-
tance.
The high-voltage battery may burn. Nev-
er expose the high-voltage battery to
sources of fire, sparks or unprotected
flames. Always handle the high-voltage
battery with care to avoid damaging it
and, consequently, fluid from leaking.
Always keep children away from from the
high-voltage battery.
The instruction manual and the workshop
information contain further information
and warnings to this regard.
An inappropriate handling of the high-
voltage battery can cause serious injuries
or death. Never remove the cover from
the high-voltage battery and never re-
move the high-voltage battery.
An inappropriate handling of the high-
voltage battery can cause serious injuries
or death. All maintenance works involving
the high-voltage battery should

only

performed by duly qualified and trained
technical staff



. Never modify the high-

voltage battery in any way. When the

high-voltage battery is open, ensure it
does not come into contact with water or
other liquids. Liquids may cause short cir-
cuits, electrical shocks and burns.

WARNING

The vehicle’s high-voltage network and the
high-voltage battery are hazardous and
can cause burns, other injuries and an
electrical shock with deathly consequen-
ces.

●

Always consider that the high-voltage

battery is fully charged and that all the
high-voltage components are powered.
This may may be the case even with the
electric drive system and the ignition dis-
connected.

●

Never touch the high-voltage cables or

the high-voltage battery and its poles, and
never touch them with jewellery or other
metal objects, especially when the cables,
battery and its poles are damaged.

●

Never take it upon yourself to perform

any type of work on the high-voltage net-
work, on the high-voltage cables or the
high-voltage battery.

●

Never open the components or parts of

the high-voltage network. Never perform
any maintenance work on these elements,
nor repair or uncouple the high-voltage
network.

●

Never damage, modify or remove the or-

ange coloured high-voltage cables, and

160

High-voltage battery

never uncouple them from the high-voltage
network.

●

Never open, modify or remove the cover

from the high-voltage battery.

●

Only duly qualified and trained techni-

cians are authorised to perform works on
the high-voltage system and on any other
systems on which these may have indirect
influence.

●

To perform works close to high-voltage

components and cables which require the
use of sharp tools, which may deform or re-
lease shavings, or sources of heat, such as
works involving welding, soldering, use of
hot air or thermal gluing, you must first en-
sure the system is not powered. Only duly
qualified and trained technicians are au-
thorised to leave the high-voltage system
without power.

●

When performing any work on the high-

voltage system and the high-voltage bat-
tery, ensure you bear in mind the SEAT
guidelines and standards.

●

Keep the vehicle key in a safe place at a

safe distance from the vehicle to prevent
the ignition from turning on by mistake.

●

The gases that are released or leaked

from the high-voltage battery may be toxic
or flammable.

●

Any damage caused to the vehicle or the

high-voltage battery may lead to an imme-
diate or subsequent leak of toxic gases.
These gases can also cause a fire. In the

event of any damage, always open the ve-
hicle windows so the gases can flow out of
the vehicle. Do not inhale the gases.

●

Never touch the fluids or come into con-

tact with the gases that may be released
from the high-voltage battery, especially if
the battery has been damaged.

●

In the event of a fire, leave the danger

area and call the fire department. Inform
the fire fighters that the vehicle is fitted
with an electric drive system.

●

Always inform the emergency service

that the vehicle is fitted with a high-voltage
battery.

WARNING

If works are performed on the high-voltage
system and on the high-voltage compo-
nents in an inappropriate manner, this may
lead to faults in the operation, accidents
and injuries.

●

Only duly qualified and trained techni-

cians are authorised to perform works on
the high-voltage system and on any other
systems on which these may have indirect
influence.

WARNING

Electric vehicles do not make any noise
when the vehicle is not moving and very lit-
tle noise when the vehicle is moving. Hence
other road users, such as pedestrians or

children, cannot hear or perceive their
presence, or they do so with difficulty. This
may lead to accidents and cause injuries,
for example, in residential areas, when ma-
noeuvring or moving in reverse gear.

CAUTION

After an accident or having hit an obstacle
with the vehicle underside, the high-volt-
age battery must be checked by duly
qualified and trained technicians.

Charging the high-voltage
battery

Control lamps



Its lights up yellow. The charge
level display needle is in the area

marked in red.

The high-voltage battery charge has reached the re-

serve level.

Charge the high-voltage battery.

161

Battery



Its lights up yellow. A text mes-
sage will also appear on the in-
strument panel display.

The

Eco

Eco+

driving profile will be active. The

power is reduced and certain consumers are auto-
matically switched off, such as the air conditioning
system. The vehicle may already be travelling in re-
serve mode.

The high-voltage battery charge has reached the re-

serve level. The vehicle autonomy will only be of a
few kilometres.
Charge the high-voltage battery immediately.



Its lights up yellow.

The power is reduced and there is very little autono-

my.
A text message will also appear on the instrument

panel display.
The maximum speed is limited to 80 km/h (50 mph).

The

Eco+

driving profile will be active.

The high-voltage battery is discharged. There is only

sufficient autonomy for a few hundred metres. Stop
the vehicle in a safe place. Charge the high-voltage
battery immediately.

The control lamps light up together when the
ignition is switched on and should turn off af-
ter approximately 2 seconds. This is the time
taken for the function check.

WARNING

Observe the safety warnings

›››

in Con-

trol and warning lamps on page 66

Introduction

Fig. 147

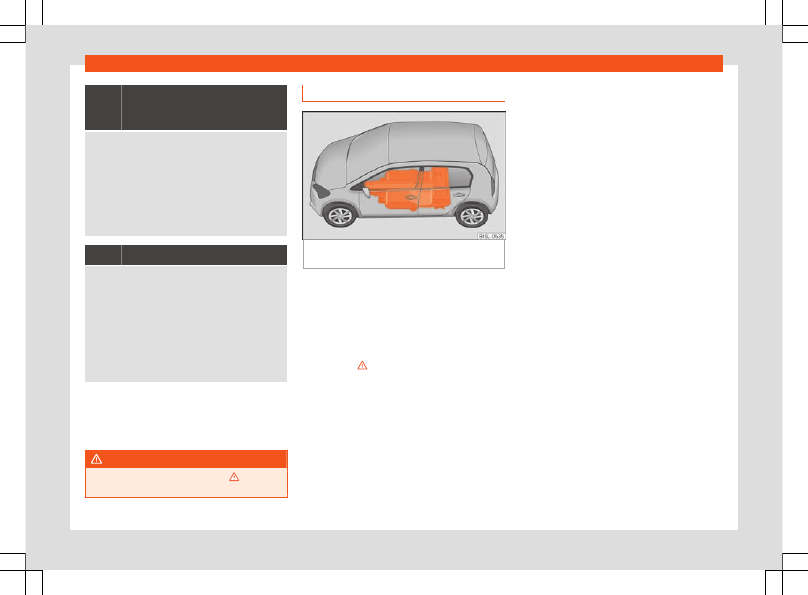

On the vehicle floor: location of the

high-voltage battery.

The vehicle’s electric engine is operated by
the high-voltage battery, which is located on
the vehicle floor

›››

Fig. 147

The high-voltage battery can either be
charged immediately or programmed

›››

page 169

. Always bear in mind the safety

warnings

›››

Before charging the battery, disconnect the
drive system

›››

page 137

Charge options

●

Charge from a power socket or a charging

station (“alternating voltage”)

›››

page 166

●

Home charging station (wallbox) (“alternat-

ing voltage”)

›››

page 168

●

Fast charge at a charging station (“direct

current”)

›››

page 167

To charge the high voltage battery with alter-
nating current, SEAT recommends using an
alternating current charging station with
more than 3.6 kW. This charging method is
more efficient than using a socket.

Protection against fault current

The vehicle is fitted with a device to provide
protection against fault direct current (fault
DC current). This avoids the fault DC cur-
rents, which may be caused during charging,
to reach the electrical installation of the
home through the charging cable and for
them to damage the operation of the differ-
ential switch (in Germany, for example, the
differential switch is A type) while charging.

Night power rates

There are electricity suppliers that offer
cheaper night power rates that can be used
to charge the high-voltage battery. To take
advantage of these periods of time, it is possi-
ble to programme the preferred time for
charging the vehicle using the

Energy man-

agement

or at the home charging station

(wallbox).

High-voltage battery warranty

The warranty covering new SEAT vehicles al-
so includes the vehicle’s high-voltage battery

›››

page 198

162

High-voltage battery

Batteries age based on their use and their
operating time. It is advisable that you know
certain details regarding the correct handling
and care of the high-voltage battery so this
remains in good condition for longer and can
be used in a reliable manner. Carefully read
the following information and take into ac-
count the indications when using the vehicle.

WARNING

If the battery is charged in an inappropriate
manner, if no consideration is given to the
general safety measures, power sockets
and charging cables in poor condition are
used or the high-voltage battery is used in
an inadequate manner, this could lead to
short circuits, electrical shocks, explosions,
fires, burns and serious injuries, even death.

●

Always respect the stipulated order of

the operations to avoid the risk of suffering
an electrical shock or serious injuries due
to the residual energy in the charge accu-
mulator! Never unplug the connector from
the electrical network during the charge
process.

●

Only connect the charging cable to a

power socket that is protected from water,
humidity and other liquids.

●

When charging, only use power sockets

that are appropriately fitted, have been
checked and are not damaged, as well as
electrical installations that are in perfect
working order. Duly qualified technicians

should check the power sockets and the
electrical installation on a regular basis.

●

Never use damaged charging connectors

or cables. Before using the charging con-
nectors or cables, always check they are
not damaged.

●

Only use the charging cables supplied

with the vehicle or the charging station ca-
ble. In the event of needing replacement,
we recommend you only use SEAT charging
cables.

●

Never modify or repair the electrical

components, especially those belonging to
the high-voltage system.

●

Never charge the vehicle in places where

there is a danger of explosion. The compo-
nents of the charging cable can cause
sparks and, therefore, may ignite flamma-
ble fumes or explosives.

●

Never use the charging cable in combi-

nation with an extension cable, a cable
reel, a power strip or an adapter, such as a
travel adapter or a timer.

●

Always protect the connectors from hu-

midity, water and other liquids.

●

For safety reasons, never perform other

works on the vehicle while charging.

●

Always complete the charging process

before unplugging the connector from the
electrical network. Otherwise the charging
cable and the electrical installation may
also be damaged.

●

Always remove the charging cable be-

fore starting the vehicle. Place the protec-
tive caps and close the cover of the battery
charging socket.

●

Never charge several vehicles simultane-

ously from the power sockets of the same
protected electrical circuit. To charge oth-
er vehicles simultaneously, use another
electrical circuit. Always take into consid-
eration the maximum capacity of the elec-
trical circuit used. Given the case, contact
duly qualified personnel specialised in
electrical installations.

CAUTION

Charging the high-voltage battery fre-
quently with a high charge power could
lead to a permanent reduction in the bat-
tery’s charge capacity. Charge the high-
voltage battery preferably using a low
charge capacity, i.e. a home charging sta-
tion (wallbox) or a power socket that have
been checked.

CAUTION

Leaving the vehicle parked for a long peri-
od of time with the high-voltage battery
discharged may cause irreversible damage
to the battery.

●

Always charge the high-voltage battery

immediately.

163

Battery

Note

●

The high-voltage battery can only be

charged at charging stations that meet the
following requirements and regulations:

–

IEC 61851 and IEC 62196 (type 2 con-
nector).

●

In the event of very low or very high tem-

peratures, it may only be possible to
charge the high-voltage battery in a limited
manner.

●

To avoid possible compatibility problems

with charging infrastructures, SEAT recom-
mends the use of cables and home charg-
ing stations recommended by the Volkswa-
gen Group.

Electric range and charge level dis-
play

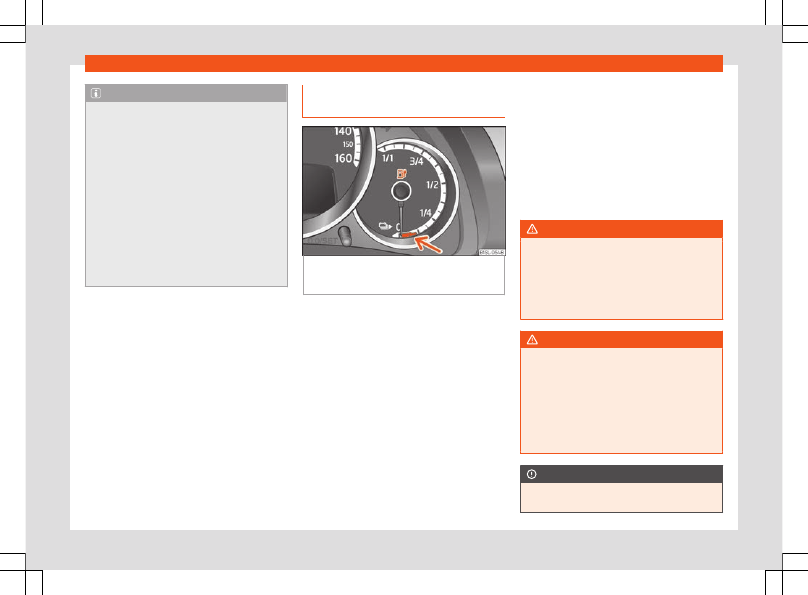

Fig. 148

On the instrument panel: indicator of

the high-voltage battery charge level with the

reserve area marked in red (arrow).

Range indication

The vehicle range can be viewed on the in-
strument cluster screen

›››

page 59

and on

the application available for mobile phones
(SEAT CONNECT services

›››

page 130

). The

value shown is calculated and updated
based on the driving style. Hence, the au-
tonomy may vary even with the high-voltage
battery fully charged.

High-voltage battery reserve level

The charge level display located on the in-
strument panel shows the available charge
of the battery and the reserve area, marked
in red (arrow)

›››

Fig. 148

When the high-voltage battery charge level
has reached the reserve level, the control
lamp



lights up yellow.

In this case, the relevant message

›››

page 161

will appear in the instrument

panel display. Several acoustic warnings are
also sounded.

Charge the high-voltage battery as soon as
possible to avoid the vehicle from stopping.

WARNING

If the vehicle is driven with a very low a
charge level of the high-voltage battery,
the vehicle may stall in traffic, causing seri-
ous damage or accidents and injuries.

●

Always ensure that the charge level of

the high-voltage battery is sufficient!

WARNING

When the high-voltage battery charge lev-
el reaches the reserve level, it is possible
that certain driving properties may vary, i.e.
the acceleration behaviour of the vehicle.

●

Always adapt the speed and driving style

to the conditions of visibility, weather, road
and traffic, as well as the charge level of
the high-voltage battery.

CAUTION

The self-discharge of the high-voltage bat-
tery, for example due to the vehicle being

164

High-voltage battery

parked for several months, can cause dam-
age to the battery in the event of high am-
bient temperature and the battery having a
low charge level.

●

Always ensure that the charge level of

the high-voltage battery is sufficient!

Note

If the outside temperature is very low and,
therefore, the high-voltage battery is very
cold, the autonomy may be reduced.

Identification of compatible charg-
ing infrastructure

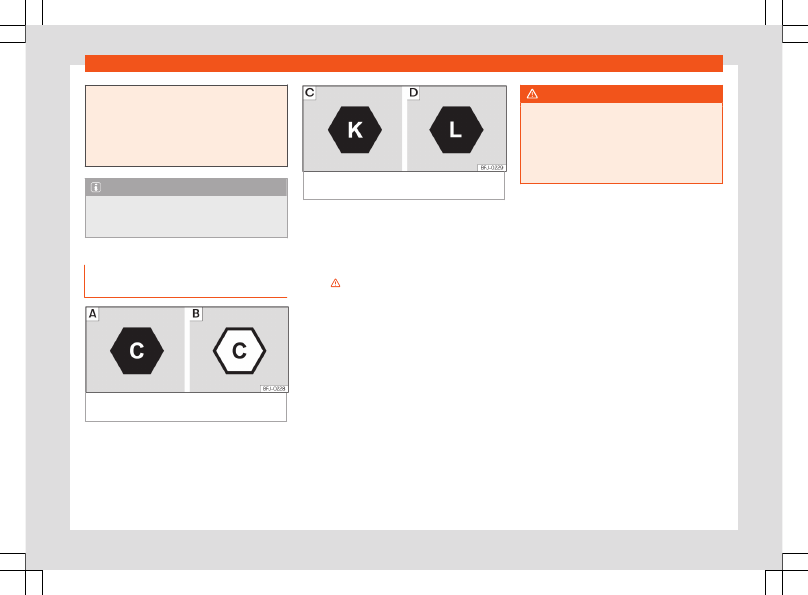

Fig. 149

Identification of alternating current

(AC) and type 2 connector.

Fig. 150

Identification of direct current (DC)

and the vehicle's CCS connector

Compatibility between vehicles and
charging infrastructure

The following indicators according to DIN EN
17186 report whether the infrastructure's
charging connectors are suitable for the vehi-
cle

›››

Indicators

›››

Fig. 149

In the vehicle
At the charging station

Indicators

›››

Fig. 150

Voltage up to 500 volts
Voltage of up to 1000 volts.

The indicators are located on the vehicle's
charging socket, on components of the local
charging infrastructure (charging station,
socket) and on the charging cable. The indi-
cators refer to standardized charging sys-
tems as per the DIN EN 62196 standard.









WARNING

Charging the vehicle at unverified electri-
cal installations can cause serious injury
and damage.

●

If there is no indicator or if the charging

infrastructure is unknown, an electrical in-
stallation expert should be consulted first.

165

Battery

Charging from a power socket or a
charging station (AC)

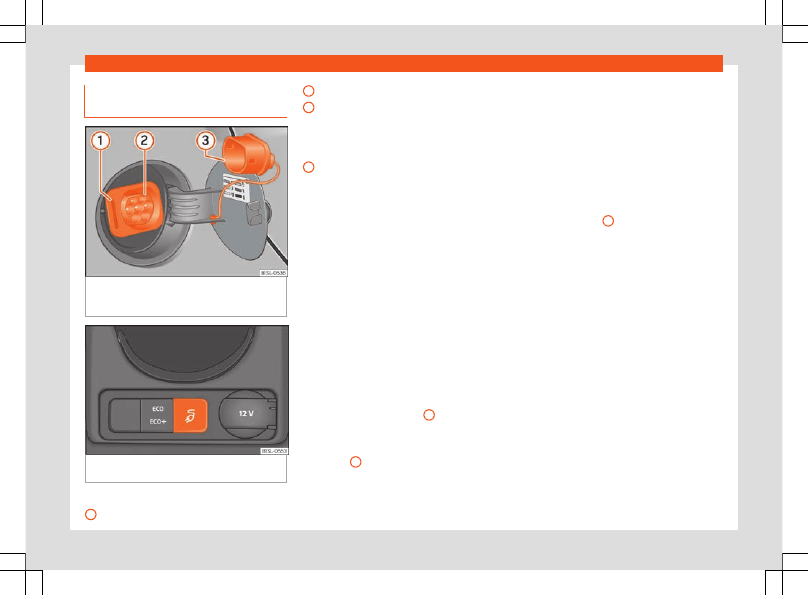

Fig. 151

Behind the cover of the battery charg-

ing socket: charging socket (schematic repre-

sentation).

Fig. 152

At the bottom of the centre console:

charging mode button.

Key to

›››

Fig. 151

Charging process display

Charging socket
Protective cap

The high-voltage battery of the vehicle can
be charged using

alternating voltage (AC)

through the corresponding charging socket

Always bear in mind the safety warnings

›››

page 159

before starting the charging

process.

Before charging the battery, always discon-
nect the drive system

›››

page 137

Connecting the charging cable

●

If on, remove the protective caps.

●

First connect the charging cable to the

power supply or remove this cable from the
charging station.

●

Fully unwind the charging cable.

●

With the vehicle unlocked, press the cover

of the battery charging socket, located at the
rear of the right side, to open it

›››

Fig. 151

●

Plug the charging connector into the

charging socket

›››

Fig. 151

As soon as the connector is detected, the
charging process display lights up yellow

›››

Fig. 151

. The control lamp



is on in the

instrument panel display.

Automatic start of the charging process

If the programmed charge is not active, the
charging process starts immediately. Make
sure the charging station is switched on.

During the charging, the charging connector
is locked and cannot be removed.

During the charging

During the charging, the charging process
display

›››

Fig. 151

flashes green. The con-

trol lamp



flashes yellow on in the instru-

ment panel display.

The remaining charging time is shown on the
instrument panel display.

Pausing or ending the charging process

Press the charging mode button

›››

Fig. 152

pause the charging process. The charging
connector remains locked. The charging
process can be reactivated by pressing the
charging mode button again.

If you wish to unplug the charging connector,
unlock the vehicle using the key.

If the charging ends automatically and the
high-voltage battery is charged:

●

Unlock the vehicle with the ignition switch-

ed off.

●

Remove the charging connector from the

charging socket within 30 seconds.

166

High-voltage battery

●

Unplug the charging cable from the power

supply source.

●

If available, replace the protective caps.

●

Close the cover of the battery charging

socket until you hear it has engaged.

Charging for the first time and charging
after not being used for a long period of
time

When the high-voltage battery is new or has
not been charged for a long period of time, it
is possible that the battery may not reach its
maximum charge level until it is charged sev-
eral times. This is due to technical reasons
and has nothing to do with any fault in the ve-
hicle.

If you are not going to use the vehicle for a
long period of time, make sure you charge the
high-voltage battery within a period of 4
months at the latest.

Note

If once the charge is completed you leave
the charging cable connected, the high-
voltage battery will not discharge due to
the use of the vehicle’s electricity consum-
ers.

Fast charge at a charging station
(CC)

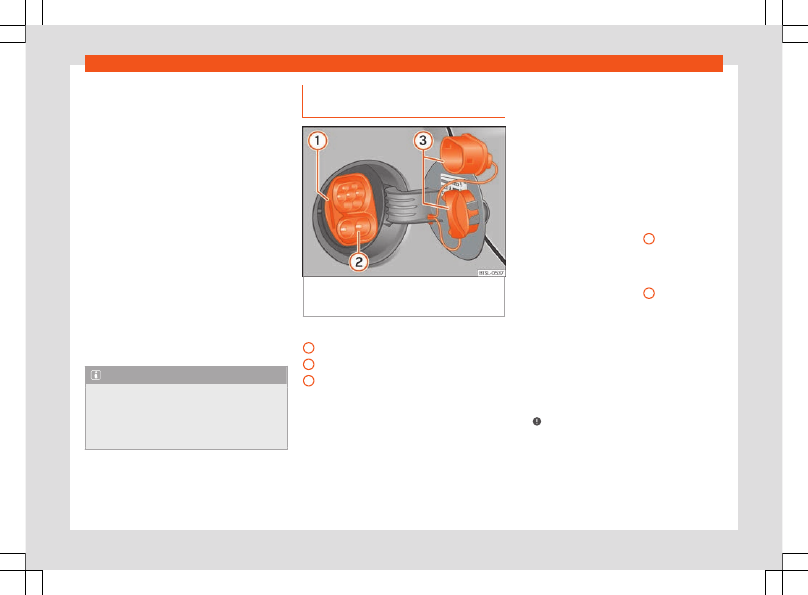

Fig. 153

Behind the cover of the battery charg-

ing socket: charging socket (schematic repre-

sentation).

Key to

›››

Fig. 153

Charging process display
Charging socket
Protective caps

Depending on the equipment, the vehicle can
be charged with

direct current (DC)

at a

charging station.

Take into account the general information re-
lating to charging the high-voltage battery
and the preparations to be carried out before
charging

›››

page 159

Before charging the battery, always discon-
nect the drive system

›››

page 137

Connecting the charging cable

Fast charge is carried out through the con-
nection located at the bottom of the charging
socket.

●

Remove the charging cable from the

charging station.

●

With the vehicle unlocked, press the cover

of the battery charging socket, located on
the side panel, to open it

›››

Fig. 153

●

Remove the two protective caps from the

charging socket

›››

Fig. 153

. To remove the

bottom protective cap, first remove the top
cap.

●

Plug the charging connector into the

charging socket

›››

Fig. 153

As soon as the connector is detected, the
charging process display lights up yellow.
The charging connector is locked. The con-
trol lamp



is on in the instrument panel dis-

play.

Automatic start of the charging process

In this case, activate the charging station

›››

The charging process will start immediately.

During the charging, the charging connector
remains locked and cannot be removed from
the charging socket.

167

Battery

During the charging

During the charging, the charging process
display

›››

Fig. 153

flashes green. The con-

trol lamp



flashes yellow on in the instru-

ment panel display. Do not unplug the charg-
ing connector.

The remaining charging time is shown on the
instrument panel display.

Ending the charging process

The charging process can be ended by
pressing the charging mode button



loca-

ted at the bottom of the centre console of the
vehicle or directly from the charging station.
Unlock the vehicle with the button



on the

key or the button



located on the driver’s

door. The charging process will stop for ap-
proximately 30 seconds and the charging
connector will unlock. Remove the charging
connector from the charging socket:

●

Remove the charging connector from the

charging socket.

●

Place the protective caps on the charging

socket

›››

Fig. 153

●

Close the cover of the battery charging

socket until you hear it has engaged. The
cover should be flush-mounted on the body-
work.

Emergency release of the charging con-
nector

If it is not possible to remove the charging
connector after ending the charging process,
perform an emergency release of the same

›››

page 171

and remove it.

CAUTION

To use the charging station, bear in mind
the manufacturer’s indications and usage
instructions.

Note

The stationary air conditioning of the vehi-
cle using a charging station is only possible
during the charging process. As an alterna-
tive, the “Air conditioning without an exter-
nal power supply” can be set in the energy
manager



of the infotainment system.

Charging at an AC home charging
station (wallbox)

Fig. 154

Home charging station (wallbox).

Charging at a fixed home charging station
(wallbox)

›››

Fig. 154

through the home power

supply achieves a higher charging power
than using a domestic socket, but not higher
than charging with DC

›››

. The charge time

diminishes significantly. The device automati-
cally selects the maximum amperage based
on the electrical installation of the property.

Bear in mind the procedure to be followed for
charging from a power socket or a charging
station

›››

page 166

CAUTION

The home charging station (wallbox) must
be installed by duly qualified technicians.

168

High-voltage battery

●

Before using the home charging station

(wallbox) for the first time, ensure the prop-
erty’s electrical installation is checked.

●

Specialised technicians should check the

electrical installation on a regular basis.

Note

The home charging station (wallbox) can
be purchased as an accessory.

●

Ask about home charging stations (wall-

box) at a SEAT dealer.

●

Bear in mind the operating instructions of

the home charging station (wallbox) before
using it.

Immediate charging and program-
med charging

Fig. 155

At the bottom of the centre console:

charging mode button.

The charge mode button



›››

Fig. 155

loca-

ted at the bottom of the centre console can
be used to choose between immediate and
programmed charging.

Immediate charging

The charging process of the high-voltage
battery starts immediately as soon as the the
charging cable is connected. The high-volt-
age battery will fully charge. During this time,
the charging mode button



flashes.

Press the charging mode button



to pause

the charging process.

If a timer is activated with a departure time,
press the charging mode button to change to
“programmed charging”.

Programmed charging

●

Open the

e-manager



in the app (SEAT

CONNECT services).

●

Select a timer.

●

Insert the departure time, being the time at

which the high-voltage battery must be
charged.

●

Activate the timer by ticking the verification

box



If the charge level is very low, the high-volt-
age battery will start charging immediately
until reaching the low charge limit.

If the charging cable is plugged in, the sym-
bol of the charging mode button

›››

Fig. 155

lights up.

Not all charging stations allow programmed
charging.

Minimum charge limit of the battery

In all charging modes using a power socket,
the high-voltage battery will start charging
immediately until reaching the low charge
limit. This avoids the battery charge level
from being too low.

The value can be adjusted in the

e-manager



of the SEAT CONNECT services.

Maximum charge limit of the battery

The high-voltage battery will only charge un-
til reaching the set value for the maximum
charge limit of the battery. This helps protect
the high-voltage battery

›››

page 161

The value can be adjusted in the

e-manager



of the SEAT CONNECT services.

169

Seat Mii electric (2021 year). Manual in english - page 10
