Renault Zoe (2024 year). Manual in english - page 15

4.5

ENG_UD82785_4

Niveaux (X10 - Renault)

LEVELS

(2/3)



Brake fluid

The level should be read with the engine

switched off and on level ground. This

should be checked frequently, and im-

mediately if you notice even the slight-

est loss in braking efficiency.

Replacement intervals

Refer to the Maintenance Document for

your vehicle.

Topping up

After any operation on the hydraulic

circuit, a specialist must replace the

fluid. Only use fluids approved by our

Technical Department (and taken from

a sealed container).

Level 2

It is normal for the level to drop as the

brake linings wear, but it must never

drop lower than the

“MINI”

warning

line.

If you wish to check the disc wear your-

self, you should obtain the document

explaining the checking procedure from

our network or from the manufacturer’s

website.

If there is an abnormal or repeated

drop in the fluid level, please consult

an authorised dealer.

The vehicle drive system

in an electric vehicle uses

a direct voltage of approxi-

mately 400 volts.

This system can get hot during

and after switching off the ignition.

Observe the warning messages on

the labels in the vehicle.
Any intervention or modification on

the vehicle’s 400 V electrical system

(components, cables, connectors,

traction battery) is strictly prohibited.

The risk of serious burns or elec-

tric shocks can lead to death.

The engine cooling fan may also
start at any moment. The



label in the engine compartment re-

minds you of this.

Risk of injury.

Replacement intervals

Refer to the Maintenance Document for

your vehicle.

windscreen washer ....................................

(current page)

brake fluid ..................................................

(current page)

levels:

brake fluid ............................................

(current page)

levels:

windscreen washer reservoir ...............

(current page)

tanks and reservoirs:

windscreen washer ..............................

(current page)

tank

Brake fluid ............................................

(current page)

4.6

ENG_UD82785_4

Niveaux (X10 - Renault)



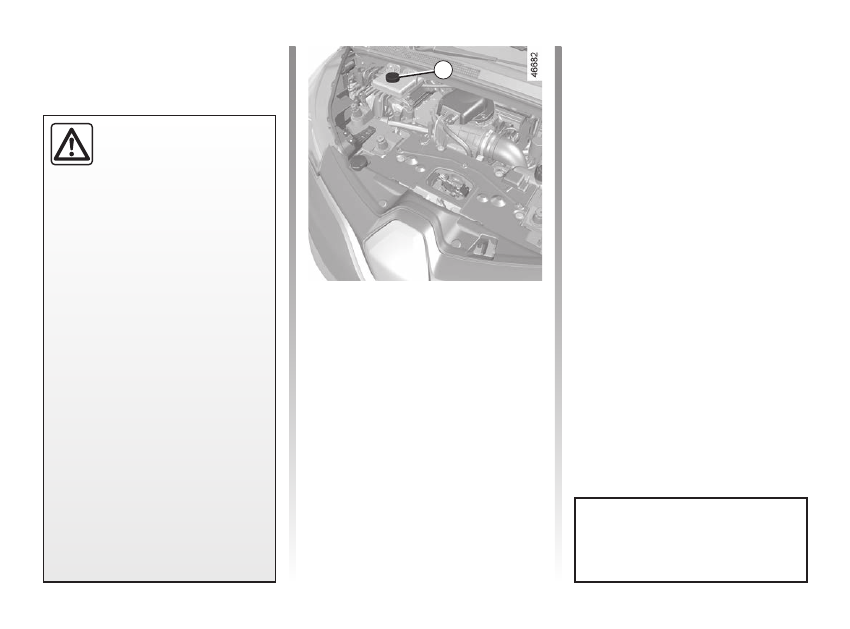

Windscreen washer

reservoir

Topping up

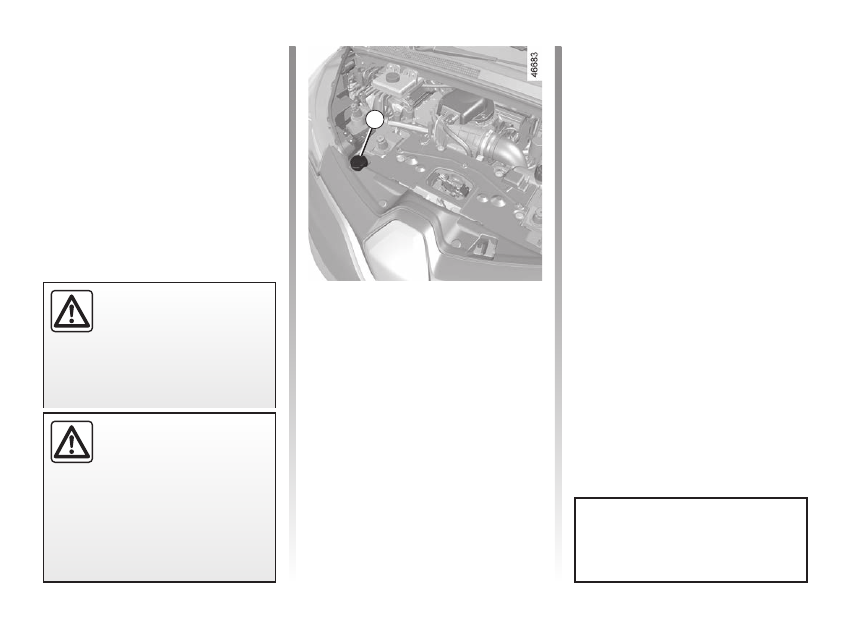

Open cap

, fill until you can see the

fluid, then refit the cap.

Liquid

Only use windscreen washer fluid con-

taining antifreeze.

We advise you to consult an approved

dealer or a qualified professional.

LEVELS

(3/3)

If there is an abnormal or repeated

drop in the fluid level, please consult

an authorised dealer.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

When working in the engine

compartment, certain parts

may be hot. In addition,

the engine cooling fan can

come on at any moment.

Risk of burns or serious injury.

Note:

do not use hard water (risk of

damage to the priming pump, limescale

building up on the pump and the jets).

Jets

Use a tool such as a needle to adjust

the height of the windscreen washer

jets.

12 volt battery

maintenance ........................................

(up to the end of the DU)

12 volt battery ............................................

(up to the end of the DU)

4.7

ENG_UD75337_2

Batterie (X10 - Renault)

Maintenance/replacement

The charge status of the 12 volt bat-

tery

can decrease, especially if you

use your vehicle:

– when the outside temperature drops;

– after extended use of energy-con-

suming devices with the engine

switched off.

The secondary battery is a 12 V battery:

this supplies the energy required to op-

erate vehicle equipment (lights, wind-

screen wipers, audio system, etc) and

certain safety systems, such as ABS.

You should not open it or add any

fluid.

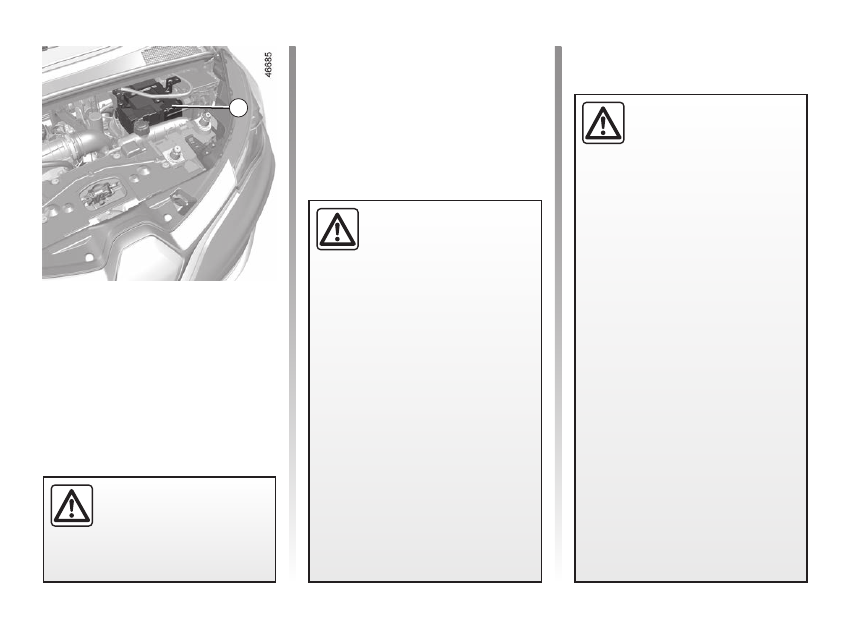

Secondary 12 V battery

SECONDARY 12 V BATTERY

(1/2)

Do not do any work under

the bonnet when the vehicle

is charging or when the igni-

tion is switched on.

For your safety and the

proper operation of the ve-

hicle’s electrical equipment

(lights, windscreen wipers,

braking assistance etc.), any work

on the secondary 12 V battery (re-

moval, disconnection etc. )

must

carried out by a specialist profes-

sional.

Risk of serious burns or electric

shocks.

Respect

categorically

the replace-

ment intervals (without exceeding

them) as stated in the maintenance

document.

The battery is a specific type.

Please ensure it is replaced with the

same type.

Contact an Authorised Dealer.

The vehicle drive system

in an electric vehicle uses

a direct voltage of approxi-

mately 400 volts.

This system can get hot during

and after switching off the ignition.

Observe the warning messages on

the labels in the vehicle.
Any intervention or modification on

the vehicle’s 400 V electrical system

(components, cables, connectors,

traction battery) is strictly prohibited.

The risk of serious burns or elec-

tric shocks can lead to death.

The engine cooling fan may also

start at any moment.

The



label in the engine com-

partment reminds you of this.

Risk of injury.

4.8

ENG_UD75337_2

Batterie (X10 - Renault)

SECONDARY 12 V BATTERY

(2/2)

Breakdown recovery

To avoid damaging your vehicle, do

not recharge the secondary 12 V

battery using:
– an external battery charger;
– a battery from another vehicle.
Please contact an Authorised

Dealer.

Do not disconnect the sec-

ondary 12 V battery.

Risk of serious burns or

electric shocks.

Do not use your electric vehicle to

restart the 12 volt battery in another

vehicle. The 12 volt electric power of

an electric vehicle is not enough to

perform such an operation.

Risk of damage to vehicle

A 2

Label A

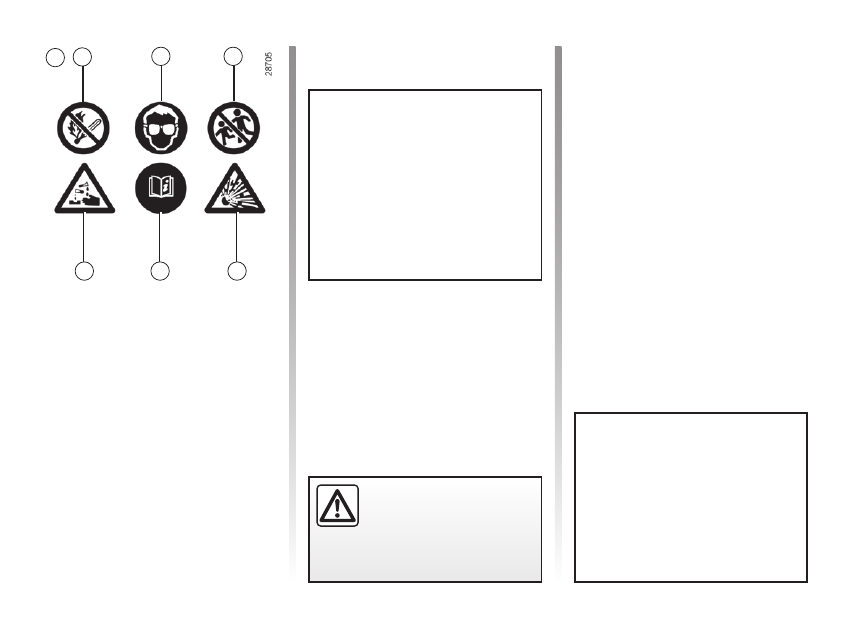

Observe the indications on the battery.

naked flames and smoking are forbid-

den;

eye protection required;

keep away from children;

explosive materials;

please consult the vehicle user

manual;

corrosive substances.

tyre pressure..............................................

(up to the end of the DU)

tyre pressures ............................................

(up to the end of the DU)

tyres ...........................................................

(up to the end of the DU)

4.9

ENG_UD57761_1

Pression de gonflage des pneumatiques (X10 - Renault)

Tyre Pressure

TYRE PRESSURE

: dimension of the tyres fitted to the

vehicle.

: tyre pressures for the front wheels.

: tyre pressures for the rear wheels.

Tyre safety and chain fitting:

for

information on servicing conditions

and, depending on the vehicle ver-

sion, the use of chains.

➥

5.6.

For your safety, please re-

spect the speed limit.

When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.

They must: either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or conform to those recom-

mended by an authorised dealer.

Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.

Risk of loss of control of the ve-

hicle.

Label A

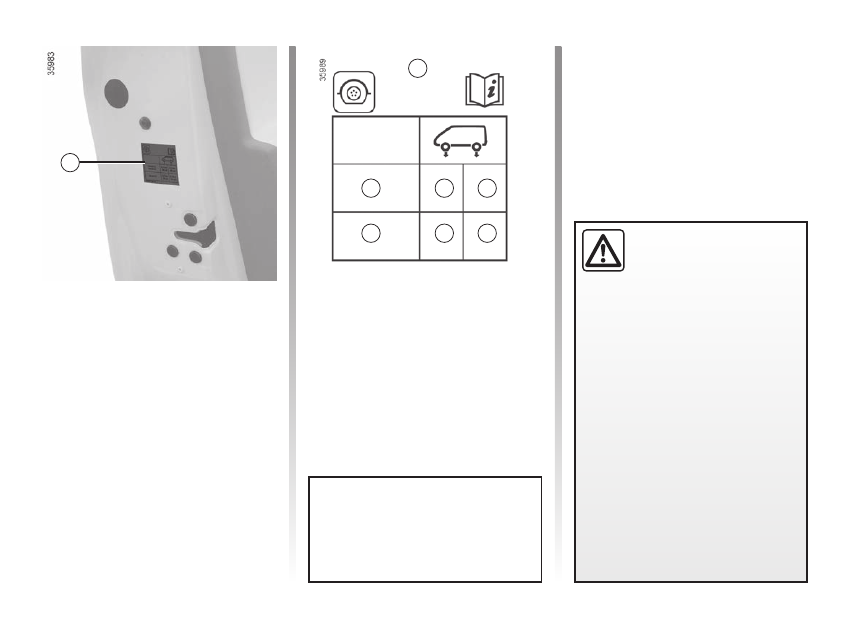

Open the driver’s door to read it.
Tyre pressures should be checked

when the tyres are cold.
If the tyre pressures cannot be checked

when the tyres are

cold

, increase the

pressures from

0.2

0.3

bar (or

3 PSI

Never deflate a hot tyre.

Vehicle fitted with a tyre pressure

monitoring system

In the event of under-inflation (punc-
tures, under-inflation, etc.), the



warning light appears on the instrument

panel.

➥

2.18.

maintenance:

bodywork .............................................

(up to the end of the DU)

washing .....................................................

(up to the end of the DU)

paint

maintenance ........................................

(up to the end of the DU)

anti-corrosion protection ............................

(current page)

4.10

ENG_UD78819_3

Entretien de la carosserie (X10 - Renault)

Bodywork maintenance

BODYWORK MAINTENANCE

(1/3)

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the exterior of the vehicle reg-

ularly.
Your vehicle has been treated with very

effective anti-corrosion products. It is

nevertheless subject to various outside

influences.

Corrosive agents in the atmosphere

– atmospheric pollution (built-up and

industrial areas);

– saline atmospheres (near the sea,

particularly in hot weather);

– seasonal and damp weather condi-

tions (e.g. road salt in winter, water

from road cleaners, etc.).

Minor impacts
Abrasive action

Dust and sand in the air, mud, road grit

thrown up by other vehicles, etc.
You should take a number of minor pre-

cautions in order to safeguard your ve-

hicle against such risks.

You should

Wash your car frequently,

with the

engine off

, with cleaning prod-

ucts recommended by our Technical

Department (never use abrasive prod-

ucts). Rinse thoroughly beforehand

with a jet:

– spots of tree resin and industrial

grime;

– mud in the wheel arches and under-

neath the body which forms damp

patches;

–

bird droppings

, which cause a

chemical reaction with the paint that

rapidly discolours paintwork and

may even cause the paint to peel

off;

wash the vehicle

immediately

remove these marks since it is im-

possible to remove them by polish-

ing;

– salt, particularly in the wheel arches

and underneath the body after driv-

ing in areas where the roads have

been gritted.

Withdraw the vegetable falls (resin, film

etc.) from the vehicle regularly.

Observe the vehicle stopping distances

when driving on gravelled surfaces to

prevent paint damage.
Repair, or have repaired quickly, areas

where the paint has been damaged, to

prevent corrosion spreading.
Remember to visit the body shop pe-

riodically in order to maintain your an-

ti-corrosion warranty. Refer to the

Maintenance Document.
Respect local regulations about wash-

ing vehicles (e.g. do not wash your ve-

hicle on a public highway).
If it is necessary to clean mechani-

cal components, hinges, etc., spray

them with products approved by our

Technical Department to protect them

after they have been cleaned.

We have selected special products

to care for your vehicle and you can

obtain these from the manufactur-

er’s accessory outlets.

4.11

ENG_UD78819_3

Entretien de la carosserie (X10 - Renault)

BODYWORK MAINTENANCE

(2/3)

Vehicles with a matte paint

finish

This type of paint requires certain pre-

cautions.

You should do the following

Wash the vehicle by hand using plenty

of water, using a soft cloth or a gentle

sponge.

Do not do the following

Use wax-based products (polishing).
Rub too hard.
Wash the vehicle in a roller-type car

wash.
Attach stickers to the paintwork (risk of

leaving marks).

Wash the vehicle

using a high-pressure

cleaning device.

Degrease or clean using

high-pressure cleaning

equipment or by spray-

ing products not ap-

proved by our Technical

Department:

– mechanical components (e.g.:

engine compartment);

– the wheels (e.g. braking system

components such as brake calli-

pers);

– the underbody;
– the parts with hinges (e.g. inside the

doors);

– the painted plastic external fittings

(e.g. bumpers).

Doing this could give rise to corrosion

or operational faults.

What you should not do

Wash the vehicle in bright sunlight or

freezing temperatures.
Do not scrape off mud or dirt without

pre-wetting.
Allow dirt to accumulate on the exterior.
Allow rust to form following minor im-

pacts.
Using solvents not approved by our

Technical Department to remove stains

may damage the paintwork.
Do not drive in snow or muddy condi-

tions without washing the vehicle, par-

ticularly under the wheel arches and

body.

4.12

ENG_UD78819_3

Entretien de la carosserie (X10 - Renault)

Using a roller type car wash

Return the wiper stalk to the park po-

sition.

➥

1.109. Check the mounting of

external accessories, additional lights

and rear view mirrors, and ensure that

the wiper blades are secured with ad-

hesive tape.
Remove the radio aerial mast if your

vehicle is fitted with this equipment.
Remember to remove the tape and refit

the antenna after washing.

BODYWORK MAINTENANCE

(3/3)

Washing the vehicle

Never wash the engine

compartment, the charging

connection or the traction

battery with a high-pressure jet.

This risks damaging the electric

circuit.

Never wash the vehicle while it is

charging.

Risk of electric shock and a risk

to life.

Cleaning the headlights,

sensors and cameras

Use a soft cloth or cotton wool. If this

does not clean them properly, moisten

the cloth with soapy water, then wipe

clean using a soft damp cloth or cotton

wool.

Finally, dry off carefully with a soft dry

cloth.

Do not use cleaning products con-

taining alcohol or utensils (e.g.: a

scraper).

Cleaning stickers, decorative

films, etc.

You should do the following

Use a soft cloth or cotton wool.
Moisten it slightly with soapy water,

then always wipe clean with a soft cloth

or cotton wool.
Finally, carefully dry off with a soft dry

cloth.

Do not do the following

Use alcohol-based cleaning products.
Use utensils (e.g. scraper).
Rub too hard.

Wash the vehicle

using a high-pressure

cleaning device.

maintenance:

interior trim ...........................................

(up to the end of the DU)

interior trim

maintenance ........................................

(up to the end of the DU)

cleaning:

inside the vehicle .................................

(up to the end of the DU)

4.13

ENG_UD66776_2

Entretien des garnitures intérieures (X10 - Renault)

Interior trim maintenance

Glass instrument panel

(e.g. instrument panel, clock, exterior

temperature display etc.)
Use a soft cloth (or cotton wool).

If this does not clean them properly,

use a soft cloth (or cotton wool) slightly

moistened with soapy water and then

wipe clean using another soft damp

cloth or cotton wool.

Finally, dry off

carefully

with a soft dry

cloth.

Do not use products containing alco-

hol and/or spray fluids on the area.

Seat belts

These must be kept clean.

Use products selected by our Technical

Department (approved outlets) or

warm, soapy water and a sponge then

wipe with a dry cloth.

Detergents or dyes must not be used

under any circumstances.

INTERIOR TRIM MAINTENANCE

(1/2)

Textiles (seats, door trim, etc)

Vacuum-clean the textiles

regularly

Liquid stain

Use soapy water.
Dab lightly (never rub) with a soft cloth,

rinse and remove the excess.

Solid or pasty stain

Carefully remove the excess solid or

pasty material

immediately

using a

spatula (working from the edges to the

centre to avoid spreading the stain).

Clean as for a liquid stain.

Special instructions for sweets or

chewing gum

Place an ice cube on the stain to solid-

ify it then proceed as for a solid stain.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the interior of the vehicle regu-

larly.
A stain should always be dealt with

swiftly.
Whatever type of stain is on the trim,

use

cold

(or warm)

soapy water with

natural soap

Detergents (washing-up liquid, pow-

dered products, alcohol-based prod-

ucts) should not be used.

Use a soft cloth.
Rinse and wipe up excess water.

Multimedia screen

Maintenance of the screen may depend

on the type of multimedia equipment.

Please refer to the multimedia instruc-

tions for further information.

For further recommendations on

maintaining the interior and/or in

the event of unsatisfactory results,

please consult an approved dealer.

4.14

ENG_UD66776_2

Entretien des garnitures intérieures (X10 - Renault)

You should not:

Position objects such as deodorants,

scents etc. near air vents as this could

damage your dashboard trim.

Use high-pressure

cleaning equipment or

sprays inside the pas-

senger compartment:

without careful use, this equipment

could impair the correct functioning

of the electrical or electronic compo-

nents in the vehicle, or have other

detrimental effects.

INTERIOR TRIM MAINTENANCE

(2/2)

Removal/replacing removable

equipment originally fitted in

the vehicle

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

side, etc.) and fit them with the compo-

nents supplied with the equipment (for

example, the driver mat should always

be fixed using the pre-fitted mounting

components).
With the vehicle stationary, always

ensure that nothing will impede driving

(anything obstructing the pedals, heel

wedged by the mat etc.).

5.1

ENG_UD82779_9

Sommaire 5 (X10 - Renault)

Section 5: practical advice

Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2

Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3

Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6

Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.10

Rear lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11

Interior lighting: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.13

“Hands-free” card: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.15

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17

Fitting a radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.19

Installation and use of accessories: important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.20

Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21

Towing, breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.23

Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26

tool kit ........................................................

(up to the end of the DU)

hubcap tool ................................................

(current page)

towing hitch................................................

(current page)

5.2

ENG_UD57766_1

Bloc outils (X10 - Renault)

Tool kit

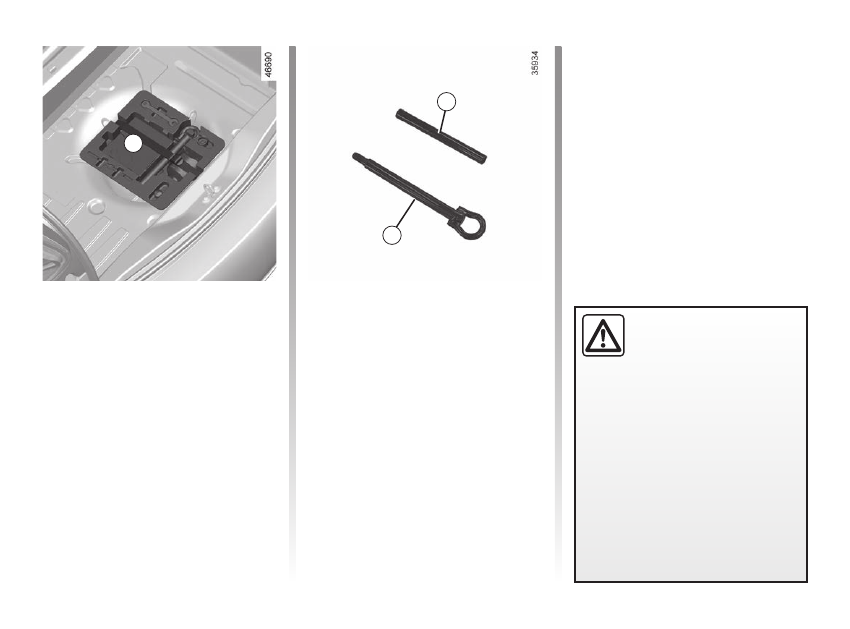

Lever 1

This locks or unlocks the wheel bolts

and tow eye.

Tow eye 2

➥

5.23.

The tools included in the tool kit depend

on the vehicle.

Tool kit

is located in the tray under

the luggage compartment carpet.

TOOL KIT

Never leave tools unse-

cured in the vehicle: there

is a risk that they may be

thrown about during brak-

ing. After use, check that all the

tools are correctly clipped into the

tool kit, then position it correctly in

its housing: there is a risk of injury.

If wheel bolts are supplied in the

tool kit, only use these bolts for the

emergency spare wheel: refer to the

label affixed to the emergency spare

wheel.

tyre inflation kit...........................................

(up to the end of the DU)

5.3

ENG_UD57767_1

Kit de gonflage des pneumatiques (X10 - Renault)

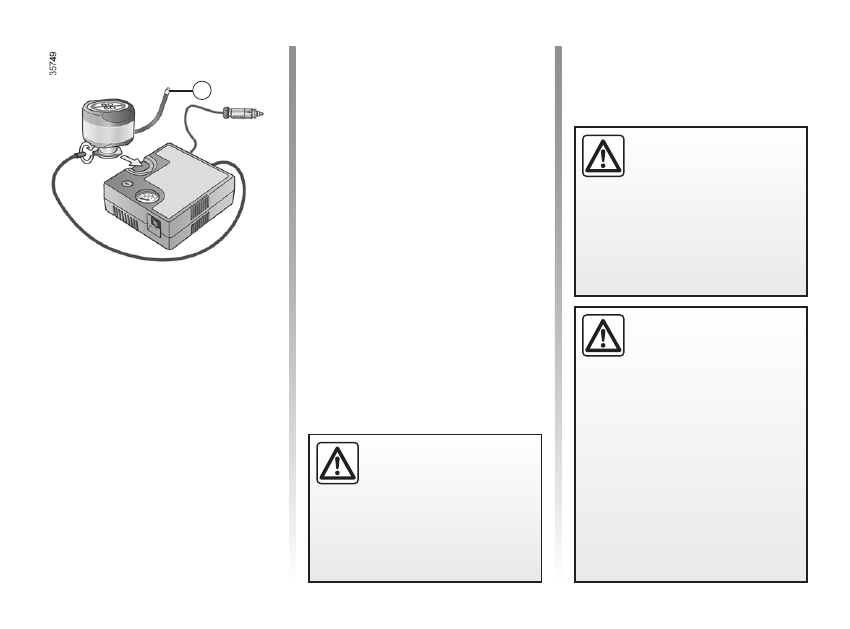

Tyre inflation kit

TYRE PRESSURE KIT

(1/3)

The kit is only approved for

inflating the tyres of the ve-

hicle originally equipped

with the kit.

It must never be used to inflate

the tyres of another vehicle, or any

other inflatable object (rubber ring,

rubber boat, etc.).
Avoid spillage on skin when han-

dling the repair product bottle. If

droplets do leak out, rinse them off

with plenty of water.
Keep the repair kit away from chil-

dren.
Do not dispose of the empty bottle

in the countryside. Return it to your

approved dealer or to a recycling or-

ganisation.
The bottle has a limited service

life which is indicated on its label.

Check the expiry date.
Contact an approved dealer to re-

place the inflation tube and repair

product bottle.

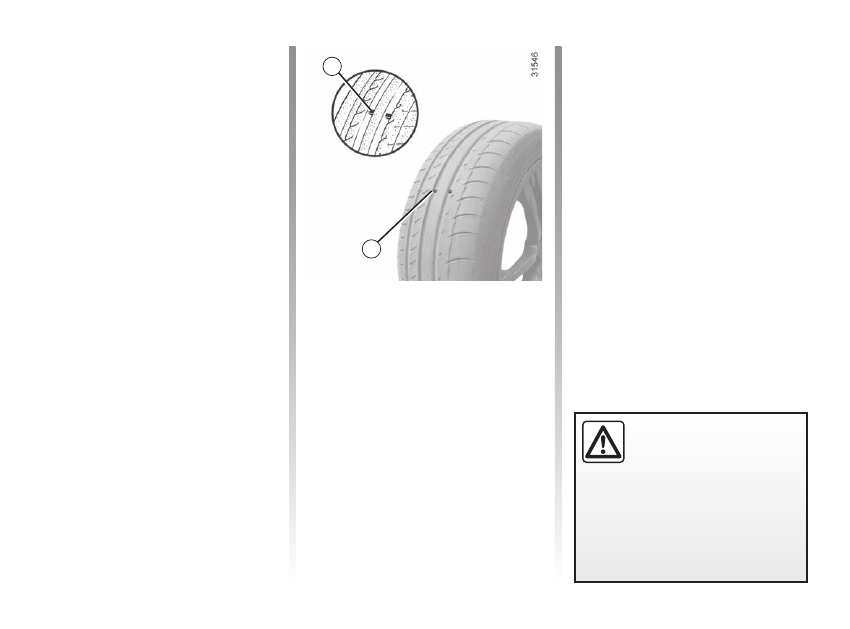

The kit repairs tyres when

tread

has been dam-

aged by objects smaller

than 4 mm. It cannot repair

all types of puncture, such as cuts

larger than 4 mm, or cuts in tyre

sidewall

Ensure also that the wheel rim is in

good condition.
Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

Do not attempt to use the

inflation kit if the tyre has

been damaged as a result

of driving with a puncture.

You should therefore carefully check

the condition of the tyre sidewalls

before any operation.
Driving with underinflated, flat or

punctured tyres can be dangerous

and may make the tyre impossible

to repair.

This repair is temporary.

A tyre which has been punctured

should always be inspected (and re-

paired, where possible) as soon as

possible by a specialist.
When taking a tyre which has been

repaired using this kit to be replaced,

you must inform the specialist.
When driving, vibration may be felt

due to the presence of the repair

product injected into the tyre.

5.4

ENG_UD57767_1

Kit de gonflage des pneumatiques (X10 - Renault)

TYRE PRESSURE KIT

(2/3)

Depending on the vehicle, in the event

of a puncture, use the kit located in the

boot or underneath the luggage com-

partment carpet.

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-
tures, under-inflation etc.), the



warning light appears on the instrument

panel.

➥

2.18.

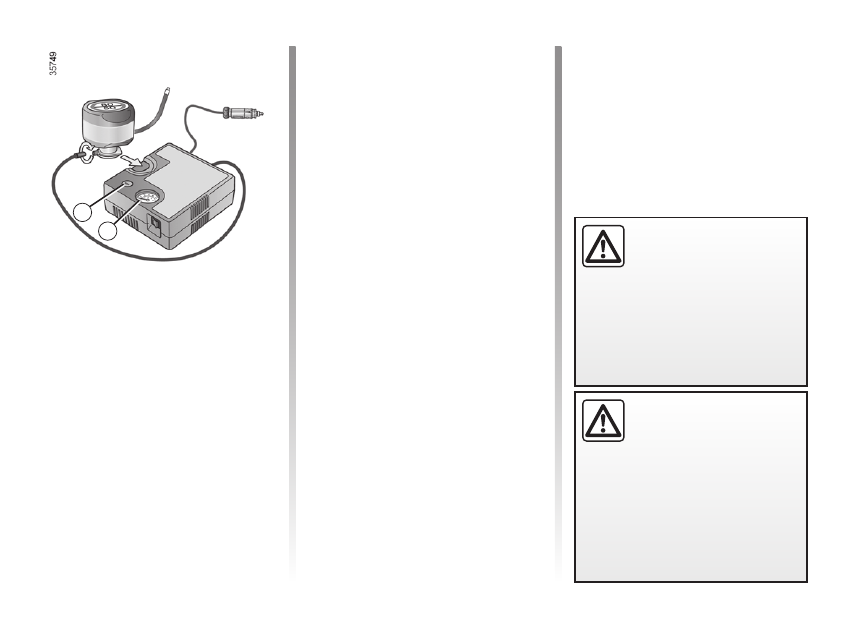

With the engine running and the

parking brake applied,

– Disconnect any accessories previ-

ously connected to the vehicle’s ac-

cessories sockets;

–

Refer to the information on the in-

flation kit compressor

located in

the boot of the vehicle and follow the

instructions;

– Inflate the tyre to the recommended

pressure

➥

4.9;

– After a maximum of

minutes, stop

inflating and read the pressure (on

pressure gauge

);

Note:

while the bottle is emptying (ap-

proximately 30 seconds), the pressure

gauge

will indicate briefly a pressure

bar, then the pressure drops.

– Adjust the pressure: to increase

it, continue inflation with the kit; to

reduce it, press button

Before using this kit, park

the vehicle at a sufficient

distance from traffic, switch

on the hazard warning

lights, apply the handbrake, ask all

passengers to leave the vehicle and

keep them away from traffic.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

If a minimum pressure of 1.8 bar is

not reached after 15 minutes, repair

is not possible; do not drive the ve-

hicle but contact an approved dealer.

5.5

ENG_UD57767_1

Kit de gonflage des pneumatiques (X10 - Renault)

TYRE PRESSURE KIT

(3/3)

Once the tyre is correctly inflated,

remove the kit: unscrew the inflation

adapter slowly from the container

prevent any product spatter and store

the container in plastic packaging to

prevent product leaks.

– Affix the driving recommendation

label (located under the container) to

the dashboard where the driver can

see it.

– Put the kit away.

– At the end of this initial inflation op-

eration, air will still escape from the

tyre. You must drive a short distance

in order to seal the hole.

– Start immediately and drive at a

speed between 12 to 37 mph (20 to

60 km/h) in order to distribute the

product evenly in the tyre; after driv-

ing a distance of 2 miles (3 km), stop

and check the pressure.

– If the pressure is higher than 1.3 bar

but lower than the recommended

pressure (refer to the label affixed to

the edge of the driver’s door), adjust

it. Otherwise, contact an approved

dealer: the tyre cannot be repaired.

Precautions when using the

kit

The kit should not be operated for more

than 15 consecutive minutes.

The container must be replaced after

the first use even if liquid remains

inside.

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and may

lead to pressure loss.

Always use valve caps identical to

those fitted originally and tighten

them fully.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

which you must affix in a prominent

position on the dashboard, reminds

you of this.

Depending on the country or local

legislation, a tyre repaired with the

inflation kit may need to be replaced.

tyres ...........................................................

(up to the end of the DU)

wheels (safety) ..........................................

(up to the end of the DU)

5.6

ENG_UD57768_1

Pneumatiques (X10 - Renault)

Tyres (tyre and wheel safety, use in winter)

TYRES

(1/4)

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have wear warning strips

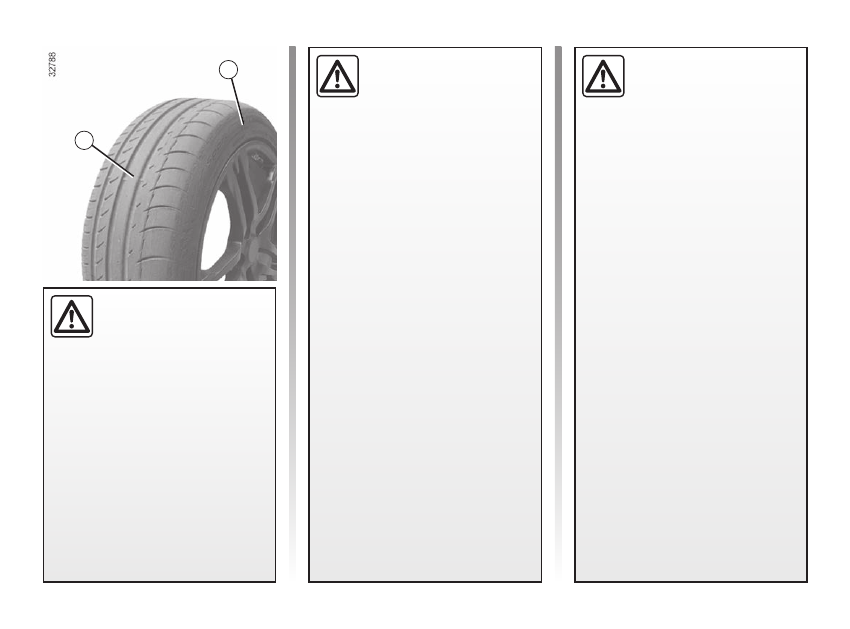

that are

indicators moulded into the

tread at several points

The tyres are the only contact between

the vehicle and the road, so it is essen-

tial to keep them in good condition.

You must make sure that your tyres

conform to local road traffic regulations.

When the tyre tread has been worn to

the level of the wear indicators,

they

become visible

it is

then

necessary

to replace your tyres because the tread

rubber is

no more than 1.6 mm deep,

resulting in poor roadholding on wet

roads

An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

Content .. 13 14 15 16 ..
