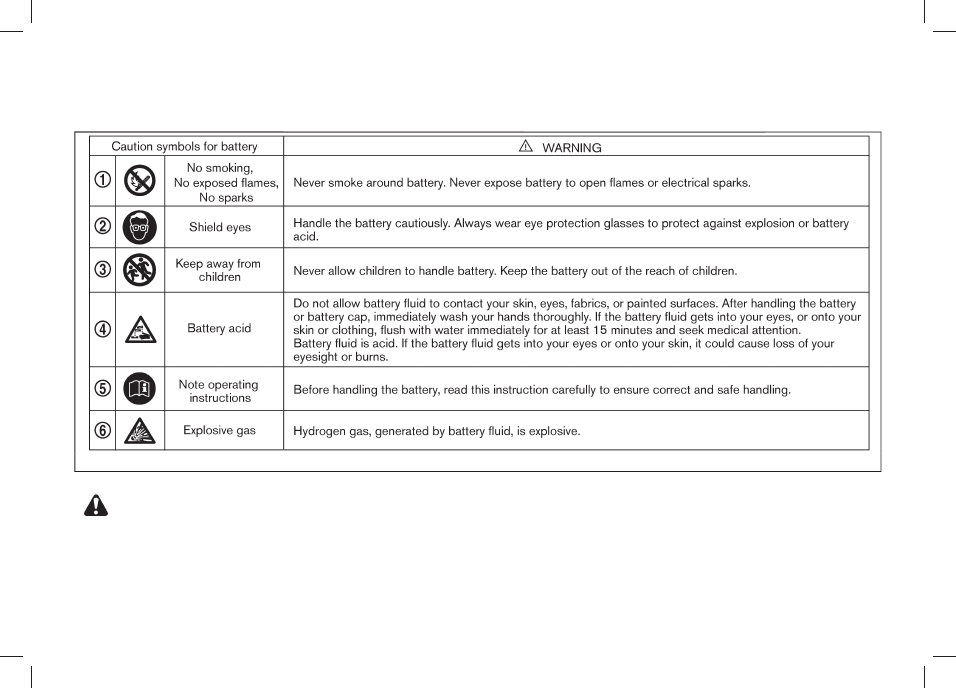

VEHICLE BATTERY

SDI1573

WARNING:

Do not operate the vehicle if the fluid in the
battery is low. Low battery fluid can cause a
higher load on the battery which can generate
heat, reduce battery life, and in some cases lead
to an explosion.

Maintenance and do-it-yourself

8-23

BATTERY

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-24

Maintenance and do-it-yourself

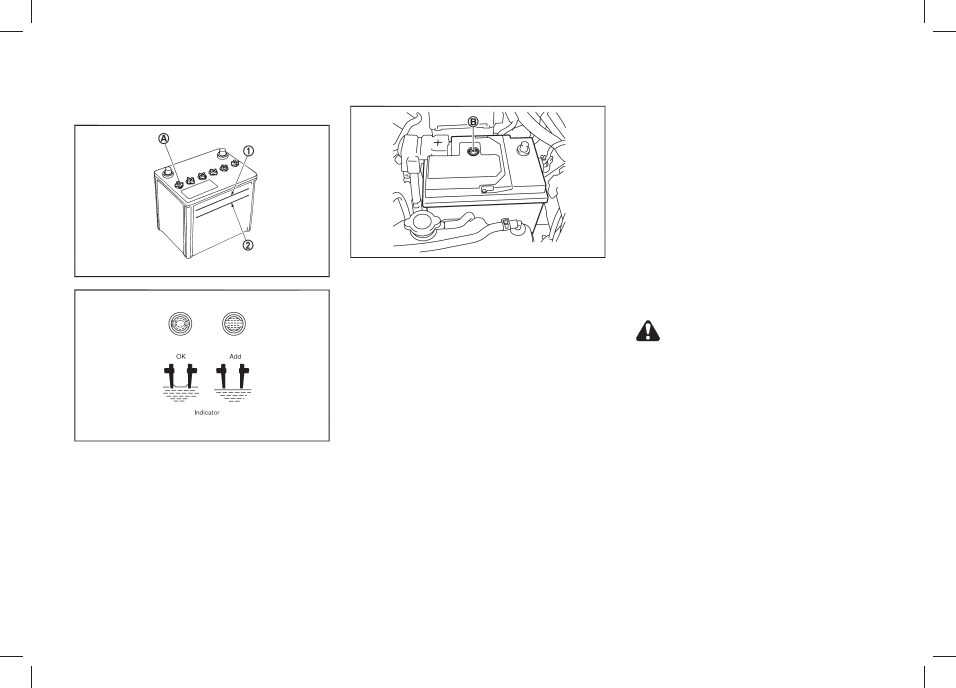

Checking battery fluid level

DI0137MA

Type A

SDI1480

Type A

JVM0065X

Type B

Check the fluid level in each cell. The battery fluid level
should be between the UPPER LEVEL

and

LOWER LEVEL

lines.

If it is necessary to add fluid, add only demineralized/
distilled water to bring the level to the indicator in each
filler opening. Do not overfill.

Remove the cell plugs

, if equipped.

Add demineralized/distilled water up to the
UPPER LEVEL

line.

Replace and tighten the cell plugs.

Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.

Keep the battery surface clean and dry. Clean the
battery with a solution of baking soda and water.

Make certain the terminal connections are clean
and securely tightened.

If the vehicle is not to be used for more than 30
days, disconnect the negative (

í) battery terminal

cable to prevent battery discharge.

For a maintenance free battery (for Type B) it is not
required to check the fluid level. However,
RENAULT recommends to visually check the

green indicator

status periodically. If the color

of the indicator is changed, please contact a
RENAULT dealer as soon as possible.

For model with Stop/Start (Idling Stop) System, see
“Jump starting” (P.6-8).

Jump starting

If jump starting is necessary, see “Jump starting” (P.6-
8). If the engine does not start by jump starting or the
battery does not charge, the battery may have to be
replaced. Contact a RENAULT dealer for replacing the
battery.

REMOTE CONTROLLER BATTERY

Battery replacement

CAUTION:

Be careful not to allow children to swallow
the battery and removed parts.

An improperly disposed battery can harm
the environment. Always confirm local reg-
ulations for battery disposal.

When changing batteries, do not let dust or
oil get on the components.

There is danger of explosion if lithium
battery is incorrectly replaced. Replace only
with the same or equivalent type.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

JVM0105X

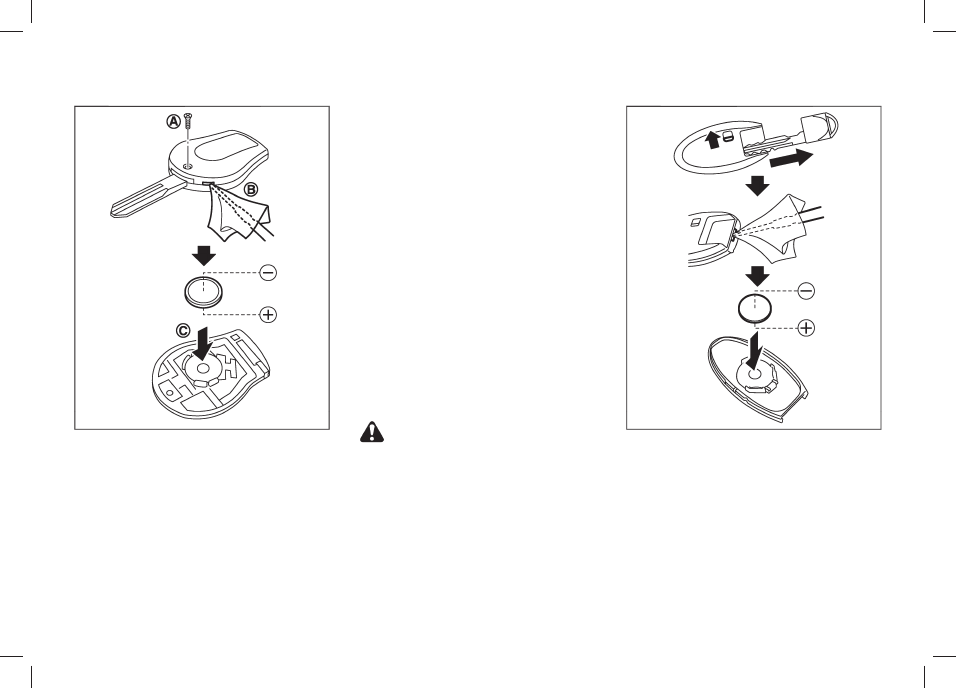

To replace the battery:

Remove the screw

Insert a small screwdriver into the slit of the corner

and twist it to separate the upper part from

the lower part. Use a cloth to protect the casing.

Replace the battery with a new one.

Recommended battery: CR1620 or equivalent

Do not touch the internal circuit and electric
terminals as doing so could cause a malfunc-
tion.

Make sure that the + side faces the bottom of
the case

Close the lid and install the screw securely.

Operate the buttons to check its operation.

See a RENAULT dealer if you need assistance for
replacement.

FCC WARNING:

Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user

’s authority to operate the

equipment.

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions; (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation of the
device.

INTELLIGENT KEY BATTERY

Battery replacement

CAUTION:

Be careful not to allow children to swallow
the battery and removed parts.

An improperly disposed battery can harm
the environment. Always confirm local reg-
ulations for battery disposal.

When changing batteries, do not let dust or
oil get on the components.

There is danger of explosion if lithium
battery is incorrectly replaced. Replace only
with the same or equivalent type.

SDI2451

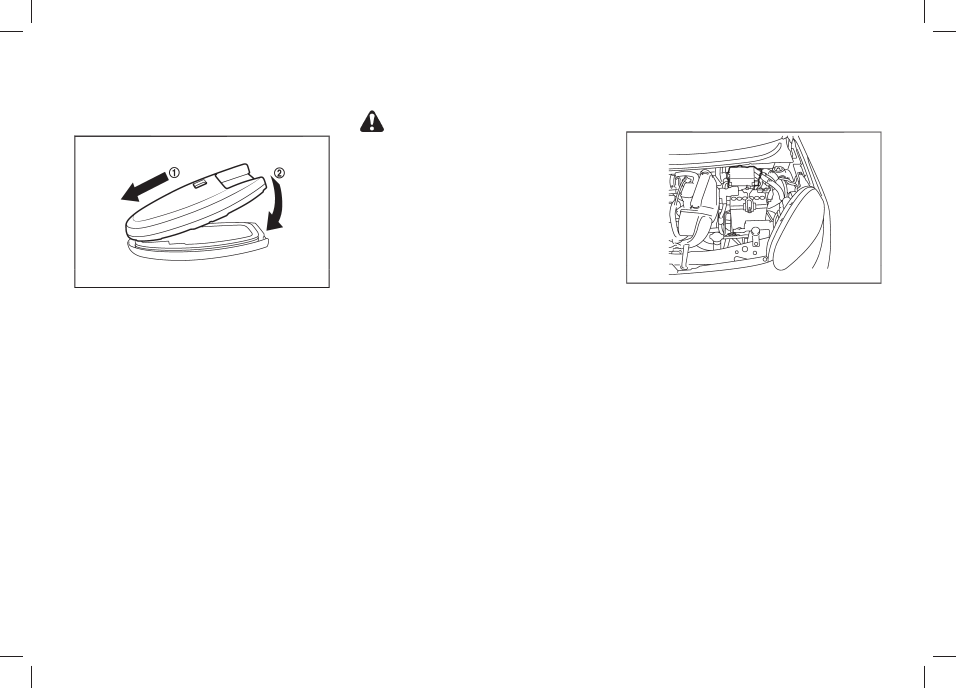

To replace the battery:

Release the lock knob at the back of the Intelligent
Key and remove the mechanical key.

Insert a small screwdriver into the slit of the corner
and twist it to separate the upper part from the
lower part. Use a cloth to protect the casing.

Replace the battery with a new one.

Recommended battery: CR2025 or equivalent

Do not touch the internal circuit and electric
terminals as doing so could cause a malfunc-
tion.

Maintenance and do-it-yourself

8-25

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-26

Maintenance and do-it-yourself

Make sure that the + side faces the bottom of
the case.

SDI2452

Align the tips of the upper and lower parts

and then push them together until it is securely
closed

Operate the buttons to check its operation.

See a RENAULT dealer if you need assistance for
replacement.

CAUTION:

Do not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the
vehicle battery may not charge completely.

Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.

Your vehicle is equipped with a variable voltage control
system. This system measures the amount of electrical
discharge from the battery and controls voltage
generated by the alternator.

ENGINE COMPARTMENT

SDI2575

For checking and/or replacing, see a RENAULT dealer.

Fusible links

If any electrical equipment does not operate and the
fuses are in good condition, check the fusible links. If
any of these fusible links are melted, replace only with
genuine RENAULT parts.

VARIABLE VOLTAGE CONTROL

SYSTEM (if equipped)

FUSES

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

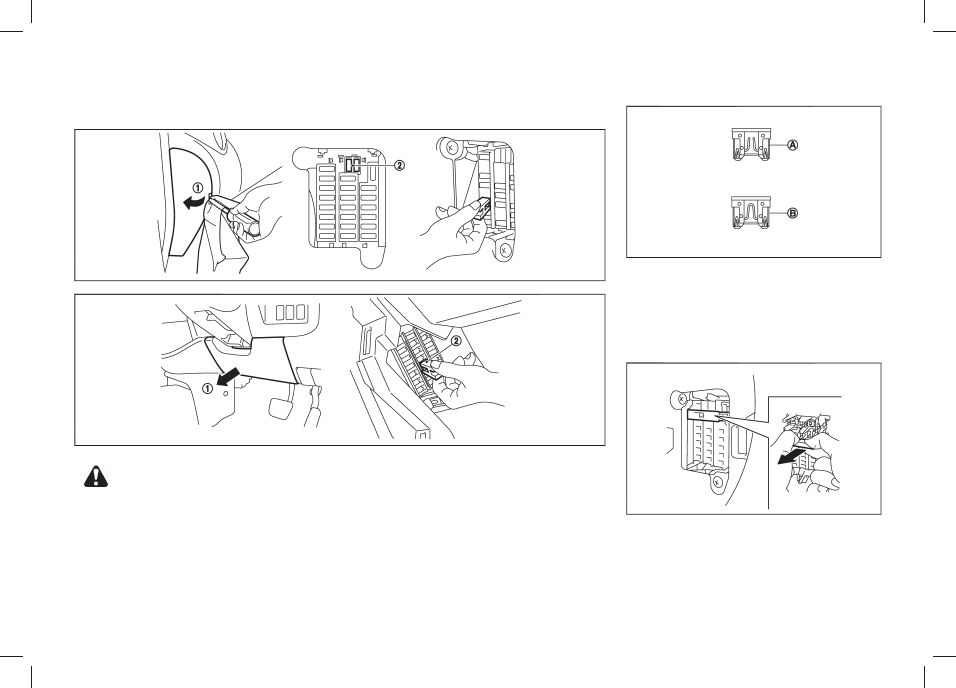

PASSENGER COMPARTMENT

SDI2576

For all models

JVC0023X

For Stop/Start (Idling Stop) System (if equipped)

CAUTION:

Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.

If any electrical equipment does not operate, check for
an open fuse.

Be sure the ignition switch is in the “OFF”
position.

Be sure the headlight switch is in the “OFF”
position.

Remove the fuse box cover

with a suitable

tool.

Locate the fuse that needs to be replaced.

Remove the fuse using the fuse puller

SDI1754

If the fuse is open

, replace it with a new fuse

If the new fuse also opens, after installing, have the
electrical system checked, and if necessary repaired,
by a RENAULT dealer.

Extended storage fuse switch (if equipped)

SDI2705

If any electrical equipment does not operate, remove
the extended storage fuse switch and check for an
open fuse.

Maintenance and do-it-yourself

8-27

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-28

Maintenance and do-it-yourself

NOTE:

The extended storage fuse switch is used for
long term vehicle storage. If the extended
storage fuse switch is broken, it is not necessary
to replace it. Remove the fuse from the switch
then replace only the fuse to the fuse box.
How to remove the extended storage fuse
switch:
1.

To remove the extended storage fuse switch, be
sure the ignition switch is in the “OFF” or “LOCK”
position.

Be sure the headlight switch is in the “OFF”
position.

Remove the fuse box cover.

Pinch the storage fuse switch and pull it in the
direction of the arrow.

HEADLIGHTS

Fog may temporarily form inside the lens of the exterior
lights in the rain or in a car wash. A temperature
difference between the inside and the outside of the
lens causes the fog. This is not a malfunction. If large
drops of water collect inside the lens, contact a
RENAULT dealer.

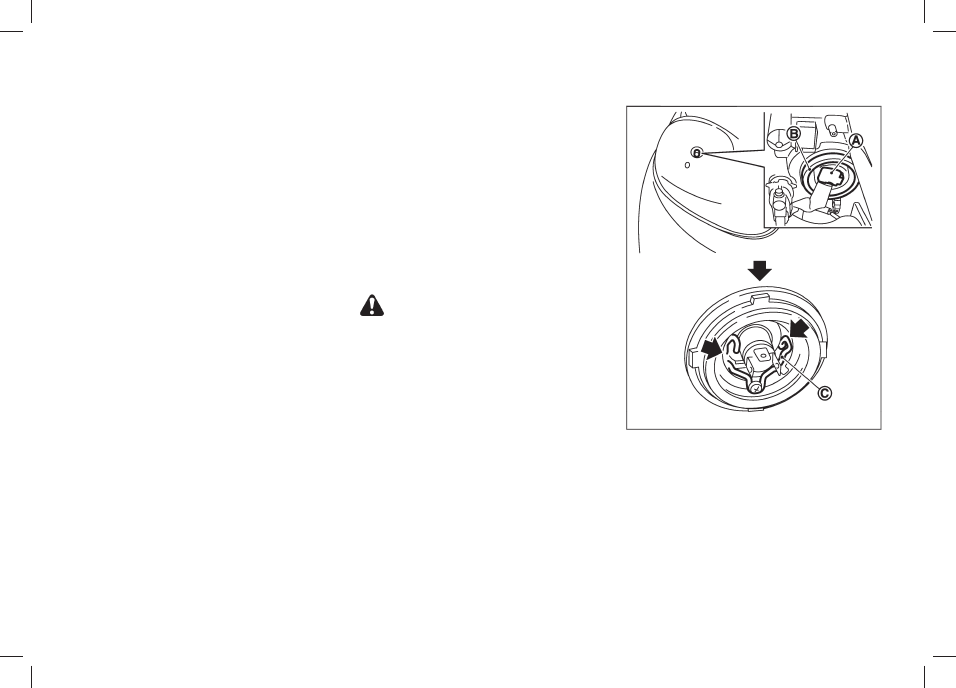

Replacing halogen headlight bulb

The halogen headlight is a semi-sealed beam type
which uses replaceable headlight (halogen) bulbs.
They can be replaced from inside the engine compart-
ment without removing the headlight assembly.

CAUTION:

High-pressure halogen gas is sealed inside
the bulb. The bulb may break if the glass
envelope is scratched or the bulb is dropped.

JVM0109X

Disconnect the battery negative cable.

Disconnect the electrical connector

from the

rear end of the bulb.

Pull off the rubber cap

Push and turn the retaining pin

to loosen it.

Remove the headlight bulb. Do not shake or rotate
the bulb when removing it.

Install the new bulb in the reverse order of
removal.

LIGHTS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

CAUTION:

When handling the bulb, do not touch the
glass envelope.

Use the same number and wattage as
originally installed:

Halogen headlight model

High beam bulb: 60W (H4)
Low beam bulb: 55W (H4)

Do not leave the bulb out of the headlight
reflector for a long period of time as dust,
moisture and smoke may enter the headlight
body and affect the performance of the
headlight.

Aiming adjustment is not necessary if only the bulbs
are replaced. When aiming adjustment is necessary,
contact a RENAULT dealer.

EXTERIOR LIGHTS

Item

Wattage (W)

Front turn signal light

Front clearance light

Front fog light (if equipped)

Side turn signal light

Rear combination lights

Turn signal light

Stop/Tail light

21/5

Reverse light

Rear fog light (if equipped)

High-mounted stop light

LED* or 16

License plate light

INTERIOR LIGHTS

Item

Wattage (W)

Room light

Cargo light (if equipped)

See a RENAULT dealer for replacement.

Maintenance and do-it-yourself

8-29

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-30

Maintenance and do-it-yourself

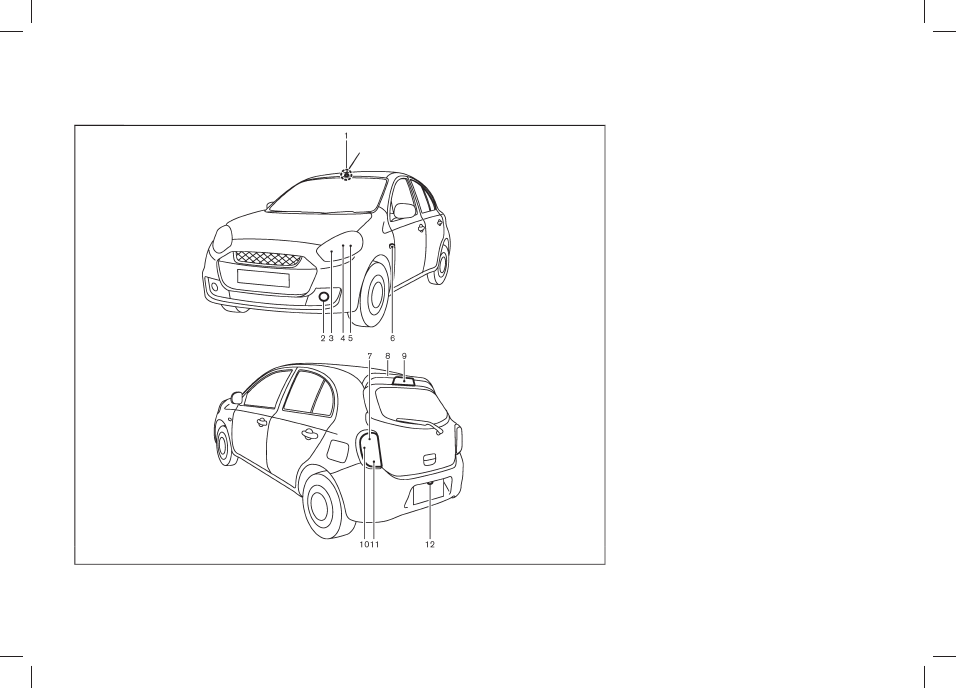

LIGHT LOCATIONS

JVM0110X

Interior light

Front fog light (if equipped)

Front turn signal light

Clearance light

Headlight

Side turn signal light

Stop/tail light

High-mounted stop light (Model with rear
spoiler)

High-mounted stop light (Model without rear
spoiler)

10.

Rear turn signal light

11.

Reverse light or Rear fog light (if equipped)*

12.

License plate light

*: For the Left-Hand Drive (LHD) model. On the Right-
Hand Drive (RHD) model, the rear fog light is located
on the opposite side.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

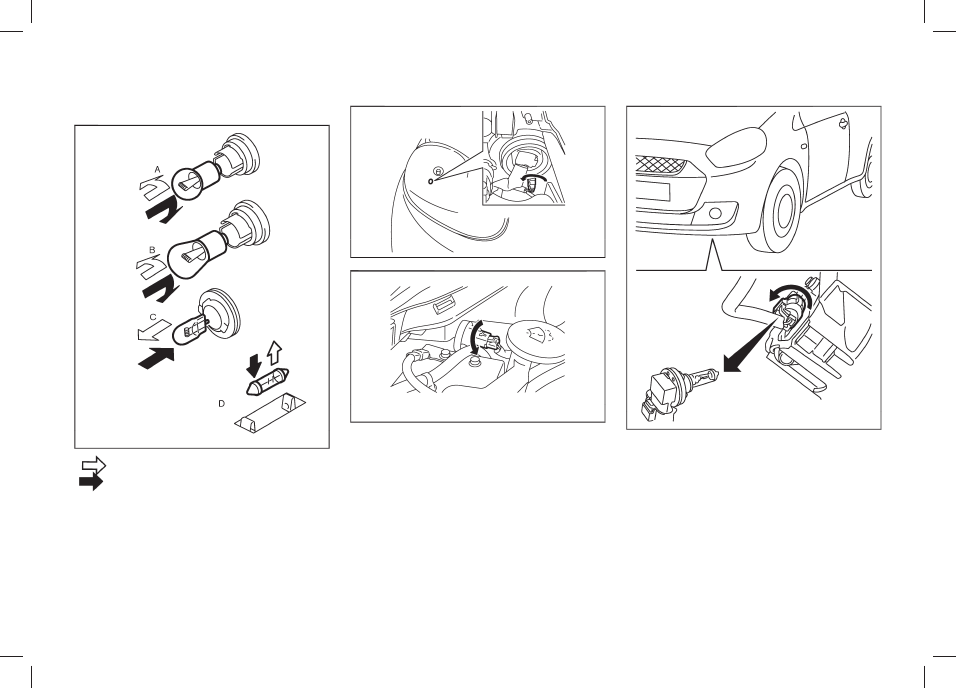

Replacement procedures

SDI1805

: REMOVE

INSTALL

All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or cover.

JVM0111X

Clearance light

JVM0004X

Front turn signal light

JVM0107X

Front fog light (if equipped)

Maintenance and do-it-yourself

8-31

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-32

Maintenance and do-it-yourself

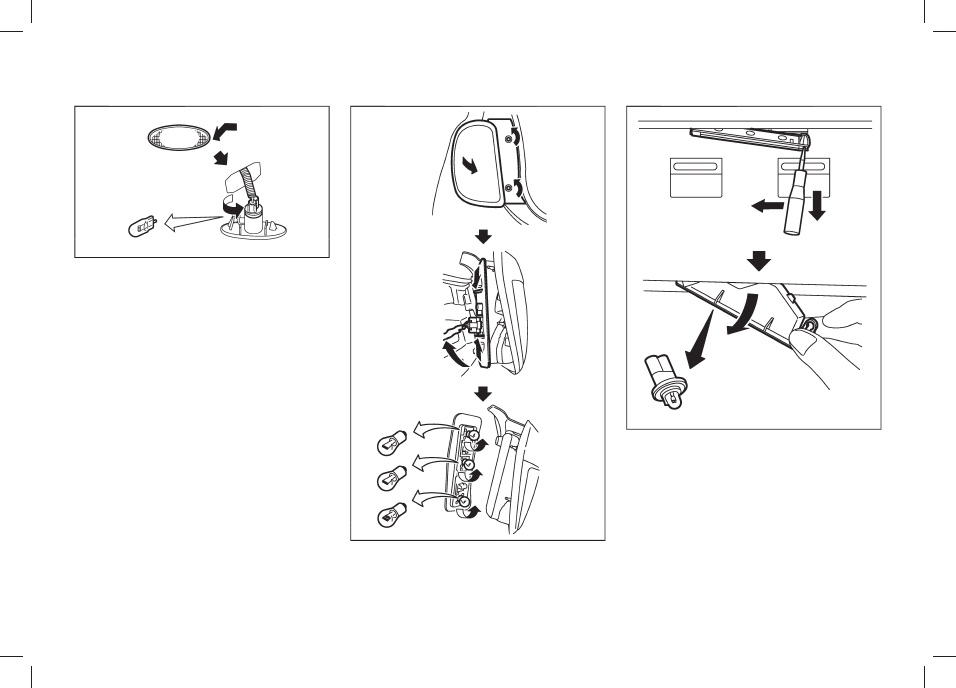

JVM0100X

Side turn signal light

JVM0112X

Rear combination light

JVM0108X

License plate light

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

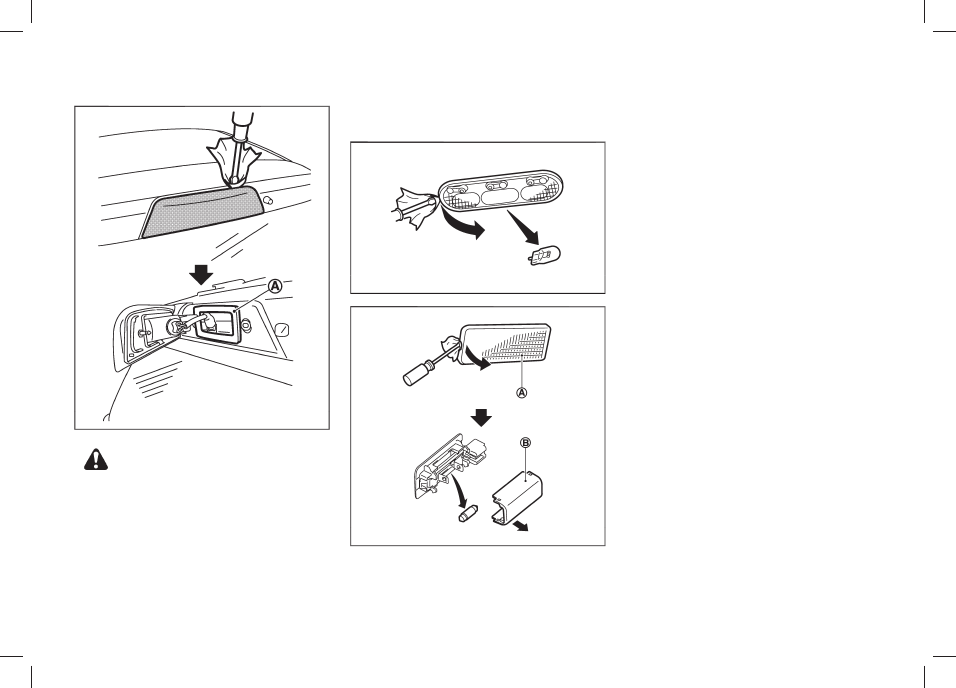

JVM0008X

High-mounted stop light (model with rear spoiler)

CAUTION:

Do not reuse the packing on the back of the
high-mounted stop light. When installing, the
packing must be replaced with a new one.

To replace the high-mounted stop light bulb:

Remove the light with a suitable tool.

Remove the bulb socket and then replace the
bulb.

Replace the packing

Install in the reverse order of removal.

SDI2391

Room light

JVM0007X

Cargo light (if equipped)

To replace the cargo light bulb:

Remove the light

with a suitable tool.

Remove the cover

Replace the bulb.

Maintenance and do-it-yourself

8-33

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-34

Maintenance and do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-2).

TIRE INFLATION PRESSURE

Periodically check the pressure of the tires, including
the spare. An incorrect tire pressure may adversely
affect tire life and vehicle handling. The tire pressure
should be checked when tires are COLD. Tires are
considered COLD after the vehicle has been parked
for 3 or more hours, or driven less than 1.6 km (1 mile).
COLD tire pressures are shown on the tire placard.
(See “Vehicle identification” (P.9-7) for the location of
the tire placard.)

Insufficient pressure can lead to an overheating of the
tire and subsequent internal damage. At high speeds,
this could result in tread separation and even bursting
of the tire.

TYPES OF TIRES

CAUTION:

When changing or replacing tires, be sure all
four tires are of the same type (that is, summer,
all season or snow) and construction. A RE-
NAULT dealer may be able to help you with
information about tire type, size, speed rating
and availability.

Replacement tires may have a lower speed rating than
the factory equipped tires, and they may not match the
potential maximum vehicle speed. Never exceed the
maximum speed rating of the tire.

All season tires

RENAULT specifies all season tires on some models to
provide good performance all year, including snowy
and icy road conditions. All season tires are identified
by ALL SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than all season
tires and may be more appropriate in some areas.

Summer tires

RENAULT specifies summer tires on some models to
provide superior performance on dry roads. Summer
tire performance is substantially reduced in snow and
ice. Summer tires do not have the tire traction rating
M&S on the tire sidewall.

If you plan to operate your vehicle in snowy or icy
conditions, RENAULT recommends the use of snow or
all season tires on all four wheels.

Snow tires

If snow tires are needed, it is necessary to select tires
equivalent in size and load rating to the original
equipment tires. If you do not, it can adversely affect
the safety and handling of your vehicle.

Generally, snow tires have lower speed ratings than
factory equipped tires and may not match the potential
maximum vehicle speed. Never exceed the maximum
speed rating of the tire. If you install snow tires, they
must be the same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, studded tires may
be used. However, some states and provinces prohibit
their use. Check local, state and provincial laws before
installing studded tires. Skid and traction capabilities
of studded snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited according to
location. Check the local laws before installing tire
chains. When installing tire chains, make sure that they
are of proper size for the tires on your vehicle and are
installed according to the chain manufacturer’s in-
structions.

Use chain tensioners when recommended by the tire
chain manufacturer to ensure a tight fit. Loose end links
of the tire chains must be secured or removed to
prevent the possibility of whipping action damage to
the fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your vehicle may
be damaged and/or vehicle handling and performance
may be adversely affected.

Tire chains must be installed only on the front wheels
and not on the rear wheels. Never install tire chains on
a T-type spare tire (TEMPORARY USE ONLY). Do not
use the chains on dry roads.

TIRE ROTATION

SDI1662

RENAULT recommends that tires be rotated every
10,000 km (6,000 miles). However, the timing for tire
rotation may vary according to your driving habits and

TIRES AND WHEELS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

the road surface conditions. (See “Flat tire” (P.6-2) for
the tire replacement.)

WARNING:

After rotating the tires, adjust the tire
pressure.

Retighten the wheel nuts when the vehicle
has been driven for 1,000 km (600 miles)
(also in cases of a flat tire, etc.).

Incorrect tire selection, fitting, care or main-
tenance can affect vehicle safety with risk of
accident and injury. If in doubt, consult a
RENAULT dealer or the tire manufacturer.

TIRE WEAR AND DAMAGE

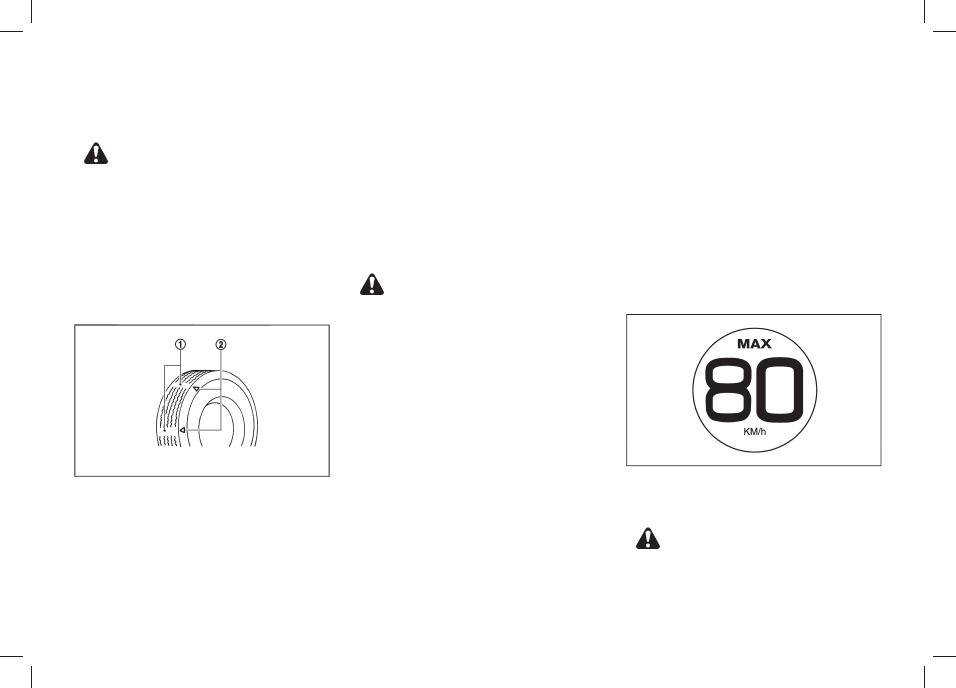

SDI1663

Wear indicator

Wear indicator location mark

Tires should be periodically inspected for wear,
cracking, bulging or objects caught in the tread. If
excessive wear, cracks, bulging or deep cuts are
found, the tire should be replaced immediately.

The original tires have a built-in tread wear indicator.
When the wear indicator is visible, the tire should be
replaced.

Improper service of a spare tire may result in serious
personal injury. If it is necessary to repair the spare tire,
contact a RENAULT dealer.

TIRE AGE

Never use a tire over six years old, regardless of
whether it has been used or not.

Tires degrade with age as well as with the vehicle
usage. Have your tires checked and balanced often by
a repair shop or, if you prefer, a RENAULT dealer.

CHANGING TIRES AND WHEELS

WARNING:

Do not install a deformed wheel or tire even if it
has been repaired. Such wheels or tires could
have structural damage and could fail without
warning.

When replacing a tire, use the same size, speed rating
and load carrying capacity as originally equipped. (See
“Tires and wheels” (P.9-6) for recommended types and
sizes of tires and wheels.) The use of tires other than
those recommended or the mixed use of tires of
different brands, construction (bias, bias-belted, or
radial), or tread patterns can adversely affect the ride,
braking, handling, ground clearance, body-to-tire
clearance, snow chain clearance, speedometer cali-
bration, headlight aim and bumper height. Some of
these effects may lead to accidents and could result in
serious personal injury.

If the wheels are changed for any reason, always
replace with wheels which have the same offset
dimension. Wheels of a different offset could cause
early tire wear, possibly degraded vehicle handling
characteristics and/or interference with the brake
discs/drums. Such interference can lead to decreased

braking efficiency and/or early brake pad/shoe wear.

WHEEL BALANCE

Unbalanced wheels may affect vehicle handling and
tire life. Even with regular use, wheels can get out of
balance. Therefore, they should be balanced as
required.

SPARE TIRE

Conventional spare tire

A standard tire (the same size as the road wheels) is
supplied with your vehicle.

Temporary-use (T-type) spare tire (if
equipped)

SDI1912

Spare tire label (if equipped)

Observe the following precautions if the T-type spare
tire must be used, otherwise your vehicle could be
damaged or involved in an accident.

CAUTION:

The T-type spare tire should be used only for
emergency. It should be replaced by the
standard tire at the first opportunity.

Maintenance and do-it-yourself

8-35

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-36

Maintenance and do-it-yourself

Drive carefully while the T-type spare tire is
installed.

Avoid sharp turns and abrupt braking while
driving.

Periodically check the T-type spare tire
inflation pressure, and always keep it at
420 kPa (4.2 bar, 60 psi).

Do not drive your vehicle at speeds faster
than 80 km/h (50 MPH).

Do not use tire chains on a T-type spare tire.
Tire chains will not fit properly on the T-type
spare tire and may cause damage to the
vehicle.

Tire tread of the T-type spare tire will wear at
a faster rate than the original tire. Replace
the T-type spare tire as soon as the tread
wear indicators appear.

Because the T-type spare tire is smaller than
the original tire, ground clearance is re-
duced. To avoid damage to the vehicle do
not drive over obstacles. Also do not drive
the vehicle through an automatic car wash
since it may get caught.

Do not use the T-type spare tire on other
vehicles.

Do not use more than one T-type spare tire
at the same time.

Emergency tire puncture repair kit (if
equipped)

The emergency tire repair kit is supplied to the vehicle
instead of a spare tire. The kit must be used for
temporarily fixing a minor tire puncture. After using the
repair kit, see a RENAULT dealer as soon as possible
for tire inspection and repair/replacement.

CAUTION:

Do not use the emergency tire repair kit under
the following conditions. Call a RENAULT dealer
or professional road assistance.

when the sealant has passed its expiration
date

when the cut or the puncture is approxi-
mately 6 mm (0.25 in) or longer

when the side of the tire is damaged

when the vehicle has been driven with a
considerable loss of air from the tire

when the tire is completely displaced inside
or outside the rim

when the tire rim is damaged

when two or more tires are punctured

See “Flat tire” (P.6-2) for more details.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-38

Maintenance and do-it-yourself

MEMO

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9 Technical information

Recommended fuel/lubricants and capacities ................................. 9-2

Fuel recommendation ....................................................................... 9-3
Recommended SAE viscosity number ........................................ 9-3
Air conditioner system refrigerant and lubricant ....................... 9-4

Engine ......................................................................................................... 9-5
Tires and wheels ...................................................................................... 9-6
Wheel alignment (for China) ................................................................ 9-6
Dimensions ................................................................................................ 9-7
When travelling or registering in another country ........................... 9-7
Vehicle identification ............................................................................... 9-7

Vehicle identification plate .............................................................. 9-7
Vehicle identification number (chassis number) ....................... 9-7
Vehicle identification number (VIN) plate (if equipped) .......... 9-8

Engine serial number ..................................................................... 9-8
Tire placard ...................................................................................... 9-8
Air conditioner specification label (if equipped) ..................... 9-8

Radio approval number and information ........................................... 9-9

For Europe ....................................................................................... 9-9
For Croatia ....................................................................................... 9-9
For China ....................................................................................... 9-11
For Indonesia ................................................................................ 9-12
For Thailand .................................................................................. 9-12
For Morocco ................................................................................. 9-13
For Jordan ...................................................................................... 9-13
For South Africa ........................................................................... 9-13

&RQGLWLRQ

Content .. 15 16 17 18 ..
