If the booster battery is in another vehicle

position the two vehicles

and

to bring the

batteries into close proximity to each other.

CAUTION:

If the battery of vehicle

equipped with the

Intelligent Key system is discharged, the ignition
switch cannot be moved from the “LOCK”
position and, if the steering lock is engaged,
the steering wheel cannot be moved. Connect
the jumper cables to the booster vehicle

before turning the ignition switch and disenga-
ging the steering lock.

Apply the parking brake.

Automatic Transmission (AT)/Continuously Vari-
able Transmission (CVT) model: Move the selector
lever to the “P” (Park) position.

Manual Transmission (MT) model: Move the shift
lever to the “N” (Neutral) position.

Switch off all unnecessary electrical systems
(headlights, heater, air conditioner, etc.).

Turn the ignition switch to the “LOCK” position.

Remove the vent caps, if equipped, on the battery.

Cover the battery with a firmly wrung out moist
cloth to reduce the hazard of an explosion.

Connect the jumper cables in the sequence as
illustrated (

CAUTION:

Always connect positive + to positive + and
negative 7 to body ground, NOT to the
battery’s negative 7.

Be sure that the jumper cables do not touch
moving parts in the engine compartment.

Be sure that the jumper cable’s clamps do
not contact any other metal.

Start the engine of the booster vehicle

and let

it run for a few minutes.

10. Depress the accelerator pedal of the booster

vehicle

at about 2,000 rpm.

11. Start the engine of the jumped vehicle

in the

normal manner.

CAUTION:

Never keep the starter motor engaged for
more than 10 seconds. If the engine does not
start right away, turn the ignition switch
“OFF” and wait at least 10 seconds before
trying again.

If the starter motor does not start by pushing
the ignition switch, push the ignition switch
to the OFF position before trying again.

12. After the engine is started, carefully disconnect

the jumper cables in the opposite sequence from
that illustrated (

13. Remove and dispose of the cloth as it may be

contaminated with corrosive acid.

14. Replace the vent caps, if removed.

NOTE:
.

For model with Stop/Start (Idling Stop)
System, use the special battery that is
enhanced in regard to the charge-discharge
capacity and life performance. Avoid using a
non-special battery for the Stop/Start (Idling
Stop) system, as this may cause early

deterioration of the battery or a malfunction
of the Stop/Start (Idling Stop) system. For
the battery, it is recommended to use
Genuine RENAULT parts. For more informa-
tion, contact a RENAULT dealer.

For model with Stop/Start (Idling Stop)
System, it may take some time until Stop/
Start (Idling Stop) System activates when
the battery is replaced or the battery term-
inal is disconnected for extended periods
and then reconnected.

In case of emergency

6-9

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

6-10

In case of emergency

Do not attempt to start the engine by pushing the
vehicle.

CAUTION:

Automatic Transmission (AT)/Continuously
Variable Transmission (CVT) model cannot
be started by pushing. Attempting to do so
may cause damage to the transmission.

Three-way catalyst equipped model should
not be started by pushing. Attempting to do
so may cause damage to the catalyst.

Never try to start the engine by towing.
When the engine starts, the forward surge
could cause the vehicle to collide with the
towing vehicle.

Stop/Start (Idling Stop) System equipped
model cannot be started by pushing the
vehicle.

WARNING:

Never continue driving if your vehicle over-
heats. Doing so could cause a vehicle fire.

Never open the hood if steam is coming out.

Never remove the radiator cap while the
engine is hot. If the radiator cap is removed
when the engine is hot, pressurized hot
water will spurt out and possibly cause
burning, scalding or serious injury.

If steam or coolant is coming from the
engine, stand clear of the vehicle to prevent
getting burned.

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact with,
or to get caught in the cooling fan or drive
belts. The engine cooling fan will start at any
time.

If your vehicle is overheating (indicated by the high
temperature indicator), or if you feel a lack of engine
power, detect unusual noise, etc., take the following
steps:

Safely move the vehicle off the road away from
traffic.

Turn on the hazard indicator flasher lights.

Apply the parking brake.

Automatic Transmission (AT)/Continuously Vari-
able Transmission (CVT) model: Move the selector
lever to the “P” (Park) position.

Manual Transmission (MT) model: Move the shift
lever to the “N” (Neutral) position.

DO NOT STOP THE ENGINE.

Open all windows.

Turn off the air conditioner. Set the temperature
control to maximum hot and fan control to
maximum speed.

Get out from the vehicle.

Visually inspect and listen for steam or coolant
escaping from the radiator before opening the
hood. Wait until no steam or coolant can be seen
before proceeding.

Open the engine hood.

10. Visually inspect if the cooling fan is running.

11. Visually inspect the radiator and radiator hoses for

leakage.

If the cooling fan is not running or the coolant is
leaking, stop the engine.

12. After the engine cools down, check the coolant

level in the reservoir with the engine running. Do
not open the radiator cap.

13. Add coolant to the reservoir if necessary.

Have your vehicle inspected/repaired at a RENAULT
dealer.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

When towing your vehicle, local regulations for towing
must be followed. Incorrect towing equipment could
damage your vehicle. To assure proper towing and to
prevent accidental damage to your vehicle, RENAULT
recommends that you have professional road assis-
tance personnel tow your vehicle. It is advisable to
have the professional road assistant carefully read the
following precautions.

TOWING PRECAUTIONS

Be sure that the transmission, steering system and
powertrain are in working condition before towing.
If any units are damaged, the vehicle must be
towed using a dolly or flatbed tow truck.

RENAULT recommends that your vehicle be
towed with the driving (front) wheels off the
ground.

TOWING RECOMMENDED BY RENAULT

Towing Two-Wheel Drive (2WD) model

SCE0613

SCE0614

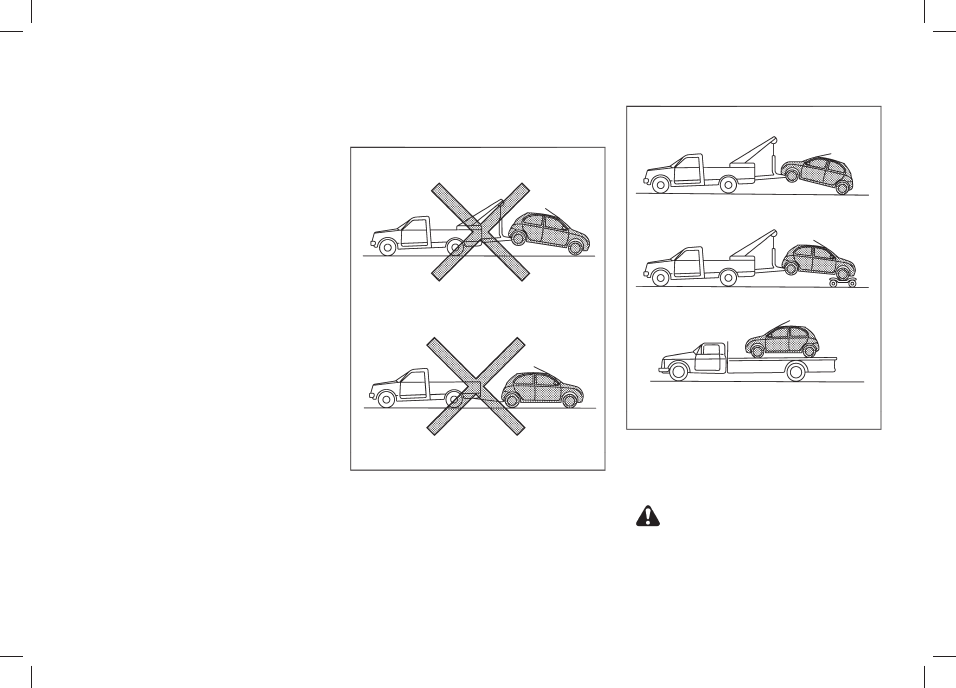

RENAULT recommends that towing dollies be used
under the front wheels when towing your vehicle or the
vehicle be placed on a flatbed tow truck as illustrated.

Front wheels on the ground:

CAUTION:

Never tow Automatic Transmission (AT)/Con-
tinuously Variable Transmission (CVT) model
with the front wheels on the ground. Doing so
will cause serious and expensive damage to the
drivetrain.

In case of emergency

6-11

TOWING YOUR VEHICLE

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

6-12

In case of emergency

Manual Transmission (MT) model:

Place the ignition switch in the “OFF” position.

Secure the steering wheel in a straight-ahead
position with rope or a similar device.

Move the shift lever to the “N” (Neutral) position.

Release the parking brake.

Attach safety chains whenever towing.

Rear wheels on the ground:
1.

Place the ignition switch to the “OFF” position.

Secure the steering wheel in a straight-ahead
position with rope or a similar device.

Move the shift lever to the “N” (Neutral) position.

Release the parking brake.

Attach safety chains whenever towing.

All four wheels on the ground:

CAUTION:

Never tow AT/CVT model with all four wheels on
the ground. Doing so will cause serious and
expensive damage to the transmission.

Manual Transmission (MT) model:

Place the ignition switch in the “OFF” position.

Move the shift lever to the “N” (Neutral) position.

Release the parking brake.

Freeing trapped vehicle

WARNING:

Never allow anyone to stand near the towing
line during the pulling operation.

Never spin the tires at high speed. This could
cause them to explode and result in serious
injury. Parts of the vehicle could also over-
heat and be damaged.

Do not pull the vehicle using the rear hook.
The rear hook is not designed to pull the
vehicle out in the event that the vehicle
becomes trapped.

In the event that your vehicle’s tires become trapped in
sand, snow, or mud, and the vehicle is unable to free
itself without being pulled, use the recovery hooks.
.

Use the recovery hooks only. Do not attach the
pulling device to any other part of the vehicle body.
Otherwise, the vehicle body may be damaged.

Use the recovery hooks to free a vehicle only.
Never tow a vehicle using only the recovery hooks.

The recovery hooks are under tremendous stress
when used to free a trapped vehicle. Always pull
the pulling device straight out from the vehicle.
Never pull on the recovery hooks at an angle.

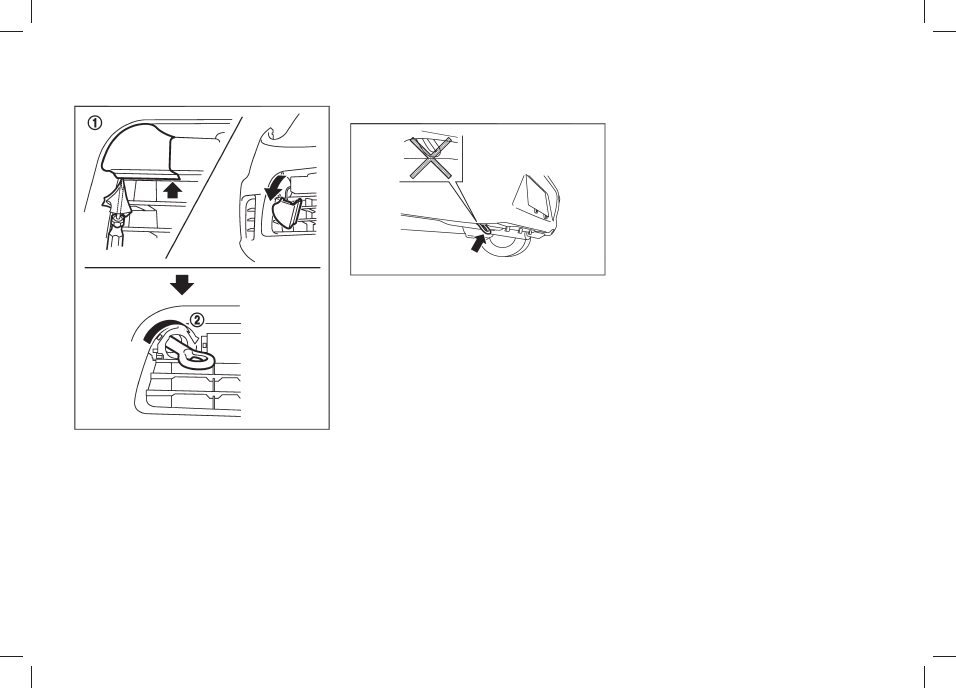

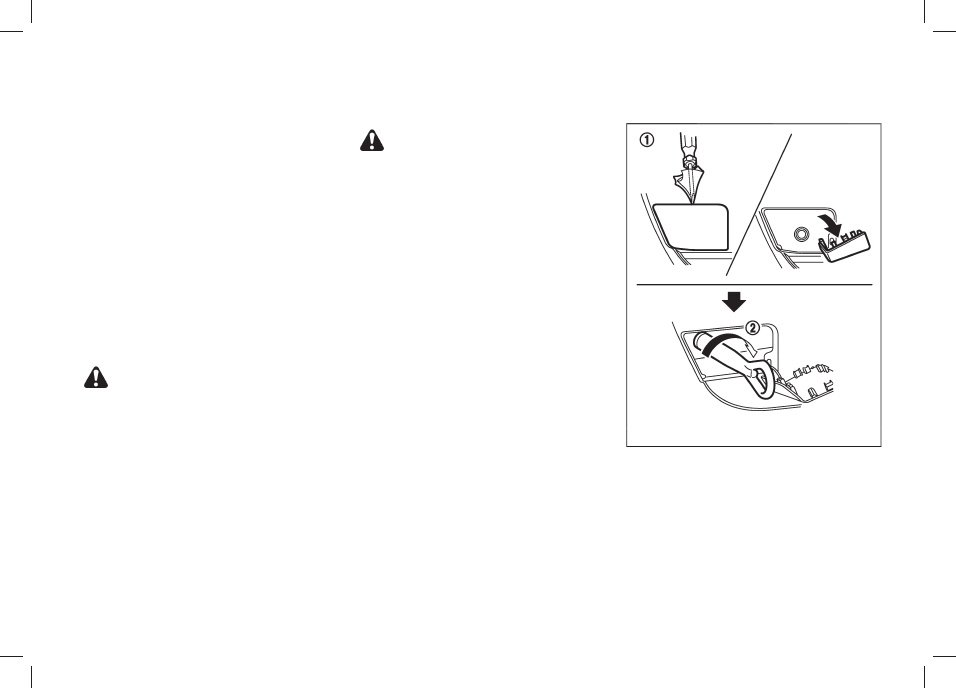

Front:

JVE0037X

Type A (except for Sports version)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

7 Appearance and care

Cleaning exterior ...................................................................................... 7-2

Washing .............................................................................................. 7-2
Removing spots ................................................................................. 7-2
Waxing ................................................................................................. 7-2
Glass .................................................................................................... 7-2
Underbody .......................................................................................... 7-3
Wheels ................................................................................................. 7-3
Aluminum alloy wheels .................................................................... 7-3
Chrome parts ..................................................................................... 7-3

Cleaning interior ...................................................................................... 7-3

Air fresheners .................................................................................. 7-4
Floor mats ......................................................................................... 7-4
Glass .................................................................................................. 7-4
Seat belts ......................................................................................... 7-4

Corrosion protection .............................................................................. 7-5

Most common factors contributing to vehicle corrosion ...... 7-5
Environmental factors influence rate of corrosion .................. 7-5
To protect your vehicle from corrosion ..................................... 7-5

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

7-2

Appearance and care

In order to maintain the appearance of your vehicle, it is
important to take proper care of it.

Whenever possible, park your vehicle inside a garage
or in a covered area to minimize the chances of
damaging the paint surface of your vehicle.

When it is necessary to park outside, park in a shady
area or protect the vehicle with a body cover. Be
careful not to scratch the paint surface when
putting on or removing the body cover.

WASHING

In the following instances, wash your vehicle as soon
as possible to protect the paint surface:

After a rainfall, which may cause the paint surface
damage from acid rain.

After driving on coastal roads, which may cause
rusting from the sea breeze.

When contaminants such as soot, bird droppings,
tree sap, metal particles or bugs get on the paint
surface.

When dust or mud builds up on the paint surface.

Wash the vehicle surface with a wet sponge and
plenty of water.

Clean the vehicle surface gently and thoroughly
using a mild soap, a special vehicle soap or a
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.

CAUTION:

Do not wash the vehicle with strong house-
hold soap, strong chemical detergents, ga-
soline or solvents.

Do not wash the vehicle in direct sunlight or
while the vehicle body is hot, as the paint
surface may become water-spotted.

Avoid using tight-napped or rough cloths,
such as washing mitts. Care must be taken
when removing caked-on dirt or other for-
eign substances so the paint surface is not
scratched or damaged.

Rinse the vehicle thoroughly with plenty of clean
water.

Use a dampened chamois to dry the paint surface
and avoid leaving water spots.

When washing the vehicle, take care of the following:
.

Inside flanges, joints and folds on the doors,
hatches and hood are particularly vulnerable to the
effects of road salt. Therefore, these areas must
be cleaned regularly.

Be sure that the drain holes in the lower edge of
the doors are not clogged.

Spray water to the underbody and in the wheel
wells to loosen the dirt and/or wash away road
salt.

REMOVING SPOTS

Remove tar and oil spots, industrial dust, insects, and
tree sap as quickly as possible from the paint surface
to avoid lasting damage or staining. Special cleaning
products are available at a RENAULT dealer or any
automotive accessory store.

WAXING

Regular waxing protects the paint surface and helps
maintain a new vehicle appearance.

After waxing, polishing is recommended to remove
built-up residue and to avoid a weathered appearance.

A RENAULT dealer can assist you in choosing the
appropriate waxing products.

CAUTION:

Wash your vehicle thoroughly and comple-
tely before applying wax to the paint surface.

Always follow the manufacturer’s instruc-
tions supplied with the wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.

Machine compounding or aggressive polishing on a
base coat/clear coat paint finish may dull the finish or
leave swirl marks.

GLASS

Use glass cleaner to remove smoke and dust film from
the glass surfaces. It is normal for glass to become
coated with a film after the vehicle is parked in the hot
sun. Glass cleaner and a soft cloth will easily remove
this film.

CLEANING EXTERIOR

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

UNDERBODY

In areas where road salt is used in the winter, it is
necessary to clean the vehicle’s underbody regularly in
order to prevent dirt and salt from building up and
causing the acceleration of corrosion on the under-
body and suspension.

Before the winter and again in the spring, the under-
seal must be checked and, if necessary, re-treated.

WHEELS

Wash the wheels when washing the vehicle to
maintain their appearance.

Clean the inner side of the wheels when the wheel
is changed or the underside of the vehicle is
washed.

Do not use abrasive cleaners when washing the
wheels.

Inspect wheel rims regularly for dents or corrosion.
This may cause loss of pressure or damage the
tire bead.

RENAULT recommends that the road wheels be
waxed to protect against road salt in areas where
it is used during winter.

ALUMINUM ALLOY WHEELS

Wash the wheels regularly with a sponge dampened in
a mild solution, especially during winter in areas where
road salt is used.

The salt residue from road salt could discolor the
wheels if it is not washed off regularly.

CAUTION:

Follow the directions below to avoid staining or
discoloring the wheels:

Do not use a cleaner that uses strong acid or
alkali contents to clean the wheels.

Do not apply wheel cleaners to the wheels
when they are hot. The wheel temperature
should be the same as ambient temperature.

Rinse the wheel to completely remove the
cleaner within 15 minutes after the cleaner is
applied.

CHROME PARTS

Clean all chrome parts regularly with a nonabrasive
chrome polish to maintain the finish.

Occasionally remove loose dust from the interior trim,
plastic parts and seats using a vacuum cleaner or soft
bristled brush. Wipe the vinyl and leather surfaces with
a clean, soft cloth dampened in mild soap solution,
then wipe clean with a dry, soft cloth.

Regular care and cleaning is required in order to
maintain the appearance of the leather.

Before using any fabric protector, read the manufac-
turer’s recommendations. Some fabric protectors
contain chemicals that may stain or bleach the seat
material.

Use a soft cloth dampened only with water to clean the
meter and gauge lens covers.

CAUTION:

Never use benzine, thinner or any similar
material.

Small dirt particles can be abrasive and
damaging to leather surfaces and should be
removed promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning fluids,
solvents, detergents or ammonia-based
cleaners as they may damage the leather
natural finish.

Never use fabric protectors unless recom-
mended by the manufacturer.

Do not use glass or plastic cleaner on meter
or gauge lens covers. It may damage the
lens covers.

Appearance and care

7-3

CLEANING INTERIOR

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

7-4

Appearance and care

AIR FRESHENERS

Most air fresheners use a solvent that could affect the
vehicle interior. If you use an air freshener, take the
following precautions:
.

Hanging-type air fresheners can cause permanent
discoloration when they contact vehicle interior
surfaces. Place the air freshener in a location that
allows it to hang free and not contact an interior
surface.

Liquid-type air fresheners typically clip on the
vents. These products can cause immediate
damage and discoloration when spilled on interior
surfaces.

Carefully read and follow the manufacturer’s instruc-
tions before using air fresheners.

FLOOR MATS

The use of genuine RENAULT floor mats (if equipped)
can extend the life of your vehicle carpet and make it
easier to clean the interior. Regardless of what mats
are used, be sure they are fitted for your vehicle and
are properly positioned in the foot well to prevent
interference with pedal operation. Mats should be
maintained with regular cleaning and replaced if they
become excessively worn.

Floor mat positioning aid (driver’s side)

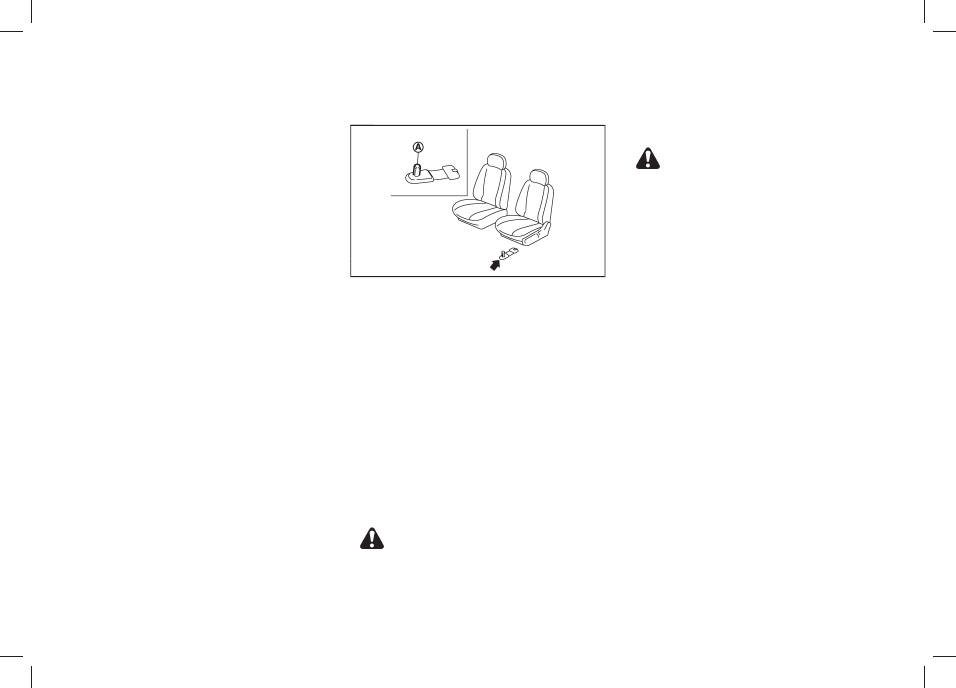

SAI0034

This vehicle includes a front floor mat bracket

act as a floor mat positioning aid. RENAULT floor mats
have been specially designed for your vehicle model.
The driver’s floor mat has a grommet hole incorporated
in it.

Position the mat by placing the floor mat bracket hook
through the floor mat grommet hole while centering the
mat in the foot area.

Periodically check that the mats are properly posi-
tioned.

GLASS

CAUTION:

When cleaning the inside of the windows, do not
use sharp-edged tools, abrasive cleaners or
chlorine-based disinfectant cleaners. They could
damage the electrical conductors, such as rear

window defogger elements.

SEAT BELTS

WARNING:

Do not allow wet seat belts to roll up in the
retractor.

Never use bleach, dye or chemical solvents
to clean the seat belts, since these materials
may severely weaken the seat belt webbing.

The seat belts can be cleaned by wiping them with a
sponge dampened in a mild soap solution.

Allow the belts to dry completely in the shade before
using them. (See “Seat belts” (P.1-7).)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

MOST COMMON FACTORS CONTRIBUT-
ING TO VEHICLE CORROSION

The accumulation of moisture-retaining dirt and
debris in body panel sections, cavities, and other
areas.

Damage to the paint surface and other protective
coatings caused by gravel and stone chips or
minor traffic accidents.

ENVIRONMENTAL FACTORS INFLUENCE
RATE OF CORROSION

Moisture

The accumulation of sand, dirt and water on the inside
floor of the vehicle can accelerate corrosion. Wet floor
carpet/floor mats will not dry completely inside the
vehicle. They should be removed and completely dried
to avoid floor panel corrosion.

Relative humidity

Corrosion will be accelerated in areas of high relative
humidity.

Temperature

High temperatures accelerate the rate of corrosion to
those parts which are not well ventilated.

Corrosion will also be accelerated in areas where the
temperatures stay above freezing.

Air pollution

Industrial pollution, the presence of salt in the air in
coastal areas, or heavy road salt use accelerates the
corrosion process. Road salt also accelerates the
disintegration of paint surfaces.

TO PROTECT YOUR VEHICLE FROM
CORROSION

Wash and wax your vehicle often to keep the
vehicle clean.

Always check for minor damage to the paint
surface and if any exists, repair it as soon as
possible.

Keep the drain holes in the lower edge of the
doors open to avoid water accumulation.

Check the vehicle underbody for accumulation of
sand, dirt or salt. If present, wash with water as
soon as possible.

CAUTION:

Never remove dirt, sand or other debris from
the passenger compartment by washing it
out with a hose. Remove dirt with a vacuum
cleaner or broom.

Never allow water or other liquids to come in
contact with electronic components inside
the vehicle as this may damage them.

Chemicals used for road surface deicing are extremely
corrosive. They accelerate corrosion and deterioration
of underbody components such as the exhaust system,
fuel and brake lines, brake cables, floor pan and
fenders.

In the winter, the underbody must be cleaned
periodically.

For additional protection against rust and corrosion,
which may be required in some areas, consult a
RENAULT dealer.

Appearance and care

7-5

CORROSION PROTECTION

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8 Maintenance and do-it-yourself

Maintenance requirements .................................................................... 8-2

Scheduled maintenance .................................................................. 8-2
General maintenance ....................................................................... 8-2
Where to go for service .................................................................. 8-2

General maintenance .............................................................................. 8-2

Explanation of general maintenance items ................................. 8-2
Maintenance precautions ................................................................ 8-4

Engine compartment check locations ................................................ 8-5

HR12DDR engine model ................................................................ 8-5
HR12DE engine model ................................................................... 8-6
HR15DE engine model ................................................................... 8-7
K9K engine model ............................................................................ 8-8

Engine cooling system ........................................................................... 8-8

Checking engine coolant level ...................................................... 8-9
Changing engine coolant ................................................................ 8-9

Engine oil ................................................................................................ 8-10

Checking engine oil level ............................................................. 8-10
Changing engine oil and oil filter ............................................... 8-10
Protect environment ...................................................................... 8-14

Fuel filter (diesel engine model) ....................................................... 8-15

Draining water ................................................................................. 8-15
Bleeding fuel system ..................................................................... 8-15

Drive belts .............................................................................................. 8-15
Spark plugs (gasoline engine model) ............................................. 8-16

Iridium-tipped spark plugs (if equipped) ................................. 8-16
Nickel-tipped spark plugs (if equipped) .................................. 8-17

Brakes ...................................................................................................... 8-17

Checking parking brake ............................................................... 8-17
Checking foot brake pedal .......................................................... 8-17
Brake booster ................................................................................. 8-18

Brake fluid .............................................................................................. 8-18

Clutch fluid (if equipped) ................................................................... 8-19
Automatic Transmission Fluid (ATF) (if equipped) ...................... 8-19
Continuously Variable Transmission (CVT) fluid
(if equipped) .......................................................................................... 8-20
Air cleaner filter .................................................................................... 8-20
Wiper blades ........................................................................................ 8-20

Windshield wiper blades ........................................................... 8-20
Rear window wiper blade (if equipped) ................................ 8-21

Window washer fluid .......................................................................... 8-22
Battery .................................................................................................... 8-23

Vehicle battery .............................................................................. 8-23
Remote controller battery .......................................................... 8-24
Intelligent key battery .................................................................. 8-25

Variable voltage control system (if equipped) .............................. 8-26
Fuses ....................................................................................................... 8-26

Engine compartment ................................................................... 8-26
Passenger compartment ............................................................ 8-27

Lights ...................................................................................................... 8-28

Headlights ..................................................................................... 8-28
Exterior lights ................................................................................ 8-29
Interior lights ................................................................................. 8-29
Light locations .............................................................................. 8-30

Tires and wheels .................................................................................. 8-34

Tire inflation pressure ................................................................. 8-34
Types of tires ................................................................................ 8-34
Tire chains ..................................................................................... 8-34
Tire rotation ................................................................................... 8-34
Tire wear and damage ............................................................... 8-35
Tire age .......................................................................................... 8-35
Changing tires and wheels ....................................................... 8-35
Wheel balance ............................................................................. 8-35
Spare tire ....................................................................................... 8-35

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-2

Maintenance and do-it-yourself

Your new vehicle has been designed to have minimum
maintenance requirements with long service intervals
to save you both time and money. However, some day-
to-day and regular maintenance is essential to maintain
your vehicle’s fine mechanical condition, as well as its
emission and engine performance.

It is the owner’s responsibility to make sure that the
specified maintenance, as well as general mainte-
nance, is performed.

As the vehicle owner, you are the only one who can
ensure that your vehicle receives the proper main-
tenance care. You are a vital link in the maintenance
chain.

SCHEDULED MAINTENANCE

For your convenience, the required scheduled main-
tenance items are described and listed in a separate
maintenance booklet. You must refer to that booklet to
ensure that necessary maintenance is performed on
your vehicle at regular intervals.

GENERAL MAINTENANCE

General maintenance includes those items which
should be checked during normal day-to-day operation
of the vehicle. They are essential if your vehicle is to
continue to operate properly. It is your responsibility to
perform these procedures regularly as prescribed.

Performing general maintenance checks requires
minimal mechanical skill and only a few general
automotive tools.

These checks and inspections can be done by
yourself, a qualified technician, or if you prefer, a
RENAULT dealer.

WHERE TO GO FOR SERVICE

If maintenance service is required or your vehicle
appears to malfunction, have the systems checked and
tuned by a RENAULT dealer.

RENAULT technicians are well-trained specialists and
are kept up-to-date with the latest service information
through technical bulletins, service tips, and internal
dealership training programs. They are completely
qualified to work on RENAULT’s vehicles before they
work on your vehicle, rather than after they have
worked on it.

You can be confident that a RENAULT dealer’s service
department performs the best job to meet the
maintenance requirements on your vehicle — in a
reliable and economic way.

During normal day-to-day operation of the vehicle,
general maintenance should be performed regularly as
prescribed in this section. If you detect any unusual
sounds, vibrations or smells, be sure to check for the
cause or have a RENAULT dealer do it promptly. In
addition, you should notify a RENAULT dealer if you
think that repairs are required.

When performing any checks or maintenance work,
closely observe “Maintenance precautions” (P.8-4).

EXPLANATION OF GENERAL MAINTE-
NANCE ITEMS

Additional information on the following items
with

“*” is found later in this section.

Outside vehicle

The maintenance items listed here should be per-
formed from time to time, unless otherwise specified.

Doors and engine hood:
Check that all doors and the engine hood operate
properly. Also make sure that all latches lock securely.
Lubricate hinges and latches if necessary. Make sure
that the secondary latch of the engine hood keeps the
hood from opening when the primary latch is released.

When driving in areas using road salt or other
corrosive materials, check lubrication frequently.

Lights*:
Clean the headlights on a regular basis. Make sure that
the headlights, stop lights, tail lights, turn signal lights,
and other lights are all operating properly and installed
securely. Also check the aim of the headlights.

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Tires*:
Check the pressure with a gauge often and always
prior to long distance trips. If necessary, adjust the
pressure in all tires, including the spare, to the
pressure specified. Check carefully for damage, cuts
or excessive wear.

Tire rotation*:
Tires should be rotated every 10,000 km (6,000
miles). However, the timing for tire rotation may vary
according to your driving habits and the road surface
conditions.

Wheel alignment and balance (for Europe):
If the vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for wheel
alignment.

If the steering wheel or seat vibrates at normal highway
speeds, wheel balancing may be needed.

Windshield:
Clean the windshield on a regular basis. Check the
windshield at least every six months for cracks or other
damage. Have a damaged windshield repaired by a
qualified repair facility.

Wiper blades*:
Check for cracks or wear if they do not wipe properly.

Inside vehicle

The maintenance items listed here should be checked
on a regular basis, such as when performing periodic
maintenance, cleaning the vehicle, etc.

Accelerator pedal:
Check the pedal for smooth operation and make sure
that the pedal does not catch or require uneven effort.
Keep the floor mats away from the pedal.

Brake pedal*:
Check the pedal for smooth operation and make sure
that it has the proper distance under it when
depressed fully. Check the brake booster function.
Keep the floor mats away from the pedal.

Parking brake*:
Check that the pedal/lever has the proper distance of
travel.

Seat belts:
Check that all parts of the seat belt system (for
example, buckles, anchors, adjusters and retractors)
operate properly and smoothly, and that they are
installed securely. Check the belt webbing for cuts,
fraying, wear or damage.

Steering wheel:
Check for changes in the steering conditions, such as
excessive free play, hard steering or strange noises.

Warning lights and chimes:
Make sure that all warning lights and chimes are
operating properly.

Windshield defogger:
Check that the air comes out of the defogger outlets
properly and in good quantity when operating the
heater or air conditioner.

Windshield wiper and washer*:
Check that the wipers and washer operate properly
and that the wipers do not streak.

Under hood and vehicle

The maintenance items listed here should be checked
periodically (for example, each time you check the
engine oil or refuel).

Battery*:
Check the fluid level in each cell. It should be between
the UPPER and LOWER levels. Vehicles operated in
high temperatures or under severe conditions require
frequent checks of the battery fluid level.

Brake and clutch fluid level*:
Make sure that the brake and clutch fluid level is
between the MAX and MIN lines on the reservoir.

Engine coolant level*:
Check the coolant level when the engine is cold.

Engine drive belts*:
Make sure the drive belts are not frayed, worn, cracked
or oily.

Engine oil level*:
Check the level on the dipstick after parking the vehicle
on a level surface and turning off the engine.

Fluid leaks:
Check under the vehicle for fuel, oil, water or other fluid
leaks after the vehicle has been parked for a while.
Water dripping from the air conditioner after use is
normal. If you should notice any leaks or if fuel fumes
are evident, check for the cause and have it corrected
immediately.

Maintenance and do-it-yourself

8-3

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-4

Maintenance and do-it-yourself

Window washer fluid*:
Check that there is adequate fluid in the reservoir.

MAINTENANCE PRECAUTIONS

When performing any inspection or maintenance work
on your vehicle, always take care to prevent serious
accidental injury to yourself or damage to the vehicle.
The following are general precautions which should be
closely observed.

WARNING:

Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. Move
the selector lever to the

“P” (Park) position

or the shift lever to the

“N” (Neutral) position.

Be sure the ignition switch is in the

“OFF” or

“LOCK” position when performing any parts
replacement or repairs.

Do not work under the hood while the
engine is hot. Always turn off the engine
and wait until it cools down.

If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts.

It is advisable to secure or remove any loose
clothing and any jewelry, such as rings,
watches, etc. before working on your vehi-
cle.

If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.

Never get under the vehicle while it is
supported by a jack.

Keep smoking materials, flame and sparks
away from fuel and the battery.

Never connect or disconnect either the
battery or any transistorized component
connector while the ignition switch is in the
“ON” position.

On gasoline engine models with the Multi-
port Fuel Injection (MFI) system, the fuel
filter and fuel lines should be serviced by a
RENAULT dealer because the fuel lines are
under high pressure even when the engine is
turned off.

Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
switch is in the

“OFF” position and the

engine is not running. To avoid injury, always
disconnect the negative battery cable before
working near the fan.

Always wear eye protection whenever you
work on your vehicle.

Never leave the engine or the transmission
related component harness connector dis-
connected while the ignition switch is in the
“ON” position.

Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
engine coolant, and/or other vehicle fluids
can hurt the environment. Always conform to
local regulations for disposal of vehicle
fluids.

This “8. Maintenance and do-it-yourself” section
provides instructions regarding only those items which

are relatively easy for an owner to perform.

You should be aware that incomplete or improper
servicing may result in operating difficulties or ex-
cessive emissions, and could affect your warranty
coverage. If in doubt about any servicing, have it
done by a RENAULT dealer.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

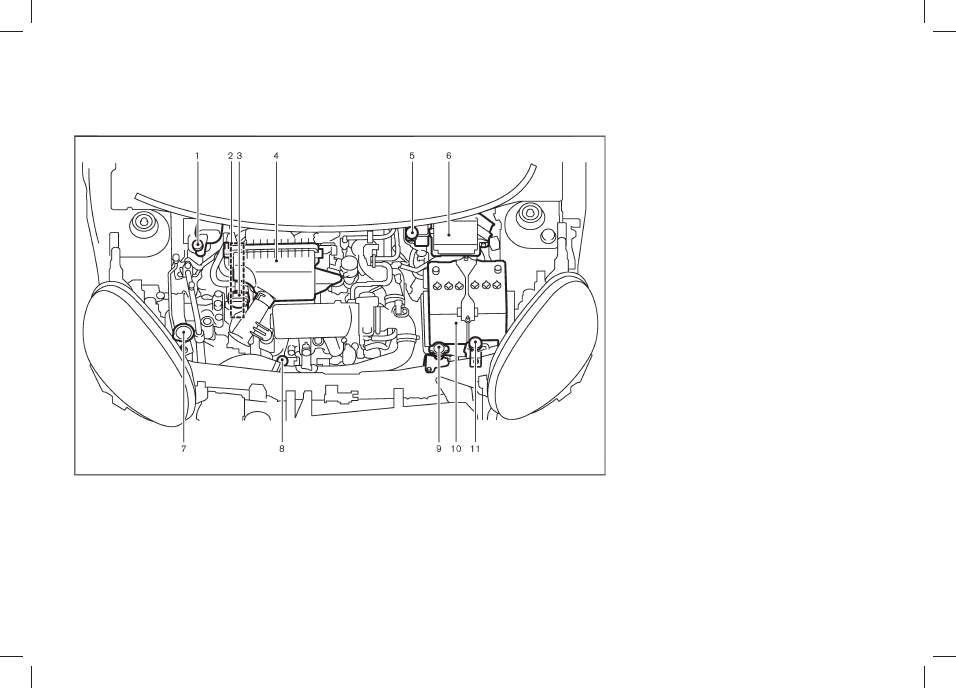

HR12DDR ENGINE MODEL

JVO0032X

Brake and clutch* fluid reservoir
— Right-Hand Drive (RHD) model

Engine drive belts

Engine oil filler cap

Air cleaner

Brake and clutch* fluid reservoir
— Left-Hand Drive (LHD) model

Fuse/fusible link box

Window washer fluid reservoir

Engine oil dipstick

Radiator cap

10.

Battery

11.

Engine coolant reservoir

*: For Manual Transmission (MT) Model

Maintenance and do-it-yourself

8-5

ENGINE COMPARTMENT CHECK

LOCATIONS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8-6

Maintenance and do-it-yourself

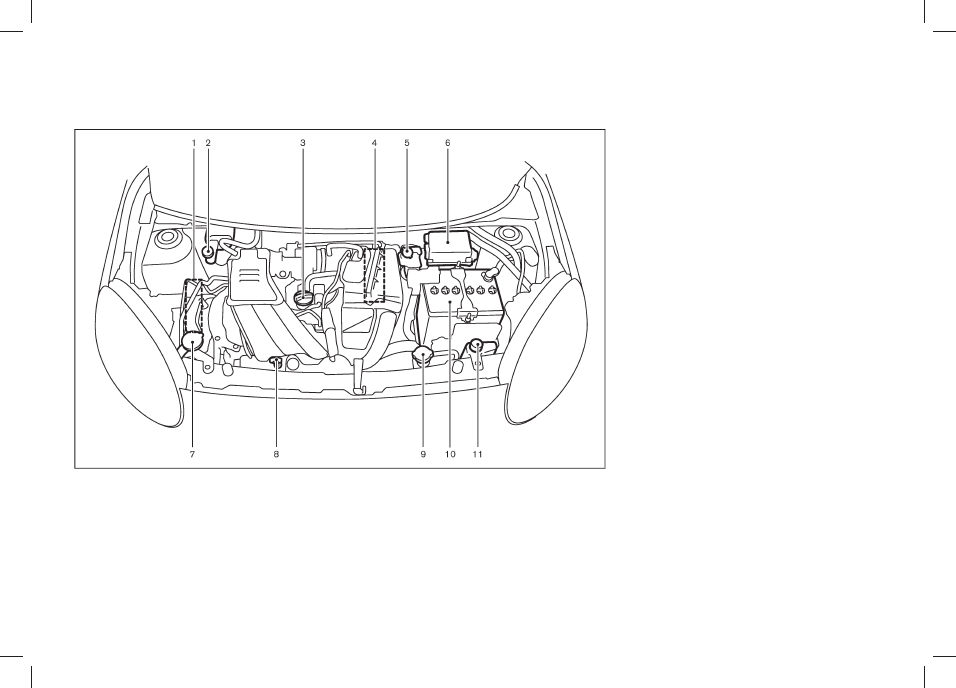

HR12DE ENGINE MODEL

JVC0117X

Engine drive belts

Brake and clutch* fluid reservoir
— Right-Hand Drive (RHD) model

Engine oil filler cap

Air cleaner

Brake and clutch* fluid reservoir
— Left-Hand Drive (LHD) model

Fuse/fusible link box

Window washer fluid reservoir

Engine oil dipstick

Radiator cap

10.

Battery

11.

Engine coolant reservoir

*: For Manual Transmission (MT) Model

&RQGLWLRQ

Renault Pulse (2012 year). Instruction - part 15
