Technical information

The following are approximate capacities. The actual refill quantities may be slightly different. When refilling, follow the procedures instructed in the “8. Maintenance and do-it-
yourself” section to determine the proper refill capacity.

Engine Type

Approximate Capacity

Recommended Fuel/Lubricants

Metric Measure

Imperial Measure

Fuel

41 L

9 gal

See “Fuel recommendation” (P.9-3).

Engine oil (*1)

HR12DE
HR15DE

including oil filter

3.0 L

3.4 L (for Europe)

2-5/8 qt

3 qt (for Europe)

Refer to the maintenance service document for your vehicle.

excluding oil filter

2.8 L

3.2 L (for Europe)

2-1/2 qt

2-7/8 qt (for Europe)

HR12DDR

including oil filter

3.9 L

3-3/8 qt

excluding oil filter

3.7 L

3-1/4 qt

K9K

including oil filter

4.4 L

3-7/8 qt

excluding oil filter

4.2 L

3-3/4 qt

Cooling system (including reservoir tank capacity 0.7 L)

Only use fluids approved by our technical department.

HR12DDR

MT model

5.4 L

4-3/4 qt

CVT model

5.9 L

5-1/4 qt

HR12DE

MT model (for Thailand, Brunei, Singa-
pore and Pakistan)
MT model (except for Thailand, Brunei,
Singapore and Pakistan)

5.7 L

5.5 L

5 qt

4-7/8 qt

AT model

5.5 L

4-7/8 qt

CVT model (for Thailand)
CVT model (except for Thailand)

5.8 L
5.6 L

5-1/8 qt
4-7/8 qt

HR15DE

MT model

5.6 L

4-7/8 qt

AT model

6.0 L

5-1/4 qt

Cooling system (including reservoir tank capacity 1.0 L)

K9K

MT model

7.6 L

6-3/4 qt

Automatic Transmission Fluid (ATF)

—

Continuously Variable Transmission (CVT) fluid

—

Manual Transmission (MT) gear oil

—

Brake and clutch fluid

—

(*7)

—

Multi-purpose grease

—

Air conditioner system refrigerant

—

Air conditioner system lu-
bricants

HR12DDR
HR12DE
HR15DE

—

K9K

—

RECOMMENDED FUEL/

LUBRICANTS AND CAPACITIES

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

FUEL RECOMMENDATION

Gasoline engine (model with three–way
catalyst)

CAUTION:

Do not use leaded gasoline. Using leaded gaso-
line will damage the three-way catalyst.

Except for Europe, Thailand and China: Use UN-
LEADED REGULAR gasoline of at least 91 octane
(RON).

For Europe: Use UNLEADED PREMIUM gasoline of at
least 95 octane (RON).

If unleaded premium gasoline is not used, UNLEADED
REGULAR gasoline with an octane rating of at least 91
(RON) may be used at slightly reduced performance.
However, for maximum vehicle performance and the
best driveability, the use of unleaded premium gasoline
is recommended.

For Thailand: Use UNLEADED REGULAR gasoline or
gasohol (up to E20*) of at least 91 octane (RON).

*: Gasohol is alcohol blended gasoline. For example,
“E20” is a mixture of approximately 20% fuel ethanol
and 80% unleaded gasoline.

For China: Use UNLEADED REGULAR gasoline of at
least 93 octane (RON).

Your vehicle complies with GB18352.3-2005. Use
unleaded gasoline with an octane rating 93 (RON) or
above and national III or IV emission standard
compliant. If other types of gasoline are used, it will
reduce the performance of the vehicle’s emission
control system and the Malfunction Indicator Light
(MIL) will illuminate.

Diesel engine*

Diesel fuel of at least 50 cetane

If two types of diesel fuel are available, use summer or winter

fuel properly according to the following temperature condi-

tions.

Above

í78C (208F) ... Summer type diesel fuel.

Below

í78C (208F) ... Winter type diesel fuel.

CAUTION:

Do not use home heating oil, gasoline or
other alternate fuels in your diesel engine.
The use of those or adding those to diesel
fuel can cause engine damage.

Do not use summer fuel at temperatures
below

í78C (208F). The cold temperatures

will cause wax to form in the fuel. As a
result, it may prevent the engine from
running smoothly.

RECOMMENDED SAE VISCOSITY NUM-
BER

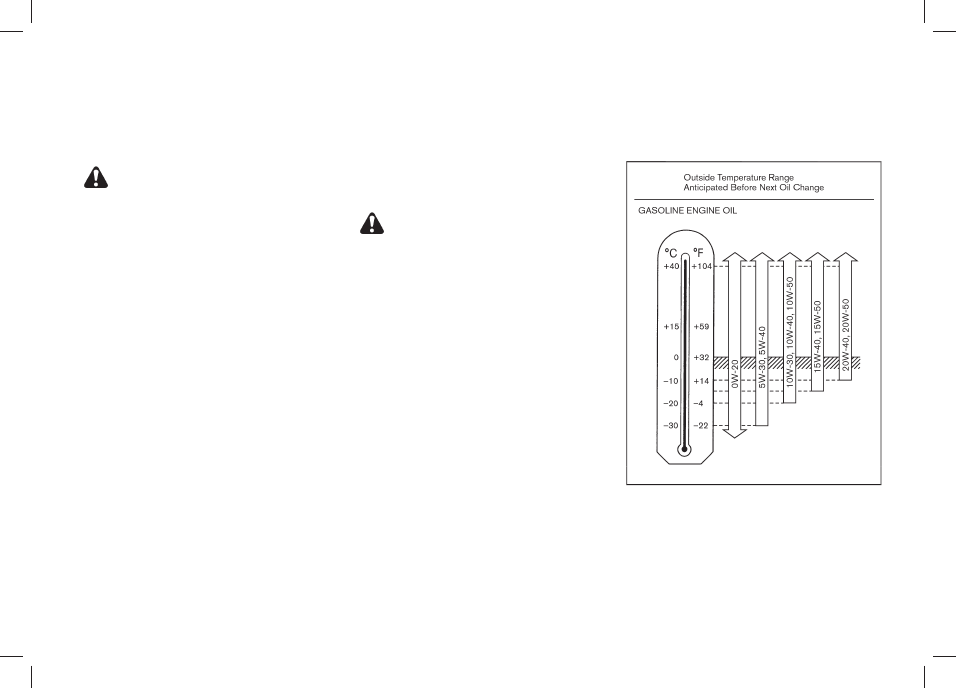

Gasoline engine oil

STI0732

For Europe (HR12DDR engine model):
5W-30 is preferable.

If 5W-30 is not available, select the viscosity,
from the chart, that is suitable for the outside
temperature range.

Technical information

9-3

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-4

Technical information

For Europe (HR12DE engine model) and Thai-
land:
0W-20 is preferable.

If 0W-20 is not available, select the viscosity,
from the chart, that is suitable for the outside
temperature range.

Except for Europe and Thailand:
10W-30 is preferable.

If 10W-30 is not available, select the viscosity,
from the chart, that is suitable for the outside
temperature range.

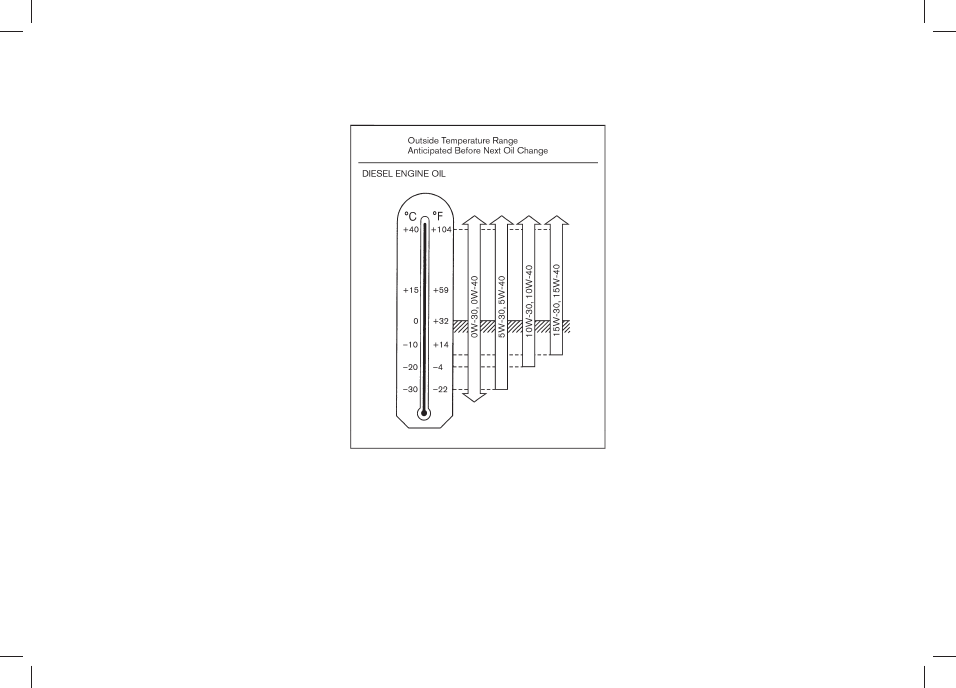

Diesel engine oil

JVT0029X

5W-30 is preferable.

If 5W-30 is not available, select the viscosity,
from the chart, that is suitable for the outside
temperature range.

AIR CONDITIONER SYSTEM REFRIGER-
ANT AND LUBRICANT

The air conditioner system of your vehicle must be
charged with the refrigerant HFC-134a (R134a) and
the lubricant approved by our technical department or
equivalents. Use of any other refrigerants or lubricants
will cause severe damage, and you may need to
replace your vehicle’s entire air conditioner system.

The release of refrigerants into the atmosphere is
prohibited in many countries and regions. The refrig-
erant HFC-134a (R-134a) in your vehicle will not harm
the Earth’s ozone layer. However, it may contribute in a
small part to the global warming effect. RENAULT
recommends that the refrigerant be appropriately
recovered and recycled. Contact a RENAULT dealer
when servicing the air conditioner system.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Engine Model

HR12DDR

HR12DE

HR15DE

K9K

Type

Gasoline, 4-cycle, DOHC

Diesel, 4-cycle

Cylinder arrangement

3-cylinder, in-line

4-cylinder, in-line

Bore

6 Stroke

mm (in)

78.0

6 83.6 (3.071 6

3.291)

78.0

6 83.6 (3.071 6

3.291)

78.0

6 78.4 (3.071 6

3.087)

76.0

6 80.5 (2.992 6

3.169)

Displacement

(cu in)

1,198 (73.10)

1,498 (91.41)

1,461 (89.15)

Idle speed at the “N” (Neutral)
position

rpm

CVT: 775±50

CVT: 750±50

MT: 650±50

MT: 800±50

MT: 750±50

MT: 750±50 (*1) (*3)
MT: 860±50 (*2)(*8)(*9)
(*10)
AT: 775±50 (*8)

AT: 700±50

Ignition timing (B.T.D.C.)

CVT: 11

8±28

MT: 11

8±28

CVT: 9

8±28

MT: 12

8±28

AT: 8

8±28

MT: 5

8±28(*5)(*9)

MT: 6

8±28(*4)

AT: 5

8±28(*5)

AT: 3

8±28(*4)

—

Spark
plugs

Standard

DILKAR7E11HS

FXE20HR11 (*1)
REA12WMB4 (*3)
REA12MC4 (*6)(*8)(*9)
(*10)
DILKAR6A11 (*7)

REA12WMB4

—

Spark plug gap

mm (in)

1.1 (0.043)

—

Camshaft operation

Timing chain

Timing belt

*1:

For Thailand, Singapore (MT model) and Indonesia (MT model)

*2:

For India and Australia

*3:

For Europe

*4:

For China

*5:

For Australia

*6:

For India, Australia, Singapore (AT model) and Indonesia (AT model)

*7:

For Hong Kong

*8:

For Pakistan

*9:

For South Africa

*10: Except for Thailand, Singapore (MT model), Indonesia (MT model), India, Australia, Europe, Hong Kong, Pakistan and South Africa

Technical information

9-5

ENGINE

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-6

Technical information

Standard

Spare*9

Tire size

165/70 R14 81S

165/70 R14 81S*2*3*4*6*8

T115/70 D14 88M*1*7*8

T105/70 D14 83M*5

175/60 R15 81H*1*2*3*4*6*7*8

165/70 R14 81S*3

175/60 R15 81H*2*4*6*8

T115/70 D14 88M*1*7*8

Size

Offset mm (in)

Road wheel

Steel

14X 4T

14 X 5-1/2J

15X 5-1/2J

40 (1.57)
45 (1.77)
50 (1.97)

Aluminum alloy wheel

15X 5-1/2J

50 (1.97)

*1:

For Europe

*2:

For Australia, Indonesia, Brunei, Singapore and Thailand

*3:

For China

*4:

For India

*5:

For Hong Kong

*6:

Pakistan

*7:

South Africa

*8:

Except for Europe, Australia, Indonesia, Brunei, Singapore, Thailand, Pakistan, China, India, and Hong Kong

*9:

The tire puncture repair kit is supplied for Europe (if equipped).

Toe-in
(front/rear)

IN 1 mm±1 mm/
IN 1 mm±4 mm/

Camber
(front/rear)

800’±45’/

í1825’±30’/

Kingpin inclination

835’±45’

Caster

835’±45’

TIRES AND WHEELS

WHEEL ALIGNMENT (for China)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Unit: mm (in)

Overall length

3,805 (149.8)

Overall width

1,665 (65.6)

Overall height

1,530 (60.2)

Front tread

1,470 (57.9)*1
1,460(57.5)*2

Rear tread

1,475 (58.1)*1
1,465(57.7)*2

Wheelbase

2,450 (96.5)

*1: Except for 175/60R15 tire model

*2: For 175/60R15 tire model

When planning to travel in another country or
region,

find out whether the fuel required for your

vehicle is available in that country or region. Using a
low octane rated fuel may cause engine damage.
Therefore, be sure that the required fuel is available
wherever you go. For additional information regarding
recommended fuel, see earlier in this section.

When transferring the registration of your vehi-
cle to another country, state, province or district,
contact the appropriate authorities to find out that the
vehicle complies with the local legal requirements. In
some cases, a vehicle cannot meet the legal require-
ments, and it may be necessary to modify the vehicle to
meet local laws and regulations. In addition, there may
be possibilities that a vehicle cannot be adapted in
certain areas.

The laws and regulations for motor vehicle emission
control and safety standards vary according to the
country, state, province or district; therefore, the
vehicle specification may differ.

When any vehicles are to be taken into another
country, state, province or district, its modifica-
tion, transportation, registration, and any other
expenses which may result, are the responsi-
bility of the user. RENAULT is not responsible for
any inconveniences that may result.

STI0733

VEHICLE IDENTIFICATION PLATE

The plate is affixed as shown

Built date plate (for Australia and New
Zealand)

Built date is stamped on the vehicle identification plate.

The built date means the calendar month and the year
in which the body shell and power train subassemblies
are conjoined and the vehicle is driven or moved from
the production line.

VEHICLE IDENTIFICATION NUMBER
(chassis number)

The number is stamped as shown

Technical information

9-7

DIMENSIONS

WHEN TRAVELLING OR

REGISTERING IN ANOTHER

COUNTRY

VEHICLE IDENTIFICATION

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-8

Technical information

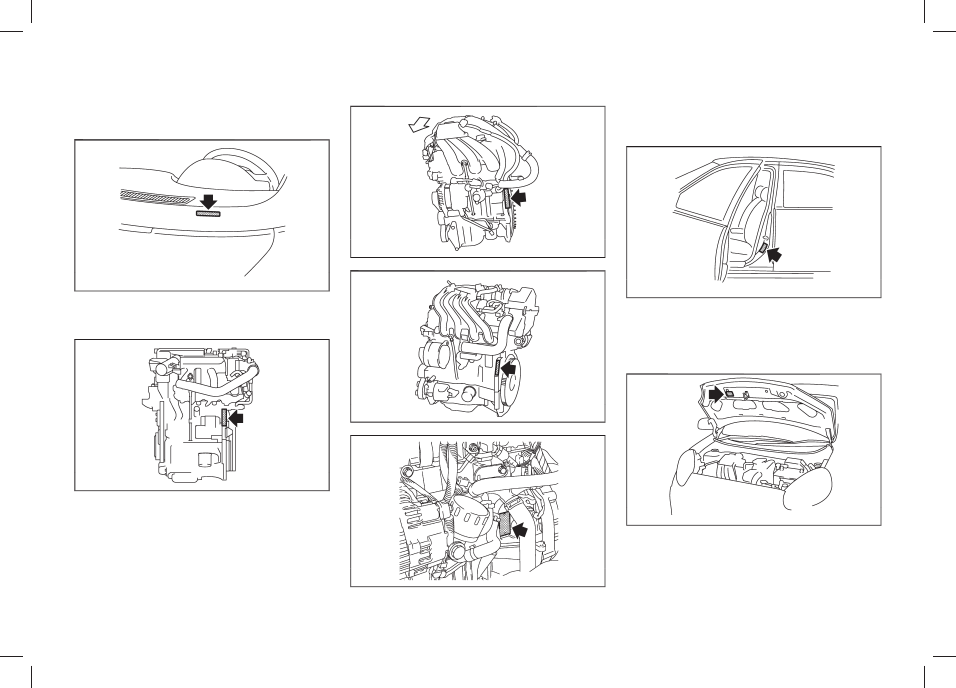

VEHICLE IDENTIFICATION NUMBER (VIN)
PLATE (if equipped)

STI0457

The plate is affixed as shown.

ENGINE SERIAL NUMBER

JVT0041X

HR12DDR engine

STI0734

HR12DE engine

JVT0003X

HR15DE engine

STI0662

K9K engine

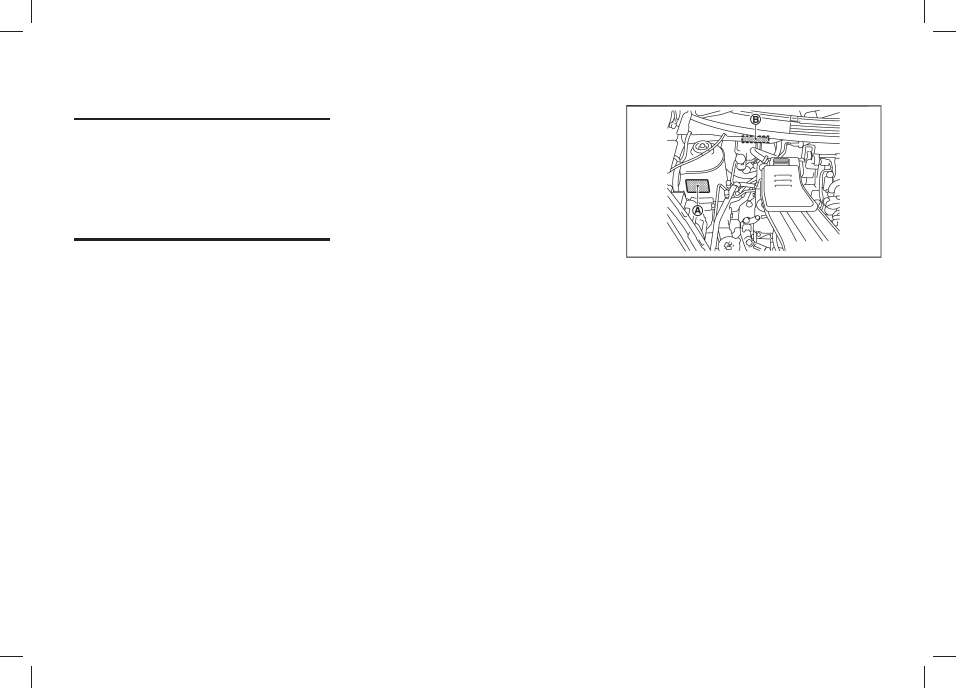

The engine serial number is stamped on the engine as

shown.

TIRE PLACARD

STI0494

The cold tire pressures are shown on the tire placard
affixed to the driver’s side center pillar.

AIR CONDITIONER SPECIFICATION LABEL
(if equipped)

JVT0129X

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

FOR EUROPE

Remote keyless entry system (if equipped)

Hereby, ALPS ELECTRIC CO.,LTD. declares that
these Keyless and TPMS TUNER; model TWC1G124
and Keyless Transmitter; model TWB1U761 are in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.

CAUTION:

Do not exposed to excessive heat such as
sunshine, fire or the like.

CAUTION:

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equiva-
lent type.

Intelligent Key system (if equipped)

Hereby, ALPS ELECTRIC CO.,LTD. declares that
these Passive Entry System(Hand Unit);model
TWB1G662, Passive Entry System(Tuner);model
TWC1G135, ANT ASSY-IMMOBILISER;model
TWK1A002 are in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.

CAUTION:

Do not exposed to excessive heat such as
sunshine, fire or the like.

CAUTION:

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equiva-
lent type.

Anti-Theft System immobilizer

Hereby, CalsonicKansei Corp. declares that this ANT
ASSY-IMMOBILISER;model MW1014 is in compli-
ance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.

CAUTION:

Do not exposed to excessive heat such as
sunshine, fire or the like.

CAUTION:

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equiva-
lent type.

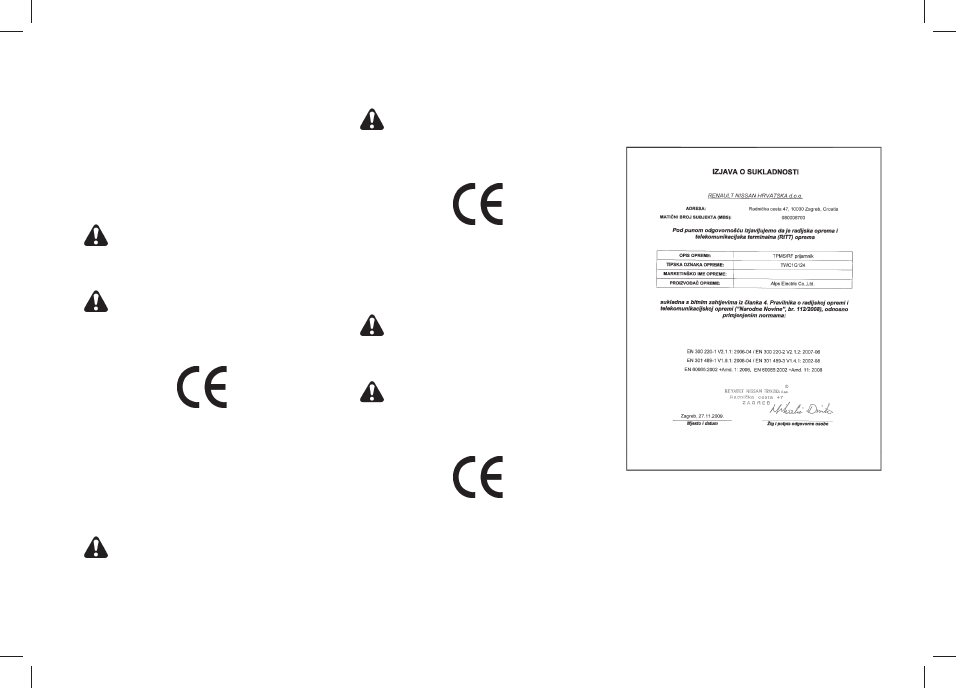

FOR CROATIA

Remote keyless entry system (if equipped)

JVT0008X

Technical information

9-9

RADIO APPROVAL NUMBER AND

INFORMATION

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-10

Technical information

JVT0009X

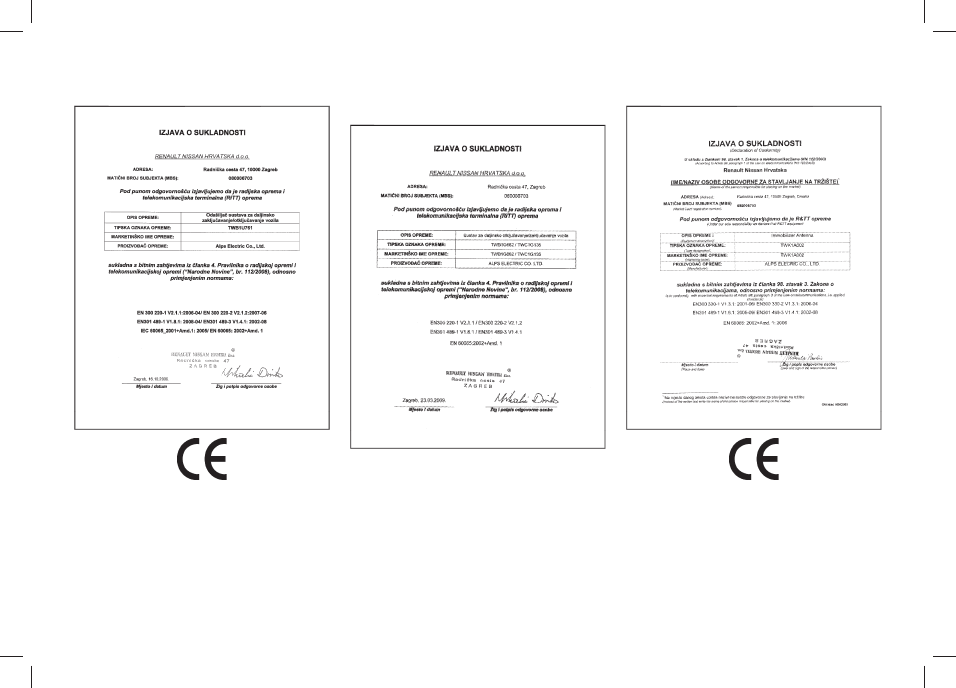

Intelligent Key system (if equipped)

JVT0010X

JVT0011X

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

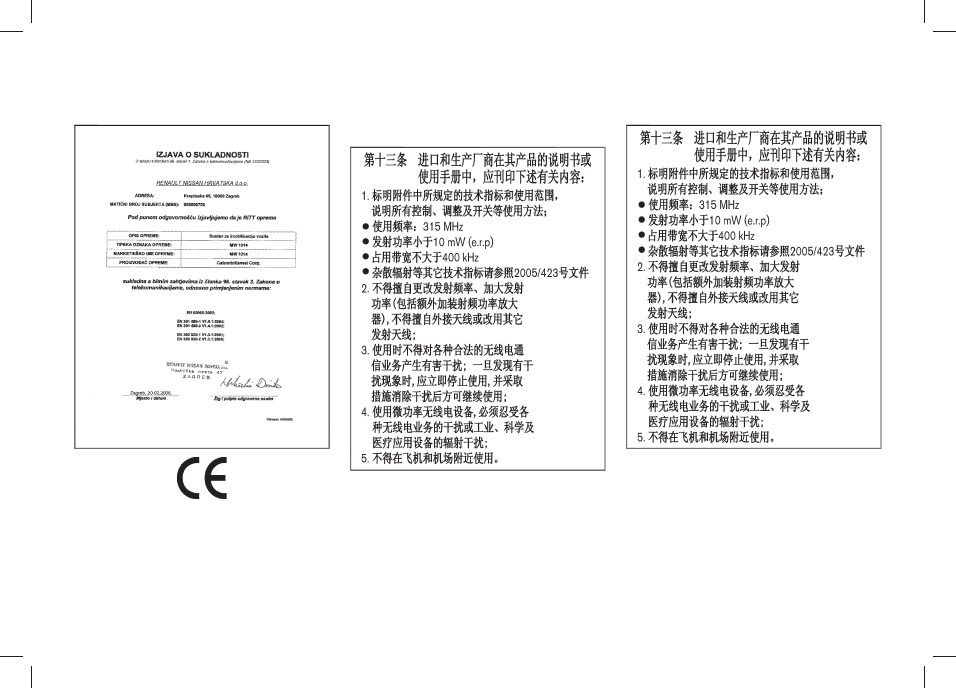

Anti-Theft System immobilizer

JVT0012X

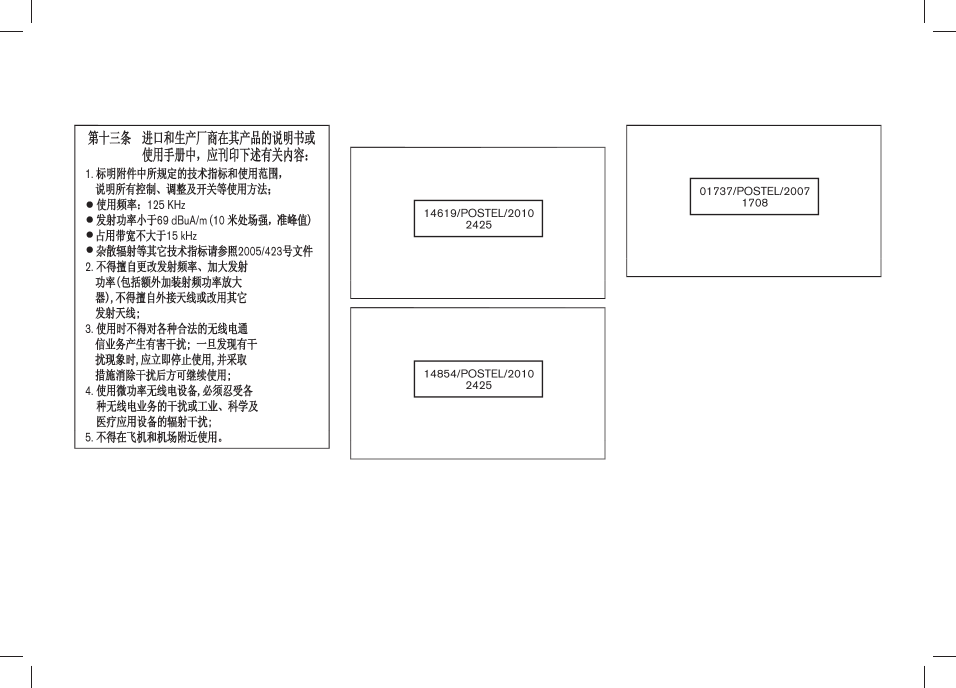

FOR CHINA

Remote keyless entry system (if equipped)

JVT0005X

Intelligent Key system (if equipped)

JVT0006X

Technical information

9-11

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-12

Technical information

Anti-Theft System immobilizer

JVT0007X

FOR INDONESIA

Remote keyless entry system (if equipped)

JVT0013X

JVT0014X

Anti-Theft System immobilizer

JVT0015X

FOR THAILAND

This telecommunication equipment conforms to NTC
technical requirement.
.

Remote keyless entry system (if equipped)

Intelligent Key system (if equipped)

Anti-Theft System (if equipped)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

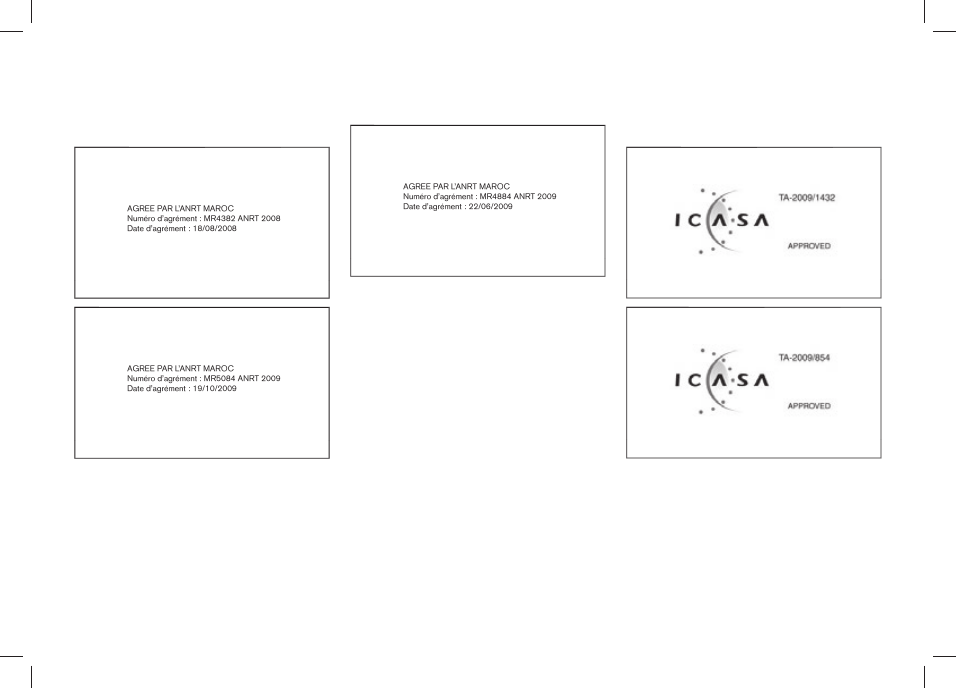

FOR MOROCCO

Remote keyless entry system (if equipped)

JVT0025X

JVT0108X

Anti-Theft System immobilizer

JVT0026X

FOR JORDAN

Remote keyless entry system (if equipped)

Manufacturer:

ALPS ELECTRIC CO.,LTD.

Model:

TWC1G124

Type approval No.:

TRC/LPD/2008/125

Anti-Theft System immobilizer

Manufacturer:

Calsonic Kansei Corporation

Model:

MW1014

Type approval No.:

TRC/LPD/2009/86

FOR SOUTH AFRICA

Remote keyless entry system (if equipped)

JVT0038X

JVT0039X

Technical information

9-13

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-14

Technical information

Anti-Theft System immobilizer

JVT0040X

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

MEMO

Technical information

9-15

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

9-16

Technical information

MEMO

&RQGLWLRQ

-DXQH

1RLU

1RLUWH[WH

(1*B8'B

-XVWLILFDWLIG¶HQWUHWLHQ;;;;;;

ULHQ

'DWH0LOHV.P,QYRLFHQXPEHU

&RPPHQWVPLVFHOODQHRXV

7\SHRIRSHUDWLRQ

6WDPS

6HUYLFHƑ
Ƒ
$QWLFRUURVLRQFKHFN
2.Ƒ 1RW2.Ƒ

6HHVSHFLILFSDJH

'DWH0LOHV.P,QYRLFHQXPEHU

&RPPHQWVPLVFHOODQHRXV

7\SHRIRSHUDWLRQ

6WDPS

6HUYLFHƑ
Ƒ
$QWLFRUURVLRQFKHFN
2.Ƒ 1RW2.Ƒ

6HHVSHFLILFSDJH

'DWH0LOHV.P,QYRLFHQXPEHU

&RPPHQWVPLVFHOODQHRXV

7\SHRIRSHUDWLRQ

6WDPS

6HUYLFHƑ
Ƒ
$QWLFRUURVLRQFKHFN
2.Ƒ 1RW2.Ƒ

6HHVSHFLILFSDJH

9,1

6(59,&(6+((76

Content .. 16 17 18 19 ..
