Malfunction Indicator Light (MIL)

When the ignition switch is in the “ON” position, the
Malfunction Indicator Light (MIL) illuminates. After
starting the engine, the MIL turns off. This indicates
that the engine control system is operational.

If the MIL illuminates or blinks (if equipped) while the
engine is running, it may indicate that the engine
control system is not functioning properly and may
need servicing. Have the system checked, and if
necessary repaired, by a RENAULT dealer promptly.

Malfunction Indicator Light (MIL) on steady:
An engine control system malfunction has been
detected. Have the vehicle checked, and if necessary
repaired, by a RENAULT dealer promptly. You do not
need to have your vehicle towed to the dealer.

Malfunction Indicator Light (MIL) blinking (if
equipped):
An engine misfire has been detected which may
damage the engine control system. Have the vehicle
checked, and if necessary repaired, by a RENAULT
dealer promptly.

To reduce or avoid possible damage to the engine
control system when the MIL illuminates or blinks:
.

Avoid driving at speeds above 70 km/h (43 MPH).

Avoid sudden acceleration or deceleration.

Avoid going up steep uphill grades.

Avoid carrying or towing unnecessary loads.

CAUTION:

Continuing vehicle operation without proper
servicing of the engine control system could
lead to poor driveability, reduced fuel econ-
omy, and damage to the engine control

system, which may affect the vehicle’s
warranty coverage.

Incorrect setting of the engine control sys-
tem may lead to non-compliance of local
and national emission laws and regulations.

Overdrive off indicator light (if

equipped)

The overdrive off indicator light illuminates when the
overdrive is turned OFF. (See “Driving with Automatic
Transmission (AT)” (P.5-11) for the use of the overdrive
off switch.)

Rear fog light indicator light (if

equipped)

The rear fog light indicator light illuminates when the
rear fog light is on. (See “Fog light switch” (P.2-32).)

Security indicator light (if equipped)

The security indicator light blinks when the ignition
switch is in the “LOCK”, “OFF” or “ACC” position. This
function indicates the Anti-Theft System* equipped on
the vehicle is operational.

(* immobilizer)

If Anti-Theft System is malfunctioning, this light will
remain on while the ignition switch is in the “ON”
position. (See “Security system” (P.3-16) for additional
information.)

Slip indicator light (if equipped)

When the ignition switch is in the “ON” position, the
slip indicator light illuminates and then turns off. This
indicates that the Vehicle Dynamic Control (VDC)
system or Electronic Stability Program (ESP) system is
operational.

The slip indicator light blinks when the VDC or ESP
system is operating.

When the indicator light blinks while driving, the driving
condition is slippery and the vehicle’s traction limit is
about to be exceeded.

If the VDC or ESP off indicator light and slip indicator
light illuminate while the engine is running or while
driving, it may indicate that the VDC or ESP system is
not functioning properly and may need servicing. Have
the system checked, and if necessary repaired, by a
RENAULT dealer promptly. (See “Vehicle Dynamic
Control (VDC) system (if equipped except for Europe)”
(P.5-24) or “Electronic Stability Program (ESP) System
(if equipped for Europe)” (P.5-25).)

Speed limiter indicator light (if

equipped)

This light illuminates when the speed limiter main
switch is pushed. The light turns off when the main
switch is pushed again. When the speed limiter main
switch indicator light illuminates, the speed limiter
system is operational. (See “Speed limiter (if equipped
for Europe)” (P.5-26).)

Instruments and controls

2-17

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-18

Instruments and controls

SPORT mode indicator light (if

equipped)

The SPORT mode indicator light illuminates when the
SPORT mode is turned “ON”. (See “Driving with
Continuously Variable Transmission (CVT)” (P.5-14)
for the use of the SPORT mode switch.)

Stop/Start System indicator light (if

equipped for Europe)/Idling Stop System
indicator light (if equipped for Thailand)

Stop/Start System indicator light (if equipped
for Europe):
The Stop/Start System indicator light illuminates in the
meter when the Stop/Start System is activated.

The Stop/Start System indicator light blinks at a high
speed, when the engine hood is open (for CVT model).

The Stop/Start System indicator light blinks at a low
speed, when the Stop/Start System is malfunctioning.

NOTE:
.

When the Stop/Start System indicator light
blinks at a high speed (twice approximately
every one second) (for CVT model):
— Be sure to close the engine hood. When

the engine hood is open the engine will
be in the normal stopped state. In this
case, restart the engine with the ignition
switch.

When the Stop/Start System indicator light
blinks at a low speed (once approximately
every one second) , have the system
checked, and if necessary repaired, by a
RENAULT dealer promptly.

Idling Stop System indicator light (if equipped
for Thailand):
The Idling Stop System indicator light illuminates in the
meter when the Idling Stop System is activated.

The Idling Stop System indicator light blinks at a high
speed, when the driver’s door or the engine hood is
open.

The Idling Stop System indicator light blinks at a low
speed, when the Idling Stop System is malfunctioning.

NOTE:
.

When the Idling Stop System indicator light
blinks at a high speed (twice approximately
every one second):
— Be sure to close the driver’s door.
— Be sure to close the engine hood. When

the engine hood is opened the engine
will be in the normal stopped state. In this
case, restart the engine with the ignition
switch.

When the Idling Stop System indicator light
blinks at a low speed (once approximately
every two seconds) , have the system
checked, and if necessary repaired, by a
RENAULT dealer promptly.

Turn signals/hazard indicator lights

The turn signals/hazard indicator lights blink when the
turn signal switch lever or hazard indicator flasher
switch is “ON”. (See “Headlight and turn signal switch”
(P.2-29) or “Hazard indicator flasher switch” (P.2-36).)

Vehicle Dynamic Control (VDC) off

indicator light (if equipped)

Vehicle Dynamic Control (VDC) off indicator light
illuminates when the VDC off switch is pushed to the
“OFF” position.

When the VDC off switch is pushed to the “OFF”
position, the VDC system is turned off.

If the VDC off indicator light and slip indicator light
illuminate while the engine is running or while driving, it
may indicate the VDC system is not functioning
properly and may need servicing. Have the system
checked, and if necessary repaired, by a RENAULT
dealer promptly. (See “Vehicle Dynamic Control (VDC)
system (if equipped except for Europe)” (P.5-24).)

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear warnings.
When a brake pad requires replacement, it will make a
high pitched scraping sound when the vehicle is in
motion. This scraping sound will first occur only when
the brake pedal is depressed. After more wear of the
brake pad, the sound will always be heard even if the
brake pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.

Have the system checked, and if necessary repaired,
by a RENAULT dealer promptly. (See “Brakes” (P.8-
17).)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Intelligent Key buzzer (if equipped)

The Intelligent Key buzzer sounds if any one of the
following improper operations is found.
.

The ignition switch is not returned to the “LOCK”
position when locking the doors.

The Intelligent Key is left inside the vehicle when
locking the doors.

Any doors are not closed securely when locking
the doors.

When the buzzer sounds, be sure to check both the
vehicle and the Intelligent Key. (See “Intelligent Key
system” (P.3-9).)

Key reminder chime

The key reminder chime will sound if any of the
following operations are detected:

Model with Intelligent Key system:
.

The driver’s door is opened while the ignition
switch is in the “ACC” position.

Model without Intelligent Key system:
.

The driver’s door is opened while the key is left in
the ignition switch and the ignition switch is in the
“OFF” position.

Light reminder chime

The light reminder chime will sound if the driver’s door
is opened while the headlight switch is in the

position and the ignition switch is in the “ACC”,

“OFF” or “LOCK” position.

Be sure to turn the light switch to the “OFF” position
when you leave the vehicle.

Parking brake reminder chime

The parking brake reminder chime will sound if the
vehicle is driven at more than 7 km/h (4 MPH) with the
parking brake applied. Stop the vehicle and release the
parking brake.

Seat belt warning chime (if equipped)

When the vehicle speed exceeds 15 km/h (9 MPH),
the chime will sound unless the driver’s seat belt is
securely fastened. The chime will continue to sound for
about 90 seconds until the seat belt is fastened.

Stop/Start System reminder buzzer (if
equipped for Europe)

The Stop/Start System reminder buzzer will sound if
the engine hood is opened (for CVT and MT models) or
the driver’s door is opened or the driver’s seat belt is
unfastened (for MT models) while the Stop/Start
System is activated.

NOTE:
.

Be sure to close the engine hood. When the
engine hood is open, the engine will be in
the normal stopped state. In this case,
restart the engine with the ignition switch
(for CVT and MT models).

Be sure to check that the driver

’s seat belt is

fastened and the driver

’s door is closed.

When the driver

’s seat belt is unfastened or

the driver

’s door is open, the engine will be

in the normal stopped state. In this case,
restart the engine with the ignition switch
(for MT model).

Idling Stop System reminder buzzer (if
equipped for Thailand)

The Idling Stop System reminder buzzer will sound if
the driver’s door or the engine hood is opened (for
CVT and MT models) or the driver’s seat belt is
unfastened (for MT models) while the Idling Stop
System is activated.

NOTE:
.

Be sure to close the driver

’s door.

Be sure to close the engine hood. When the
engine hood is open, the engine will be in
the normal stopped state. In this case,
restart the engine with the ignition switch.

Instruments and controls

2-19

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-20

Instruments and controls

JVI0003X

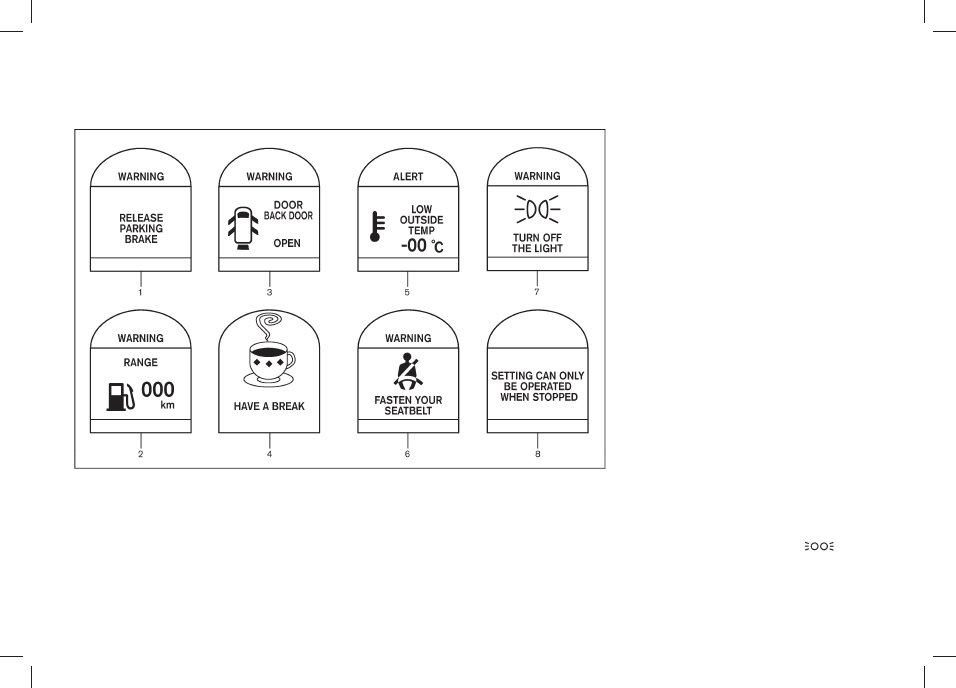

The vehicle information display

displays the

warnings and information.

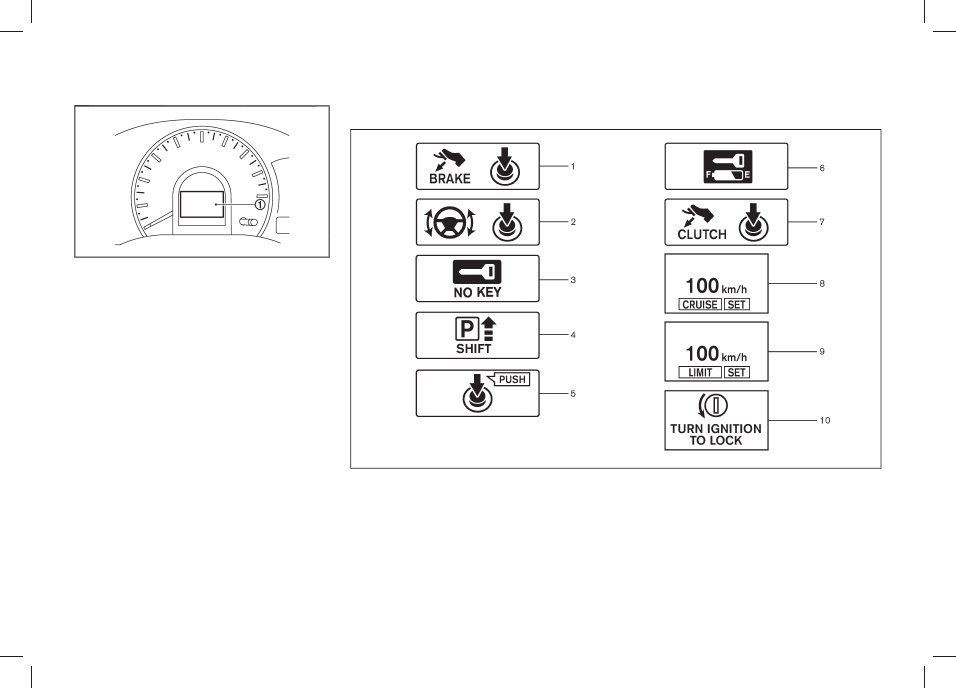

INDICATORS FOR OPERATION

JVI0266X

1. Engine start operation indicator (AT/CVT
model)

This indicator appears when the selector lever is in the
“P” (Park) position.

This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed. You can start the engine directly in any
position.

2. Steering lock release malfunction indicator

This indicator appears when the steering wheel cannot
be released from the “LOCK” position.

If this indicator appears, push the ignition switch while
lightly turning the steering wheel right and left.

VEHICLE INFORMATION DISPLAY

(if equipped)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

3. NO KEY warning

This warning appears in either of the following
conditions.

No key inside the vehicle:
The warning appears when the door is closed with the
Intelligent Key left outside the vehicle and the ignition
switch in the “ACC” or “ON” position. Make sure that
the Intelligent Key is inside the vehicle.

Unregistered Intelligent Key:
The warning appears when the ignition switch is
pushed from the “LOCK” position and the Intelligent
Key cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use the
registered Intelligent Key.

See “Intelligent Key system” (P.3-9) for more details.

4. SHIFT “P” warning (AT/CVT model)

This warning appears when the ignition switch is
pushed to stop the engine with the selector lever in any
position except the “P” (Park) position.

If this warning appears, move the selector lever to the
“P” (Park) position or push the ignition switch to the
“ON” position.

An inside warning chime will also sound. (See
“Intelligent Key system” (P.3-9).)

5. “PUSH” warning (AT/CVT model)

This warning appears when the selector lever is moved
to the “P” (Park) position with the ignition switch in the
“ACC” position after the SHIFT “P” warning appears.

To push the ignition switch to the “OFF” position,
perform the following procedure:

SHIFT

“P” warning

? (Move the selector lever to

“P”)

? PUSH warning ? (Push the ignition switch ?

ignition switch position is turned to “ON”)

? PUSH

warning

? (Push the ignition switch ? ignition

switch position is turned to “OFF”)

6. Intelligent Key battery discharge indicator

This indicator appears when the Intelligent Key battery
is running out of power.

If this indicator appears, replace the battery with a new
one. (See “Battery” (P.8-23).)

7. Engine start operation indicator (Manual
Transmission models)

This indicator means that the engine will start by
pushing the ignition switch with the clutch pedal
depressed.

8. Cruise control indicator (for Europe)

The cruise main switch indicator (CRUISE) is dis-
played when the cruise control main switch is pushed.
When the main switch is pushed again, the CRUISE
indicator disappears. When the CRUISE indicator is
displayed, the cruise control system is operational.

The cruise control set indicator (SET) is displayed
while the vehicle speed is controlled by the cruise
control system. If the SET indicator blinks while the
engine is running, it may indicate that the cruise control
system is not functioning properly. Have the system
checked by a RENAULT dealer.

For more details, see “Cruise control” (P.5-28).

9. Speed limiter indicator (for Europe)

The speed limiter main switch indicator (LIMIT) is
displayed when the speed limiter main switch is
pushed. When the main switch is pushed again, the
LIMIT indicator disappears.

The speed limiter set indicator (SET) is displayed while
the speed limiter is activated.

For more details, see “Speed limiter (if equipped for

Europe)” (P.5-26).

10. Mechanical Key LOCK warning (if
equipped for Europe)

The warning appears when the ignition switch is left in
the “ACC” or “OFF” position instead of completely
being turned to the “LOCK” position.

If this warning appears, turn the ignition switch to the
“LOCK” position.

When the ignition switch is in the “ON” position, a
buzzer will sound twice and the Mechanical Key LOCK
warning shows when the ignition switch is turned to
the “ACC” or “OFF” position. This is to warn the driver
that the ignition switch is not in the “LOCK” position.
Make sure the selector lever is in the “P” (Park)
position (for CVT model) or the shift lever is in the “N”
(Neutral) position (for MT model) and then turn the
ignition switch to the “LOCK” position.

CAUTION:

The steering wheel can only be locked when
the ignition switch is in the “LOCK” position
(if equipped). Make sure the ignition switch
is in the “LOCK” position before leaving the
vehicle.

The mechanical key can only be removed at
the “LOCK” position. Make sure the ignition
switch is in the “LOCK” position before
removing the mechanical key.

See “Ignition switch (model without intelligent Key
system)” (P.5-5) for further details.

Instruments and controls

2-21

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-22

Instruments and controls

WARNINGS AND ALERTS

JVI0032X

1. Parking brake release warning

This warning appears when the vehicle speed is above
7 km/h (4 MPH) and the parking brake is applied.

2. Low fuel warning

This warning appears when the fuel level in the tank is
getting low. Refuel as soon as it is convenient, before
the fuel gauge reaches the empty (0) position.

There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (0)
position.

3. Door/back door open warning (ignition
switch is in the ON position)

This warning appears if any of the doors or the back
door is open or not closed securely. The vehicle icon
indicates which door is open on the display. Make sure
that all of the doors and the back door are closed.

4. “Time to rest” indicator

This indicator appears when the set “time to rest”
indicator activates. You can set the time for up to 6
hours. (See “Trip computer (for Type C)” (P.2-25).)

5. Low outside temperature warning

This warning appears if the outside temperature is 3

or below. The warning can be set not to be displayed.
(See “Trip computer (for Type C)” (P.2-25).)

6. Seat belt warning light

When the ignition switch is in the “ON” position, the
seat belt warning light illuminates. The light will
continue to illuminate until the front seat belt is
fastened. (See “Seat belts” (P.1-7).)

When the vehicle speed exceeds 15 km/h (10 MPH),
the light will blink and the chime will sound unless the
front seat belt is securely fastened. The chime will
continue to sound for about 90 seconds until the seat
belt is fastened.

7. Small light indicator warning

The small light indicator warning illuminates when the
front clearance lights, instrument panel lights, rear
combination lights and license plate lights are on. The
indicator warning turns off when the

is turned

off.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

8. Setting menu operation warning

The warning appears when you try to operate the
setting menu while driving. The setting menu can only
be entered if the vehicle is stationary.

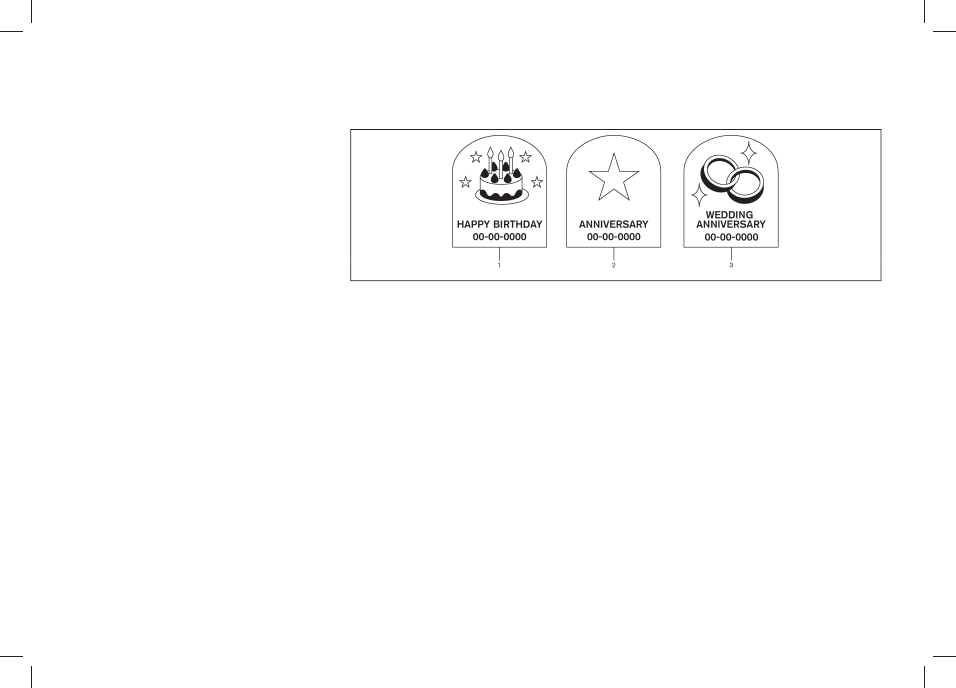

INDICATORS FOR BIRTHDAY AND ANNIVERSARY

JVI0191X

1. Birthday message

This indicator appears when the set time comes. You
can adjust the date of the message. (See “Trip
computer (for Type C)” (P.2-25).)

2. Anniversary message

This indicator appears when the set time comes. You
can adjust the date of the message. (See “Trip
computer (for Type C)” (P.2-25).)

3. Wedding anniversary message

This indicator appears when the set time comes. You
can adjust the date of the message. (See “Trip
computer (for Type C)” (P.2-25).)

Instruments and controls

2-23

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-24

Instruments and controls

INDICATORS FOR MAINTENANCE

JVI0005X

1. Engine oil replacement indicator

This indicator appears when the set time comes for
changing the engine oil. You can set or reset the
distance for changing the engine oil. (See “Trip
computer (for Type C)” (P.2-25).)

2. Oil filter replacement indicator

This indicator appears when the set time comes for
replacing the oil filter. You can set or reset the distance
for replacing the oil filter. (See “Trip computer (for Type
C)” (P.2-25).)

3. Tire replacement indicator

This indicator appears when the set time comes for
replacing tires. You can set or reset the distance for
replacing tires. (See “Trip computer (for Type C)” (P.2-
25).)

4. “OTHER” indicator

This indicator appears when the set time comes for
replacing items other than the engine oil, oil filter and
tires. You can set or reset the distance for replacing the
items. (See “Trip computer (for Type C)” (P.2-25).)

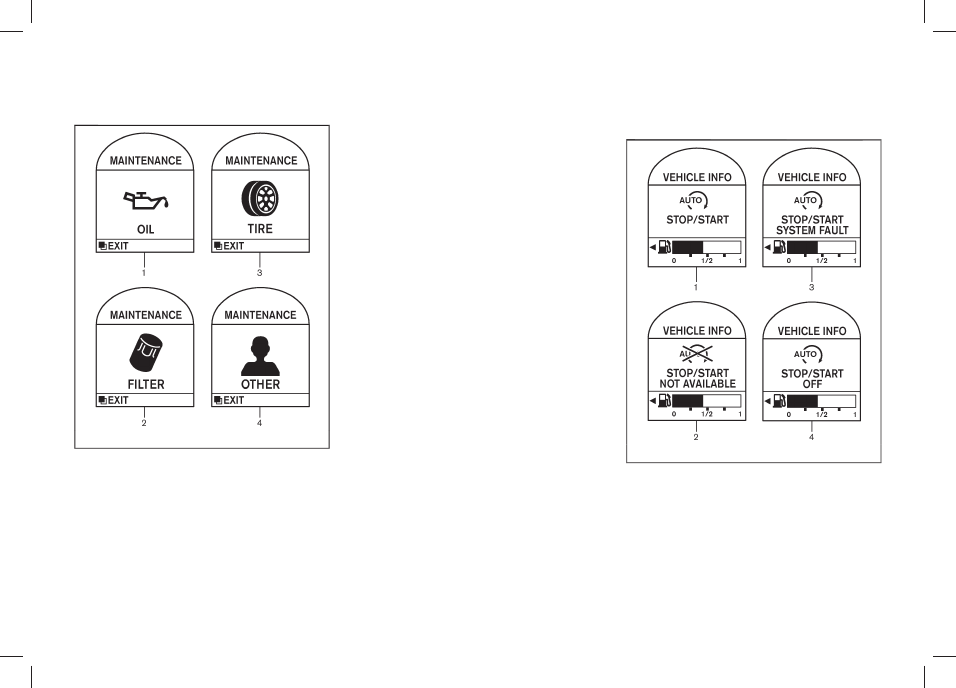

INDICATORS FOR STOP/START SYSTEM
(if equipped for Europe)

JVI0267X

1. Engine stop

If the engine stops when the Stop/Start System is
activated, the message is shown.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2. Auto start deactivation

If the engine stops when the Stop/Start System is
activated, and will not start automatically, the message
is shown.

3. System fault

If the Stop/Start System is activated, but does not
operate correctly, the message is shown. Visit a
RENAULT dealer or qualified workshop.

4. Stop/Start System

If the Stop/Start System is deactivated using the Stop/
Start System OFF switch, the message is shown.

If the Stop/Start System is activated using the Stop/
Start System OFF switch, the "STOP/START ON"
message is shown.

TRIP COMPUTER (for Type C)

JVI0006X

Switches for the trip computer are located on the left
or right side of the combination meter panel. To
operate the trip computer, push the switches as shown

above.

ENTER switch

NEXT switch

When the ignition switch is pushed to the ON position,
modes of the trip computer can be selected by
pushing the

switch

Each time the

switch

is pushed, the display

will change as follows:

CO2 saved (if equipped)

? Current fuel consumption

? Average fuel consumption and speed ? Elapsed
time and trip odometer (if equipped)

? Distance to

empty

? Outside air temperature ? Idling stop (if

equipped)

? Setting ? Warning check

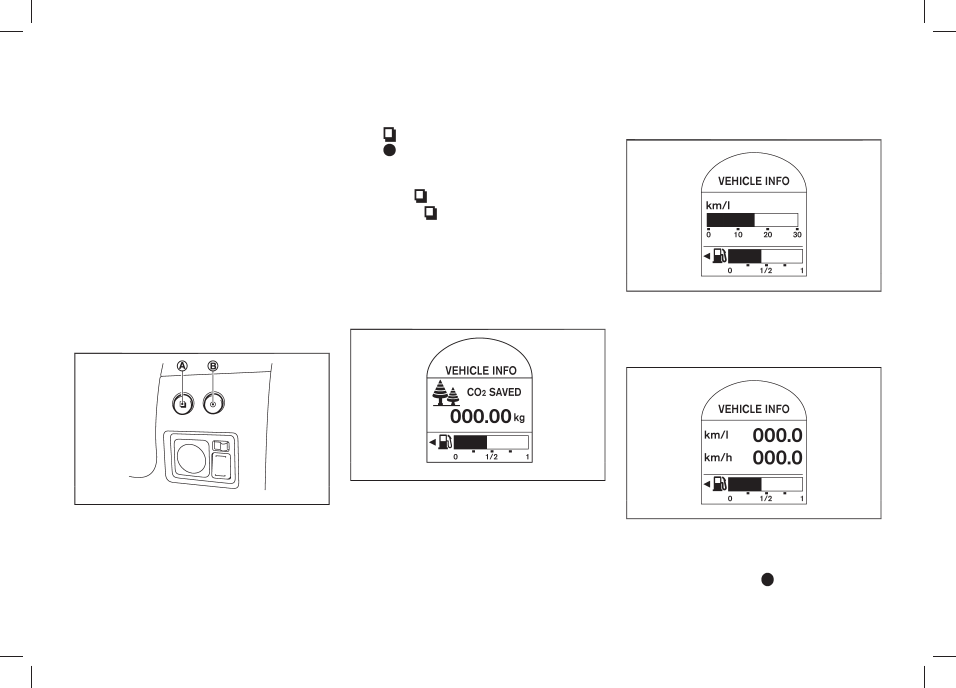

CO2 saved (if equipped)

JVI0268X

The CO2 saved mode shows the estimated quantity of
CO2 exhaust emissions prevented by the Stop/Start
System every time the engine is automatically stopped.
For more information, see “Stop/Start System (CO2
savings ) (if equipped for Europe)” (P.2-28).

Current fuel consumption (km/l or l/100 km or
MPG)

JVI0007X

The current fuel consumption mode shows the current
fuel consumption.

Average fuel consumption (km/l or l/100 km
or MPG) and speed (km/h or MPH)

JVI0008X

Fuel consumption:
The average fuel consumption mode shows the
average fuel consumption since the last reset. Reset-
ting is done by pushing the

switch

for longer

than 1 second. (The average speed is also reset at the
same time.)

Instruments and controls

2-25

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-26

Instruments and controls

The display is updated every 30 seconds. At about the
first 500 m after a reset, the display shows “——”.

Speed:
The average speed mode shows the average vehicle
speed since the last reset. Resetting is done by
pushing the

switch

for longer than 1 second.

(The average fuel consumption is also reset at the
same time.)

The display is updated every 30 seconds. The first 30
seconds after a reset, the display shows “——”.

Elapsed time and trip odometer (km or
MILES)

JVI0033X

Elapsed time:
The elapsed time mode shows the time since the last
reset. The displayed time can be reset by pushing the

switch

for longer than 1 second. (The trip

odometer is also reset at the same time.)

Trip odometer (if equipped):
The trip odometer mode shows the distance that the
vehicle has been driven since the last reset. Resetting
is done by pushing the

switch

for longer than

1 second. (The elapsed time is also reset at the same
time.)

Distance to empty (km or MILES)

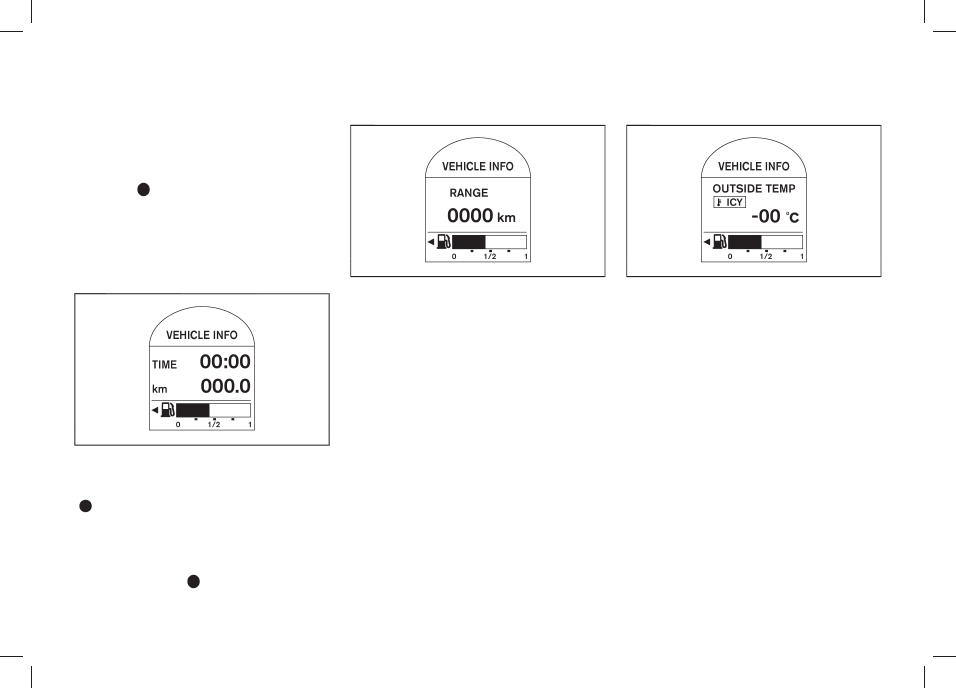

JVI0010X

The distance to empty (dte) mode provides you with an
estimation of the distance that can be driven before
refueling. The dte is constantly being calculated, based
on the amount of fuel in the fuel tank and the actual fuel
consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning feature. If
the fuel level is low, the warning is displayed on the
screen.

When the fuel level drops even lower, the dte display
will change to “——”.
.

If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the

“OFF” position may continue

to be displayed.

When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.

Outside air temperature (

8C) (if equipped)

JVI0012X

The outside air temperature is displayed in

8C in the

range of

í30 to 608C.

The outside air temperature mode includes a low
temperature warning feature. If the outside air tem-
perature is 3

8C or below, the warning “ICY” is

displayed on the screen.

The outside temperature sensor is located in front of
the radiator. The sensor may be affected by road or
engine heat, wind directions and other driving condi-
tions. The display may differ from the actual outside
temperature or the temperature displayed on various
signs or billboards.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

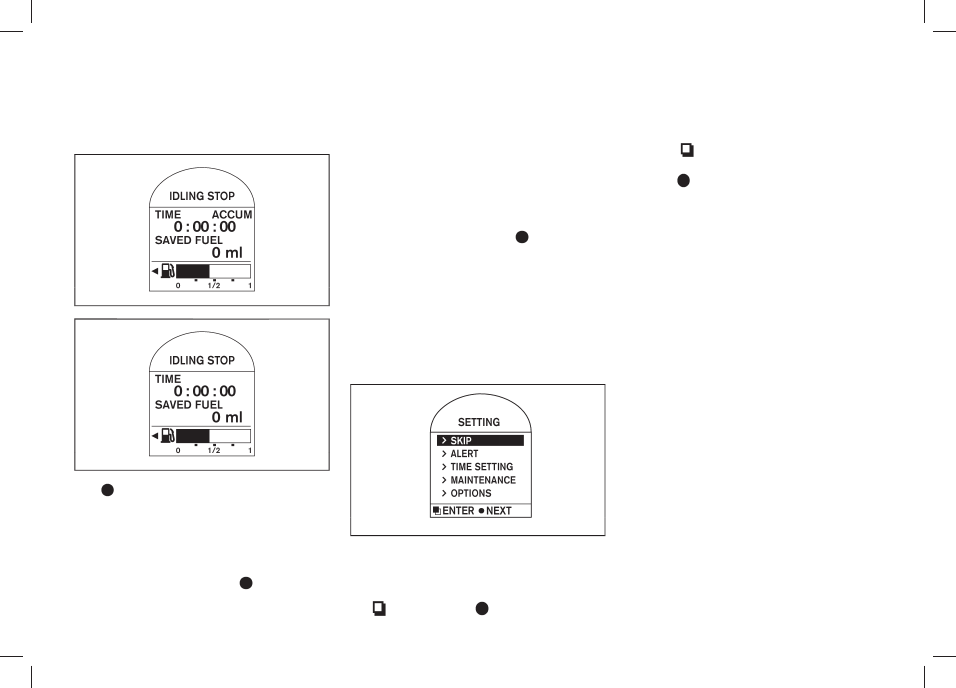

Accumulated time and current saved fuel
consumption (ml (mililiter)) by Idling Stop
System (if equipped for Thailand)

JVI0011X

Type A

JVC0021X

Type B

The

switch

is used in the setting mode to

select and decide a menu of Type A and B.

Accumulated time (Type A):
The Accumulated time mode shows the accumulated
time Idling Stop System has been operated since the
last reset.

Resetting is done by pushing the

switch

for

longer than 1 second. (The saved fuel is also reset at
the same time.)

Current saved fuel consumption (Type A):
The Current saved fuel consumption mode shows the
current saved fuel consumption by Idling Stop System
has been operated since the last reset.

Accumulated time (Type B):
The Accumulated time mode shows the accumulated
time Idling Stop System has been operated since the
time the ignition switch was turned ON.

Resetting is done by pushing the

switch

for

longer than 1 second. (The saved fuel is also reset at
the same time.)

Current saved fuel consumption (Type B):
The Current saved fuel consumption mode shows the
current saved fuel consumption by Idling Stop System
has been operated since the time the ignition switch
was turned ON. See “Idling Stop System (if equipped
for Thailand)” (P.5-19).

Setting

JVI0013X

Setting cannot be made while driving. A mes-
sage

“Setting can only be operated when

stopped

” is also displayed on the vehicle

information display.

The

switch

and

switch

are used in

the setting mode to select and set a menu.

SKIP:
Push the

switch

to move to the warning

check mode.

Push the

switch

to select other menus.

ALERT:
The alert menu can be set to notify the following items.
.

TIMER
Select this submenu to specify when the "time to
rest" indicator activates.

ICY
Select this submenu to display the low outside
temperature warning.

To return to the top page of the setting mode, select
“BACK”.

TIME SETTING (CURRENT TIME):
.

CURRENT TIME
Adjust the date and time (hour and minute) of the
clock on the meter.

TIME SETTING (Birthday and Anniversary):
The birthday and anniversary message reminds you of
the anniversary or a birthday the driver should
remember.
.

BIRTHDAY
Select this submenu to adjust the date of the
Birthday message.

ANNIVERSARY
Select this submenu to adjust the date of the
Anniversary message.
Select the display image to set the desired display
image of the Anniversary message.

Instruments and controls

2-27

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-28

Instruments and controls

WEDDING DAY
Select this submenu to adjust the date of the
wedding day message.

MAINTENANCE:
The maintenance intervals of the following items can
be set or reset for the reminders.
.

OIL
Select this submenu to set or reset the distance
for changing the engine oil.

FILTER
Select this submenu to set or reset the distance
for replacing the oil filter.

TIRE
Select this submenu to set or reset the distance
for replacing tires.

OTHER
Select this submenu and set or reset the distance
for replacing items other than the engine oil, oil
filter and tires.

To return to the top page of the setting mode, select
“BACK”.

OPTIONS (UNIT) (except for Hong Kong):
The option menu below can be set to your preference.
.

UNIT
Select this submenu to choose the unit.

LANGUAGE
Select this submenu to choose the display
language.

STOP/START (if equipped for Europe)
Select this submenu to choose the CO2 savings
or the engine stop time using the Stop/Start
System.
(See “Stop/Start System (CO2 savings ) (if
equipped for Europe)” (P.2-28).)

To return to the top page of the setting mode, select
“BACK”.

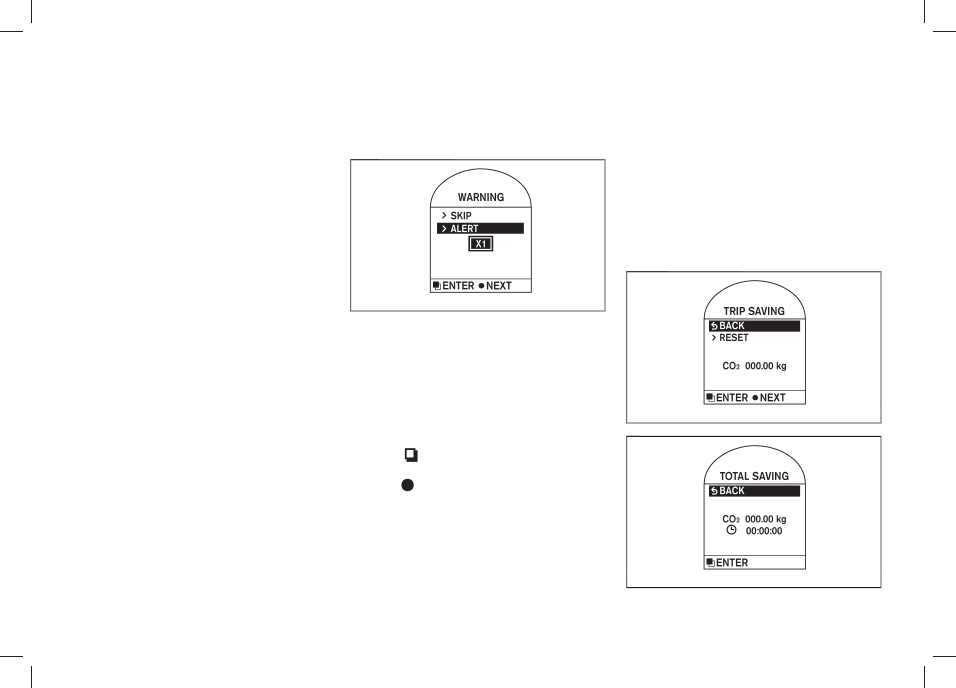

Warning check

JVI0014X

To see if there are any of the following warnings and
corresponding details, select this menu.
.

Seat belt warning

No key warning

Low fuel warning

Parking brake release warning

Door/back door open warning

SKIP:
Push the

switch

to move to the warning

check mode.

Push the

switch

to select other menus.

ALERT:
This item is available only when a warning is displayed.

Select this menu to see the details of warnings.

Resetting displays

When the average fuel consumption, average speed,
elapsed time is displayed, push the trip computer
mode switch

for longer than 3 seconds. The

display of average fuel consumption, average speed,
elapsed time, trip odometer, accumulated time (for
Idling Stop System) and current saved fuel consump-
tion (for Idling Stop System) will be reset at the same
time.

STOP/START SYSTEM (CO2 savings ) (if
equipped for Europe)

JVI0269X

Type A

JVI0270X

Type B

The CO2 savings and the engine stop time (for Type

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

B) using the Stop/Start System are kept in a submenu.

Trip Saving (Type A)

The Trip Saving mode shows the estimated CO2
exhaust emissions prevented since last reset.

It is possible to reset using the [RESET] submenu then
push the

switch

to set to zero.

NOTE:

The [Trip Saving] value is the same information
that is displayed when the engine is automati-
cally stopped by the Stop/Start System.

Total Saving (Type B)

The Total Saving mode shows:
.

The estimated CO2 exhaust emissions prevented.

The time that the engine has been stopped by the
Stop/Start System.

NOTE:

The [Total Saving] values cannot be reset and
show accumulated Stop/Start System informa-
tion since the vehicle was built.

HEADLIGHT SWITCH

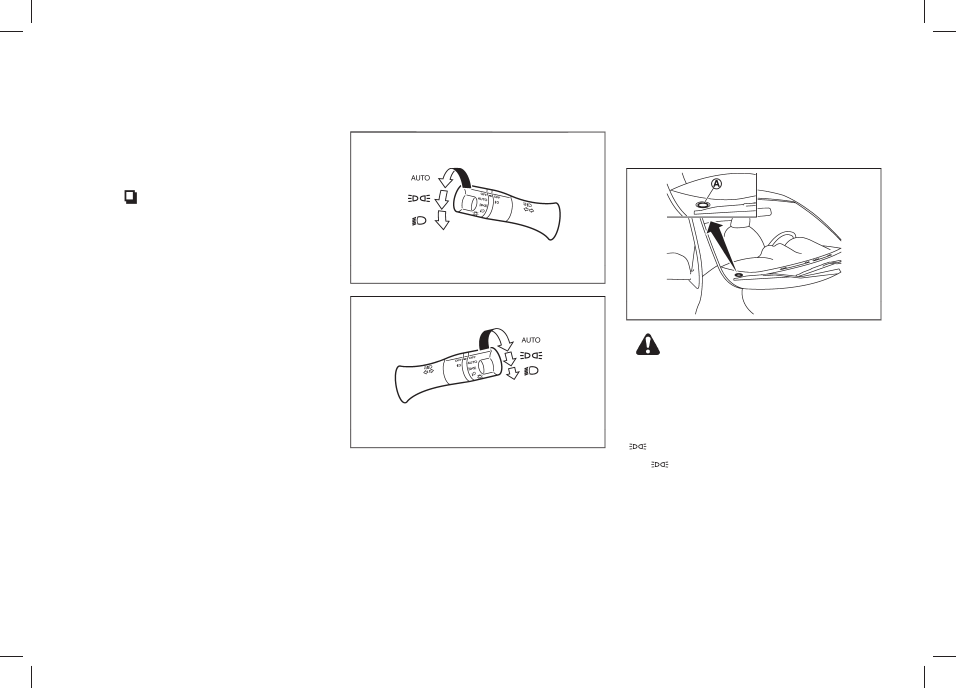

SIC3782

Type A

SIC3783

Type B

RENAULT recommends that you consult the local
regulations concerning the use of lights.

AUTO position (if equipped)

When the ignition switch is in the “ON” position and
the headlight switch is in the “AUTO” position, the
headlights, front clearance lights, instrument panel
lights, rear combination light, and other lights turn on
automatically depending on the brightness of the
surroundings.

The headlights will turn on automatically at twilight or in

rainy weather (when the windshield wiper is operated
continuously) (for Hong Kong).

When the ignition switch is turned to the “OFF”
position, the lights will turn off automatically.

JVI0023X

CAUTION:

Do not place any objects on top of the sensor

. The sensor senses the brightness level and

controls the autolight function. If the sensor is
covered, it reacts as if it is dark, and the
headlights will illuminate.

position

The

position turns on the front clearance lights,

instrument panel lights, rear combination lights and
other lights.

Instruments and controls

2-29

HEADLIGHT AND TURN SIGNAL

SWITCH

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-30

Instruments and controls

position

The

position turns on the headlights in addition to

the other lights.

Headlight beam

SIC3785

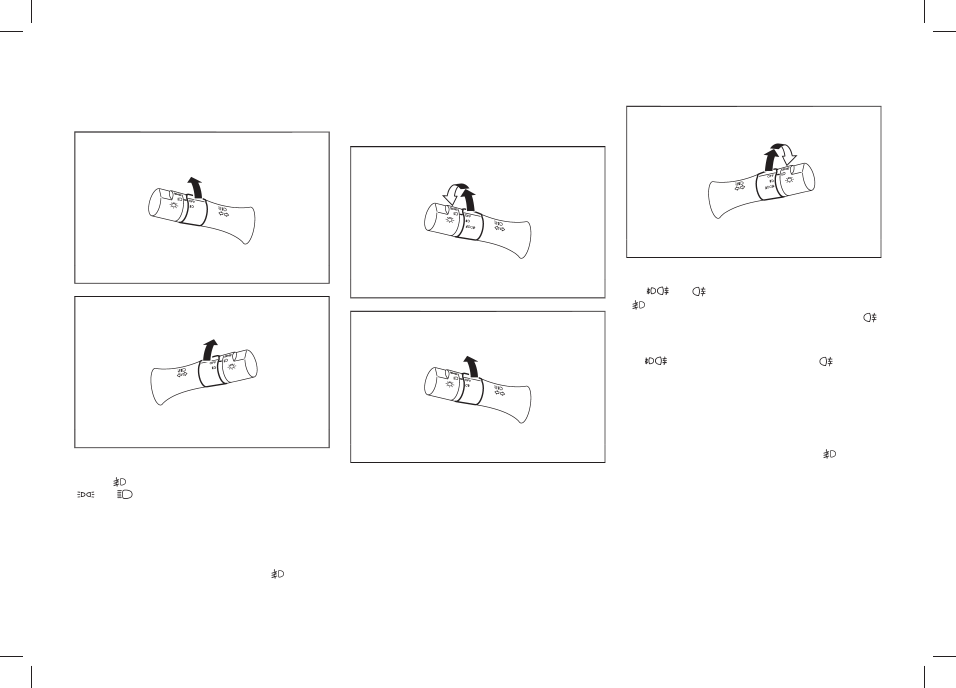

To turn on the high beam, push the lever towards the
front position

To turn off the high beam, return the lever to the neutral
position

To flash the headlights, pull the lever towards the
rearmost position

. The headlights can be flashed

even when the headlights are not on.

If equipped, when the lever is pulled towards the
rearmost position

after the ignition switch is

placed in the “OFF” or “LOCK” position, the headlight
will turn on and stay on for 30 seconds. The lever can
be pulled 4 times for up to 2 minutes.

Daytime light system (if equipped)

Even if the headlight switch is off, the daytime lights
will come on after starting the engine. However, you
cannot change low beam to high beam when the light
switch is off.

When the light switch is turned to the

position,

the headlight low beam will turn off.

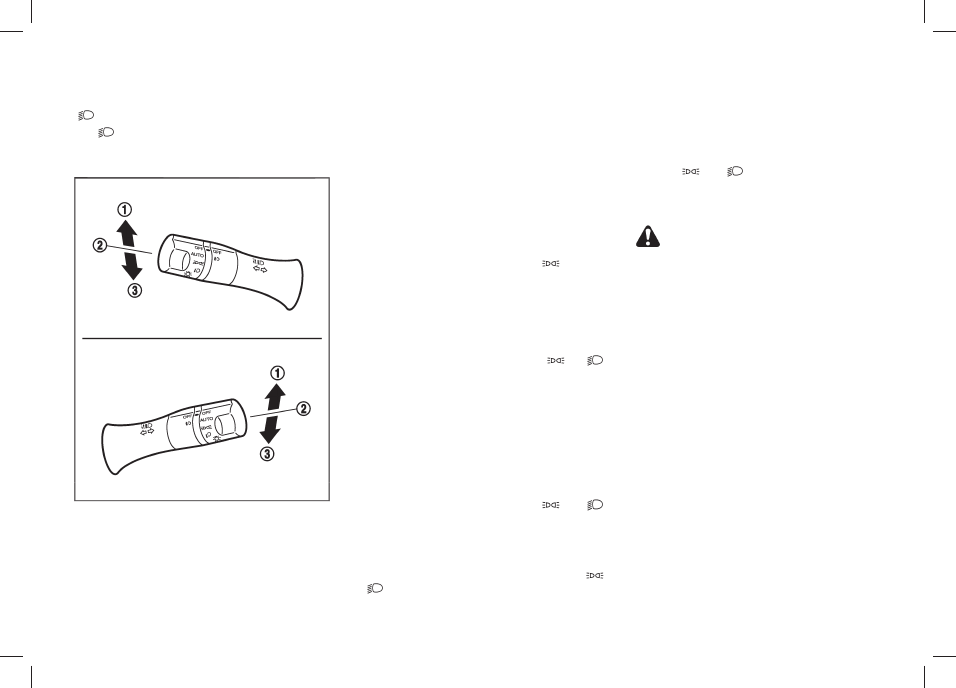

BATTERY SAVER SYSTEM

The light reminder chime will sound if the driver’s door
is opened while the following improper operations
occur:
.

The headlight switch is in either the

position, and the ignition switch in the “ACC”,
“OFF” or “LOCK” position.

The headlight switch is in the “AUTO” position and
the front or rear fog light (if equipped) is turned on
while the ignition switch is in the “ACC”, “OFF” or
“LOCK” position.

Be sure to turn the headlight switch to the “OFF”
position when you leave the vehicle.

Type A

When the headlight switch is in the

position while the engine is running, the lights will
automatically turn off after pushing the ignition switch
to the “ACC”, “OFF” or “LOCK” position and opening
the driver’s side door.

When the headlight switch remains in either the
or

position after the lights automatically turn off,

the lights will turn on when the engine is started.

Type B

If the doors are closed and locked with the remote
controller, the Intelligent Key or the door request
switch (if equipped) while the headlight switch is in
either the

position, the battery saver

function will turn off the lights to prevent the battery
from being discharged. The lights will turn on when the
doors are being opened.

CAUTION:

Do not leave the lights on when the engine is not
running for extended periods of time to prevent
the battery from being discharged.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

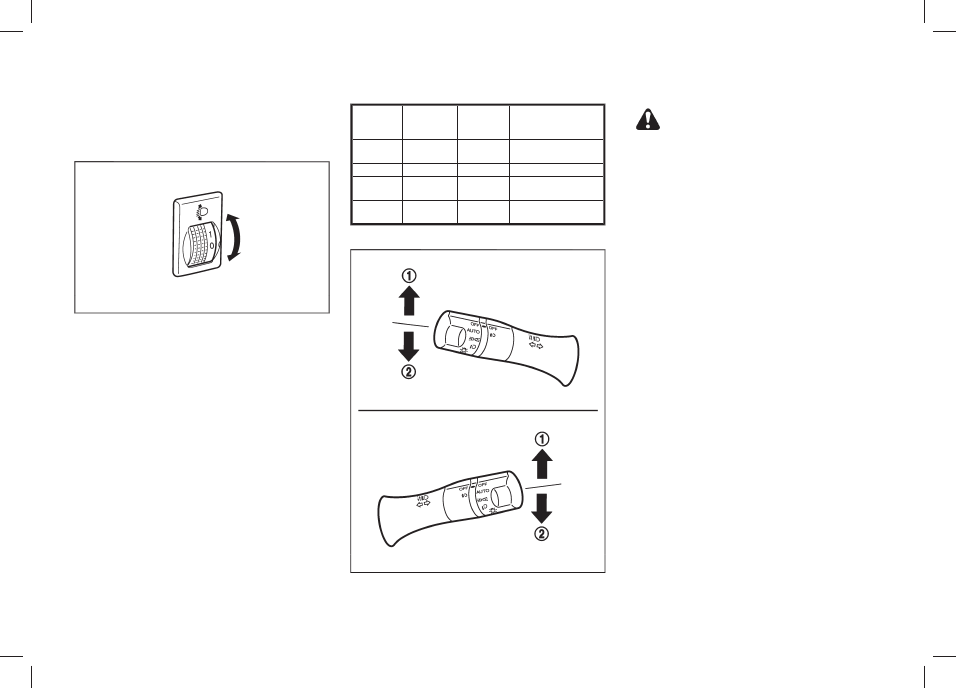

HEADLIGHT AIMING CONTROL (if
equipped)

Manual type

SIC2275

The headlight aiming control operates when the
ignition switch is in the “ON” position and the headlight
is on to allow the headlight axis to be adjusted
according to the driving condition.

When driving with no heavy load/luggage or driving on
a flat road, select the normal position “0”.

If the number of occupants and load/luggage in the
vehicle changes, the headlight axis may become higher
than normal.

If the vehicle is traveling on a hilly road, the headlights
may directly shine on the rearview and outside mirrors
of a vehicle ahead or the windshield of an oncoming
vehicle, which may obscure other drivers’ vision.

To adjust to the proper aiming height, turn the switch
accordingly. The higher the number, designated on the
switch, the lower the headlight axis.

Select the switch position by referring to the following
samples.

Switch po-

sition

Number of

front seat

occupants

Number of

rear seat

occupants

Weight of load in lug-

gage compartment

1 or 2

No occu-

pants

No load

Approximately 48 kg

(106 lb)

No occu-

pants

Approximately 279 kg

(615 lb)

TURN SIGNAL SWITCH

SIC3786

CAUTION:

The turn signal switch will not be cancelled
automatically if the steering wheel turning angle
does not exceed the preset amount. After the
turn or lane change, make sure that the turn
signal switch is returned to its original position.

Turn signal

To turn on the turn signals, move the lever up

down

towards the desired direction. When the

turn is completed, the turn signal cancels automati-
cally.

Lane change signal

To turn on the lane change signals, move the lever up

or down

towards the desired direction.

If the lever is moved back right after moving up

down

, the light will flash 3 times (if equipped).

To cancel the flashing, move the lever to the opposite
direction.

Instruments and controls

2-31

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-32

Instruments and controls

FRONT FOG LIGHTS

SIC3811

Type A

SIC3813

Type B

To turn on the front fog lights, turn the fog light switch
to the

position with the headlight switch in the

position.

To turn off the fog lights, turn the fog light switch to the
“OFF” position.

When the headlight switch is in the “AUTO” position (if
equipped):
.

Turning the fog light switch to the

position

will turn on the headlights, fog lights and the other
lights while the ignition switch is in the “ON”

position or the engine is running.

REAR FOG LIGHT

SIC3812

Type A

SIC4066

Type B

SIC3814

Type C

To turn on the rear fog light, turn the fog light switch to
the

position. The switch returns to the

position automatically, and the rear fog light will

illuminate with the front fog lights. Make sure the
indicator light on the instrument panel illuminates.

To turn off the rear fog light, turn the fog light switch to
the

position again. Make sure the

indicator

light on the instrument panel turns off.

To turn off both the front and rear fog lights, turn the
fog light switch to the “OFF” position.

When the headlight switch is in the “AUTO” position (if
equipped):
.

Turning the fog light switch to the

position

will turn on the headlights, fog lights and the other
lights while the ignition switch is in the “ON”
position or the engine is running.

The rear fog light should be used only when visibility is
seriously reduced. [Generally, to less than 100 m (328
ft)]

FOG LIGHT SWITCH (if equipped)

&RQGLWLRQ

Content .. 3 4 5 6 ..
