2 Instruments and controls

Instrument panel ...................................................................................... 2-2

Left-Hand Drive (LHD) model ........................................................ 2-2
Right-Hand Drive (RHD) model (Type A) ................................... 2-3
Right-Hand Drive (RHD) model (Type B) .................................. 2-4
Right-Hand Drive (RHD) model (Type C) .................................. 2-5

Meters and gauges ................................................................................. 2-6

Speedometer and odometer .......................................................... 2-8
Trip computer (for Type A and B) ................................................ 2-9
Tachometer (if equipped) ............................................................. 2-10
Fuel gauge ....................................................................................... 2-10
Automatic Transmission (AT)/Continuously Variable
Transmission (CVT) position indicator (if equipped) ............ 2-10
Engine start operation indicator (if equipped) ....................... 2-11

Warning/indicator lights and audible reminders ........................... 2-12

Checking bulbs .............................................................................. 2-13
Warning lights ................................................................................. 2-13
Indicator lights ................................................................................ 2-16
Audible reminders .......................................................................... 2-18

Vehicle information display (if equipped) ....................................... 2-20

Indicators for operation ................................................................ 2-20
Warnings and alerts ...................................................................... 2-22
Indicators for birthday and anniversary ..................................... 2-23
Indicators for maintenance .......................................................... 2-24
Indicators for Stop/Start System (if equipped
for Europe) ...................................................................................... 2-24
Trip computer (for Type C) .......................................................... 2-25
Stop/Start System (CO2 savings ) (if equipped
for Europe) ...................................................................................... 2-28

Headlight and turn signal switch ...................................................... 2-29

Headlight switch ............................................................................ 2-29

Battery saver system .................................................................. 2-30
Headlight aiming control (if equipped) .................................. 2-31
Turn signal switch ........................................................................ 2-31

Fog light switch (if equipped) .......................................................... 2-32

Front fog lights ............................................................................. 2-32
Rear fog light ................................................................................ 2-32

Wiper and washer switch .................................................................. 2-33

Windshield wiper and washer switch .................................... 2-33
Rain-sensing auto wiper system (if equipped) .................... 2-33
Rear window wiper and washer switch (if equipped) ....... 2-34

Defogger switch (if equipped) ......................................................... 2-35
Hazard indicator flasher switch ........................................................ 2-36
Horn ........................................................................................................ 2-36
Windows ................................................................................................ 2-36

Manual windows (if equipped) ................................................. 2-36
Power windows (if equipped) .................................................. 2-36

Sunshade (if equipped) ..................................................................... 2-38
Clock ....................................................................................................... 2-38

Adjusting time ............................................................................... 2-38

Power outlets (if equipped) .............................................................. 2-39
Storages ................................................................................................. 2-40

Glove box ...................................................................................... 2-40
Upper instrument box (if equipped) ....................................... 2-40
Card holder (if equipped) ......................................................... 2-40
Cup holders .................................................................................. 2-40
Tonneau board (if equipped) .................................................... 2-41

Sun visors .............................................................................................. 2-41
Interior lights ......................................................................................... 2-42

Room light ..................................................................................... 2-42
Front map lights (if equipped) ................................................. 2-42

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-2

Instruments and controls

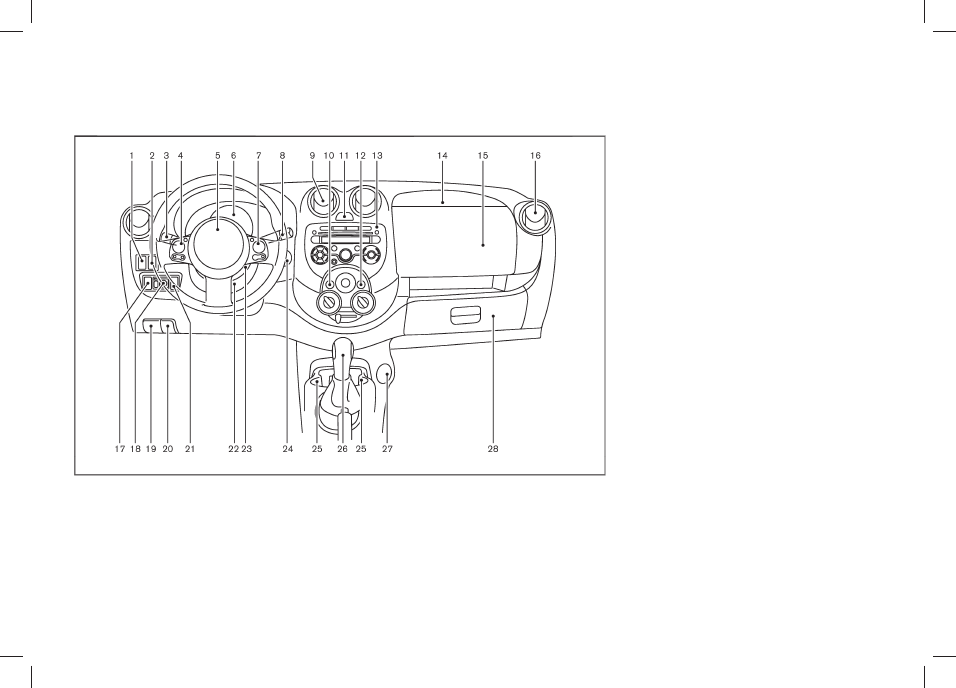

LEFT-HAND DRIVE (LHD) MODEL

JVC0223X

Vehicle Dynamic Control (VDC) OFF switch* or
Electronic Stability Program (ESP) OFF switch*

Parking space measurement switch*

Headlight, fog light* and turn signal switch

Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth

Hands-Free Phone System con-

trol (without navigation system)*

— Bluetooth

Hands-Free Phone System con-

trol (with navigation system)**

Driver’s front-impact air bag/Horn

Meters and gauges

Steering-wheel-mounted controls (right side)*
— Cruise control switches*
— Speed limiter switches*

Wiper and washer switch

Center ventilator

10.

Rear window defogger switch*

11.

Hazard indicator flasher switch*

12.

Heater and air conditioner* control

13.

Audio system* or Navigation system**

14.

Passenger’s front-impact air bag*

15.

Upper instrument box*

16.

Side ventilator

17.

Headlight aiming control switch*

18.

Outside rearview mirror control switch*

19.

Fuel filler lid release handle

20.

Hood lock release handle

21.

Stop/Start System OFF switch*

22.

Tilting steering wheel lock lever*

23.

Ignition switch (model without Intelligent Key
system)/steering lock

24.

Push-button ignition switch (model with Intelli-
gent Key system)

25.

Cup holder

26.

Selector lever or Shift lever
— Automatic Transmission (AT) model
— Continuously Variable Transmission (CVT)
model
— Manual Transmission (MT) model

27.

Power outlet*/USB/AUX connector*

28.

Glove box

*: if equipped

**: Refer to the separate Navigation Owner’s Manual (if
equipped).

INSTRUMENT PANEL

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

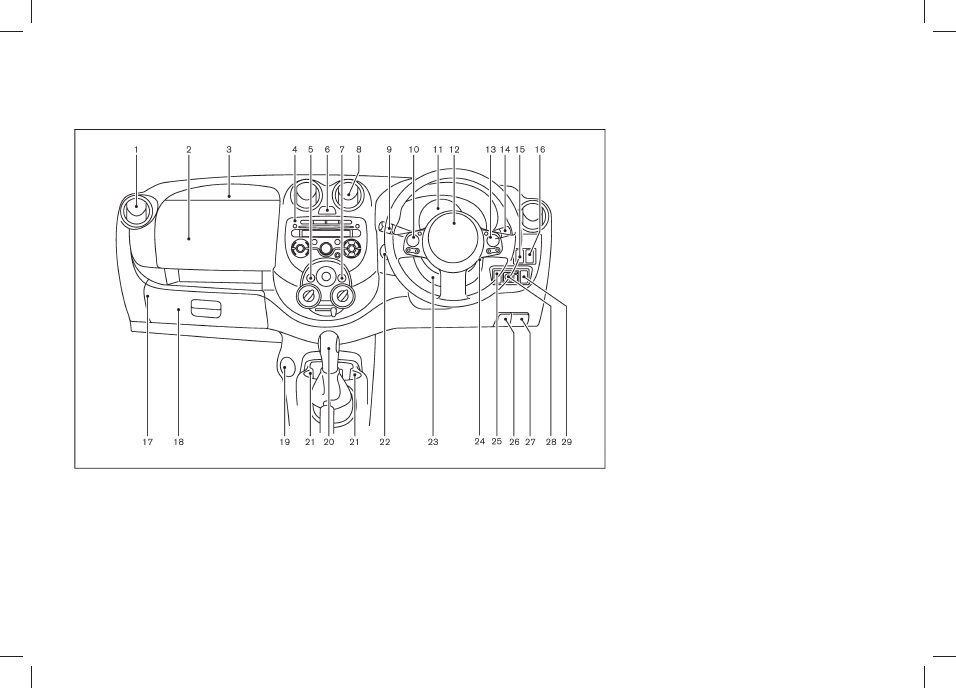

RIGHT-HAND DRIVE (RHD) MODEL (Type A)

JVC0224X

Side ventilator

Upper instrument box*

Passenger’s front-impact air bag*

Audio system* or Navigation system**

Rear window defogger switch*

Hazard indicator flasher switch

Heater and air conditioner* control

Center ventilator

Wiper and washer switch or Headlight, fog light
and turn signal switch

10.

Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth

Hands-Free Phone System con-

trol (without navigation system)*
— Bluetooth

Hands-Free Phone System con-

trol (with navigation system)**

11.

Meters and gauges

12.

Driver’s front-impact air bag*/Horn

13.

Steering-wheel-mounted controls (right side)*

— Cruise control switches*
— Speed limiter switches*

14.

Headlight, fog light* and turn signal switch or
Wiper and washer switch

15.

Parking space measurement switch*

16.

Vehicle Dynamic Control (VDC) OFF switch* or
Electronic Stability Program (ESP) OFF switch*

17.

Fuse box

18.

Glove box

19.

Power outlet*/USB/AUX connector*

20.

Selector lever or Shift lever
— Automatic Transmission (AT) model
— Continuously Variable Transmission (CVT)
model
— Manual Transmission (MT) model

21.

Cup holder

22.

Push-button ignition switch (model with Intelli-
gent Key system)

23.

Tilting steering wheel lock lever*

24.

Ignition switch (model without Intelligent Key
system)/steering lock

25.

Stop/Start System OFF switch*

26.

Hood lock release handle

27.

Fuel filler lid release handle

28.

Outside rearview mirror control switch*

29.

Headlight aiming control switch*

*: if equipped

**: Refer to the separate Navigation Owner’s Manual (if
equipped).

Instruments and controls

2-3

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-4

Instruments and controls

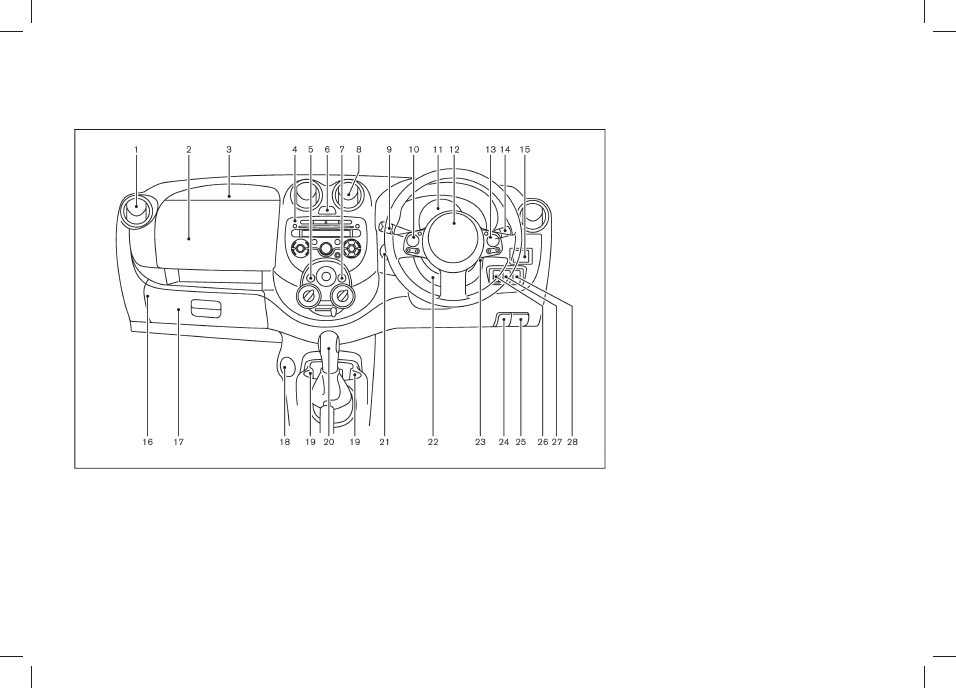

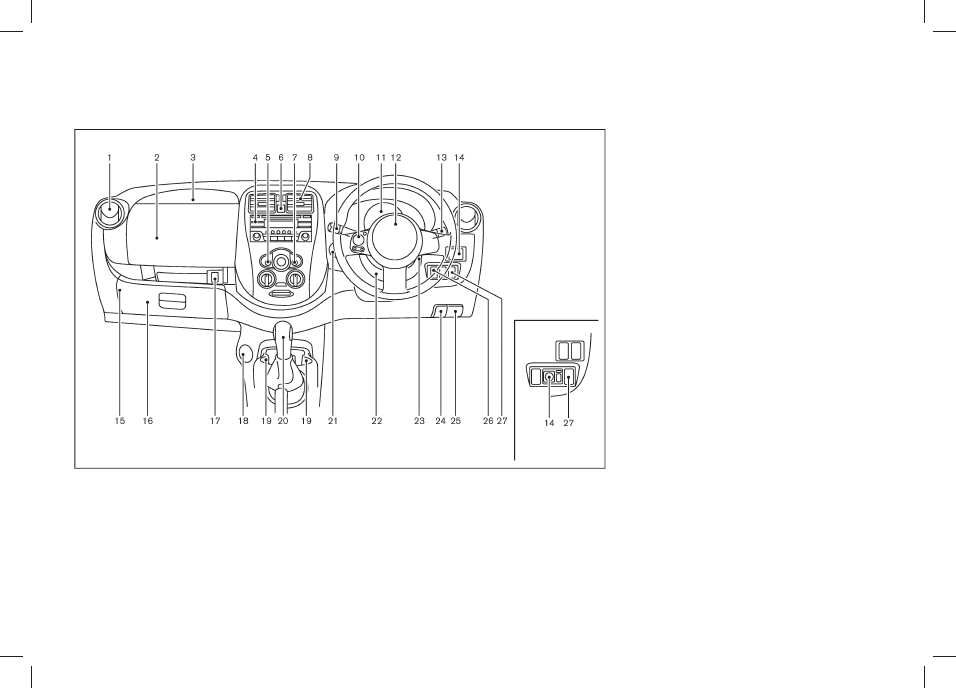

RIGHT-HAND DRIVE (RHD) MODEL (Type B)

JVC0225X

Side ventilator

Upper instrument box*

Passenger’s front-impact air bag*

Audio system*

Rear window defogger switch*

Hazard indicator flasher switch

Heater and air conditioner* control

Center ventilator

Wiper and washer switch

10.

Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth

Hands-Free Phone System con-

trol (without navigation system)*
— Bluetooth

Hands-Free Phone System con-

trol (with navigation system)**

11.

Meters and gauges

12.

Driver’s front-impact air bag*/Horn

13.

Steering-wheel-mounted controls (right side)*

— Cruise control switches*
— Speed limiter switches*

14.

Headlight, fog light* and turn signal switch

15.

Outside rearview mirror control switch*

16.

Fuse box

17.

Glove box

18.

Power outlet*/USB/AUX connector*

19.

Cup holder

20.

Selector lever or Shift lever
— Automatic Transmission (AT) model
— Continuously Variable Transmission (CVT)
model
— Manual Transmission (MT) model

21.

Push-button ignition switch (model with Intelli-
gent Key system)

22.

Tilting steering wheel lock lever*

23.

Ignition switch (model without Intelligent Key
system)/steering lock

24.

Hood lock release handle

25.

Fuel filler lid release handle

26.

Parking space measurement switch*

27.

Vehicle Dynamic Control (VDC) OFF switch*

28.

Headlight aiming control switch*

*: if equipped

**: Refer to the separate Navigation Owner’s Manual (if
equipped).

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

RIGHT-HAND DRIVE (RHD) MODEL (Type C)

JVC0449X

Example

Side ventilator

Upper instrument box*

Passenger’s front-impact air bag*

Audio system*

Rear window defogger switch*

Hazard indicator flasher switch

Heater and air conditioner* control

Center ventilator

Wiper and washer switch

10.

Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth

Hands-Free Phone System con-

trol (without navigation system)*

11.

Meters and gauges

12.

Driver’s front-impact air bag*/Horn

13.

Headlight, fog light* and turn signal switch

14.

Outside rearview mirror control switch*

15.

Fuse box

16.

Glove box

17.

USB/AUX connector*

18.

Power outlet*

19.

Cup holder

20.

Shift lever
— Continuously Variable Transmission (CVT)
model
— Manual Transmission (MT) model

21.

Push-button ignition switch (model with Intelli-
gent Key system)

22.

Tilting steering wheel lock lever

23.

Ignition switch (model without Intelligent Key
system)/steering lock

24.

Hood lock release handle

25.

Fuel filler lid release handle

26.

Idling Stop OFF switch* (Not applied to
RENAULT)

27.

Headlight aiming control switch*

*: if equipped

Instruments and controls

2-5

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-6

Instruments and controls

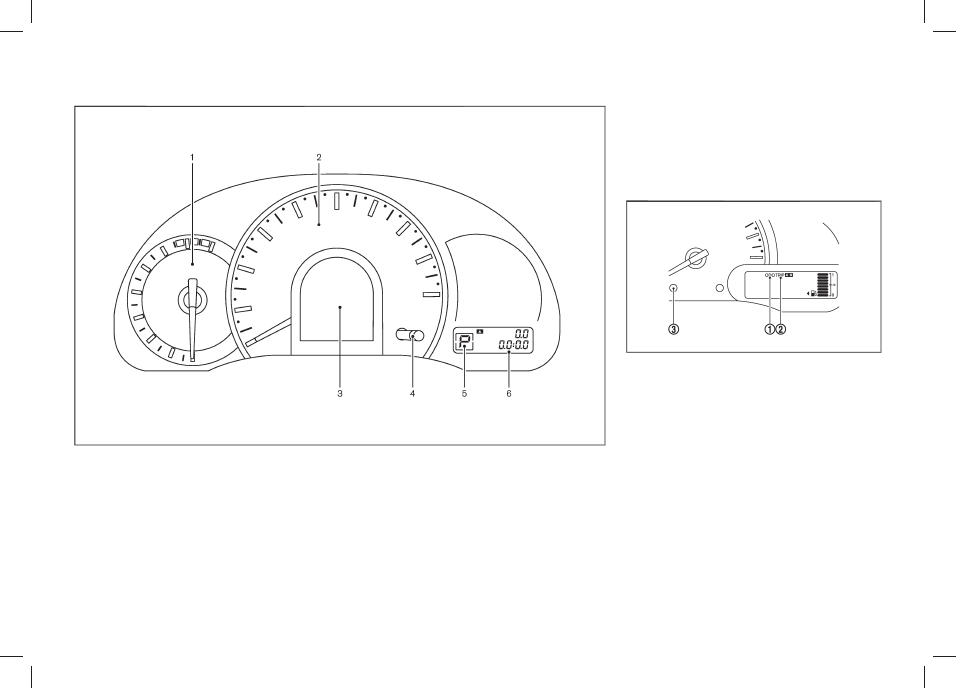

SIC4425

Type A

Speedometer

Trip odometer reset switch/trip computer mode
switch

Clock adjusting knob

Odometer/twin trip odometer/trip computer/
clock

Fuel gauge

METERS AND GAUGES

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

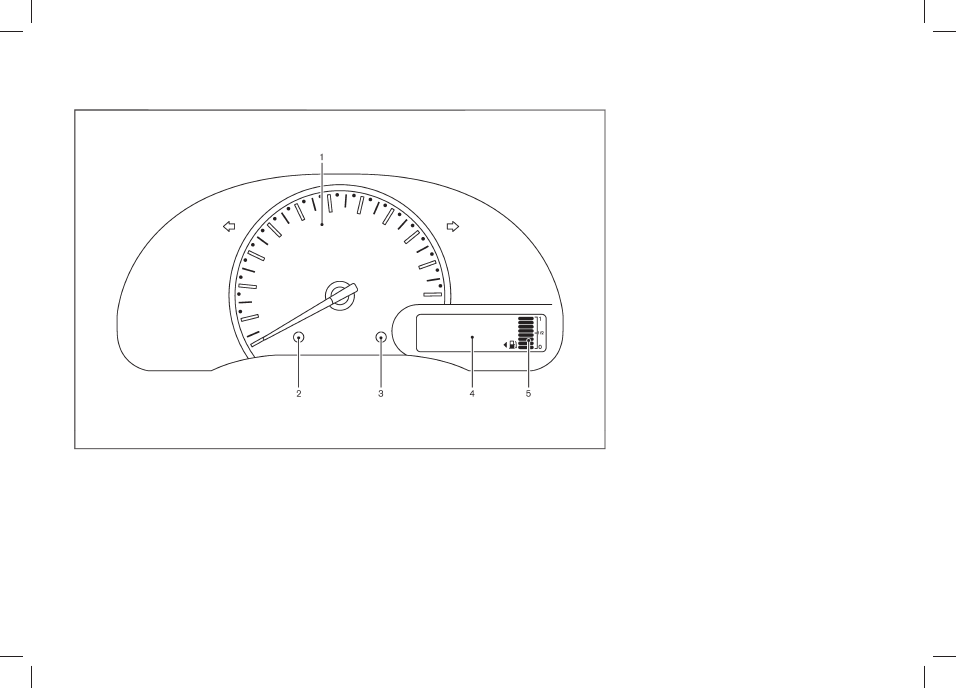

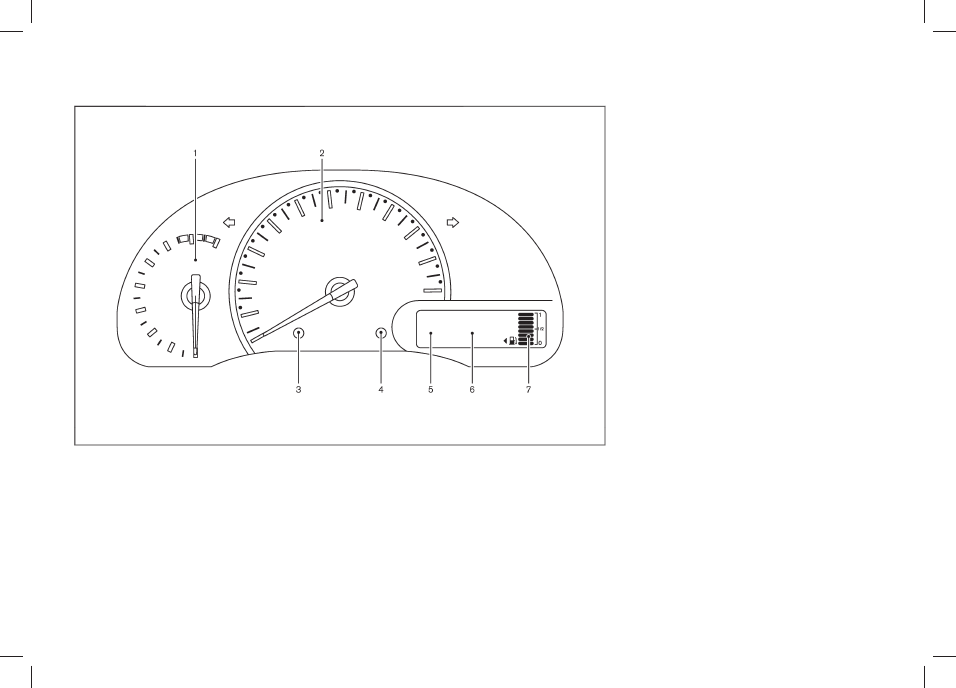

JVC0008X

Type B

Tachometer

Speedometer

Trip odometer reset switch/trip computer mode
switch

Clock adjusting knob

Automatic Transmission (AT)/Continuously Vari-
able Transmission (CVT) position indicator*/
Cruse control and speed limiter display*

Odometer/twin trip odometer/trip computer/
clock

Fuel gauge

*: if equipped

Instruments and controls

2-7

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-8

Instruments and controls

JVC0074X

Type C

Tachometer

Speedometer

Vehicle information display

Trip odometer reset switch

Automatic transmission (A/T)/Continuously Vari-
able Transmission (CVT) position indicator*

Odometer/twin trip odometer/clock

*: if equipped

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates the vehicle speed.

Odometer/Twin trip odometer (for Type A and
B)

SIC4427

Type A and B

The odometer/twin trip odometer is displayed when
the ignition switch is in the “ON” position.

The odometer

displays the total distance the

vehicle has been driven.

The twin trip odometer

displays the distance of

individual trips.

Changing twin trip odometer display:
Push the reset switch

to change the display as

follows:

TRIP A

? TRIP B ? Trip computer mode ? TRIP A

Resetting twin trip odometer:
Push the reset switch

for more than 1 second to

reset the trip odometer to zero.

For trip computer information, see “Trip computer (for
Type A and B)” (P.2-9).

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Odometer/Twin trip odometer (for Type C)

JVI0002X

Type C

The odometer/twin trip odometer is displayed when
the ignition switch is in the “ON” position.

The odometer

displays the total distance the

vehicle has been driven. When the odometer displays,
the display of TRIP A and B disappears.

The twin trip odometer

displays the distance of

individual trips.

Changing twin trip odometer display:
Push the reset switch

to change the display as

follows:

ODO

?TRIP A ? TRIP B ? ODO

Resetting twin trip odometer:
Push the reset switch

for more than 1 second to

reset the trip odometer to zero.

For trip computer information, see “Trip computer (for
Type C)” (P.2-25).

TRIP COMPUTER (for Type A and B)

SIC4441

Type A and B

The switch for the trip computer is located on the
meter panel.

When the ignition switch is placed in the “ON”
position, modes of the trip computer can be selected
by pushing the trip computer mode switch

Each time the trip computer mode switch

pushed, the display will change as follows:

ODO

? (TRIP A ? TRIP B) ? Current fuel

consumption

? Average fuel consumption ? Dis-

tance to empty (dte)

Current fuel consumption (l/100 km, km/l or
mpg)

The current fuel consumption mode shows the current
fuel consumption.

Average fuel consumption (l/100 km, km/l or
mpg)

The average fuel consumption mode shows the
average fuel consumption since the last reset. Reset-
ting is done by pushing the trip computer mode switch

for longer than 1 second.

The display is updated every 30 seconds. At about the
first 500 m after a reset, the display shows “----”.

Distance to empty (dte — km or mls)

The distance to empty (dte) mode provides you with an
estimation of the distance that can be driven before
refueling. The dte is constantly being calculated, based
on the amount of fuel in the fuel tank and the actual fuel
consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning feature:
when the fuel level is low, the dte mode is automatically
selected and the digits blink in order to draw the
driver’s attention. Push the trip computer mode switch

to return to the mode that was selected before the

warning occurred.

When the fuel level drops even lower, the dte display
will change to “----”.
.

If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.

When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.

Instruments and controls

2-9

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-10

Instruments and controls

Resetting displays

When the average fuel consumption or TRIP B is
displayed, push the trip computer mode switch

for

longer than 3 seconds. The display of average fuel
consumption and trip odometer (TRIP B only) will be
reset at the same time.

TACHOMETER (if equipped)

SIC4428

The tachometer indicates the engine speed in revolu-
tions per minute (rpm).

Do not rev the engine into the red zone.

FUEL GAUGE

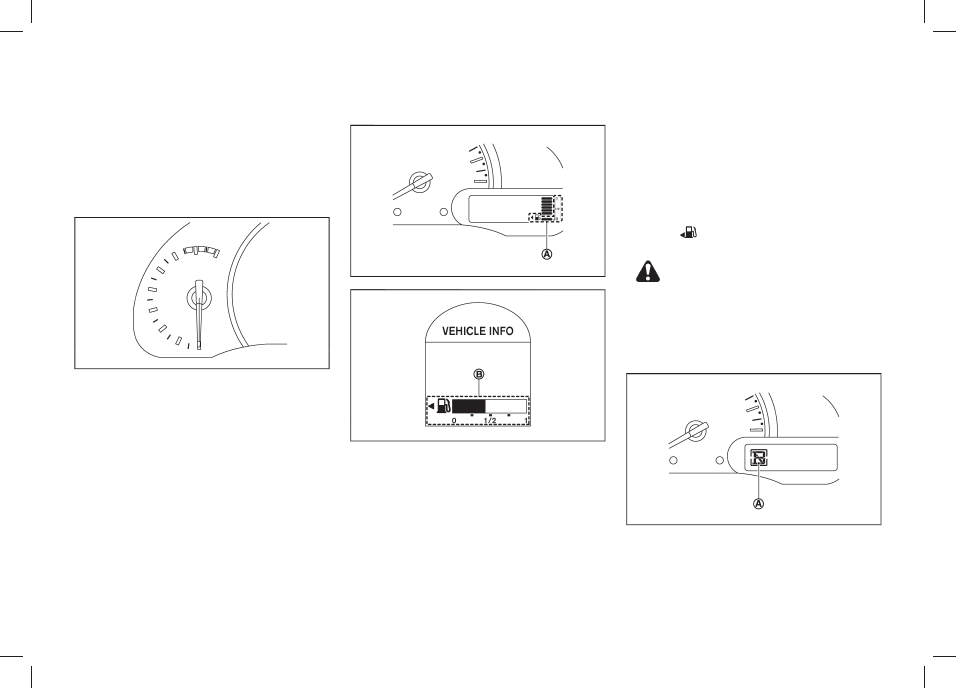

SIC4429

Type A and B

JVC0024X

Type C

For Type A and B: The fuel gauge

indicates the

approximate fuel level in the tank when the ignition
switch is in the “ON” position.

The gauge may move slightly during braking, turning,
accelerating, or going up and down hills due to
movement of fuel in the tank.

The fuel gauge

and the low fuel warning light in

the meter (if equipped) blink when the fuel level in the
tank is getting low. Refuel as soon as it is convenient,
before the gauge reads 0.

For Type C: The fuel gauge

indicates the

approximate fuel level in the tank when the ignition
switch is in the “ON” position.

The gauge may move slightly during braking, turning,
accelerating, or going up and down hills due to
movement of fuel in the tank.

The low fuel warning light in the meter illuminates when
the fuel level in the tank is getting low. Refuel as soon
as it is convenient, before the gauge reads 0.

The arrow,

, indicates the fuel filler lid is located on

the left side of the vehicle.

CAUTION:

Refuel before the gauge reads the empty (0)
position.

AUTOMATIC TRANSMISSION (AT)/CON-
TINUOUSLY VARIABLE TRANSMISSION
(CVT) POSITION INDICATOR (if equipped)

JVC0031X

Type B and C

The Automatic Transmission (AT)/Continuously Vari-
able Transmission (CVT) position indicator

in-

dicates the selector lever position when the ignition
switch is in the “ON” position.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

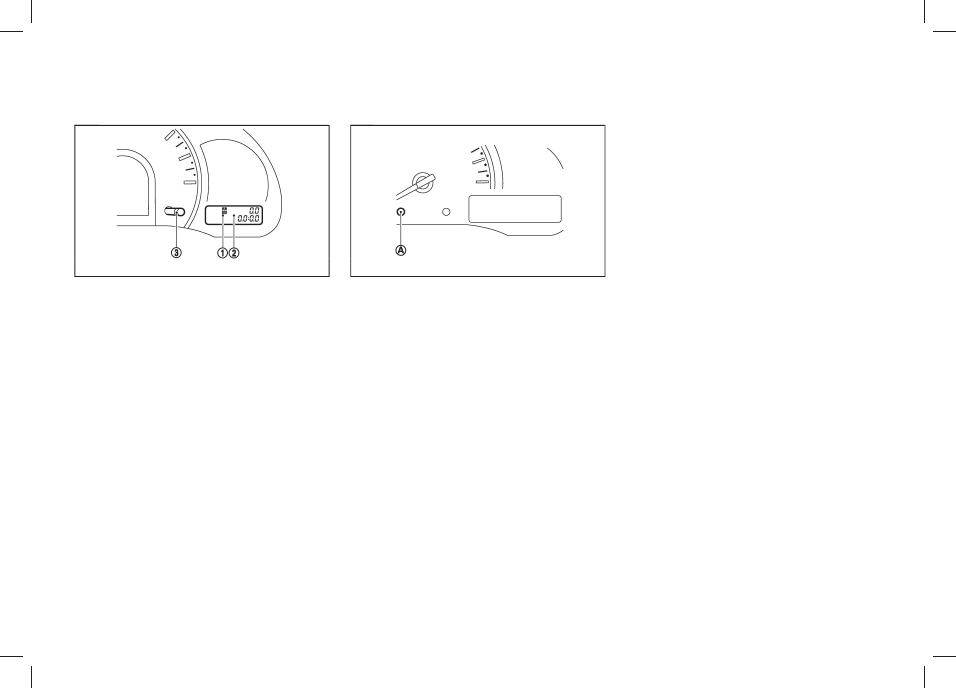

ENGINE START OPERATION INDICATOR (if
equipped)

JVC0030X

Type B

The engine start operation indicator

appears when

the selector lever is in the “P” (Park) position. This
indicator means that the engine will start by pushing
the ignition switch with the brake pedal depressed.
You can start the engine directly in any position.

Instruments and controls

2-11

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-12

Instruments and controls

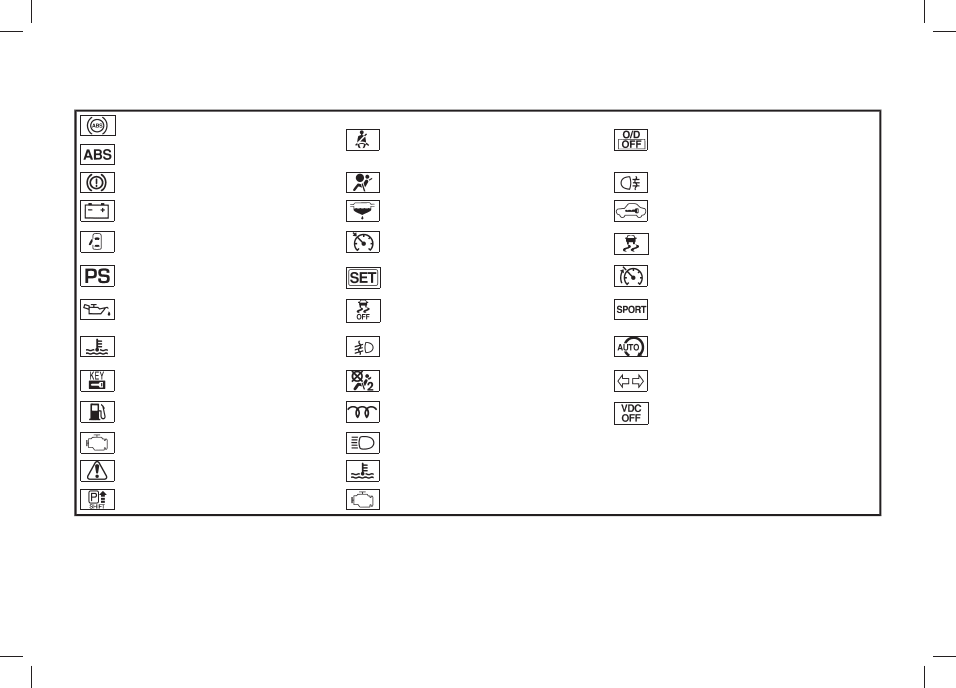

Anti-lock Braking System (ABS) warning
light*

Seat belt warning light*

Overdrive off indicator light*

Brake warning light

Supplemental Restraint System (SRS) air
bag warning light*

Rear fog light indicator light*

Charge warning light

Water-in-fuel-filter warning light (diesel en-
gine model)

Security indicator light*

Door open warning light*

Cruise control on indicator light*

Slip indicator light*

Electric power steering warning light

Cruise control/speed limiter set indicator
light*

Speed limiter indicator light*

Engine oil pressure warning light

Electronic Stability Program (ESP) off in-
dicator light*

SPORT mode indicator light*

High temperature warning light (red)

Front fog lights indicator light*

Stop/Start System indicator light (if equipped
for Europe)/Idling Stop System indicator light
(if equipped for Thailand)

Intelligent Key system warning light*

Front passenger air bag status light*

Turn signals/hazard indicator lights

Low fuel warning light*

Glow plug indicator light (diesel engine
model)

Vehicle Dynamic Control (VDC) off indicator
light*

Malfunction warning light (red) (diesel en-
gine model)

High beam indicator light

*: if equipped

Master warning light*

Low temperature indicator light (green)*

P position selecting warning light*

Malfunction Indicator Light (MIL)

WARNING/INDICATOR LIGHTS AND

AUDIBLE REMINDERS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

CHECKING BULBS

With all doors closed, apply the parking brake, fasten
the seat belts and turn the ignition switch to the “ON”
position without starting the engine. The following
lights will illuminate:

If equipped, the following lights will illuminate briefly
and then turn off:

(red),

(green),

If any lights fail to illuminate, it may indicate a burned-
out bulb or an open circuit in the electrical system.
Have the system checked, and if necessary repaired,
by a RENAULT dealer promptly.

Some indicators and warnings are also displayed on
the vehicle information display (if equipped) below the
speedometer. (See “Vehicle information display” (P.2-
20).)

WARNING LIGHTS

Anti-lock Braking System (ABS)

warning light (if equipped)

When the ignition switch is in the “ON” position, the
Anti-lock Braking System (ABS) warning light illumi-
nates and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while the engine is
running, or while driving, it may indicate the ABS is not
functioning properly. Have the system checked by a
RENAULT dealer promptly.

If an ABS malfunction occurs, the anti-lock function is
turned off. The brake system then operates normally,
but without anti-lock assistance. (See “Brake system”
(P.5-36).)

Brake warning light

WARNING:

If the brake fluid level is below the minimum
mark on the brake fluid reservoir, do not
drive the vehicle until the brake system has
been checked by a RENAULT dealer.

Even if you judge it to be safe, have your
vehicle towed because driving it could be
dangerous.

Depressing the foot brake pedal without the
engine running and/or with a low brake fluid
level could increase the stopping distance
and require greater pedal travel distance
and effort.

The brake warning light indicates the parking brake
system operation, a low brake fluid level of the brake
system and an Anti-lock Braking System (ABS)
malfunction.

Parking brake warning indicator:
When the ignition switch is in the “ON” position, and
the parking brake is applied, the brake warning light
illuminates. When the parking brake is released, the
brake warning light turns off.

Low brake fluid warning indicator:
If the brake warning light illuminates while the engine is
running, or while driving, and the parking brake is
released, it may indicate the brake fluid level is low.

When the brake warning light illuminates while driving,
stop the vehicle safely as soon as possible. Stop the
engine and check the brake fluid level. If the brake fluid
level is below the minimum mark on the reservoir, add
brake fluid as necessary. (See “Brake fluid” (P.8-18).)

If the brake fluid level is sufficient, have the brake
system checked by a RENAULT dealer promptly.

Anti-lock Braking System (ABS) warning indi-
cator (if equipped):
When the parking brake is released and the brake fluid
level is sufficient, if both the brake warning light and the
Anti-lock Braking System (ABS) warning light illumi-
nate, it may indicate the ABS is not functioning
properly. Have the brake system checked, and if
necessary repaired, by a RENAULT dealer promptly.
(See “Anti-lock Braking System (ABS) warning light”
(P.2-13).)

Charge warning light

When the ignition switch is in the “ON” position, the
charge warning light illuminates. After starting the
engine, the charge warning light turns off. This
indicates the charging system is operational.

If the charge warning light illuminates while the engine
is running, or while driving, it may indicate the charging
system is not functioning properly and may need
servicing.

When the charge warning light illuminates while
driving, stop the vehicle safely as soon as possible.
Stop the engine and check the alternator belt. If the
alternator belt is loose, broken or missing, the charging
system needs repair. (See “Drive belts” (P.8-15).)

If the alternator belt appears to be functioning correctly
but the charge warning light remains illuminated, have
the charging system checked by a RENAULT dealer
promptly.

Instruments and controls

2-13

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-14

Instruments and controls

CAUTION:

Do not continue driving if the alternator belt is
loose, broken or missing.

Door open warning light (if equipped)

When the ignition switch is in the “ON” position, the
door open warning light illuminates if any of the doors
are open or not closed securely.

Electric power steering warning light

When the ignition switch is in the “ON” position, the
electric power steering warning light illuminates. After
starting the engine, the electric power steering warning
light turns off. This indicates the electric power
steering system is operational.

If the electric power steering warning light illuminates
while the engine is running, it may indicate the electric
power steering system is not functioning properly and
may need servicing. Have the electric power steering
system checked by a RENAULT dealer.

When the electric power steering warning light
illuminates with the engine running, the power assist
to the steering will cease operation but you will still
have control of the vehicle. At this time, greater
steering efforts are required to operate the steering
wheel, especially in sharp turns and at low speeds.

(See “Electric power steering system” (P.5-35).)

Engine oil pressure warning light

When the ignition switch is in the “ON” position, the
engine oil pressure warning light illuminates. After
starting the engine, the engine oil pressure warning
light turns off. This indicates that the oil pressure
sensors in the engine are operational.

If the engine oil pressure warning light illuminates or
blinks while the engine is running, it may indicate that
the engine oil pressure is low.

Stop the vehicle safely as soon as possible. Stop the
engine immediately and call a RENAULT dealer.

CAUTION:

Running the engine with the engine oil
pressure warning light illuminated could
cause serious damage to the engine.

The engine oil pressure warning light is not
designed to indicate a low oil level. The oil
level should be checked using the dipstick.
(See “Engine oil” (P.8-10).)

High temperature warning light (red)

When the ignition switch is in the “ON” position, the
high temperature warning light illuminates and then
turns off. This indicates that the high temperature
sensor in the engine coolant system is operational.

CAUTION:

If the high temperature warning light illuminates
while the engine is running, it may indicate the
engine temperature is extremely high.

Stop the vehicle safely as soon as possible.

If the vehicle is overheated, continuing vehicle
operation may seriously damage the engine.
(See “If your vehicle overheats” (P.6-10) for the
immediate action required.)

Intelligent Key system warning light (if

equipped)

After the ignition switch is placed in the “ON” position,
this light comes on for about 2 seconds and then turns
off.

This light illuminates or blinks as follows:
.

The light blinks in yellow when the door is closed
with the Intelligent Key left outside the vehicle and
the ignition switch in the “ACC” or “ON” position.
Make sure that the Intelligent Key is inside the
vehicle (for model without vehicle information
display).

The light blinks in green when the Intelligent Key
battery is running out of power. Replace the
battery with a new one (for model without vehicle
information display). See “Battery” (P.8-23).

The light illuminates in yellow when it warns of a
malfunction with the electrical steering lock
system or the Intelligent Key system.

If the warning light illuminates in yellow while the
engine is stopped, it may be impossible to free the
steering lock or to start the engine. If the light comes
on while the engine is running, you can drive the
vehicle. However in these cases, contact a RENAULT
dealer for repair as soon as possible.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Low fuel warning light (if equipped)

The low fuel warning light illuminates when the fuel
level in the tank is getting low. Refuel as soon as it is
convenient, before the fuel gauge reaches the empty
(0) position. There will be a small reserve of fuel
remaining in the tank when the fuel gauge reaches the
empty (0) position.

Malfunction warning light (red) (diesel

engine model)

When the ignition switch is placed in the “ON”
position, the malfunction warning light illuminates in
red. This means that the system is operational. After
starting the engine, the warning light turns off.

For the orange Malfunction Indicator Light (MIL), see
“Malfunction Indicator Light (MIL)” (P.2-17)for details.

If the malfunction warning light (red) illuminates
continuously while the engine is running, it may
indicate an engine control system malfunction. Have
your vehicle inspected by a RENAULT dealer. You do
not need to have your vehicle towed to the dealer.

CAUTION:

Continuing vehicle operation without proper
servicing of the engine control system could
lead to poor driveability, reduced fuel economy,
and damage to the engine control system, which
may affect the vehicle’s warranty coverage.

Master warning light (if equipped)

When the ignition switch is in the “ON” position, the
master warning light illuminates if any of the following
are displayed on the vehicle information display.
.

Seat belt warning

NO KEY warning

Low fuel warning

Parking brake release warning

Door/back door open warning

(See “Vehicle information display” (P.2-20).)

P position selecting warning light (if

equipped)

The warning light blinks in red when the ignition switch
is pushed to stop the engine with the selector lever in
any position except the “P” (Park) position.

If this warning appears, move the selector lever to the
“P” (Park) position or push the ignition switch to the
“ON” position.

An inside warning chime will also sound.

See “Intelligent Key system” (P.3-9).

Seat belt warning light (if equipped)

When the ignition switch is in the “ON” position, the
seat belt warning light illuminates. The light will
continue to illuminate until the driver’s seat belt is
fastened. (See “Seat belts” (P.1-7).)

For China:
When the vehicle speed exceeds 15 km/h (10 MPH),
the light will blink unless the driver’s seat belt is
securely fastened.

Except for China:
When the vehicle speed exceeds 15 km/h (10 MPH),
the light will blink and the chime will sound unless the
driver’s seat belt is securely fastened. The chime will
continue to sound for about 90 seconds until the seat
belt is fastened.

Supplemental Restraint System (SRS)

air bag warning light (if equipped)

When the ignition switch is in the “ON” or “START”
position, the Supplemental Restraint System (SRS) air
bag warning light illuminates for about 7 seconds and
then turns off. This indicates that the SRS air bag
system is operational.

If any of the following conditions occur, the SRS air
bag system and/or pre-tensioner seat belt need
servicing. Have the system checked, and if necessary
repaired, by a RENAULT dealer promptly.

The SRS air bag warning light remains illuminated
after about 7 seconds.

The SRS air bag warning light flashes intermit-
tently.

The SRS air bag warning light does not illuminate
at all.

Unless checked and repaired, the SRS air bag system
and/or pre-tensioner seat belt may not function
properly. (See “Supplemental Restraint System
(SRS)” (P.1-25).)

Instruments and controls

2-15

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

2-16

Instruments and controls

Water-in-fuel-filter warning light (for

diesel engine model)

If the water-in-fuel-filter warning light illuminates while
the engine is running, drain the water from the fuel filter
promptly. (See “Fuel filter (diesel engine model)” (P.8-
15).)

CAUTION:

Continuing vehicle operation without properly
draining could cause serious damage to the
engine.

INDICATOR LIGHTS

Cruise control on indicator light (if

equipped)

The cruise control on indicator light indicates the
activation of the cruise control system.

When the cruise control main switch is turned on, the
indicator light will illuminate, indicating the cruise
control system is in the standby mode. (See “Cruise
control” (P.5-28).)

Cruise control/speed limiter set indi-

cator light (if equipped)

The cruise control/speed limiter set indicator light
indicates the status of the cruise control system.

When the vehicle speed is controlled by the cruise
control/speed limiter system, the indicator light illumi-
nates.

If the cruise control/speed limiter set indicator light
blinks while the engine is running, or while driving, it
may indicate the cruise control/speed limiter system is

not functioning properly and may need servicing. Have
the system checked, and if necessary repaired, by a
RENAULT dealer promptly. (See “Cruise control” (P.5-
28) and “Speed limiter (if equipped for Europe)” (P.5-
26).)

Electronic Stability Program (ESP) off

indicator light (if equipped)

The Electronic Stability Program (ESP) off indicator
light illuminates when the ESP off switch is pushed to
the “OFF” position.

When the ESP off switch is pushed to the “OFF”
position, the ESP system is turned off.

If the ESP off indicator light and slip indicator light
illuminate while the engine is running or while driving, it
may indicate the ESP system is not functioning
properly and may need servicing. Have the system
checked, and if necessary repaired, by a RENAULT
dealer promptly. (See “Electronic Stability Program
(ESP) System (if equipped for Europe)” (P.5-25).)

Front fog lights indicator light (if

equipped)

The front fog lights indicator light illuminates when the
front fog lights are on. (See “Fog light switch” (P.2-
32).)

Front passenger air bag status light (if

equipped)

The front passenger air bag status light located on the
instrument panel will illuminate when the front passen-
ger air bag is turned off with the front passenger air
bag switch. When the front passenger air bag is turned
on, the front passenger air bag status light will turn off.

For more details, see “Supplemental Restraint System
(SRS)” (P.1-25).

Glow plug indicator light (diesel engine

model)

When the ignition switch is in the “ON” position, the
glow plug indicator light illuminates and turns off after
the glow plugs have warmed up.

If the glow plugs have already warmed up, the glow
plug indicator flashes briefly and then turns off.

High beam indicator light

The high beam indicator light illuminates when the
headlight high beam is “ON”. The indicator turns off
when the low beam is selected. (See “Headlight and
turn signal switch” (P.2-29).)

Low temperature indicator light (green)

The low temperature indicator light illuminates when
the engine coolant temperature is low.

When the ignition switch is in the “ON” position, the
low temperature indicator light illuminates and then
turns off after the engine coolant has warmed up.

If the low temperature indicator light stays illuminated
after the engine has sufficiently warmed up, it may
indicate the low temperature sensor in the engine
coolant system is not functioning properly and may
need servicing. Have the system checked, and if
necessary repaired, by a RENAULT dealer promptly.

&RQGLWLRQ

Content .. 2 3 4 5 ..
