Renault Laguna Tourer (2012 year). Instruction

indicators:

instrument panel .............................(up to the end of the DU)

display ..................................................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

fuel level ................................................................(current page)

coolant ...................................................................(current page)

1.50

ENG_UD25107_2

Afficheurs et indicateurs (X91 - B91 - K91 - D91 - Renault)

ENG_NU_936-5_BK91_Renault_1

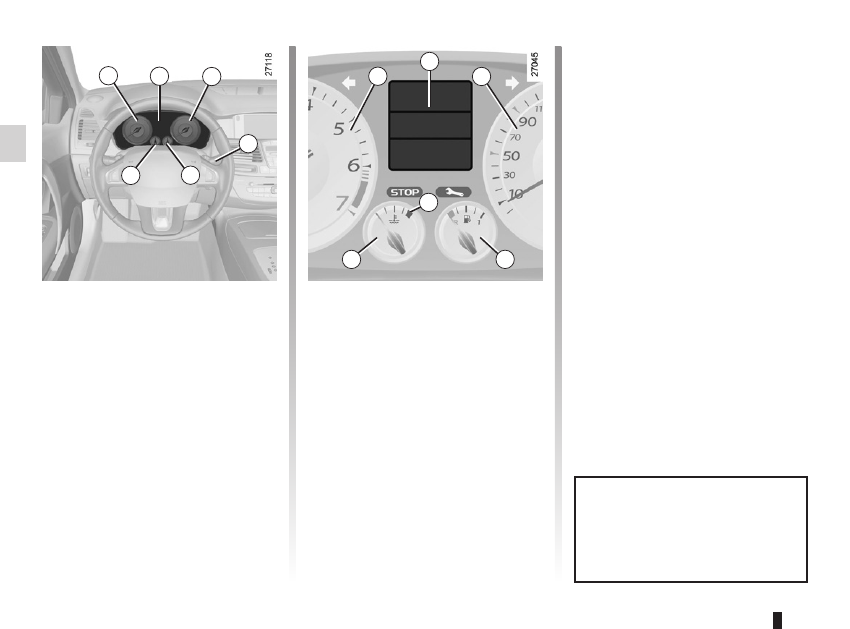

dIspLAYs ANd INdIcATORs

Rev counter 1 (rpm × 1 000)
Engine oil level low warning 2
When the engine is started, display 2

alerts the driver when the oil level is at

its minimum. Refer to the information

on the “Engine oil level” in Section 4.
The first time the warning appears, it

can be cleared by pressing one of the

buttons on the end of stalk 4.
Subsequent warnings will disappear

automatically after 30 seconds.

coolant temperature indicator 6

In normal use, the needle should be

before area a. Under severe condi-

tions, the needle may enter this area.

This is not serious unless the

warning light comes on, accompanied

by a message on the instrument panel

and a beep.
Trip computer and warning system
Refer to the information on the “Trip

computer and warning system” in

Section 1.

speedometer 3 (mph or km/h)

Overspeed buzzer

Depending on the vehicle and coun-

try, a buzzer sounds for approximately

10 seconds every 40 seconds, as long

as the vehicle is travelling in excess of

72 mph (120 km/h).

fuel level gauge 5

If the minimum level is reached, indi-
cator light

integrated into the in-

dicator comes on. Fill up as soon as

possible. There is only approximately

30 miles (50 km) of fuel left after the

first indicator light comes on.

When the ignition is switched on,

the instrument panel lights up and

the rev counter and speedometer

needles move.

control instruments ...............................(up to the end of the DU)

indicators:

instrument panel .............................(up to the end of the DU)

trip computer and warning system........(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

1.51

ENG_UD23773_2

Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

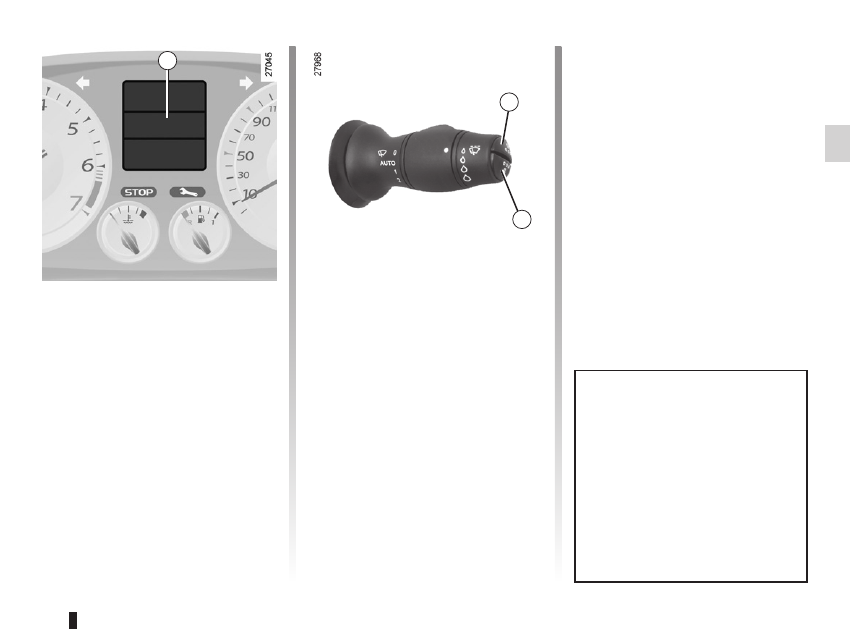

Trip computer

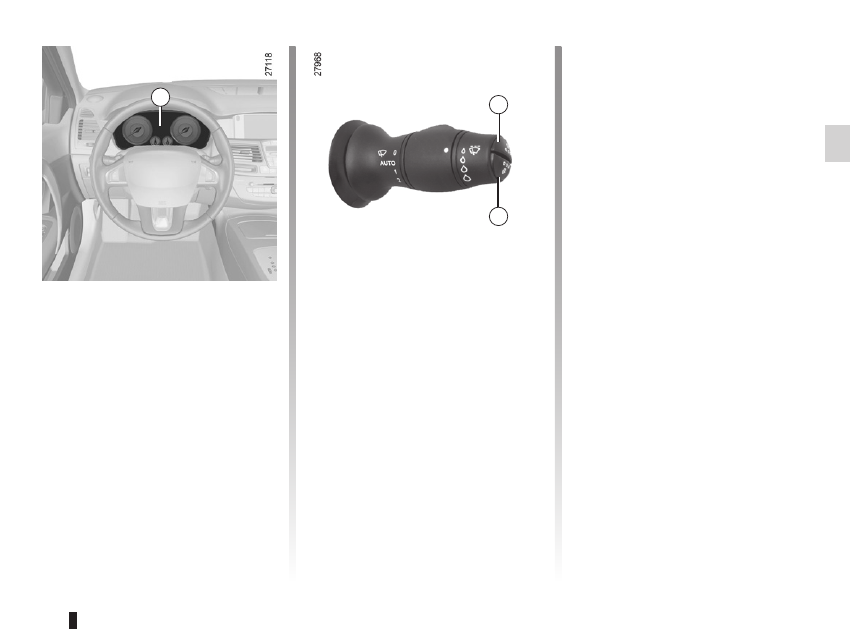

Trip computer and warning

system 1

Depending on the vehicle, this includes

the following functions:
–  distance travelled;
–  journey parameters;
–  information messages;
–  operating  fault  messages  (associ-

ated with the

warning light);

– warning messages (associated with

the

warning light);

– vehicle settings customisation menu.
All these functions are described on the

following pages.

display selection keys 2

and 3

Scroll through the following informa-

tion upwards (button 2) or downwards

(button 3) by pressing briefly and suc-

cessively (the display depends on the

vehicle equipment and country).
a) total mileage and trip mileage re-

corder;

b) journey parameters:

– fuel used;

– average fuel consumption;

– current fuel consumption;

– estimated range;

– distance travelled;

– average speed;

c) mileage before service;
d) tyre pressure monitor;
e) cruise control/speed limiter pro-

grammed speed;

f) vehicle settings customisation menu;
g) on-board log, operating fault and in-

formation message readout.

TRIp cOmpUTER: general information

(1/2)

1.52

ENG_UD23773_2

Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

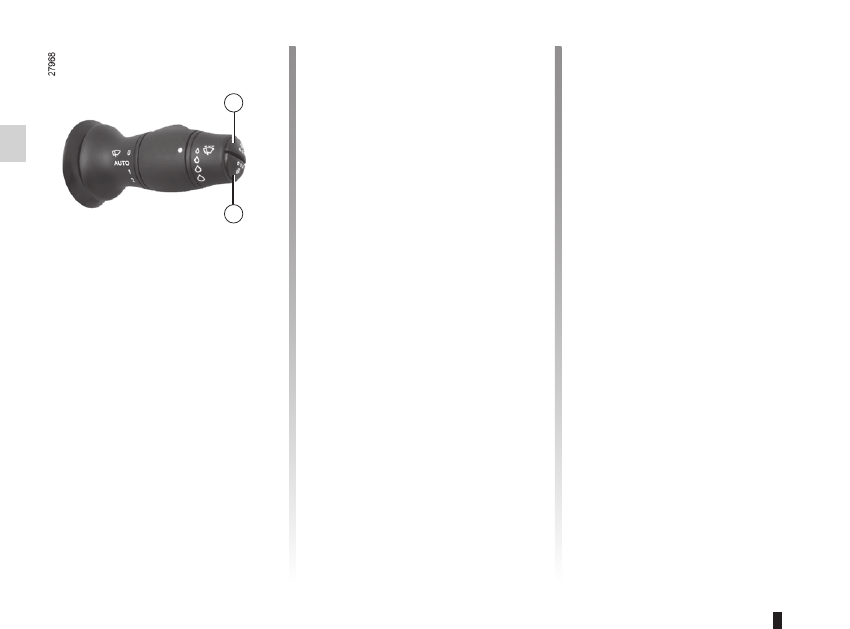

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press button 2 or 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the journey parameters se-

lected on the display, press button 2

or 3 until the display resets.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption, range and average speed

will become more stable and reliable

the further you travel after pressing the

reset button.
For the first few miles after pressing

the reset key you will notice that the

range increases as you travel. This

range takes into account the average

fuel consumption since the last time the

reset button was pressed. Therefore,

the average fuel consumption may de-

crease when:

– the vehicle stops accelerating;
– the engine reaches its operat-

ing temperature (if the engine

was cold when the reset key was

pressed);

– when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

TRIp cOmpUTER: general information

(2/2)

trip computer and warning system........(up to the end of the DU)

warning lights........................................(up to the end of the DU)

instrument panel messages..................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

1.53

ENG_UD23764_1

Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

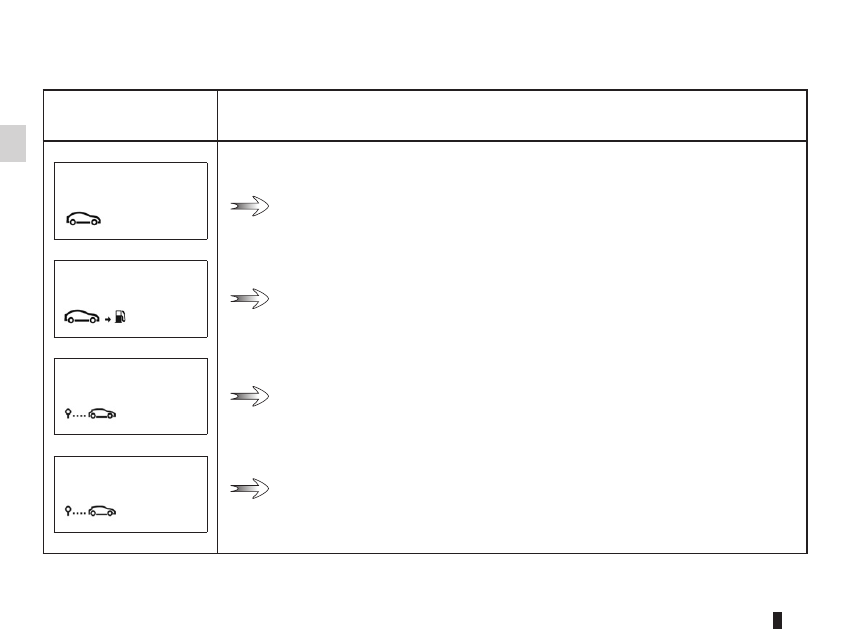

Examples of selections

Interpreting the display selected

101778 KM

112. 4 KM

a) Total mileage and trip mileage recorder.

Fuel used

b) Journey parameters.

fuel used.

Fuel consumed since the last reset.

8 L

Average

Average fuel consumption since the last reset.
The value is displayed after having travelled at least 400 metres since the last reset.

7.2 L/100

TRIp cOmpUTER: trip settings

(1/5)

1.54

ENG_UD23764_1

Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

Examples of selections

Interpreting the display selected

Current

current fuel consumption.

This value is displayed above a speed of approximately 18 mph (30 km/h).

9.4 L/100

Estimated range with remaining fuel.

This range takes into account the average fuel consumption since the last time the reset

button was pressed. The value is displayed after driving 400 metres.

Range

541 km

distance travelled since the last reset.

Distance

522 km

Average speed since the last reset.

The value is displayed after driving 400 metres.

Average

123 km/h

TRIp cOmpUTER: trip settings

(2/5)

1.55

ENG_UD23764_1

Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

Examples of selections

Interpreting the display selected

c) mileage before service.

Distance remaining until the next service (displayed in miles/kilometres and months),

then when the service nears, several scenarios are possible:

– distance/time remaining less than

900 miles (1,500 km) or one month: the mes-

sage “Service in” is displayed accompanied by the nearest term (distance or time);

– distance equal to

0 miles or service date reached: the message “Service re-

quired” is displayed accompanied by the

warning light.

The vehicle requires a service as soon as possible.

Service in

1936 km/2 months

NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,

door-to-door journeys, extensive use at idle speed, towing a trailer etc). The distance remaining until the next service can there-

fore decrease more quickly in some cases than the actual distance travelled.
Resetting the display after the service in accordance with the maintenance schedule.

The mileage before service must only be reset after a service which complies with the recommendations in the maintenance

schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-

placement intervals for other parts in the maintenance schedule.
special note: To reset the distance before service, press and hold one of the display reset buttons for approximately 10 sec-

onds until the display shows the mileage permanently.

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

TRIp cOmpUTER: trip settings

(3/5)

1.56

ENG_UD23764_1

Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

Examples of selections

Interpreting the display selected

d) Tyre pressure monitor

Refer to the information on the “Tyre pressure monitor” in Section 2.

Speed limiter

e) cruise control/speed limiter programmed speed.

Refer to the information on the “Speed limiter” and “Cruise control” in Section 2.

90 km/H

Cruise control

90 km/H

TRIp cOmpUTER: trip settings

(4/5)

1.57

ENG_UD23764_1

Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

Examples of selections

Interpreting the display selected

e) vehicle settings customisation menu.

Enables certain vehicle functions to be set (instrument panel language, parking

distance control, etc.). Refer to the information on “Vehicle settings customisa-

tion menu” in Section 1.

Settings menu:

press and hold

f) Trip log.

Successive display:
– information messages (passenger airbag OFF etc.),
– operating fault messages (check the injection system, etc).

No message available

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

TRIp cOmpUTER: trip settings

(5/5)

trip computer and warning system.........................(current page)

warning lights.........................................................(current page)

instrument panel messages...................................(current page)

instrument panel ....................................................(current page)

1.58

ENG_UD28946_2

Ordinateur de bord : messages d’information (X91 - B91 - K91 - D91 - Renault)

ENG_NU_936-5_BK91_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm: information messages

Examples of messages

Interpreting the display selected

« Battery low

start engine »

Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been

switched off for some time whilst listening to the radio).

« please remove

keycard »

Request to remove the RENAULT card from the reader when you leave the vehicle.

« checking control

functions »

Displayed with the ignition on when the vehicle is running self-diagnostics.

« Traction control off »

Indicates that you have deactivated the ASR function.

« Turn steering

wheel + sTART »

Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering

column.

« Auto stop »

Indicates that the engine is on standby (related to the Stop and Start function). Please see infor-

mation about the “Stop and Start function” in Section 2.

« steering wheel

not locked »

Indicates that the steering column has not been locked.

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

trip computer and warning system.........................(current page)

instrument panel messages...................................(current page)

warning lights.........................................................(current page)

instrument panel ....................................................(current page)

1.59

ENG_UD23770_1

Ordinateur de bord : messages d’anomalies de fonctionnement (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm: operating fault messages

These appear with the

warning light and mean that you should drive very carefully to an authorised dealer as

soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

« clean diesel filter »

Indicates the presence of water in the diesel filter, contact your approved dealer as soon as

possible.

« check lighting »

Indicates a fault in the directional headlights.

« check vehicle »

Indicates a fault in one of the pedal sensors, battery management system or oil level sensor.

« check airbag »

Indicates a fault in the restraint system in addition to the seat belts. In the event of an accident,

it is possible that they may not be triggered.

« check anti-

pollution system »

Indicates a fault in the vehicle’s particle filter system.

« change battery »

Indicates that it is necessary to change the vehicle’s battery; see information on the “battery”

in section 4.

trip computer and warning system.........................(current page)

warning lights.........................................................(current page)

instrument panel messages...................................(current page)

instrument panel ....................................................(current page)

1.60

ENG_UD23771_1

Ordinateur de bord : messages d’alerte (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm: warning message

These appear with the

warning light and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. stop your engine and do not restart it. contact an approved dealer.

Examples of warning messages are given in the following pages.

Note: the messages appear on the display either individually

or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

“Injection system fault”

Indicates a fault in the injection system.

“Engine failure hazard”

Indicates that the vehicle has a serious engine fault.

“Engine overheating”

Indicates that the engine is overheating.

“power steering fault” or

“Risk of steering locking”

Indicates a fault in the steering.

“parking brake fault”

or “Stop vehicle”

Indicates an electronic parking brake fault. Apply the electronic parking brake manually and

ensure that the vehicle is immobilised using a chock.

“Battery charging fault”

Indicates a fault with the vehicle’s battery charging circuit.

“Oil pressure fault”

Indicates an engine oil pressure fault.

“puncture”

Indicates a puncture on the wheel displayed on the trip computer and warning system screen.

menu for customising the vehicle settings (up to the end of the DU)

customising the vehicle settings ...........(up to the end of the DU)

customised vehicle settings ..................(up to the end of the DU)

1.61

ENG_UD13332_5

Menu de personnalisation des réglages du véhicule (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

vehicle settings customisation menu

vEHIcLE sETTINgs cUsTOmIsATION mENU

This function, integrated into trip com-

puter and warning system 1, allows

certain vehicle functions to be acti-

vated/deactivated and adjusted.

Accessing the vehicle

settings personalisation

menu

With the vehicle stationary, press either

button 2 or 3 several times until the

“settings menu: long press” message

is shown on display 1. Press either

button 2 or 3 for longer than 2 seconds

to enter the menu.

The vehicle settings customisation

menu cannot be used when driv-

ing. At speeds of above 12 mph (20

km/ h) for vehicles with a manual

gearbox (0 mph for vehicles with an

automatic gearbox), the on-board

display returns automatically to the

trip computer and warning system

mode.

Adjusting the settings

Press one of buttons 2 or 3 to select a

function to change:

a) unlocking the driver’s door only;

b) automatic locking of the doors while

driving;

c) automatic daytime running lights

function;

d) rear screen wiping in reverse gear;

e) front parking distance control;

f) rear parking distance control;

g) parking distance control volume;

h) instrument panel language.

function activated

function deactivated

Once a line has been selected, keep

pressing either button 2 or 3 to change

the function:

For the “parking distance control

volume” or “language” functions, you

will have to make a further selection. In

this case, make your selection and con-

firm it by holding either button 2 or 3,
the value selected is shown by a

in front of the line.

To exit the menu, select “exit” or “back”

then confirm by keeping either button 2

or 3 pressed. It may be necessary to

carry out this operation several times.

clock .....................................................(up to the end of the DU)

external temperature ............................(up to the end of the DU)

indicators:

exterior temperature indicator ..........................(current page)

1.62

ENG_UD20266_1

Heure et température extérieure (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

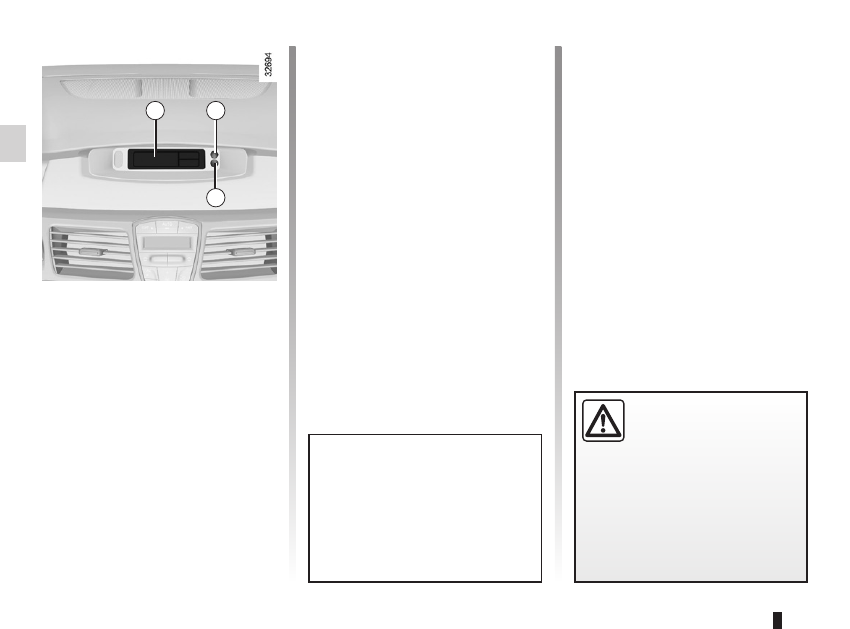

Clock and exterior temperature

The time and, depending on the vehi-

cle, the exterior temperature are dis-

played.

Resetting the clock 1

On equipped vehicles, buttons 2 and 3

are used to set the clock.
Press button 2 to adjust the hours and

button 3 to adjust the minutes.

External temperature

indicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

cLOcK ANd EXTERIOR TEmpERATURE

External temperature

indicator

special note:
When the outside temperature is –3°C

to +3°C, the °C characters flash (signal-

ling a risk of black ice on the road).

vehicles equipped with a

navigation system, radio, etc.

For vehicles which are not fitted with

buttons 2 and 3, refer to the specific

equipment instructions to discover the

special features.

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

rear view mirrors ...................................(up to the end of the DU)

1.63

ENG_UD23635_4

Rétroviseurs (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

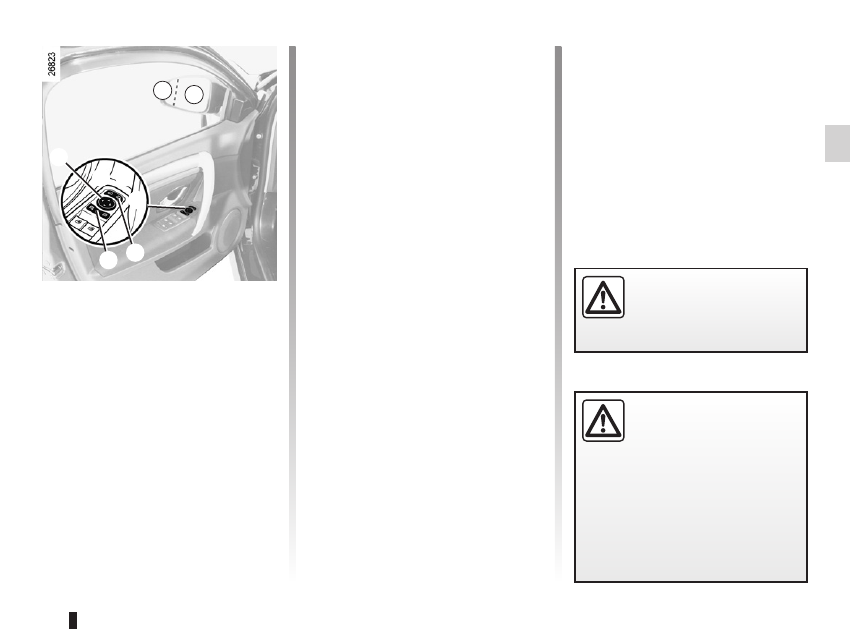

Rear-view mirrors

storing the setting
For vehicles fitted with a driver’s seat

with position memorisation, refer to the

information on the “driver’s seat with

position memory” in Section 1.

folding door mirrors
The door mirrors automatically fold in

when the vehicle is locked (switch 2 in

position B). In this case, they will fold

out when the ignition is next switched

on.

In any case, you can make the door

mirrors fold in (switch 2 in position C) or

fold out (switch 2 in position A).

Automatic mode is then deactivated. To

reactivate it, position switch 2 to B.

REAR-vIEW mIRRORs

(1/2)

door mirrors

Adjustment
Select the door mirror using switch 3,

then use button 1 to adjust it to the de-

sired position.

Heated door mirrors
Mirror de-icing is carried out at the

same time as rear screen de-icing.

The driver’s door mirror

may have two clearly de-

fined zones. Zone E shows

what can normally be seen

in an ordinary rear view mirror.

Zone D increases rear side visibility.
The objects in zone D look much

further away than they really are.

d E

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

1.64

ENG_UD23635_4

Rétroviseurs (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

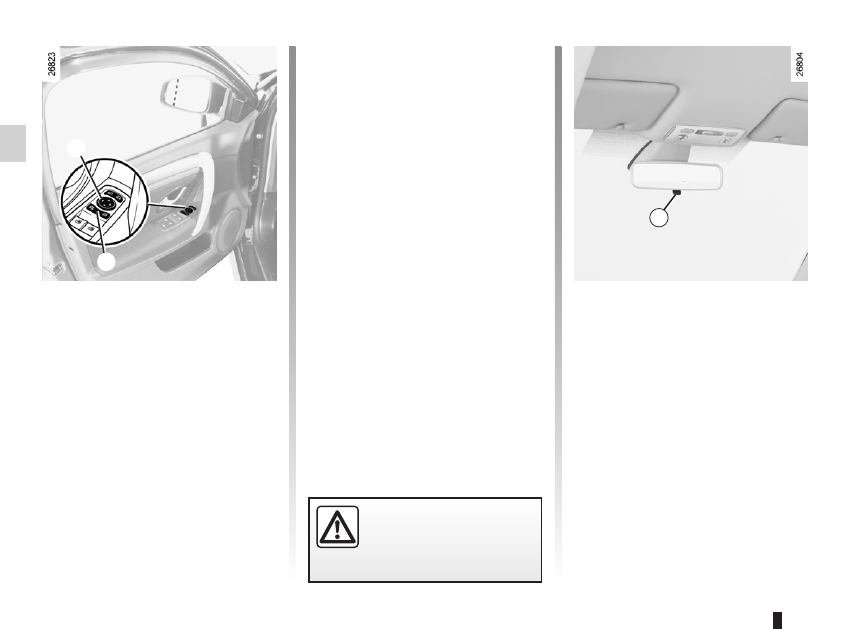

Interior rear view mirror

Its position can be adjusted.

Rear view mirror with lever 4

When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, depress the little lever located

behind rear view mirror 4.
Rear view mirror without lever 4

The rear view mirror darkens automati-

cally at night if you are being followed

by a vehicle with its lights on.

Rear view mirrors which tilt

in reverse gear

For vehicles equipped with the driver’s

seat with position memory, you can tilt

the door mirrors when reversing and

store the position.

setting and storage

With the vehicle stationary and reverse

gear engaged, select the door mirror

using switch 3 then, with button 1,

adjust it to the required position. Store

the position (refer to the information on

the “Driver’s seat with position memory”

in Section 1).

REAR-vIEW mIRRORs

(2/2)

Recalling the memorised position
With the vehicle stationary and re-

verse gear engaged, select the door

mirror using switch 3 and then briefly

press the memory button chosen pre-

viously (refer to the information on the

“Driver’s seat with position memory” in

Section 1).

Returning to the driving position
– 10 seconds after reverse gear has

been disengaged;

– speed above 6 mph (10 km/h);

– engine switched off;

– switch 3 in the neutral position.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

warning buzzer .....................................(up to the end of the DU)

headlight flashers .................................(up to the end of the DU)

indicators ..............................................(up to the end of the DU)

lights:

hazard warning ...............................(up to the end of the DU)

lights:

direction indicators ..........................(up to the end of the DU)

indicators:

direction indicators ..........................(up to the end of the DU)

hazard warning lights signal .................(up to the end of the DU)

horn ......................................................(up to the end of the DU)

horn:

flash .................................................................(current page)

horn:

sounding the horn ............................................(current page)

horn .......................................................................(current page)

1.65

ENG_UD27625_2

Avertisseurs sonores et lumineux (X91 - B91 - K91 - D91 - Renault)

ENG_NU_936-5_BK91_Renault_1

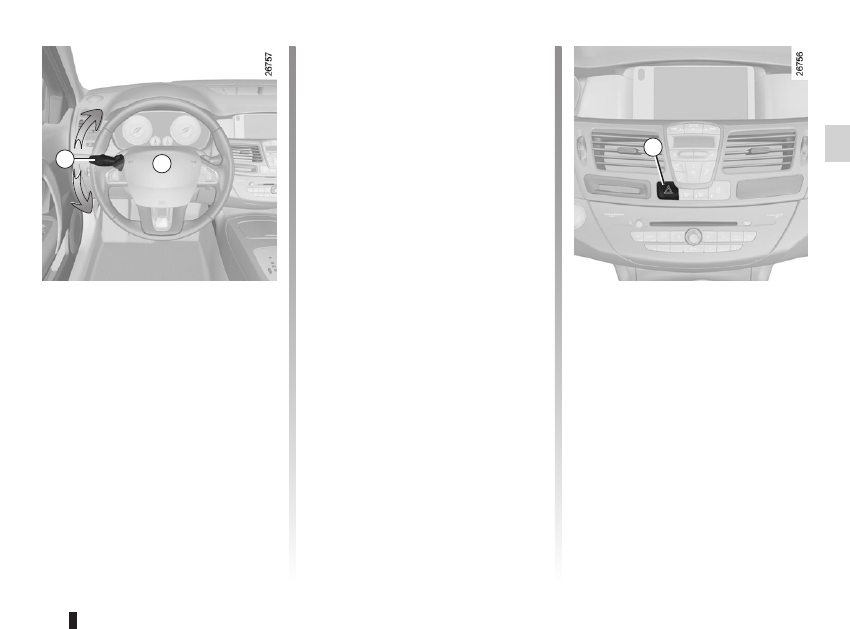

Audible and visual signals

AUdIBLE ANd vIsUAL sIgNALs

Horn

Press on the top or sides of steering

wheel boss A.

Headlight flasher

Pull stalk 1 towards you to flash the

headlights.

Hazard warning lights

Press switch 2. This device si-

multaneously activates the four direc-

tion indicators and the side indicator

lights. It must only be used in an emer-

gency to warn drivers of other vehicles

that you have had to stop in an area

where stopping is prohibited or unex-

pected or that you are obliged to drive

under special conditions.
Depending on the vehicle, the hazard

warning lights may come on automati-

cally under heavy deceleration. You can

switch them off by pressing switch 2.

direction indicators

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn it.

One-touch mode
When driving, it is possible that the

steering wheel may not be turned suf-

ficiently to return the stalk automatically

to its starting position.

In this case, briefly turn stalk 1 to the in-

termediate position, then release it: the

stalk returns to its original point and the

indicator light flashes three times.

Renault Laguna Tourer (2012 year). Instruction - part 4
