Renault Koleos (2018 year). Instruction

3.4

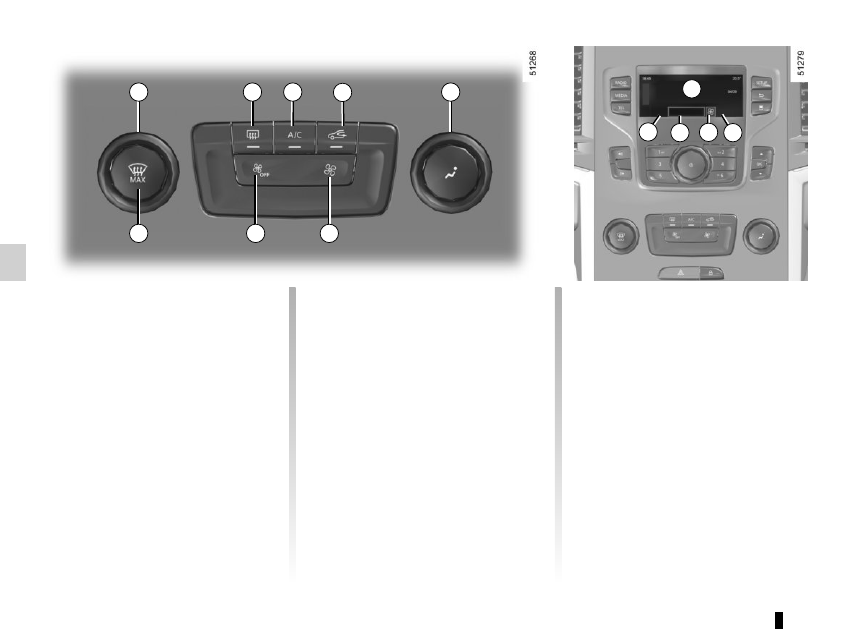

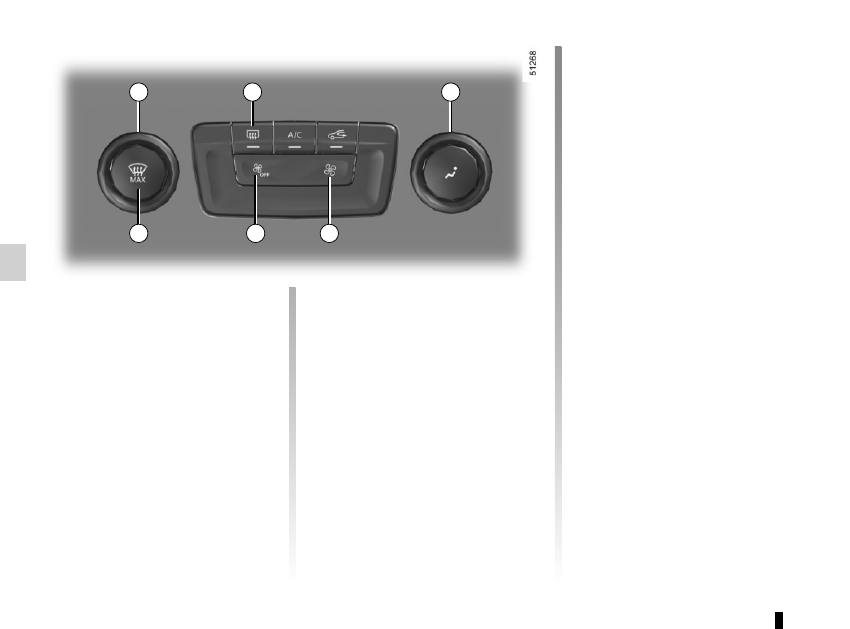

The controls

1 Adjusting the air temperature.
2 De-icing/demisting of the rear screen

and, depending on the vehicle, the

door mirrors.

3 Air conditioning.
4 Air recirculation.
5 Adjusting air distribution in the pas-

senger compartment.

6 Adjusting the ventilation fan speed.
7 Adjusting the ventilation speed and

stopping the system.

8 “Clear view” function.

MANUAL AIR CONDITIONING

(1/3)

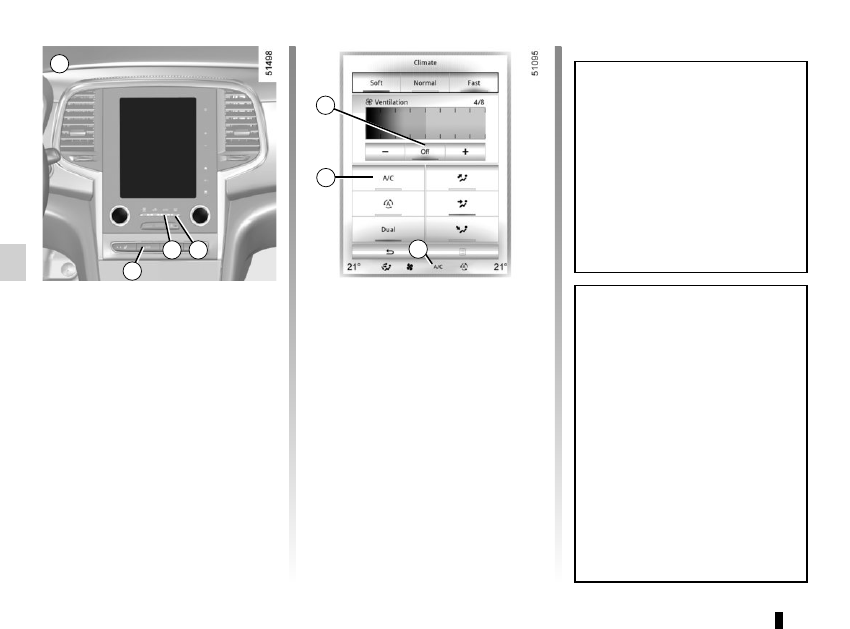

Switching air conditioning on

or off

The air conditioning is switched on (in-

dicator light on) or off (indicator light off)

using the control 3.

The air conditioning system is used

for:
– lowering the temperature inside the

passenger compartment;

– eliminating condensation more

quickly.

Indicators

The following indicators are displayed

on the multimedia screen A:
9 Air temperature.
10 Display for Clim ECO mode.
11 Fan speed.
12 Distribution of air in the passenger

compartment.

10 11 12

3.5

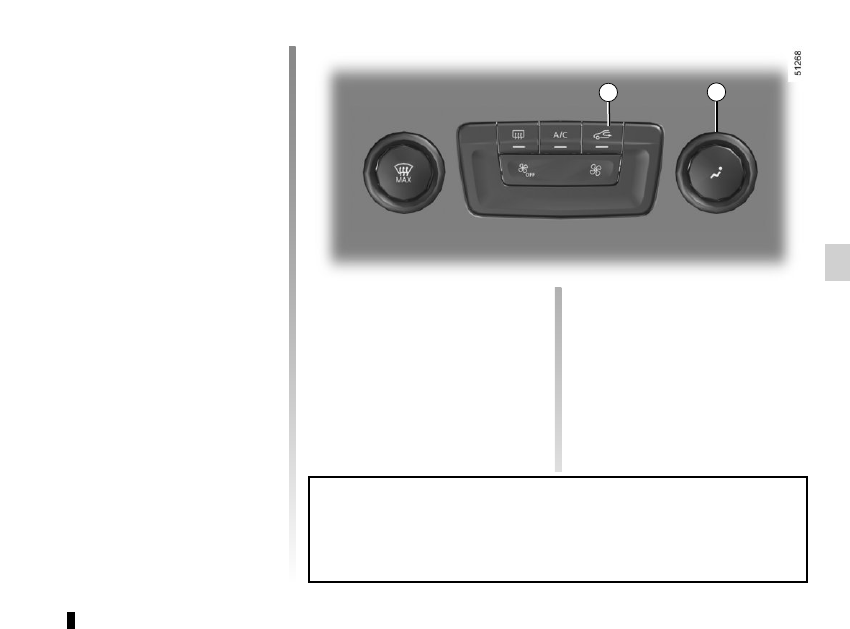

Air recirculation is for:

– isolating the vehicle from the exter-

nal atmosphere (driving in polluted

areas, etc.);

– lowering the passenger compart-

ment temperature as quickly as pos-

sible.

Switching the air

recirculation on

Press the control 4: the integrated in-

dicator light in the button comes on.

Under these conditions, air is taken

from the passenger compartment and

is recirculated, with no air being taken

from outside the vehicle.

MANUAL AIR CONDITIONING

(2/3)

Prolonged use of air recirculation can lead to condensation forming on the side

windows and windscreen, and discomfort due to the use of non-renewed air in

the passenger compartment. We therefore advise you to return to normal mode

(external air) as soon as the air recirculation function is no longer required, by

pressing the control 4 again.

Distribution of air in the

passenger compartment

There are five air distribution options.

Turn control 5 to choose the distribution

option.
The air distribution is displayed on the

multimedia screen.

The air flow is directed to the

windscreen and the front side

window demisting vents.

The air flow is distributed be-

tween all the air vents, the

front side window demisting vents, the

windscreen demisting vents and the

footwells.

The air flow is directed mainly

towards the footwells.

The air flow is directed towards

the dashboard air vents, the

front footwells and, depending on the

vehicle, the second row footwells.

All the air flow is directed to the

dashboard vents.

3.6

Varying the ventilation speed

You can adjust the fan speed by press-

ing the controls 6 or 7 to increase or

reduce the fan speed.

The system is deactivated (OFF): the

ventilation speed is zero (vehicle sta-

tionary).

You may, however, feel a slight flow of

air when the vehicle is moving.

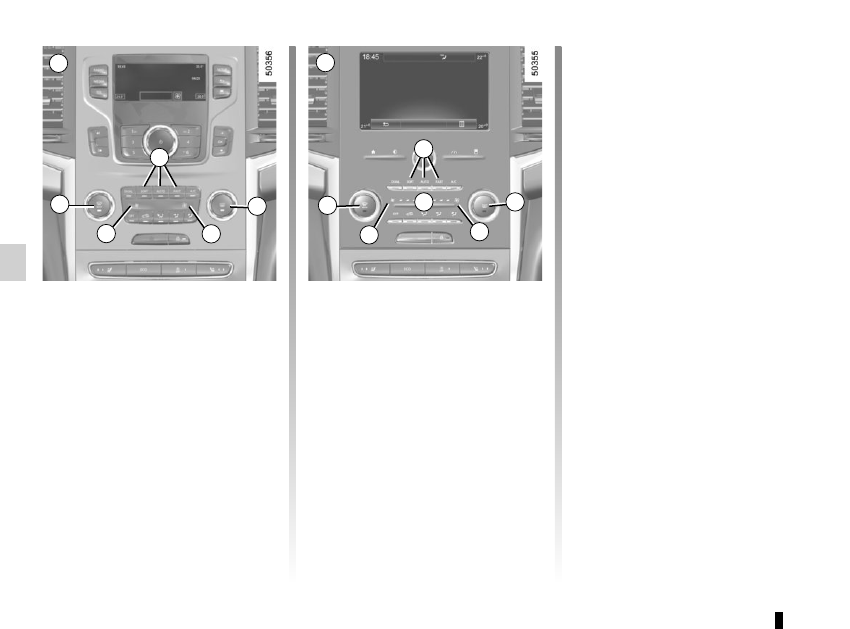

Adjusting the air temperature

Turn control 1 to obtain the desired

temperature. The more bars are dis-

played on the multimedia screen, the

higher the temperature.

When the air conditioning system is

used for long periods, it may begin to

feel cold. To increase the temperature,

turn control 1 to the right.

MANUAL AIR CONDITIONING

(3/3)

Stopping the system

To switch off the system, press the

control 7 several times until the mes-

sage “OFF” appears on the multimedia

screen.
You may, however, feel a slight flow of

air when the vehicle is moving.

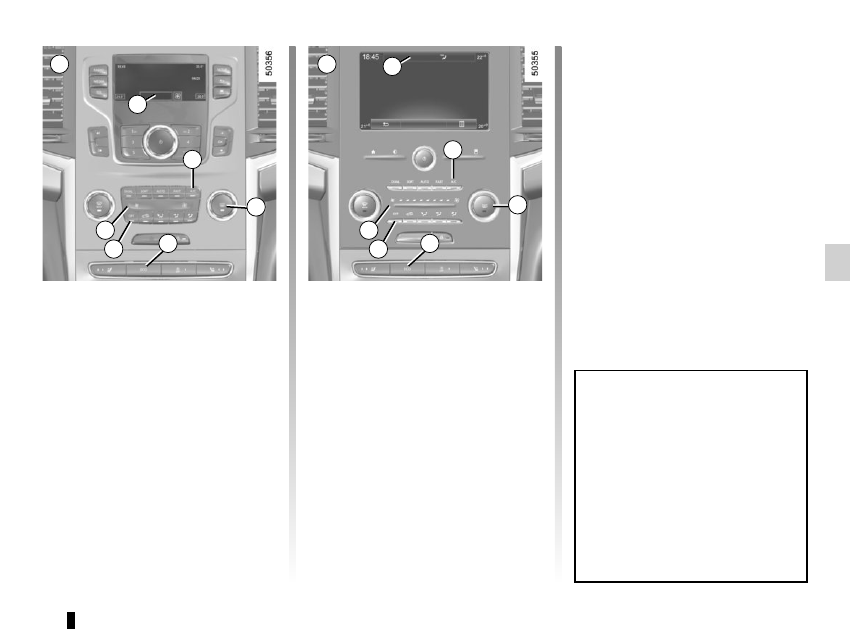

Clear view function

Press button 8 - the intrgrated indicator

light comes on.
This function quickly demists and de-

ices the windscreen, the rear screen,

the front side windows, and the door

mirrors (depending on the vehicle). The

air conditioning and rear screen de-ic-

ing functions must be activated.
Press button 2 to stop the heated rear

screen operating, and the intrgrated in-

dicator goes out.
To exit this function, press button 8

again.

Rear screen de-icing/

demisting

With the engine running, press the

control 2. The operating tell-tale comes

on.
This function permits rapid demisting/

de-icing of the rear screen and de-icing

of the door mirrors (on equipped vehi-

cles).
To exit this function, press the con-

trol 2 again.
Demisting automatically stops.

3.7

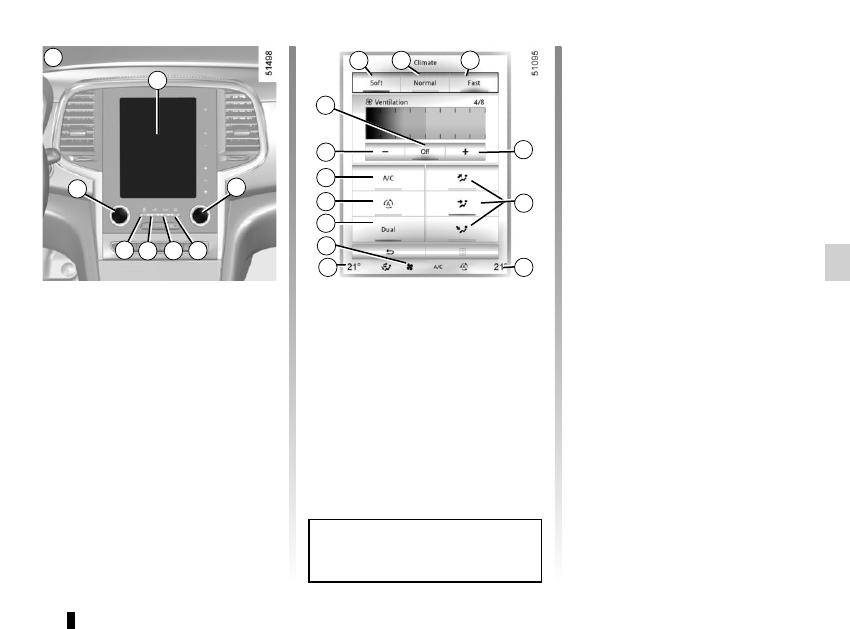

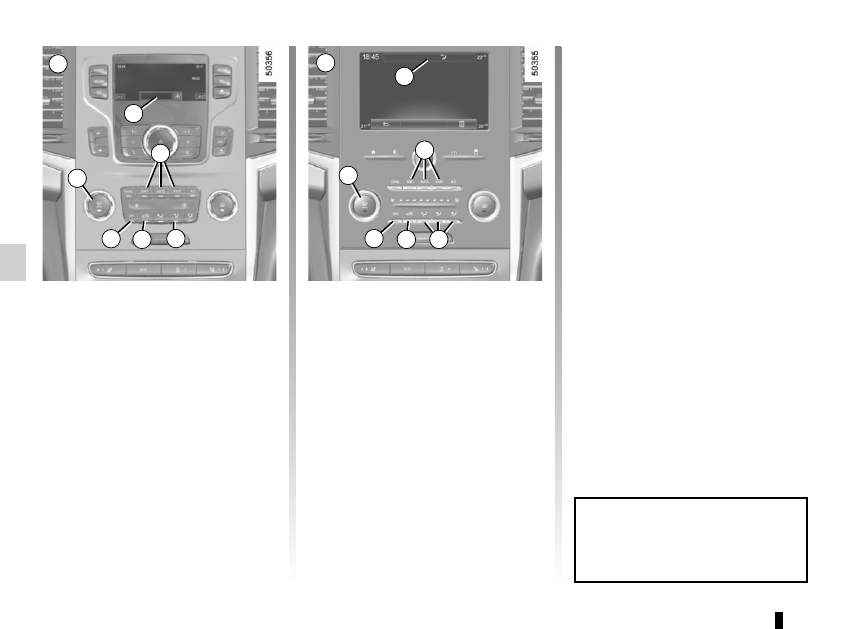

AUTOMATIC CLIMATE CONTROL: Controls A

(1/5)

7 6 5 4

Controls A

Press zone 14 to access the multifunc-

tion screen 2. The presence of the con-

trols detailed below will depend on the

vehicle model.
1 and 3 Left and right temperature indi-

cation adjustment.

4 De-icing/demisting of the rear screen

and, depending on the vehicle, the

door mirrors.

5, 8, 9 and 10 automatic modes

(Normal, Soft, Fast)

6 Air recirculation.
7 “Clear View” function.

11 Ventilation speeds.
12 Distribution of air in the passenger-

compartment.

13 Right and left temperature display.
14 Zone displaying air conditioning set-

tings.

15 “DUAL” function.
16 Automatic recirculation function de-

pending on the vehicle.

17 Air conditioning.
18 Stopping the system.

Some buttons have a warning light-

indicating their operative state.

Automatic mode

The automatic climate control system-

guarantees comfort in the passen-

ger compartment and good visibility

(except in the event of extreme condi-

tions), while optimising consumption.

The system controls the ventilation

speed, air distribution, air recirculation,

and starting and stopping the air condi-

tioning and air temperature.
This mode consists of a choice of three

programmes:
NORMAL: allows the selected comfort

level to be best attained, depending on

the exterior conditions. Press button 4

or key 9.
SOFT: reaches the desired comfort

level more gently and silently. Press

button 8.
FAST: increases the flow of air in the

passenger compartment. This mode

is recommended in particular to opti

mise comfort in the rear seats. Press

button 10.

3.8

AUTOMATIC CLIMATE CONTROL: Controls A

(2/5)

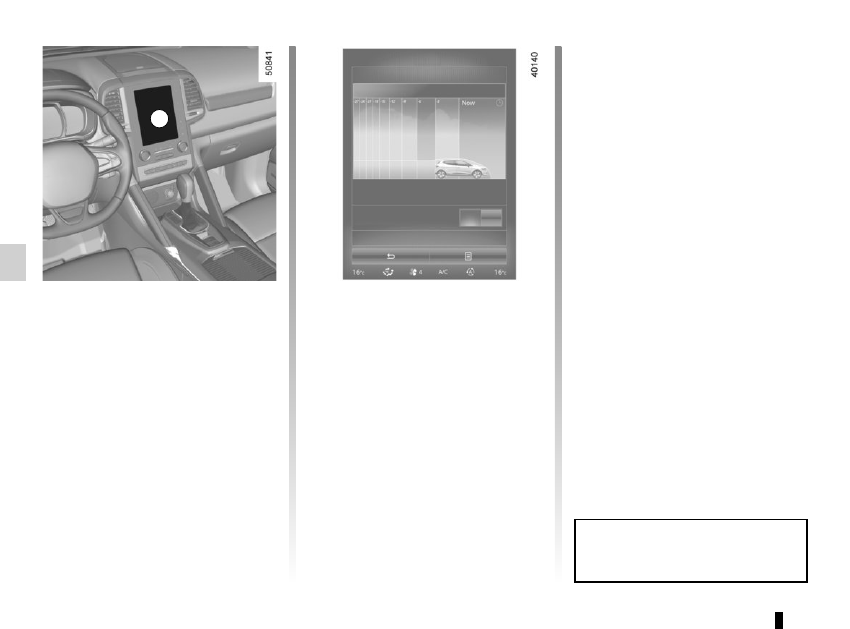

Varying the ventilation speed

In automatic mode, the system uses

the most suitable amount of air to reach

and maintain the desired comfort level.
You can still adjust the ventilation speed

by pressing buttons 11 or by slid-

ing or touching your finger in zone 19.
Depending on the vehicle, the ventila-

tion speed, which is no longer control-

led automatically, appears in zone 19

and zone 14.

Temperature adjustment

There are two types of settings:

– uniform passenger compartment

setting;

– DUAL function setting to independ-

ently adjust the left and right sides.

Uniform passenger compartment

setting

Use control 1.

DUAL function setting

Press button 15 to activate. Use con-

trol 1 to adjust the left side and control 3

for the right side.

The displayed temperature values

show a comfort level.
When starting the engine, increas-

ing or decreasing the value dis-

played will not allow the com-

fort level to be reached any more

quickly. The system will always op-

timise the temperature increase or

decrease (the ventilation system

does not start instantly at maximum

speed: it gradually increases). This

may take several minutes.
Generally speaking, unless there is

a particular reason not to, the dash-

board air vents should remain open.

3.9

AUTOMATIC CLIMATE CONTROL: Controls A

(3/5)

Clear view function

This function quickly demists and de-

ices the windscreen, the rear screen,

the front side windows, and the door

mirrors (depending on the vehicle). It

imposes automatic operation of the

air conditioning and rear screen de-ic-

ing and, depending on the vehicle, the

windscreen electric de-icer.

5 4

To exit this function, press either:
– button 7;
– again button 5;
– on button 8, 9 or 10.

Press button 7 – the integrated indica-

tor light comes on.
Press button 4 to stop the heated rear

screen operating, and the integrated in-

dicator goes out.
To adjust the ventilation speed: press

buttons 11 or slide your finger in

zone 19.

After the Clear View function, air

conditioning can turn on automati-

cally to maintain indoor demisting.

3.10

AUTOMATIC CLIMATE CONTROL: Controls A

(4/5)

Switching air conditioning on

or off

In automatic mode, the system switches

the air conditioning system on or off,

depending on the climate conditions.
Press button 17 to:
– activate the air conditioning (a warn-

ing light in zone 14 comes on).

– deactivate the air conditioning (the

warning light in zone 14 goes out)

Stopping the system

Press button 18 to activate or deacti-

vate the system (the operating warn-

ing light on button 18 notifies you of the

system status).

Rear screen de-icing/

demisting

Press button 3 – the integrated indica-

tor light comes on. This function en-

ables rapid demisting or de-icing of the

rear screen and de-icing of the door

mirrors (on equipped vehicles).
To exit this function, press button 3

again. Demisting automatically stops.

It is preferable to use one of the

automatic programmes NORMAL,

SOFT or FAST.
In automatic mode (4 warning light

is lit), all air conditioning functions

are controlled by the system.
You can still change the system se-

lection. In this case, the warning

light on the button 4 will go out and

the changed function, which is no

longer controlled by the system, will

be shown on the display.
To return to automatic mode, press

one of programmes NORMAL,

SOFT, or FAST, or button 4.

Using the ECO mode

– If you press the button 20 when

the air conditioning operates,

ECO mode activate.

– In the ECO mode, air condi-

tioning speed and power is be

weaken in order to optimize the

fuel consumption.

– If you want to increase air con-

ditioning speed and power, you

should deactivate the ECO mode.

3.11

AUTOMATIC CLIMATE CONTROL: Controls A

(5/5)

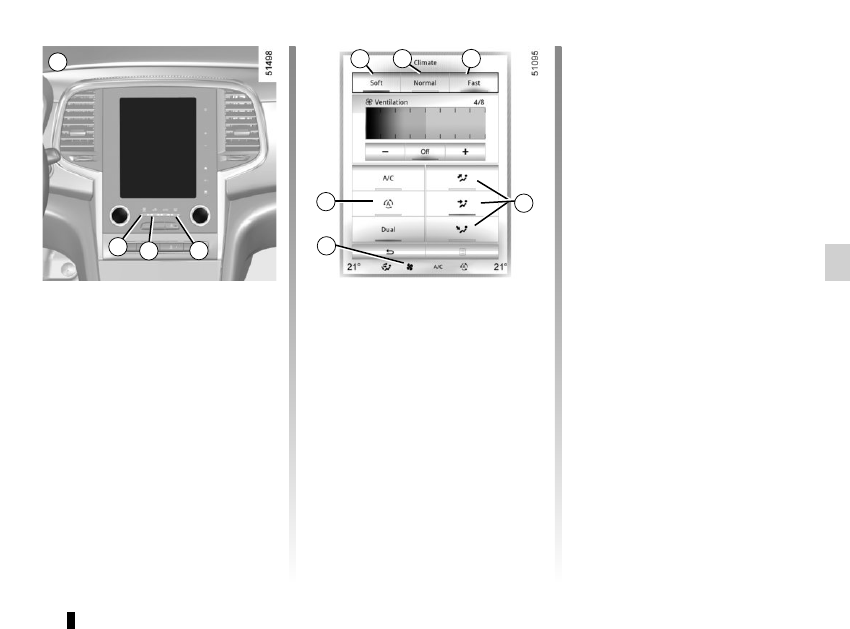

Air recirculation

Note:
– during recirculation, air is taken from

the passenger compartment and

is recycled, with no air being taken

from outside the vehicle;

– air recirculation allows the exter-

nal atmosphere to be cut off (when

driving in polluted areas, etc.) and

to cool the passenger compartment

temperature more quickly.

Automatic use
Depending on the vehicle, press button

16 (a warning light comes on in zone

14).

Manual use
Depending on the vehicle, Press

button 6 or 16 to force air recirculation.
Prolonged use of this position may lead

to odours, caused by non-renewal of

air, and the formation of condensation

on the windows.
To exit this function, press one of 8, 9,

10 or button 6 or 16 again.

Adjusting the distribution

of air in the passenger

compartment

Press buttons 12 to select the desired

distribution (a warning light is displayed

in zone 14):

The air flow is mainly directed

to the demisting vents for the

windscreen and the side windows.

The air flow is mainly directed

to the dashboard air vents.

The air flow is directed mainly

towards the footwells.

When

and

are choosed

at the same time, there can be some

drops of dew on the windscreen in

summer and they are recommended to

choose in winter.

is designed to

flow a little air for pleasantness.
If you want to demist the windscreen

fast, using Clear view function is rec-

ommended by pressing button 7.

3.12

Controls B and C

1 Left temperature indication adjust-

ment, “Clear View” function.

2 “DUAL" function.

3 Automatic modes (SOFT, AUTO,

FAST).

4 Air conditioning ON/OFF.

5 Right temperature indication adjust-

ment, De-icing/demisting of the rear

screen and, depending on the vehi-

cle, the door mirrors ON/OFF.

6 and 10 Ventilation speeds.

7 Distribution of air in the passenger

compartment.

8 Air recirculation or Automatic recir-

culation depending on the vehicle.

9 System OFF or Air recirculation de-

pending on the vehicle.

AUTOMATIC CLIMATE CONTROL: Controls B and C

(1/5)

Indicators

The following indicators are displayed

on the screen 11:
12  Outside air temperature display.
13  Left and right temperature display.
14  Active mode, ventilation speed and

air distribution in the passenger com-

partment (temporary display after

pressing the associated controls).

Automatic mode 3

The automatic climate control system

guarantees comfort in the passen

ger compartment and good visibility

(except in the event of extreme condi

tions), whilst optimising consumption.

The system controls the ventilation

speed, air distribution, air recirculation,

and starting and stopping the air condi

tioning and air temperature.
This mode consists of a choice of three

programmes:
AUTO: allows the selected comfort

level to be best attained, depending

on the exterior conditions. Press the

button AUTO.
SOFT: reaches the desired comfort

level more gently and silently. Press the

button SOFT.
FAST: increases the flow of air in the

passenger compartment. This mode is

recommended in particular to optimise

comfort in the rear seats. Press the

button FAST.

Some buttons have a warning light

indicating their operative state.

B 11

9 8

3.13

Varying the ventilation speed

In automatic mode, the system uses

the most suitable amount of air to reach

and maintain the desired comfort level.
You can still adjust the ventilation

speed by pressing buttons 6 or 10 or,

depending on the vehicle, by sliding or

touching your finger in zone 15.

Temperature adjustment

There are two types of settings:
– Uniform passenger compartment

setting;

– DUAL function setting to independ-

ently adjust the left and right sides.

Uniform passenger compartment

setting
Use control 1.
DUAL function setting
Press button 2 to activate/deactivate.

Use control 1 to adjust the left side and

control 5 for the right side.

The displayed temperature values

show a comfort level.
When starting the engine, increas-

ing or decreasing the value dis-

played will not allow the com-

fort level to be reached any more

quickly. The system will always op-

timise the temperature increase or

decrease (the ventilation system

does not start instantly at maximum

speed: it gradually increases). This

may take several minutes.
Generally speaking, unless there is

a particular reason not to, the dash-

board air vents should remain open.

AUTOMATIC CLIMATE CONTROL: Controls B and C

(2/5)

6 5

3.14

Press button 1 – the integrated indica-

tor light comes on.
Press button 5 to stop the heated rear

screen operating, and the integrated in-

dicator goes out.
To adjust the ventilation speed: press-

buttons 6 or 10 or slide your finger in

zone 15.

Clear view function

This function quickly demists and de-

ices the windscreen, the rear screen,

the front side windows, and the door

mirrors (depending on the vehicle). It

imposes automatic operation of the

air conditioning and rear screen de-ic-

ing and, depending on the vehicle, the

windscreen electric de-icer.

To exit this function, press either:
– again button 1;
– one of the buttons 3.

AUTOMATIC CLIMATE CONTROL: Controls B and C

(3/5)

3.15

Switching air conditioning on

or off

In automatic mode, the system switches

the air conditioning system on or off,

depending on the climate conditions.
Press button 4 to:
– activate the air conditioning (a warn-

ing light in zone 14 comes on).

– deactivate the air conditioning (the

warning light in zone 14 goes out)

Rear screen de-icing/

demisting

Press button 5 – the integrated indica-

tor light comes on. This function en-

ables rapid demisting or de-icing of the

rear screen and de-icing of the door

mirrors (on equipped vehicles).
To exit this function, press button 5

again. Demisting automatically stops.

Stopping the system

To switch the system off, press and

hold the button 9 or 10 depending on

the vehicle until the message OFF ap-

pears in zone 14.

AUTOMATIC CLIMATE CONTROL: Controls B and C

(4/5)

Using the ECO mode

– If you press the button 16 when

the air conditioning operates,

ECO mode activate.

– In the ECO mode, air condi-

tioning speed and power is be

weaken in order to optimize the

fuel consumption.

– If you want to increase air con-

ditioning speed and power, you

should deactivate the ECO mode.

3.16

When

and

are choosed

at the same time, there can be some

drops of dew on the windscreen in

summer and they are recommended to

choose in winter.

is designed to

flow a little air for pleasantness.
If you want to demist the windscreen

fast, using Clear view function is rec-

ommended by pressing button 1.

Air recirculation

Depending on the vehicle or country,

Press button 8 or 9.

Note:
– during recirculation, air is taken from

the passenger compartment and

is recycled, with no air being taken

from outside the vehicle;

– air recirculation allows the exter-

nal atmosphere to be cut off (when

driving in polluted areas, etc.) and

to cool the passenger compartment

temperature more quickly.

Manual use

Press button 8 or 9 to force air

recirculation(a n indicator light is dis-

played).

Prolonged use of this position may lead

to odours, caused by non-renewal of

air, and the formation of condensation

on the windows.

To exit this function, press one of 3 or

button 8 again.

Adjusting the distribution

of air in the passenger

compartment

Press buttons 7 to select the desired

distribution (a message is displayed in

zone 14):

The air flow is mainly directed

to the demisting vents for the

windscreen and the side windows.

The air flow is mainly directed

to the dashboard air vents.

The air flow is directed mainly

towards the footwells.

AUTOMATIC CLIMATE CONTROL: Controls B and C

(5/5)

After the Clear View function, air

conditioning can turn on automati-

cally to maintain indoor demisting.

3.17

Operating faults

As a general rule, contact your ap-

proved dealer in the event of an oper-

ating fault.
– Reduction in de-icing, demisting

or air conditioning performance.

This may be caused by the passen-

ger compartment filter cartridge be-

coming clogged.

– No cold air is being produced.

Check that the controls are set cor-

rectly and that the fuses are sound.

Otherwise, switch off the system.

Presence of water under the

vehicle

After prolonged use of the air condi-

tioning system, it is normal for water

to be present under the vehicle. This is

caused by condensation.

AIR CONDITIONING: information and advice on use

Do not open the refriger-

ant fluid circuit. The fluid

may damage eyes or skin.

Fuel consumption

You will normally notice an increase in

fuel consumption (especially in town)

when the air conditioning is operating.
For vehicles fitted with air conditioning

with no automatic mode, switch off the

system when it is not required.
Advice for reducing consumption

and helping to preserve the environ-

ment
Drive with the air vents open and the

windows closed.
If the vehicle has been parked in the

sun, open the doors for a few moments

to let the hot air escape before starting

the engine.

Advice on use

In some situations, (air conditioning

off, air recirculation activated, ventila-

tion speed at zero or low, etc.) you may

notice that condensation starts to form

on the windows and windscreen.
If there is condensation, use the “Clear

View” function to remove it, then use

the air conditioning in automatic mode

to stop it forming again.

Maintenance

Refer to the Maintenance Document

for your vehicle for the inspection fre-

quency.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

There is a risk of damage or of

fire.

3.18

OUTSIDE AIR QUALITY AND DEODORISATION FUNCTION

With the air conditioning switched

on, from the screen A, select Menu,

Vehicle, Take care.

Outside air quality

The air quality is given using a graph on

the multifunction screen.
Three colours indicate the air quality

level (from the cleanest to the most

polluted):
1 (blue)
2 (light grey)
3 (grey)

Deodorisation function

This reduces unpleasant odours in the

passenger compartment.

Deodorization cycle
– ON: helps to reduce the unpleasant

odour more quickly in the passenger

compartment,

– OFF: stop the function.
Note:
The function is on a timer. It stops auto-

matically after a few minutes.

Take care

Deodorization cycle

Please refer to the multimedia in-

structions for further information.

3.19

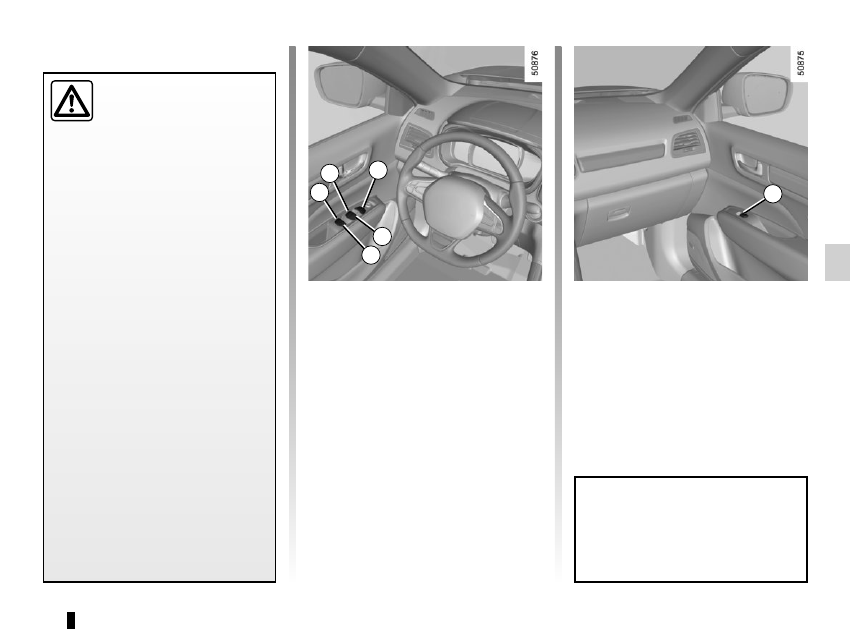

ELECTRIC WINDOWS

(1/2)

These systems operate with the igni-

tion switched on.
Press or pull the switch to raise or lower

a window to the desired height (the rear

windows do not open fully);
From the driver’s seat, use switch:

1 for the driver’s side;

3 for the front passenger side;

4 and 5 for the rear passengers.
From the passenger seats, use

switch 6.

Avoid resting any objects against a

half-open window: there is a risk that

the electric window winder could be

damaged.

Passenger safety

The driver can prevent the

front and rear passenger

electric windows from op-

erating (and the driver’s window)

by pressing switch 2. A confirmation

message is displayed on the instru-

ment panel.
Driver’s responsibility

Never leave your vehicle with the

RENAULT card or key inside, and

never leave a child, adult who is not

self-sufficient or a pet, even for a

short while. They may pose a risk to

themselves or to others by starting

the engine or activating equipment

(such as the gear lever or electric

windows). If any part of the body be-

comes trapped, reverse the direc-

tion of the window immediately by

pressing the relevant switch.
Risk of serious injury.

Renault Koleos (2018 year). Instruction - part 13
