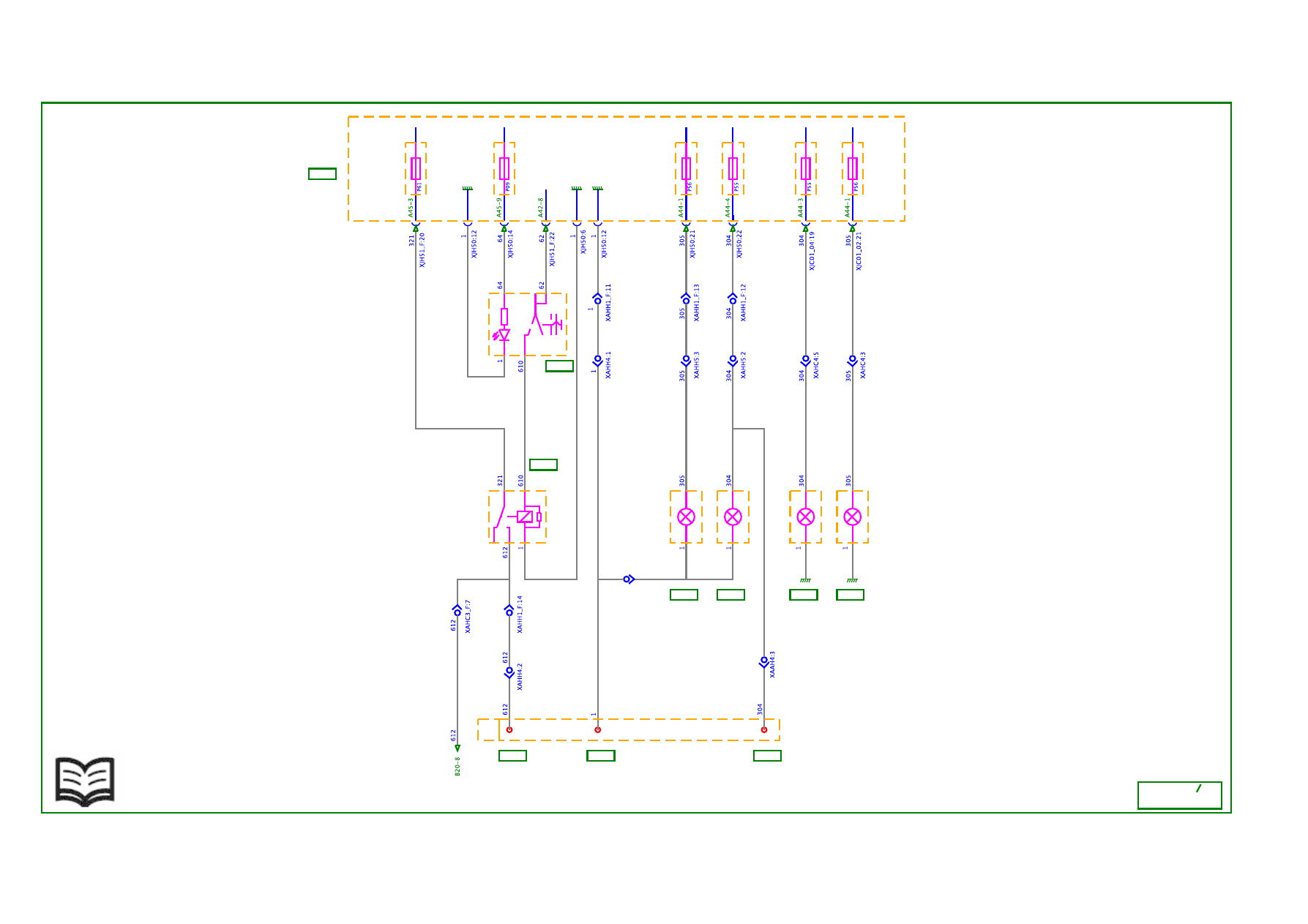

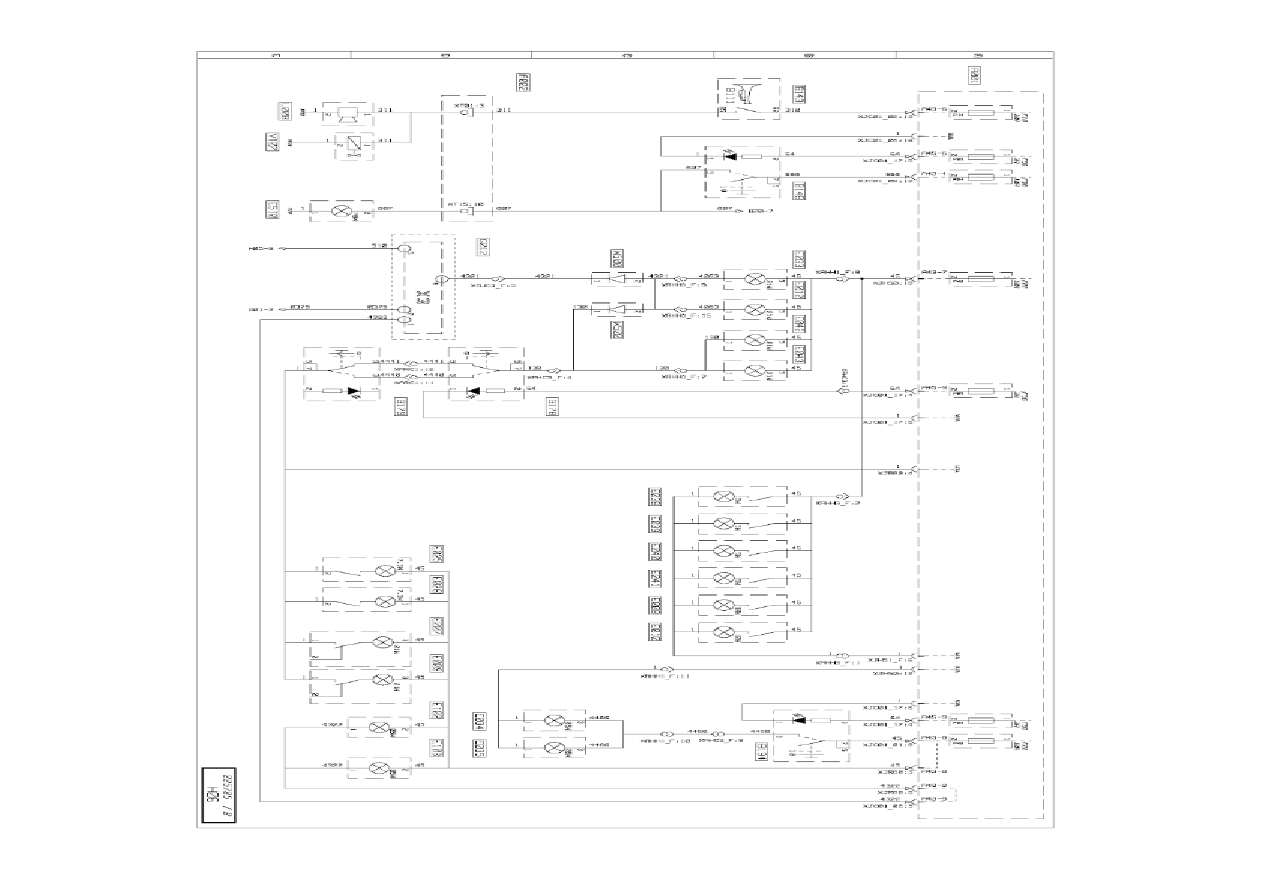

Lighting and signalling management (3/3)
Key to appliances
Code
Function
Location
A001
Cab electrical distribution box
B2c
A002
Chassis-cab connection box
B2c
B111
Horn control
C2b
B143
Steering wheel fingertip controls N° 1
C2b
B148
Working lights control
C2b
B178
Cab interior lighting control (on dashboard)
C2b
B179
Cab interior lighting control (in cab)
B4b
B194
Overhead lighting control (ambience)
C2b
E007
Bunk lower RH overhead light
C4c
E008
Driver's side single overhead light
C2a
E009
Bunk lower LH overhead light
C4c
E010
Front passenger's side single overhead light
A2a
E012
RH upper overhead lighting (door)
A3a
E025
Driver's reading spotlight
C2a
E026
Front passenger's reading spotlight
A2a
E033
LH upper overhead lighting (door)
C3a
E034
LH overhead lighting (ambience)
C3a
E035
RH overhead lighting (ambience)
A3a
E038
Row 1 lighting
B2a
E039
Row 2 lighting
C2a
E040
Row 3 lighting
A2a
E041
Row 4 lighting
A2a
E042
Upper left-hand side overhead lamp lighting
C2a
E043
Upper right-hand side overhead lamp lighting
A2a
E102
Driver's side stepwell lighting
C2d
E103
Front passenger's side stepwell lighting
A2d
E510
Working spotlight
B4d
G012
Lighting and signalling management ECU
B2c
L008
Electric horn
C2d
V107
Air horn
C2d
W500
Diode(s)
B2c
