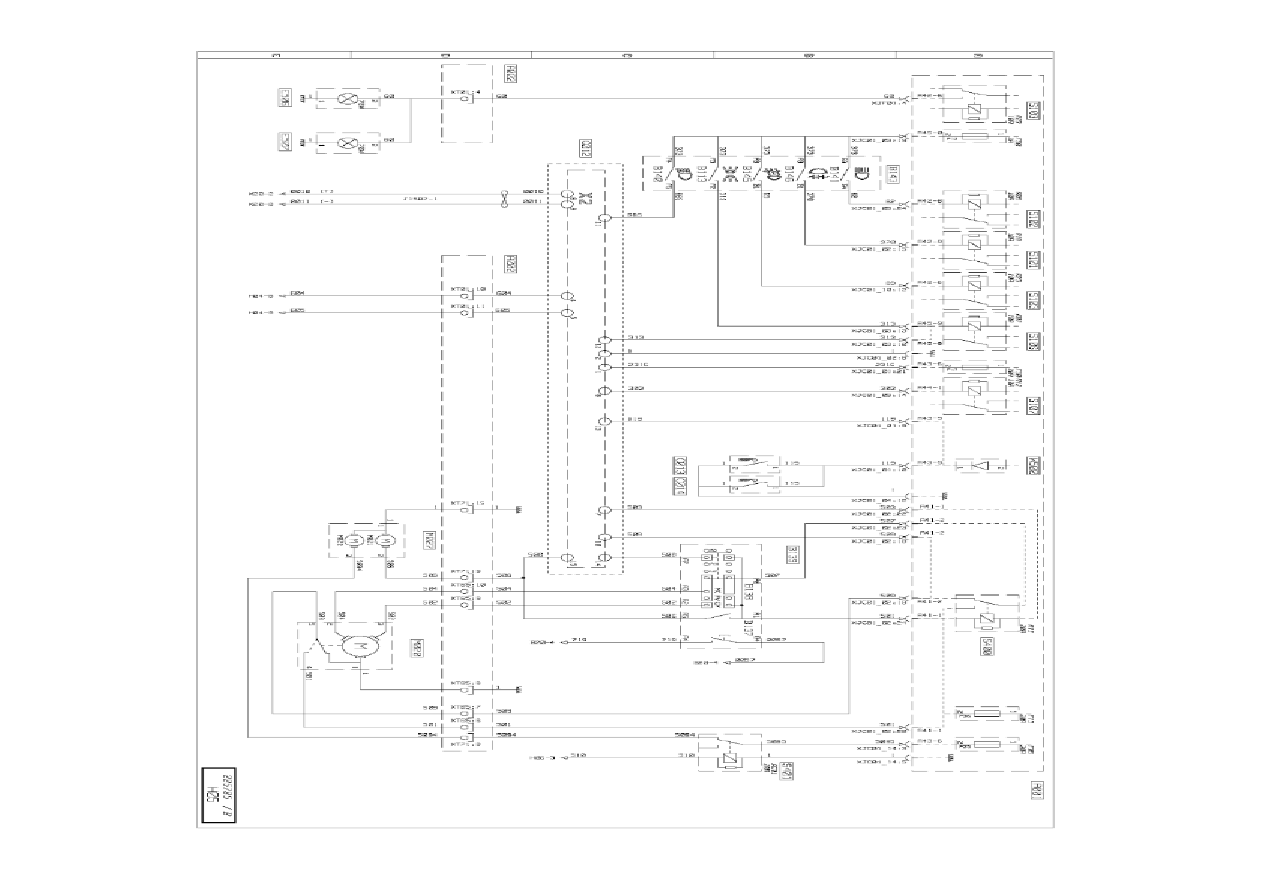

Lighting and signalling management (2/3)

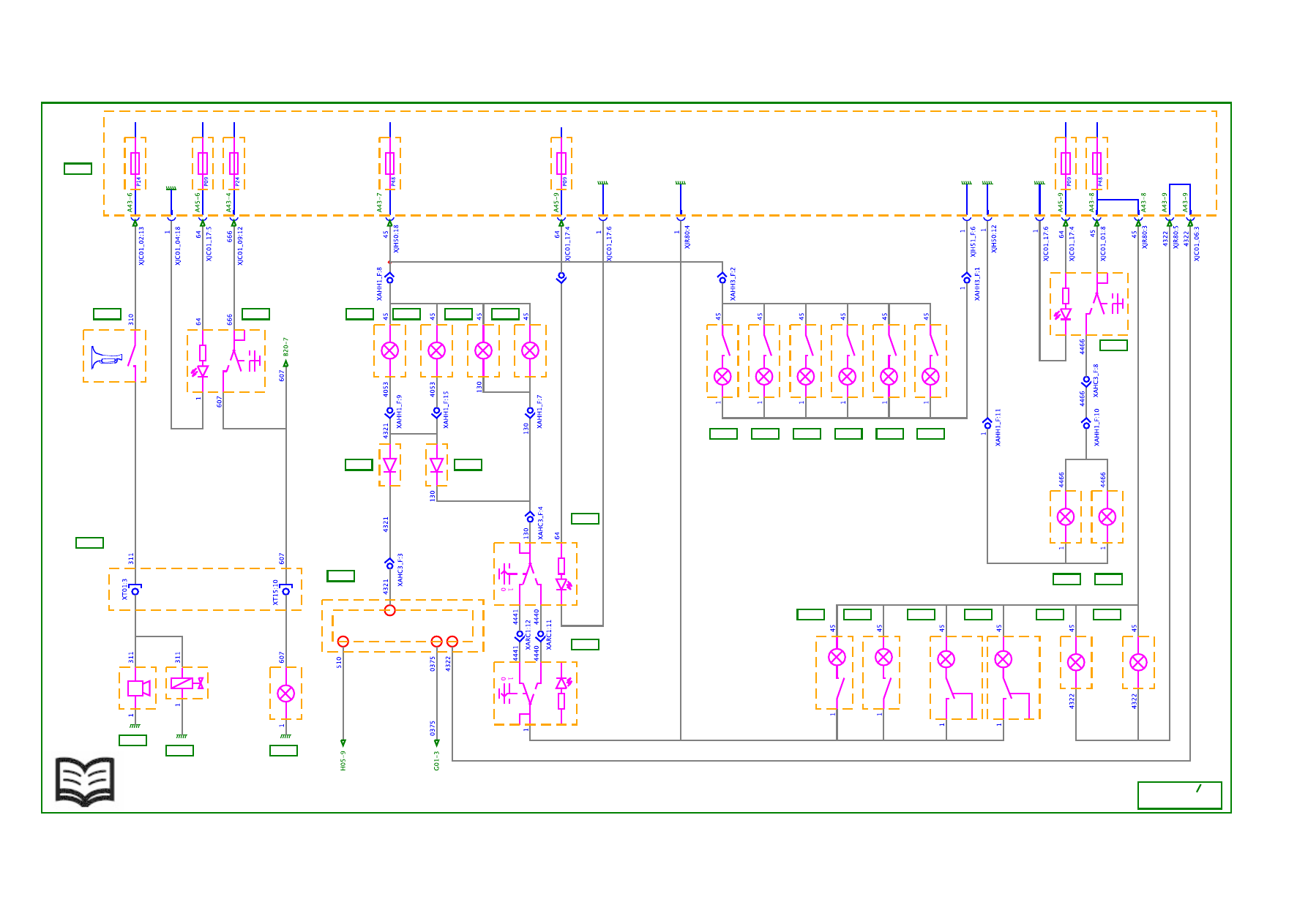

Key to appliances
Code
Function
Location
A001
Cab electrical distribution box
B2c
A002
Chassis-cab connection box
B2c
B113
Side/parking lights control
C2b
B137
Windscreen wash control
C2b
B138
Windscreen wipers control
C2b
B139
Windscreen / headlamps wash/wipe control
C2b
B140
Dipped beam headlights control
C2b
B141
Main beam headlights control
C2b
B143
Steering wheel fingertip controls N° 1
C2b
B145
Fog driving lights control
C2b
B146
Fog lights control
C2b
C013
Driver's door open position information sensor
C2c
C014
Passenger's front door open position information sensor
A2c
E506
LH fog driving light
C1d
E507
RH fog driving light
A1d
G012
Lighting and signalling management ECU
B2c
M020
Windscreen wipers drive motor
B1c
M021
Windscreen wash pump motor
B1c
M022
Headlamps wash pump motor
B1c
M027
Windscreen wash motor / headlamps wash motor unit
C4c
S101
Rear fog lights power supply relay
B2c
S102
Main beam headlights power supply relay
B2c
S103
Fog driving lights power supply relay
B2c
S106
Switches night lighting power supply relay
B2c
S107
RH and LH side/parking and marker lights
power supply relay (trailer and bodybuilder)
B2c
S400
Windscreen wipers motor time-delay relay
B2c
S401
Headlamps wash pump motor power supply relay
B2c
W500
Diode(s)
B2c
