Renault Magnum engine. Manual - part 126

13 / 24

BROWN & SHARP ROCH

13-15 avenue Georges de la Tour

BP 45

FRANCE

03 83 76 83 76 - 03 83 74 13 16 -

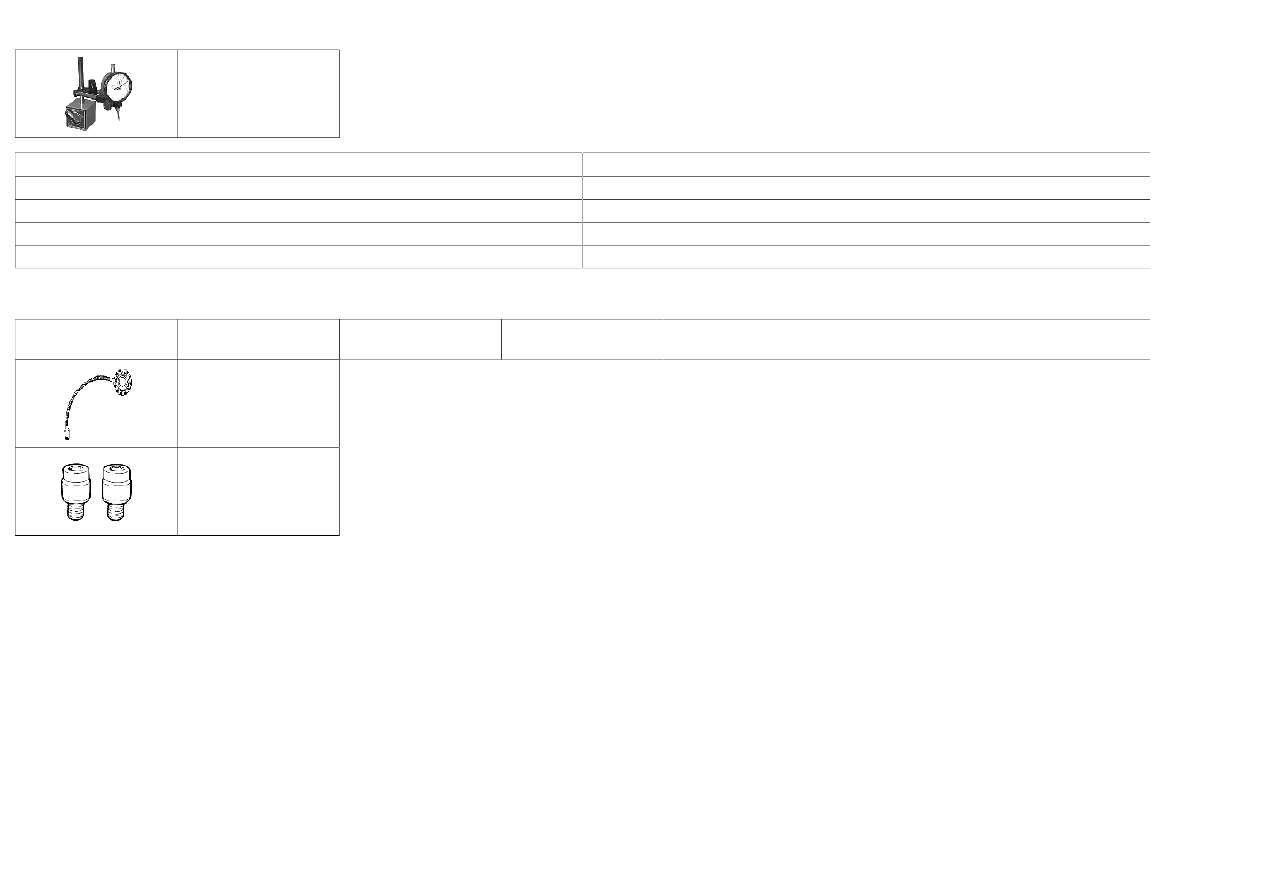

Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

5000269776

7409998267

Timing system, tightening torques

Assembly type A

14 / 24

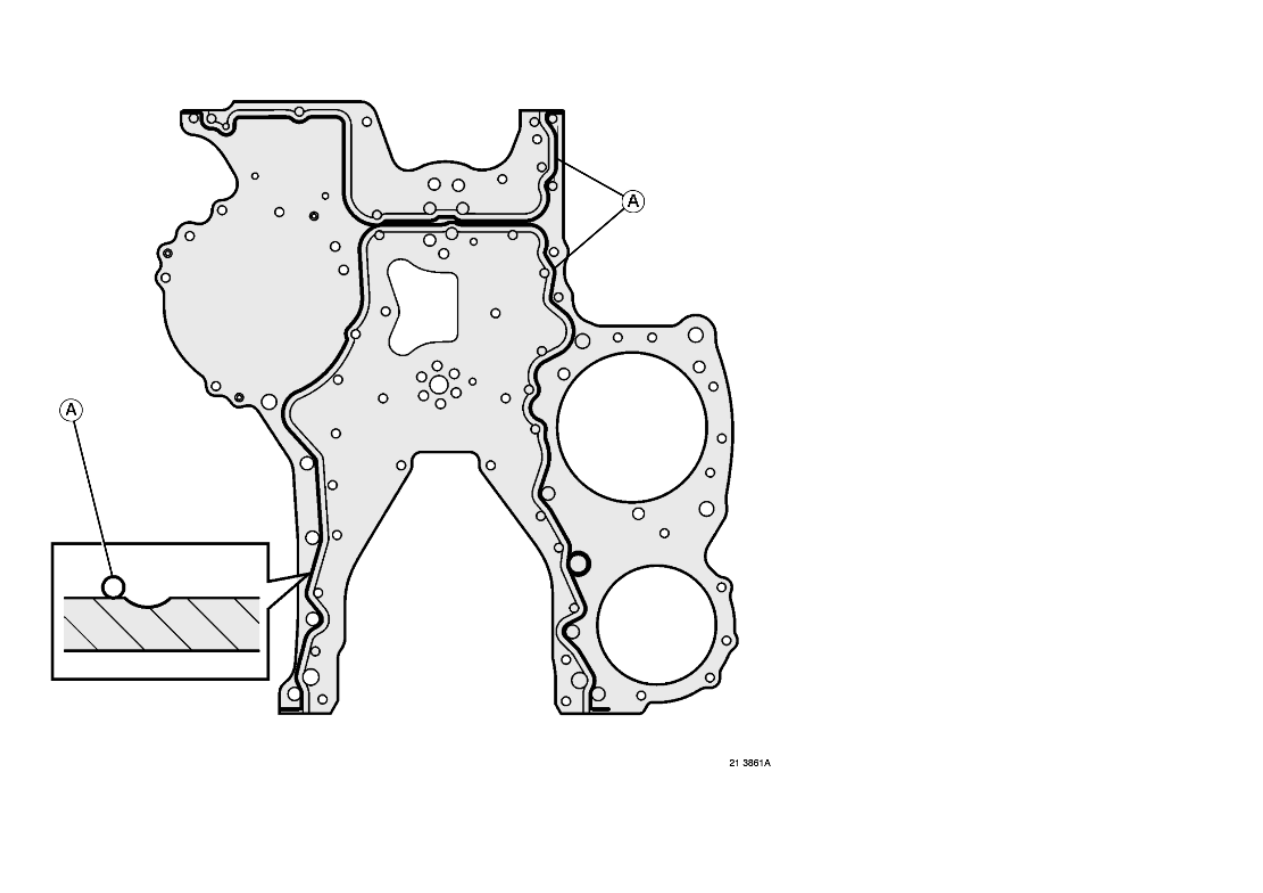

Apply a bead of silicone

dia. 2 mm (A) as shown in the drawing. Perform assembly within 20 minutes of application of the silicone.

Use a silicone sealant "

ADHESIF SILICONE 7091

15 / 24

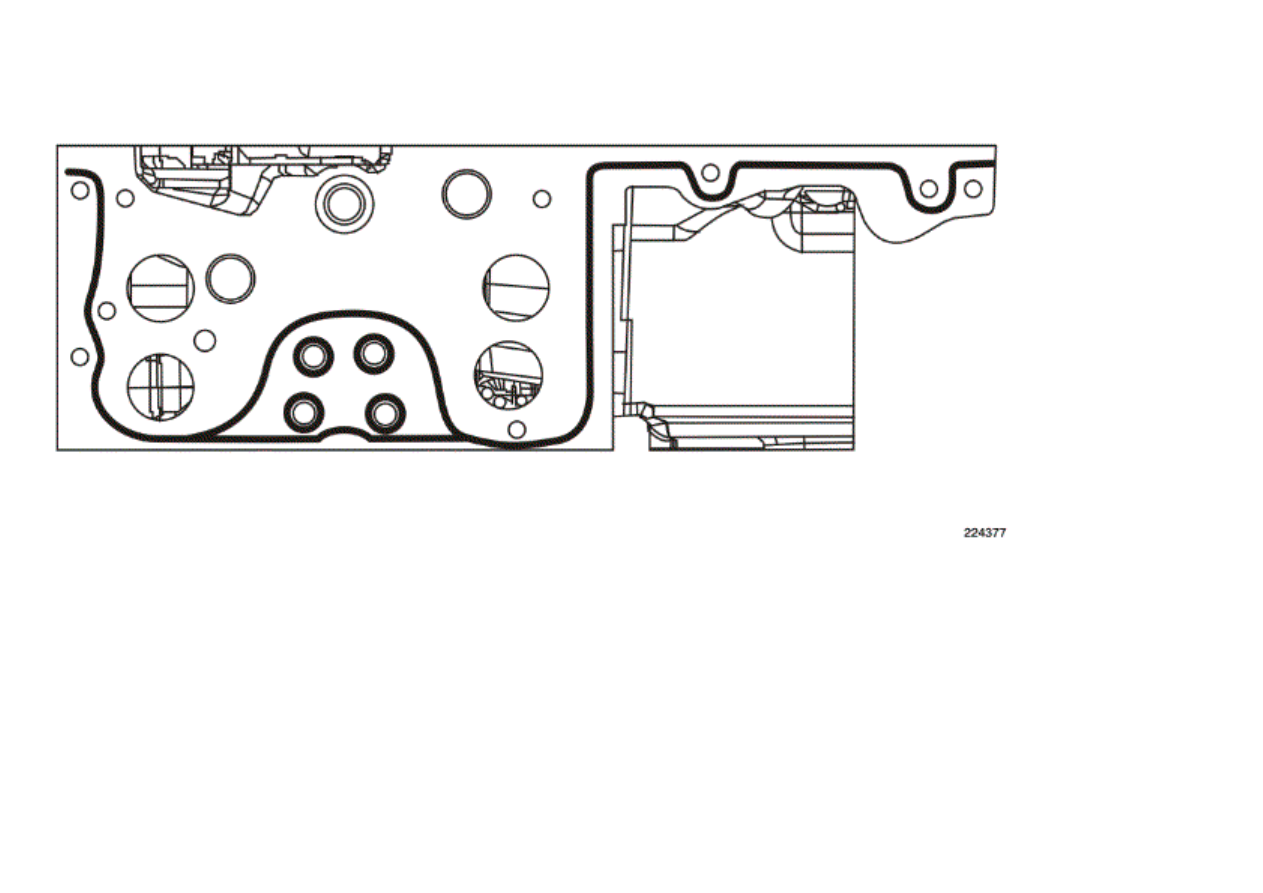

Apply a bead of silicone

dia. 2 mm (A) as shown in the drawing. Perform assembly within 20 minutes of application of the silicone.

Use a silicone sealant "

ADHESIF SILICONE 7091

16 / 24

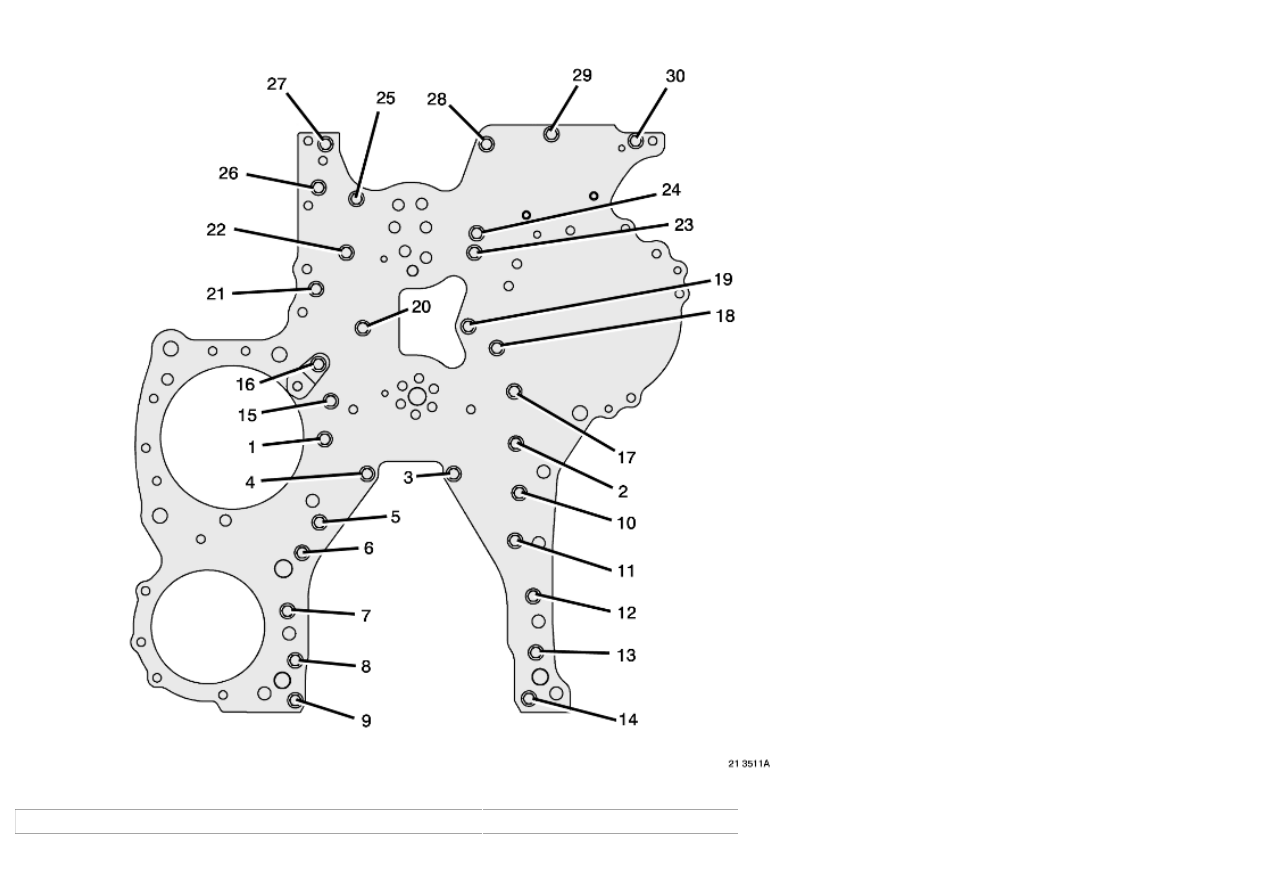

The item numbers indicate the tightening sequence.

Timing plate securing bolts

28±4 Nm
