Renault Magnum engine. Manual - part 86

1 / 1

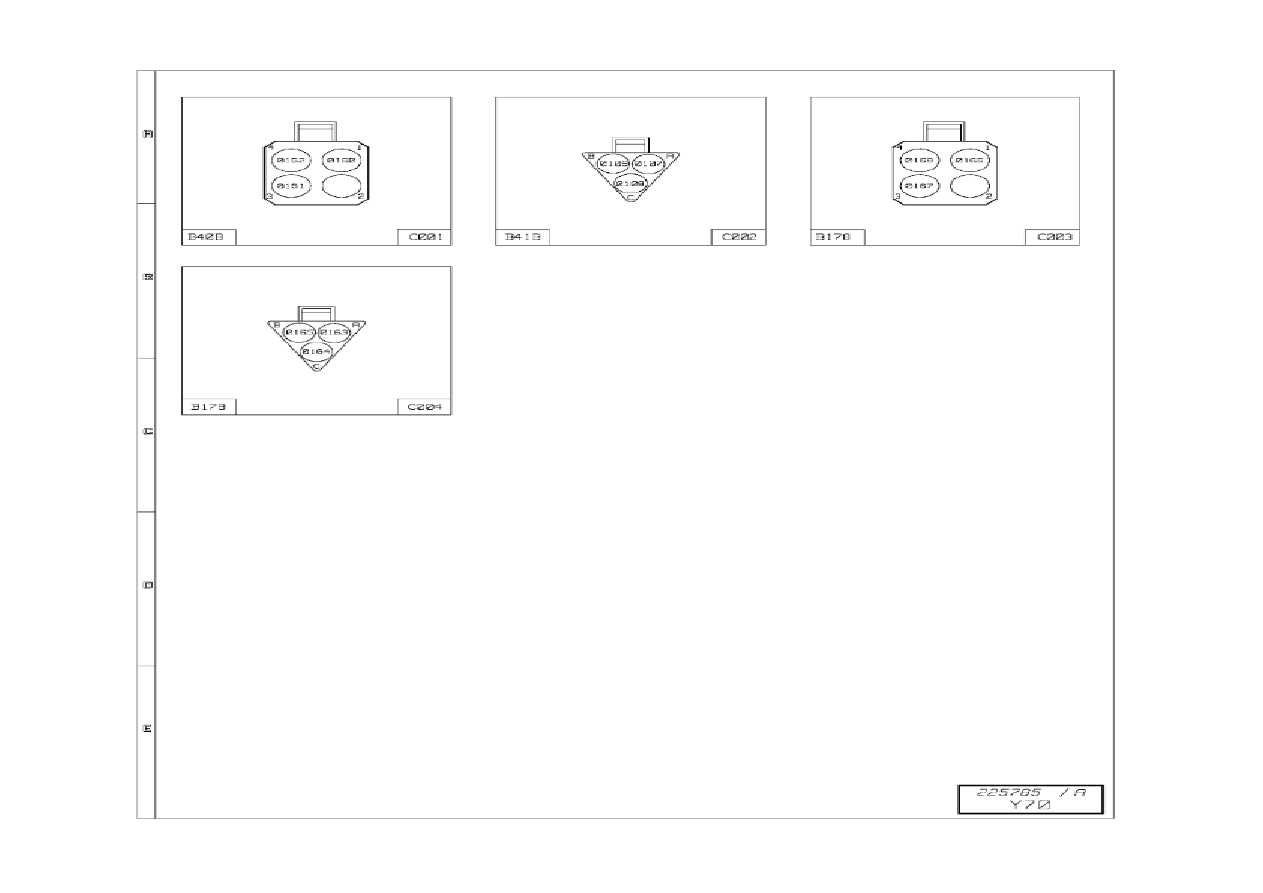

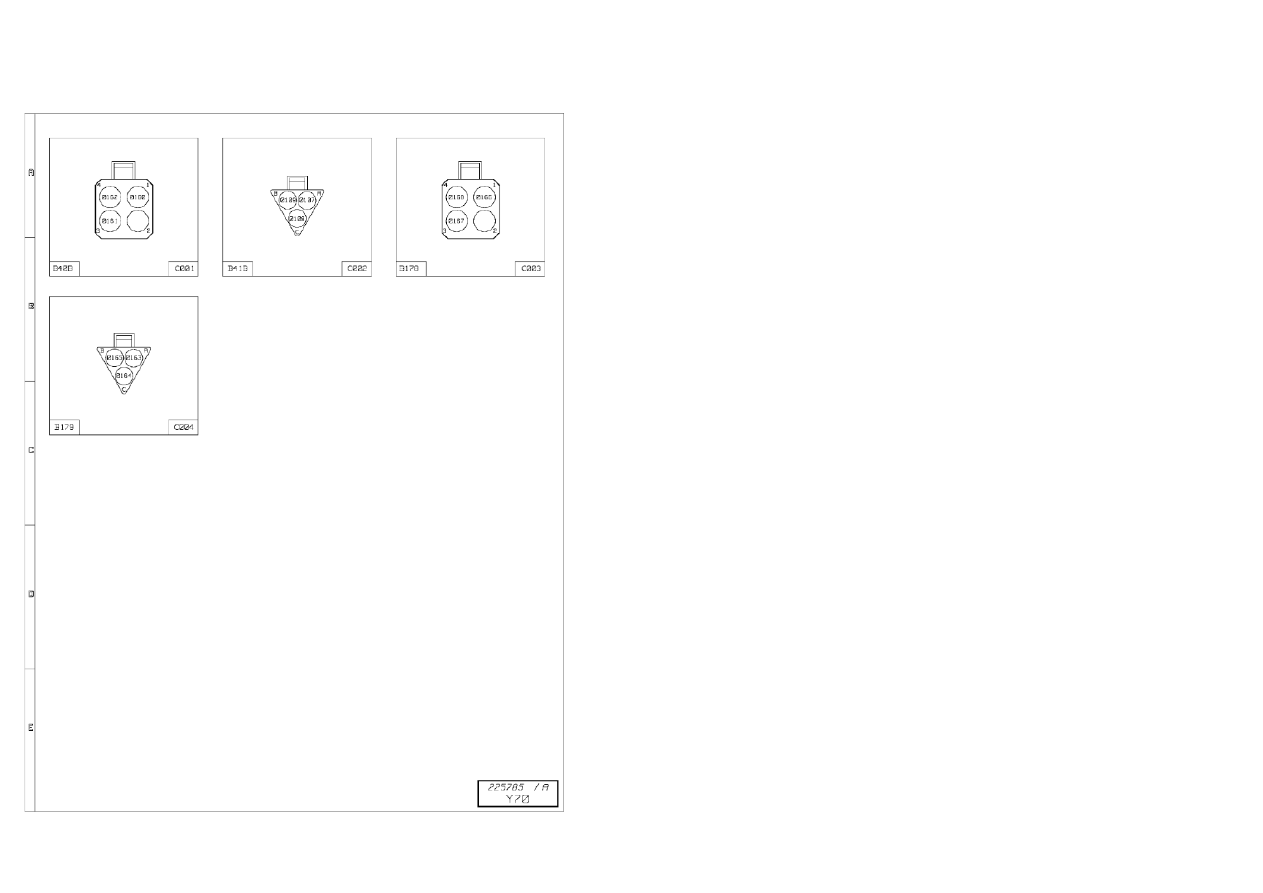

Wear sensors wiring harness

1 / 2

Wear sensors wiring harness

Code

Function

Connectors

Colour

Number

of tracks

C001

LH front wheel brake linings wear sensor

B40B

SB

4

C002

RH front wheel brake linings wear sensor

B41B

GN

3

C003

LH rear wheel brake linings wear sensor

B178

SB

4

C004

RH rear wheel brake linings wear sensor

B179

SB

3

Wear sensors wiring harness

2 / 2

1 / 1

Trailer sockets wiring harness
