Renault Magnum engine. Manual - part 83

1 / 1

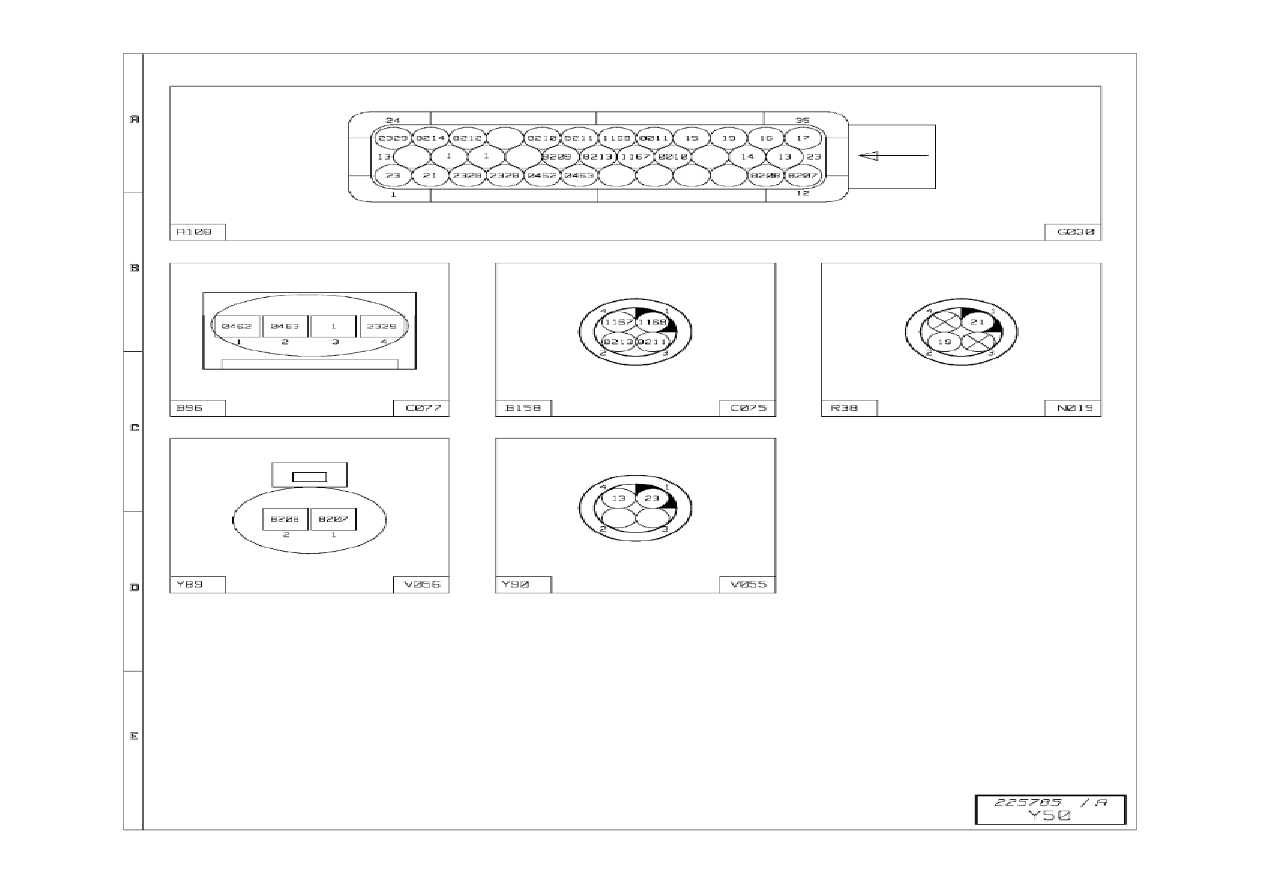

AdBlue wiring harness

1 / 2

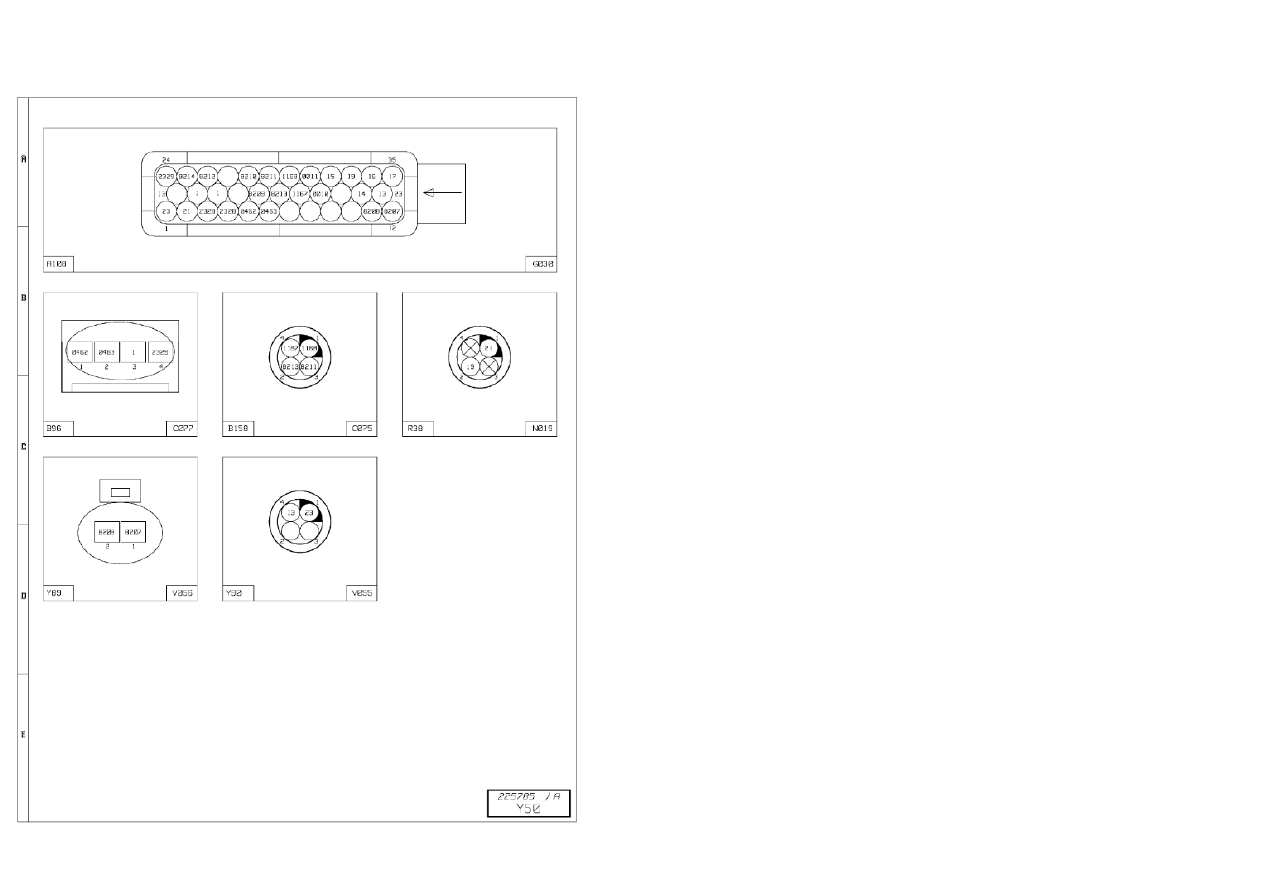

AdBlue wiring harness

Code

Function

Connectors

Colour

Number

of tracks

G030

AdBlue supply management pump module

A108

SB

35

C077

Nitrogen oxides gases concentration sensor

B96

SB

4

C075

AdBlue tank temperature and level sensors

B158

SB

4

N019

AdBlue heating resistor (in filter on pump)

R38

SB

4

V056

AdBlue supply metering solenoid valve

Y89

SB

2

V055

Engine water circuit by-pass solenoid valve

Y90

SB

4

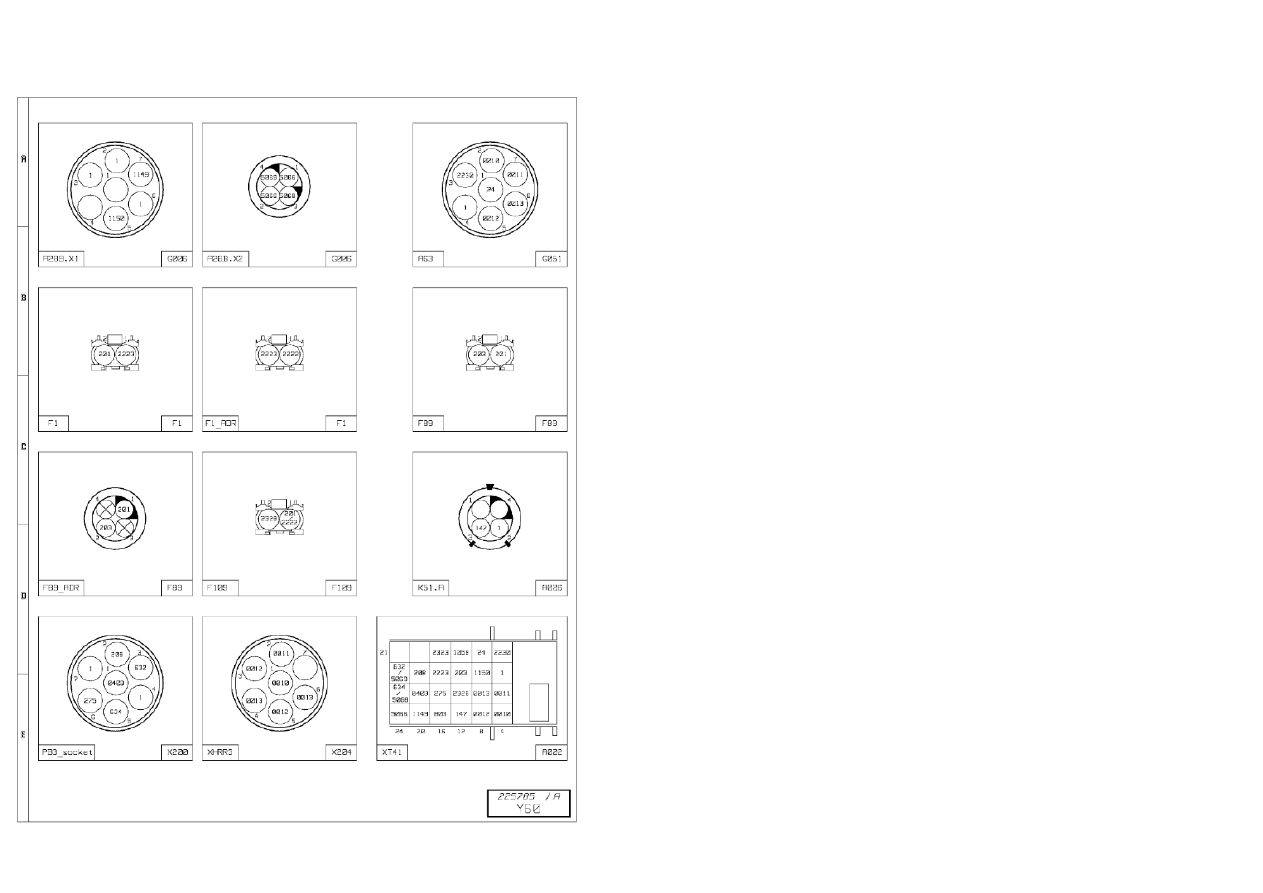

AdBlue wiring harness

2 / 2

1 / 1

Cab / battery tray link-up wiring harness
